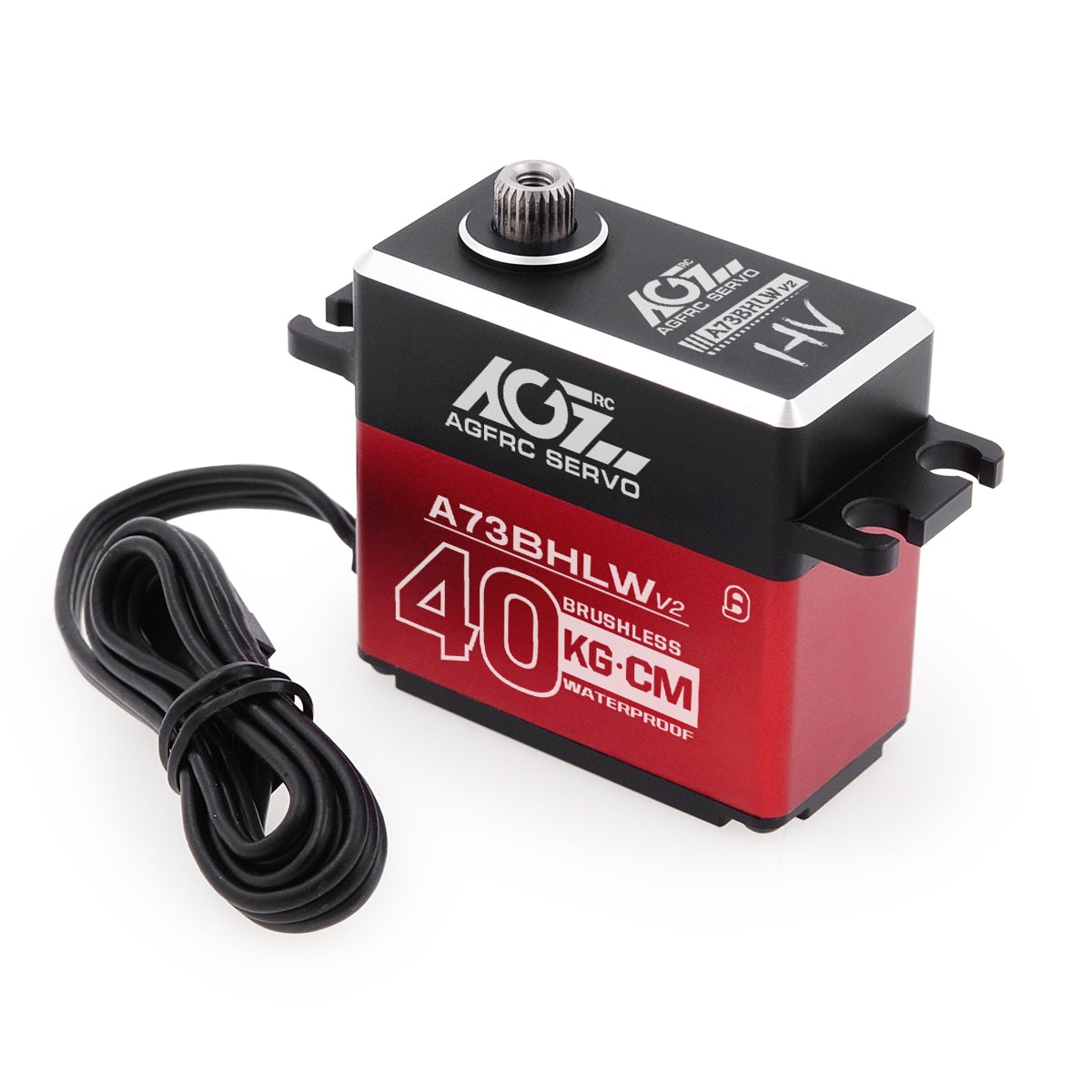

AGFRC A73BHLW HV 40KG High Torque Brushless Waterproof Digital Standard Servo For 1/10 RC Buggy Car ,Rock, Crawler, Truck, Boat, Airplane, Helicopter and Engine etc.

Description

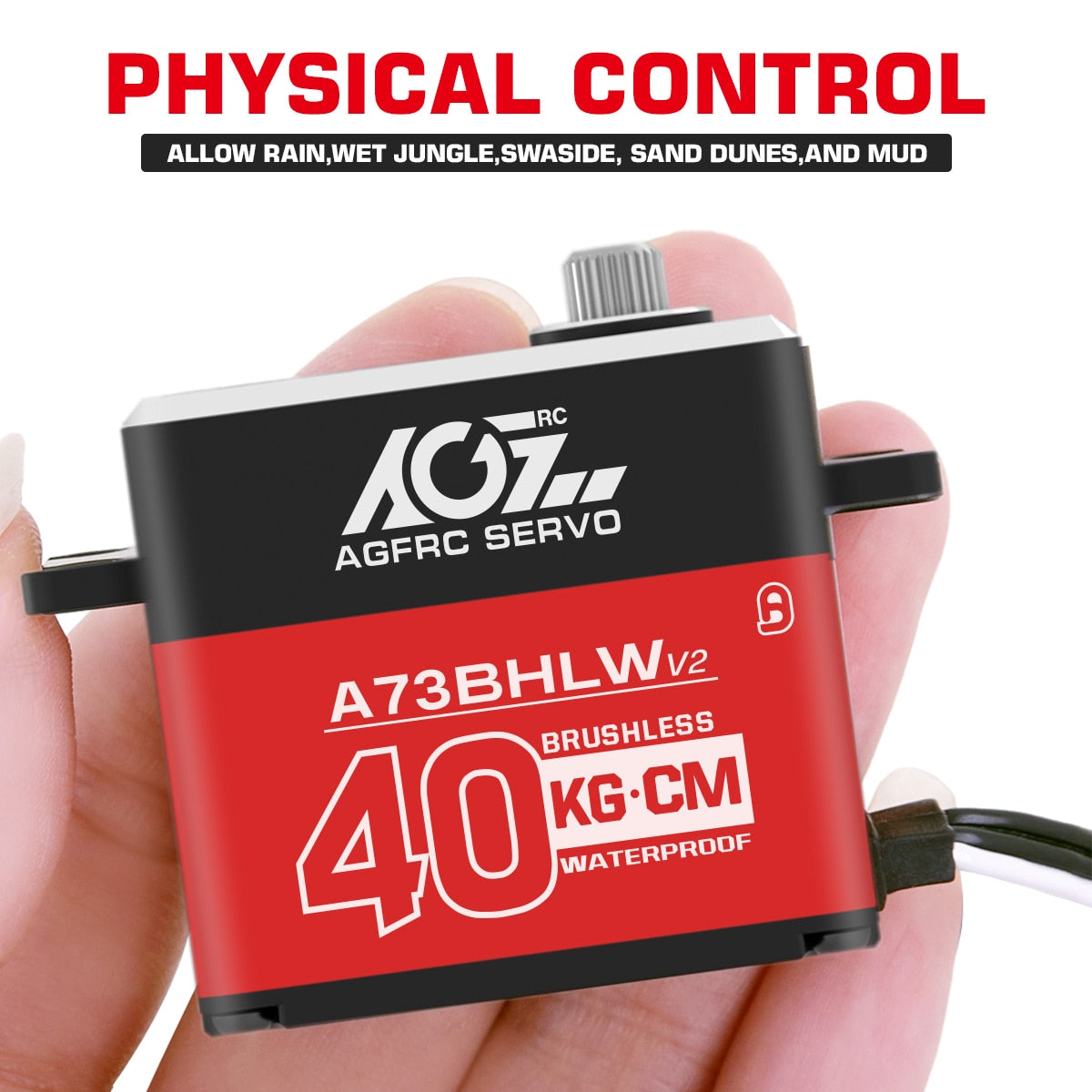

If you want to choose a cost-effective programmable standard servo that can meet most of your requirements, the A73BHLW V2 will be a good choice. It is suitable for a variety of harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud. While retaining the advantages of the original 40KG high torque and high voltage 8.4V, the V2 version has improved the following performance:

* Motor----Enhanced high-efficiency and long-life brushless motor, upgraded to the same powerful motor as A81 series brushless motor servo.

* Gear----High-precision and strong reinforced steel gears are used to effectively protect the internal structure of the servo.

* Gear Shaft----The gear shaft is thickened and strengthened to 2.0mm, which can resist the impact when the model is running, and the anti-collision performance is improved.

With these supports, the servos run more reliably and smoothly. In addition, the price range of the V2 version is still within the range that most customers can accept without much change, and it is a practical budget servo.

Feature

Feature

High Performance Standard Digital Servo

Fast Cooling Aluminum Case

Reinforced Steel Gear And Pin Shaft

High Strength Dual Ball Bearings

Fully Waterproof IP67

High Precision Magnetic Angular Position Sensor

High Quality & High Efficiency & Longer Lifetime Brusheless Motor

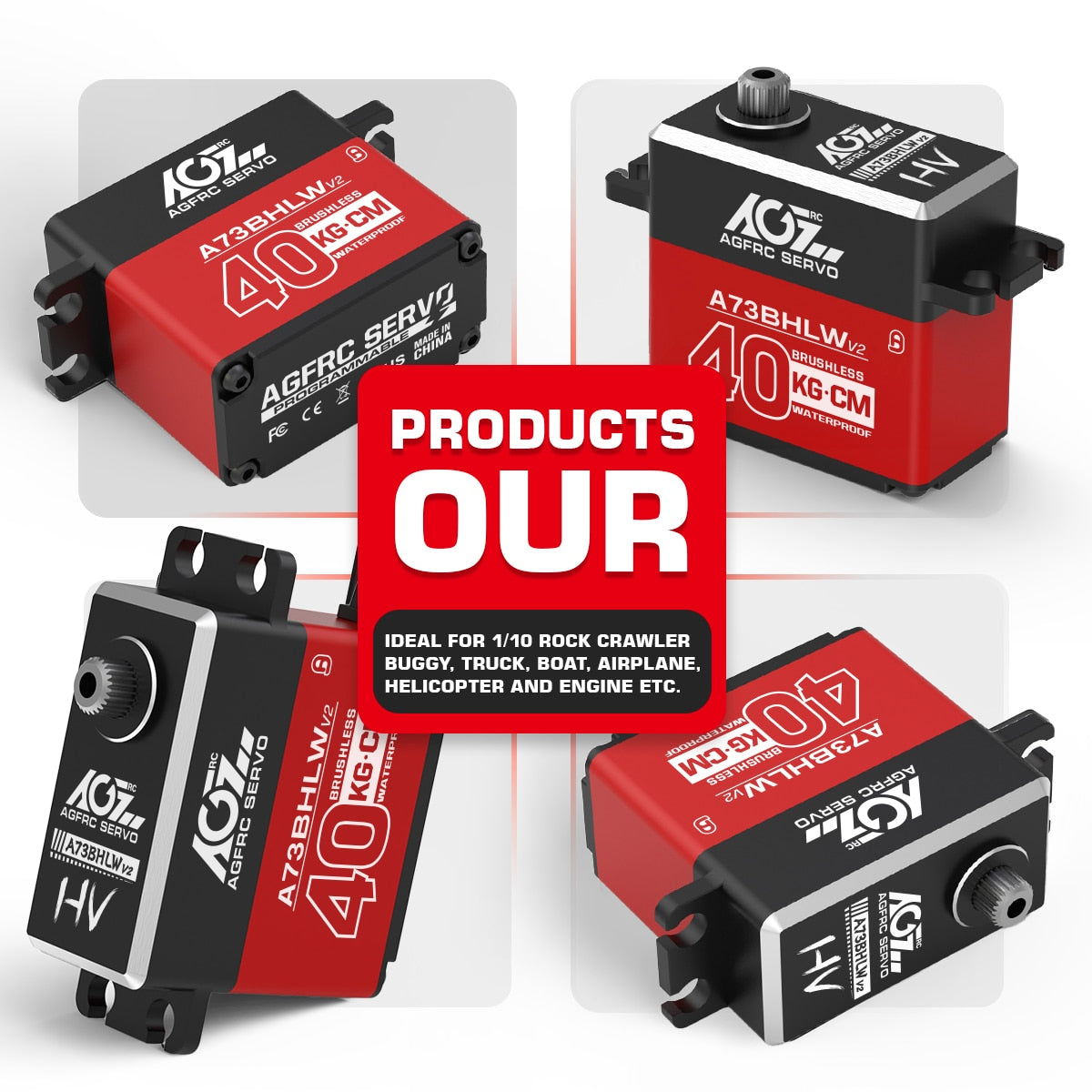

Ideal for 1/10 Rock Crawler, Buggy, Truck, Boat, Airplane, Helicopter and Engine etc.

Upgrade on 1/10 Traxxas MAXX 4S Car: https://www.youtube.com/watch?v=FFz_PbTY6S4

Drive Test on Traxxas MAXX 4S Car: https://www.youtube.com/watch?v=54yeRWfIOe0&t=337s

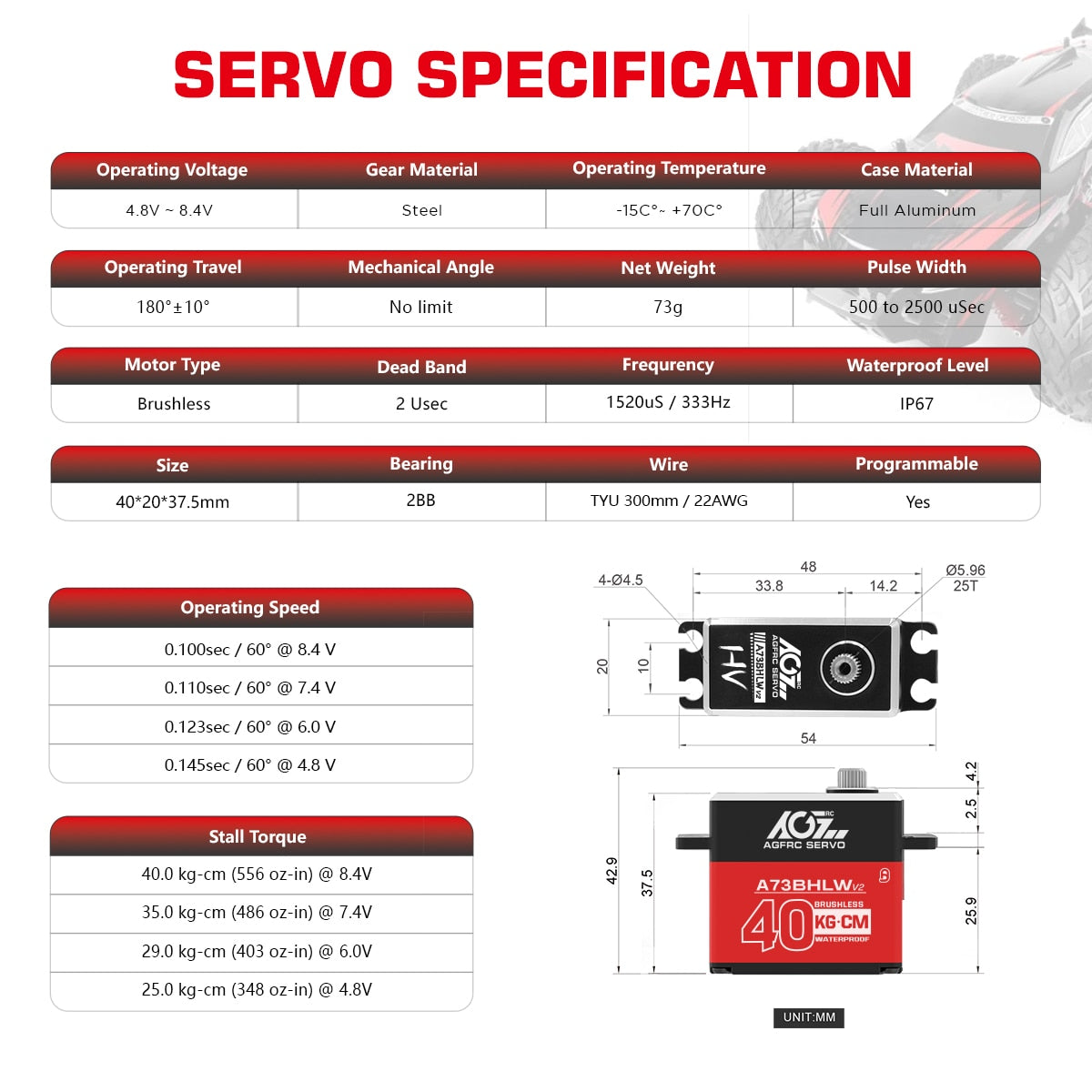

Specification

A73BHLW V2

Operating Voltage: 4.8-8.4V

Operating speed: 0.123sec/60° @ 6.0V

Operating speed: 0.110sec/60° @ 7.4V

Operating speed: 0.100sec/60° @ 8.4V

Stall Torque: 29 kg-cm (403oz-in) @ 6.0V

Stall Torque: 35 kg-cm (486 oz-in) @ 7.4V

Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V

Gear: Steel

Motor: Brushless

Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)

Weight: 73.5g

Connector Wire: JR 300 mm /22AWG

Features a Waterproof High-Torque Brushless Design, this AGFRC A73BHLW V2 Servo offers Premium Performance with a Steel Gear Construction and High-Precision Magnetic Sensor. It's a Digital Programmable Servo that runs on an 8.4V Wide Voltage System.

Equipped with a Premium Digital Model, this Servo features high-torque performance, a durable metal construction, and precise control.

Specifications: * Operating Angle: 180° + 10.8° * Power Requirements: + 8.4V, 40kg (max) + 7.4V, 35kg (max) + 6.0V, 29kg (max) * Response Time: + 40°/600ms: 0.100 seconds + 60°/600ms: 0.110 seconds + 180°/600ms: 0.123 seconds

Premium Digital Servo by AGFRC (ARCR C, KC5, KO5E) - Designed to be the Master of your Model! Key Features: Operating Voltage: 4-7V; Operating Temperature: 47°C to 72°C; Pulse Width: Not specified.
