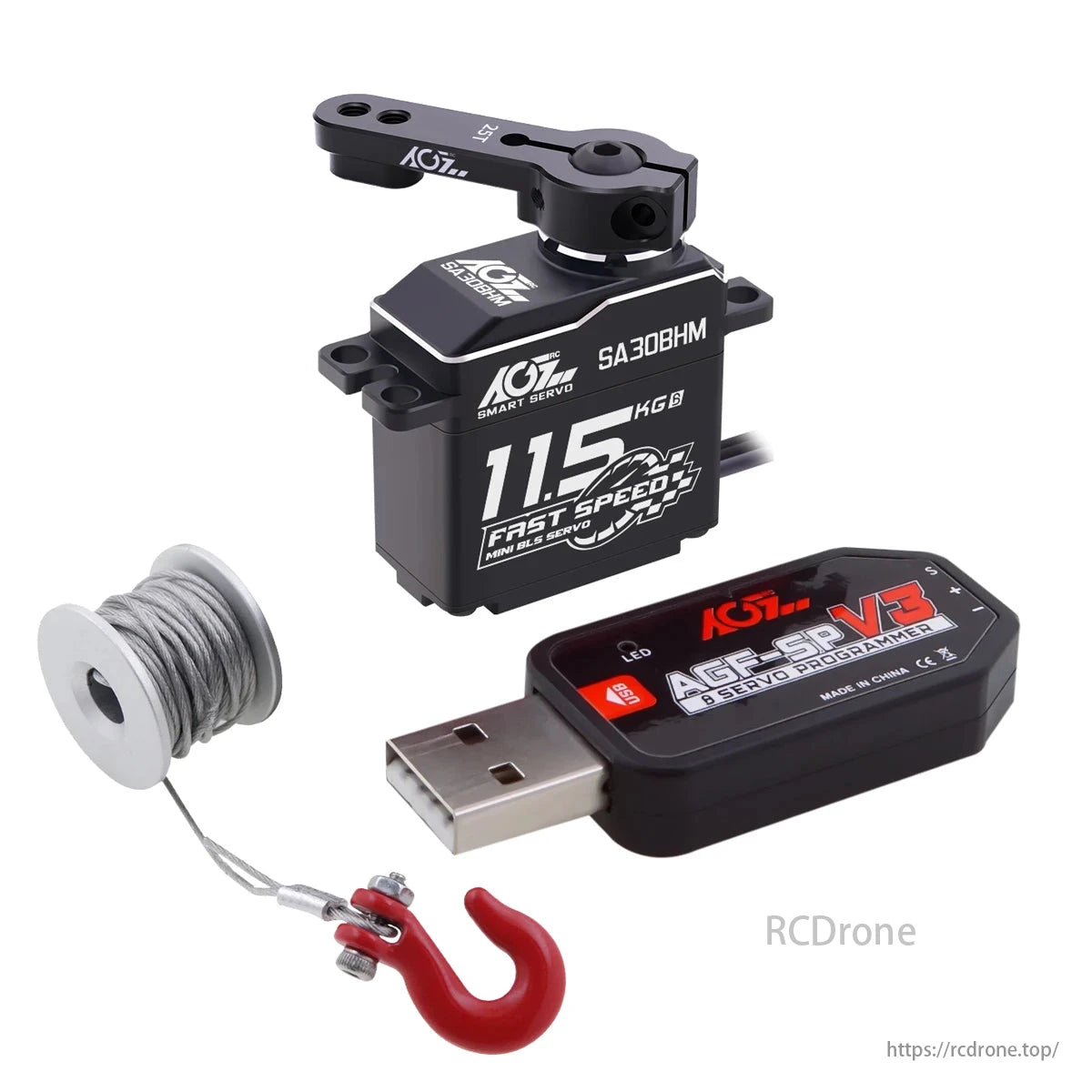

NEW Product Smart AGFRC SA30BHM Titanium Gear HV High Speed 11.5KG Programmable Motor Brushless Mini Steering RC Servo Part Ideal for 1/12 Pan Car,RC Motorcycle, 1/16 RC Car, Rock Crawler, Truck, Robot, Airplane etc.

AGFRC SA30BHM is brand new mini size high torque brushless smart servo, only 32g super light weight with full aluminum case. Metal gear chain and structure make it stronger and reliable to use. Fast response and high precision. With the help of brushless motor, it brings 10.5kg super high torque and 0.068sec fast speed at 7.4V. Standard 25T spline more common use design, which is more durable for impact force. Programmable smart feature allow to change to the firmware for regular and winch servo usage. It is not only fit well with 1/12 pan car, but also perfect for more RC models like electric motorcycle, Robot, mini crawler, Buggy. If you need economic version, the waterproof plastic case B24CLM is the good option.

Feature

Fully CNC Aluminium Case

High Performance Digital Servo

High Precision Titanium Gear

High Power Brushless Motor

Durable 25T Standard Spline

Smooth Double Ball Bearings

Support various ultra-high-speed modes like SSR, SUR, SXR, SR

Smart Feature for Regular and Winch Usage Via USB Programmer

Ideal for 1/12 pan car, 1/8 RC Motorcycle, 1/16 RC Car, Rock Crawler, Truck, Robot, Airplane etc.

Specification

Model Name: SA30BHM

Operating Voltage: 4.8-8.4 V

Operating speed: 0.100sec/ 60° @ 4.8V

Operating speed: 0.082sec/60° @ 6.0V

Operating speed: 0.068sec/60° @ 7.4V

Operating speed: 0.060sec/60° @ 8.4V

Stall Torque: 8.0 kg-cm (111 oz-in) @ 4.8V

Stall Torque: 9.0 kg-cm (125 oz-in) @ 6.0V

Stall Torque:10.50 kg-cm (145 oz-in) @ 7.4V

Stall Torque:11.50 kg-cm (159 oz-in) @ 8.4V

Gear: Titanium

Motor: BLS

Size: 29*14*29mm(1.14*0.55*1.14 in)

Weight: 32g

Connector Wire: TYU 180mm / 26AWG

71SK H4IGH4 TITANIUM GEAR BLS SMART WINCH SERVO 0: I" E R FVa 0 0.0BO3 HiGH SPeED 8.4V HV Mini Servo High Precision CNC Aluminum Case Strong & Durable Dual Ball Bearing Excellent Choice For 1/12 Pan 1/8 RC Motorcycle, Aircraft; Robot etc.

The AGFRC SA30BHM servo features a high-speed programmable motor with brushless technology, suitable for 1/12 or 1/16 scale RC cars and rock crawlers. Key specifications include: pulse width modulation control, refresh rate of 333Hz, neutral position of 1520us, digital signal mode, dead band of 2 microseconds, operating voltage range of 4.8V to 8.4V, temperature range of +5°C to +70°C, and mechanical angle with no limit. The servo also features a double ball bearing system and measures 29mm x 14mm x 29mm in size, weighing 32 grams with a 26AWG wire length of 18cm. Operating travel is up to 1802+108 degrees, with a signal range of 500-2000µs.
