SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: other
Remote Control Peripherals/Devices: other
Tool Supplies: Assembly Category
Model Number: Nano3
Four-wheel Drive Attributes: Assemblage

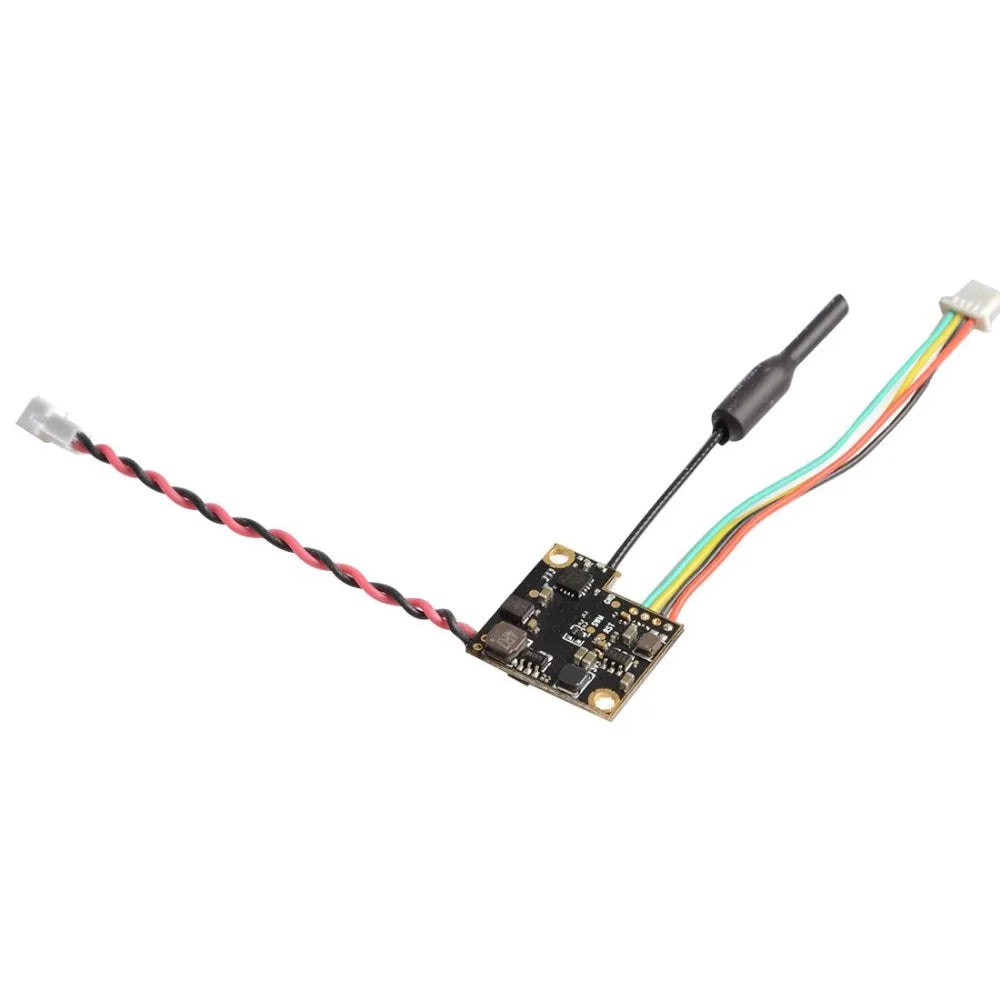

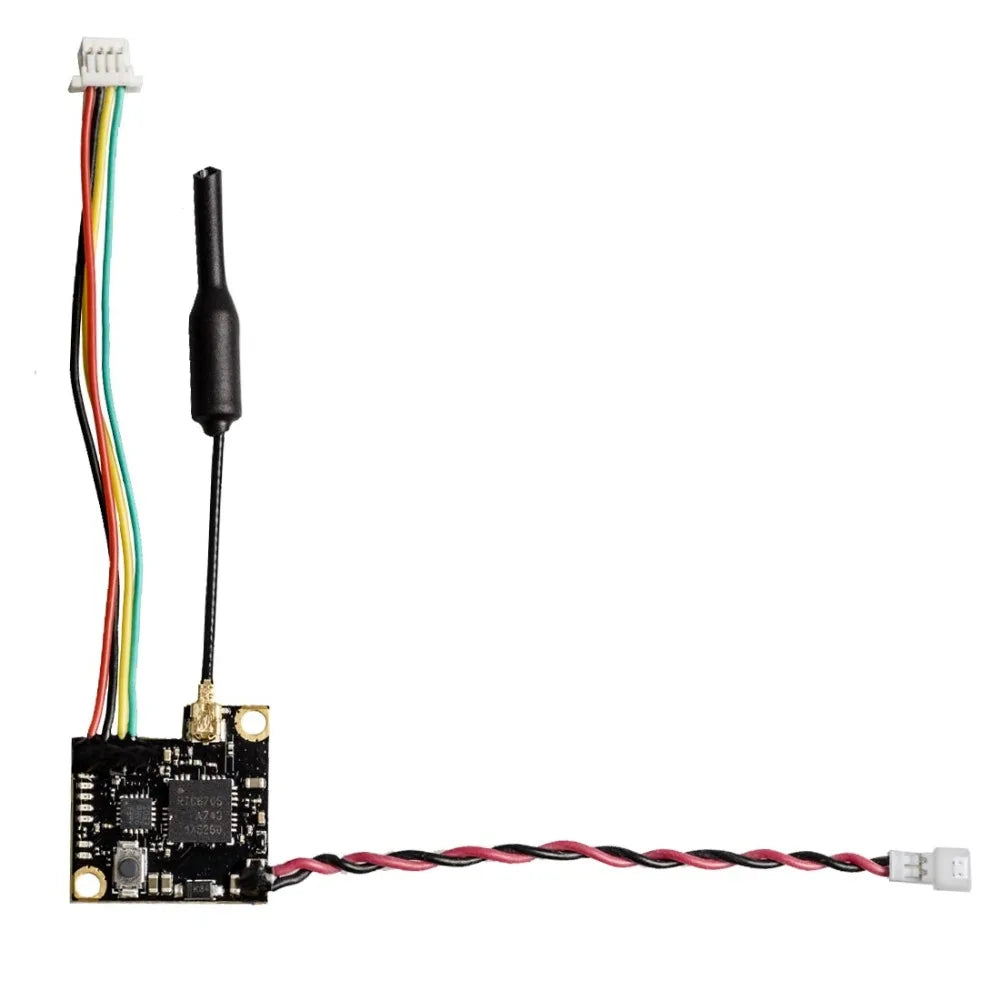

AKK Nano3 OSD configuration VTX:
AKK Nano3 5.8GHz Support OSD Configuring with mounting hole a stackable transmitter designed for Runcam micro and Foxeer micro.The first micro stackable vtx for runcam/foxeer micro with smart audio.
product features:
25mW and 200mW switchable
One button frequency and power setup
OSD configuration using smart audio
Specification:
Support Pit mode (0.01MW)
power supply: 5v camera @ under 300mA max.
Output power: 25mW/200mW switchable
Input voltage: 3.2-5.5V
Antenna connector: IPEX
Cable connector: 6pin
Dimension(without mounting hole): 19*19mm
Weight: 2.3g
Enter Pit Mode(0.01MW) Via Betaflight OSD:
You need set pit mode and power off and power on again, then it will enter the pit mode.
To exit Pit Mode:
Long presses the botton until LED won'tflash.

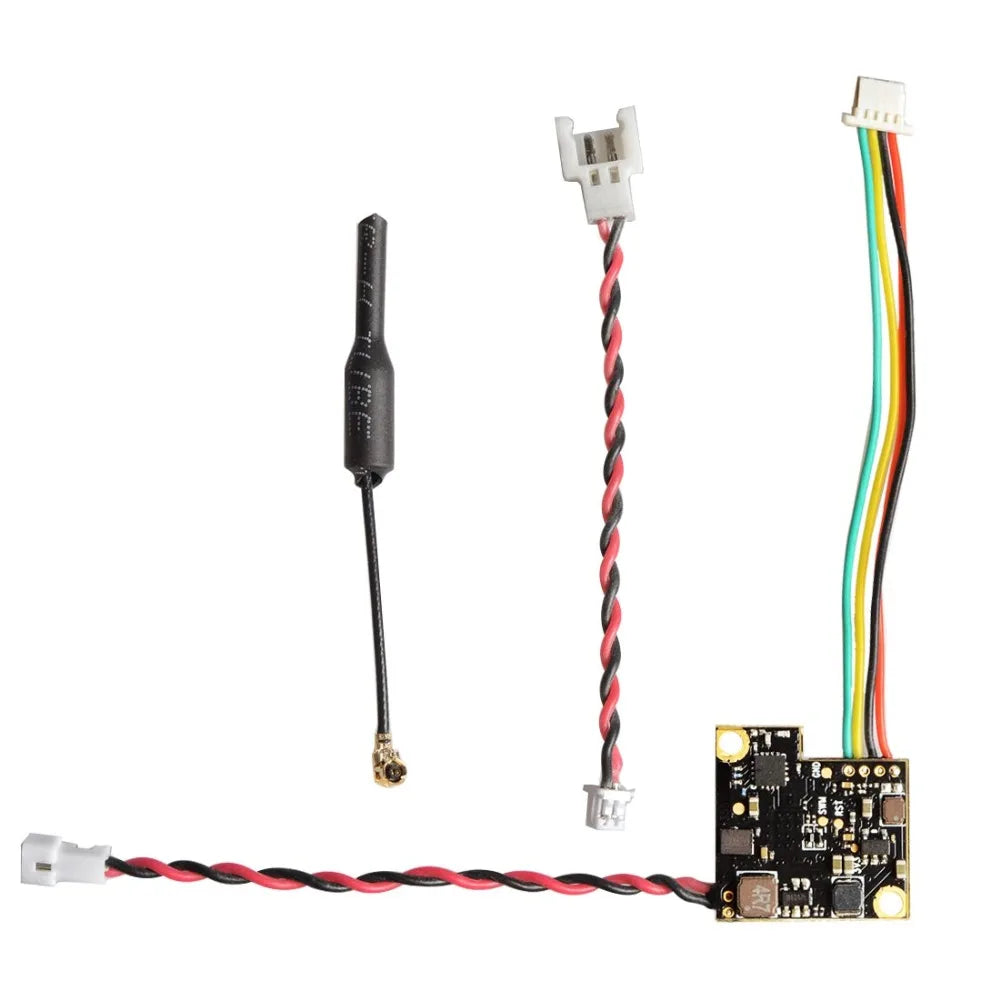

Package includes:
1*Nano3 VTX
1*Cable
1*IPEX Antenna
1*product manual

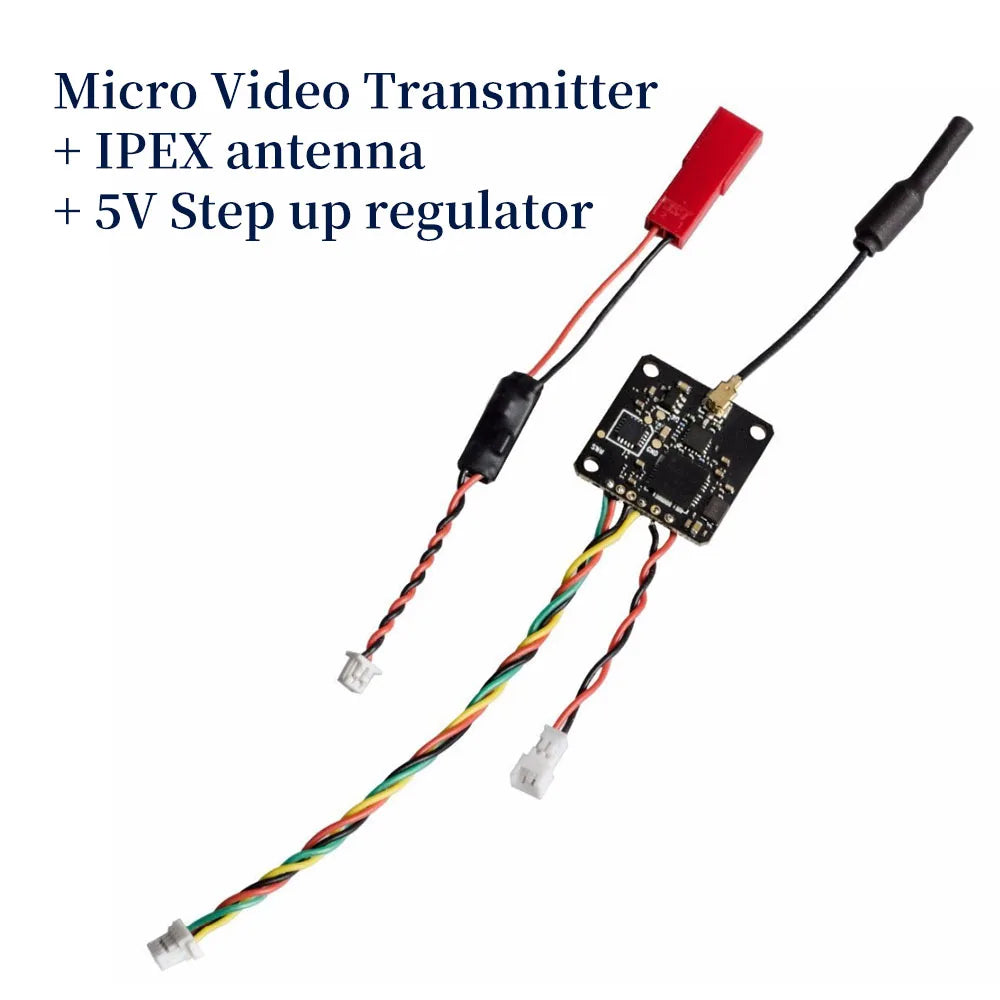

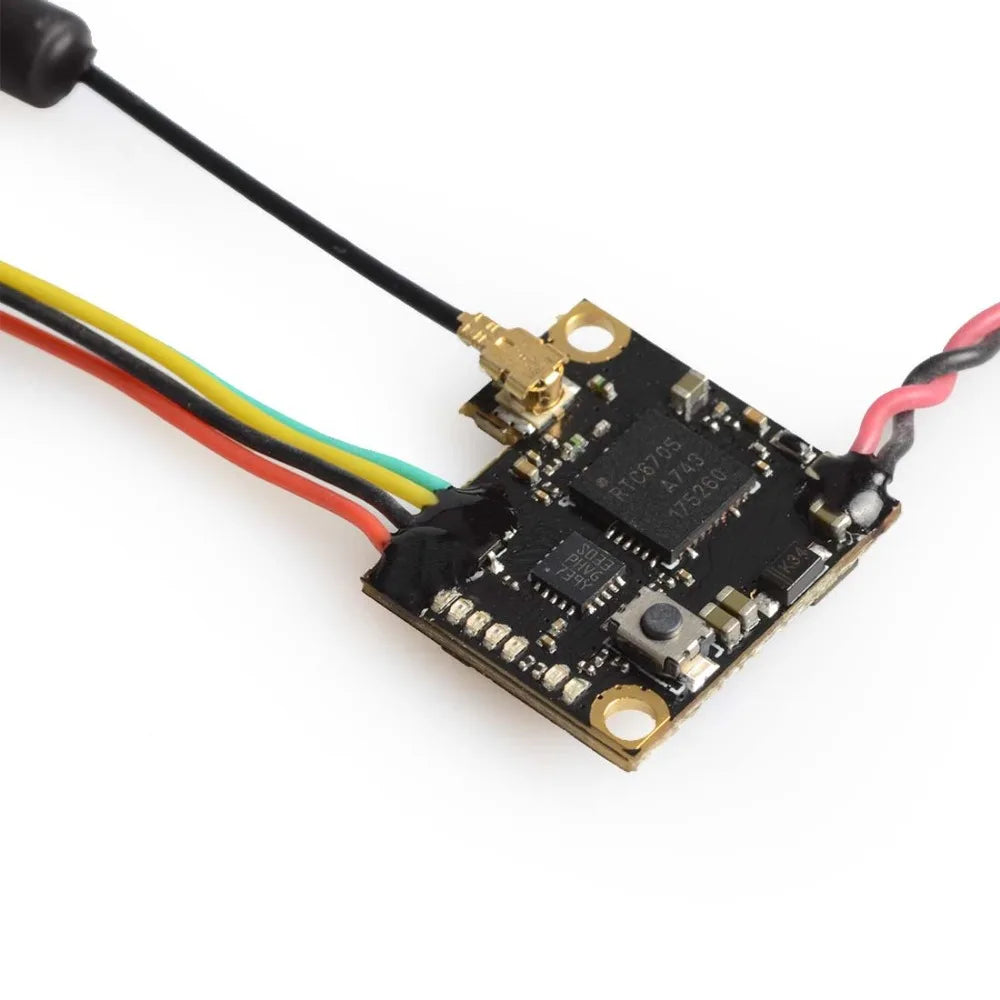

AKK X5 Micro video VTX:
Specification:
Input voltage: 5V
Extra features: FC Uart, Parameter-adjusting Mode(0.01mW)
Built-in BEC: 5V camera @under 300mA
Output power:
25mW:100mA @5V
50mW:120mA @5V
100mW:180mA @5V
200mW:220mA @5V
Antenna connector: IPEX
Port connector: JST,6pin
Dimensions: 20(W)X20(D)mm, 16X16mm(hole)
Weight: 2.5g(excluding antenna)
Kit contents: 1XVTX, 1XUFL pigtail
AKK X5 5.8G 40CH with IPEX Antenna Connector 25/50/100/200mW Switchable FPV Transmitter with FC Uart Support OSD Configuring
Feartures:
It’s similar to the FX2 but has a smaller profile that uses 20x20mm mounting pattern, which be designed for smaller micro builds.
One cool feature about this VTX is that you can mount it on top of your mini FC/PDB stack thanks to the 16x16mm mounting pattern.
OSD configuration using FC Uart (F3/F4/F7 with OSD)
Built-in BEC: 5V camera @under 300mA
One button frequency and power setup
25/50/100/200mW power switchable
Note :
Before powering the VTX up, it's very important to first installed antenna otherwise the product will have static
The vtx can power up 5V camera @ under 300mA
