AKK Race Ranger 5.8G VTX SPECIFICATIONS
Brand Name: AKK
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Receivers
Tool Supplies: Grinded
Quantity: 1 pcs
Technical parameters: Value 4
Four-wheel Drive Attributes: Assemblage
Color: As pictuture shows
Specification:
Input voltage: 7V-28V
Extra features: smart audio 1000mW
Power supply: 5V camera@under 500mA max
Output power: 200mW 400mW 800mW 1600mW(International version)
Antenna connector: MMCX
Cable connector: JST.6pin

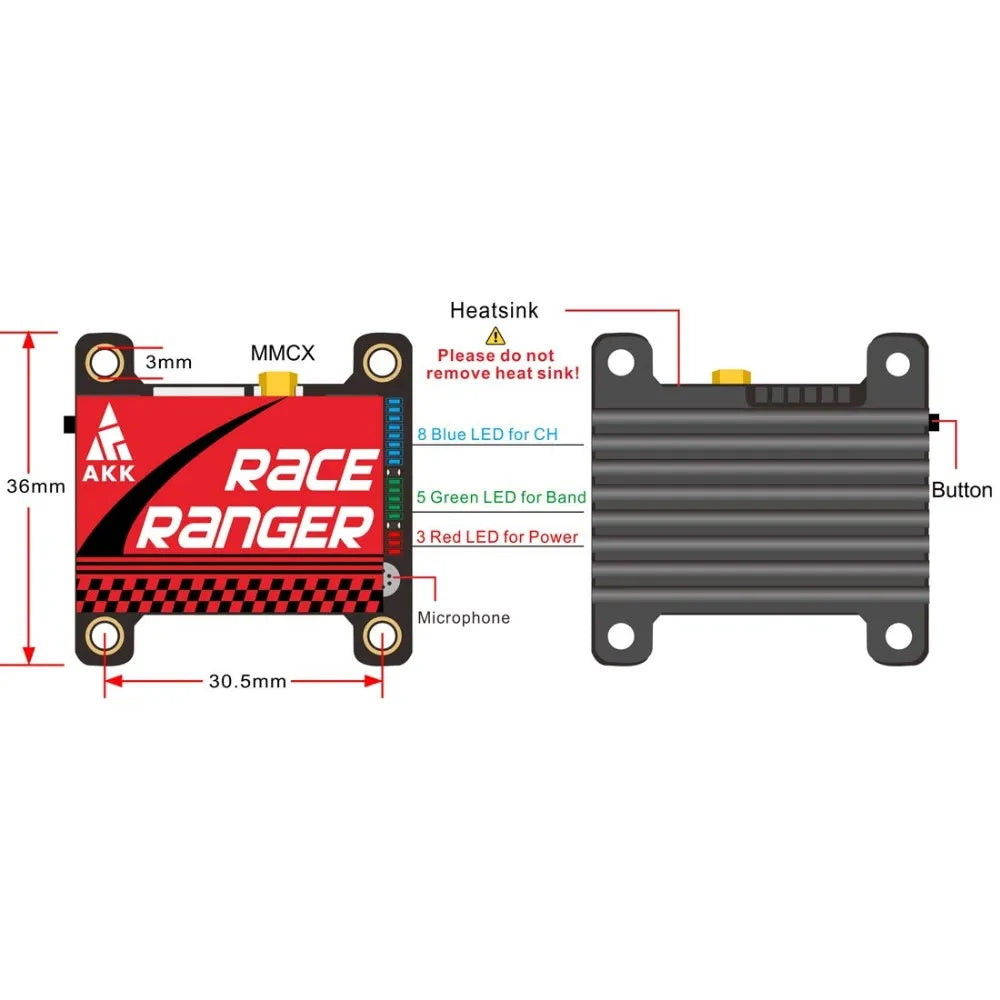

Dimensions: 36(W) x 36(D)mm, 30.5 x 30.5mm(hole)
Weigh: 9.6g(excluding antenna)
Blue ED for CH 36mm AkK RaCE Button Green ED . for Band RaNGER 3 RedLED for Power Microphone 30.Smm Specification Input voltage 7V to 28V Smart audio Extra features 1600mw Power supply SV Camera @ under 5OOmA max: Output power 20OmW/4OOmWI8OOm WI6OOmW Antenna connector MMCX Cable connector JST, 6pin Dimensions 36 (W) x 36 (D) mm,

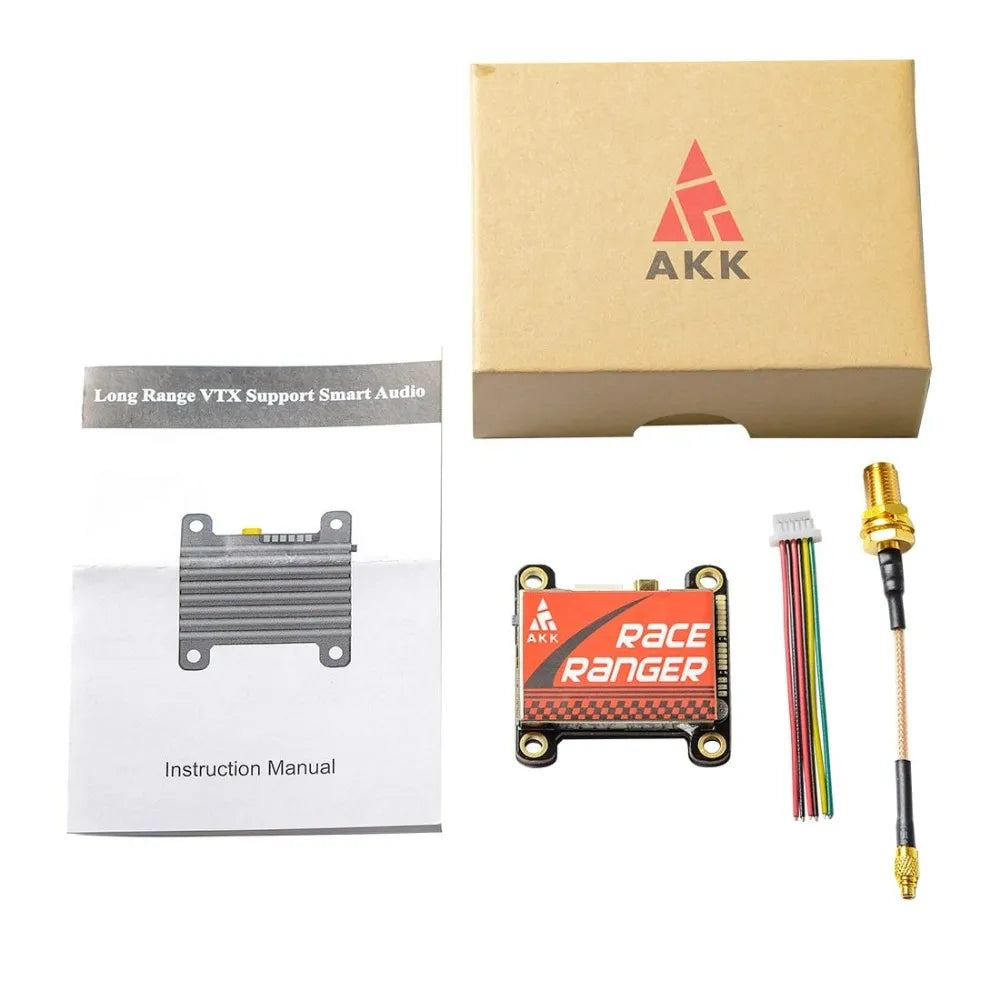

1 x Race Ranger VTX
1x MMCX Antenna
1 X cable
1x Product manual
Heatsink 3mm MMCX Please do not remove heat sinkl Blue LED for CH 36mm AKK RacE Button Green LED for Band RaNGER 3 Red LED for Power Microphone 30.5
