AKK TS5823L/TS5828L VTX - 5.8G FPV Audio Video Transmitter RP-SMA Female for Mini FPV Quadcopter

AKK TS5823L/TS5828L VTX - 5.8G FPV Audio Video Transmitter RP-SMA Female for Mini FPV Quadcopter

AKK

Regular price $25.00 USD
Sale price $25.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

189 orders in last 30 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

AKK TS5823L/TS5828L VTX SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: Composite Material

Recommend Age: 6-12y

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: other

Remote Control Peripherals/Devices: other

Tool Supplies: Assembly Category

Model Number: TS5828L/TS5823L

Four-wheel Drive Attributes: Assemblage

PICKED FOR YOU

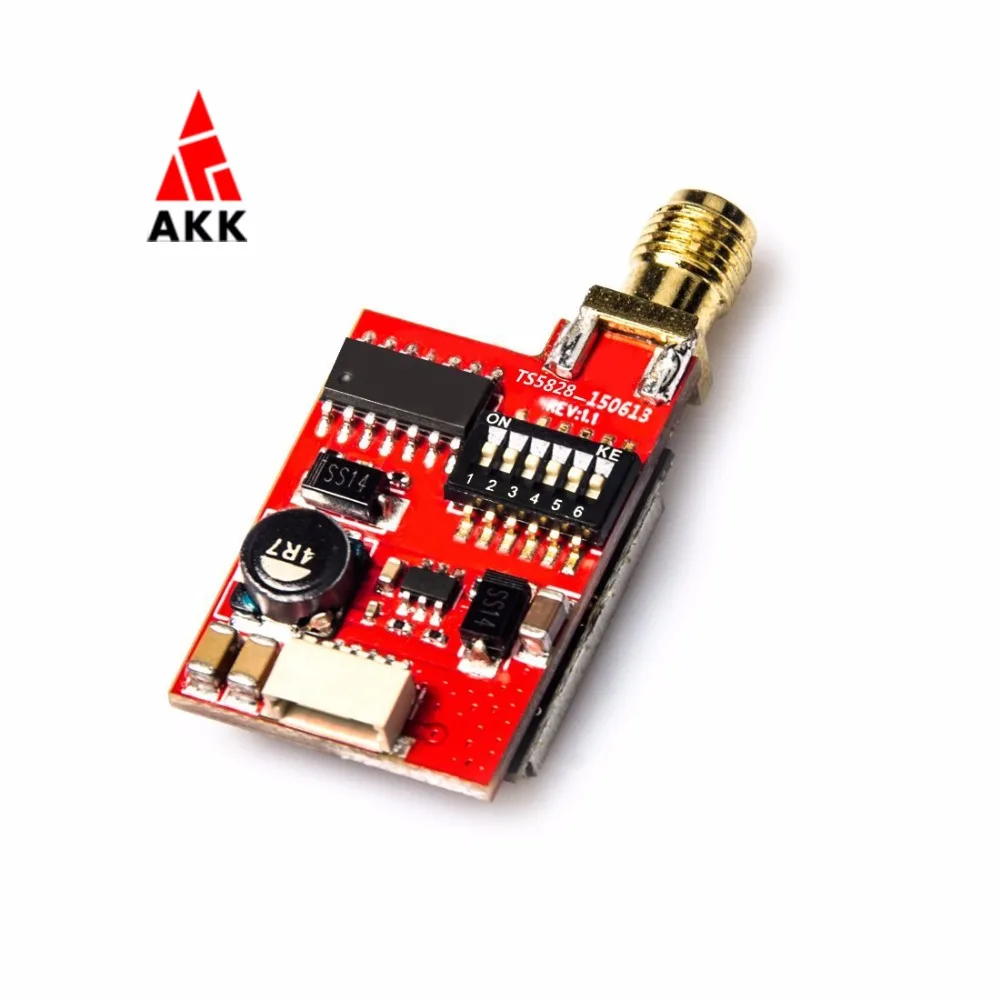

AKK TS5828 5.8G 600MW 32Ch FPV Audio Video Transmitter RP-SMA Female for Mini FPV Quadcopter

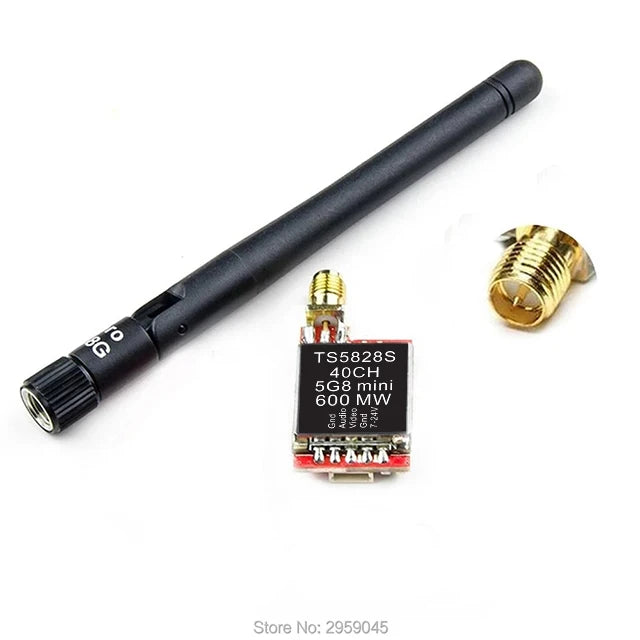

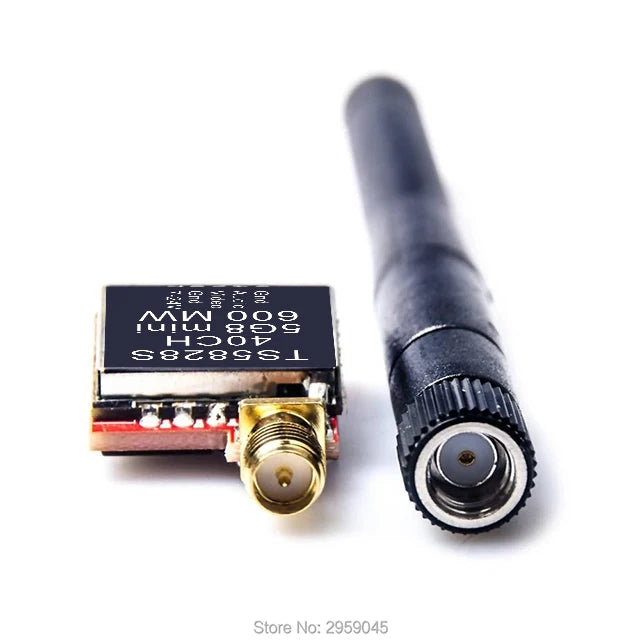

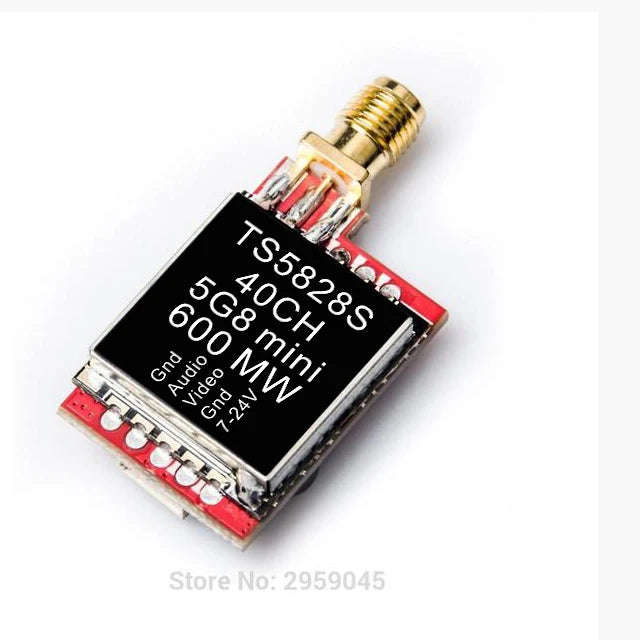

Note: TS5828 has been advanced, updated version is TS5828S, TS5828S is 40CH and 2 accessories.if you ordered transmitter TS5828, We will send you TS5828S( updated version).


Description:

iterm name: AKK FPV Transmitter TS5828

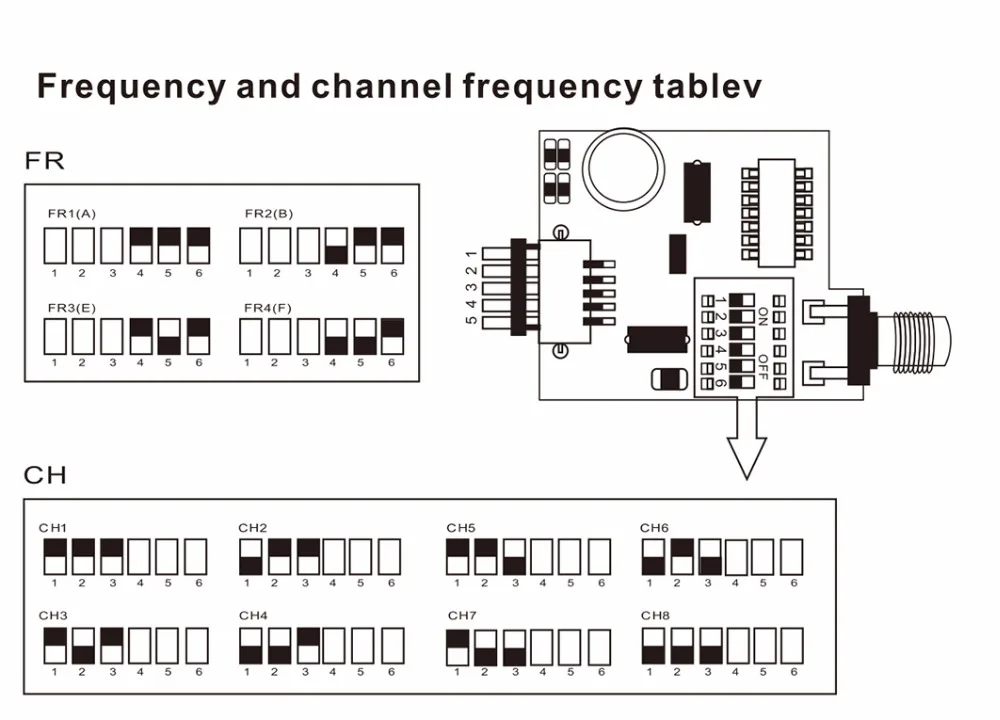

32channels: Cover A, B, E, F, bands
Frequency: 5.8G
Operating Voltage: 7.0-24V
Supply Current : 280mA

Output Power: 27-28dBm

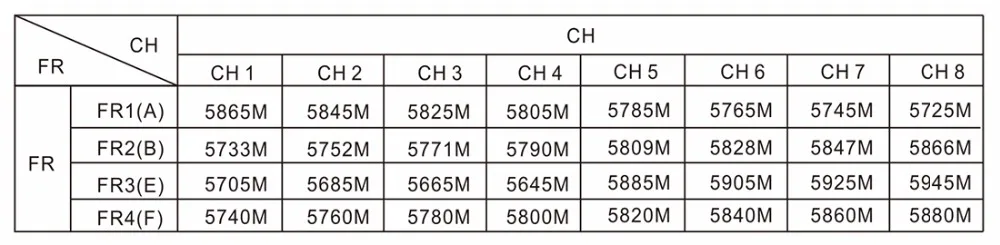

Transmitter frequency range: 5645-5945MHz
Output Impedance: 50 Ohm
Suit for mini to mid-sized quadcopter
Video Format: NTSC/PAL
Antenna Connector: RP-SMA Connector
Output Power: 27-28dBm
Operating Temperature: -10-+85 C
Video BandWidth: 0-8.0 MHz
Video Input Level: 0.8-1.2 Vp-p

Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm
Audio Carrier Frequency: 6.5 MHz
weight:15.5g
size:39 x19x8mm


Features:
This 5.8G 32CH 600MW Mini AV Transmitter, designed for areas with too many frequencies in the air.
Small size and light weight,easy to changing CH,32channels: Cover A, B, E, F, bands, transmitter frequency range is 5645-5945MHz.

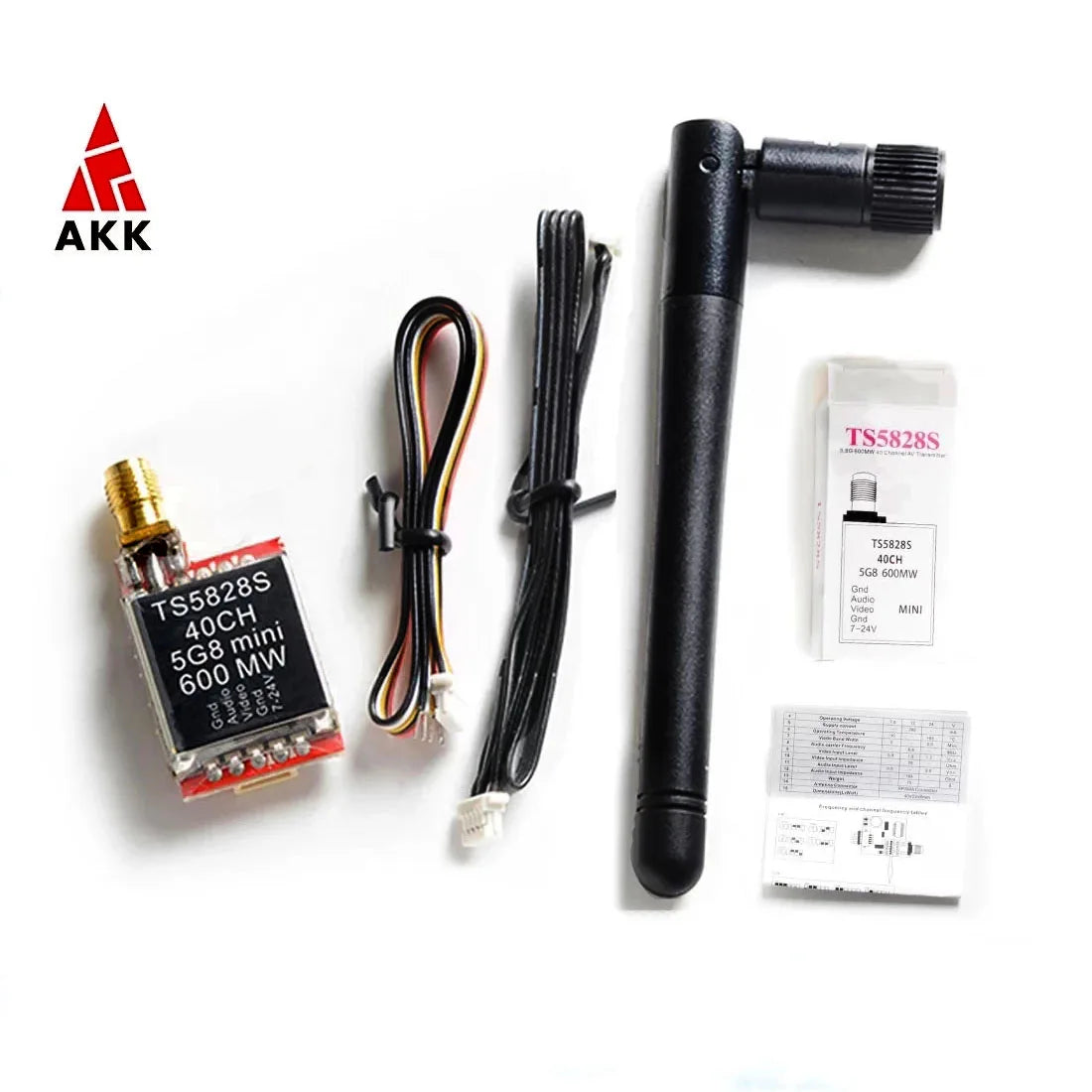

Package Included:
1 x TS5828 Transmitter
1 x Antenna
3 x Connect Cables
1 x Product manual

Product shows



*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX.

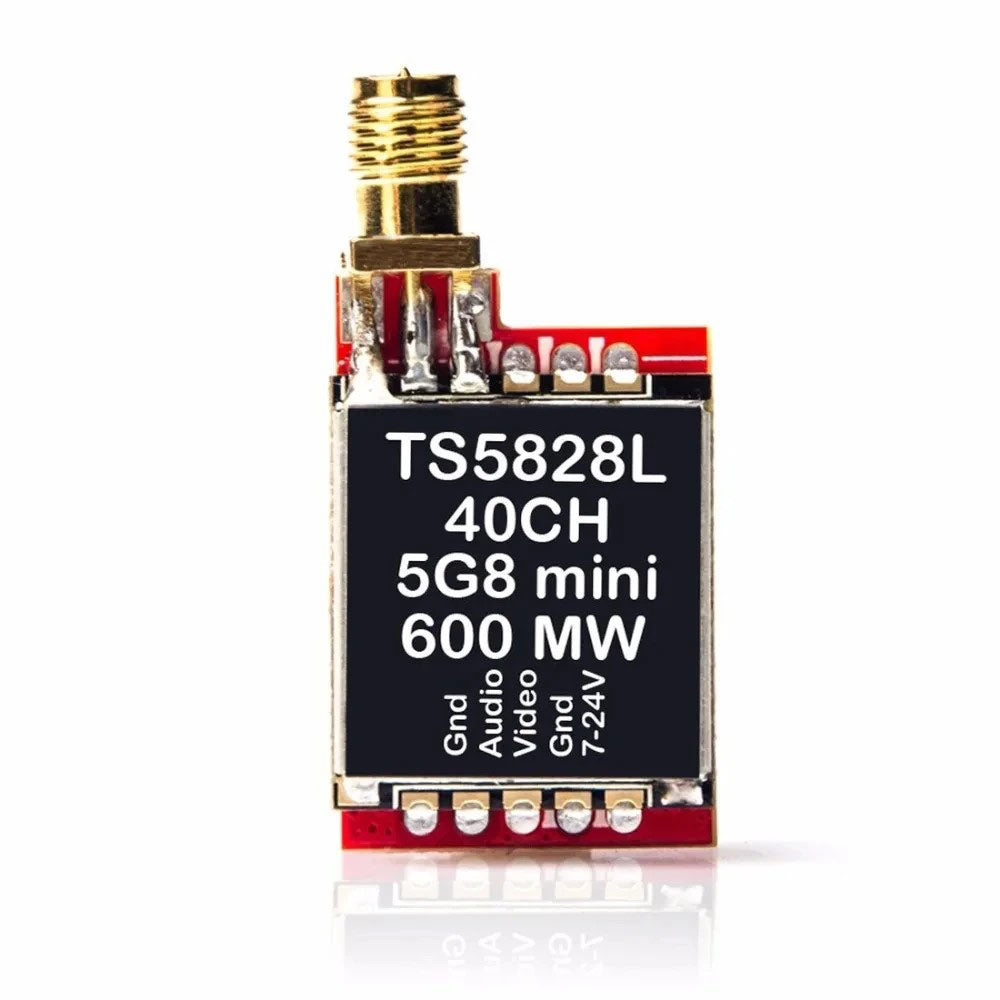

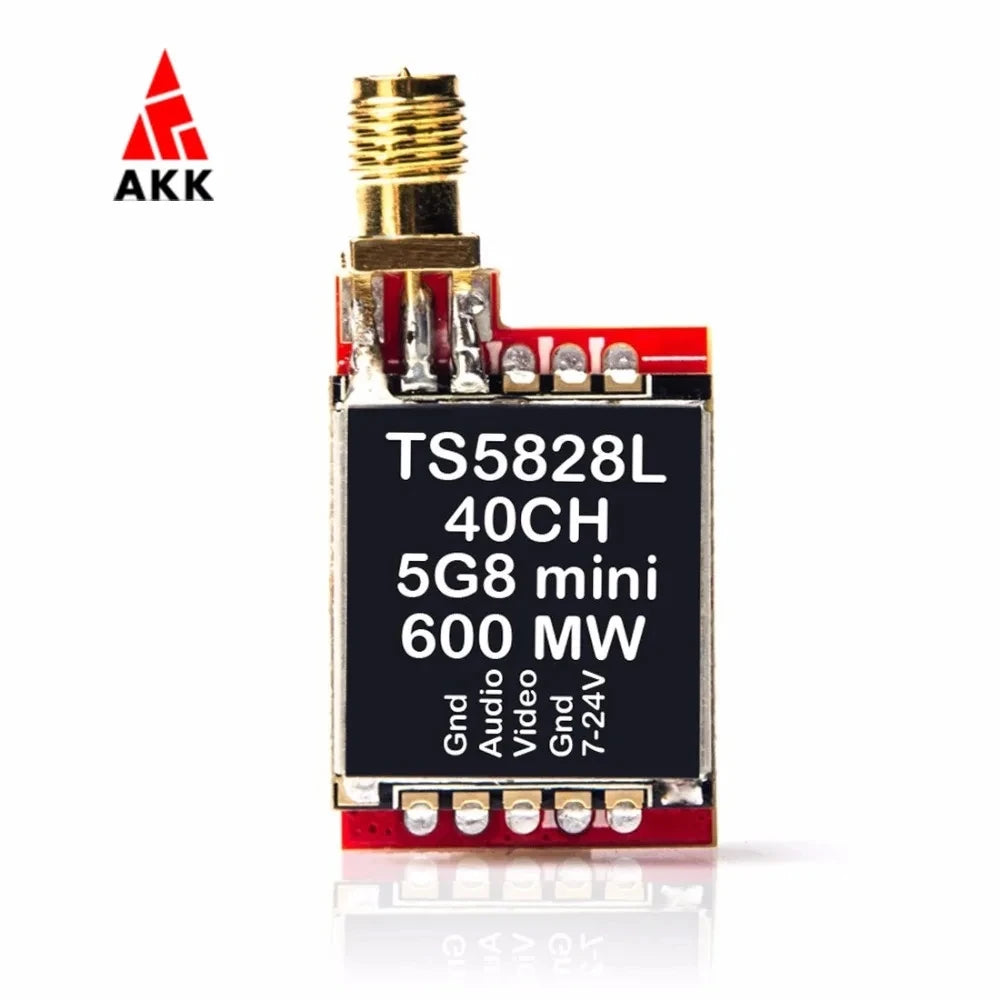

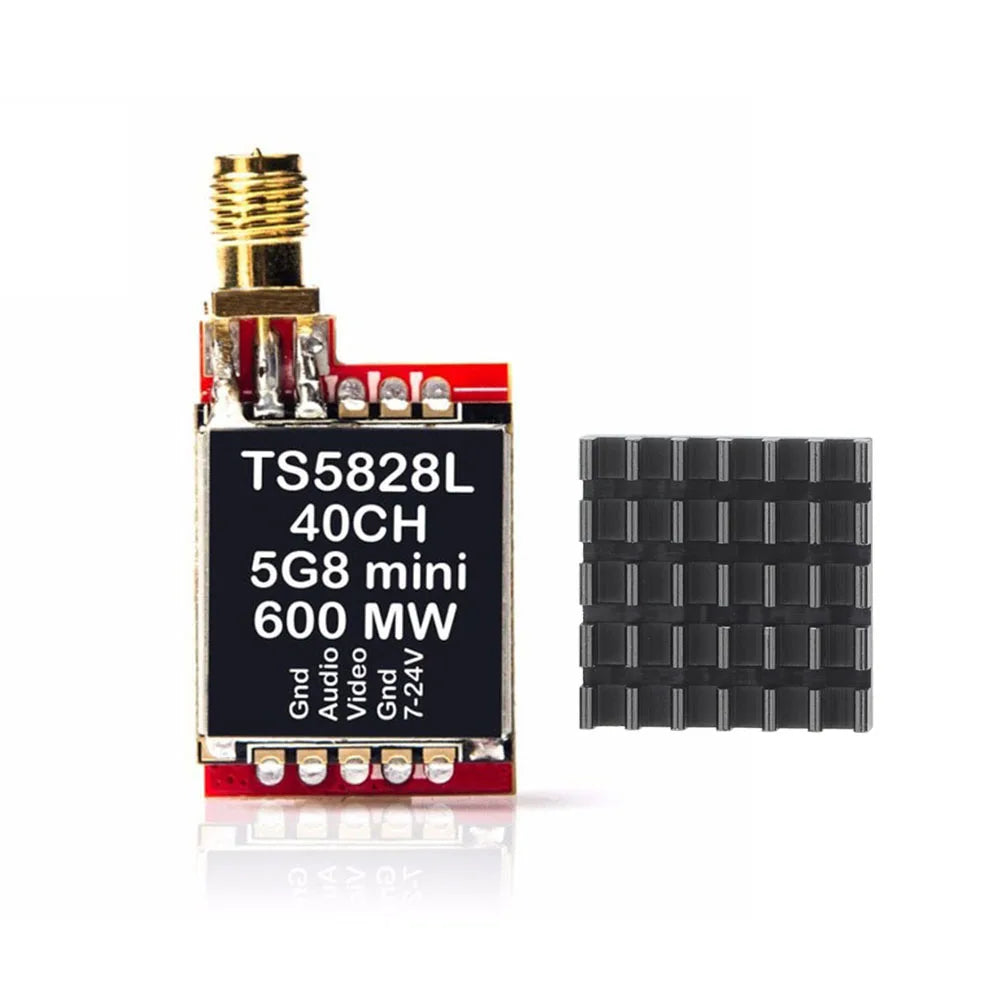

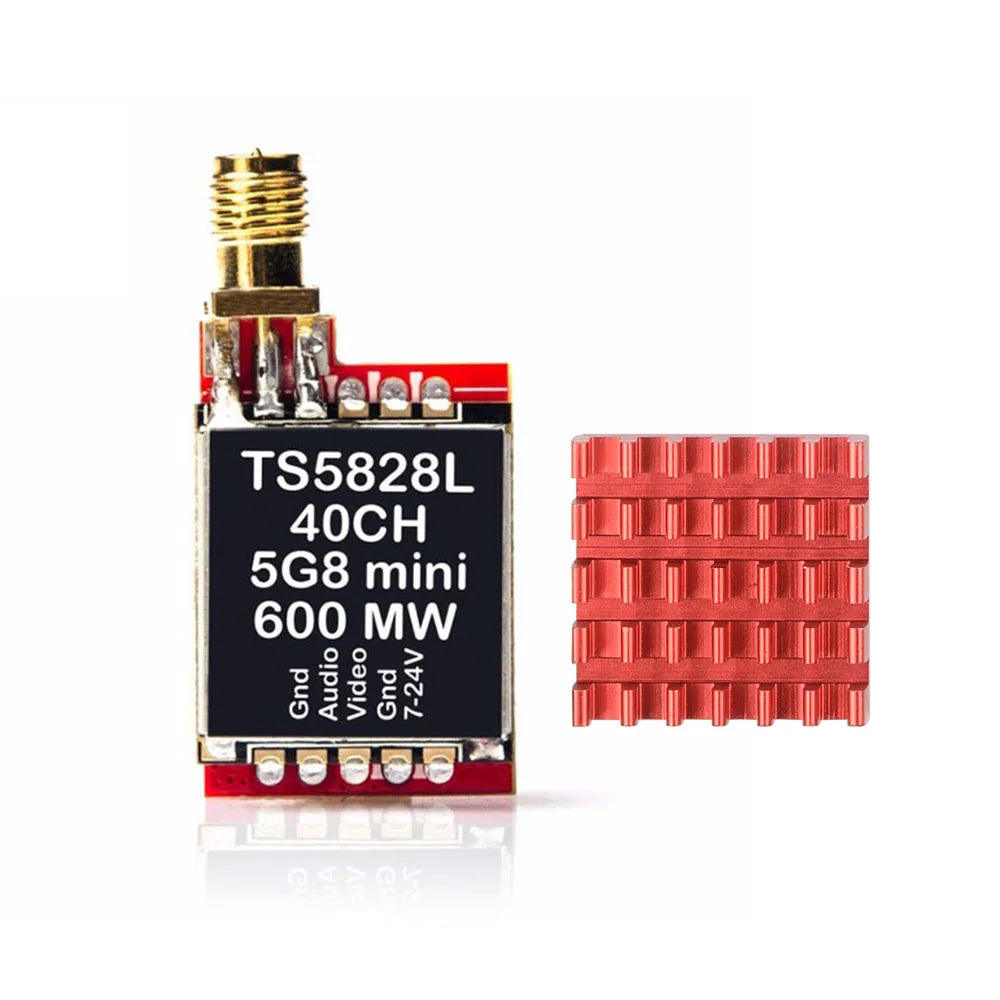

AKK FPV TS5828L 5.8G 600MW 40Ch Mini AV Transmitter for FPV Multicopter

600MW Mini AV Transmitter 40CH with digital display

Small size and light weight

40channels: Cover a, b, E, F,R bands

Supply Current : 280mA ,Video Format: NTSC/PAL

Audio Input Level : 0.5-2.0 Vp-p


Specification:

Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 27-28dBm
Operating Voltage: 7.0V-24V
Supply Current : 280mA
Operating Temperature: -10-+85 C
Video Band Width : 0-8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
ideo Input Impedance : 75 Ohm
Audio Input Level : 0.5-2.0 Vp-p
Audio Input Impedance : 10K Ohm

Package Included:
1 x TS5828L Transmitter
1 x Antenna
1 x Connect Cable

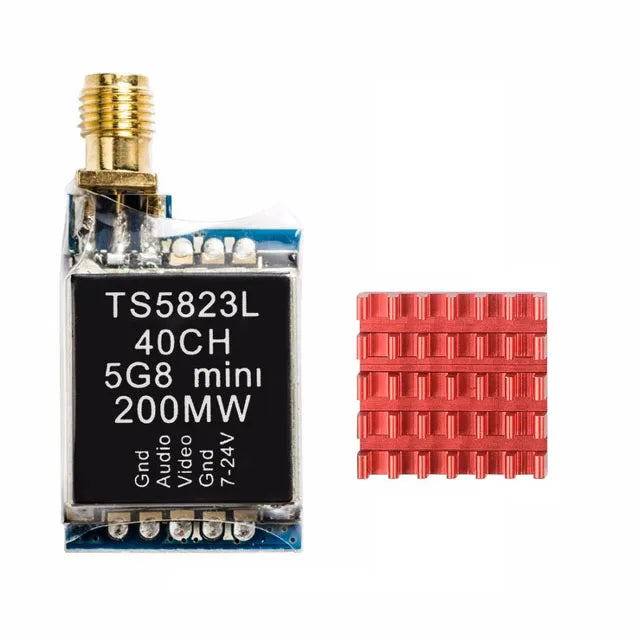

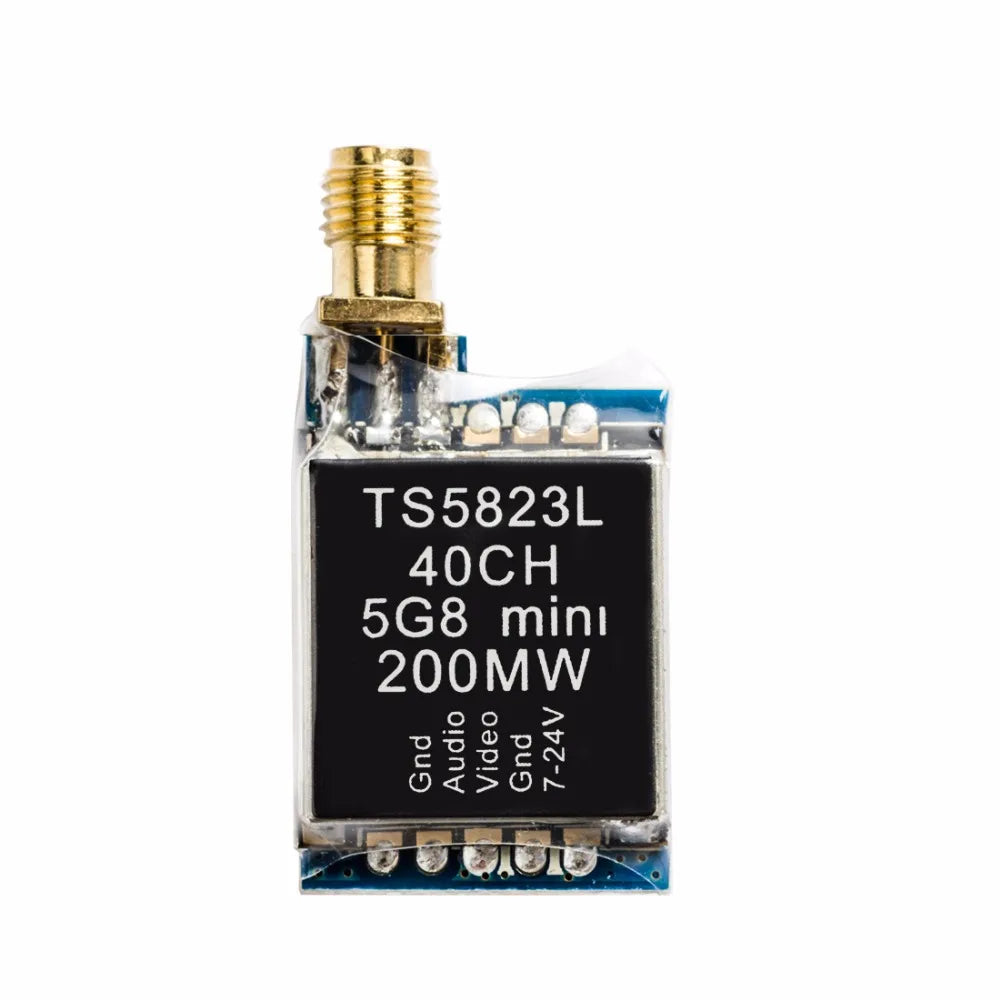

TS5823L Transmitter:

40 channels Cover a, b, E, F,R bands with digital display
Small size and light weight
Operating Voltage: 7.0V-24V
Supply Current : 190mA ,Video Format: NTSC/PAL
Audio Carrier Frequency : 6.5 MHz


Features:
This 5.8G 40CH 200MW Mini AV Transmitter, small size and light weight,easy to changing CH,40 channels: Cover a, b, E, F,R bands, transmitter frequency range is 5645-5945MHz.

Specification:
Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 23-24 dBm
Operating Voltage: 7V-24V
Supply Current: 190mA
Operating Temperature: -10-85 C
Video Band Width: 0-8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm

Package Included:
1 x TS5823L Transmitter
1 x Antenna

1x Connect Cable
