Align T-REX 300X Dominator RC Helicopter Combo Kit RH30E02XW / Super Combo w/ A10 Radio Ready to Fly (RTF) RH30E01XW

Specifications

Details

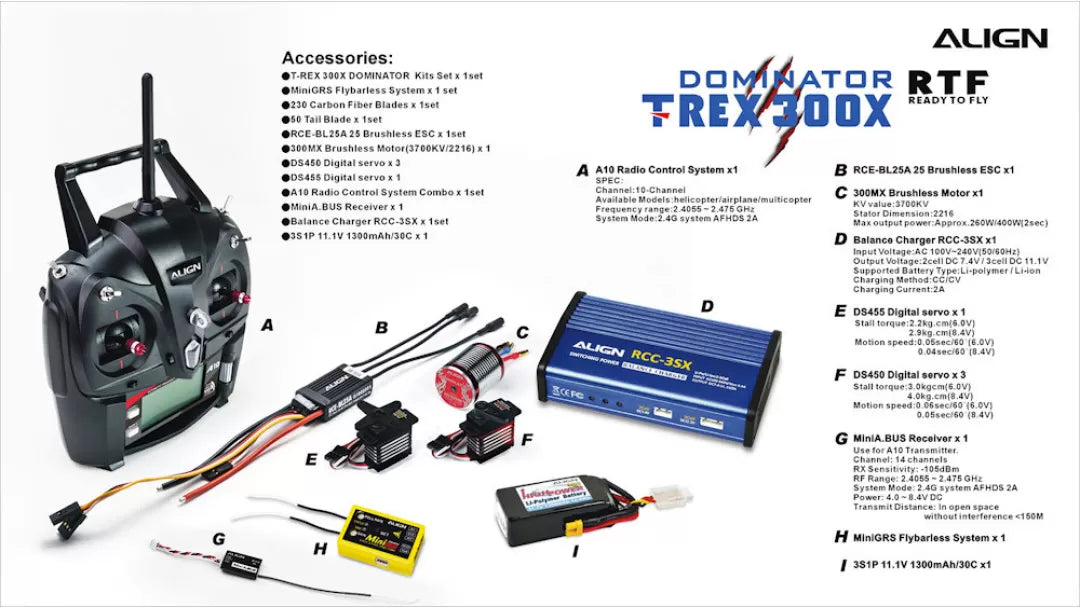

ALICN Accessories offers the T-Rex Joys Dinosaur Kit and other RC systems, including the Pomanator RTF and Flybarless System. The kit includes a 14 joule motor, brushless ESC, and main bus receiver. The Frex Cox RCE DL2SA and 29 Drushless ESC provide power to the aircraft. The system also features an A10 radio control system and various components for assembly.

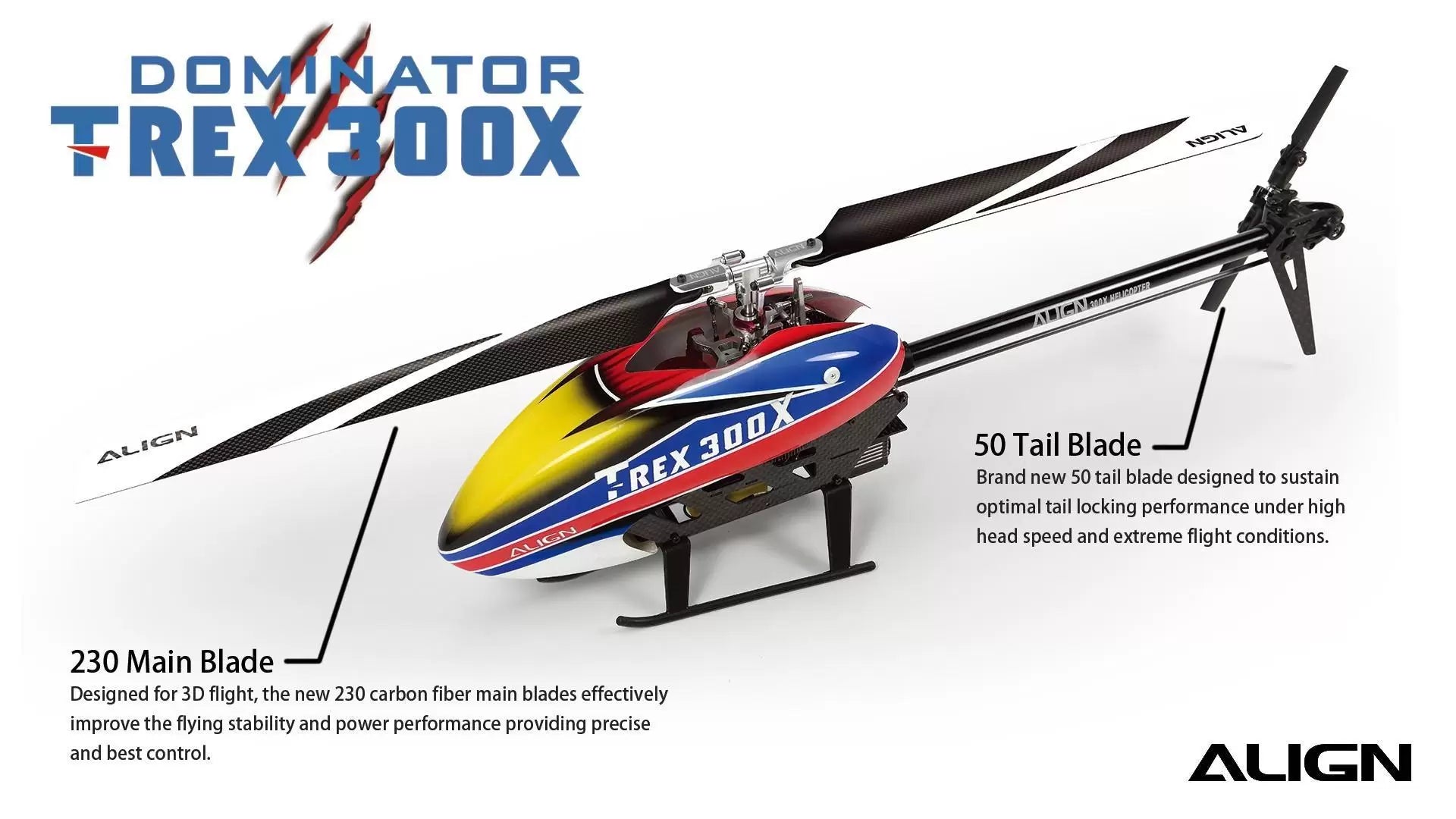

Introducing the Domonator Frexe OX 50 Tail Blade, designed for optimal performance under extreme conditions. The 230 Main Blade features a new carbon fiber design for improved stability and power, with precise control for 3D flight.

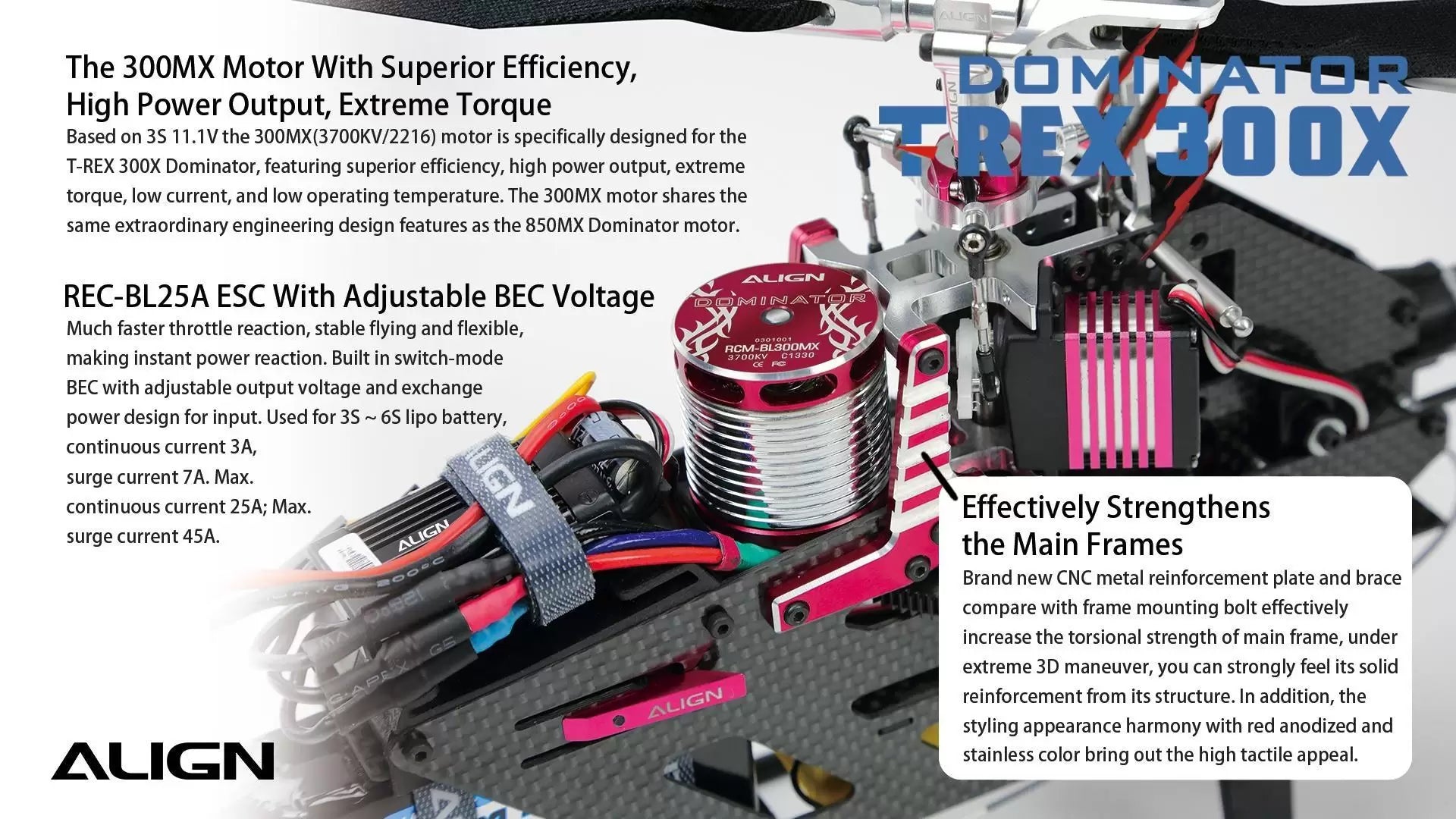

The 3OMX motor has superior efficiency and high power output. It features extreme torque, low current, and a low operating temperature. Designed for the T-REX 300X Dominator, it shares engineering design features with the 850MX Dominator motor. The ALICN REC-BL2SA ESC has an adjustable BEC voltage and makes instant power reactions possible.

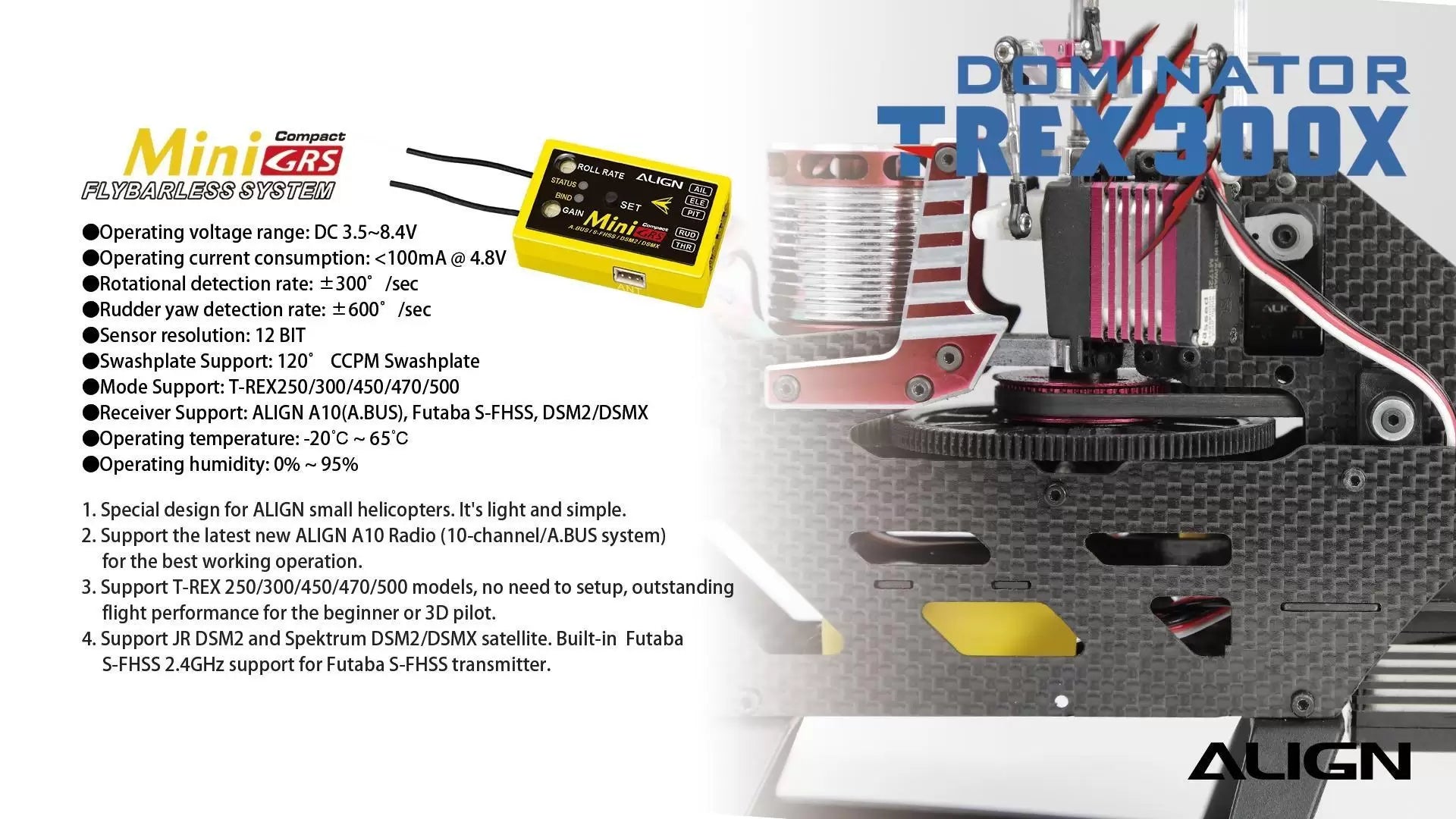

DOMANATOR Mini ZRS Compact FLYBARLESS System. Operating voltage: DC 3.5-8.4V, current consumption: <100mA at 4.8V. Rotational detection rate: +300 degrees per second. Rudder yaw detection rate: +600 degrees per second. Sensor resolution: 12-bit. Supports swashplate and CCPM modes for T-Rex 250/300/450/470/500 helicopters. Compatible with ALIGN AIO, Futaba S-FHSS, and Spektrum DSMX receivers. Operating temperature: -20°C to 65°C, humidity: 0-95%. Designed specifically for small helicopters from ALIGN.

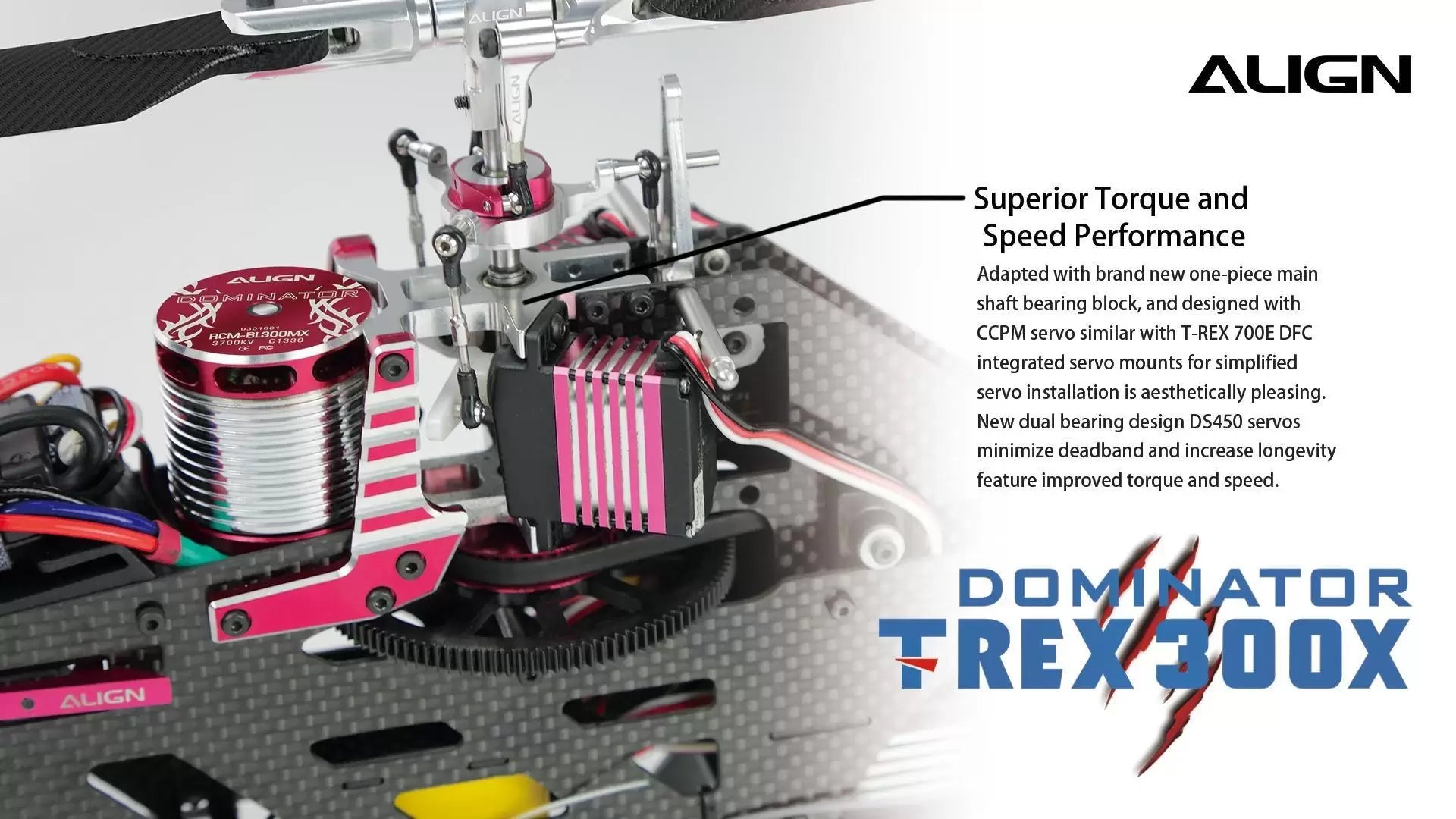

Introducing the ALIGN Superior Torque and Speed Performance, designed with a brand new one-piece main shaft bearing block and CCPM servo mounts for simplified installation. The dual bearing design minimizes deadband and increases longevity, featuring improved torque and speed performance.

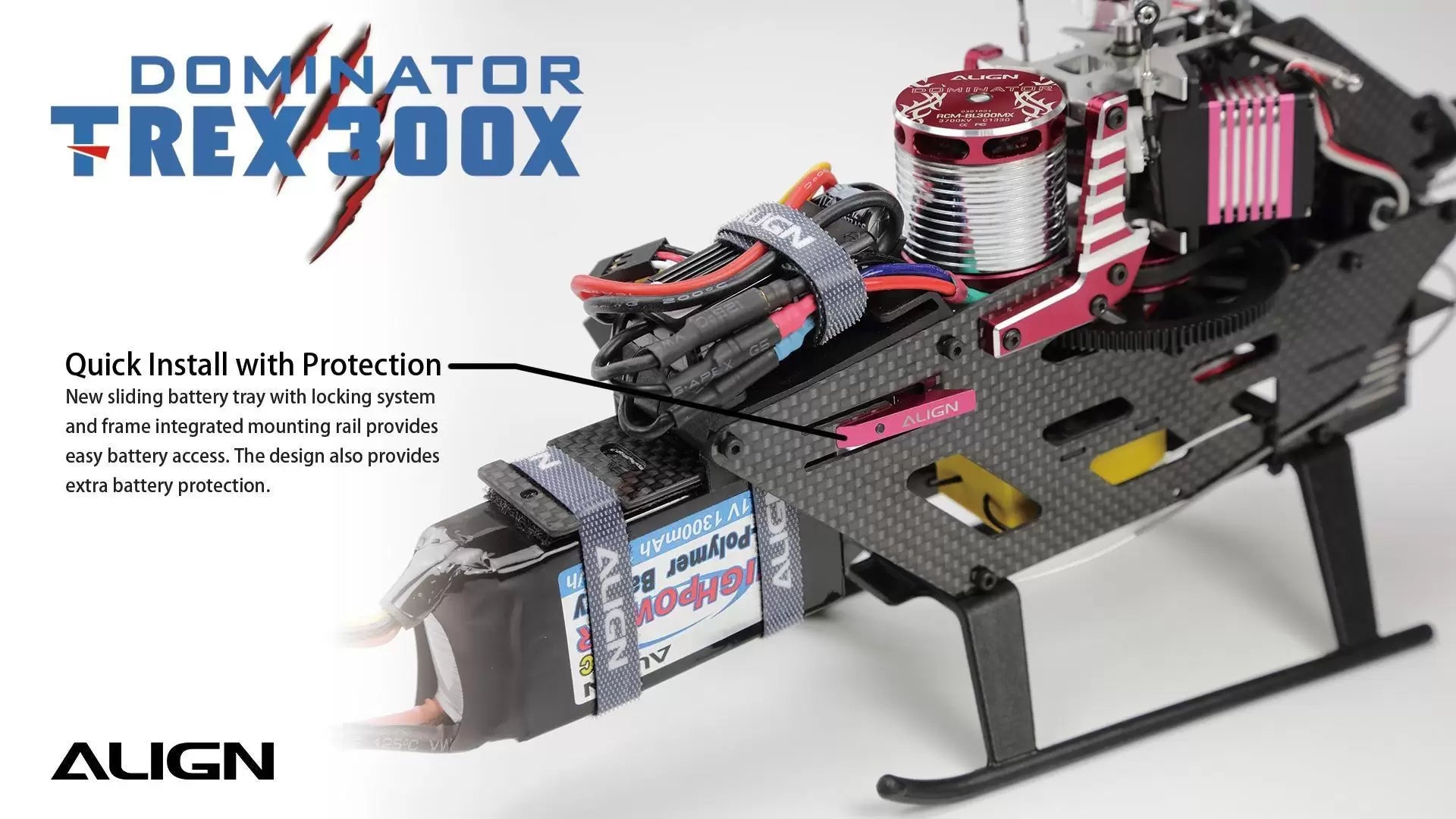

Introducing Domnator quick install solution. This innovative design features a new sliding battery tray with locking system and integrated mounting rail for easy access and added protection.

A new sliding battery tray with locking system and frame for easy installation and extra protection is featured in this DOMINATOR 7NS Series 254 Free Exchange Quick Install with Protection.

The Dominator Frexe OX 50 Tail Blade features optimal tail locking performance at high head speeds and extreme flight conditions. The 230 Main Blade provides stability, power, and precise control for 3D flights.

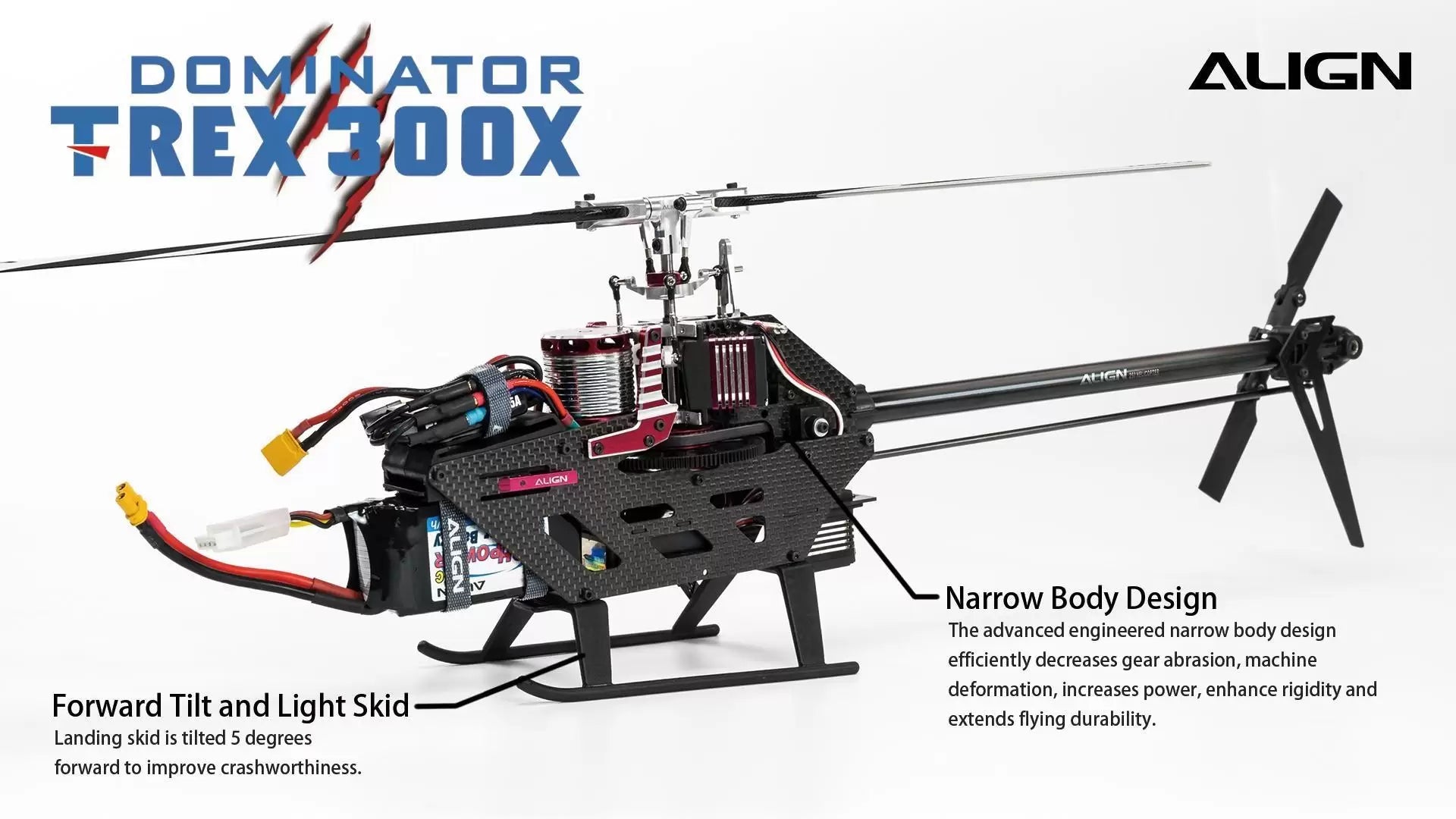

The Domnator Align Frexe OX 2 features a narrow body design that reduces gear abrasion, minimizes machine deformation, and boosts power. The forward tilt and light skid enhance durability, while the 5-degree tilted landing skid improves crashworthiness.

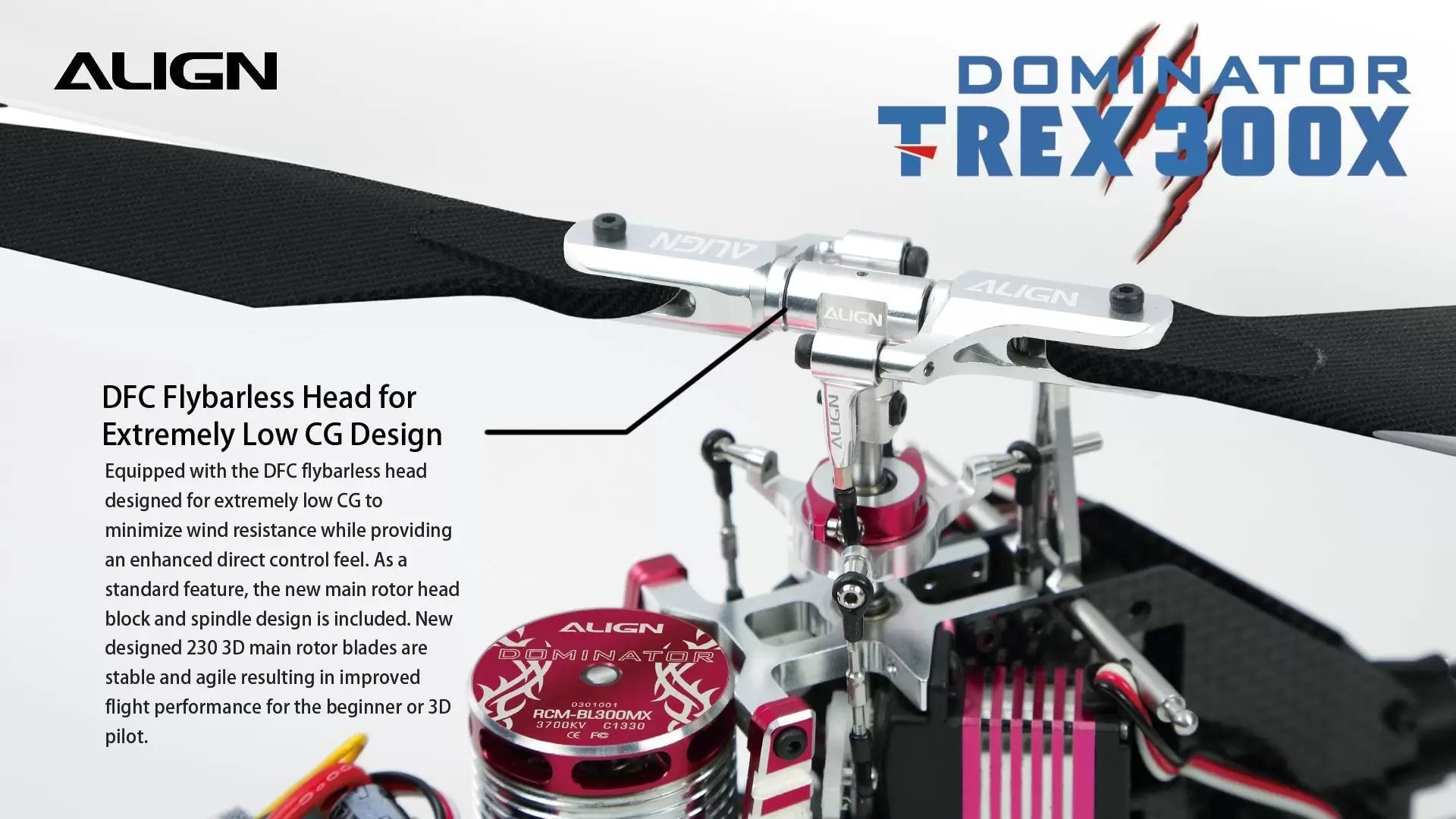

The Align Dominator Frexc DOX K DFC Flybarless Head features extremely low CG design for minimized wind resistance and enhanced direct control. It includes a new main rotor head block and spindle design, as well as LLICN-designed 230mm 3D main rotor blades for stable and agile flight performance.

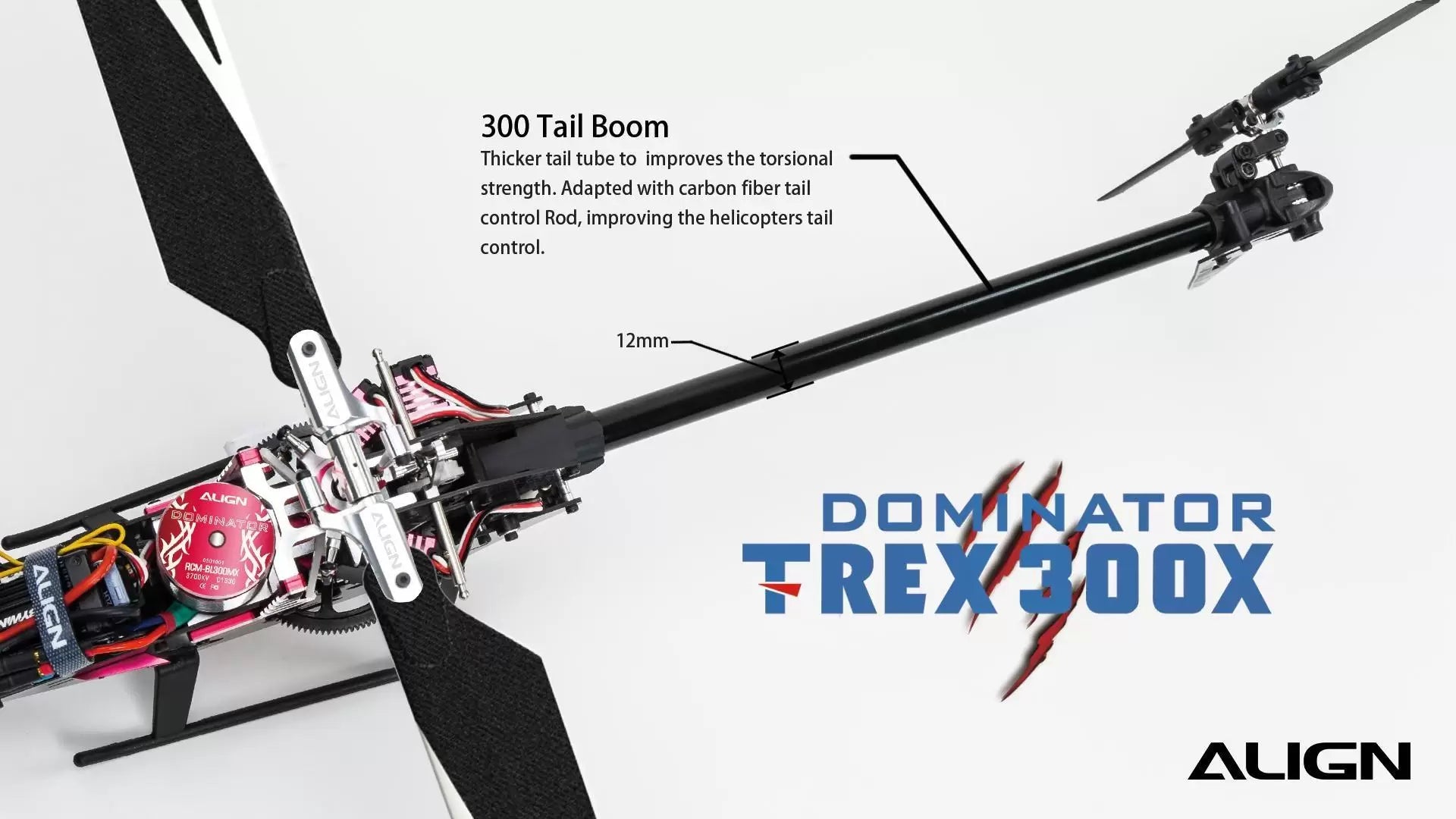

The Tail Boom Thicker tube enhances torsional strength. It adapted with a carbon fiber rod, which improves helicopter tail control for a smoother and more stable flight.

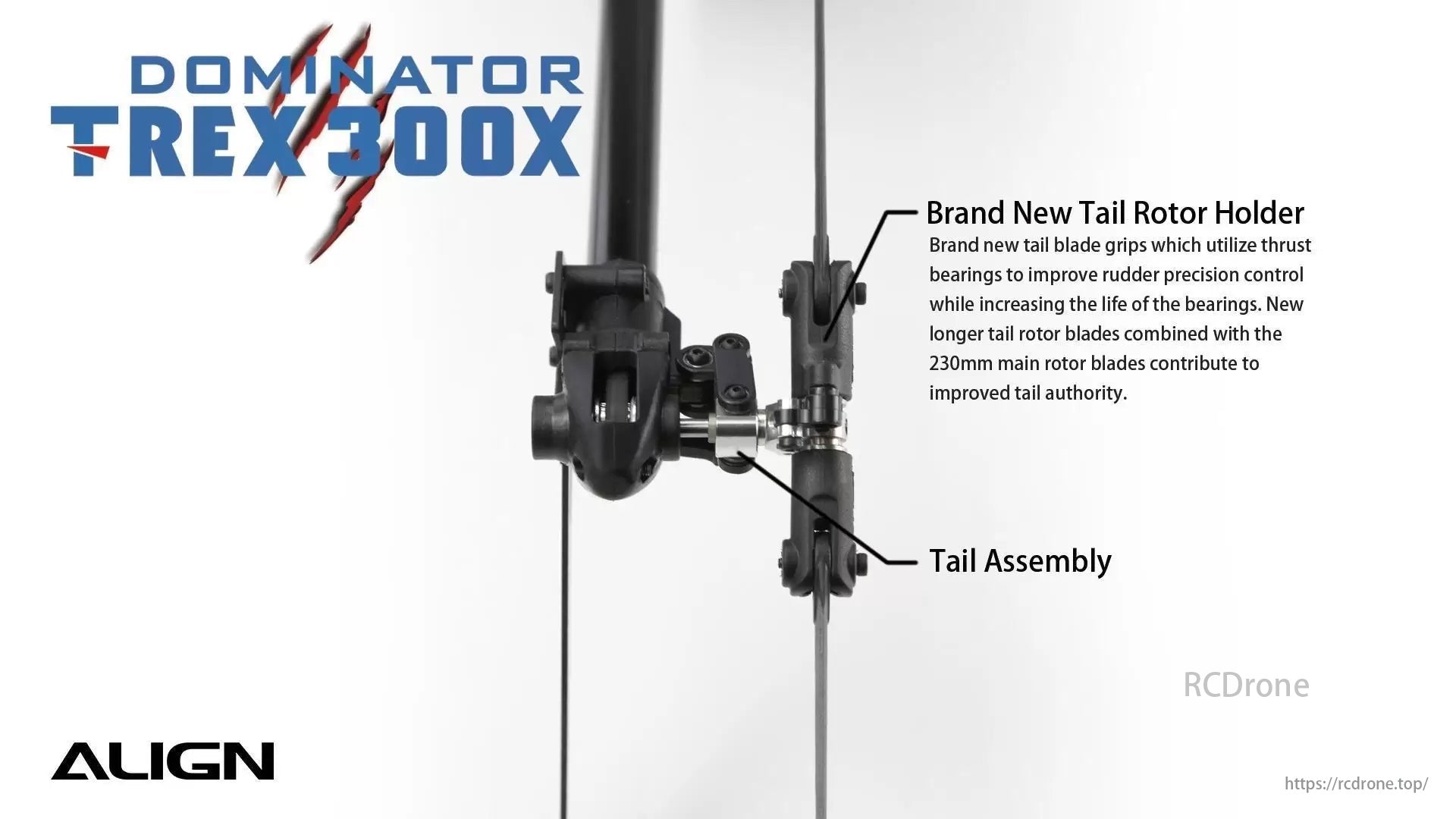

Introducing Domantor Frexe OX Brand New Tail Rotor Holder. This innovative product utilizes thrust bearings for precise rudder control and extended bearing life. The combination of new longer tail rotor blades and 230mm main rotor blades enhances tail authority.

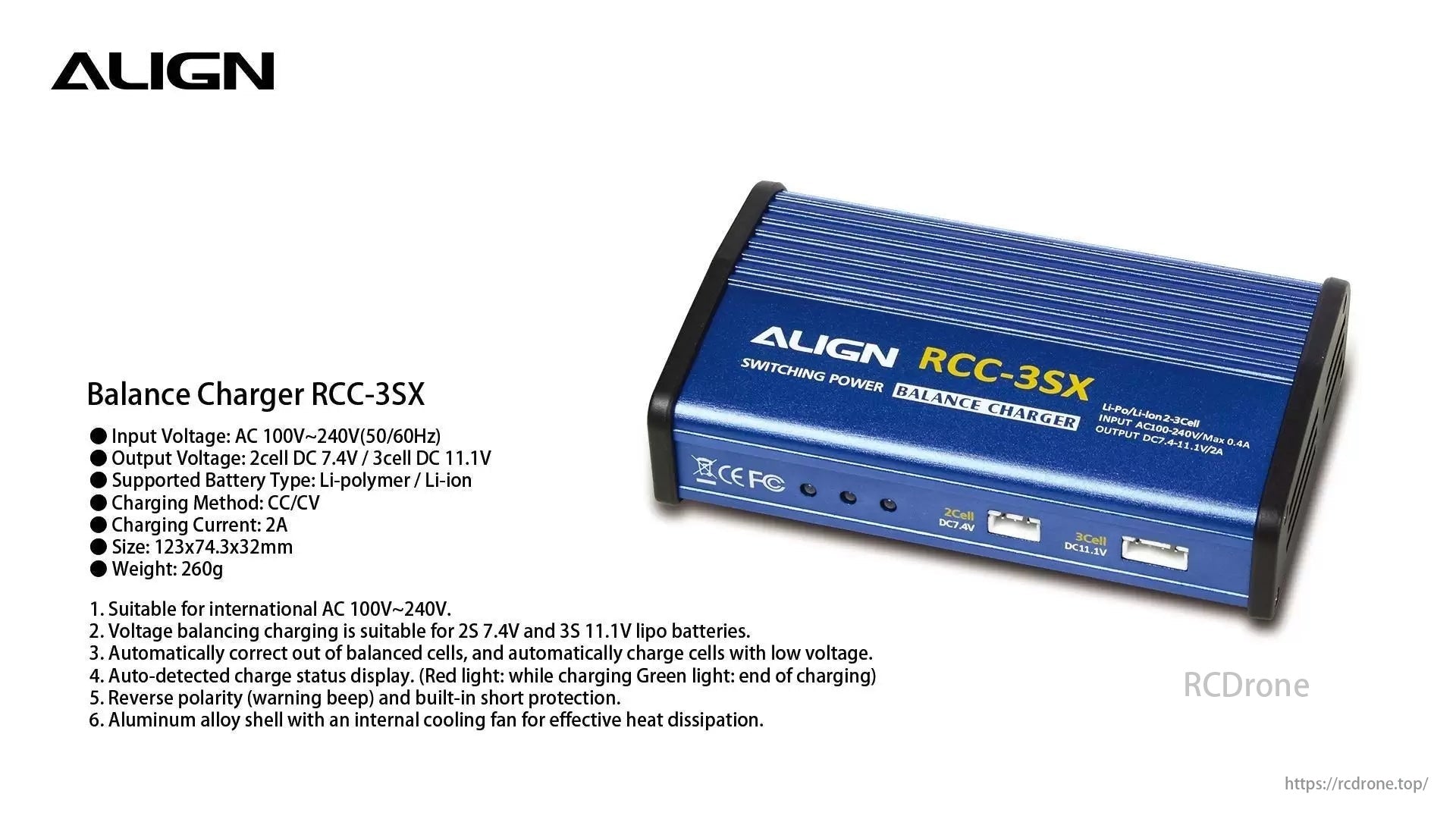

The ALIGN Balance Charger RCC-3SX supports international AC input voltage of 100V~240V (50/60Hz). It features automatic voltage balancing and charging for 2S 7.4V and 3S 11.1V lithium-ion batteries. The charger has built-in short protection, reverse polarity detection with warning beeps, and an aluminum shell with a cooling fan.

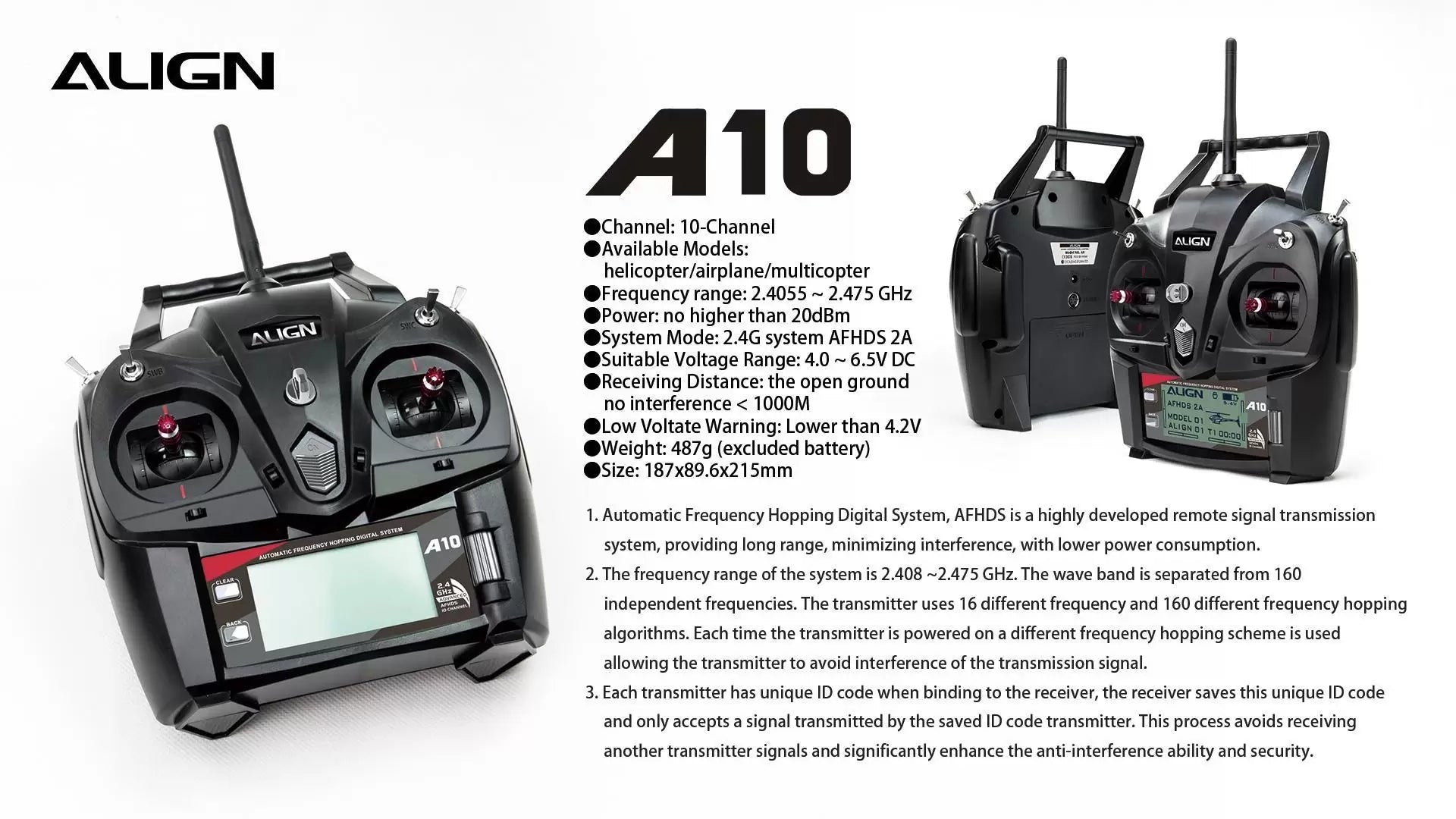

1. Automatic Frequency Hopping Digital System, AFHDS is a highly developed remote signal transmission system, providing long range, minimizing interference, with lower power consumption.
2. The frequency range of the system is 2.408 ~ 2.475 GHz. The waveband is separated from 160 independent frequencies. The transmitter uses 16 different frequency and 160 different frequency hopping algorithms. Each time the transmitter is powered on a different frequency hopping scheme is used allowing the transmitter to avoid interference of the transmission signal.
3. Each transmitter has unique ID code when binding to the receiver, the receiver saves this unique ID code and only accepts a signal transmitted by the saved ID code transmitter. This process avoids receiving another transmitter signals and significantly enhance the anti-interference ability and security.

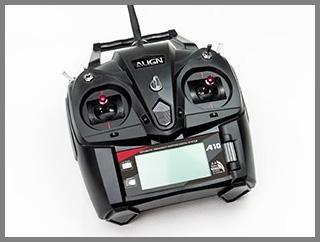

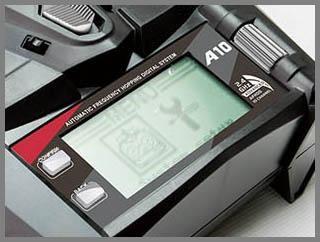

A roll style slider is used to scroll through menu options providing a quick setup. 20 models memory with either Chinese or English interface, three aircraft options (helicopter/airplane/multicopter), Modes 1-4 available with optional direction output, set buzzer warnings, and supported firmware upgrade.

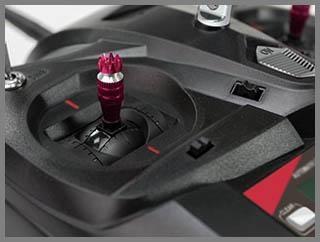

Up to four electronic timmers. Ergonomic design for comfortable feel and smoother control. The transmitter case is matte black with spined red control sticks to give a unique, and stunning look,

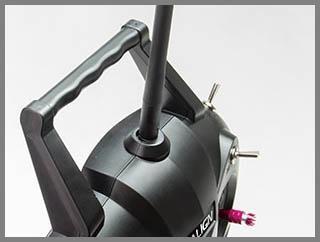

This system uses a high-quality gain antenna covering the entire available bandwidth. With high sensitivity receiver, the system can effectively avoid long-distance transmission signal interference.

Adopted low power rated electronics and a highly sensitive receiver chip. The transmitter frequency module uses an intermittent transmission signal to reduce transmission power and increase battery life dramatically. Provided charging port, simulator support, and firmware update ability.

1. Specifically, design for ALIGN small helicopters. It's light and simple.
2. Support the latest new ALIGN A10 Radio (10-channel/A.BUS system) for the best working operation.
3. Support T-REX 250/450/470/500 models, no need to setup, outstanding flight performance for the beginner or 3D pilot.
4. Support JR DSM2 and Spektrum DSM2/DSMX satellite. Built-in Futaba S-FHSS 2.4GHz support for Futaba S-FHSS transmitter.

1. Suitable for international AC 100V~240V.
2. Voltage balancing charging is suitable for 2S 7.4V and 3S 11.1V lipo batteries.
3. Automatically correct out of balanced cells, and automatically charge cells with low voltage.
4. Auto-detected charge status display. (Red light: while charging Green light: end of charging)
5. Reverse polarity (warning beep) and built-in short protection.
6. Aluminum alloy shell with an internal cooling fan for effective heat dissipation.

Balance Charger RCC-3SX Specifications

• Input Voltage: AC 100V~240V(50/60Hz)
• Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V
• Supported Battery Type: Li-polymer/Li-ion
• Charging Method: CC/CV
• Charging Current: 2A
• Size: 123x74.3x32mm - 4.8x2.9x1.3In
• Weight: 260g - 0.57Lbs

A10 Specifications

• 10-Channel Transmitter
• Modes: Helicopter/Airplane/Multicopter
• Frequency Range: 2.408 ~ 2.475 GHz
• Power: No Higher Than 20dBM (EU)
• System: 2.4 AFHDS 2A
• Voltage Range: 4.0V ~ 6.0V DC
• Receiving Distance: Line of Site <1000M
• Low Voltage Warning: < 4.2V
• Weight: (no batteries) 487g - 1.07Lbs
• Size: 275x187x102mm - 10.8x7.4x4In

MiniGRS Flybarless Specifications

• Operating Voltage Range: DC 3.5~8.4V
• Operating Current Consumption: <100mA @4.8V
• Rotational Detection Rate: ±300°/sec
• Rudder yaw detection rate: ±600°/sec
• Sensor Resolution: 12 BIT
• Swashplate Support: 120° CCPM Swashplate
• Mode Support: T-REX250, T-REX450, T-REX470, T-REX500
• Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX
• Operating Temperature: -20℃ ~ 65℃
• Operating Humidity: 0% ~ 95%
• Comply with RoHS
• Size: 37.6x22.4x13mm - 1.5x0.9x0.5In

Battery Specifications

• Output: 11.1V 1300mAh 14.4Wh (3S1P)
• Supports 5C Charging
• Dimension: 74x36.5x21mm - 2.91x1.43x0.83In
• 14AWG Heat-Resistant Silicone Wire. Heat Resistance: 200 ° C / Current withstand: 50A
•  XT30U-F Connector
• Weight: 115g - 4oz
