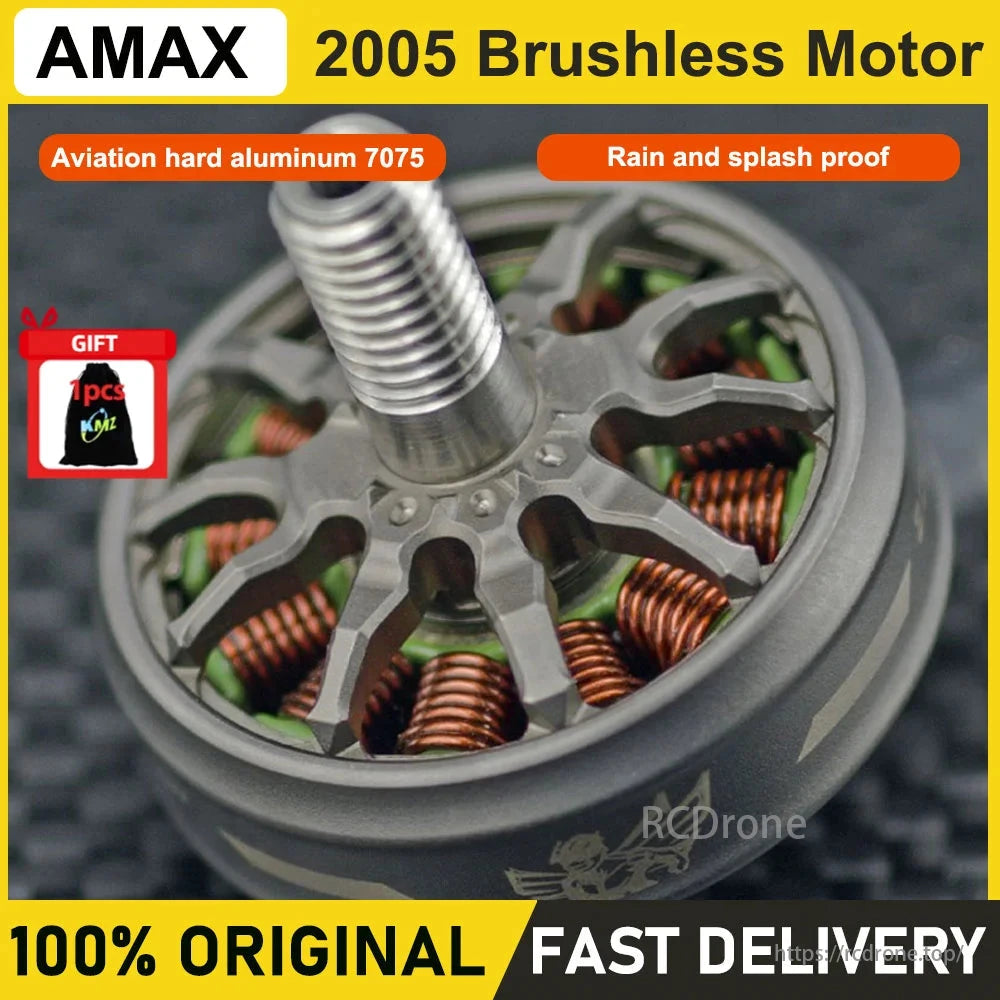

  • AMAX 2005 Competition Brushless Motor, AMAX 2005 Brushless Motor: Aviation aluminum, rainproof, original, includes gift, fast delivery.

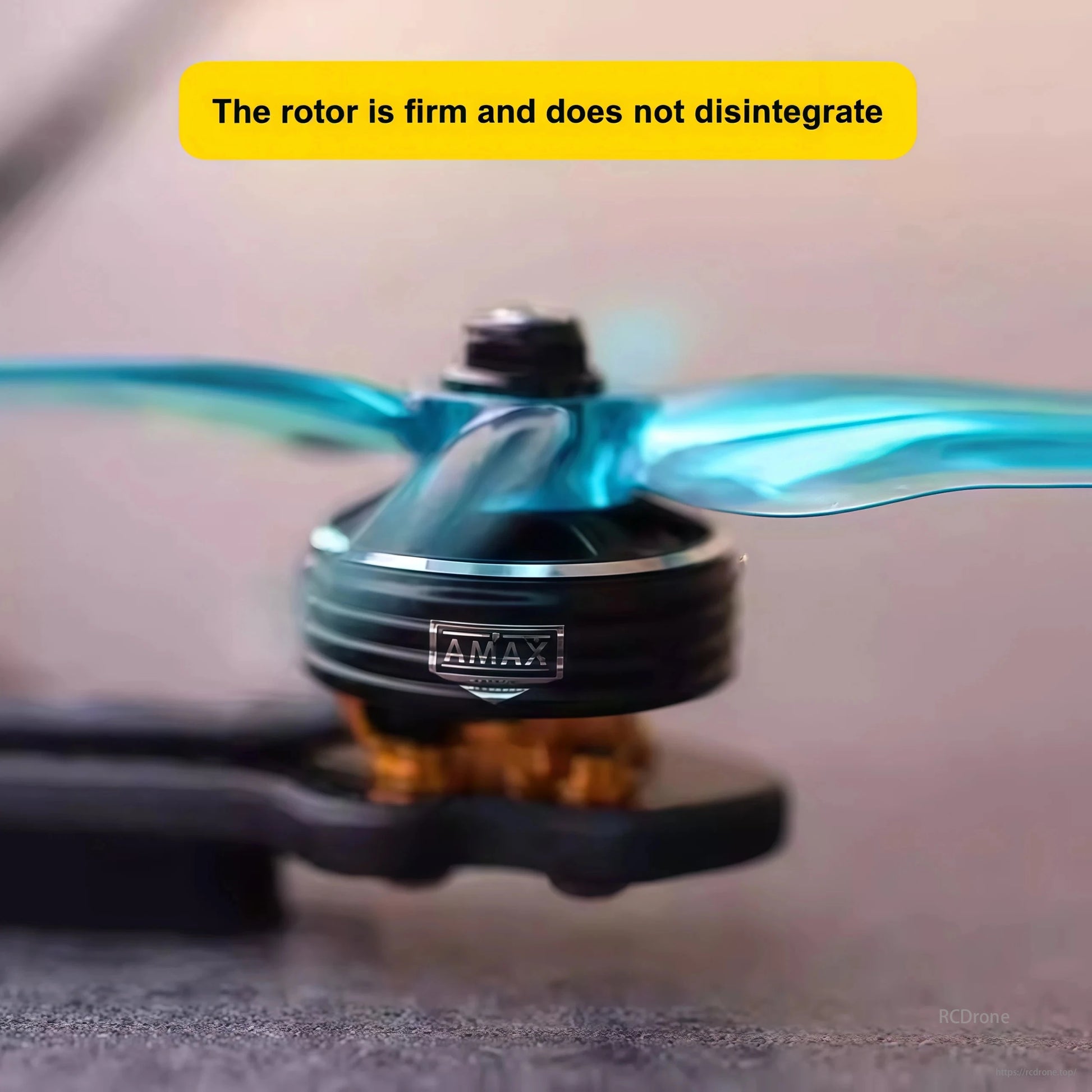

  • AMAX 2005 Competition Brushless Motor, AMAX 2005 brushless motor, 1350-2800KV, 3-6S for FPV racing, with a sturdy rotor.

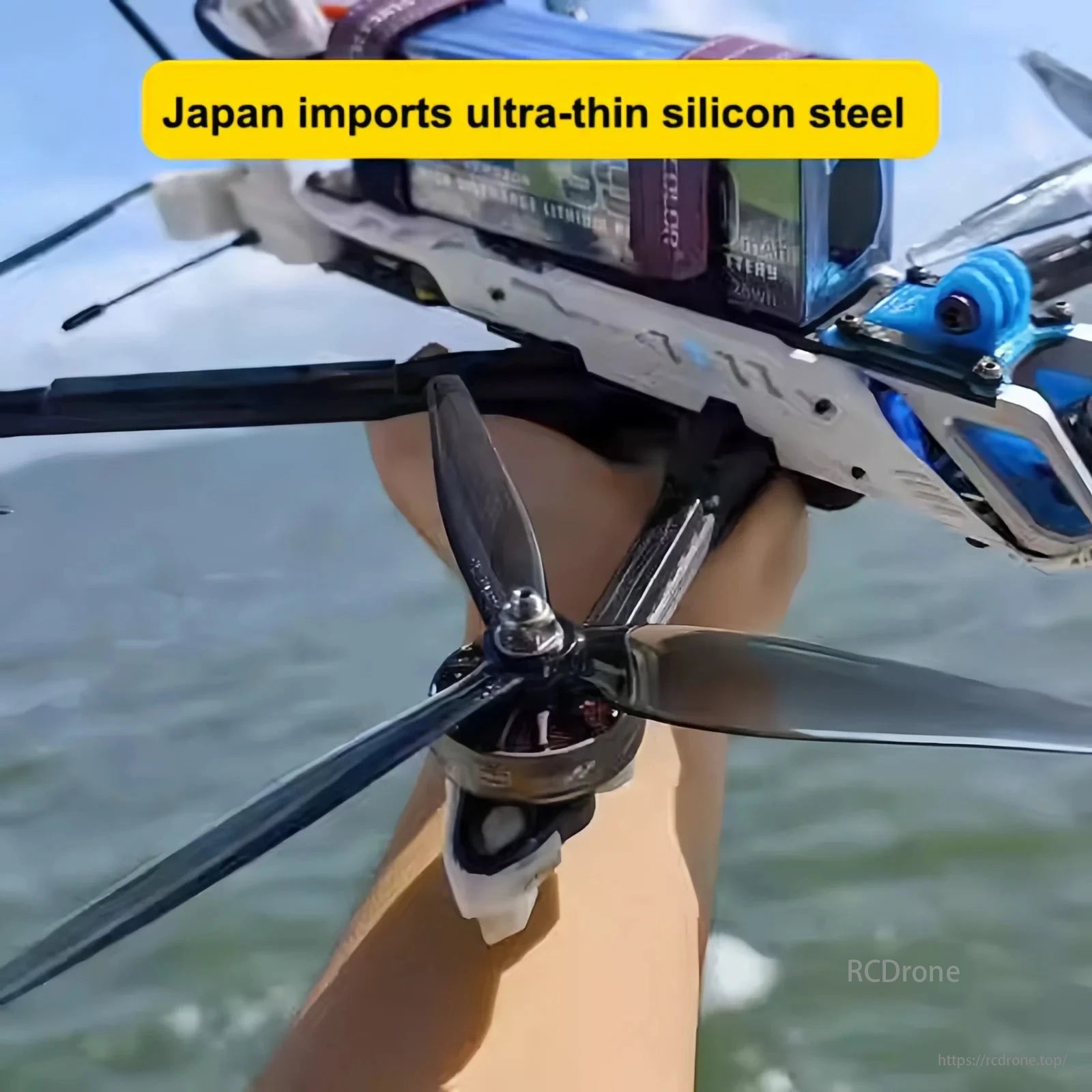

  • AMAX 2005 Competition Brushless Motor, AMAX 2005 brushless motor, 1350-2800KV, for FPV racing drones, made with imported Japanese ultra-thin silicon steel.
  • AMAX 2005 Competition Brushless Motor, AMAX 2005 brushless motor, 1350-2800KV, for FPV racing drones. Enhanced design improves performance.
  • AMAX 2005 Competition Brushless Motor, AMAX 2005 Brushless Motor: 1350-2800KV, 5mm shaft, 25.6x26.5mm, 24g. Supports 3-6S voltage, 236W-414W power, props 7040/6030. Perfect for FPV racing drones.
1 7

AMAX 2005 Competition Brushless Motor 1350KV–2800KV 3-6S for FPV Racing Cinewhoop Freestyle RC Drone Plane

AMAX 2005 Competition Brushless Motor 1350KV–2800KV 3-6S for FPV Racing Cinewhoop Freestyle RC Drone Plane

AMAX

$34.30 USD
$34.30 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The AMAX 2005 Competition Brushless Motor series is engineered for top-tier FPV performance, offering unmatched durability, torque, and flight control. With a wide KV range from 1350KV to 2800KV, these motors support 3-6S LiPo setups and are perfect for freestyle, racing drones, cinewhoops, and fixed-wing aircraft. Built with AMAX-Lock-Bell technology, military-grade windings, and Japanese bearings, this motor is designed for pilots who demand reliability and peak performance.

Key Features

  • Wide KV Selection (1350 / 1550 / 1700 / 1950 / 2250 / 2500 / 2800):

    • 1350KV–1550KV: Ideal for smooth cruising and 6S long-range flights

    • 1700KV–1950KV: Balanced power for freestyle & cinewhoop use

    • 2250KV–2800KV: High-speed setups for 3S–4S agile racers or planes

  • AMAX-Lock-Bell Design

    • Compact, no-parting bell for shock resistance

    • CNC-machined 7075 aluminum

    • Enhanced crash and cooling zones

    • Anti-drop protection and dynamic balancing

  • Premium Internal Components

    • Japanese Kawasaki laminations

    • 260°C high-temp copper windings

    • IP54 waterproof & dustproof Japanese bearings

    • Heat-resistant curved magnets with tight air gaps

  • Base & Structural Enhancements

    • Thicker base with long thread holes

    • AMAX cooling fins & silicone cables

    • Vibration-resistant structure with optimized airflow

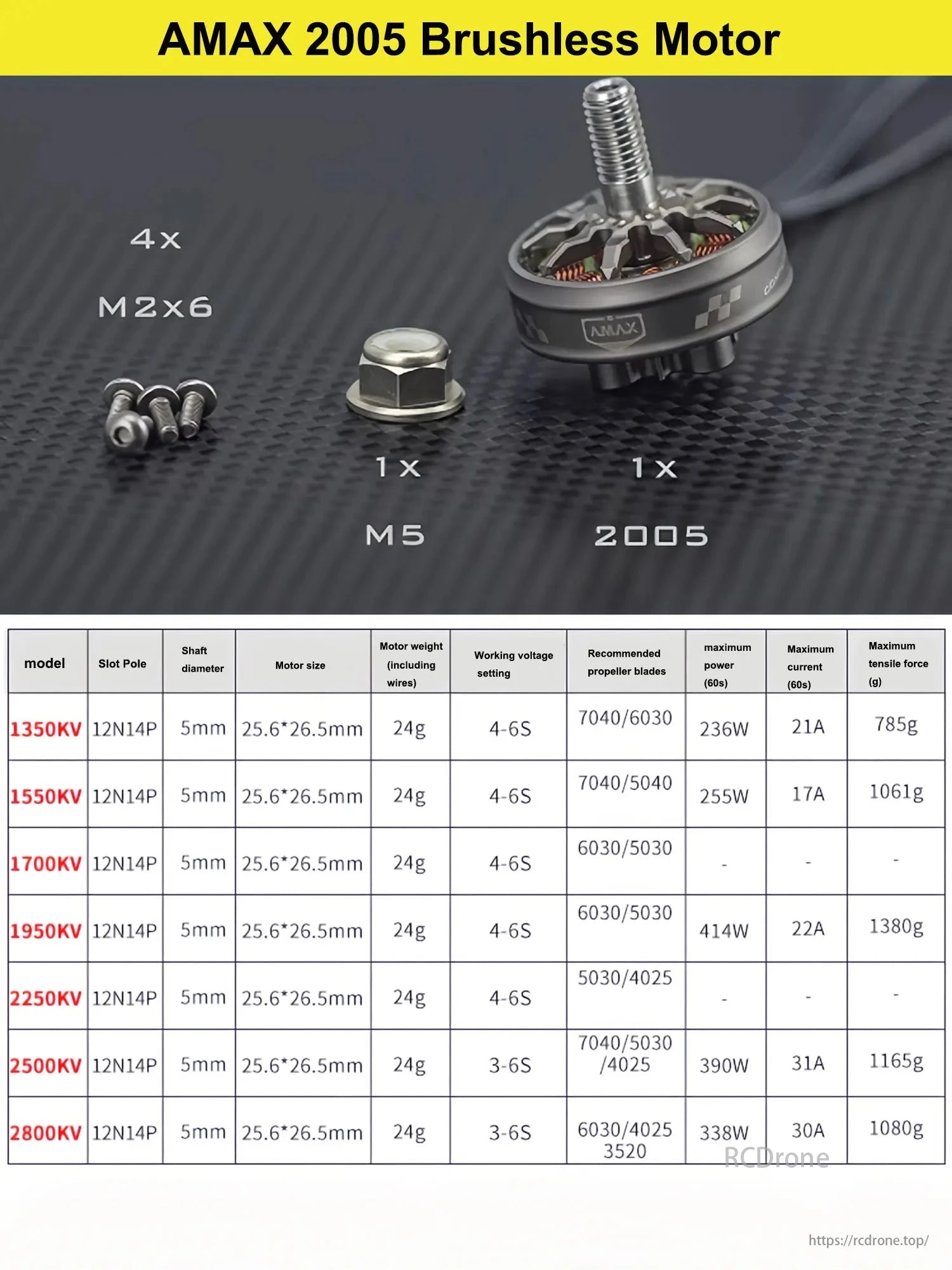

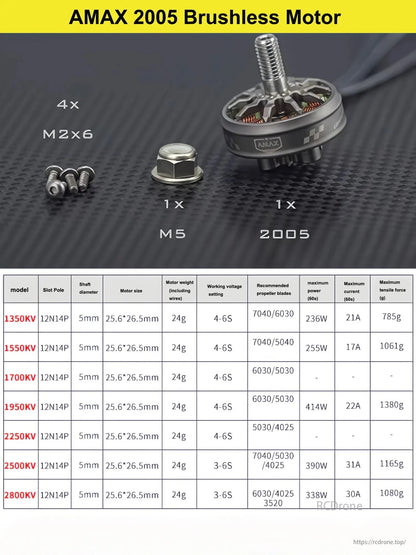

Technical Specifications

KV Rating Shaft Ø Voltage Weight Max Power Max Current Max Thrust Recommended Props
1350KV 5mm 4–6S 24g 236W 21A 785g 7040 / 6030
1550KV 5mm 4–6S 24g 255W 17A 1061g 7040 / 5040
1700KV 5mm 4–6S 24g - - - 6030 / 5030
1950KV 5mm 4–6S 24g 414W 22A 1380g 6030 / 5030
2250KV 5mm 4–6S 24g - - - 5030 / 4025
2500KV 5mm 3–6S 24g 390W 31A 1165g 7040 / 5030 / 4025
2800KV 5mm 3–6S 24g 338W 30A 1080g 6030 / 4025 / 3520

Applications

  • 3”–5” FPV Racing Quads

  • Cinewhoops

  • Long-range Cruisers

  • Fixed-wing RC Planes

Why Choose AMAX 2005 Competition Motors?

  • Best-in-class durability and cooling

  • Ideal for pilots pushing limits in freestyle, racing, or cinematic flying

  • Extended lifespan thanks to waterproof and dustproof design

  • Seamless performance under high current load

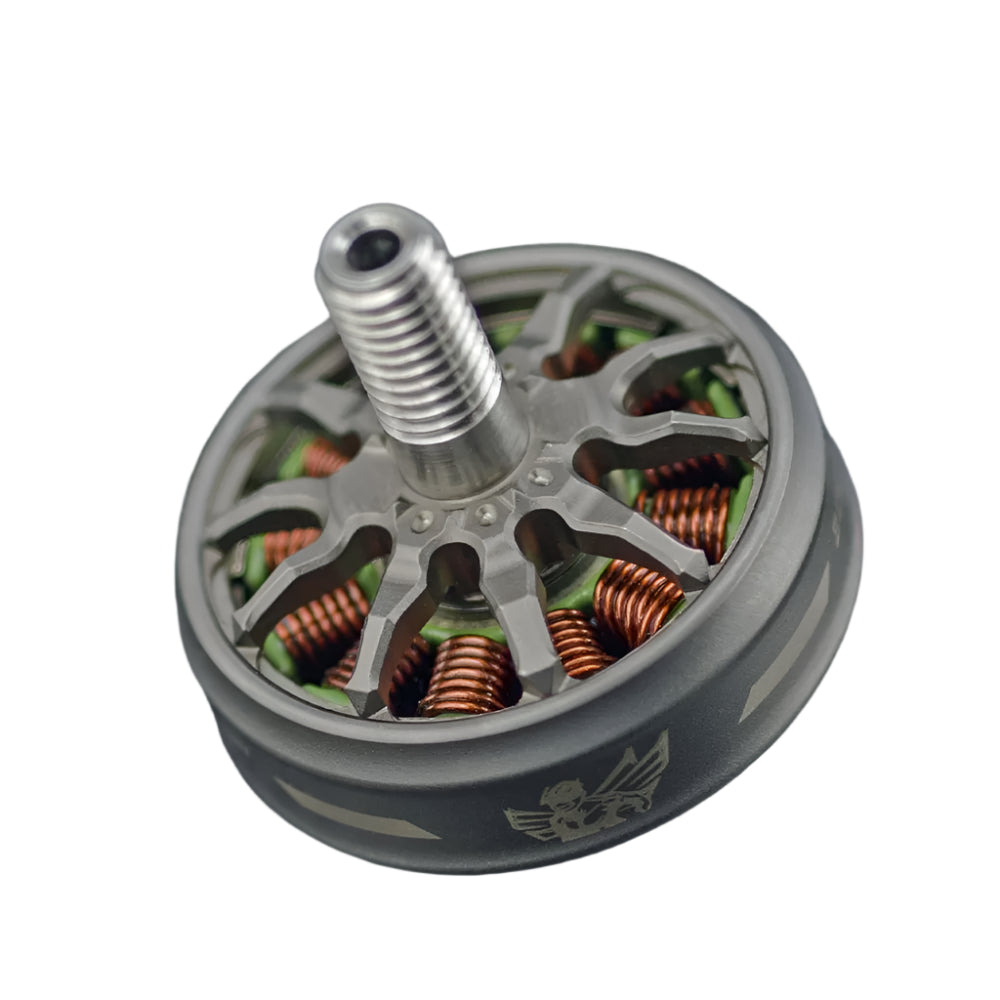

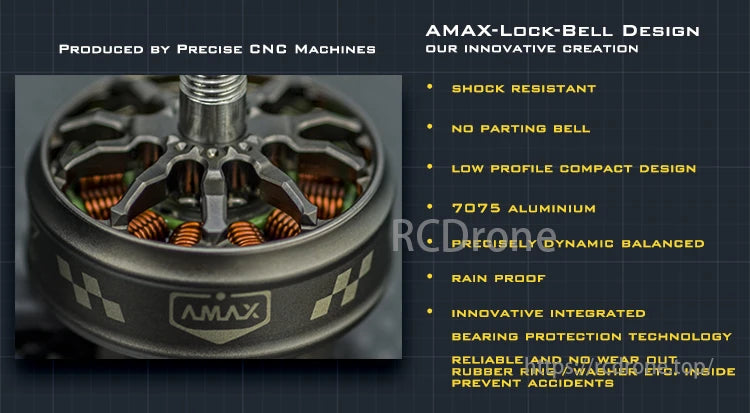

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor features shock-resistant, low-profile design, 7075 aluminum, rainproof, integrated bearing protection, and reliable rubber ring/washer for safety.

AMAX 2005 motor: shock-resistant, no parting bell, low-profile design, 7075 aluminum, dynamic balance, rainproof, integrated bearing protection, reliable rubber ring/washer for safety.

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor has enhanced crash area, more cooling, and scratch-resistant surface.

AMAX 2005 motor has enhanced crash area, more cooling, and scratch-resistant surface.

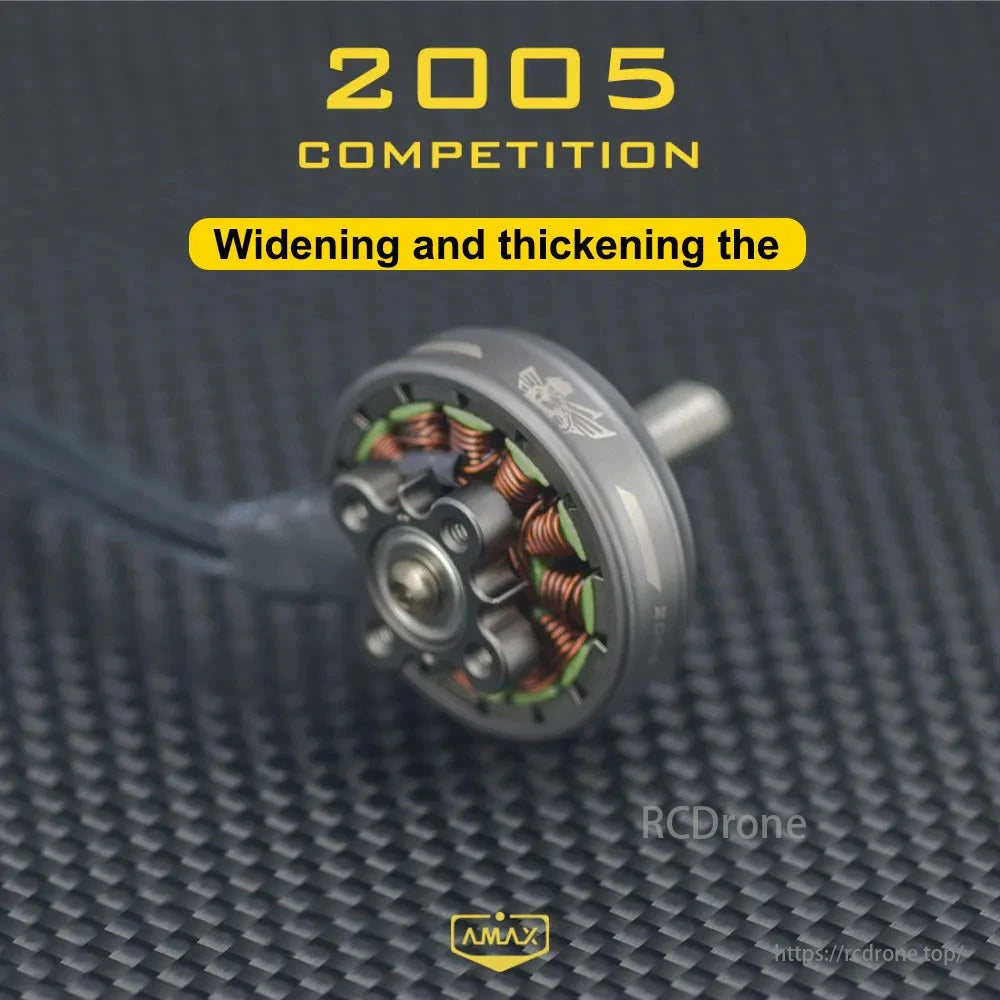

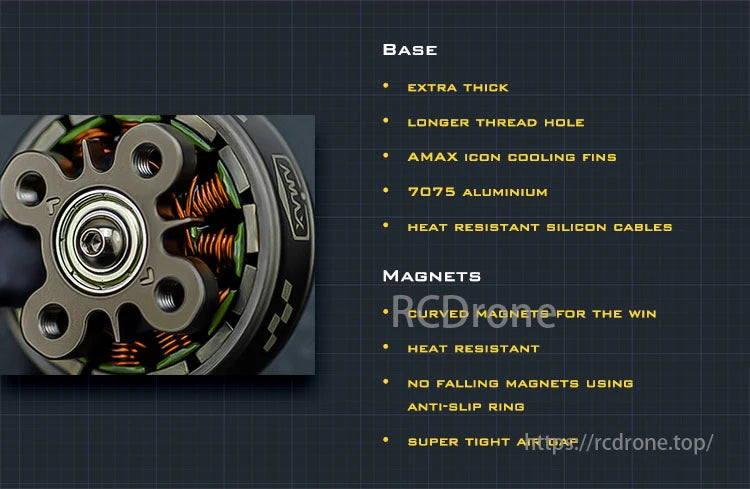

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor features a robust design with cooling fins, 7075 aluminum, and curved magnets for efficient performance.

AMAX 2005 motor includes extra-thick base, longer thread holes, cooling fins, 7075 aluminum, heat-resistant silicon cables. Curved magnets with anti-slip ring ensure a super tight air gap for efficiency.

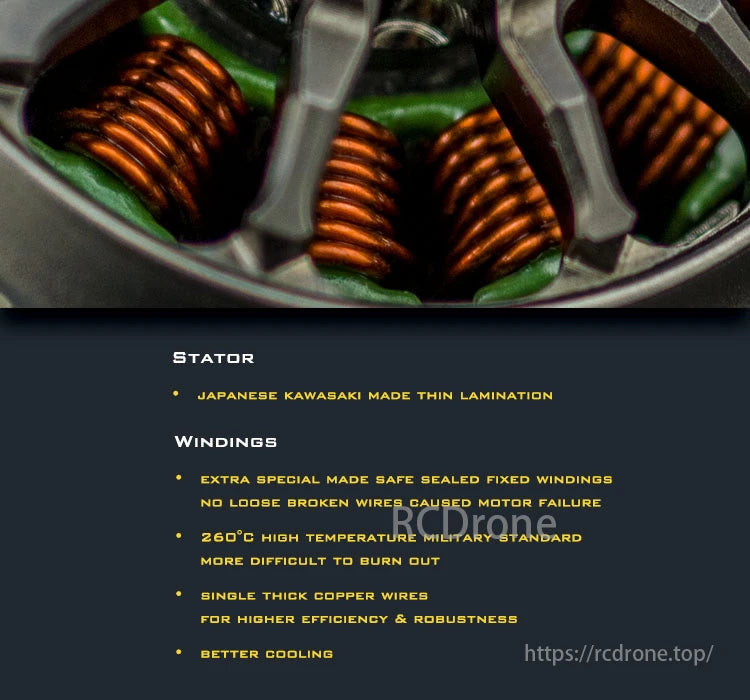

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor features Kawasaki stator, sealed windings, 260°C resistance, thick copper wires, and improved cooling for efficiency.

AMAX 2005 motor includes Kawasaki stator, sealed windings, 260°C heat resistance, thick copper wires, and enhanced cooling for efficiency.

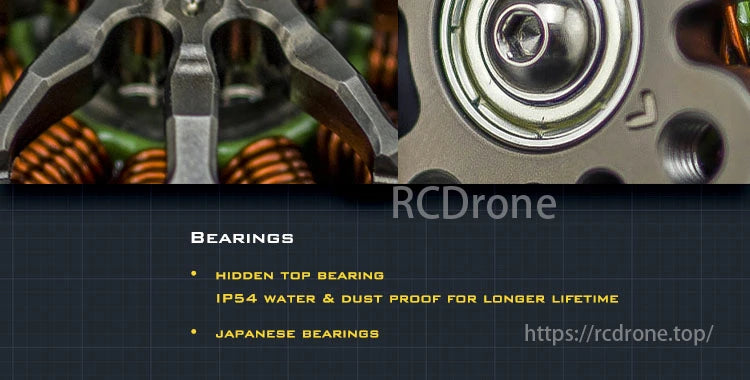

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor with hidden bearing, IP54 protection, Japanese bearings for longevity.

AMAX 2005 motor with hidden bearing, IP54 protection, Japanese bearings for longevity.

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor features titanium shaft, half hollow design, screw fixation for easy maintenance, and anti-slip spikes for secure propeller locking.

AMAX 2005 motor includes titanium shaft, half hollow design, screw fixation for easy maintenance, and anti-slip spikes to lock the propeller securely.

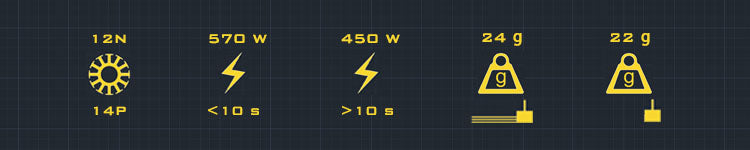

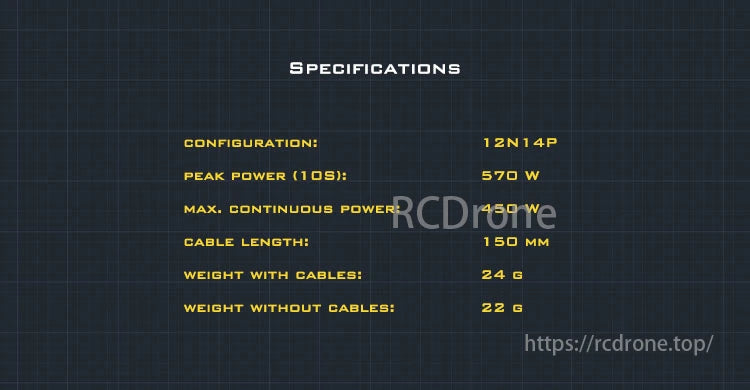

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor: 12N14P, 570W peak, 450W continuous power, 150mm cable, 24g with cables, 22g without.

AMAX 2005 motor specs: 12N14P, 570W peak power, 450W continuous, 150mm cable, 24g with cables, 22g without.

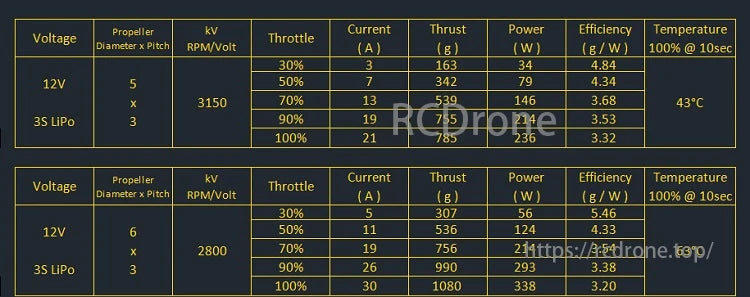

Amax 2005 competition brushless motor series offers top-tier FPV performance with unmatched durability, torque, and flight control.AMAX 2005 Competition Brushless Motor, These motors support 3-6S LiPo setups for freestyle, racing, and fixed-wing aircraft.The AMAX 2005 Competition Brushless Motor series provides top-tier FPV performance with unmatched durability, torque, and flight control.AMAX 2005 Competition Brushless Motor, AMAX 2005 motor data includes 12V, 3S LiPo specs, propeller options, throttle range, current, thrust, power, efficiency, temperature details for performance analysis.

AMAX 2005 motor data: 12V, 3S LiPo. Propeller options with kv ratings. Throttle range from 30% to 100%. Includes current, thrust, power, efficiency, and temperature details. Ideal for performance analysis.

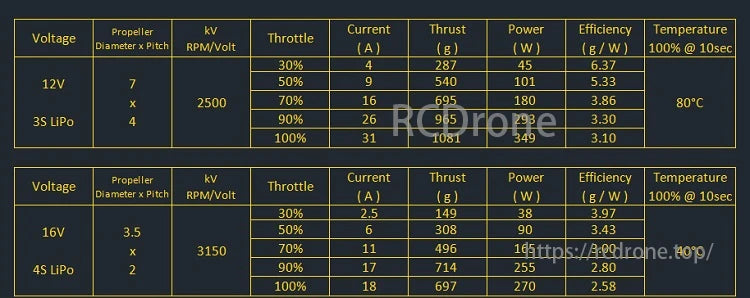

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor data at 12V & 16V, with varying throttle, props, current, thrust, power, efficiency, and temperature across different RPMs.

AMAX 2005 motor data: 12V (7x4 prop) and 16V (3.5x2 prop), varying throttle. Includes current, thrust, power, efficiency, temperature at different RPMs.

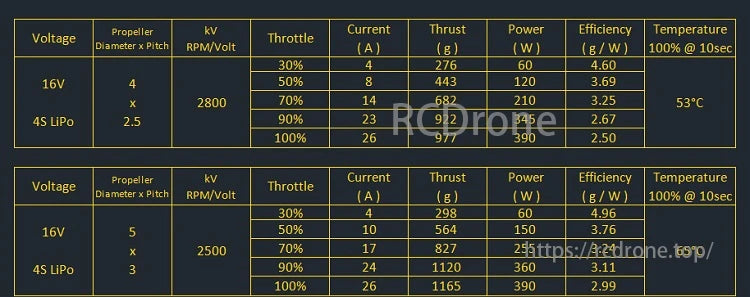

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor data shows thrust, current, power, efficiency, and temperature for two propellers at various throttles, with efficiency decreasing at higher settings.

AMAX 2005 motor data: 16V, 4S LiPo. Two propellers (4x2.5 and 5x3) demonstrate current, thrust, power, efficiency, and temperature at different throttles. Efficiency drops with higher throttle settings.

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor data includes RPM, thrust, efficiency, and temperature for two propellers (6x3, 7x4) on 16V, 4S LiPo, with detailed performance metrics.

AMAX 2005 motor data: 16V, 4S LiPo. Two propellers (6x3, 7x4) with varying RPM/volt, throttle settings, current, thrust, power, efficiency, and temperature at 10 seconds. Detailed performance metrics provided.

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor specs: 24V, 3150kV, 3x2 prop. Thrust 406-1079g, current 4-18A, power 115-414W, efficiency 3.53-2.61g/W. Temp 62°C at full throttle.

AMAX 2005 motor data: 24V, 3x2 prop, 3150 kV. Throttle from 30% to 100%, current 4-18A, thrust 406-1079g, power 115-414W, efficiency 3.53-2.61 g/W. Temperature reaches 62°C at 100%.

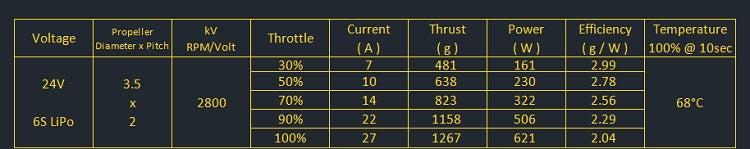

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor on 6S LiPo with 3.5x2 prop: 2800kV, thrust 481-1267g, current 7-27A, power 161-621W, efficiency 2.99-2.04g/W, temp 68°C at full throttle.

AMAX 2005 motor data: 24V, 6S LiPo, 3.5x2 prop, 2800 kV. Throttle from 30% to 100%, current 7-27A, thrust 481-1267g, power 161-621W, efficiency 2.99-2.04 g/W. Temperature reaches 68°C at 100% throttle.

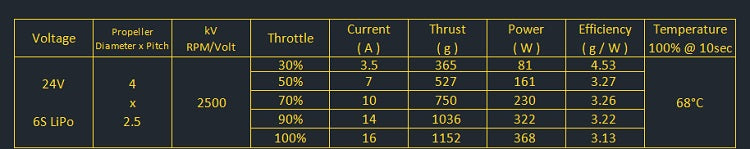

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor specs: 24V, 6S LiPo, 2500kV, thrust 365-1152g, current 3.5-16A, power 81-368W, efficiency 4.53-3.13 g/W, 68°C max temp.

AMAX 2005 motor data: 24V, 6S LiPo, 4x2.5 prop, 2500 kv. Throttle from 30% to 100%, current 3.5-16A, thrust 365-1152g, power 81-368W, efficiency 4.53-3.13 g/W, temp 68°C at 100%.

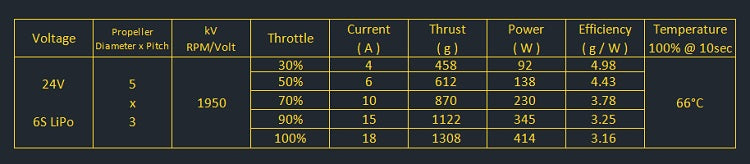

AMAX 2005 Competition Brushless Motor, AMAX 2005 motor specs: 24V, 6S LiPo, 5x3 prop, 1950 kV, thrust 458-1308g, current 4-18A, power 92-414W, efficiency 4.98-3.16 g/W, temp 66°C at full throttle.

AMAX 2005 motor data: 24V, 6S LiPo, 5x3 prop, 1950 kV. Throttle from 30% to 100%, current 4-18A, thrust 458-1308g, power 92-414W, efficiency 4.98-3.16 g/W, temp 66°C at 100%.
