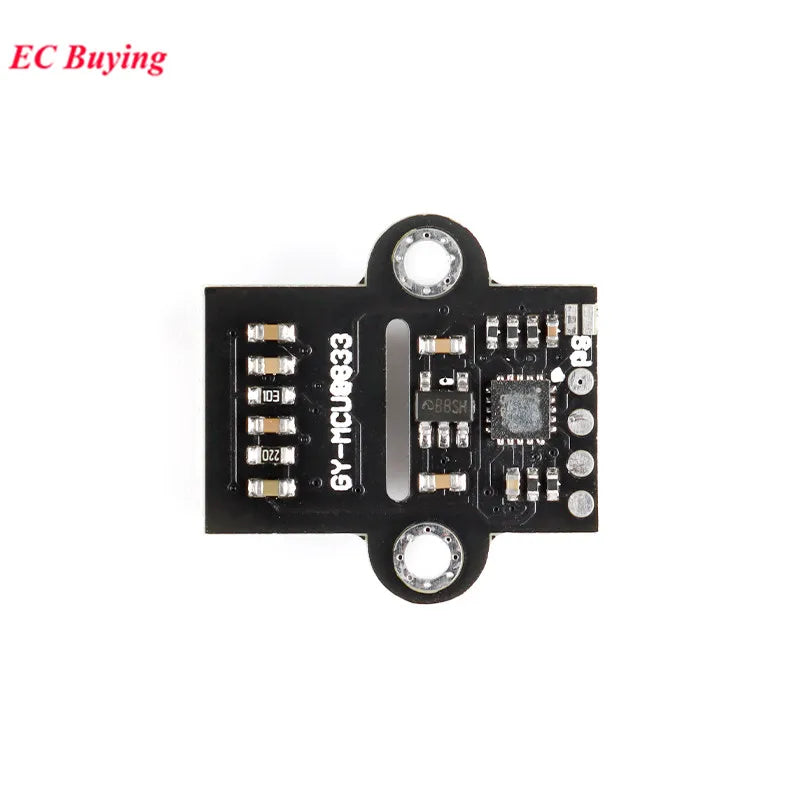

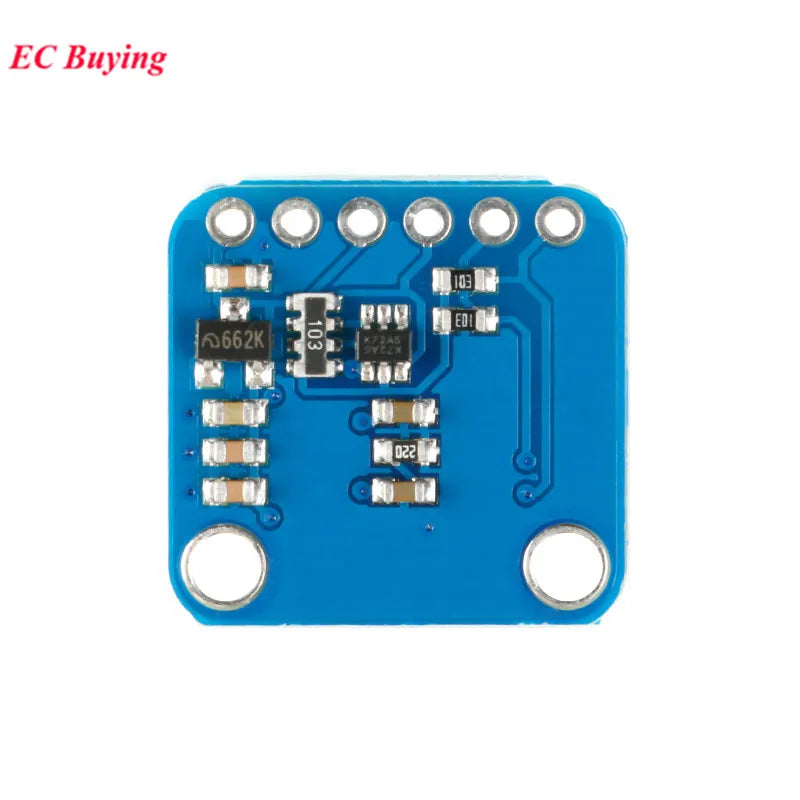

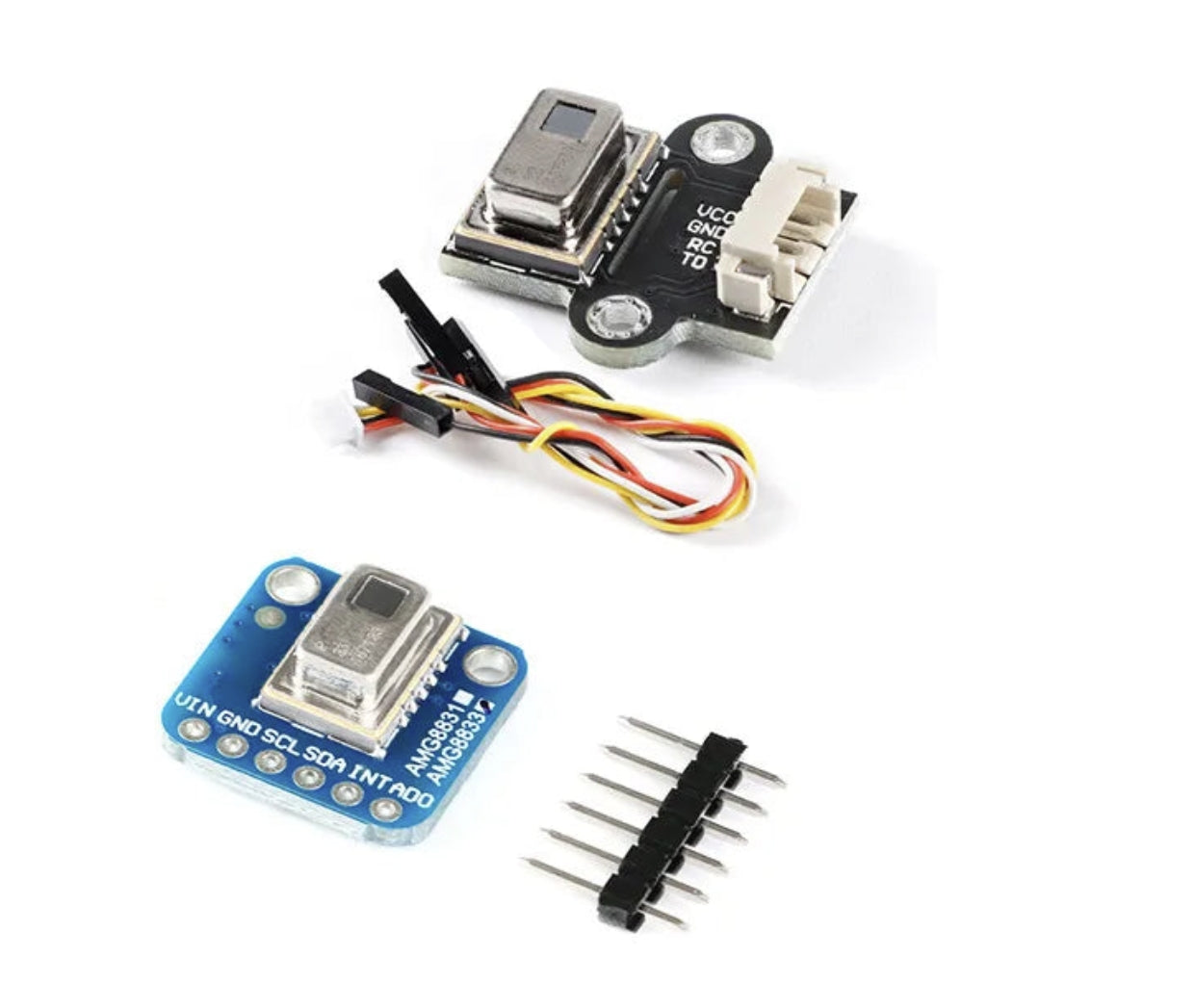

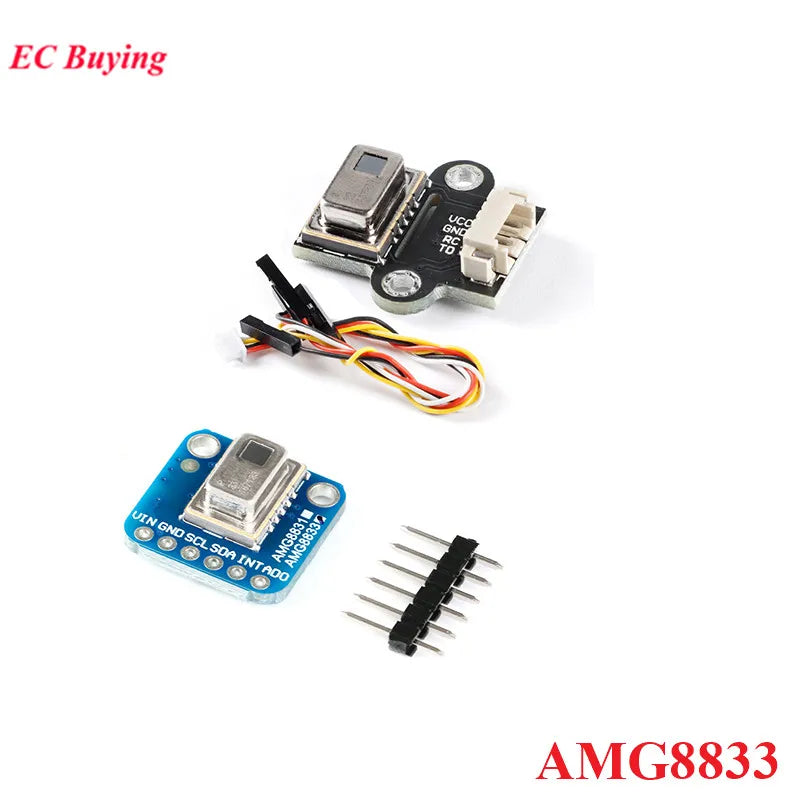

AMG8833 IR 8*8 Thermal Imager Dot Matrix Temperature Sensor Module 8x8 Infrared Camera Imaging Array For Arduino GY-MCU8833

AMG8833 IR 8*8 Thermal Imager Dot Matrix Temperature Sensor Module 8x8 Infrared Camera Imaging Array For Arduino GY-MCU8833

RCDrone

$28.03 USD
$39.24 USD $28.03 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

76 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: EC Buying

Origin: Mainland China

Condition: New

Type: Voltage Regulator

Model Number: GY-MCU8833 AMG8833

Supply Voltage: 3-5v Infrared Camera Sensor

Dissipation Power: low GY-80 23.05 25.5

is_customized: Yes

Operating Temperature: -40-85℃

Application: Computer

Package: Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Product Description:

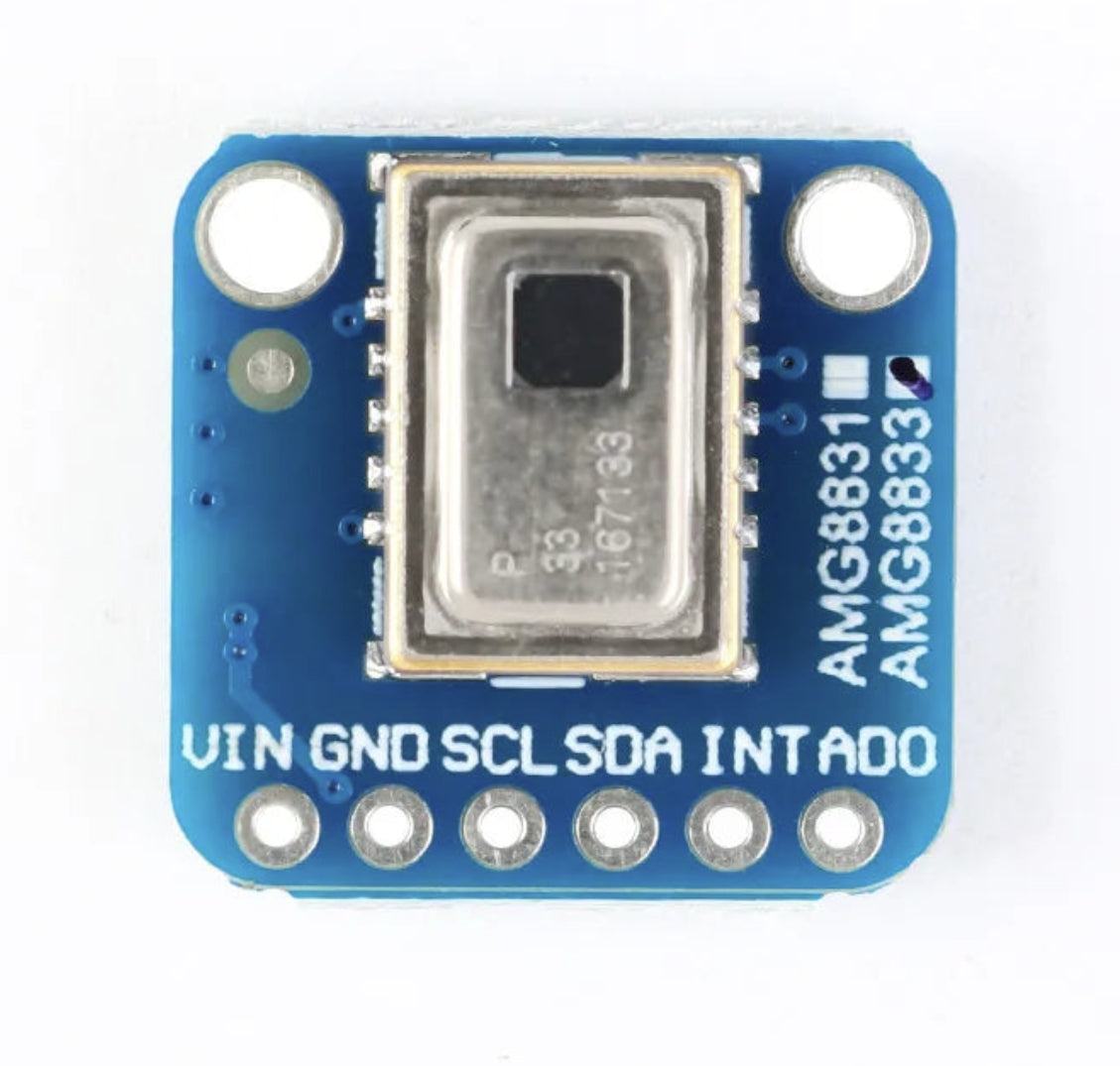

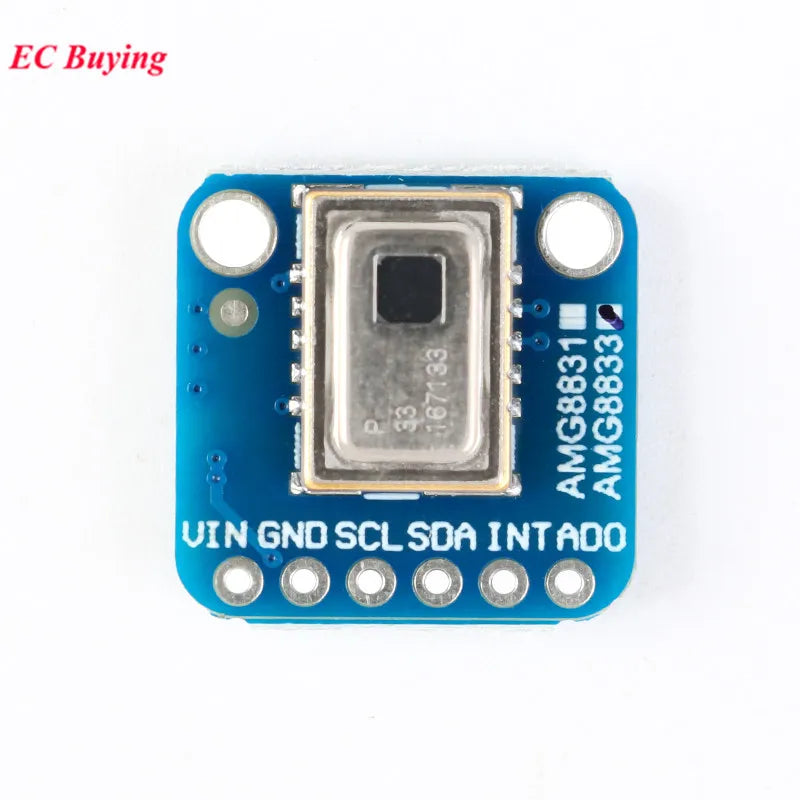

1. The AMG8833 infrared camera sensor is an 8x8 infrared thermal sensor array. When connected to your microcontroller (or Raspberry Pi), it will return a set of 64 individual infrared temperature readings via I2C. It's like those fancy thermal cameras, but it's compact and simple and easy to integrate. The AMG8833 offers higher performance than the previous AMG8831. The sensor only supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below your set threshold.
2. It can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or mini camera. We use this breakthrough code on Arduino or compatible (sensor communicates via I2C) or on Python's Raspberry Pi. On the Pi, thanks to the image processing help of the SciPy python library, we can insert an 8x8 grid and get some very good results.
Product Parameters:
1. Accuracy: + - 2.5°C (4.5°F).
2. Maximum frame rate: 10Hz,
3. Power supply: 3~5V
4. Temperature Measurement Range: 0°C to 80°C (32°F to 176°F)

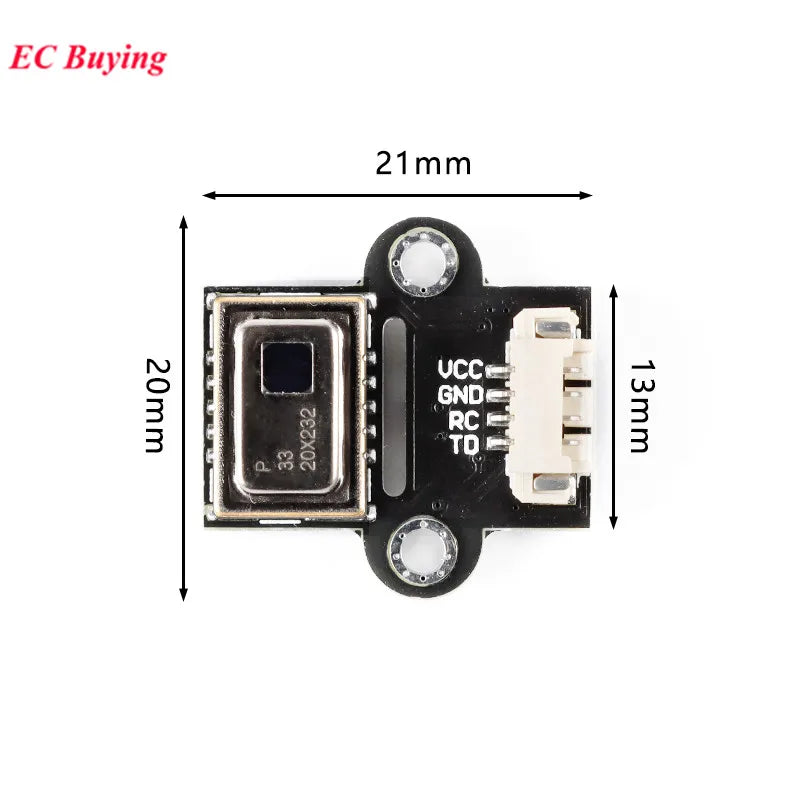

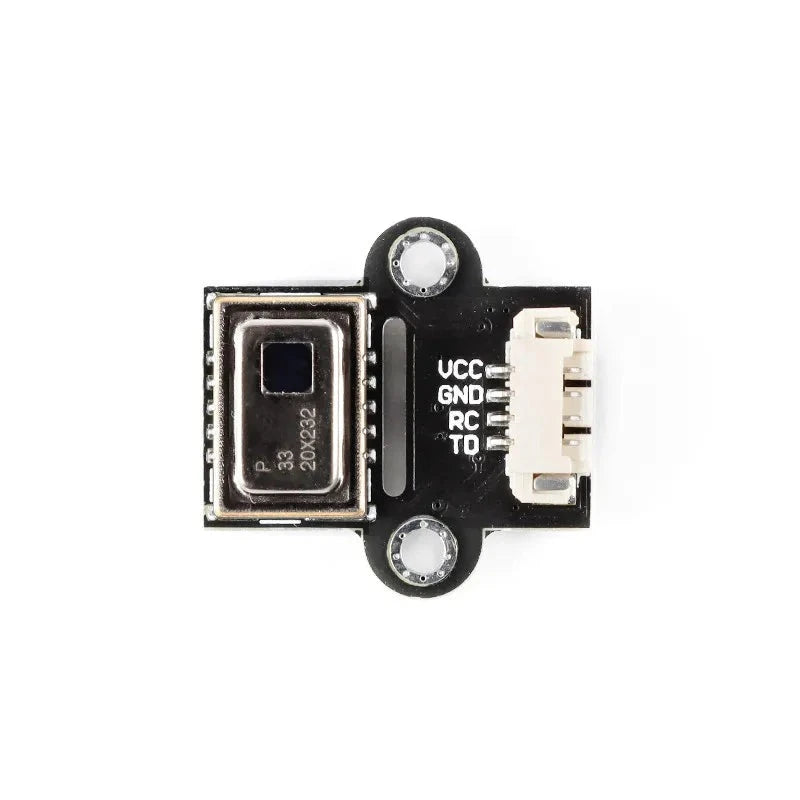

GY-MCU8833 dot matrix temperature measurement number 8*8=64

·Ambient temperature 0-----80 degrees

·Target temperature range 0----80 degrees

·Temperature measurement accuracy ±2.5 degrees

·The temperature measurement resolution is 0.25 degrees

·Field of view angle 60 x 60

·Working voltage 3-5v

·Working current 10ma

Application:

●Non-contact temperature measurement

●Office energy saving (air conditioning/lighting control)

●Digital Signage

●Automatic door/elevator

●Static and dynamic continuous detection of whether there are people

Features:

Provide upper computer software to directly display temperature imaging graphics.

The upper computer pc software display picture:


Schematic diagram of sensor measurement:
