ARRIS M900 Industrial Drone - 4 Axis 1080P 60min 30KM Long Range Max Takeoff 10KG With CUAV Pixhack V5 Plus FC GPS Combo, Skydroid H12 For Security Inspection Aerial Photography
Item Brand: ARRIS Item Model: ARRIS M900 Dignotal wheelbase: 900mm Folding size: 500x450x600mm Expanded Size: 700x700x600mm M900 weight: 3.3kg Max take off weight: 10kg Max load: 3.3kg Power Supply voltage: 6S Compatible battery: 6S 22.2V 12000mah to 25000mah (not included) Flight Controller: CUAV Pixhack V5 Plus Flight Controller with GPS Remote Controlelr: Skydroid H12 1080P Digital Video Data Transmission Transmitter Motor: Eaglepower 5215 220KV Brushless Motor ESC: Hobbywing Flyfun 40A ESC Propeller:ARRIS 22" 2272 Carbon fiber propeller Flight Time: About 60 minutes (with 6.7kg takeoff weight) hovering About 30 minutes (with 9.8kg takeoff weight)
Note: The obove status as tested by 6S 24000mah battery, the weight of the battery is about 3.4kg. For different battery and under different circustances, the data may not the same.

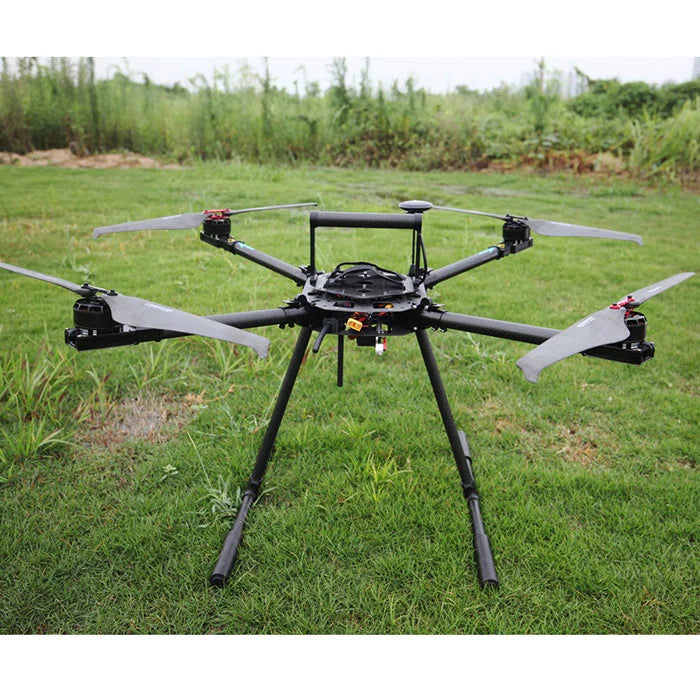

ARRIS M900 is quadcopter specially designed for long flight requirements in industrial applications. It is great for is great for power inspection, fire seach and rescue, traffic patrols, airdrops of supplier and lifesaving equipement, aerial photography and etc. The drone is 90% assembled and adjusted well, you just need to install the arms,battery plate and landing skid, prepare the battery, you can fly.
One main feature of the ARRIS M900 is the long flight time. With the 6S 24000mah lipo battery, the take off weight of the drone is 6.7kg, the non-load flight time is about 60 minutes. With a takeoff weight of 9.8kg, the flight time is about 30 minutes.
Main Features: 1. Ultra-long range digital image transmission makes the flight visual and safer. 2. Equipped with H12 1080P Digital Video Data Transmission Transmitter, which has clear image, low delay, long range, strong anti-interference and other features. The 5.5" screen can be used as the ground station, you can see the real-time image from the camera, and plan your route on the APP. 3. The high-definition camera is equipped with night lights, which can also work in low light conditions 4. A variety of operating equipment can be mounted with LED spotlights, casters, pan-tilts, and infrared devices for various industrial applications. 5. Small size, easy to carry, only one operator can be carried and operated, which greatly improves work efficiency. 6. Professional dust-proof and waterproof remote control, water discharge level IP64, to meet various working conditions. 7. The new generation of power systems, during our long-term repeated testing, they have a super powerful endurance performance.
Different Applications Use

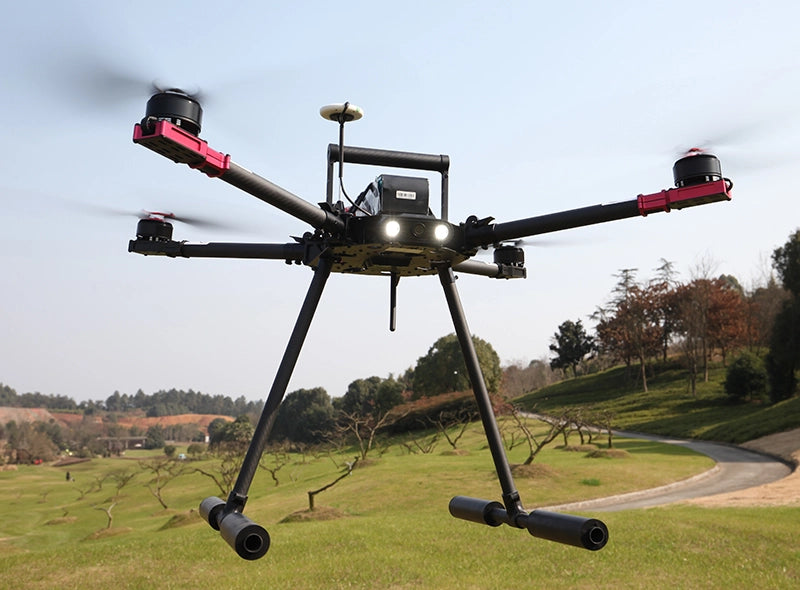

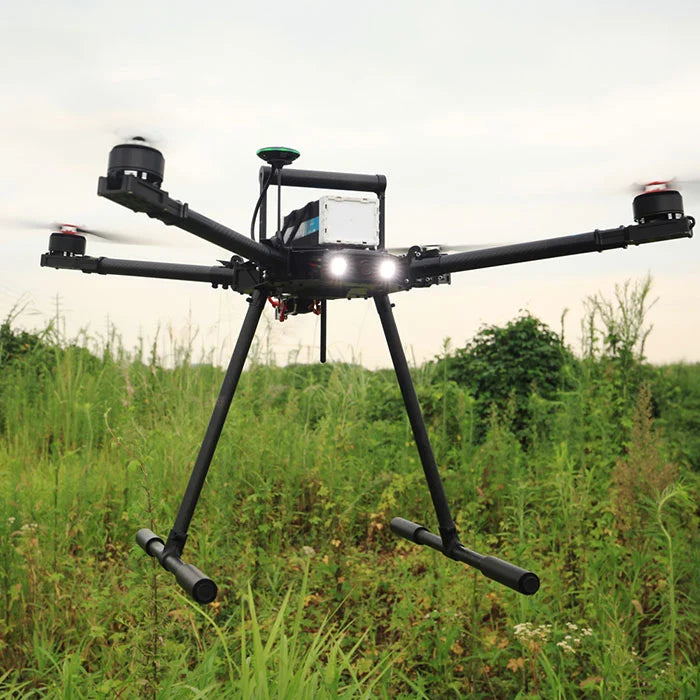

ARRIS M900 long range industrial drone now comes with two version cameras: 3in1 camera with LED and the camera with 2 axis gimbal. What is the differences between the 3in1 Camera and the Camera with Gimbal? 1. The 3in1 camera comes with LED light, but the camera wiht gimbal one does not have. 2. The angle of the 3in1 camera on the ARRIS M900 is fixed, for the camera with gimbal, the pitch and roll is adjustable through radio.

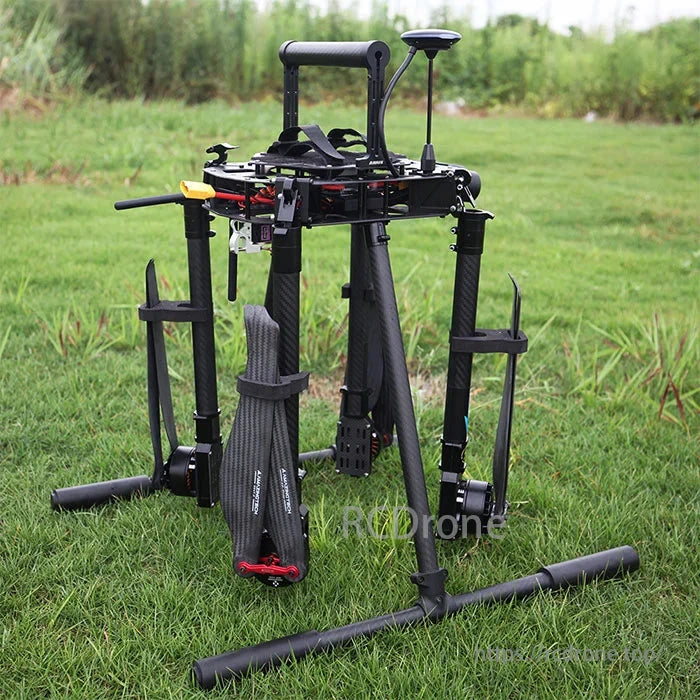

Convenient and quick release folding parts, CNC machined metal handles. Easy to carry.
ARRIS M900 extended the landing skid, and there reserved many holes on the bottom plate, allows various equipments to be attached.

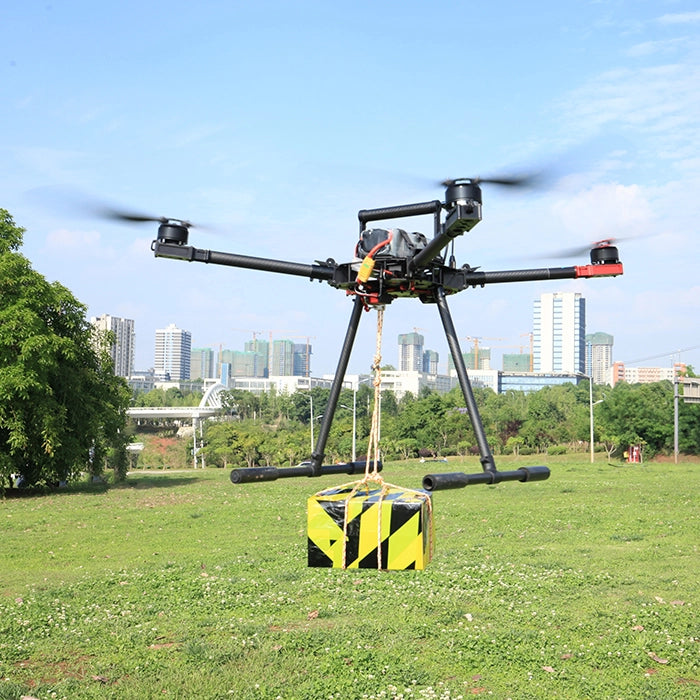

The drop system is optional. If you want to use the drone to deliver parcels or items, you can choose it.
Some customers asked about the carrying case for the ARRIS M900. And finally the customize carrying case for the M900 is available now. It is optional. With it, you can put the battery and other accessories in it during you take out. Very convenient to use.
CUAV Pixhack V5+ AutoPilot® is an advanced autopilot designed and made in CUAV. The board of the pixhack v5+ is based on the FMUv5 open hardware design, the external interface uses the Dronecode standard pinouts, and the modular design allows the user to design its backplane. It is fully compatible with PX4 and ArduPilot firmware. Mainly used for academic and business development.
Main Features: Detachable Core Design The Pixhack V5+ Autopilot still adopts a modular design, which is convenient for user integration.The core part of the flight control is integrated on the V5 core. The lower plate is detachable and serves only as an external interface carrier, giving consumers a customized space. Users can design their own lower plate according to their own needs.
New Open Source Hardware Design Pixhack V5 AutoPilot is a new high-performance flight control system based on FMU V5 open source hardware. FMU v5 open source hardware features more advanced processors than FMU V3, larger flash and RAM, and more stable and reliable sensors.
Built-in Patented Damping System The sensor and the main board of the Pixhack V5+ flight controller are seperated and designed with a built-in high-performance shock absorption system to adapt to various severe enviroments, and the applicability is stronger.
Multi-sensor Redundancy Combination CUAV Pixhavk V5+ autopilot comes with built-in 5 sets of sensors, the flight controller monitors the multi-channel sensor data in real time, and performs redundant switching immediately in the event of a fault, improving flight safety and stability.
Faster Processor In terms of hardware configuration, Pixhack V5+ autopilot flight controller abandoned the original STM32F427 processor of the px4 family and selected a more advanced STM32F765 processor with a clock speed of 216MHZ and 2MB FLASH/512K RAM, higher frequency and larger RAM.The clock speed is higher, the RAM is larger,the speed will be greatly improved.
Skydroid H12 1080P Digital Video Data Transmission Transmitter Long Range Remote Controller
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the FHSS spread spectrum technology, the full range of the Skydroid H12 can reach 5 to 30km. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.
Note: Battery and battery charger are not included .We suggest 6S 12000mah to 25000mah battery for it. And due to the battery in the radio, it takes longer time to arrive.
ARRIS M900 User Manual
1. When you receive the drone, please install the parts according to the following video:
2. After assembling, please check the User guide for testing it outsdie.
M900 User Guide
General Introduction
The following videos are some functions. Check what you may need.
Drop and Releasing Device System Test
Compass Calibration
Route Plan Mission Plan in the APP
Mission Plan Save and Upload to Radio
Mission Plan Operate Automatically
Automatically Takeoff & Land Note: When you arm the drone, please put the throttle stick at the lowest position until the propeller rotate.
