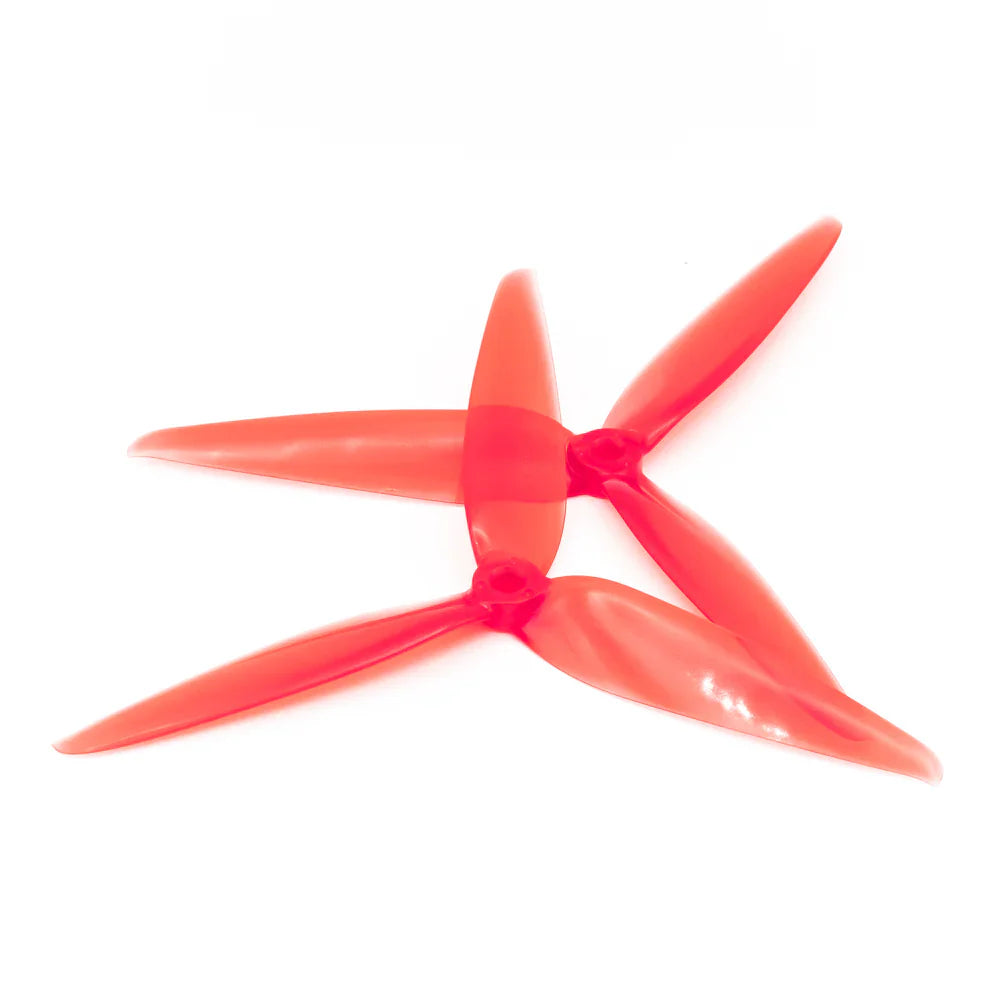

• EMAX Avia 7040 7 inch 3-blade FPV propeller set, two red props stacked on white background
  • Two red 3-blade FPV drone propellers overlapped, angled view showing blade shape and hubs

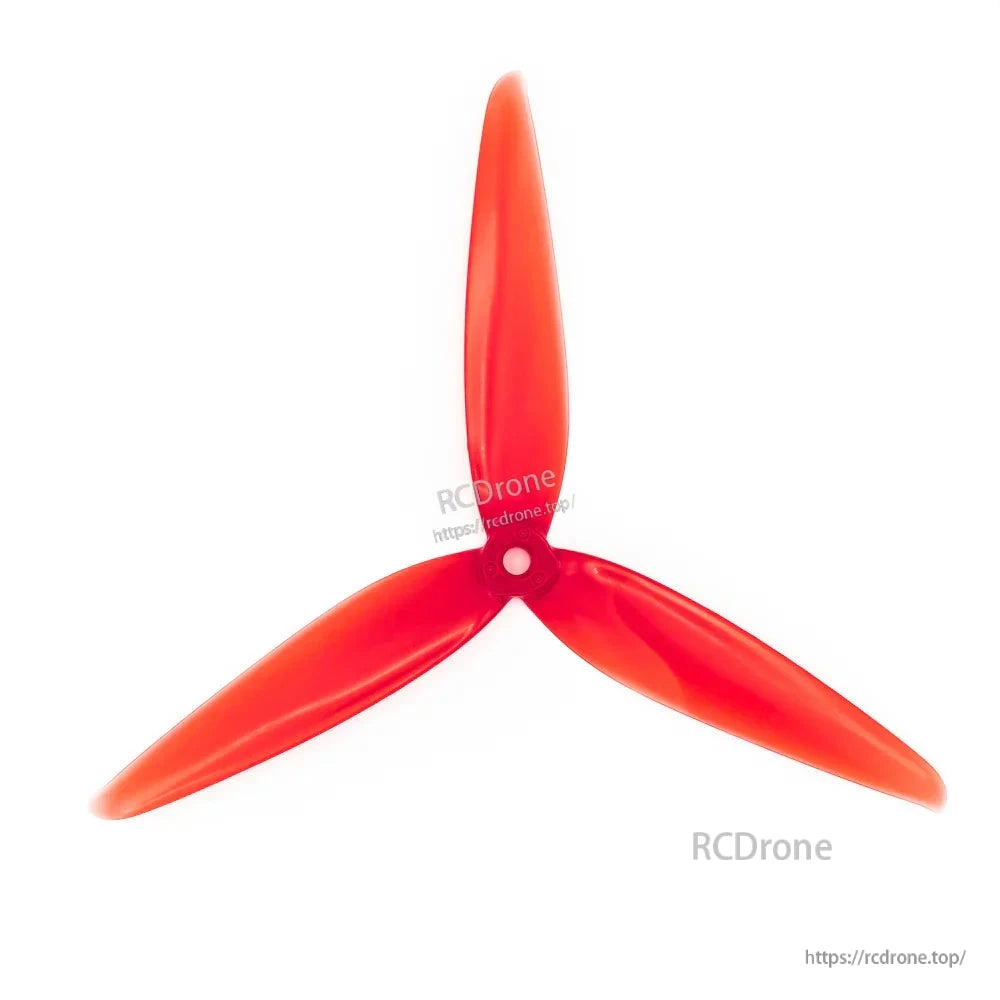

  • EMAX Avia 7040 7040-3 7 inch tri-blade FPV propeller, single red prop top view

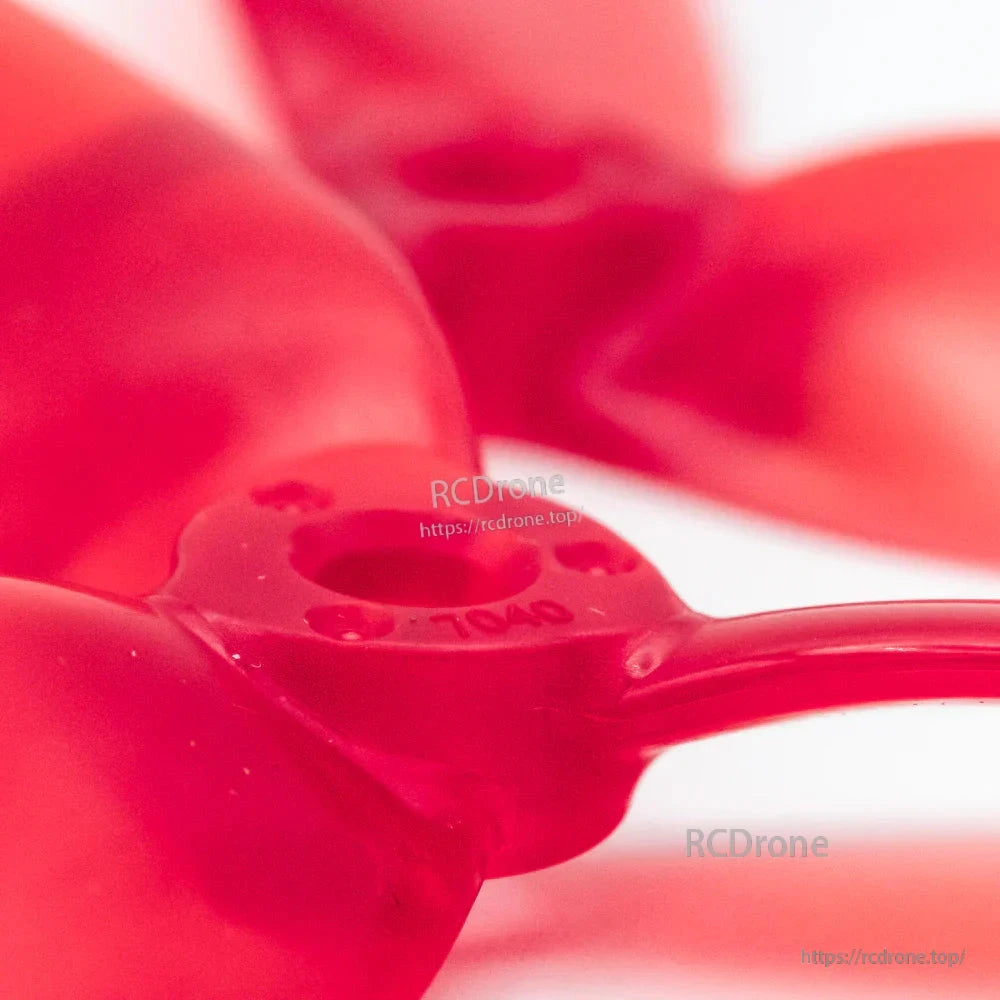

  • Close-up of red propeller hub with center mounting hole and molded 7040 marking
1 4

EMAX Avia 7040 7 Inch 7040-3 FPV Propeller Set (1CW+1CCW) | AVIA7040 3-Blade

EMAX Avia 7040 7 Inch 7040-3 FPV Propeller Set (1CW+1CCW) | AVIA7040 3-Blade

Emax

$8.88 USD
$8.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

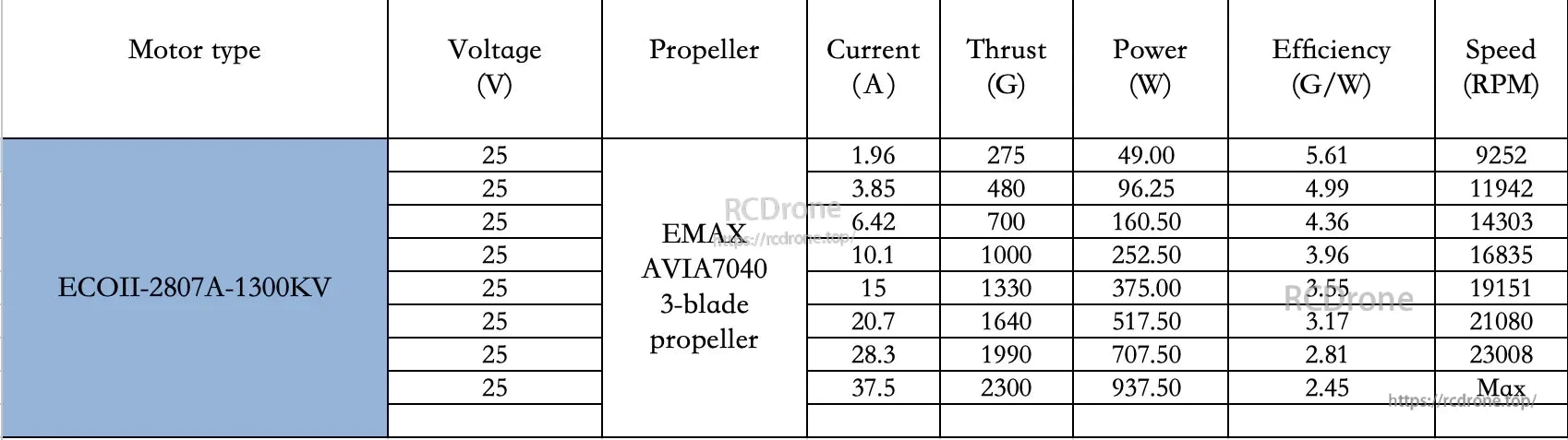

Thrust test data table for EMAX Avia 7040 7 Inch 7040-3 FPV Propeller at 25V (ECOII-2807A-1300KV motor)

Overview

EMAX AVIA7040 3-blade FPV propeller set in 7 inch size, model 7040-3, supplied as 1CW + 1CCW for typical quadcopter setups.

Key Features

Specifications

Propeller

Brand / Series EMAX AVIA
Model AVIA7040
Size 7 Inch
Blade Count 3-blade
Propeller Marking 7040-3
Rotation 1CW + 1CCW

Thrust Test Data (Motor: ECOII-2807A-1300KV, Voltage: 25 V, Propeller: EMAX AVIA7040 3-blade propeller)

Voltage (V) Current (A) Thrust (G) Power (W) Efficiency (G/W) Speed (RPM)
25 1.96 275 49.00 5.61 9252
25 3.85 480 96.25 4.99 11942
25 6.42 700 160.50 4.36 14303
25 10.1 1000 252.50 3.96 16835
25 15 1330 375.00 3.55 19151
25 20.7 1640 517.50 3.17 21080
25 28.3 1990 707.50 2.81 23008
25 37.5 2300 937.50 2.45 Max

What’s Included

  • EMAX Avia 7040 7 Inch 7040-3 FPV propellers: 1x CW + 1x CCW

Applications

  • 7-inch FPV multirotor builds requiring a CW/CCW propeller pair

For installation or compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

Performance chart listing current, thrust, power, efficiency and RPM results for the AVIA7040 3-blade 7-inch propeller

Test results at 25V with an ECOII-2807A-1300KV motor summarize thrust, power draw, efficiency, and RPM across multiple throttle points.
