Emax AVIA9045 9045-3 9in 3-Blade FPV Propeller (Single) - Choose 1CW or 1CCW

Emax

$9.16 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Type CW CCW

Quantity

View full details

Overview

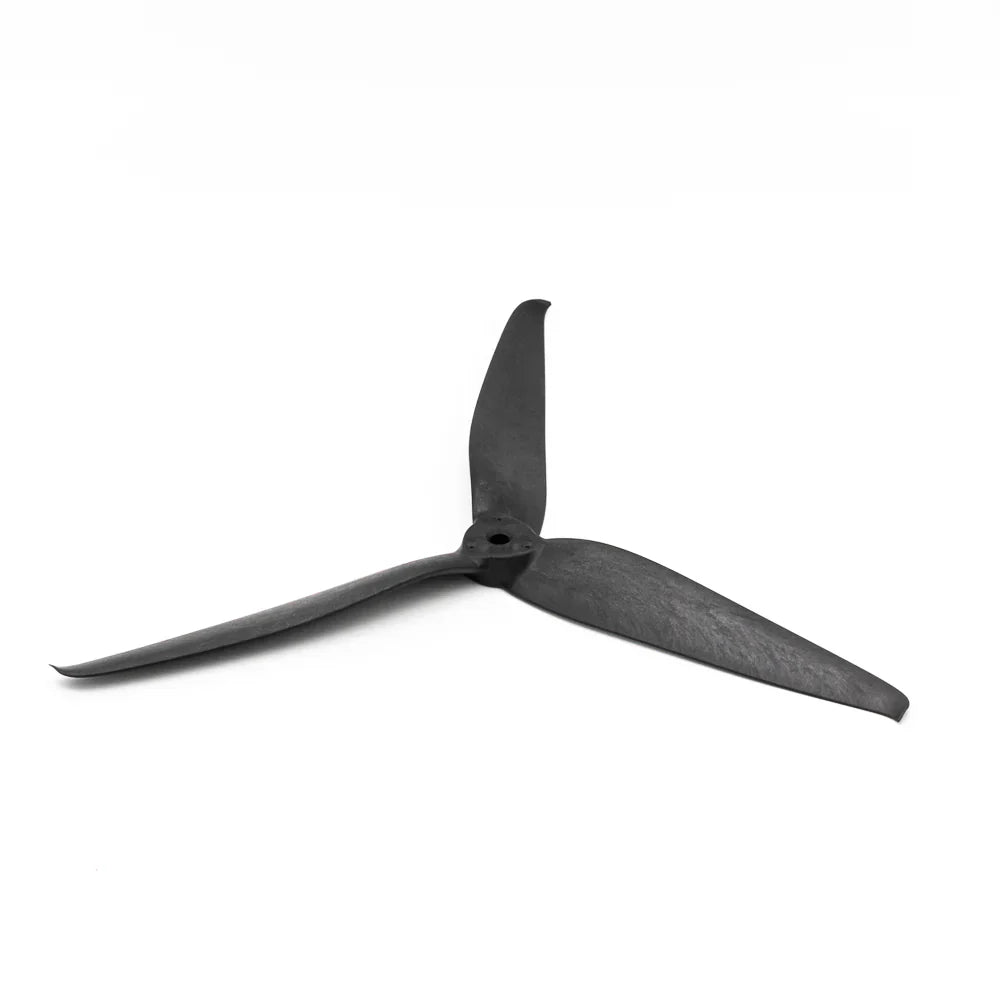

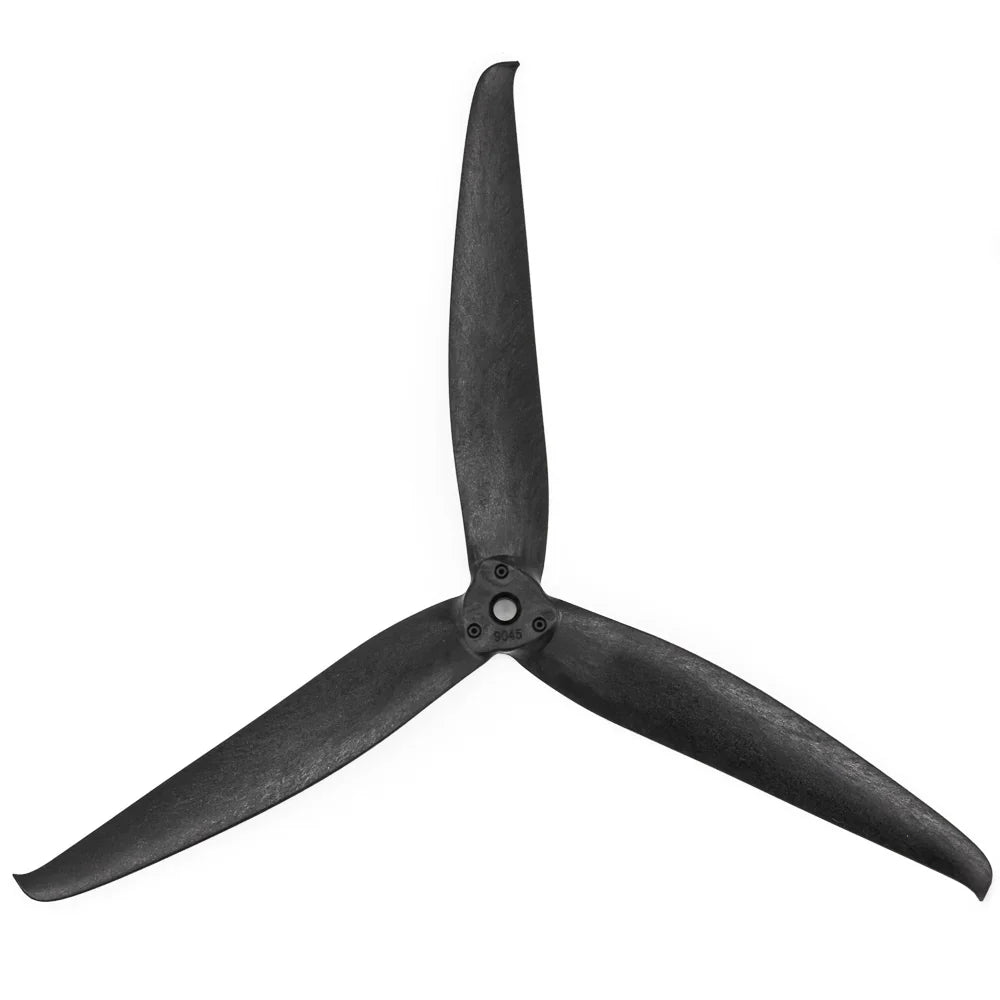

The Emax AVIA9045 (9045-3) is a 9 inch, 3-blade FPV propeller sold as a single piece, with a selectable direction option: 1CW or 1CCW.

Key Features

Model: AVIA9045 / 9045-3
9 inch, 3-blade propeller format
Direction options: 1CW or 1CCW (choose variant)
Performance test data provided at 25.2 V with ECOII motor setups (see Specifications)

Specifications

Propeller

Brand	Emax
Series / Model	Avia AVIA9045
Alternate model marking	9045-3
Size	9 inch
Blade count	3-blade
Direction options	1CW or 1CCW
Unit	Single propeller

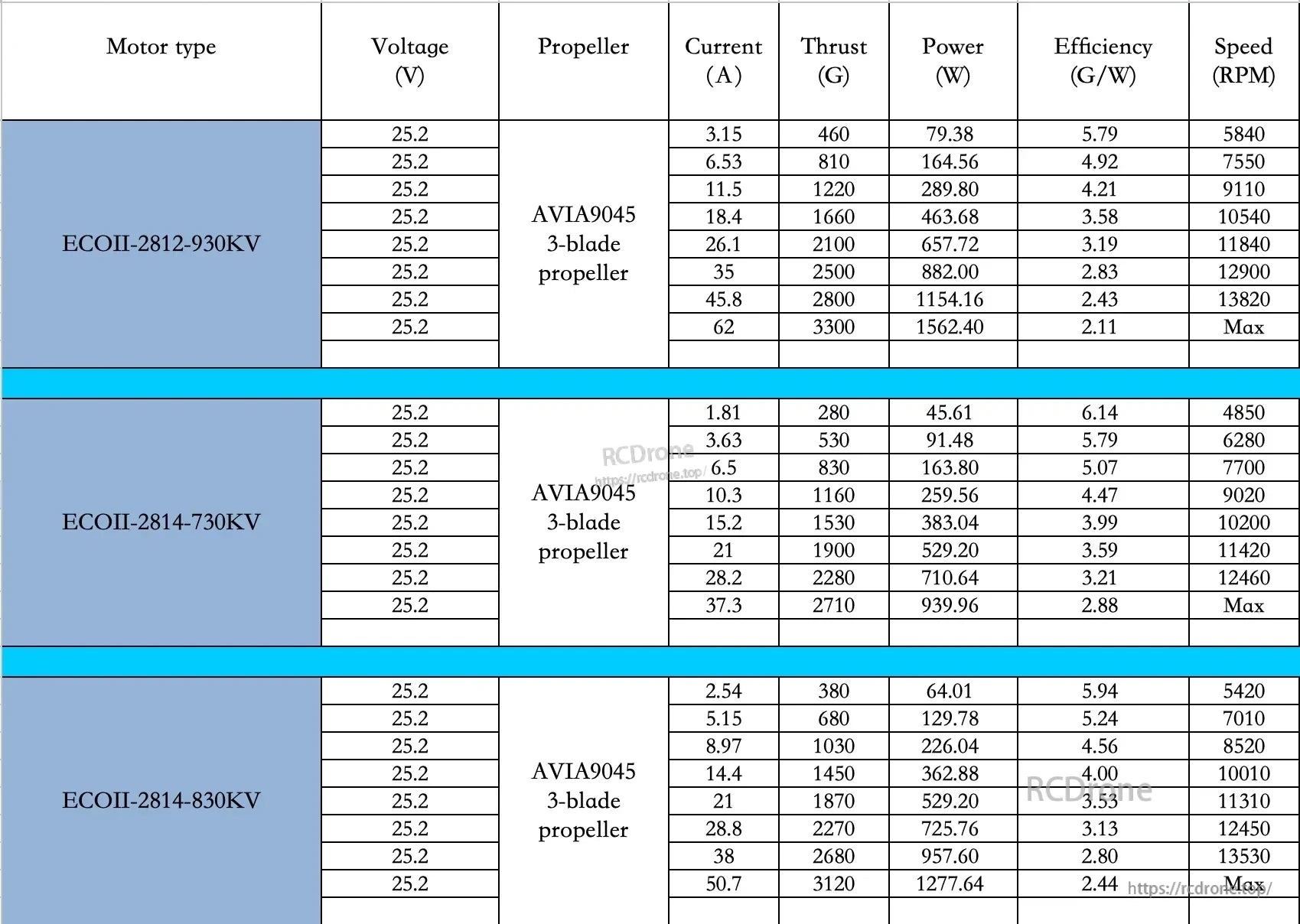

Performance Data (25.2 V, AVIA9045 3-blade propeller)

Test columns: Motor type, Voltage (V), Current (A), Thrust (G), Power (W), Efficiency (G/W), Speed (RPM).

Motor: ECOII-2812-930KV

Voltage (V)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)	Speed (RPM)
25.2	3.15	460	79.38	5.79	5840
25.2	6.53	810	164.56	4.92	7550
25.2	11.5	1220	289.80	4.21	9110
25.2	18.4	1660	463.68	3.58	10540
25.2	26.1	2100	657.72	3.19	11840
25.2	35	2500	882.00	2.83	12900
25.2	45.8	2800	1154.16	2.43	13820
25.2	62	3300	1562.40	2.11	Max

Motor: ECOII-2814-730KV

Voltage (V)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)	Speed (RPM)
25.2	1.81	280	45.61	6.14	4850
25.2	3.63	530	91.48	5.79	6280
25.2	6.5	830	163.80	5.07	7700
25.2	10.3	1160	259.56	4.47	9020
25.2	15.2	1530	383.04	3.99	10200
25.2	21	1900	529.20	3.59	11420
25.2	28.2	2280	710.64	3.21	12460
25.2	37.3	2710	939.96	2.88	Max

Motor: ECOII-2814-830KV

Voltage (V)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)	Speed (RPM)
25.2	2.54	380	64.01	5.94	5420
25.2	5.15	680	129.78	5.24	7010
25.2	8.97	1030	226.04	4.56	8520
25.2	14.4	1450	362.88	4.00	10010
25.2	21	1870	529.20	3.53	11310
25.2	28.8	2270	725.76	3.13	12450
25.2	38	2680	957.60	2.80	13530
25.2	50.7	3120	1277.64	2.44	Max

For direction selection (1CW/1CCW) and general compatibility questions for 9 inch FPV propeller setups, contact support@rcdrone.top or visit https://rcdrone.top/.
