Axisflying AX3115 900KV Brushless Motor for 10-Inch FPV Drone – 3–6S, 1617W, 5mm Shaft, 19×19mm Mount

Overview

The Axisflying AX3115 900KV is a high-torque long-range/cinematic motor sized for 10-inch FPV builds and loading platforms. It uses a 12N14P configuration, 5 mm shaft, and durable 18AWG / 300 mm silicone leads. Rated for 3–6S LiPo, it delivers up to 1617 W power and 4185 g maximum thrust (motor weight 111 g incl. wires). Idle draw is 1.28 A @ 12 V and winding resistance is 38 mΩ. Dimensions and mounting follow the FPV standard with a Ø37.1 mm stator can and 4×M3 on 19 mm pattern for easy frame integration.
(All values taken from the product spec, drawing, and test sheets in the provided images.)

Key Features

• 12N14P high-efficiency stator for smooth cinematic control

• 3–6S wide voltage; 900KV for 9–10″ prop setups

• 5 mm prop shaft, M5 thread; robust long-range payload capability

• Standard 19×19 mm base with 4×M3 mounting

• Long 18AWG/300 mm silicone leads for clean wiring

Specifications

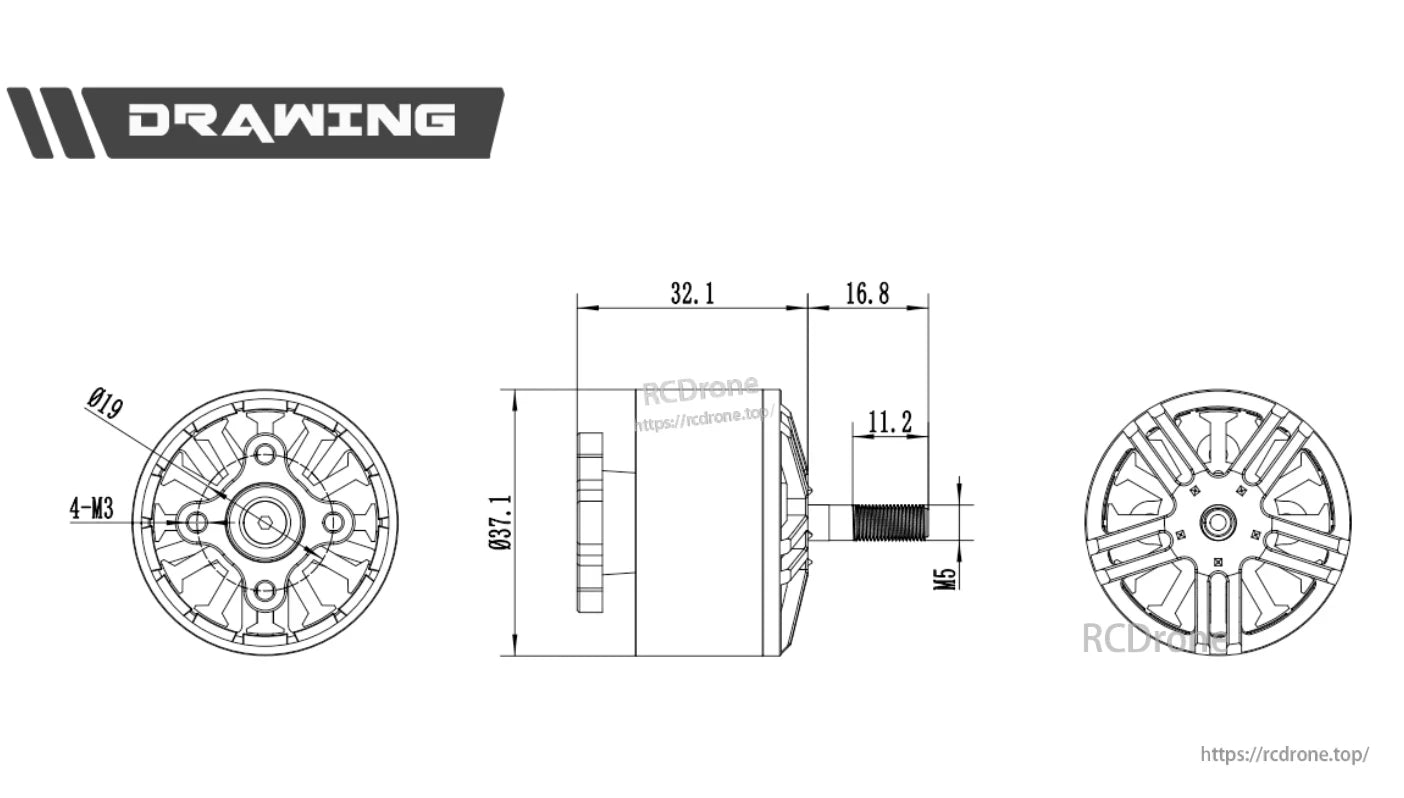

Mechanical Drawing

• Mounting: 4×M3 on Ø19 mm circle (19×19 mm FPV pattern)

• Motor diameter: Ø37.1 mm

• Body length: 32.1 mm

• Shaft section: total protrusion ≈16.8 mm, threaded length ≈11.2 mm, M5 thread

Performance Bench Tests

Test setup: AX3115 900KV with HQProp 9×5×3, 25.0 V supply

Notes: The lab spec lists Max Thrust 4185 g and Max Power 1617 W (achieved with other prop/conditions), while the sheet above shows representative results on a 9×5×3 prop at 25 V.

Applications

AX3115 3115 Motor 10-inch long-range FPV, cinematic X4/X8 rigs, and loading platforms that need smooth control with strong mid-to-top-end thrust.

Details

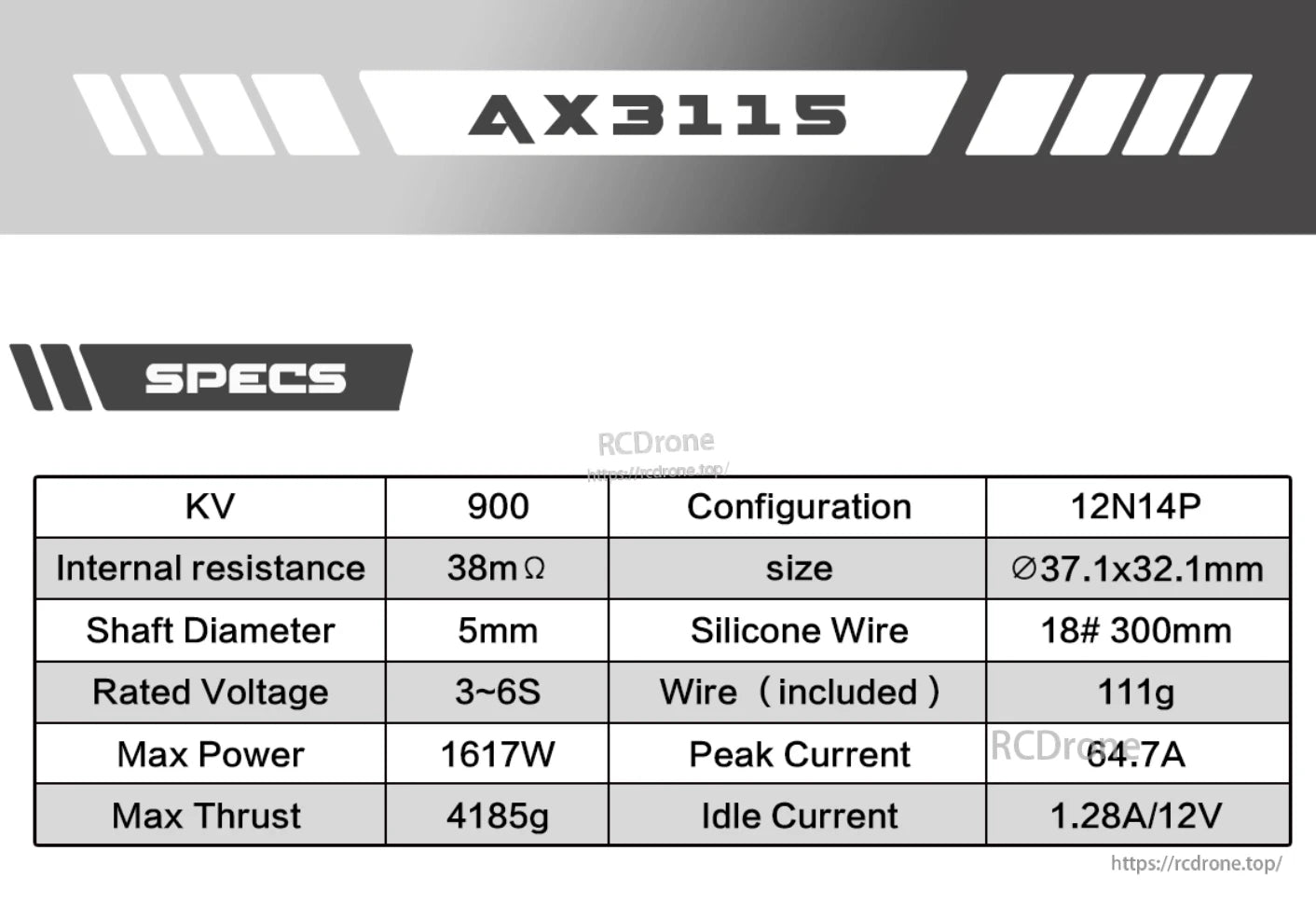

AX3115 900KV brushless motor specs: 12N14P configuration, 38mΩ resistance, 5mm shaft, 3-6S voltage, 1617W max power, 4185g thrust, 64.7A peak current, 111g weight.

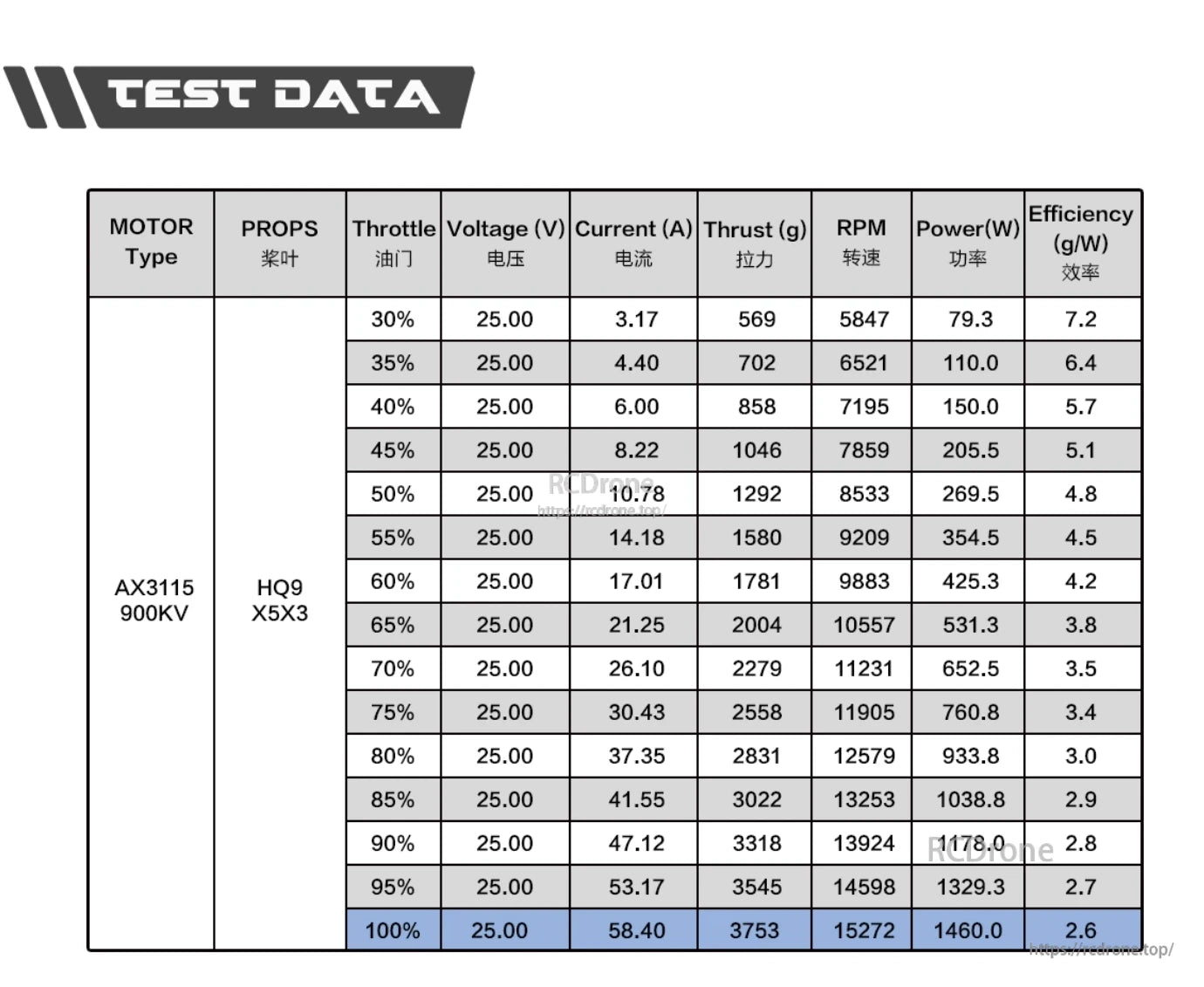

AX3115 900KV motor test data with HQ9 X5X3 props. Voltage: 25V, throttle from 30% to 100%. Includes current, thrust, RPM, power, and efficiency values at each throttle level.
