4PCS Axisflying C135 1303.5 5500KV / C145 1404.5 4500KV 4S Brushless Motors for 2–2.5 Inch Cinewhoop FPV Drones

Overview

The Axisflying C-Series Brushless Motors are crafted for cinematic FPV pilots who demand smooth, responsive, and high-torque performance. Designed for 2–2.5 inch Cinewhoop drones, the C135 and C145 motors deliver balanced thrust, low vibration, and precise control, helping creators achieve perfect footage on the first try.

Available in two models:

• C135 1303.5 5500KV – Optimized for 2-inch cinewhoops, paired best with Gemfan D51-4 / D51-5 props

• C145 1404.5 4500KV – Designed for 2.5-inch cinematic builds, best with Gemfan D63-3 / D63-5 props

Key Features

• ✅ High Torque & Smooth Control – Ideal for cinematic FPV flying

• ✅ 5500KV / 4500KV for 4S setups

• ✅ C135: Compact, lightweight for 2" builds

• ✅ C145: More powerful for heavier 2.5" cinewhoops

• ✅ IP53 Bearing Shield Technology (C145) – Dustproof & splash-resistant, longer bearing life

• ✅ Supports over 850g thrust, peak current ~25A

• ✅ N52H arc magnets, 12N14P design for efficiency & power

Specifications

Package Includes (Per Motor)

• 1 × C135 or C145 Brushless Motor

• 4 × M2*5 Motor Screws

• 1 × M2*4 Shaft Lock Screw

• 2 × M2*7 Prop Screws

• 1 × O-Ring

• 1 × Washer

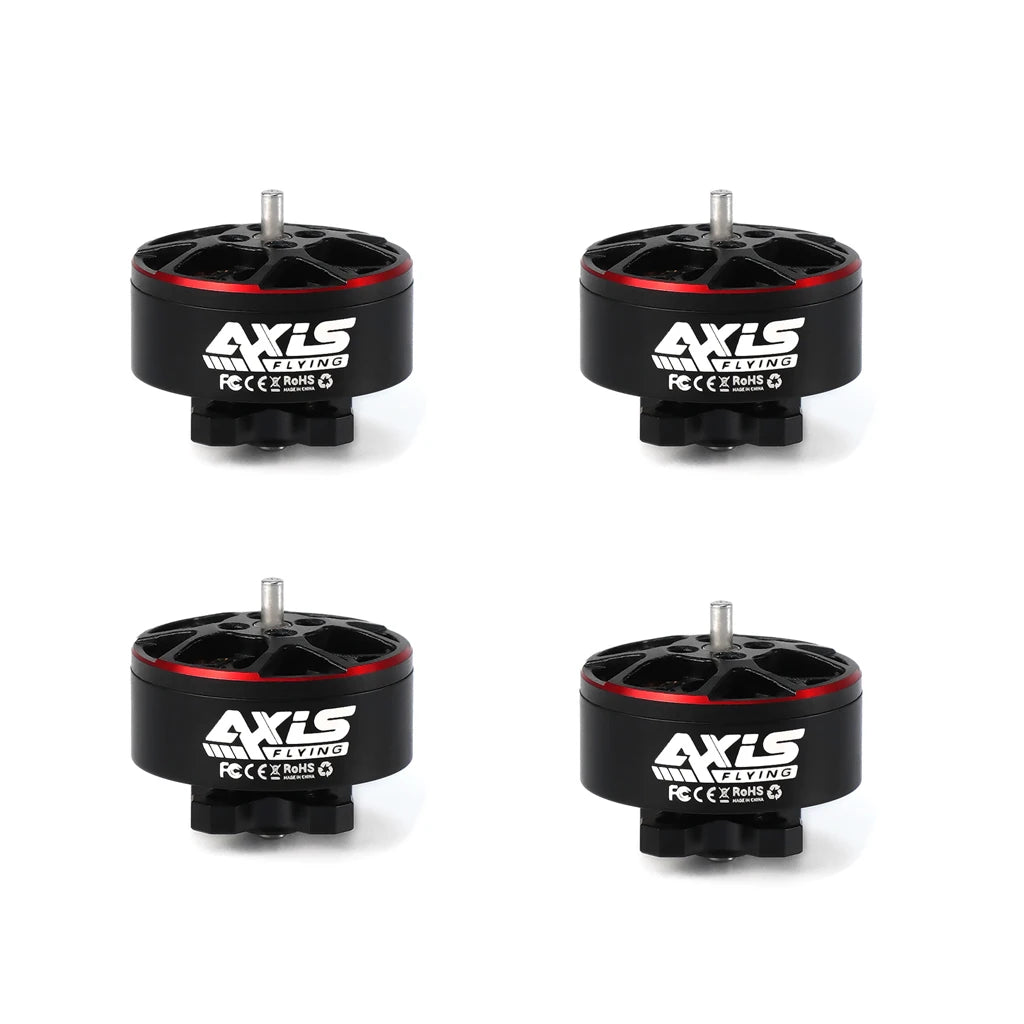

⚠️ Package includes 4 motors total (Optional KV version: C135 or C145)

- The motor is very powerful that can get over 0.85KG and most current is about 25A

*Package

- 1* C145 motor

- 4* M2*5 screws for motor

- 1* M2*4 screw for lock shaft

- 2* M2*7 screws for lock props

- 1* O-ring

- 1* Washer

Axisflying Fpv Brushless Motor C145 1404.5 For 2.5inch Cinewhoop And Cinematic Drone

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

- C145 motor is special designed for 2.5inch cinewhoop and cinematic drone that need more powerful and torque.

- C145 motors run perfect with Gemfan D63-5 and D63-3 props

- 4500KV@4S

*Bearing Shield Technology

- An IP53 rating dustproof and waterproof bearing placement design.

- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

- Increased thrust effciency and say goodbye to crush motor bearings

*Specs

- 4500 KV is for 4S

- Configuration: 12N14P / N52H arc magnet

- Motor stator size: 1404.5

- Motor mounting hole size: 4*M2 (Φ12mm)

- Motor cables: AWG 20#, 150MM

- Motor dimensions (Dia *Len): Φ26.9*288MM

- Motor weight (including 150MM cables) :

- The motor is very powerful that can get over 0.85KG and most current is about 25A

*Package

- 1* C145 motor

- 4* M2*5 screws for motor

- 1* M2*4 screw for lock shaft

- 2* M2*7 screws for lock props

- 1* O-ring

- 1* Washer

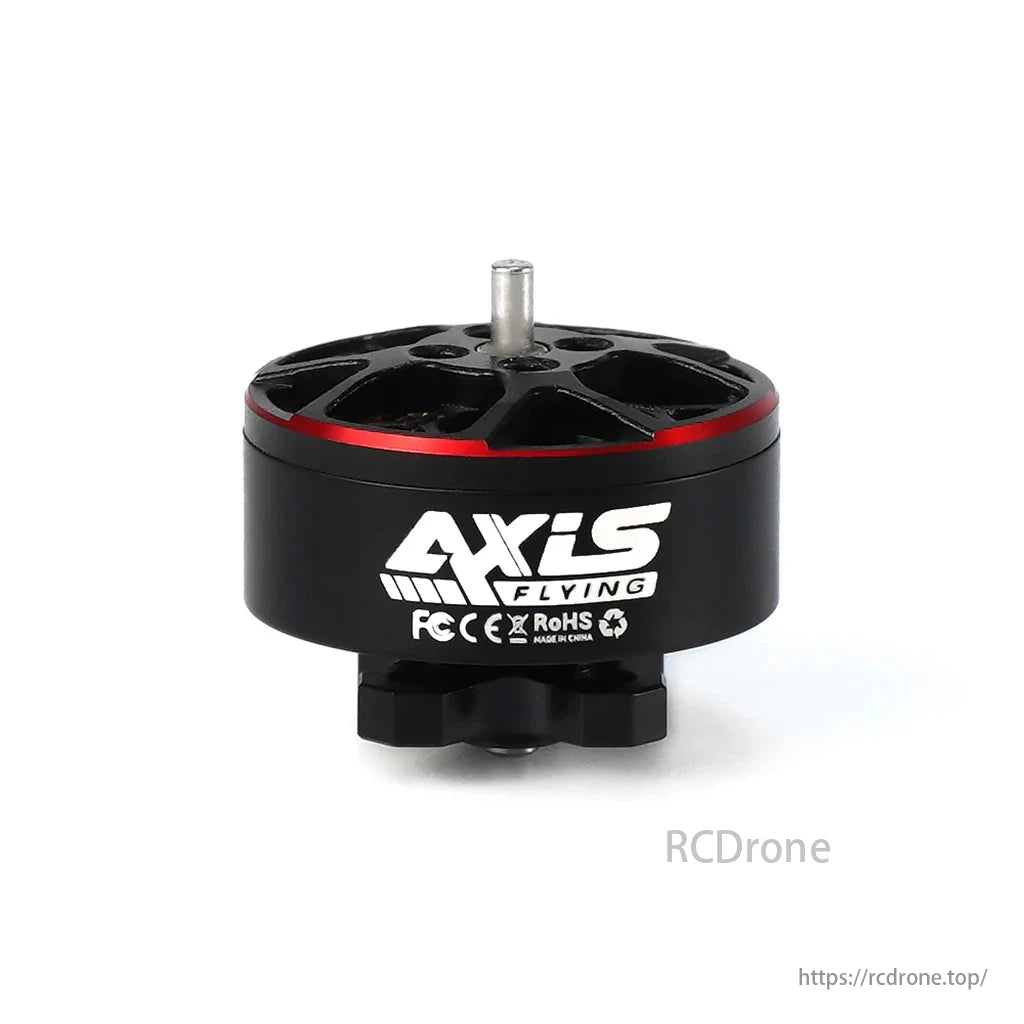

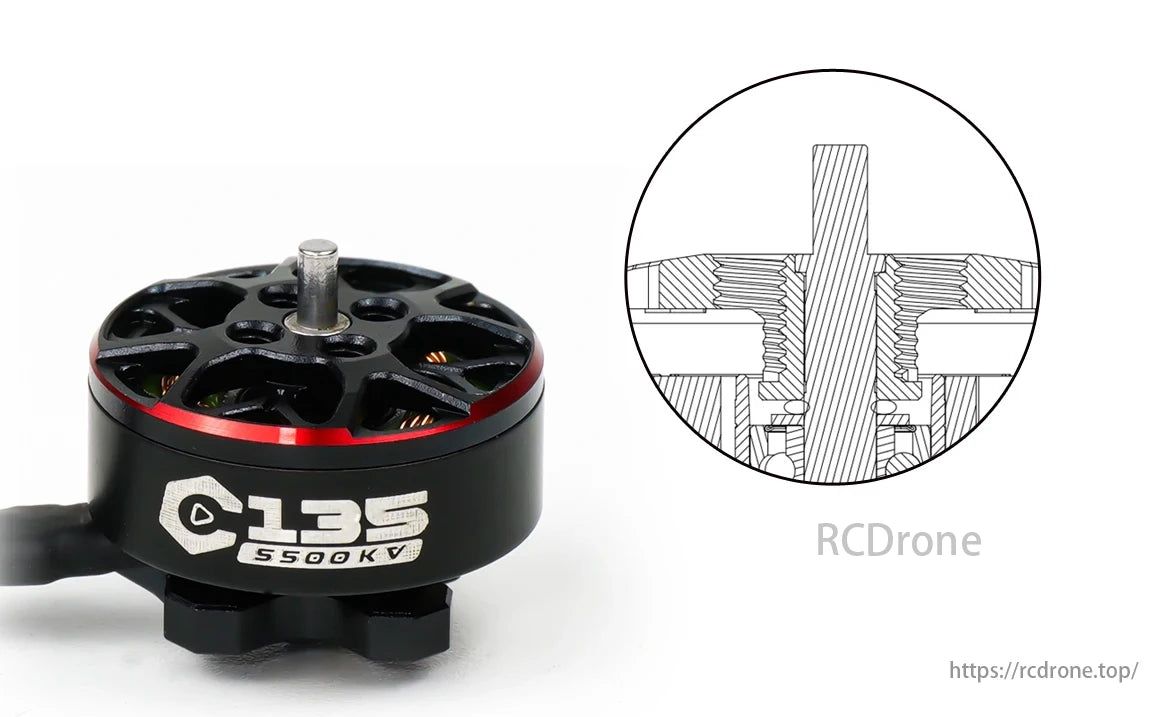

Steel shaft inverted design ensures no disengagement. N52H arc magnet provides strong power and large torque for Axisflying C135-C145 4S Brushless Motors.

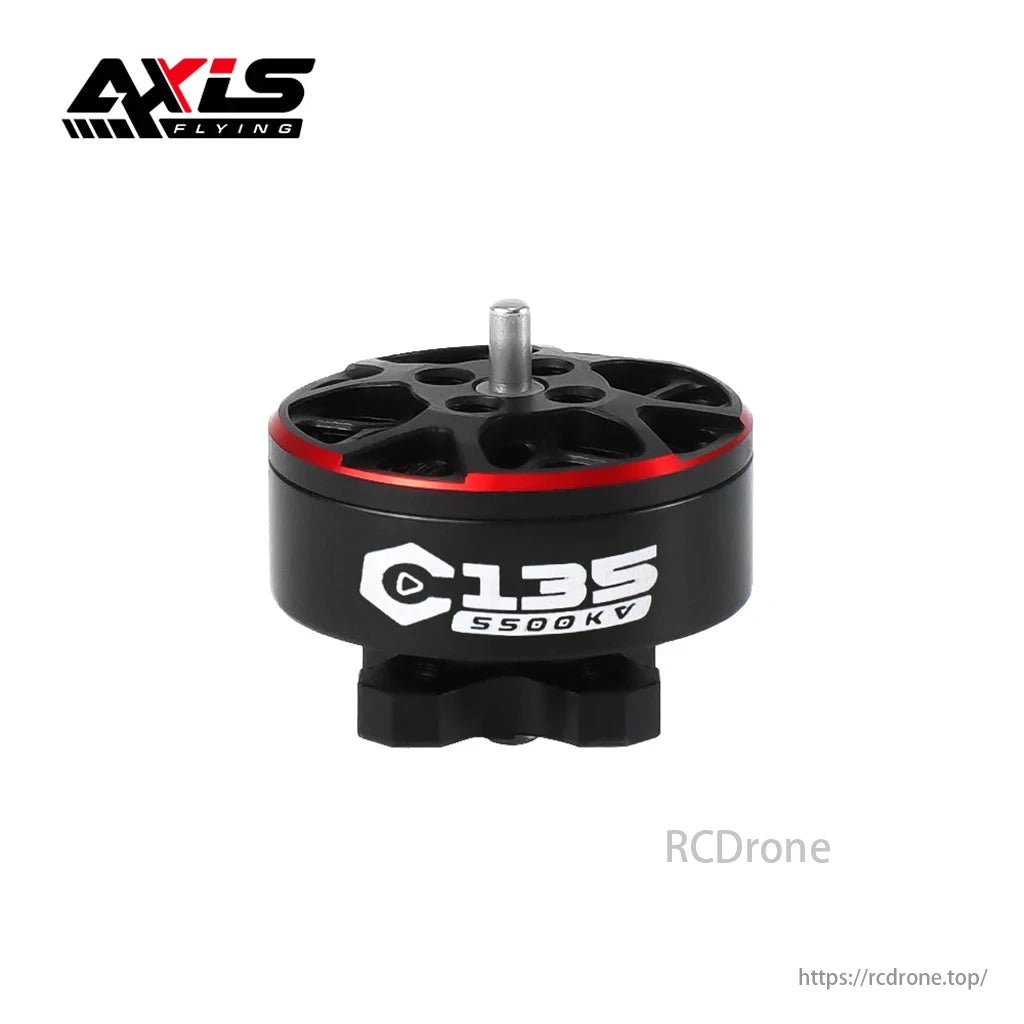

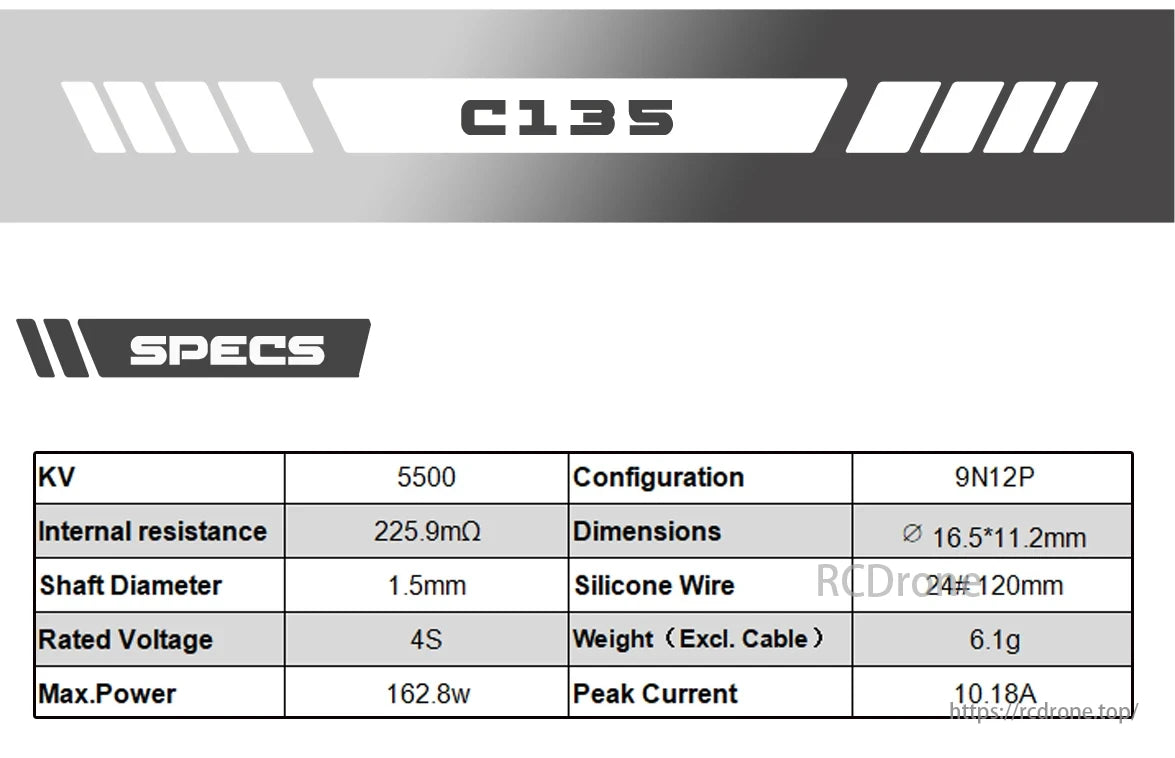

C135 motor specs: KV 5500, 9N12P config, 16.5*11.2mm size, 1.5mm shaft, 24# 120mm wire, 6.1g weight, 162.8W max power, 10.18A peak current, 4S rated voltage.

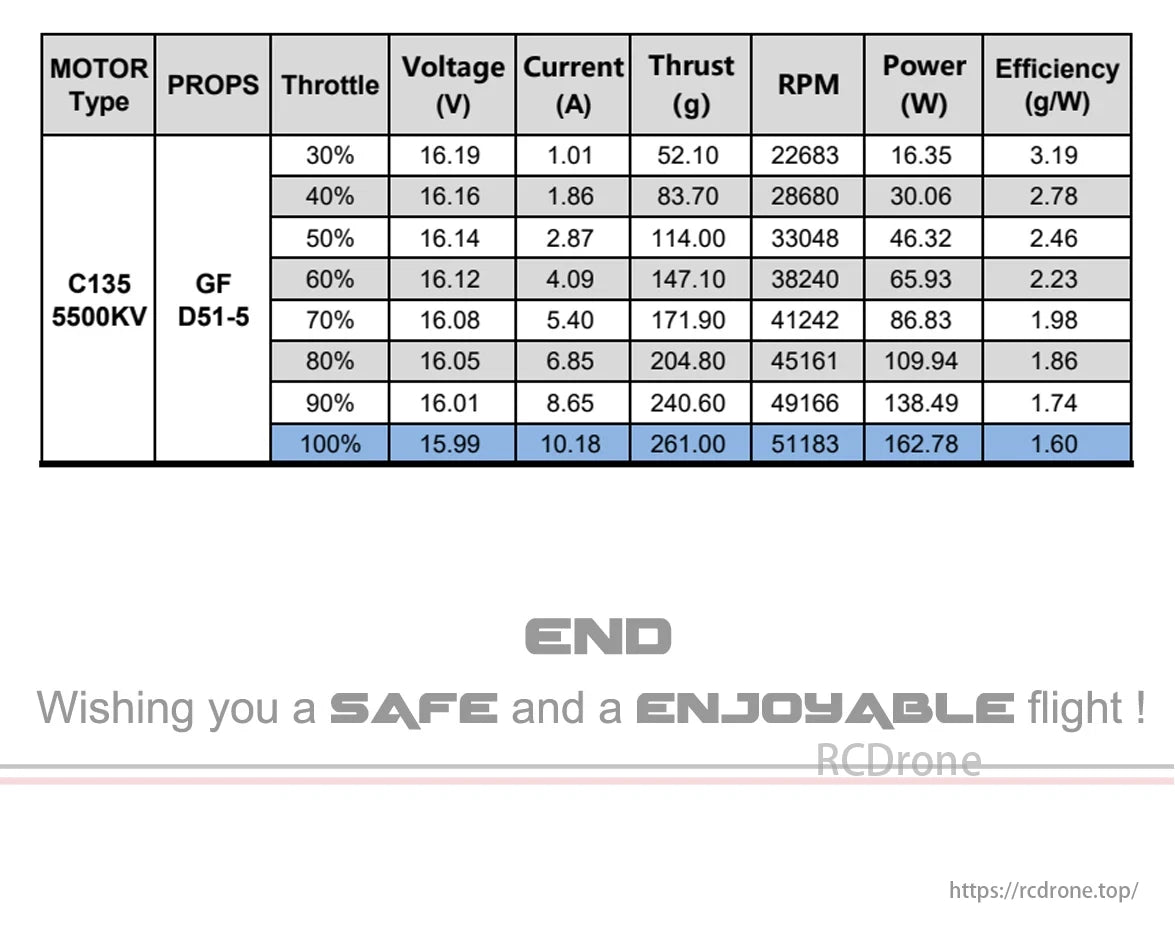

C135 5500KV motor with GF D51-5 props. Data includes throttle, voltage, current, thrust, RPM, power, and efficiency metrics for various performance levels. Safe and enjoyable flight wished.

Special magnetic circuit design for faster response. Features curved arc magnets N52H and mounting pattern Ø9mm*M2. Axisflying C135-C145 4S Brushless Motors.

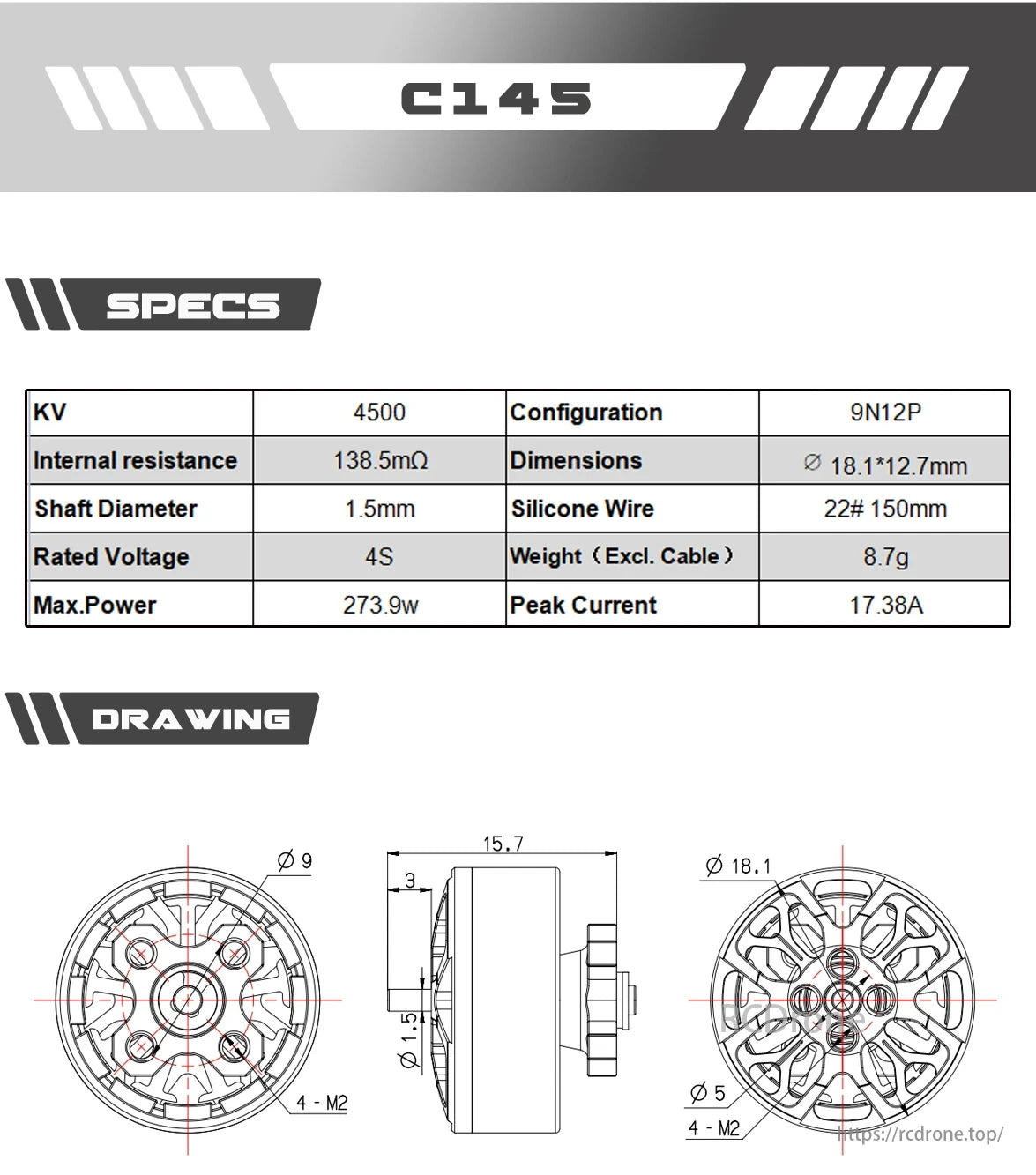

C145 motor: KV 4500, 138.5mΩ, 9N12P, 18.1x12.7mm, 1.5mm shaft, 4S, 273.9W, 8.7g, 17.38A peak. Drawing shows dimensions and mounting details.

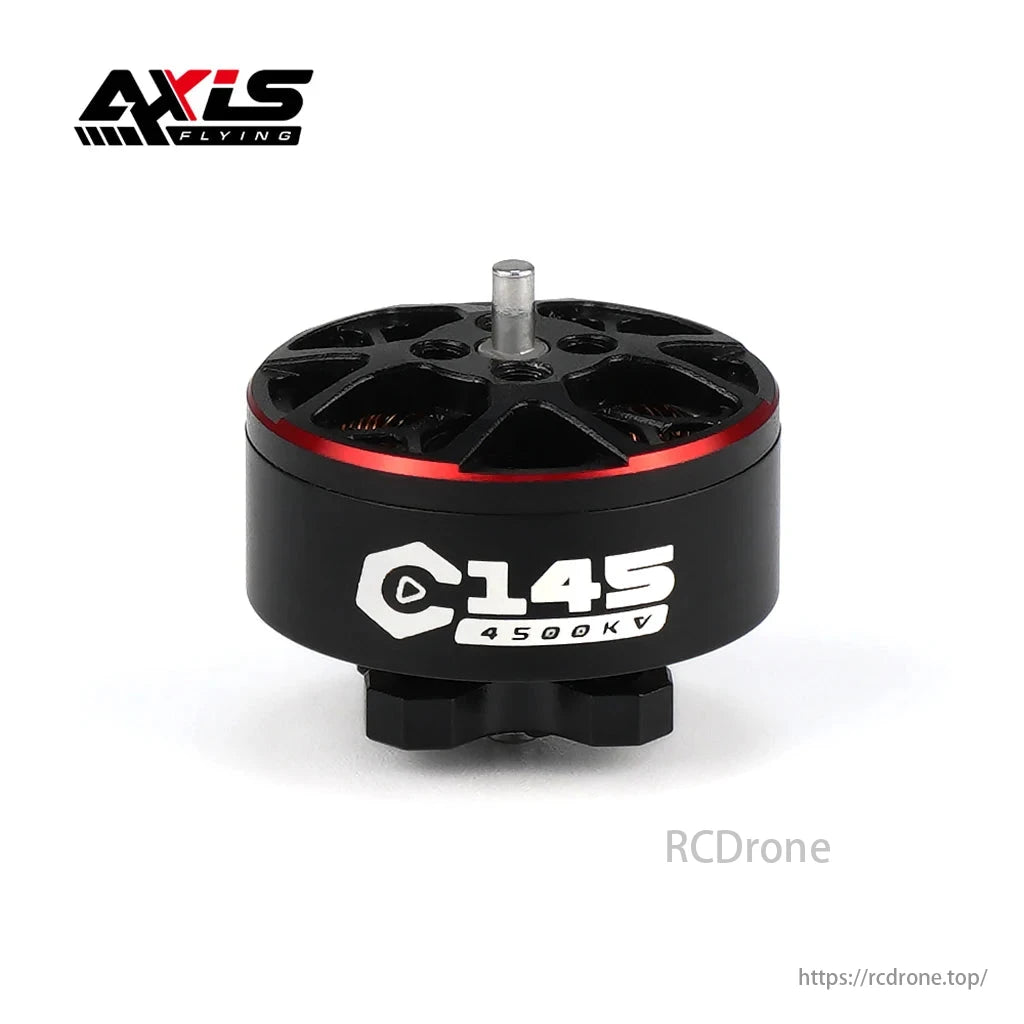

C145 motor designed for Tiny Trainer, 2.5" Cinewhoop. Black with red accents, 4500KV rating. Compact and powerful design.

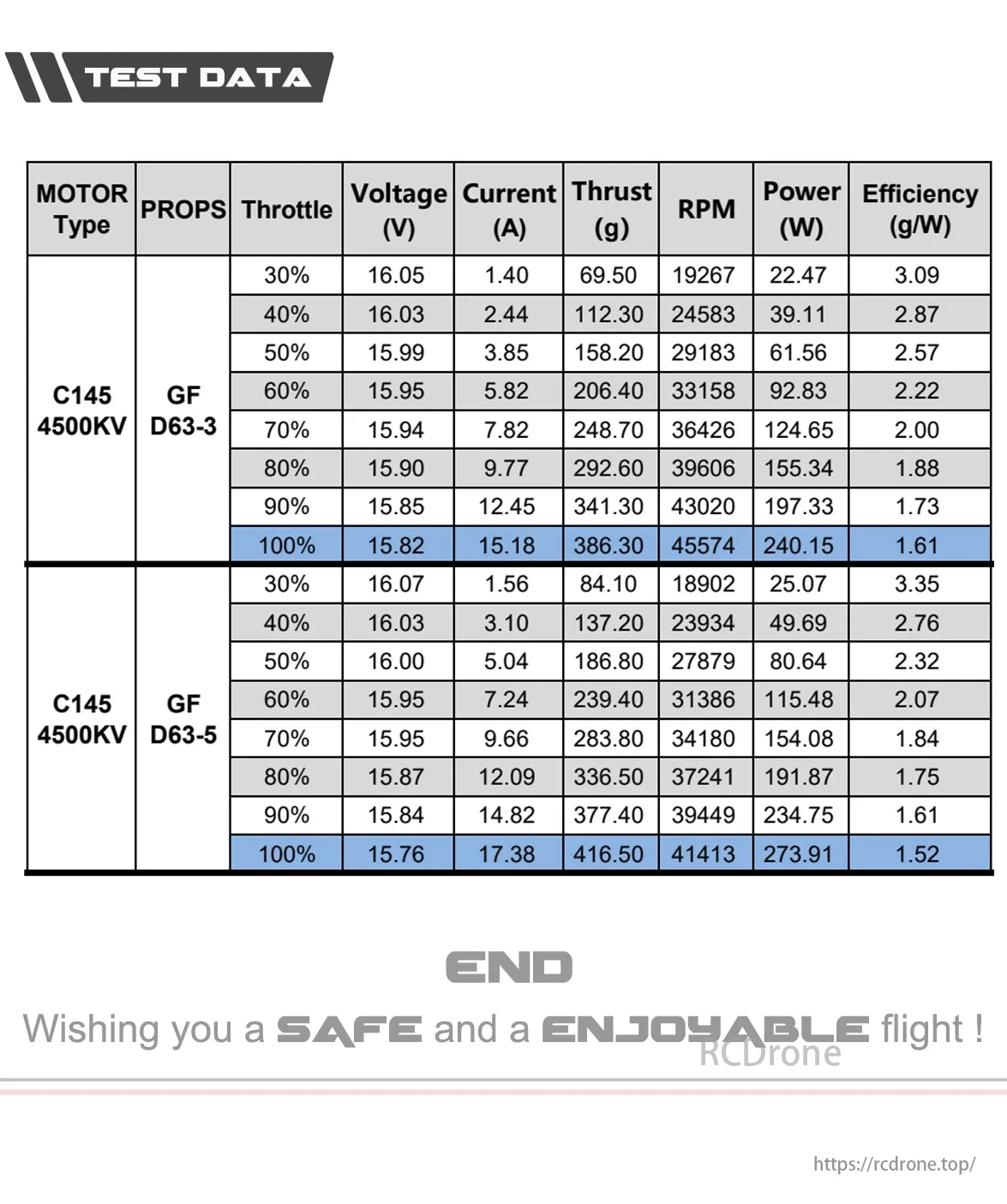

Test data for C145 4500KV motors with GF D63-3 and D63-5 props. Includes throttle, voltage, current, thrust, RPM, power, and efficiency metrics at various percentages. Safe and enjoyable flight wished.
