Axisflying CineON C20 V2 SPECIFICATIONS

Usage: Fan

Type: Micro Motor

Protect Feature: waterproof

Output Power: 162.8W

Origin: Mainland China

Model Number: C20 V2

Continuous Current(A): 10.18A

Construction: Permanent Magnet

Commutation: Brushless

Color: Black

Certification: CE

Brand Name: AXISFLYING

*Be aware

O3 or LINK VTX of the drone has been activated for better testing.

If activation is not required, please note when placing an order.

*Forword

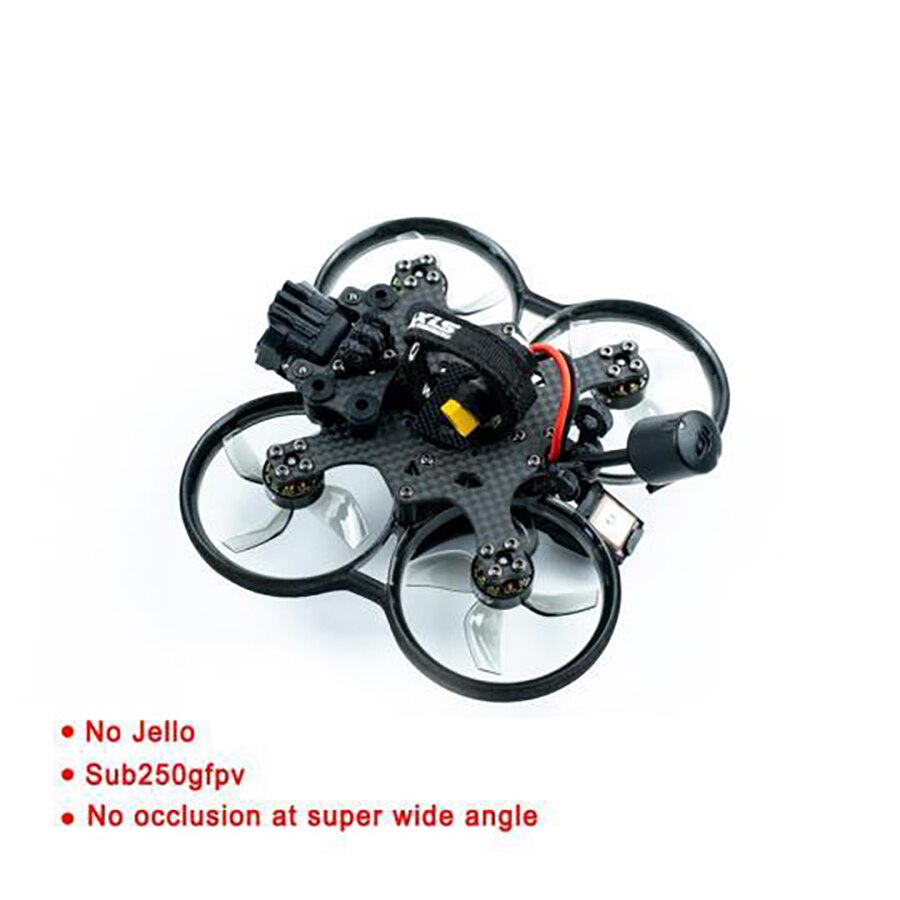

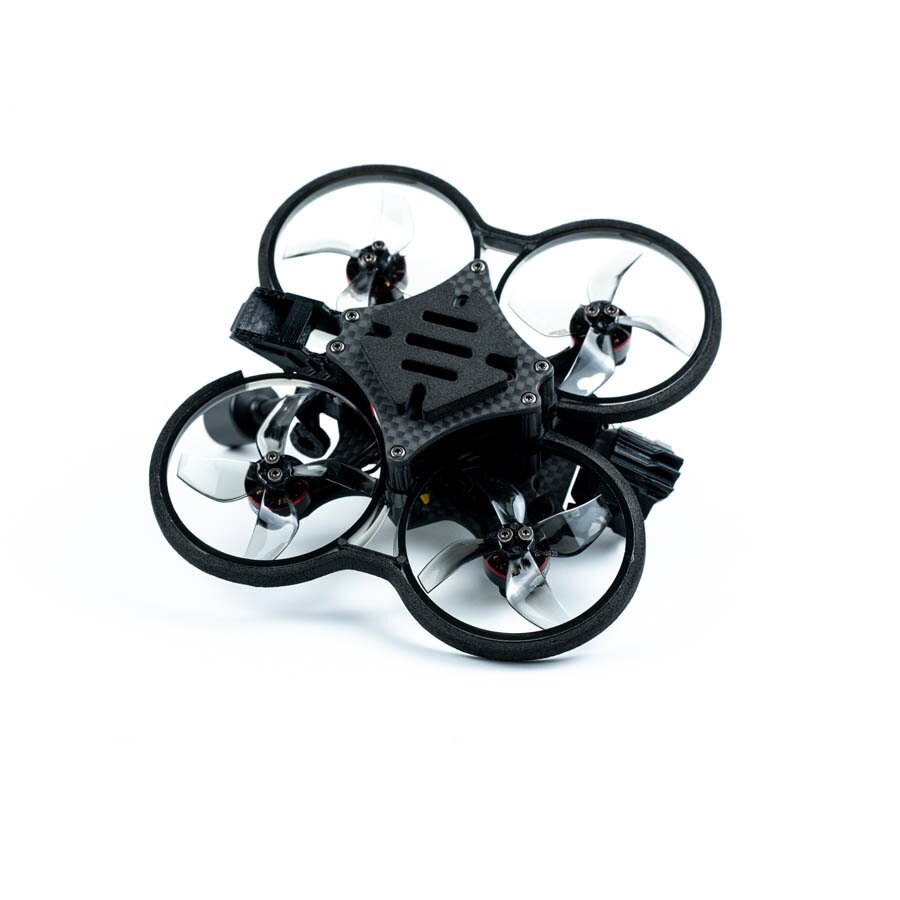

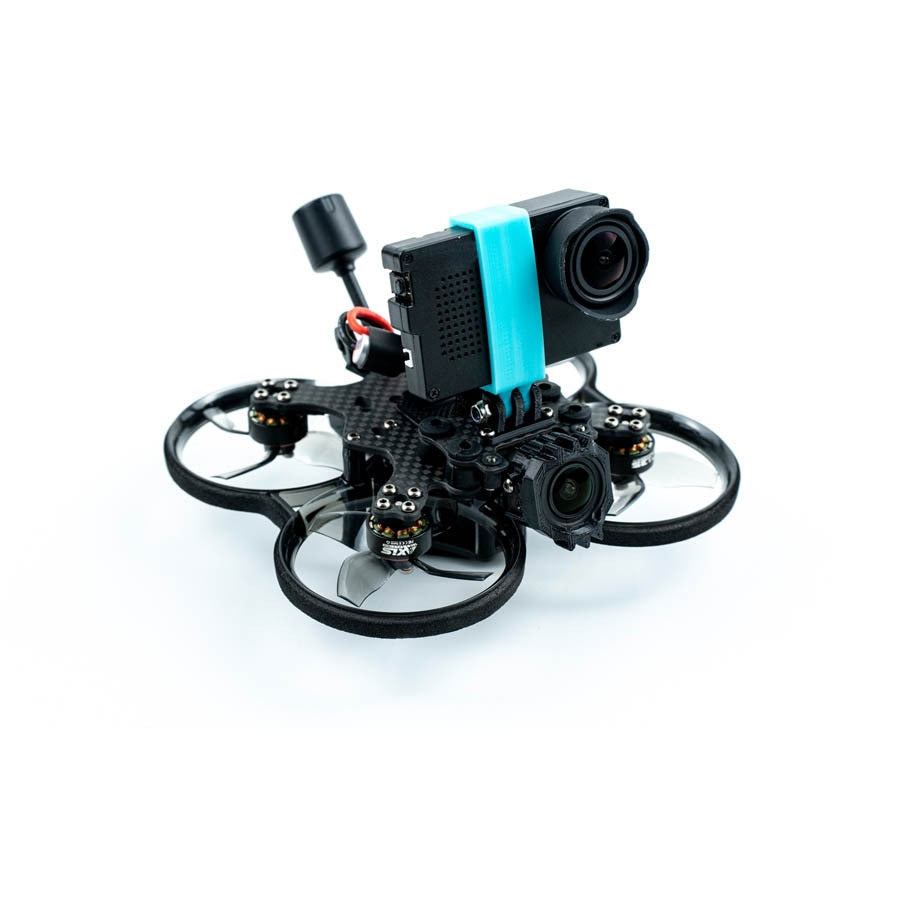

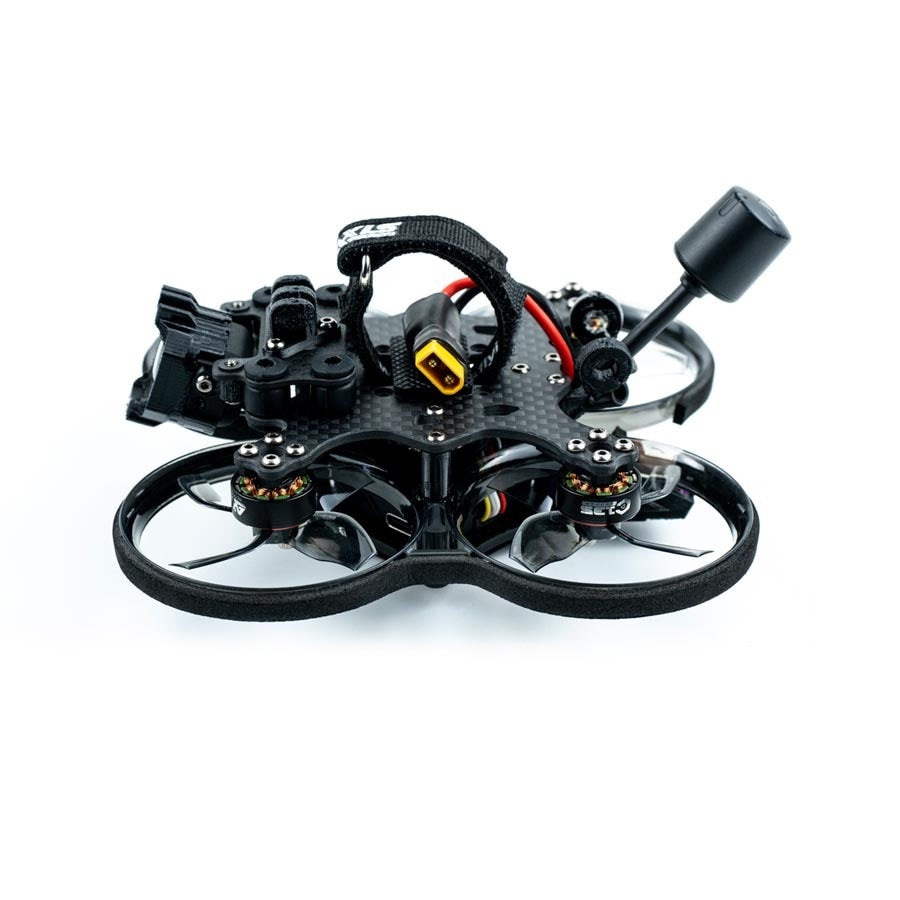

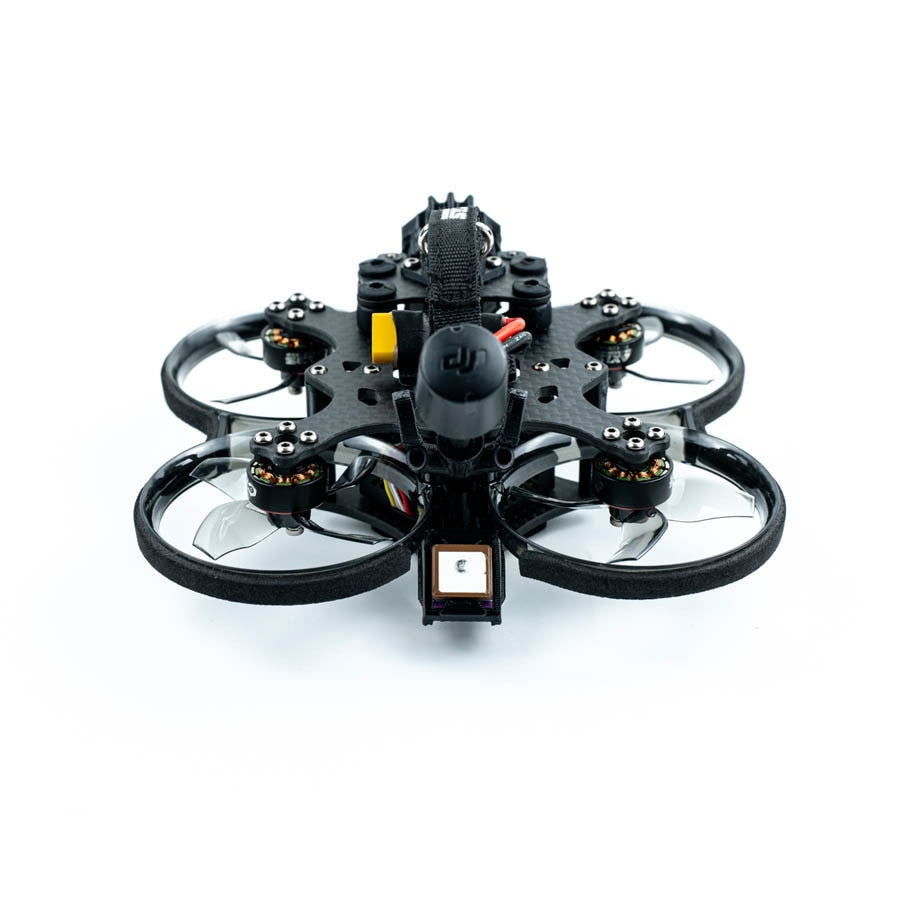

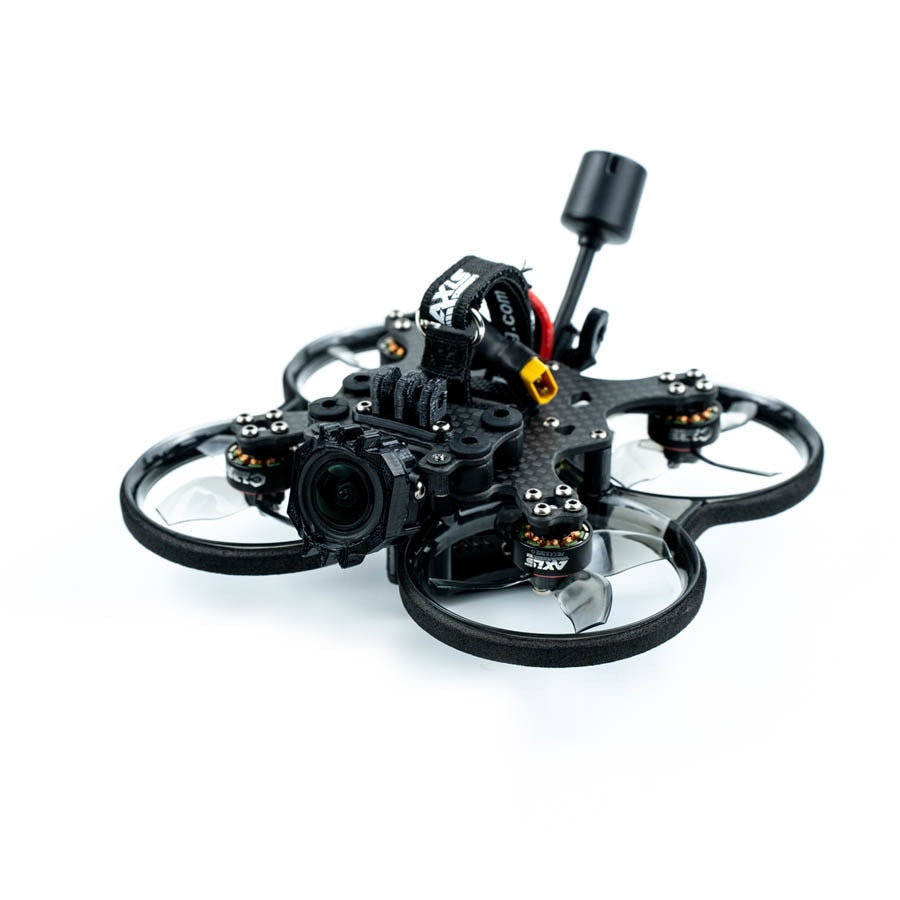

- CINEON series are born for cinematic. C20 cinewhoop drone designes for cinematic indoor and outside shooting with naked GoPro. Axisflying researched cinewhoop marketing and discussed with some pilots. C20 have special structure design that motor installation adopts two positive and two reverse.

- C20 drone has very good performance, stable flying feel, low noise, and get about 5mins flying time

- C20 is light weight ,it is sub250g fpv level

*Feature

      - Motor installation adopts two positive and two reverse design- Guaranteed efficiency and higher explosiveness

      - Better wind resistance for smoother footage -C135 Motor, more torque and power

      - Provide adequate security for the whoop -High performance 20A/F411 AIO

      - Newly designed ducted aerodynamic layout to effectively reduce flight noise

      - Independent receiver storage, convenient forbinding

*Specs

- Wheelbase :94mm  /  Weight: 42.8g (with all TPU) /  Carbon Fiber: T700  /  Props: Max 2inch

*Recommended Configuration

- MOTORS:  Axisflying C135-5500KV @4S

- Lipos: Tattu / GNB 450mah - 650mah

- AIO: Over 20A / F411

- Propellers: Gemfan Props 2023-3

- Flying time: 3'30" with Insta360   /  5' without takeoff

NOTE: HD drone outside flying with GNB 550mah

CZOvz DJI 03 BNF Super Stabilization Effectively filter out high-frequency vibration Easy to obtain silky and stable video footage TPU Lens Cover Ultra-mini 10th Generation Chip GPS The maximum number of satellites can reach32 .
