Axisflying CineON C35 V2 SPECIFICATIONS

Usage: Fan

Type: Micro Motor

Protect Feature: waterproof

Output Power: 512.85W

Origin: Mainland China

Model Number: CineON C35 V2

Continuous Current(A): 21.41A

Construction: Permanent Magnet

Commutation: Brushless

Color: Black

Certification: CE

Brand Name: AXISFLYING

*Be aware

O3 or LINK VTX of the drone has been activated for better testing.

If activation is not required, please note when placing an order.

*Forword

- CINEON series are born for cinematic. C35 cinewhoop drone designes for cinematic indoor and outside shooting. Axisflying researched cinewhoop marketing and discussed with some pilots.  We spent some months to develop different guard's structure and release innovation quick-release guard finally.

- C35 drone has very good performance, stable flying feel, low noise, and get about 9mins flying time

*Feature

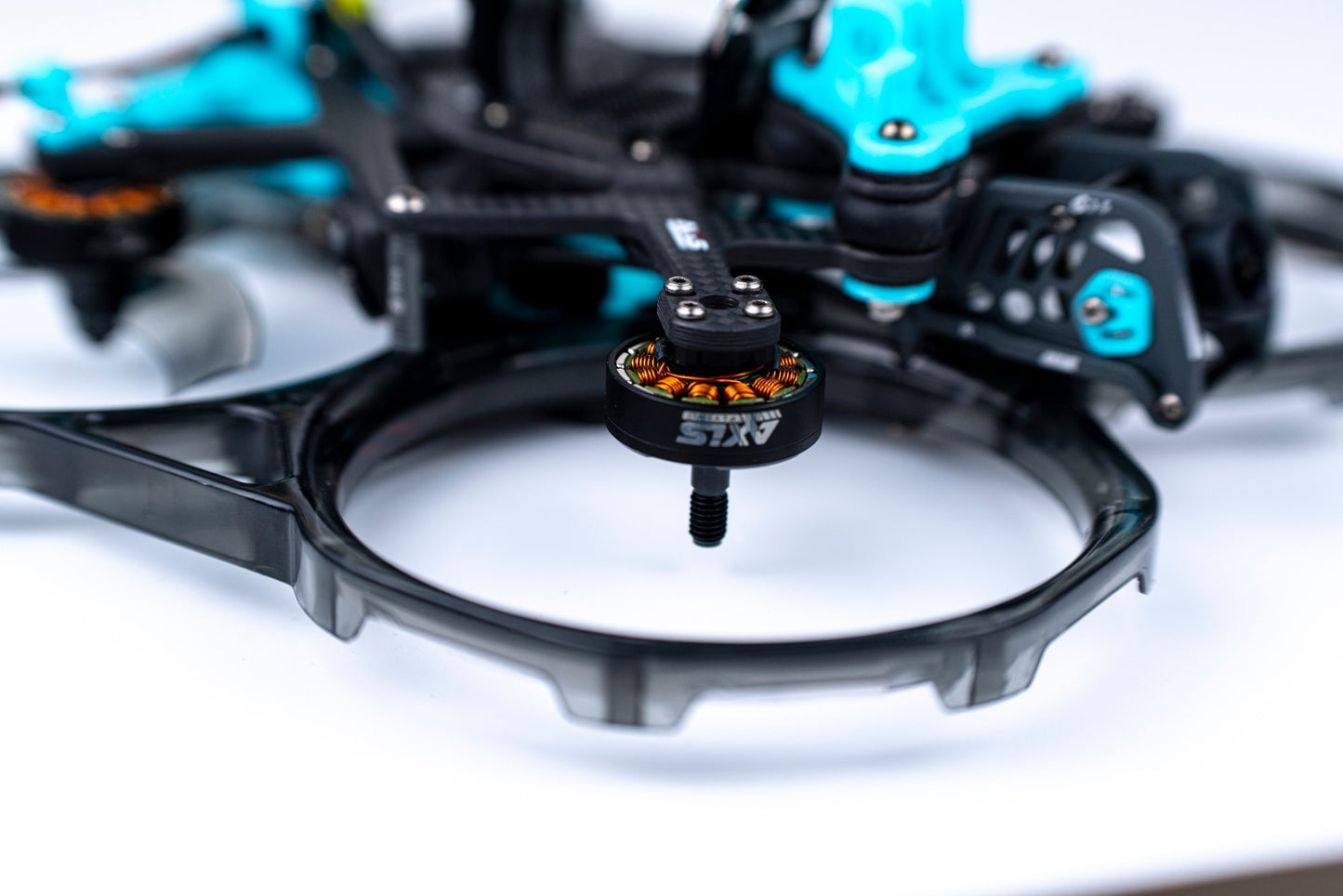

      - 1 mins fast disassembly of the guards -New quick release guard design

      - Better wind resistance for smoother footage -C224 Motor, more torque and power

      - Provide adequate security for the whoop -High performance 40A/F722 AIO

      - No jello for more stable footage - Triangular shock-absorbing gimbal

      - The strength has been improved ,don't worry about crash - The frame is fixed with 6 customized M3-7075 standoffs

      - Reducing the risk of lostdrone -The drone and the frame kit are equipped with beeper as standard

      - Newly designed ducted aerodynamic layout to effectively reduce flight noise

      - Independent receiver storage, convenient forbinding

      - Support 12mm/9mm motormounting

   - 27mm height, compatible with most VTX

*Specs

- Wheelbase :152mm  /  Weight: 310g  /  Carbon Fiber: T700  /  Props: Max 3.5inch

*Recommended Configuration

- MOTORS:  Axisflying C224-1900KV or C206-1960KV @6S  / 3500KV @4S

- Lipos: Tattu / GNB 1050mah - 1500mah

- AIO: Over 35A / F722

- Propellers: Gemfan D90-3 and HQ DT90-3

- Flying time:   7'10" with GoPro 10  /  8' with GoPro 8 / 9'30" with DJI Action 2

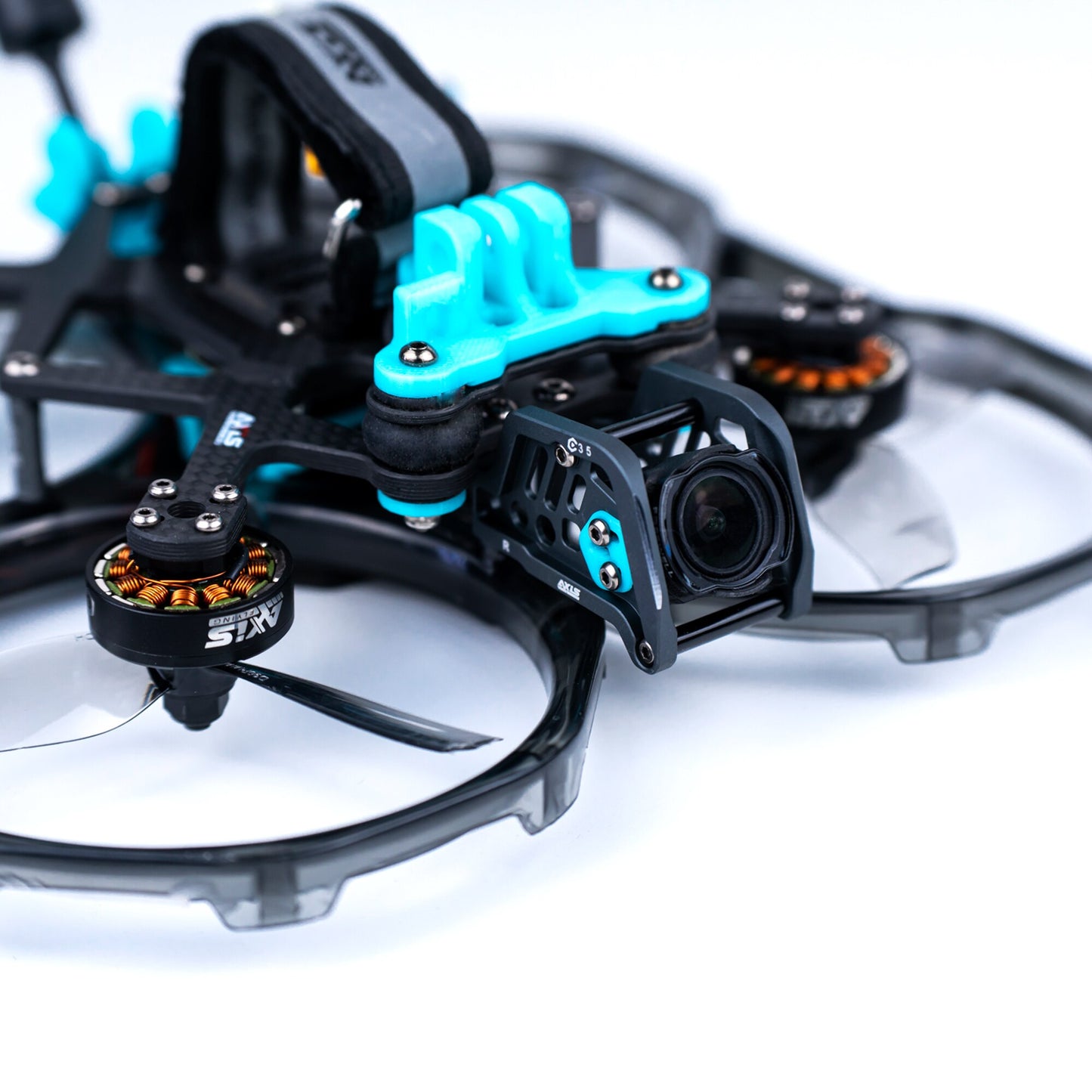

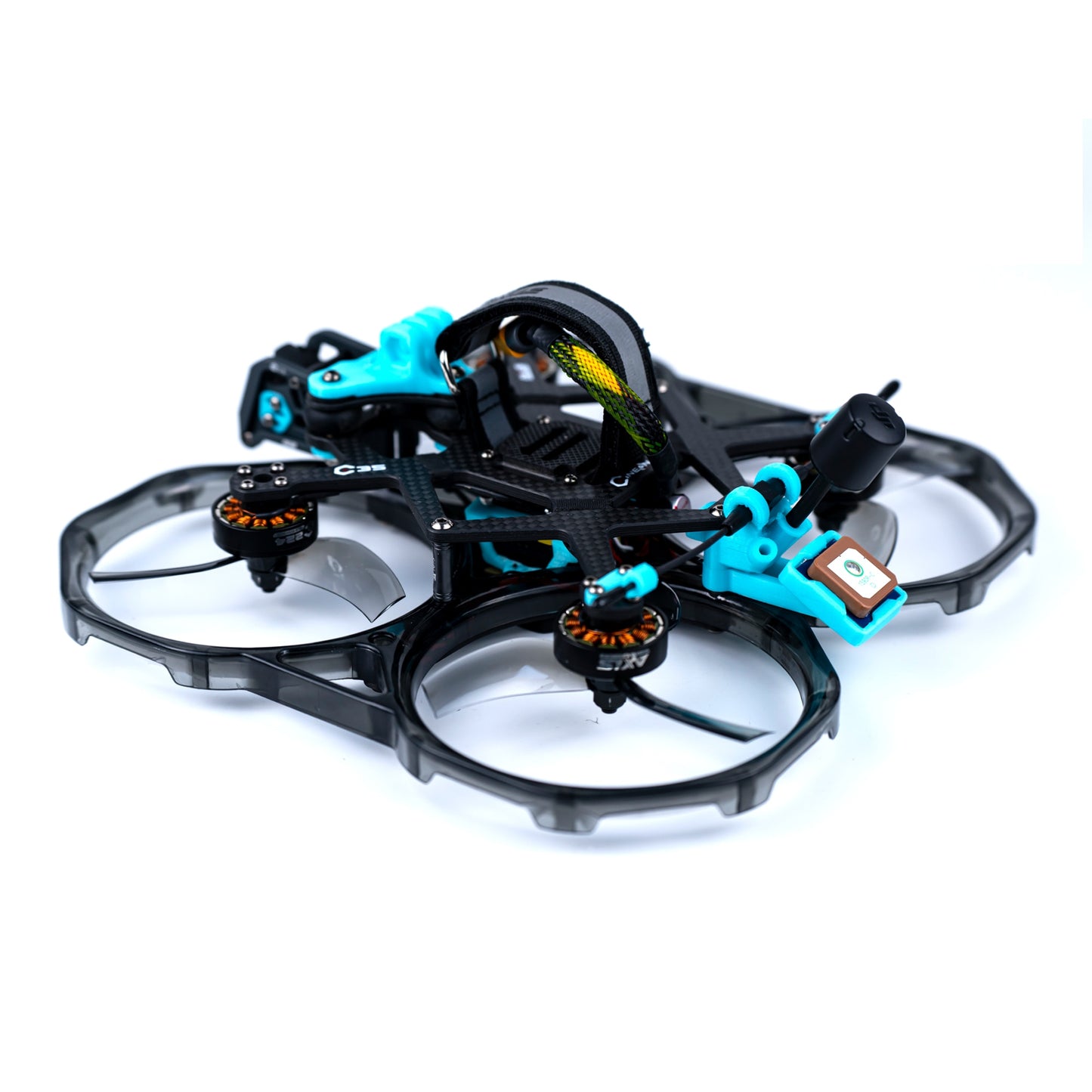

35ve Fully upgraded The camera side plate is upgraded to CNC aluminum parts Compatible with DJI 03 camera Match 03 filter No occlusion at super wide angle Compatible with 19MM cameras such as Polar WASP The tail can be equipped with GPS to prevent losing the drone .
