Axisflying MANTA5 Squashed X 6S 5-Inch Freestyle FPV Drone with DJI O4 Lite, GPS, and C246 Motors

Overview

The Axisflying MANTA5 Squashed X Kit is a 5-inch FPV freestyle drone designed for advanced pilots demanding precision, power, and modularity. Featuring an innovative CNC aluminum frame structure and premium T700 carbon fiber, the MANTA5 delivers high durability and low resonance for smooth flight. Whether you're chasing freestyle tricks or cinematic lines, its compatibility with DJI O4 Lite, Caddx Air Unit, and M80Q GPS makes it a high-performance platform for any mission.

Key Features

• Innovative CNC Aluminum Frame: Integrated CNC aluminum side plates enhance rigidity and camera protection, reducing vibrations and ensuring safe lens operation.

• Modular Stack and VTX Compatibility: Supports both 20x20mm and 30.5x30.5mm stack mounting, plus flexible VTX mounting with M220mm / M330.5mm, suitable for DJI Air Unit, Vista, and analog VTX systems.

• Camera Compatibility: Supports 19–20mm FPV cameras with upgraded print section for tighter lens lock and no jello effect.

• Motor Mounting: Supports 16x16mm motor base, ideal for powerful motors like C246 1850KV, AF227, and BlackBird V3.

• Optimized Flight Time: Up to 6 minutes of flight with GoPro Hero10 and 6S 1300–1500mAh battery under windless conditions.

Specifications

Configuration Details

• Electronics: ARGUS 55A Stack (Argus FC + ESC)

• Motors: Axisflying C246 1850KV

• Receiver: TBS Nano / ELRS 2.4G

• GPS Module: M80Q – ensures precise location and safer flight

• Gears: BB4943.5

• VTX: Caddx Air Unit / Link Kit / DJI O4 Lite Compatible

• Analog VTX Option: TANK MINI 800mW

• Analog Camera: Caddx 2

Recommended Setup

• Batteries: 1300–1500mAh 6S LiPo

• Propellers: 4.9"–5.1" from Axisflying / Gemfan / HQ

• Frame Types: Compatible with both Squashed X and True X geometry preferences

Flight Time

• 4–6 minutes with GoPro Hero 10 + 1300–1500mAh 6S battery (no wind)

• 5–7 minutes under cruise conditions with same battery type
  (Based on tests using Tattu batteries; results may vary with load and conditions.)

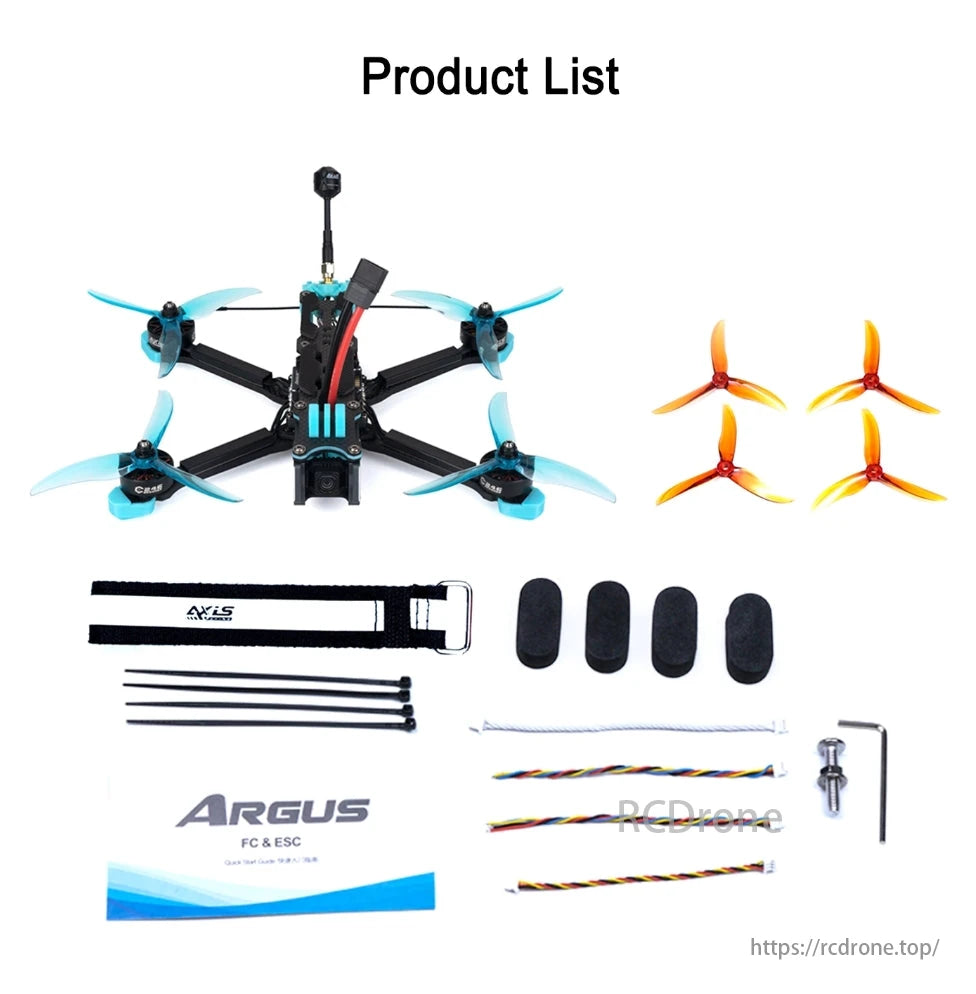

Packing List

• MANTA5 FPV Drone (frame pre-assembled)
• Set of Propellers (×4)
• Battery Strap (×1)
• Battery Pad (×4)
• Zip Ties (×3)
• Wiring Harnesses
• Allen Wrench
• Vibration Dampers and Spacers
• Argus FC & ESC Quick Start Guide

Details

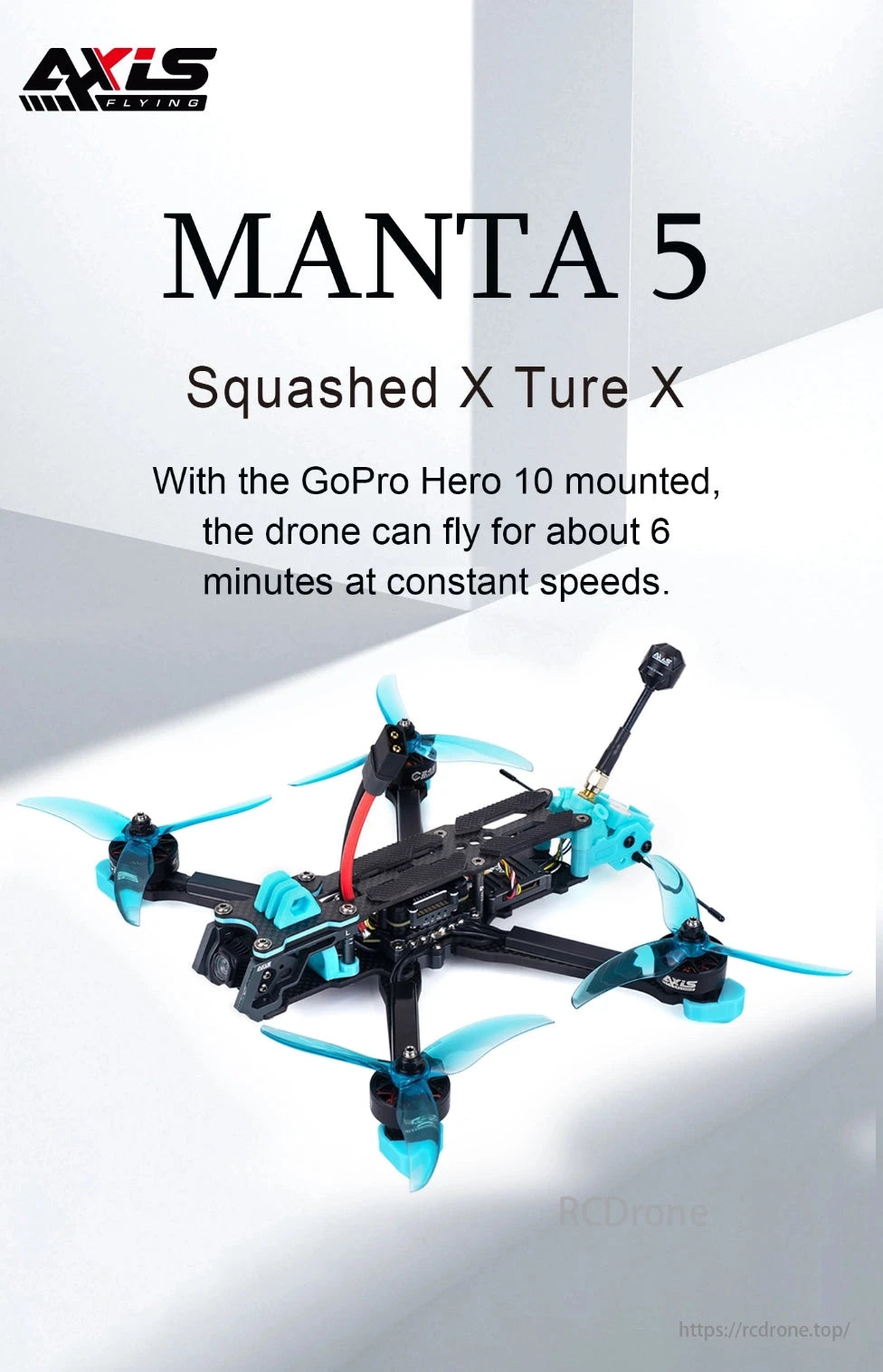

Fly for 6 minutes with the Manta Ray drone, mounted with GoPro Hero 10, featuring constant speeds and stable flight.

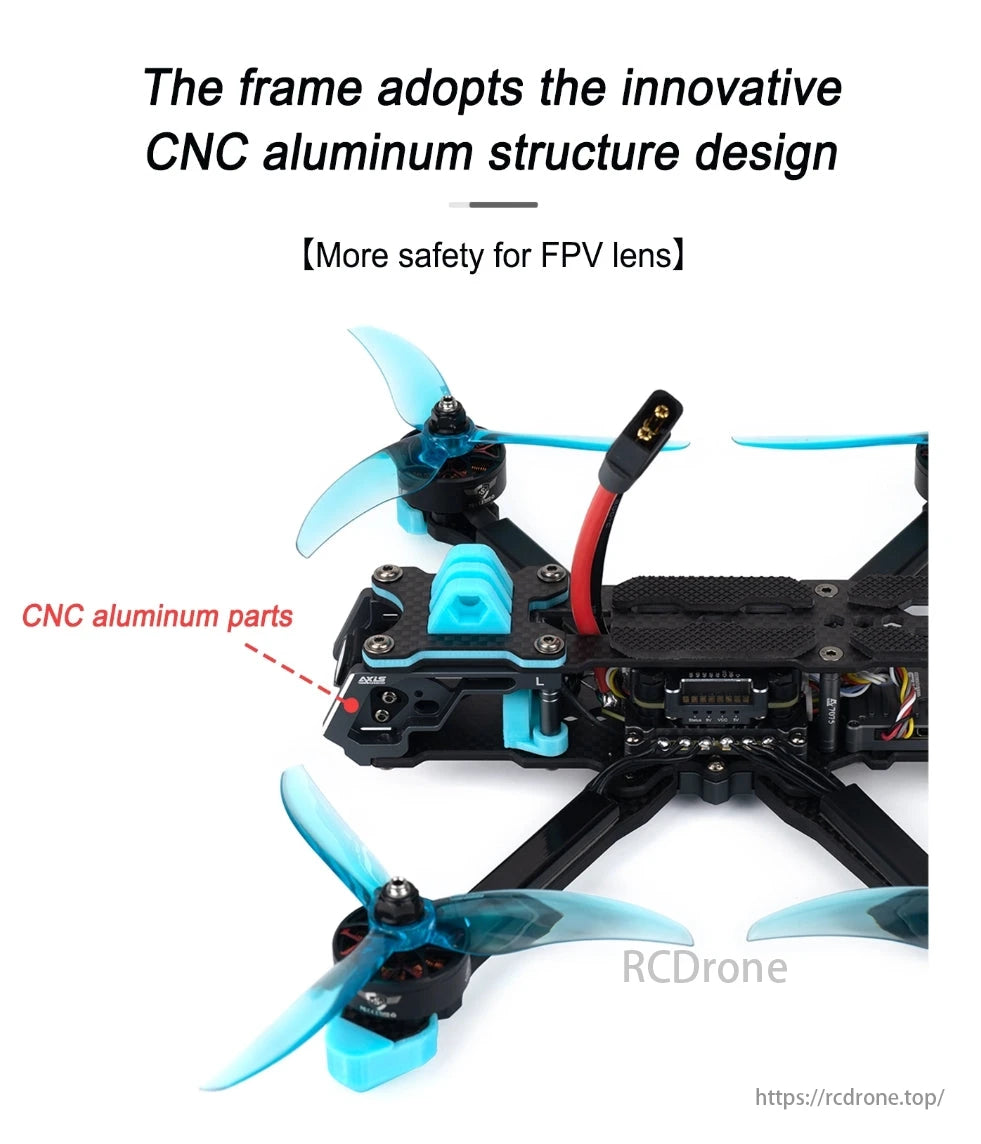

Innovative CNC aluminum structure provides enhanced safety for FPV lens, enhancing overall performance and durability of the frame.

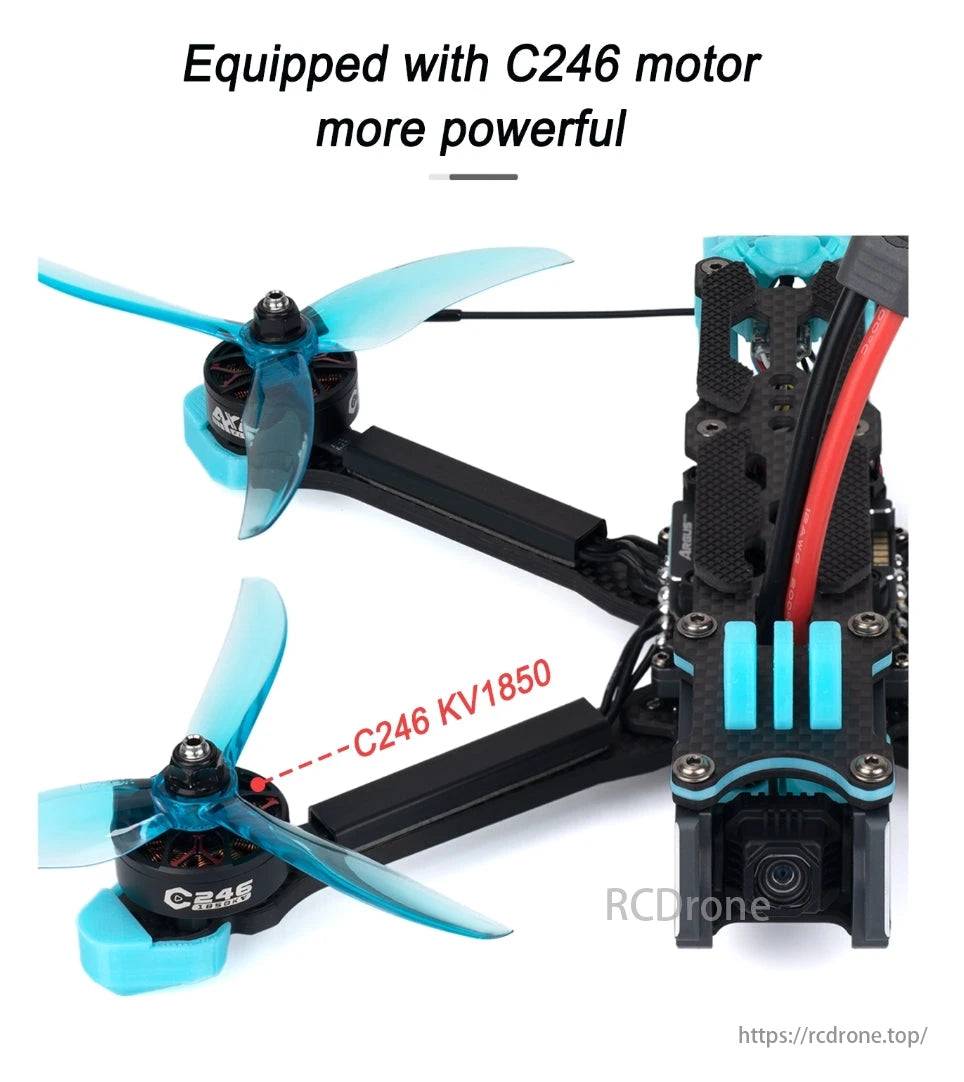

Equipped with a high-performance motor, this product offers increased power and efficiency for improved results.

This product features surging power and stable output thanks to its aluminum alloy protection against foreign objects. It designed for reliable performance.

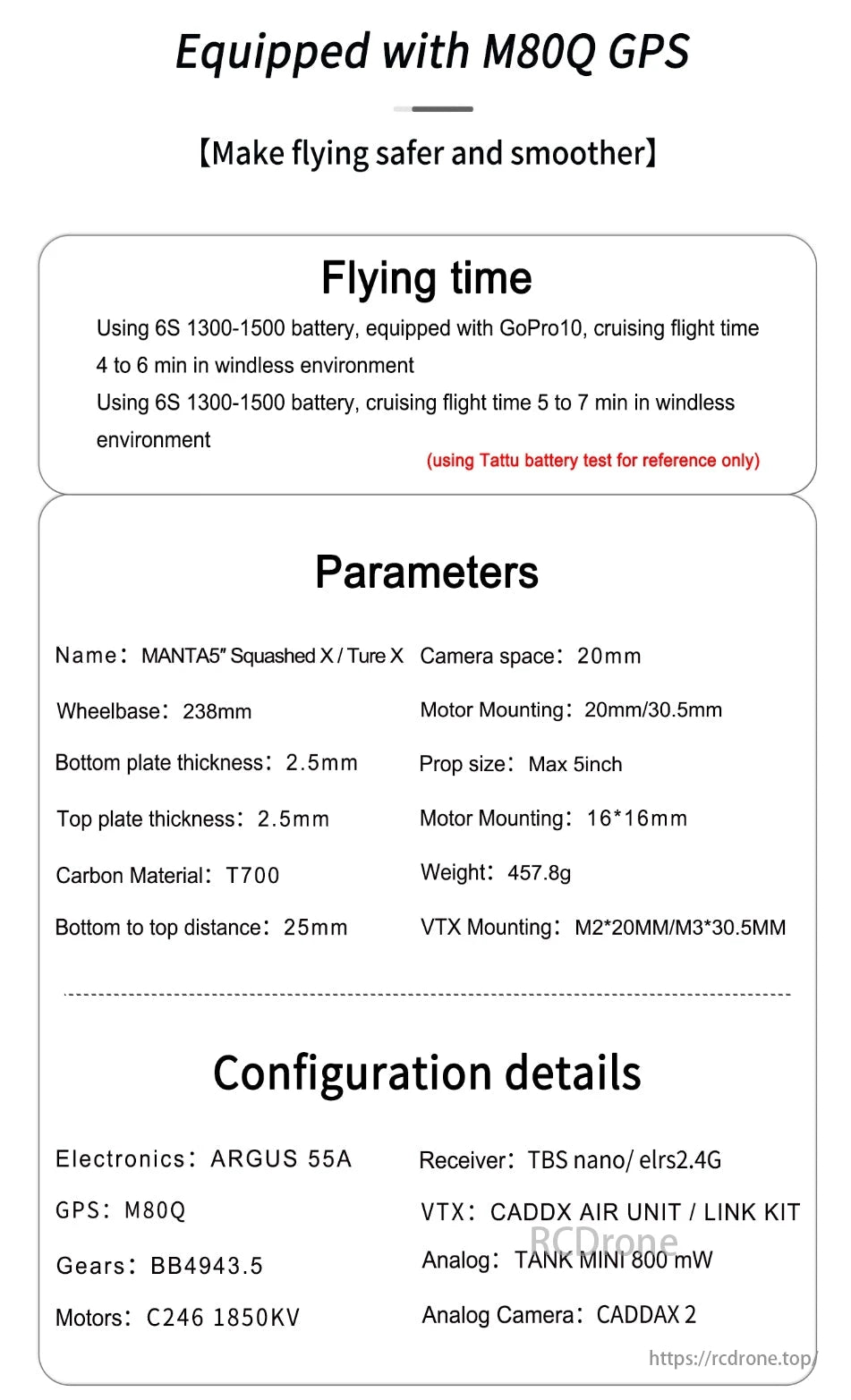

Manta5 FPV Drone with M80Q GPS. 4-7 min flight time using 6S battery. Parameters: 238mm wheelbase, 20mm camera space, 457.8g weight. Config: ARGUS 55A, CADDX AIR UNIT, TANK MINI 800 mW.
