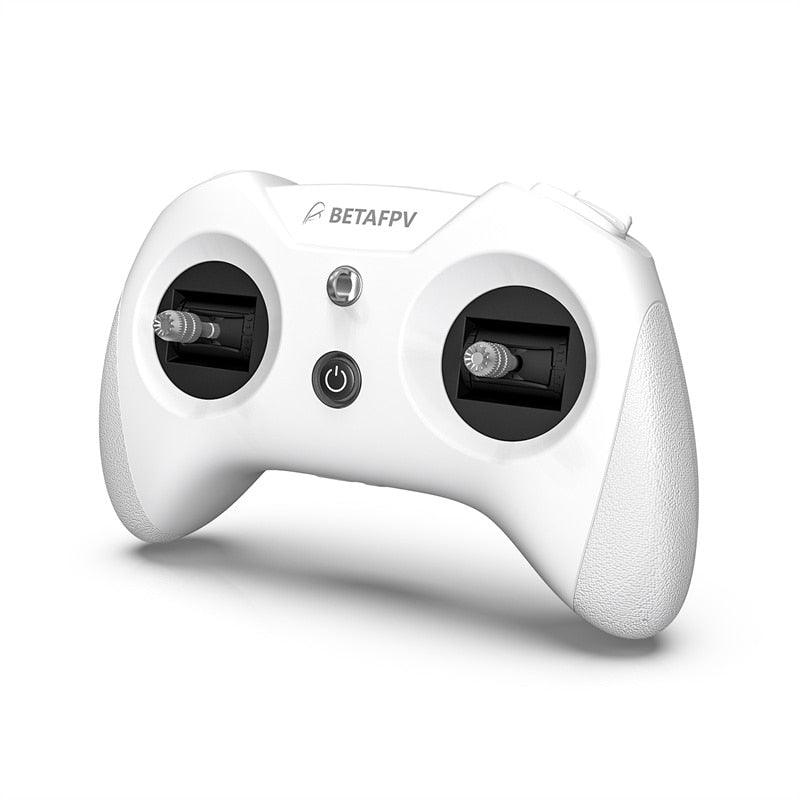

LiteRadio 3 Radio Transmitter is the newest remote control in the LiteRadio series. This transmitter features an ergonomically designed handle and has superb performance in its working time, newly updated gimbal, and multi-protocol support (Frsky version). Besides, this version supports BETAFPV Configurator which is a utility designed to simply update, configure, and tune the radio controller.

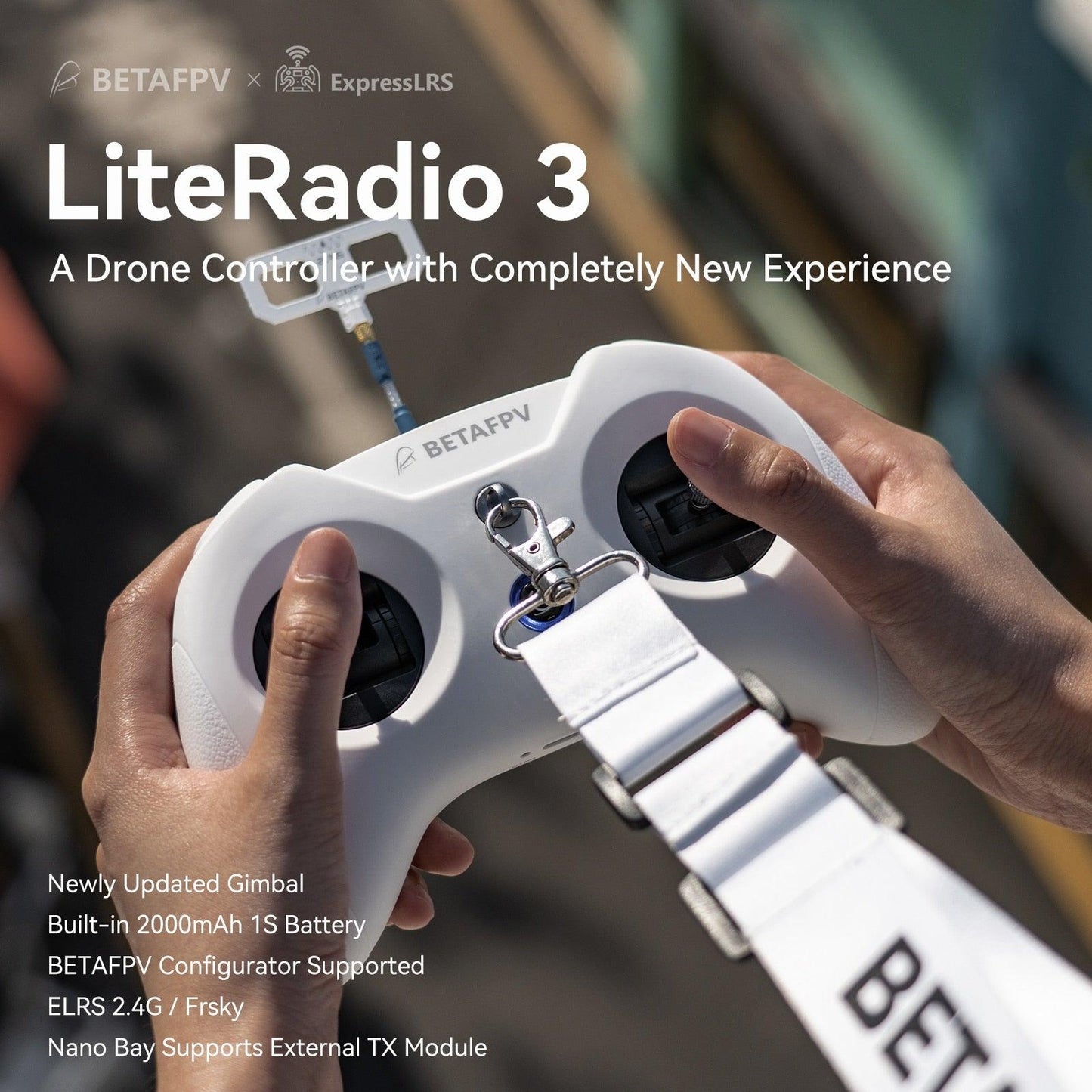

BETAFPV ExpressLRS LiteRadio 3 A Drone Controller with Completely New Experience Newly Updated Gimbal Nano Supports External TX Module Built-in 200OmAh 1S Battery

Download the BETAFPV Configurator.

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.

• USB Joystick support for most practice simulators.

• Nano module bay for external TX module.

• Newly designed joystick gimbal for longer usage life.

• Support BETAFPV Configurator for updating, configuring, and tuning.

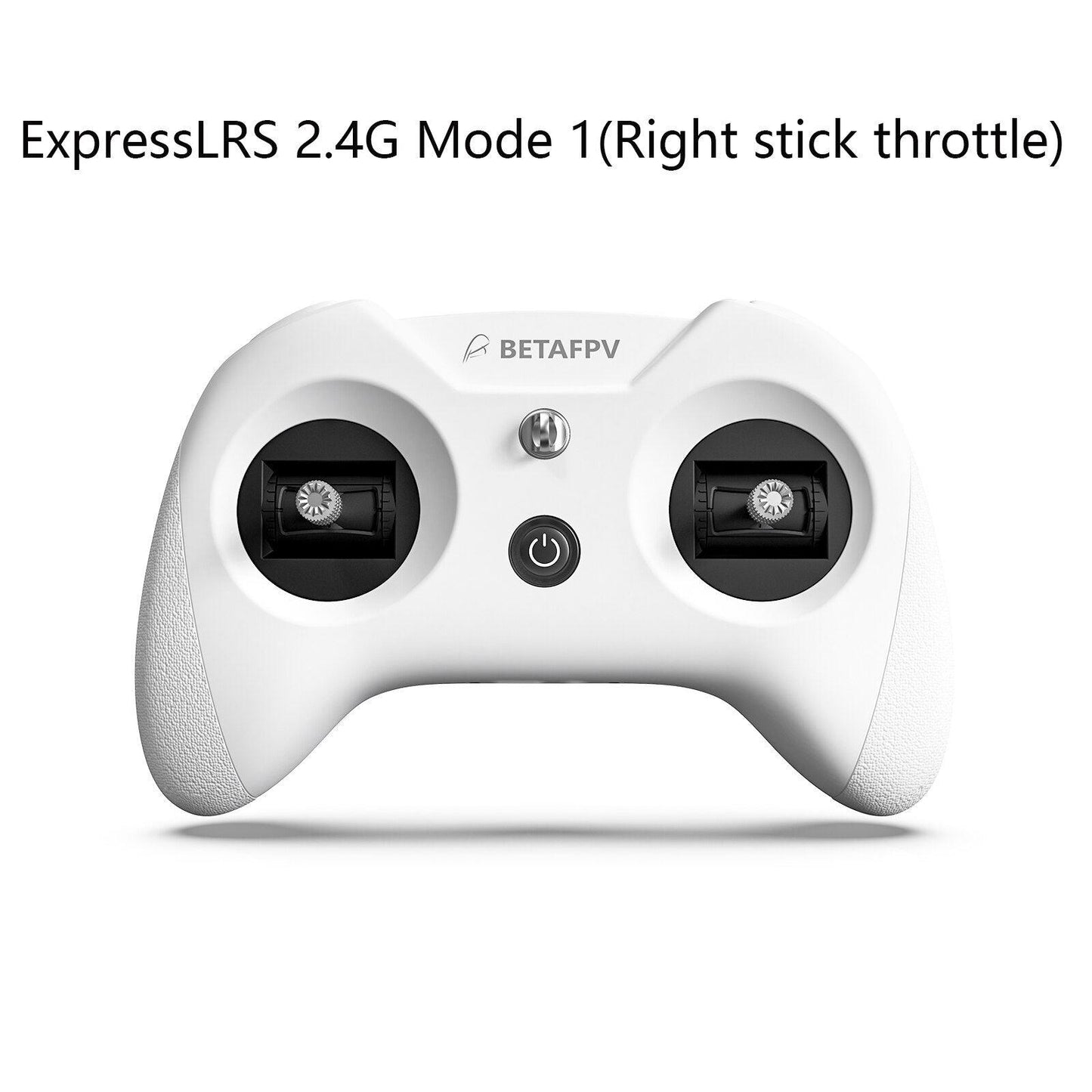

• Provide ExpressLRS 2.4G protocol version and Frsky protocol version for option.

• Built-in 2000mAh battery and USB charge supported.

LiteRadio Transmitter Nano Gimbal for Long Service Life Long Longevity Easy to Replace .

Bullet Point

• LiteRadio 3 upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.

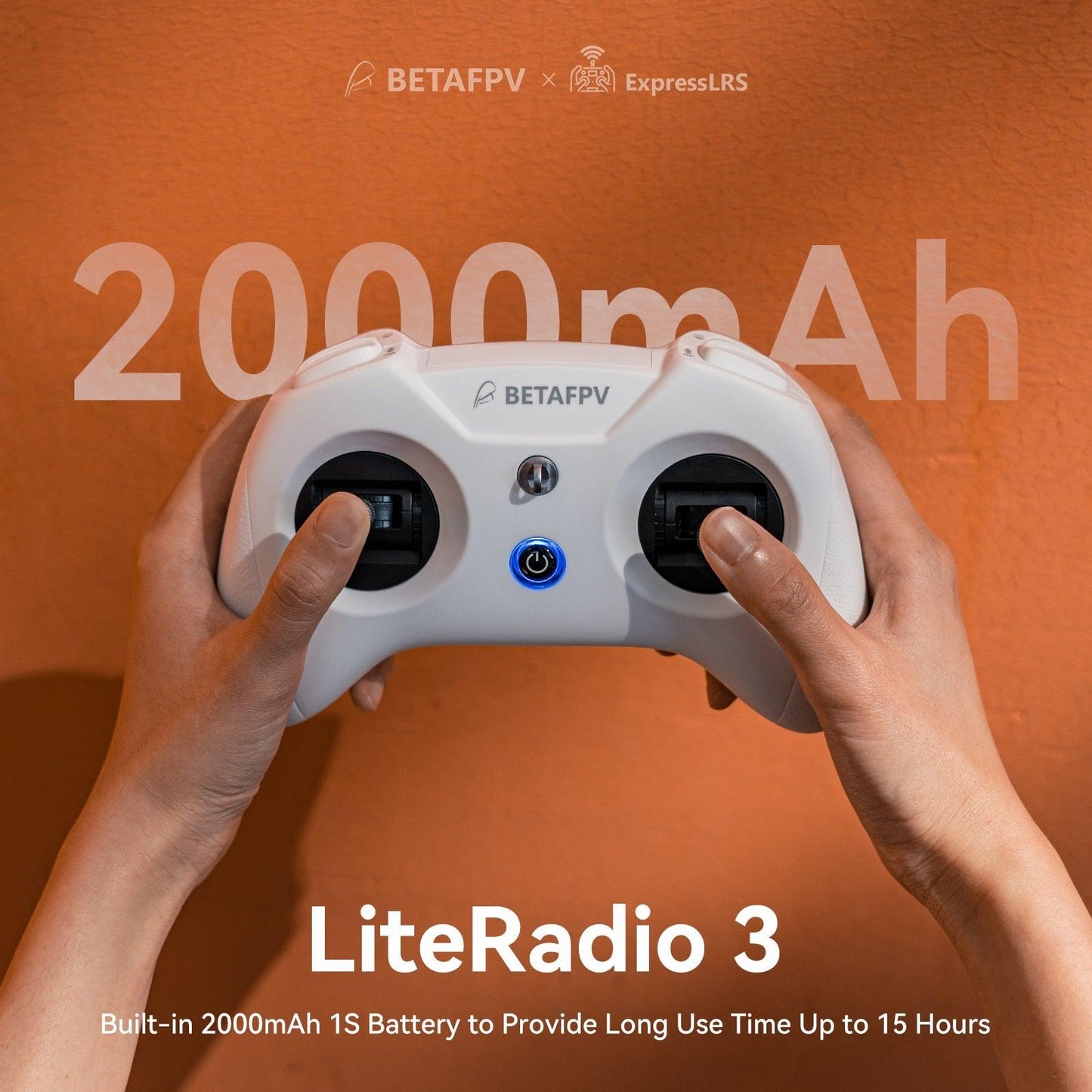

• Equipped with a built-in 2000 mAh 1S battery, LiteRadio 3 can work up to 15 hours without an external module, bringing an excellent endurance performance.

• Comes with a built-in charging module, LiteRadio 3 supports USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. It indicates a low battery and needs to be re-charged if the blue light flashes slowly and the buzzer beeps continuously.

• Newly designed with a nano bay, it supports the external TX module. Highly recommend BETAFPV ELRS Nano Module, which is compatible with the LiteRadio 3 radio transmitter and makes CRSF protocol available.

• Adopted the rubber coat, LiteRadio 3 is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.

• It is the safest and quickest method to get started by using a model practice simulator for starters. LiteRadio 3 radio transmitter supports most of the simulators on market with comprehensive configuration.

•


Specification

• Item: LiteRadio 3 Radio Transmitter

• Frequency Range: 2.4G

• 2.4G System: CC2500/SX1280

• Channel: 8

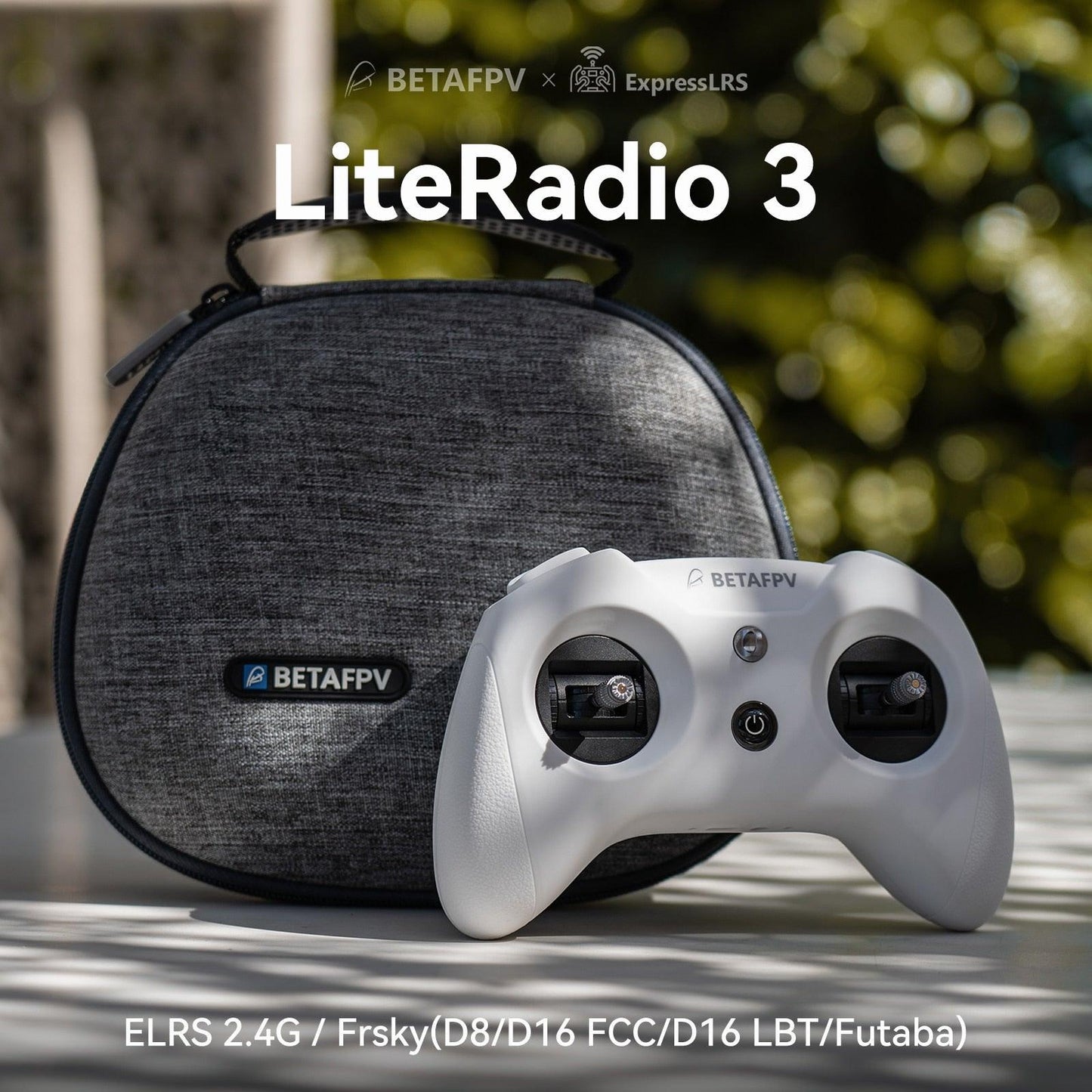

• Support Protocol: Futaba S-FHSS/Frsky FCC D16/Frsky LBT D16/Frsky D8, ExpressLRS 2.4G

• Power: ELRS version 25mW/50mW/100mW, Frsky version 100mW

• Adapted Drone Type: Multirotor, Airplane

• Support USB Charging / Firmware Update

• Support BETAFPV Configurator / Most Practice Simulator

• LED Light: Green-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal

• Battery: Built-in 2000mAh 1S Battery

• Charging Connector: USB 3.0 Type-C

• Recommend External TX Module: ELRS Nano TX Module

• Recommend Accessories: Nano Gimbal for LiteRadio 3, Storage Case, Transmitter Neck Strap

Improvements on LiteRadio 3

Compared with LiteRadio 2 SE, the LiteRadio 3 is equipped with a 2000mAh 1S battery, bringing an excellent endurance performance up to 15 working hours without an external module. Reserving a nano bay on the backside, it supports an external module for use with ELRS Nano TX Module, which supports CRSF protocol. Moreover, the LiteRadio 3 gimbal is newly updated with an accurate potentiometer and adjustable stick ends.

Note: The LiteRadio 2 SE ordered from December supports the BETAFPV configurator. At the same time, the LiteRadio 2 SE gimbals are the same as LiteRadio 3 for orders from December. For orders before December, we highly recommend buying new gimbals as an update.

BETAFPV Configurator

BETAFPV Configurator is a utility designed to simplify updating, configuring, and tuning the radio transmitter.

Download address: https://github.com/BETAFPV/BETAFPV_Configurator/releases

The function of the BETAFPV Configurator is listed below.

• Basic radio controller setup, like mode switch, turn on/off RF modules.

• Full function of the ExpressLRS configuration, like outpower, packet rate, etc.

• Channel mixer for fix wing drones.

• Firmware update.

BETAFPV Configurator Support Windows Mac Easy to Use LiteRadio 2 SE Lite Radio 3 .

DO NOT power on the transmitter first and connect it to the PC. The USB port is invalid in this situation.

How to switch the protocol

Note: Switching internal protocol is only available for the Frsky version radio transmitter. ExpressLRS version can only switch to the external TX module.

To change protocols and TX module, here are the steps:

• Power the radio transmitter off;

• Press and hold the BIND button while powering the radio transmitter back on;

• Then the flash color and times of the LED before buzzer alarms will change, according to the tables above.

The Frsky version could support 4 different internal protocols, including Frsky D16 FCC, Frsky D16 LBT, Frsky D8, and Futaba S-FHSS. The protocol is indicated by the flashing times of the LED when power on, before the buzzer alarms.

Note: LiteRadio 3 Frsky version only works with D16 ACCST 1.X Frsky protocol. So if you use a Frsky receiver with D16 ACCST 2.X version or ACCESS version, the binding will fail.

Diagram of LiteRadio 3

Switch C Switch B Switch D Switch A Power Button LED Ring Throttle Joystick Direction Joy

Recommended Parts

We highly recommend buying LiteRadio 3 Radio Transmitter with the parts listed below.

• External TX Module: ELRS Nano TX Module

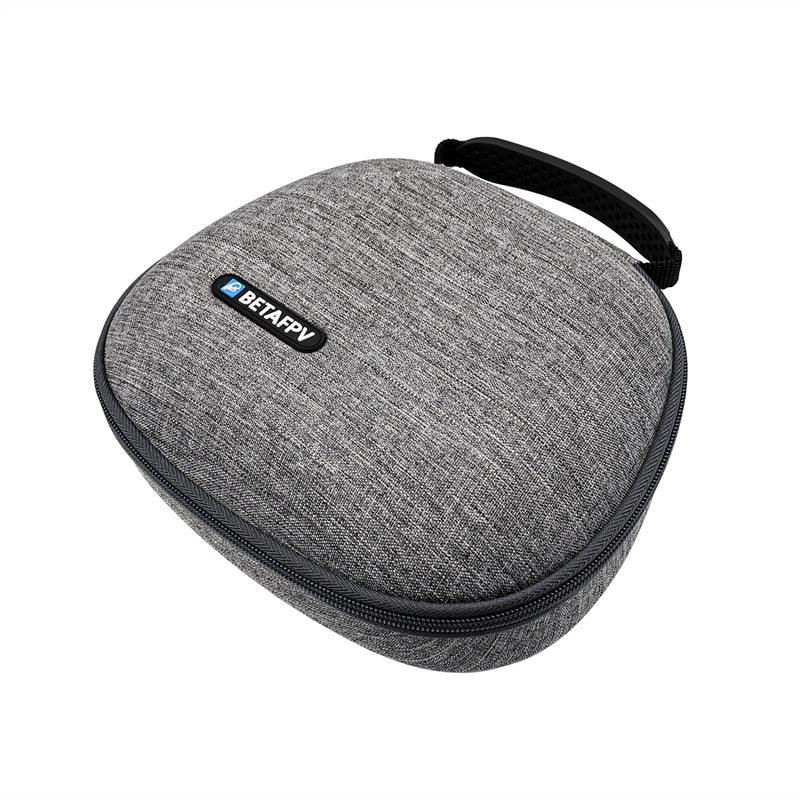

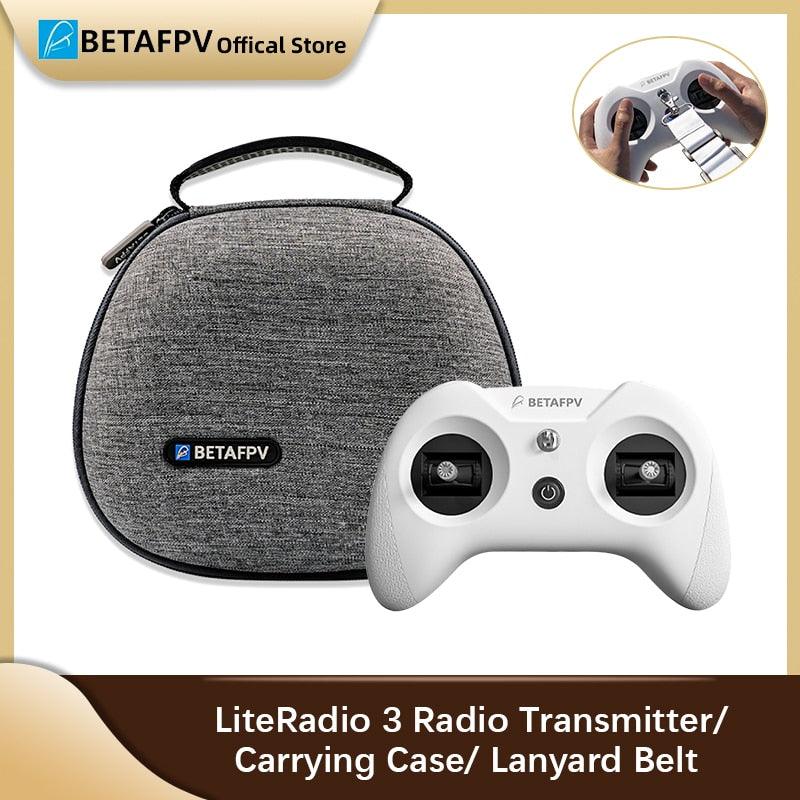

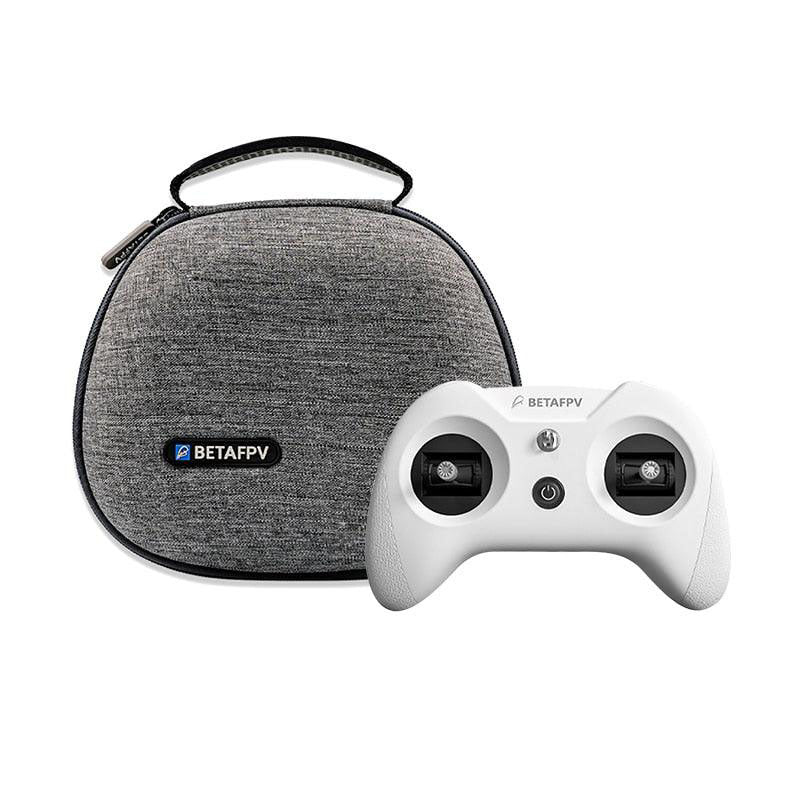

• Store Case: BETAFPV Storage Case for LiteRadio

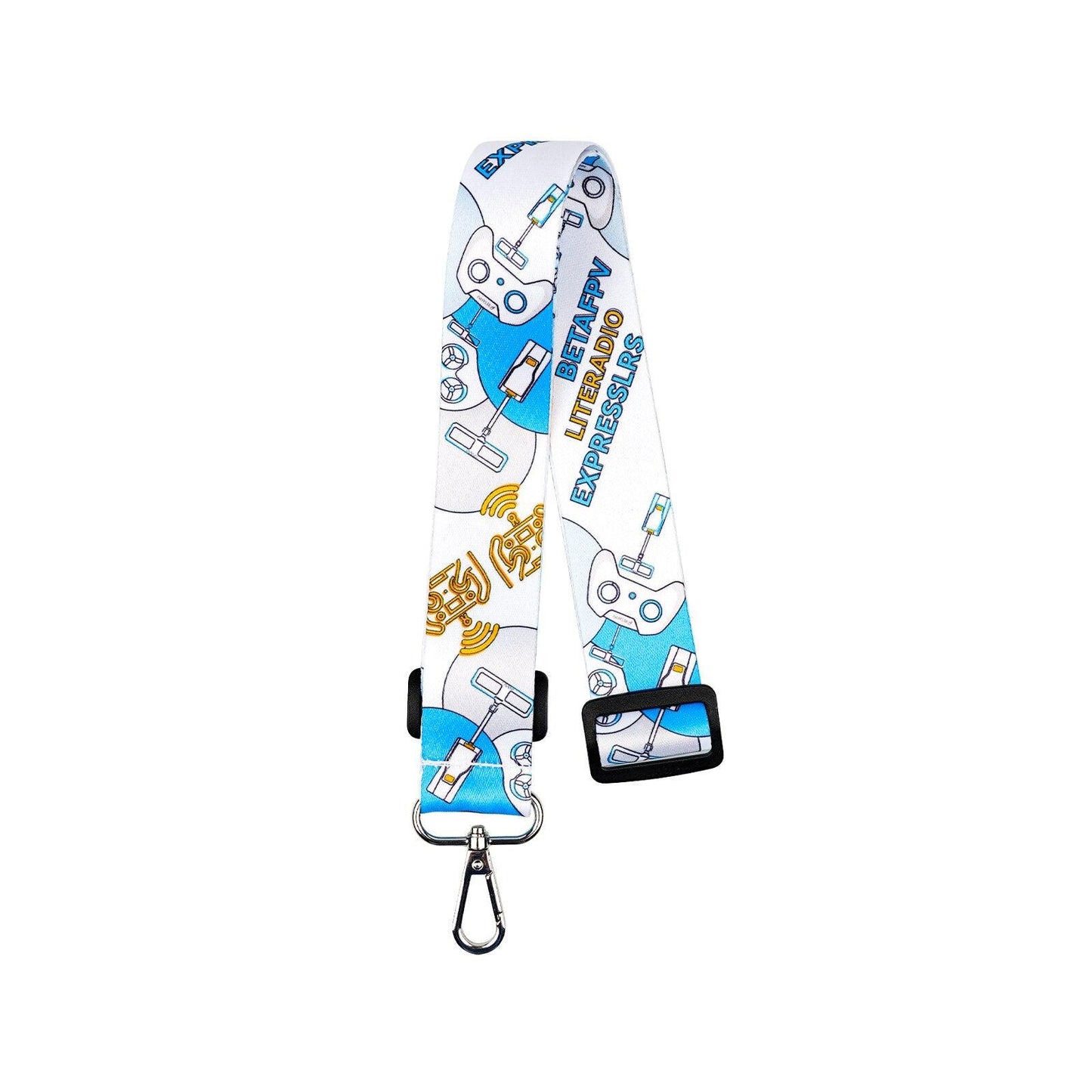

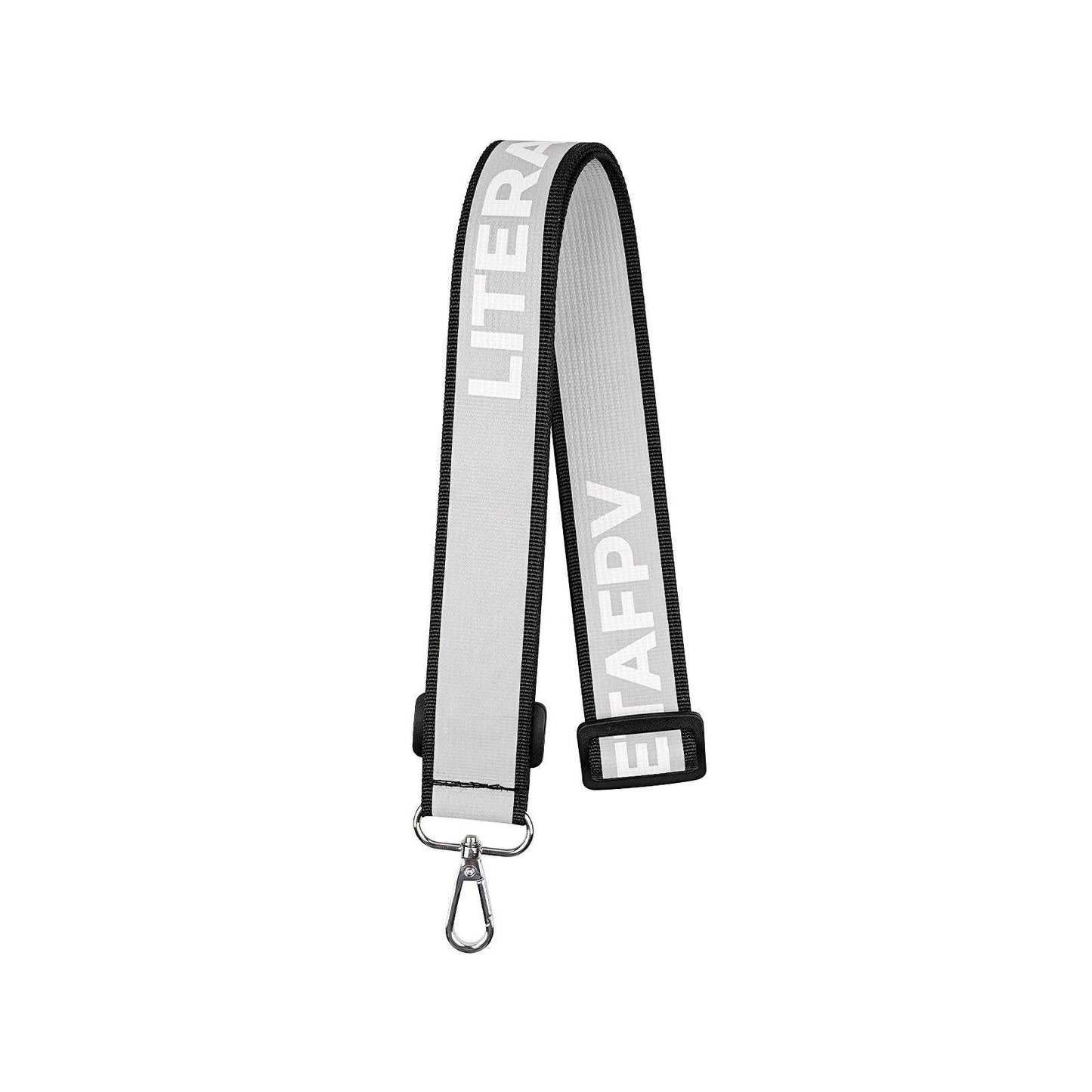

• Strap: BETAFPV LiteRadio Transmitter Neck Strap

• Gimbal: Nano Gimbal for LiteRadio 3

FAQ

• Manual for LiteRadio 3 Radio Transmitter

• How to replace the gimbals of the Literadio 3 transmitter?

• For any questions about joystick calibration of the LiteRadio 3 transmitter, please watch the following video to know more. The instruction is the same for both LiteRadio 3 and LiteRadio 2 SE.

•


Package

• 1 * LiteRadio 3 Radio Transmitter

• 1 * User Manual
