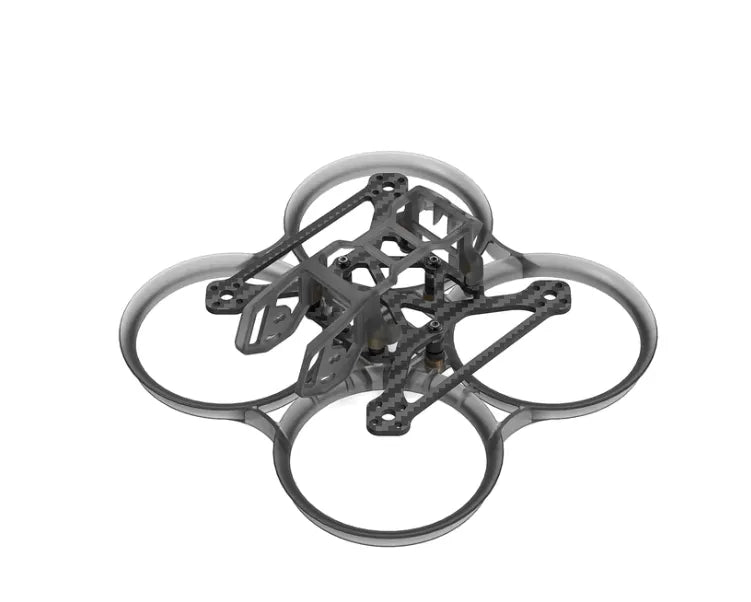

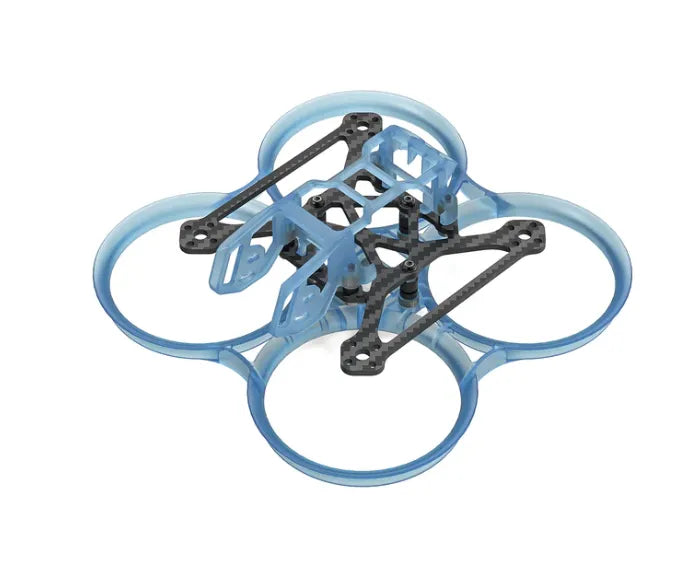

Pavo20 Brushless BWhoop Frame is designed for a 2″ D JI O3 cinewhoop under 150g. It also boasts compatibility with the Caddx Vista and RunCam Link and has undergone a comprehensive redesign to guarantee precise protection. Employing crash-proof PA12 material, the frame features a reinforced cross-section whoop duct that has been ingeniously designed in accordance with the principles of aerodynamics, resulting in flawless synergy with an upgraded 3S power system. This combination ensures an unrivaled level of thrust, surpassing all expectations. Undoubtedly, it emerges as the pinnacle choice for discerning pilots who seek to elevate their DJI O3 cinewhoop experience to unprecedented heights.

Bullet Point

• Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation. The original transmission antenna can be directly mounted on the frame kit.

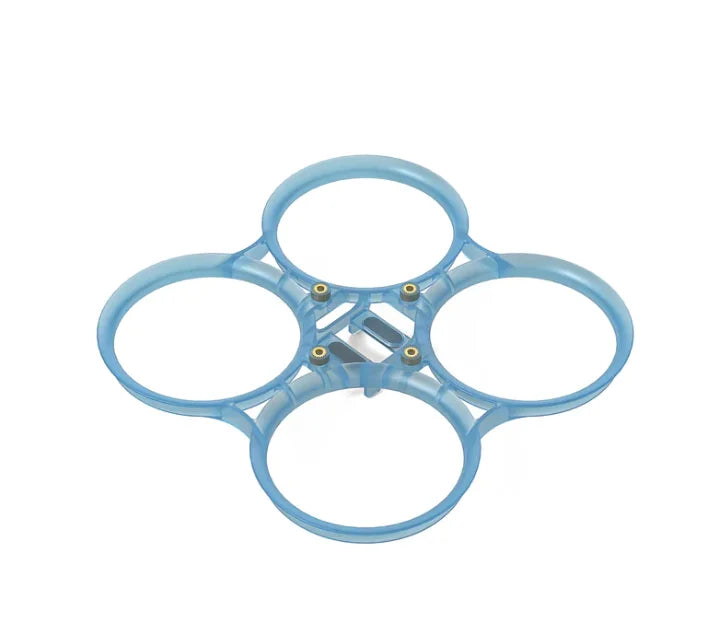

• Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, employing the principles of aerodynamics and synergizes flawlessly with an enhanced power system.

• Its camera side panel and the 4-point fixation design effectively safeguard the lens while allowing for easy installation of ND filters, eliminating any concerns about angle deviation after intense flights.
• An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries. DIY enthusiasts can even utilize 2~4S batteries.

Note: 2-4S is for the Pavo20 frame, this Pavo20 quadcopter only supports 3S batteries.

Specification

• Item: Pavo20 Brushless Whoop Frame
• Wheelbase: 90mm
• Material: PA12/PP
• Weight: 26.7g(With HD VTX Bracket), 13.8g(Whoop Duct), 4.1g(Only HD VTX Bracket)
• Color: Black/Blue/Transparent Grey
• Top Plate Thickness: 2mm
• Camera: 19mm/20mm
• Camera Filter: Support
• FC Mount: 26×26mm, suitable for conventional whoop FC
• Motor Mount: 4-M2-φ9mm
• Battery Slot Width: 20mm

Compatibility with Popular HD VTX

Pavo20 supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Precise Security for HD VTX

The camera side panel and 4-point fixation hole design effectively safeguard the lens while allowing for easy installation of ND filters, guaranteeing uncompromised lens protection, and eliminating any concerns about angle deviation after intense flights. Insert copper nut design, employing an integrated injection molding technique, eliminating the hassle of adjusting screw tightness and streamlining the installation. Open-ended battery strap slot that accommodates a wide range of batteries*. Side-limitation slots ensure secure and stable battery placement, preventing any potential displacement during flights.

Note: 2-4S is for the Pavo20 frame, this Pavo20 quadcopter only supports 3S batteries.

The vibration problems and solutions encountered by Pavo20 are consistent with Pavo Pico. Please refer to Pavo Pico DJI O3 Vibration Problem.

This product features a rubber damper designed to effectively absorb vibrations, protecting camera-side panels. It also includes fixed hole design for secure battery strap positioning, accommodating up to 2-35 batteries. The simple installation process involves inserting a copper nut.

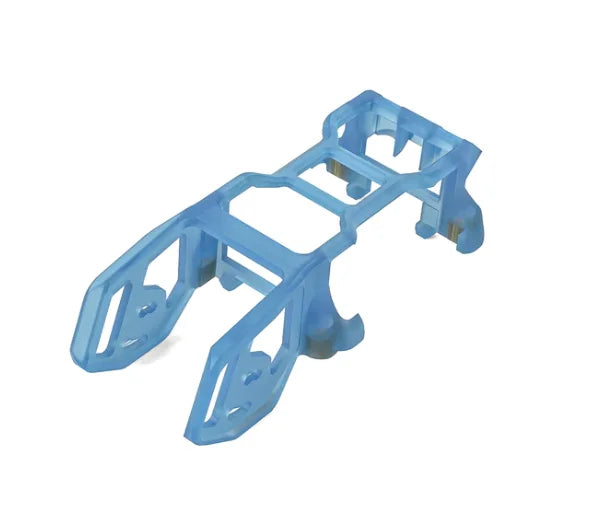

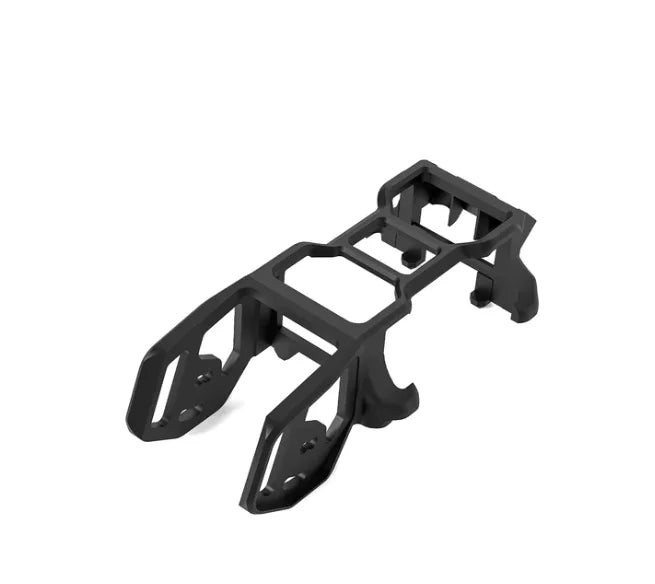

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, facilitating effortless installation, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images. At the same time, it can be adapted to the Pavo Pico.

Click to watch the installation guide video for the DJI O3 Air Unit.

Pavo Series COB LED Strip

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It offers additional illumination for improved visibility and enhanced operational safety during nighttime or dimly lit conditions. It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of Ice Blue, White, Green, or Red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo20 and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Recommend Parts

• FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
• Motor: 1103 | 8000kv/8500kv/11000kv
• Propellers: GF 2015-2B, GF 2020-4B
• Battery: 2S~4S 450mAh~650mAh
• VTX: DJI O3, Caddx Vista, RunCam Link
• Filter: BETAFPV ND filter

Package

• Item: Pavo20 Brushless Whoop Frame | With HD VTX Bracket
• 1 * Pavo20 Top Plate
• 1 * 20*20mm VTX Mounting Plate
• 1 * Pavo20 Whoop Duct
• 1 * Pavo20 VTX Bracket
• 1 * 130mm Battery Strap
• 2 * Battery Anti-Slip Mat
• 2 * 5.8g Antenna
• 8 * M2 Nut
• 10 * Rubber Damper
• 6 * M2*10 Screws
• 6 * M2*3 Screws
• 4 * M2*14 Screws
• 4 * M2*15 Screws

• Item: Pavo20 Brushless Whoop Frame | Whoop Duct
• 1 * Pavo20 Whoop Duct
• 1 * 130mm Battery Strap
• 2 * Battery Anti-Slip Mat


• Item: Pavo20 Brushless Whoop Frame | Only HD VTX Bracket
• 1 * Pavo20 VTX Bracket
• 1 * 20*20mm VTX Mounting Plate
• 2 * 5.8g Antenna
• 4 * M2 Nut
• 6 * Rubber Damper
• 6 * M2*10 Screws
• 6 * M2*3 Screws
• 4 * M2*15 Screws
