BlackSheep TBS Crossfire Micro TX V2 Starter Set SPECIFICATIONS
Brand Name: TBS
Origin: Mainland China
Communication method: Other
TBS CROSSFIRE MICRO TX V2 STARTER SET
For a long time, our goal has been to not only be the best performing, but also the most affordable LRS on the market. With the TBS Micro TX V2 Starter Set, we have achieved this goal! There is no better time to get into TBS Crossfire than now with the completely refreshed hardware design of the Micro TX V2, and an unbeatable price!

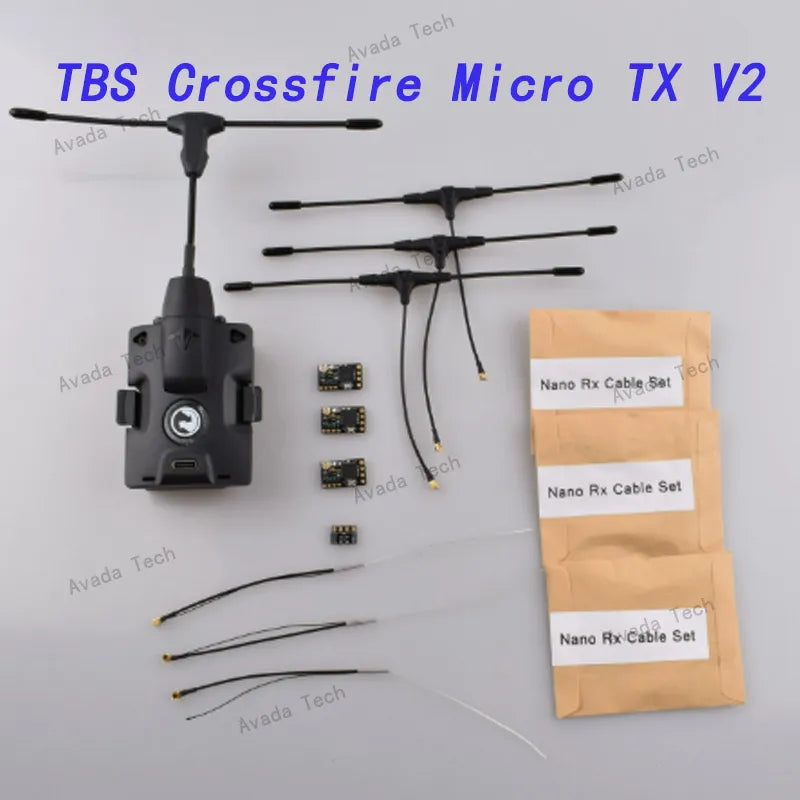

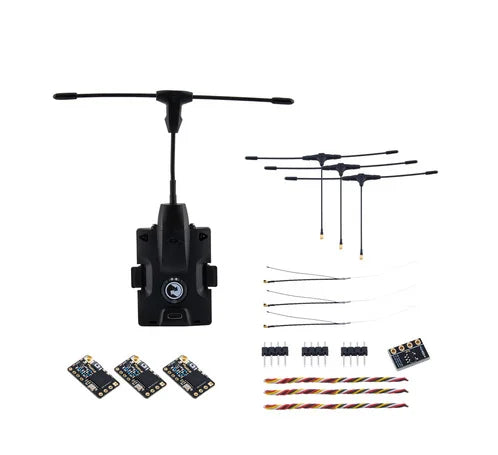

INCLUDES
1 x TBS Crossfire Micro TX V2
3 x TBS Crossfire Nano RX
3 x TBS Crossfire Micro Receiver Antenna
3 x TBS Crossfire Immortal T V2 Antenna
1 x Taranis QX7 Mod
3 x Cables and Shrink Tubes set
TBS MICRO TX V2
FEATURES:
Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing & frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 1W (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link
TECHNICAL SPECIFICATIONS:
Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
Input Voltage: 3.5 - 13V
Connector: USB-C
Power consumption: 1.1W (@10mW) - 2W (@100mW)
Dimensions: 65 x 48 x 22 mm (JR module size)
Weight: 48g
PACKAGE INCLUDES

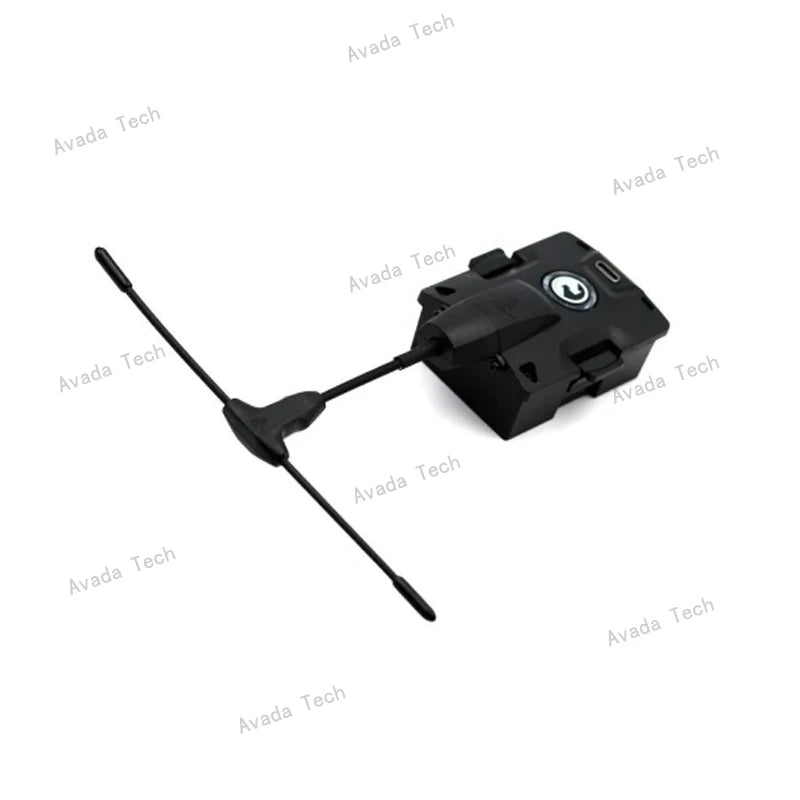

TBS Crossfire Micro Transmitter (JR module)
TBS Crossfire Stock Tx Antenna V2

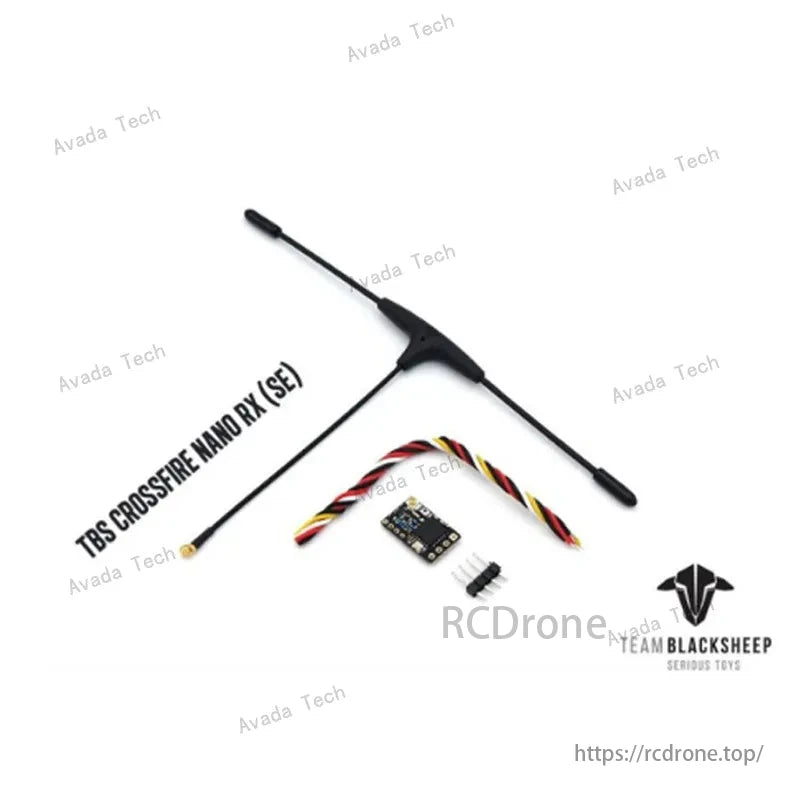

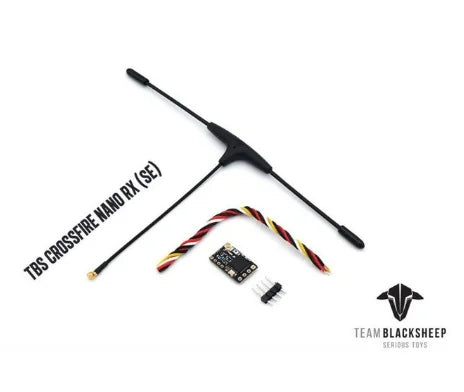

or TBS Crossfire Nano SE Receiver*1(optional)
