SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: 2812 V3

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Skyquist

KV: 900KV/1115KV
Configuration: 12N14P
No.of Cells(Lipo): 5-8S
Rotor: N52H arc magnets
Stator: 0.2mm Kawasaki silicon steel
Shaft: Titanium Alloy hollow shaft
Bearings: Japanese NMB 12x6x4 mm
Wire AWG: 18AWG 25cm length
Bell cap: Al 7075 Base casing: Al 7075
Prop Adapter Shaft Thread: M5
Bolt Pattern: M3 (19X19mm)
Weight: 76.5g with 25cm SR wires
900kv: CF9*4.7 6S 40A
1115kv: CF9*4.7 6S 60A

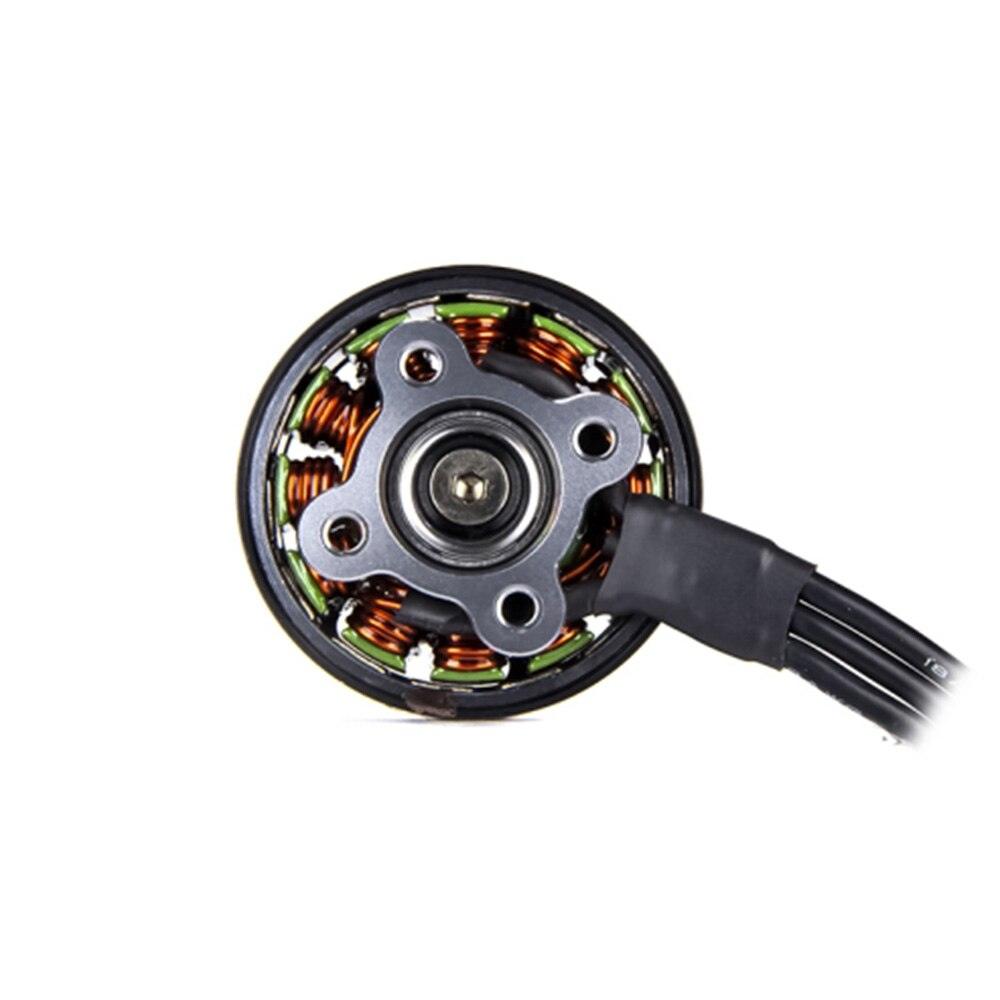

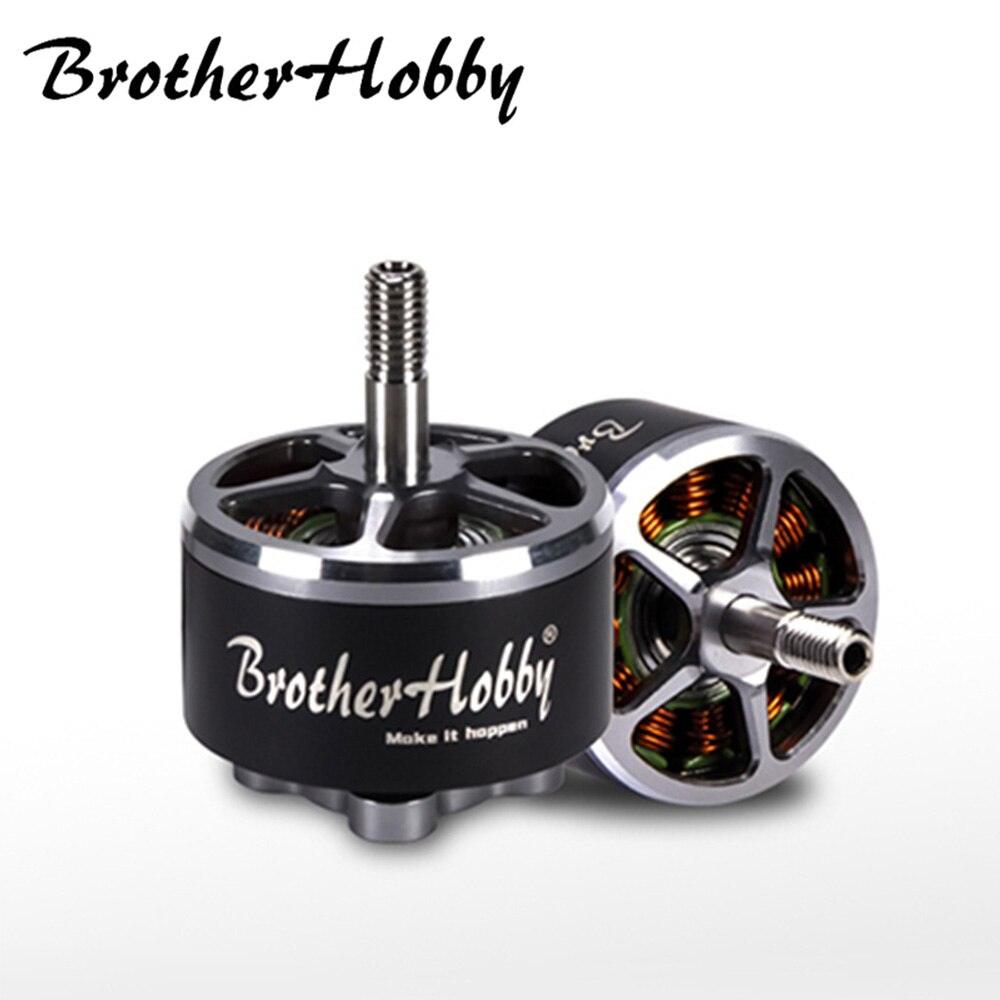

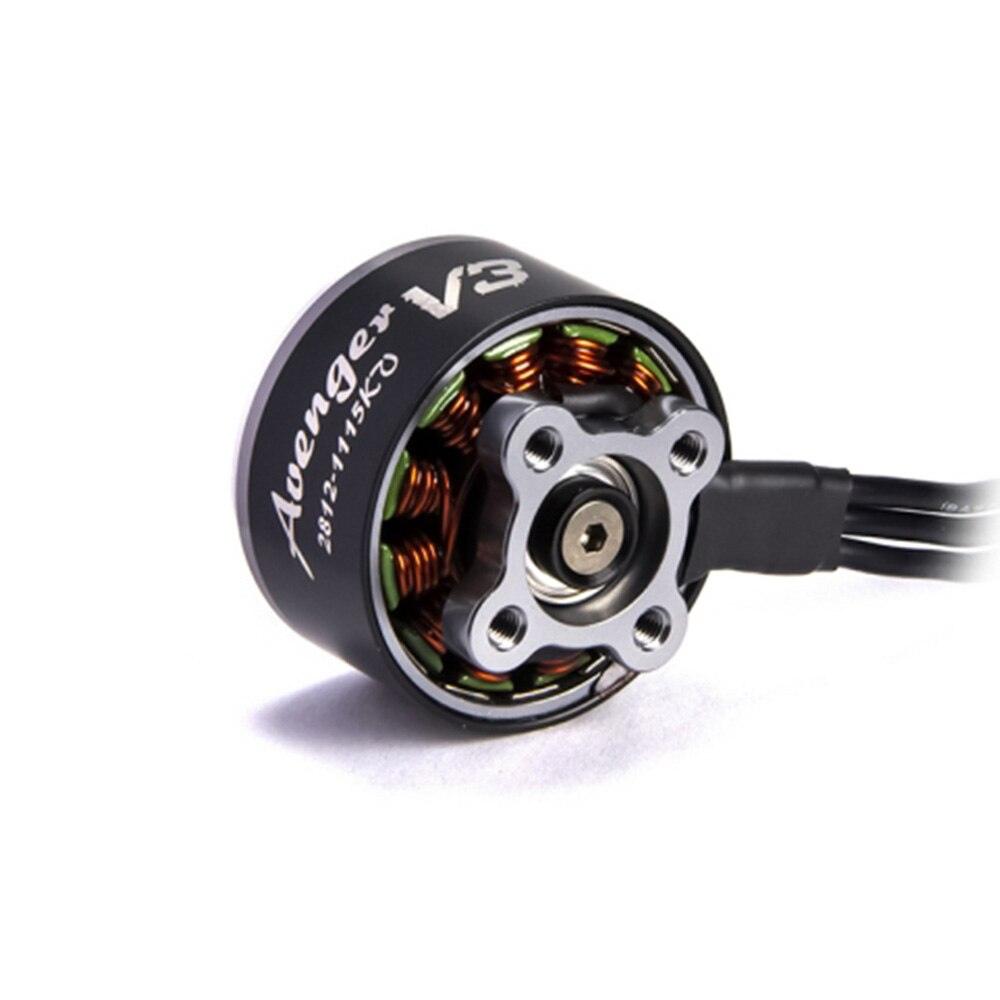

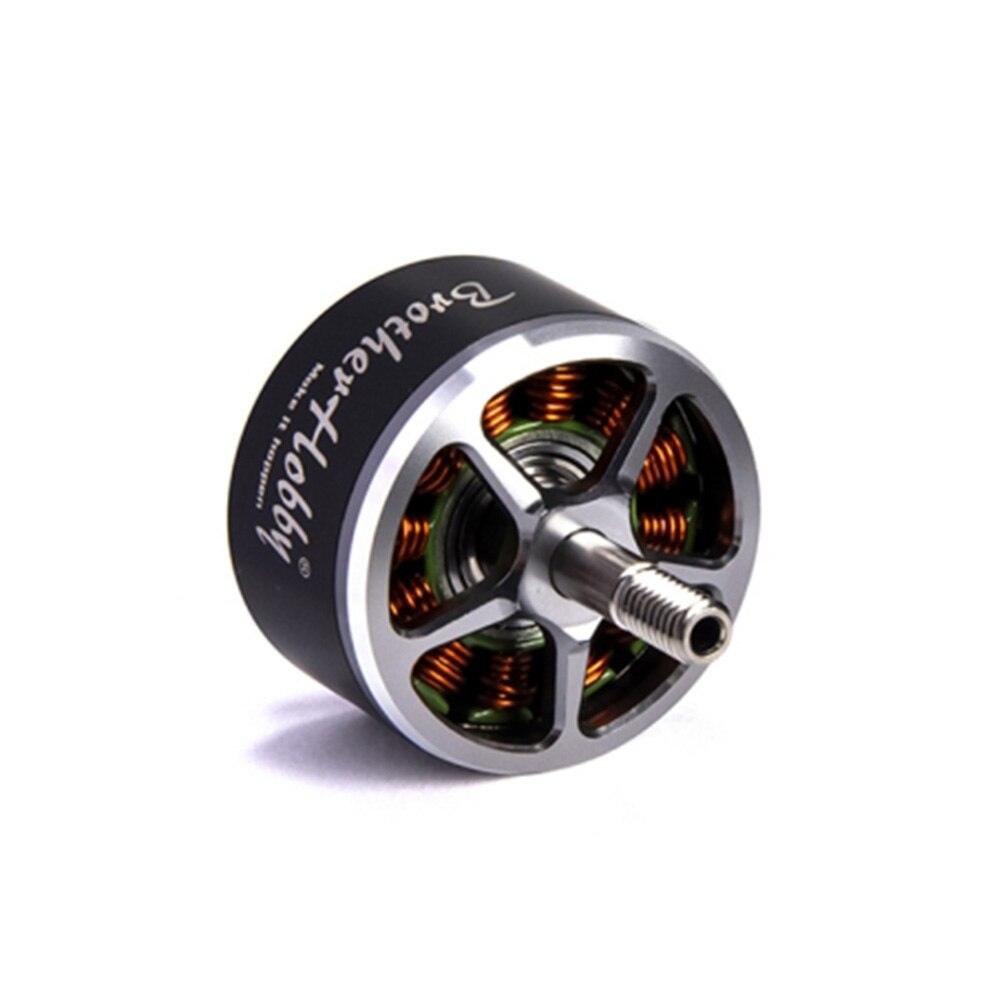

Brother Hobby Avenger V3 2812 motor features a KV rating of either 900 or 1115, with a brushless design and a titanium alloy hollow shaft. It's suitable for use in RC FPV drones and comes equipped with a 7-9 inch propeller.

The Brother Hobby Avenger V3 2812-1115 motor features a solid design with a smooth internal structure, made from aerospace-grade 7075 aluminum. It also boasts Japanese NMB bearings for added durability and reliability. The motor's cover is silky smooth, allowing for quiet and free flight. Additionally, the heat-treated alloy steel shaft provides wear-proofing and crash tolerance.

The Brother Hobby Avenger V3 2812 motor features two KV ratings, either 900KV or 1115KV. The base casing is made from aerospace-grade aluminum alloy (7075), with a configuration of 12N14P wire. The AWG gauge is 18AWG, and the wire length is 25cm. For added durability, Japanese NMB bearings are used. The motor shaft is made from titanium alloy hollow shaft material. Other specifications include an M3 bolt pattern (19mm x 19mm), compatibility with 5-8S lipo cells, a weight of 76.5g including 25cm SR wires, and a prop adapter shaft thread size of M5 with a diameter of 2.5mm.
