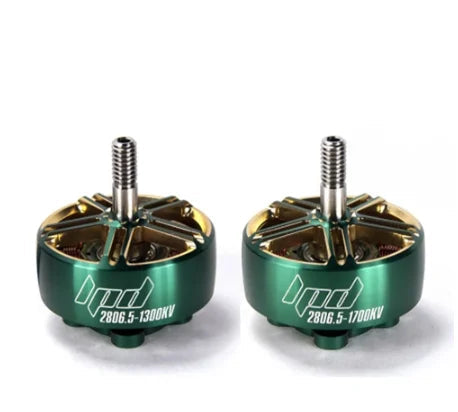

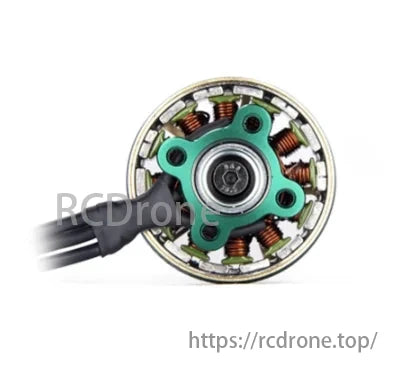

BrotherHobby LPD 2806.5 1300KV 1700KV Brushless Motor 4-6S Titanium Shaft for 6-7 Inch FPV Racing Drones

Brotherhobby

$29.07 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 1PC 1300KV 4PCS 1700KV 4PCS 1300KV 1PC 1700KV

Ships From CHINA

Quantity

View full details

Overview

The BrotherHobby LPD 2806.5 is a high-performance brushless motor built for long-range and freestyle FPV drones. Available in 1300KV and 1700KV versions, this motor delivers exceptional thrust, smooth throttle response, and reliable heat resistance under sustained high loads. Ideal for 6-7 inch propeller setups, the LPD 2806.5 is a solid choice for high-efficiency long-range builds and aggressive freestyle flights.

Specifications

Parameter	Value
KV	1300KV / 1700KV
Configuration	12N14P
Input Voltage	4S – 6S LiPo
Shaft Material	Titanium Alloy (Hollow Shaft)
Prop Adapter Thread	M5
Bearings	Japanese NMB 1264
Rotor Magnets	N52H arc magnets
Stator	0.2mm Kawasaki silicon steel
Wire	18AWG 20cm
Mounting Hole Pattern	M3 (19x19mm)
Base and Bell Material	CNC 7075 Aluminum
Weight	47.3g with 20cm wire

Performance Data

1300KV with HQ7.0x3.5x3 Propeller on 6S

Max Thrust: 2520g
Max Power: 1056.72W
Max Current: 44.4A
Efficiency: 2.38 g/W
RPM: 21691

1700KV with HQ6.0x4.0x3 Propeller on 6S

Max Thrust: 2440g
Max Power: 1170.96W
Max Current: 49.2A
Efficiency: 2.08 g/W
RPM: 29610

Key Features

Aerospace-grade 7075 aluminum bell and base for lightweight durability
Titanium alloy hollow shaft for enhanced crash resistance
Japanese NMB bearings ensure quiet, ultra-smooth performance
N52H arc magnets and 0.15mm silicon steel core for powerful magnetic field with low eddy loss
Fully optimized for 6-7 inch propellers on 4-6S power systems

Application

Perfect for 6-7 inch FPV racing drones, long-range cruisers, and freestyle builds that demand a powerful and efficient motor.

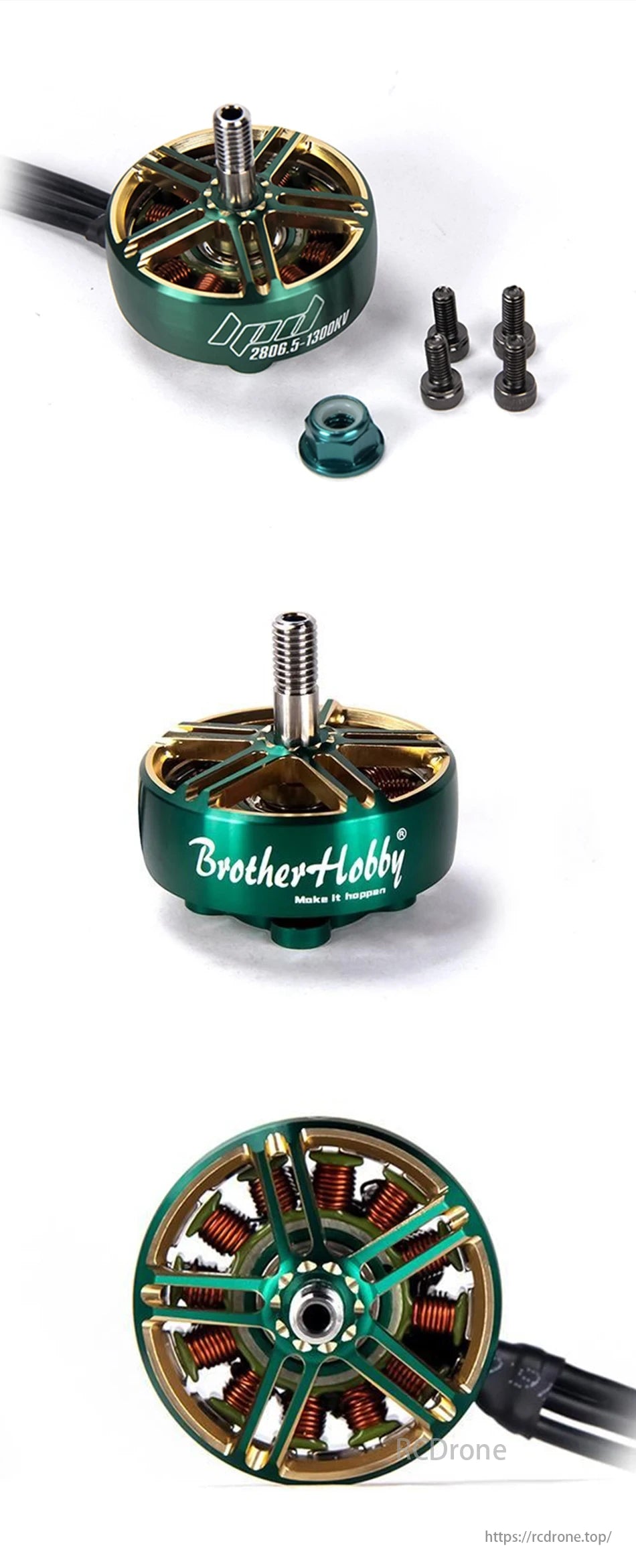

Packing List

LPD 2806.5 Motor ×1
M3 Screws ×4
M5 Nut ×1

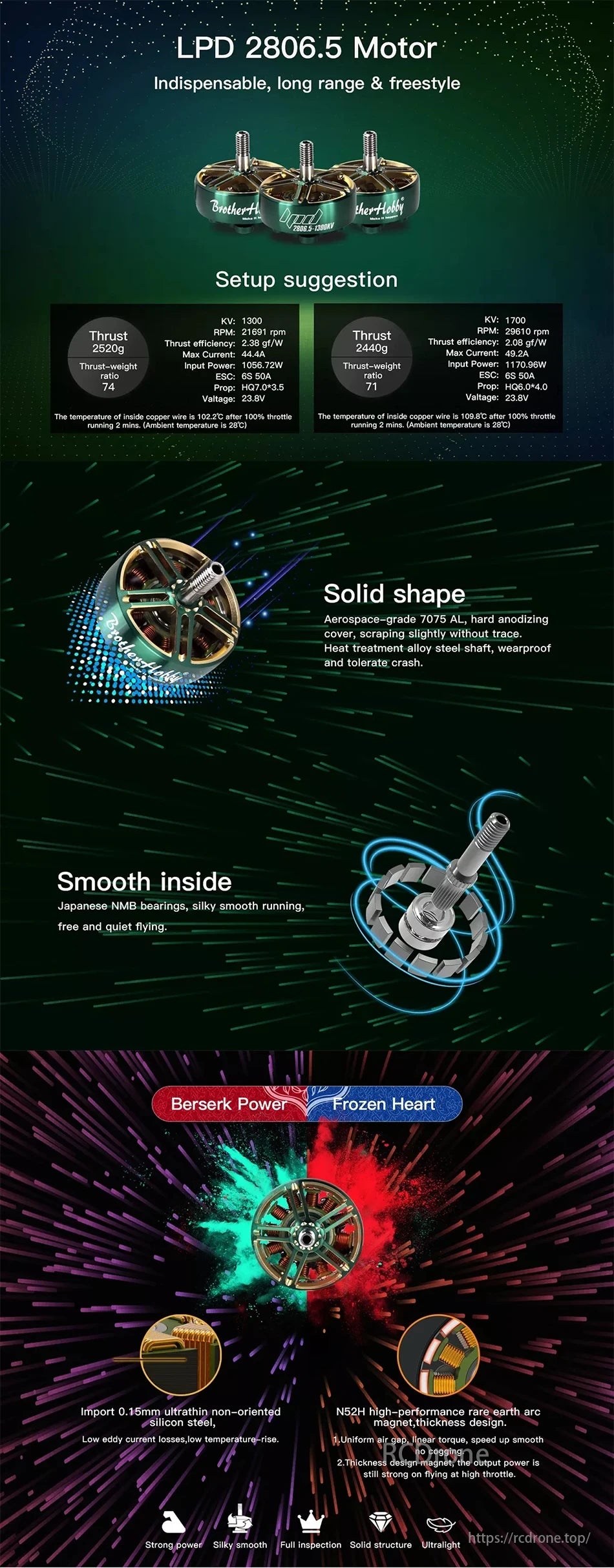

LPD 2806.5 Brushless Motor, LPD 2806.5 Motor offers long-range/freestyle performance with thrust details, aerospace-grade AL, smooth bearings, Berserk Power, and Frozen Heart for excellence.

LPD 2806.5 Motor: Ideal for long-range and freestyle. Includes thrust details, aerospace-grade AL, smooth bearings. Equipped with Berserk Power and Frozen Heart for exceptional performance.

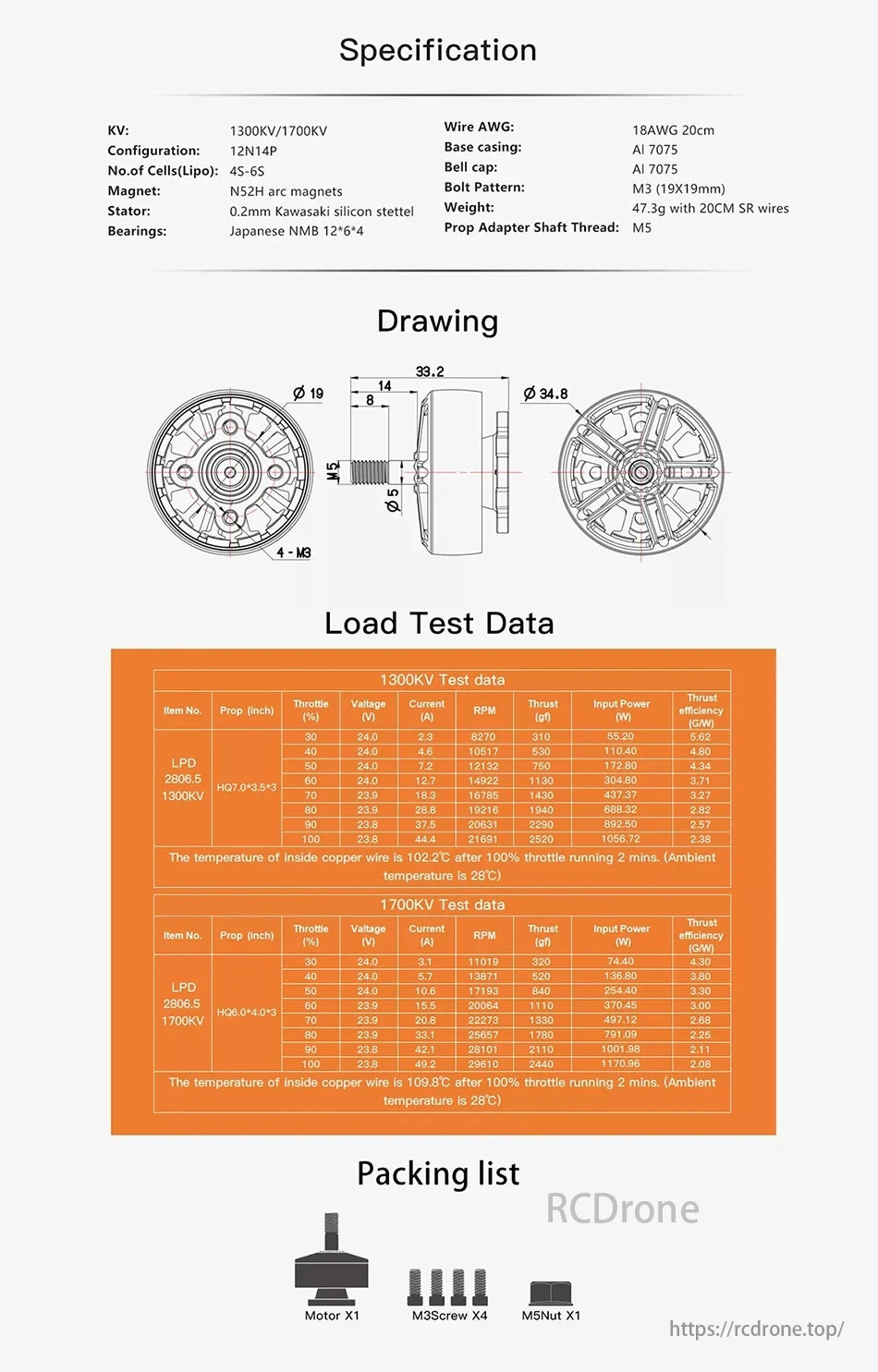

LPD 2806.5 Brushless Motor: 1300KV/1700KV, 12N14P, N52H magnets, 0.2mm stator, Japanese bearings. Includes load test data and packing list.

LPD 2806.5 Brushless Motor specs: 1300KV/1700KV, 12N14P config, N52H magnets, 0.2mm stator, Japanese bearings. Load test data for various throttle percentages provided. Packing list includes motor, M3 screws, and M5 nut.

LPD 2806.5 Brushless Motor, A high-performance brushless motor with 1300KV/1700KV options, suitable for 4-6S power systems, featuring aerospace-grade aluminum and titanium alloy construction.

LPD 2806.5 Brushless Motor, High-performance electric motor with titanium alloy shaft and Japanese bearings for smooth operation, suitable for 6-7 inch FPV racing drones.
