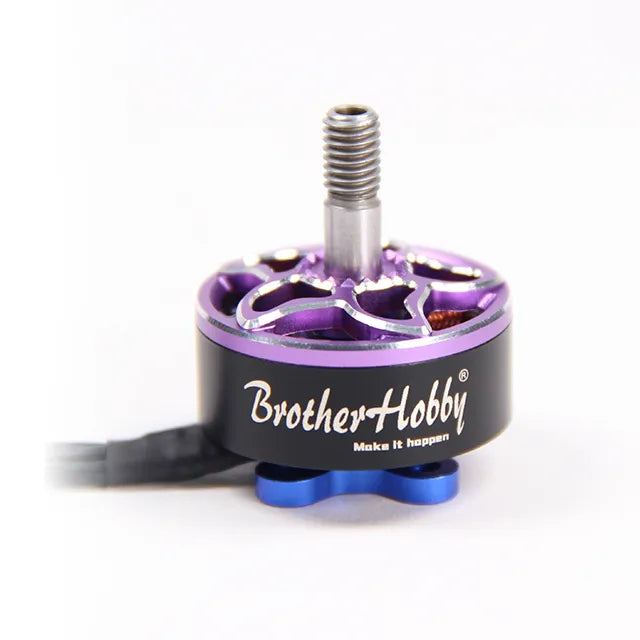

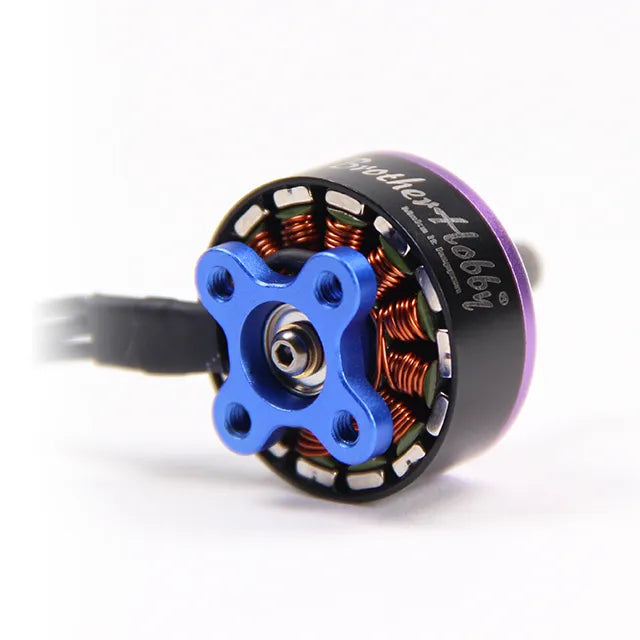

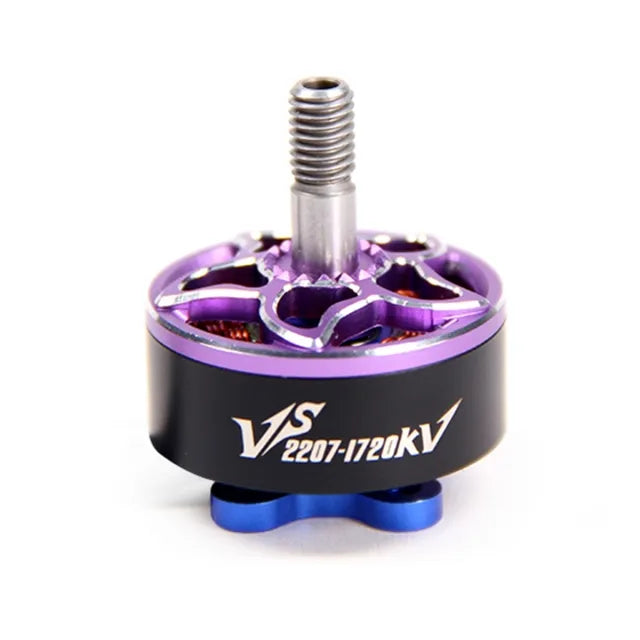

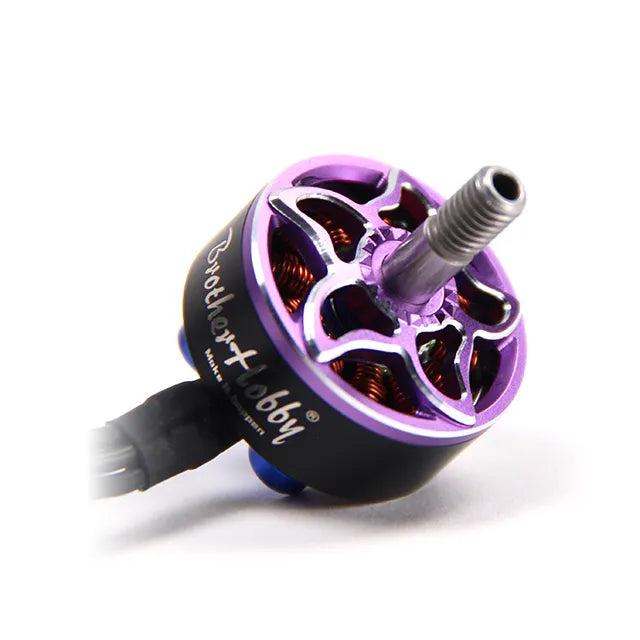

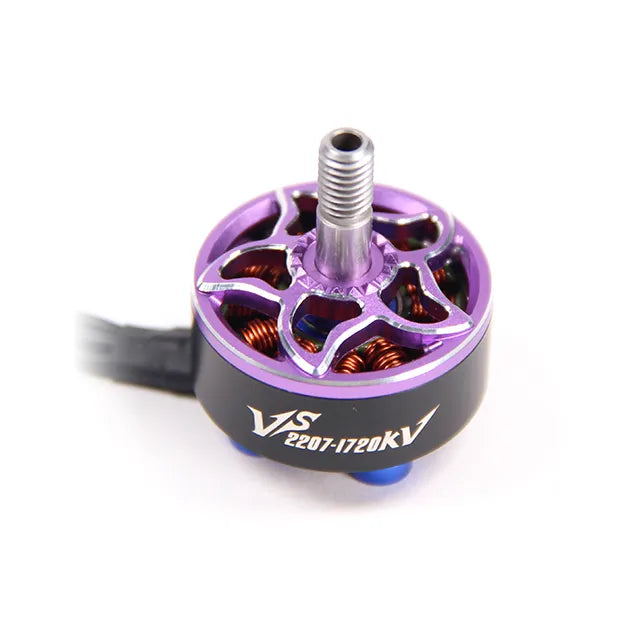

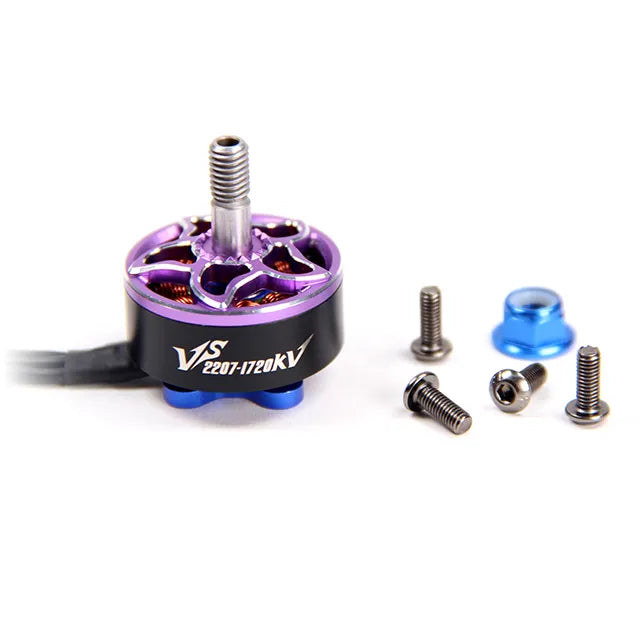

BrotherHobby VS 2207 Motor (CW) 1720KV/2400KV/2700KV FPV Drone Motor

Brotherhobby

$29.90 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV 1720 2400 2700

Quantity

View full details

Specifications

KV: 1720KV/2400KV/2700KV

Base casing: Al 7075

Stator: 0.2mm Kawasaki silicon steel

Configuration: 12N14P

Prop Adapter Shaft Thread: M5

Shaft: SUS 420 hollow shaft

No.of Cells(Lipo): 4-6S

Bolt Pattern: M3(16X16mm)

Bearings: Japanese NMB 8x3x4mm

Rotor: N52H arc magnets

Weight: 32.5g with 16cm SR wires

Wire AWG: 20AWG 16cm length

Bell cap: Al 7075

BrotherHobby VS 2207 Motor, Free Flight Feel the wind, free yourself and challenge your limits VS 2207 MOTOR 15

Experience the thrill of flight with unrestricted freedom! The Brother Hobby VS 2207 drone motors offers an exhilarating flying experience, allowing you to push your limits and feel the rush of the wind.

BrotherHobby VS 2207 Motor, VS 2207-1720KV Throttle: 100% RPM: 29255 R

VS 2207-1720KV Motor Specifications: - Throttle: 100% - RPM: 29,255 - Weight: 1830g - GF: 5x 5.5 x 3 Triblade Valve: 23.8V - Input Power: 923.44W - Max Thrust: 6S, 40A ESC Current: 38.8A - Thrust Efficiency: 1.98g Notable internal motor characteristics: - Copper wire temperature: 93.7°C (Ambient temperature: 25.9°C)

BrotherHobby VS 2207 Motor, Lug Max Thrust 5S 55A ESC Current: 51.6 A Thrust efficiency

Motor Specifications: - Lug Max Thrust: 5S, 55A ESC Current: 51.6A - Thrust Efficiency: 1.87g Internal Motor Characteristics: - Copper wire temperature: 106.5°C (Ambient temperature: 26°C)
