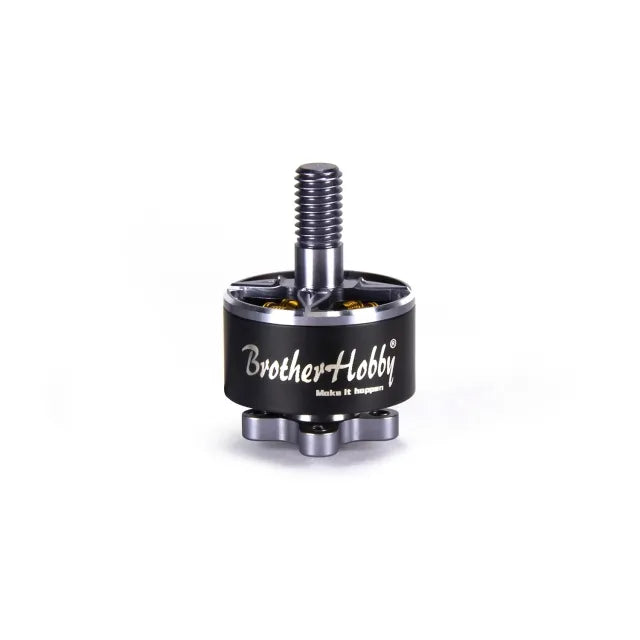

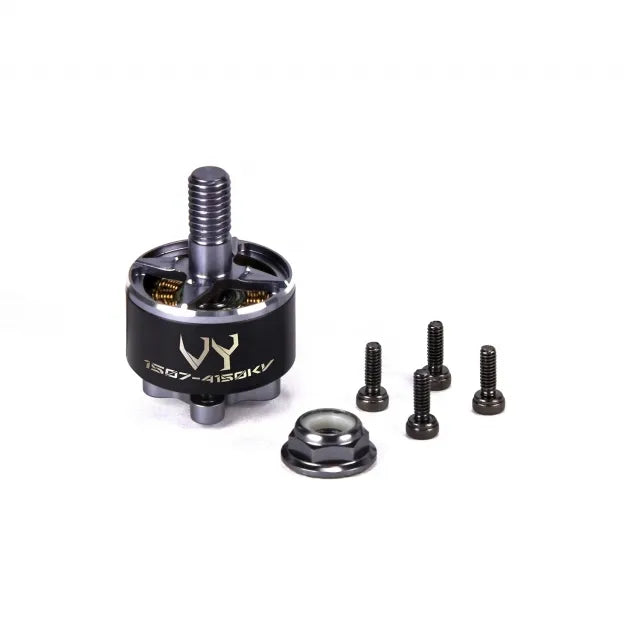

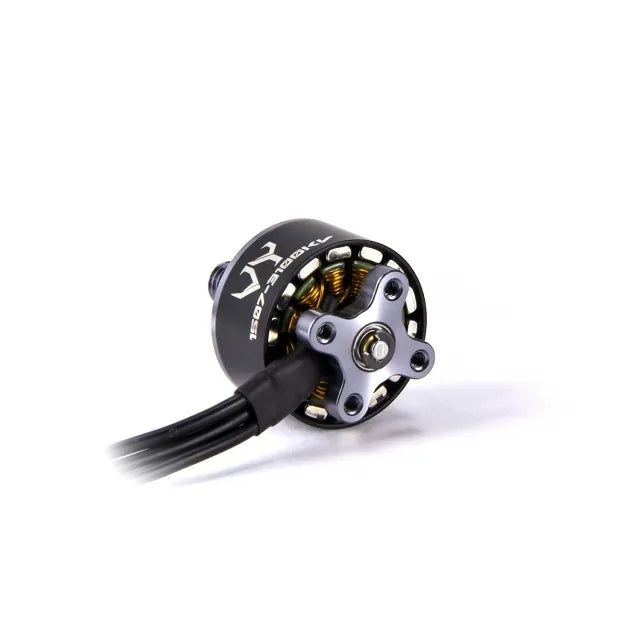

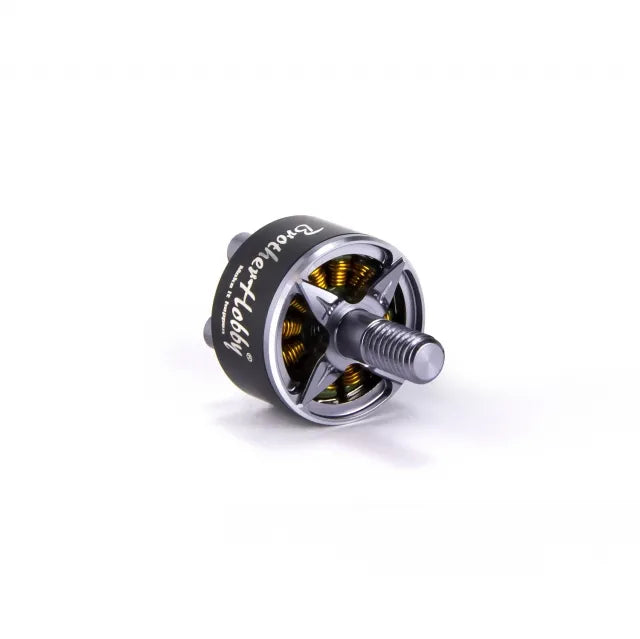

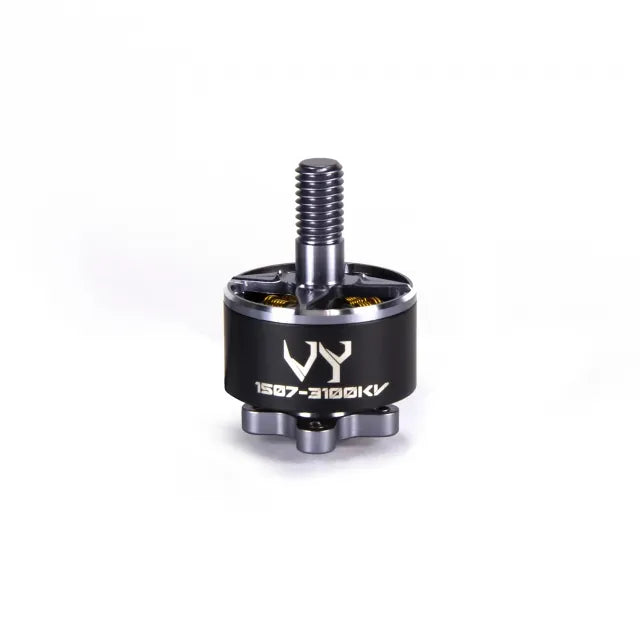

BrotherHobby VY 1507 Motor 1550KV&3100KV(6S)/1900KV&4150KV(4S) FPV Drone Motor

BrotherHobby VY 1507 Motor 1550KV&3100KV(6S)/1900KV&4150KV(4S) FPV Drone Motor

Brotherhobby

$27.99 USD
$27.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

116 orders in last 90 days

KV
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 1550KV&3100KV(6S)/1900KV&4150KV(4S)
Configuration: 12N14P
Wire AWG: 24AWG
Magnet: N52H arc magnets
Copper wire: Missile Grade Material( resistant to 260℃）
No.of Cells(Lipo): 4-6S
Base casing: Al 7075
Bell cap: Al 7075
Bearings: Japanese NSK 5x2x2.5 mm
Stator: 0.15mm Nippon stell silicon steel
Bolt Pattern: M2 (12mm 12 mm)
Weight: 16.3g with 16cm long wires
BrotherHobby VY 1507 Motor, GF 5143*3 43 Prop: HQ5141*3 The temperature of inside

The HQ5141 propellers are used in conjunction with three motors. After operating at 100% throttle, the internal temperature of the copper wire reaches approximately 101.3°C.

BrotherHobby VY 1507 Motor, japanese NSK bearings, silky smooth running, free and quiet flying

Equipped with high-quality Japanese NSK bearings, this motor provides a silky smooth running experience, allowing for free and quiet flight. Its lightweight design makes it perfect for enjoying the thrill of flight and exploring new horizons.

BrotherHobby VY 1507 Motor, the temperature can reach 260C, don't 2.The output worry burn on 100% throttle

The motor can withstand extremely high temperatures, reaching up to 260°C. Even under prolonged 100% throttle and long periods of flight, it maintains its power and performance without worrying about overheating or burnout.

BrotherHobby VY 1507 Motor, Specification KV: 1550kV(6s)/1900KV(4

Key specifications include NSZH arc magnets, a bolt pattern of M2 (12mm x 12mm), and high-quality copper wire made from missile-grade material. The motor weighs approximately 16.3g and features 16cm long wires that are resistant to temperatures up to 260°C.

BrotherHobby VY 1507 Motor, Specifications KV: 1550KV&3100KV(6S)/19BrotherHobby VY 1507 Motor, Specifications KV: 1550KV&3100KV(6S)/19

BrotherHobby VY 1507 Motor, KV 1550KV Configuration 12NI4P Stator Dimension (mm) 15

Key specifications include: * KV: 1550KV * Configuration: 12Ni4P * Stator dimensions: 15mm (length), unknown height (mm) * Weight including cable: 16.61g * Motor dimensions: 19.4mm x 28mm * Number of cells (Lipo): 6S * Magnet type: N52H * Propeller size: 5in * ESC configuration: 6S, 15A * Internal resistance: 497.40mΩ * Idle current @ 10V: 0.4A * Max power: 324.00W * Max current: 13.50A * Copper wire material (not specified)

BrotherHobby VY 1507 Motor, HQ 5141*3 60 16.00 3.70 11082 231.00 4.91 40

The internal temperature of the copper wire in the motor reaches approximately 231.0°C when running at 100% throttle under normal conditions (ZMIN).

BrotherHobby VY 1507 Motor, test base on 2020 BrotherHobby Remark bench for reference only . 46mg

Test Report for Brother Hobby VY 1507-3100KV Motor: Testing performed by tester Kang Xu, dated December 23rd, 2019. Test report number: 1507VY2019122301.

BrotherHobby VY 1507 Motor, Mnk hoppen Auditor: Melo Lee Date: 2019/12/23 Test Report

Test Report for Brother Hobby VY 1507-4150KV Motor: Audited by Melo Lee, dated December 23rd, 2019. Test report number: 1507VY2019122301. Specifications: * KV: 4150kV * Configuration: 12Ni4P * Stator dimensions: 15mm (length), unknown height (mm) * Weight including cable: 16.3g * Motor dimension: 19.4mm x 28mm
