BZGNSS BZ-121 BZ-181 BZ-251 Dual Protocol GPS Positioning Module Suitable FPV out of Control Rescue Fixed-wing Crossing Drones

BZGNSS BZ-121 BZ-181 BZ-251 Dual Protocol GPS Positioning Module Suitable FPV out of Control Rescue Fixed-wing Crossing Drones

RCDrone

Regular price $28.05 USD
Regular price $44.89 USD Sale price $28.05 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

120 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembled class

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Model Number: BZ-121 / BZ-181 / BZ-251

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: SPARKHOBBY

Default 10Hz Speed accuracy:0.05m/s Horizontal Positioning Accuracy:
Item: BZGNSS BZ-121 BZ-181 BZ-251 GPS

Parameters:

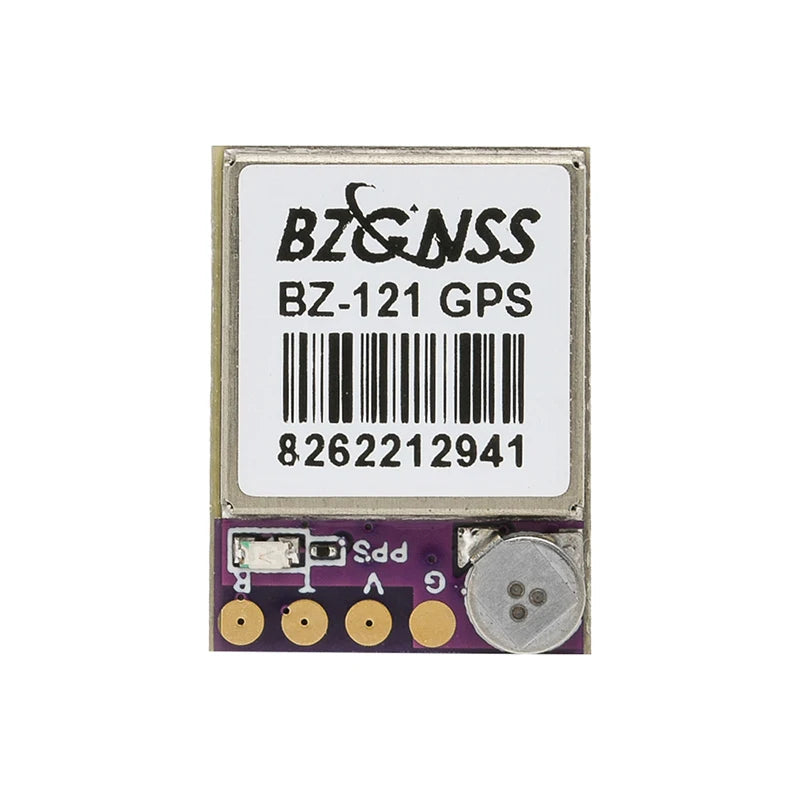

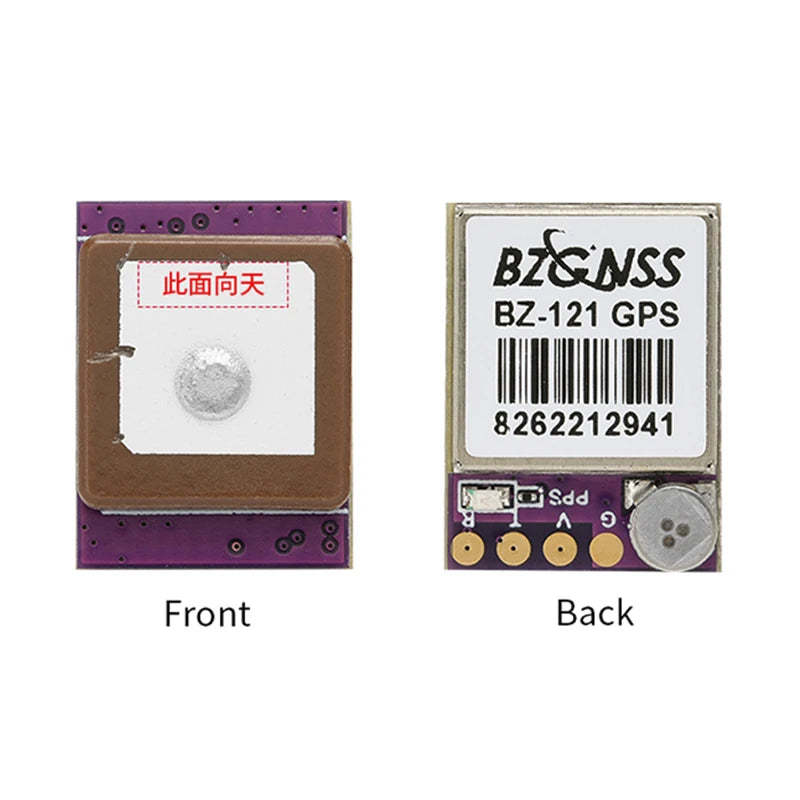

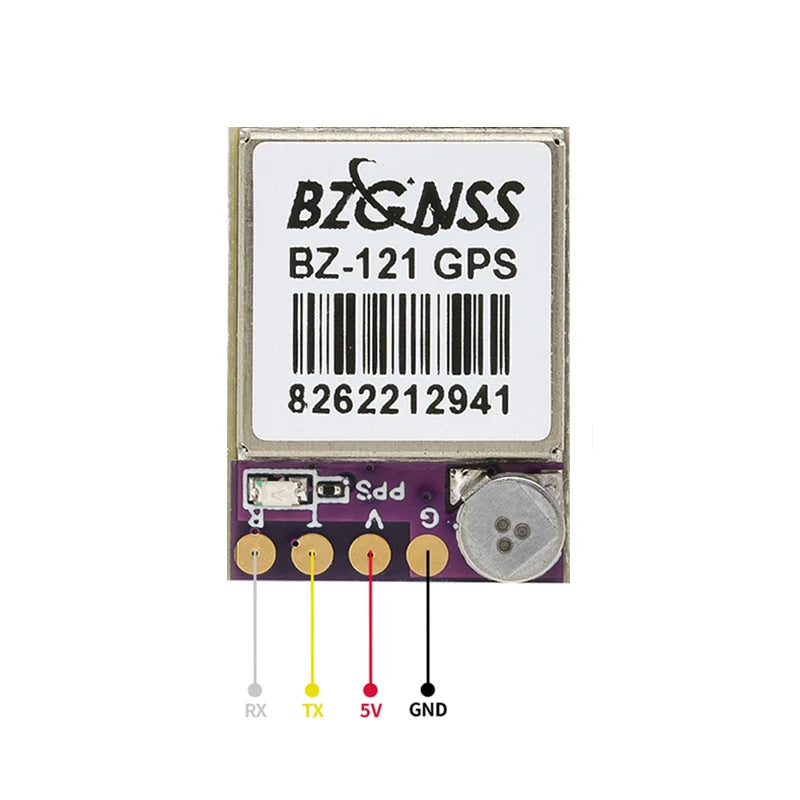

BZ-121
Chip:u-blox M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V

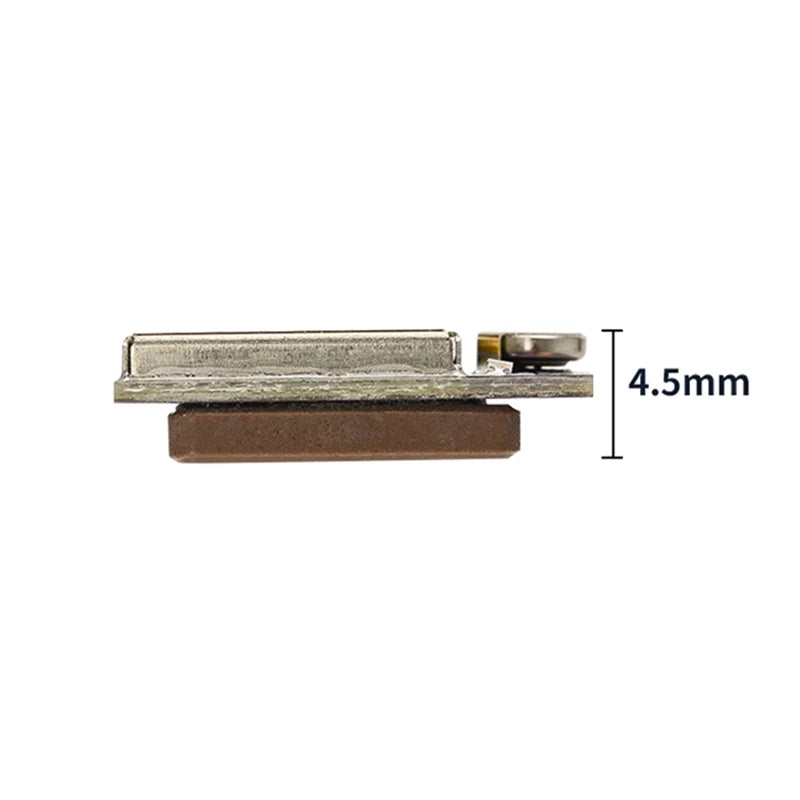

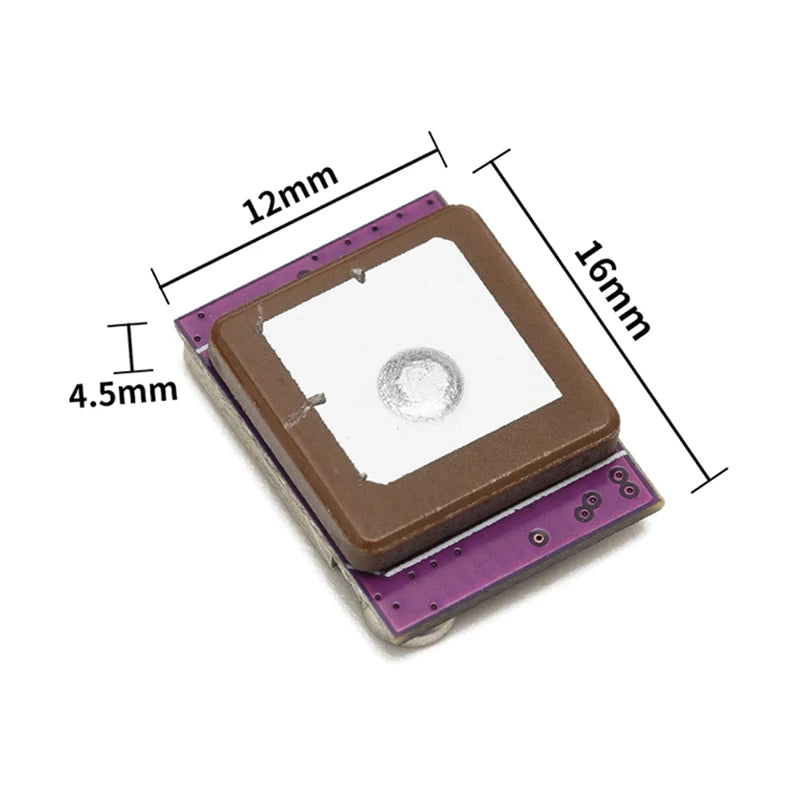

Size:12x16x4.5mm
Interface:PCB Pad

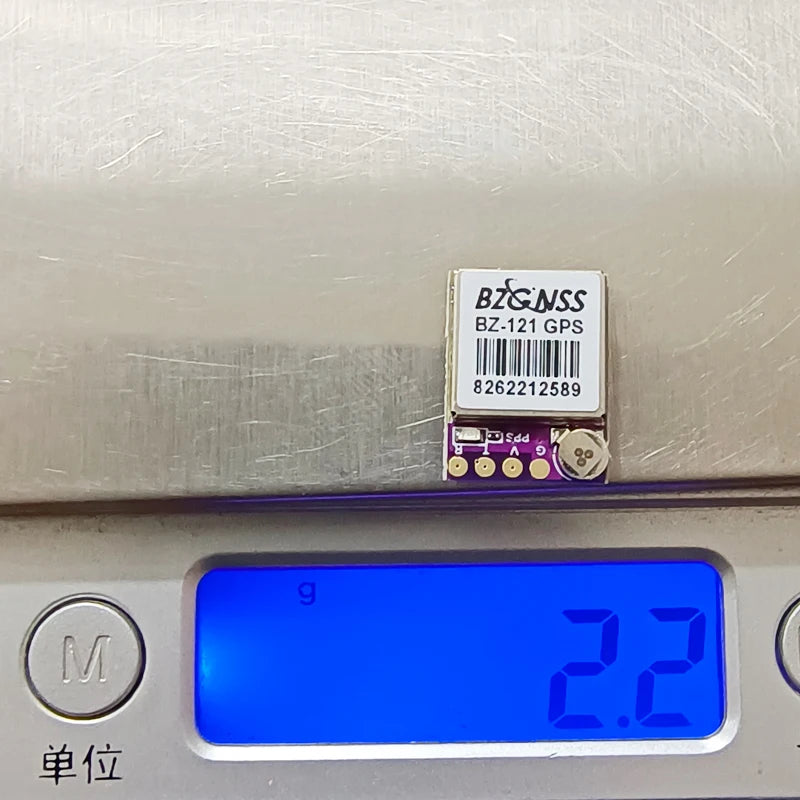

Weight:2.2g
Antenna:Ultrathin Ceramic Antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels:72 search channels
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C~+85°C
Storage temperature:-40°C~+105°C
Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

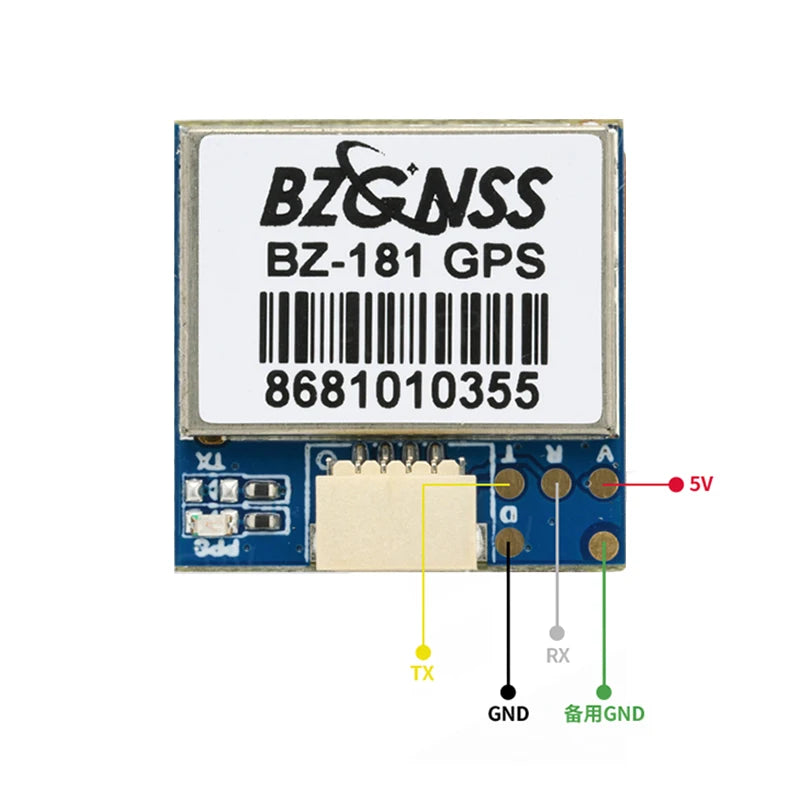

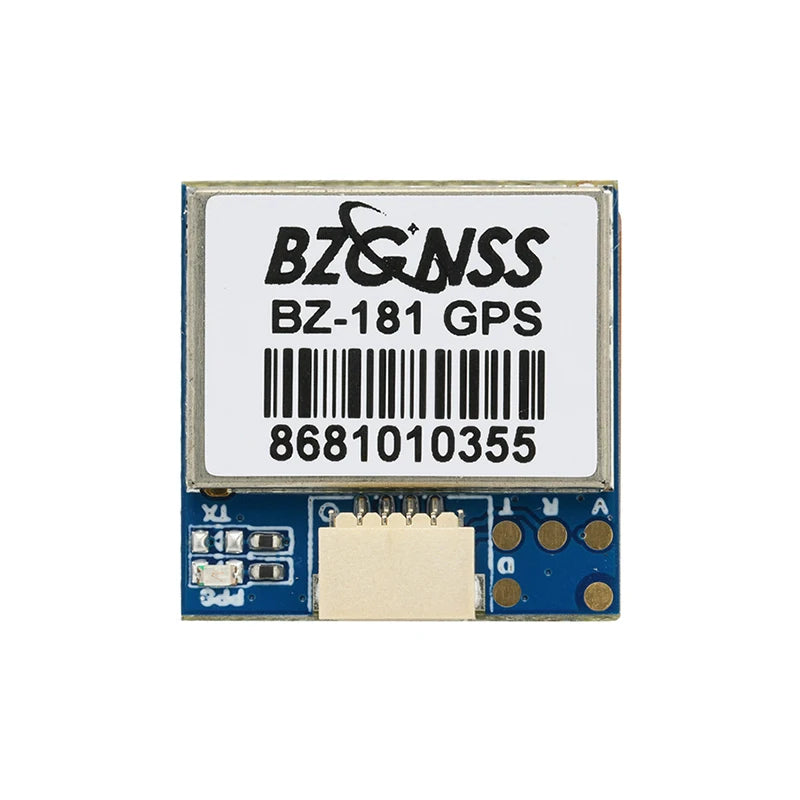

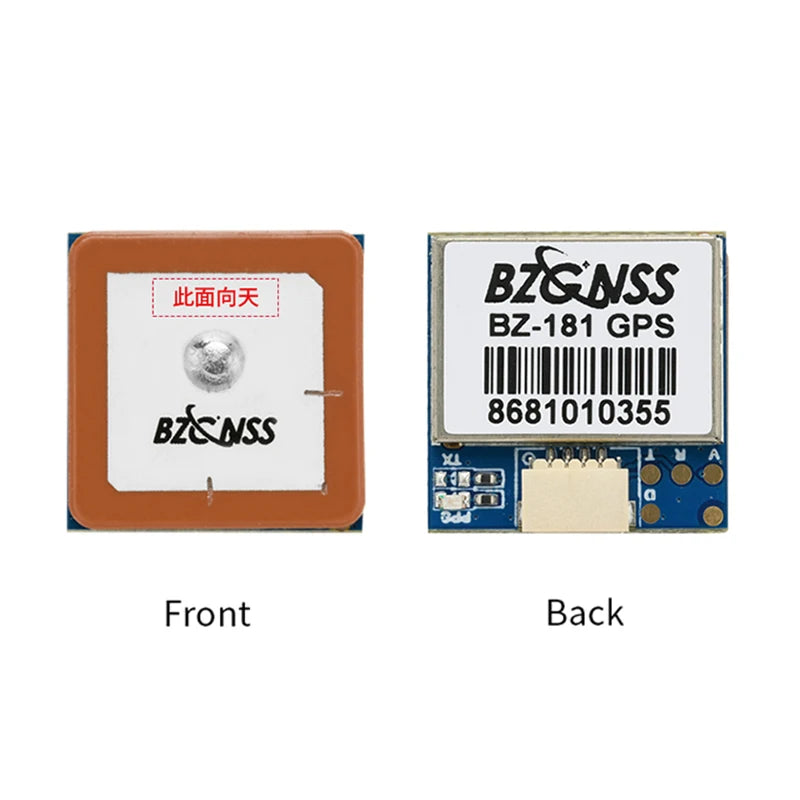

BZ-181
Chip:u-blox M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V

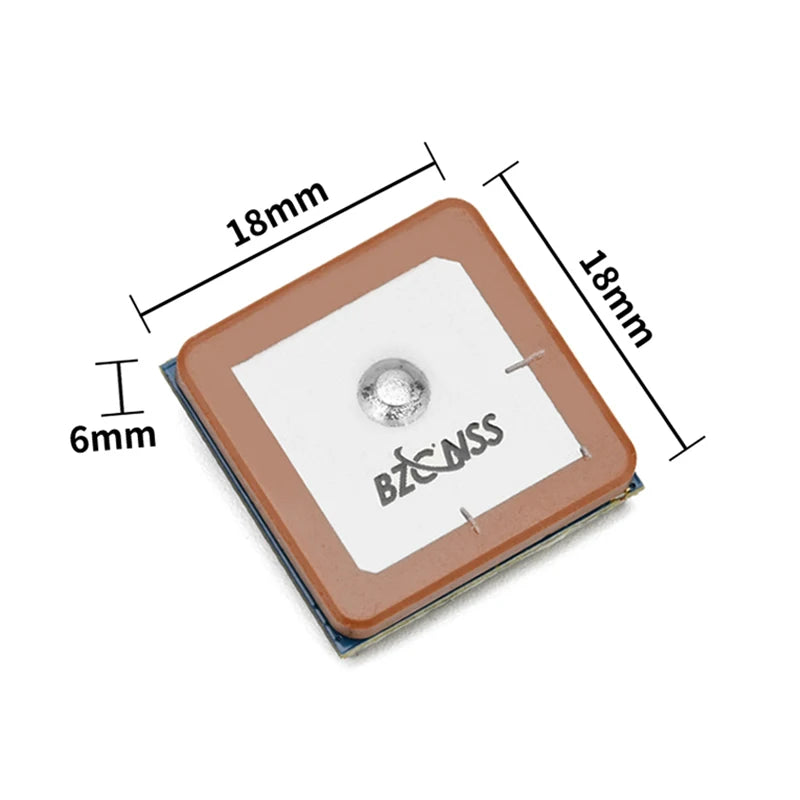

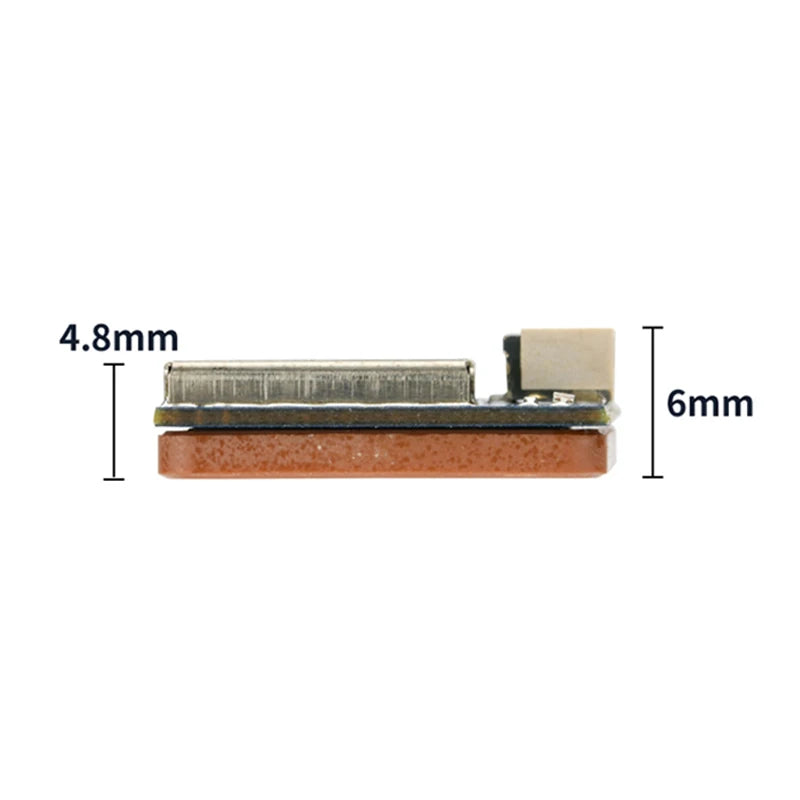

Size:18x18x4.8mm(Thinnest point)
18x18x6mm(Including thickness of terminal block)
Interface:SH1.0 4Pin

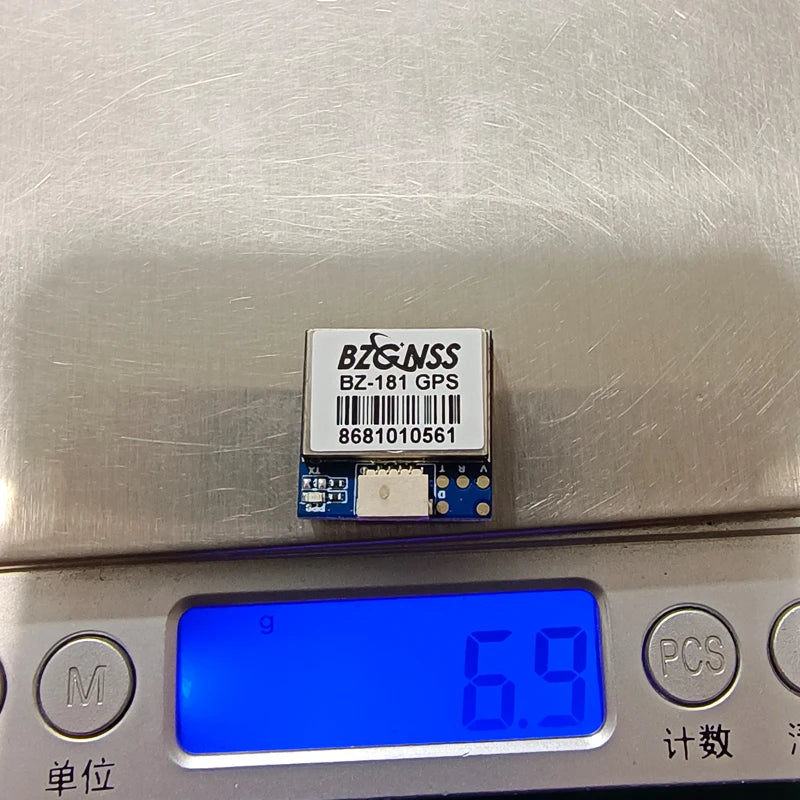

Weight:6.9g
Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna
Receiving channels:72 search channels
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C~+85°C
Storage temperature:-40°C~+105°C
Indicator light:PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

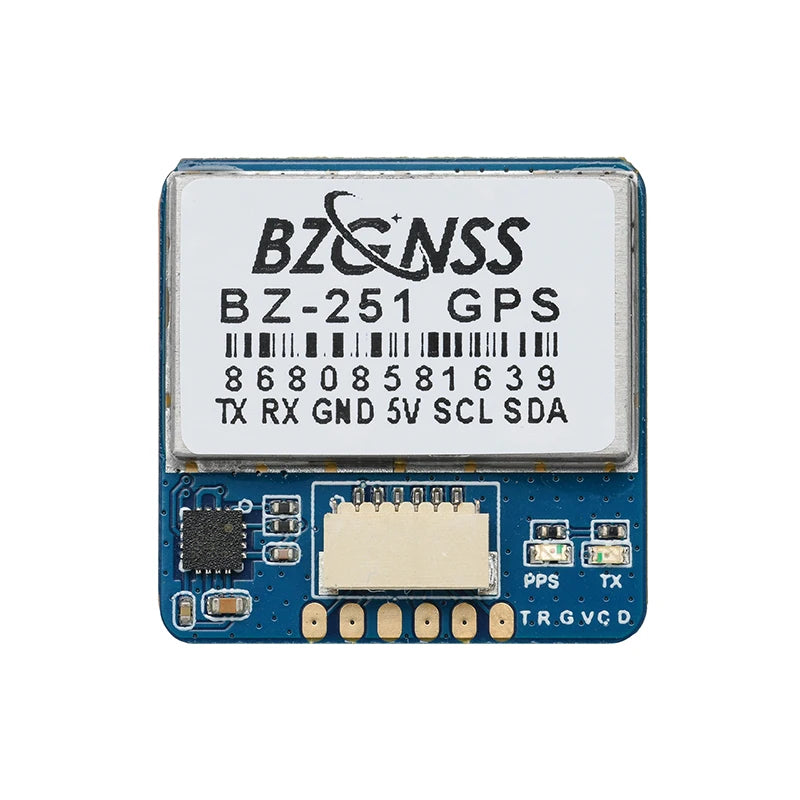

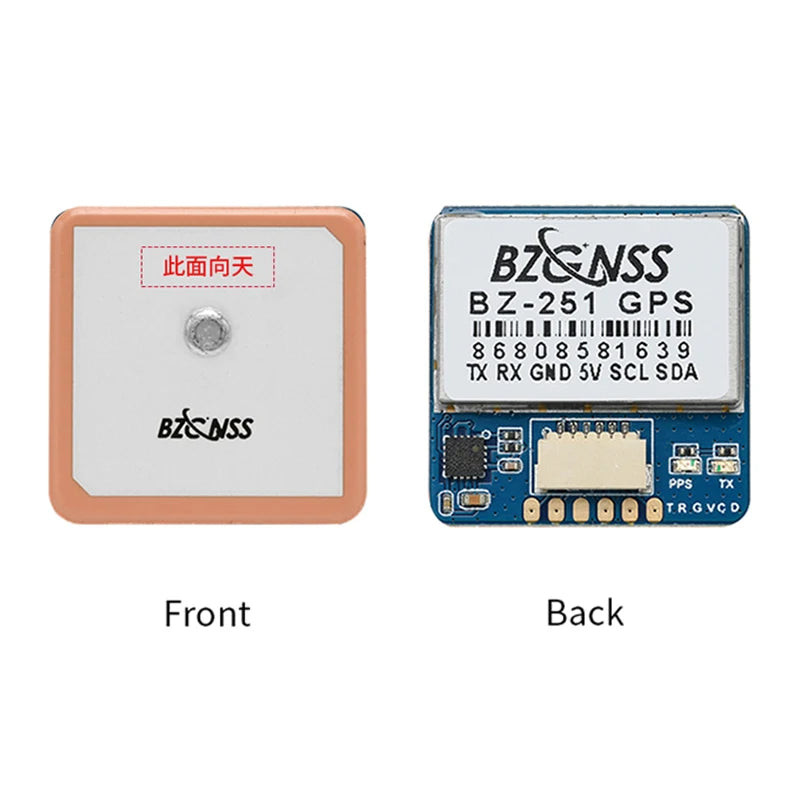

BZ-251
Chip:u-blox M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V

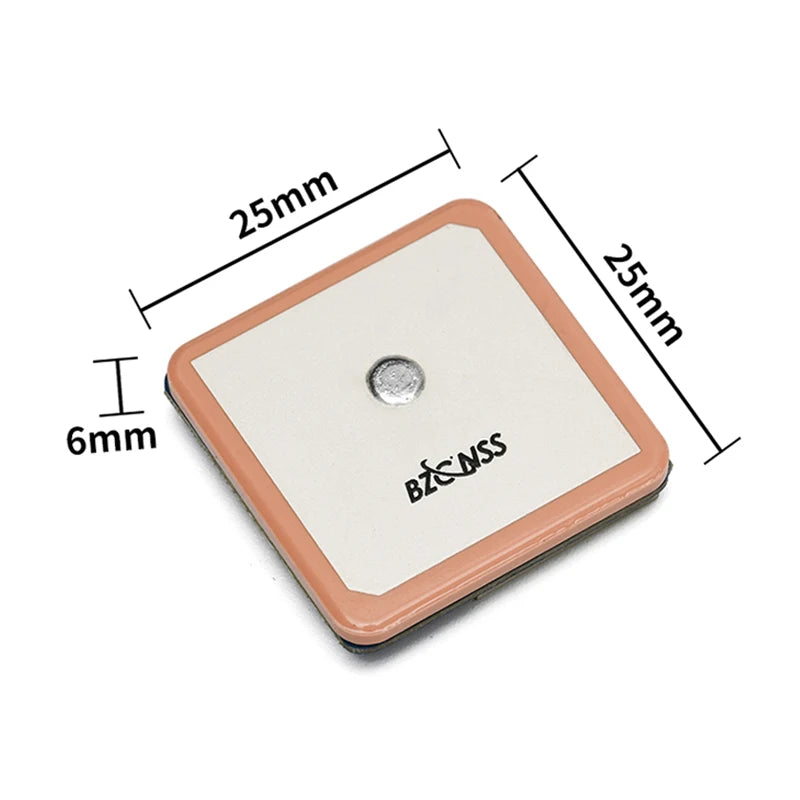

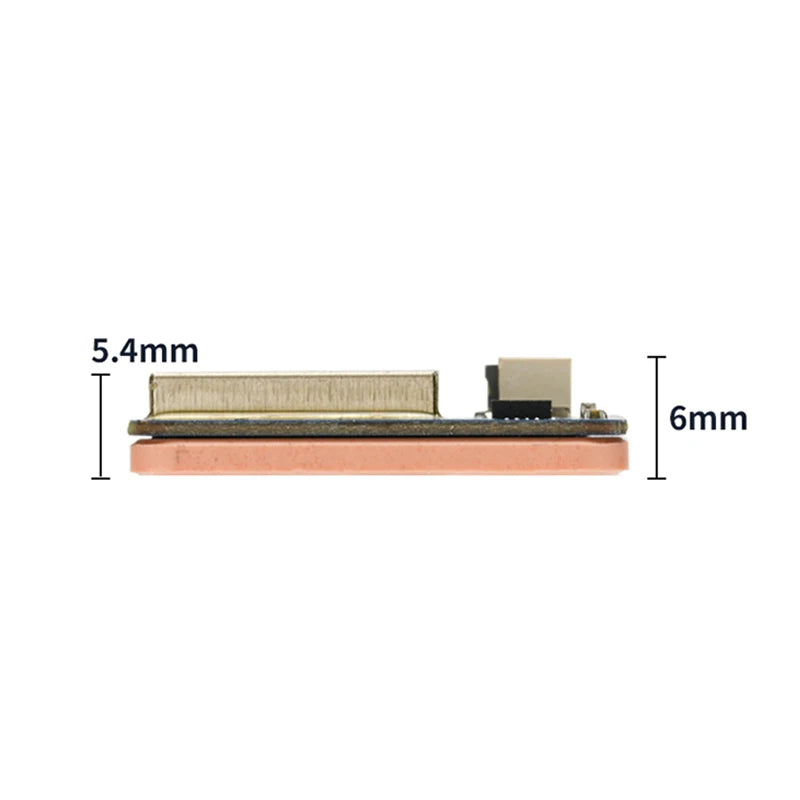

Size:25x25x5.4mm(Thinnest point)
25x25x6mm(Including thickness of terminal block)

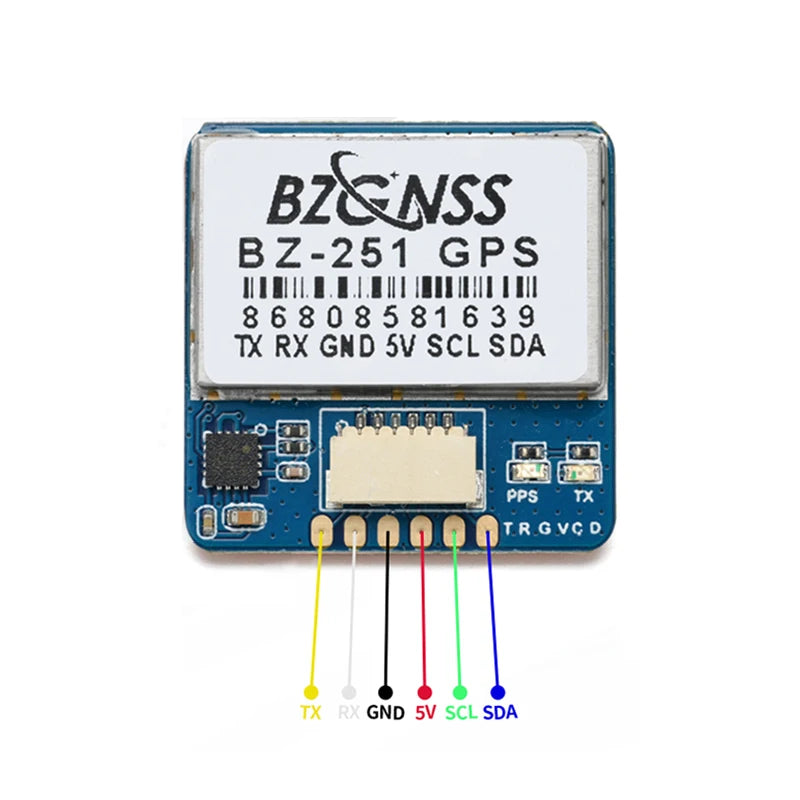

Interface:SH1.0 6Pin

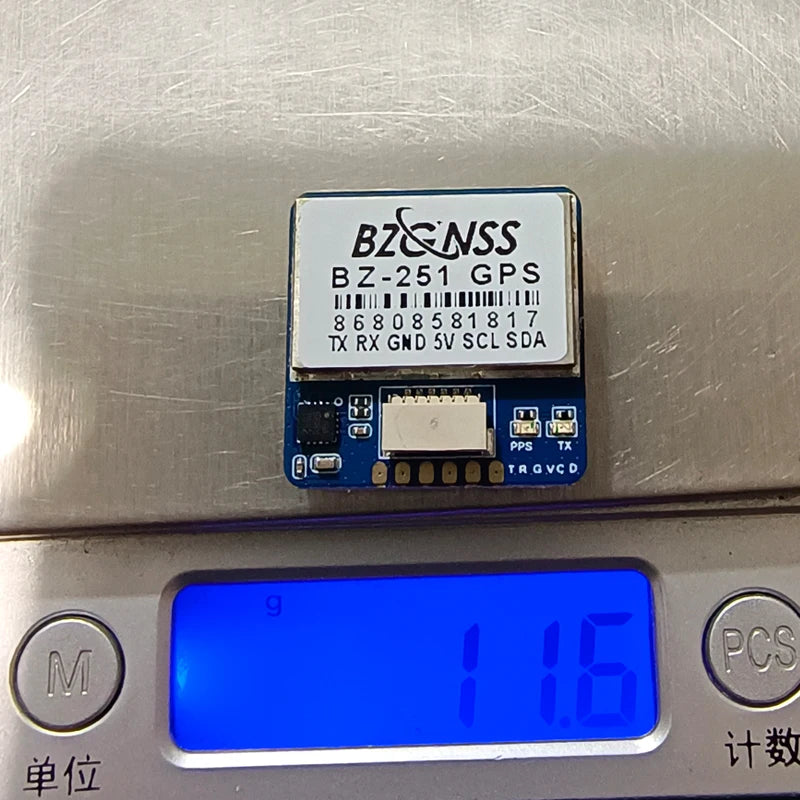

Weight:11.6g
Antenna:Ultrathin Ceramic Antenna / Standard Ceramic Antenna
Receiving channels:72 search channels
Compass:QMC5883
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C~+85'C
Storage temperature:-40°C~+105°C
Indicator light:
The power on red light of the TX light flashes, indicating that there is data output
PPS lamp - the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

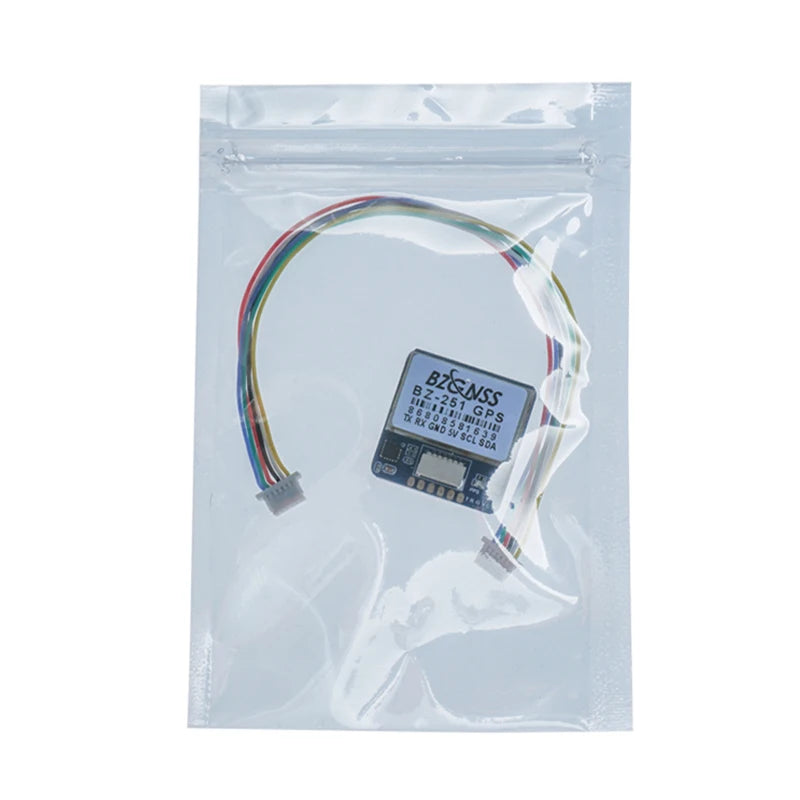

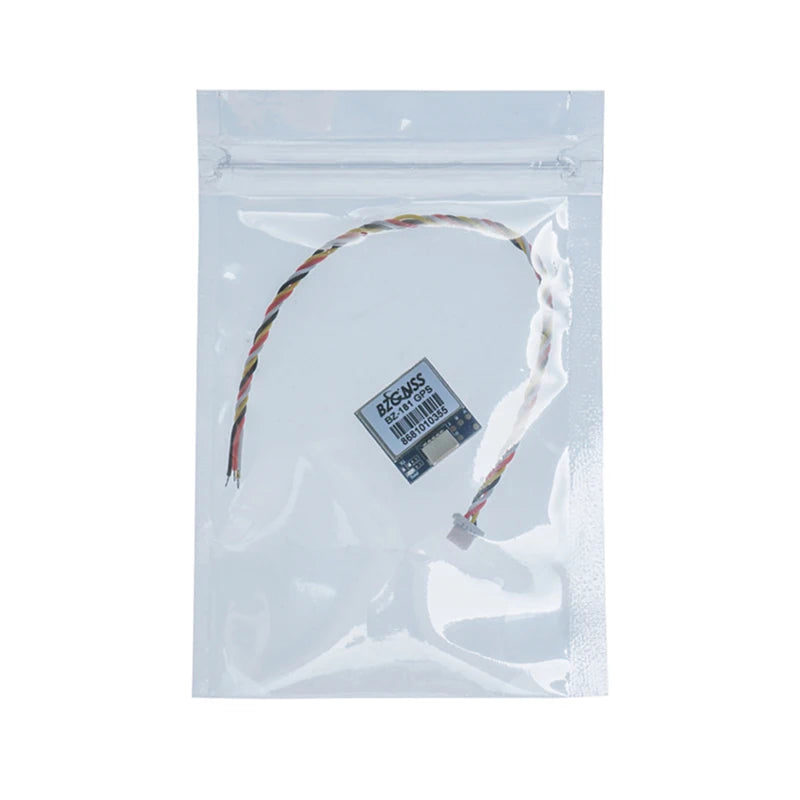

  • Package Included:
  • BZGNSS BZ-121 or BZ-181 or BZ-251 GPS x 1(Select according to requirements)
