CMOS Senso Horizontal 1200 TVL Resolution System NTSC and PAL(switchable) MENU Support IMAGE 16.9 or 4.3 Synchronization Interna Electronic Shutter PAL: 1/50100,000; NT SC: /60100,000.000 SIN Ratio >52dB (AGC OFF) Video Output CVBS Lens 1.8mm Min. Illumination O.O01Lux@F1.2 Auto Gain Control VES B

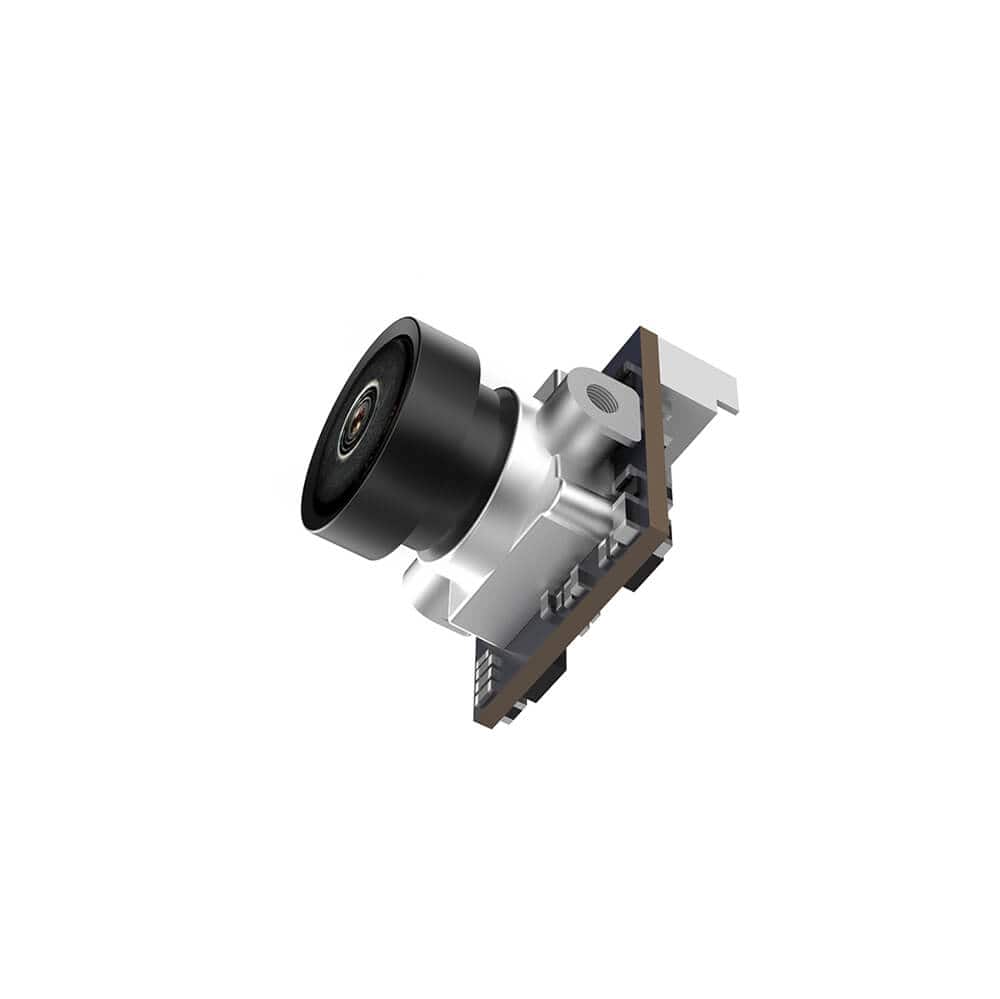

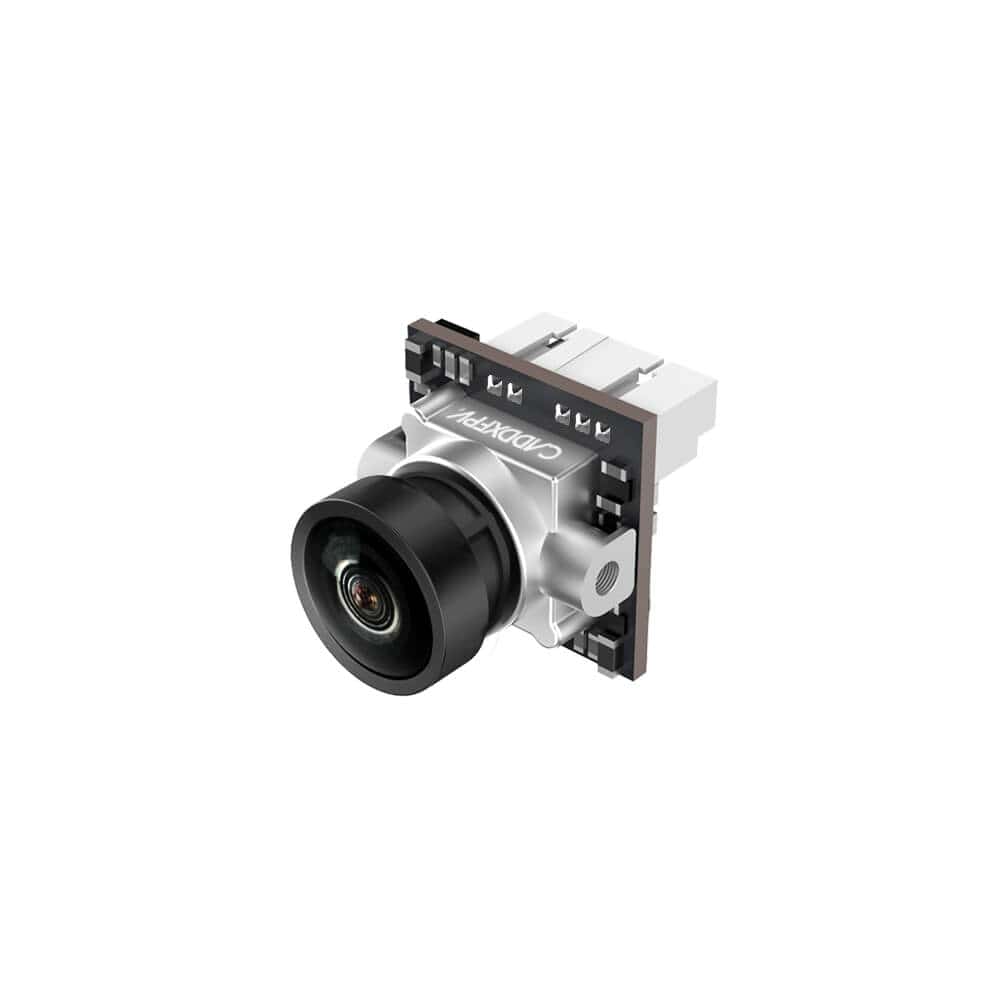

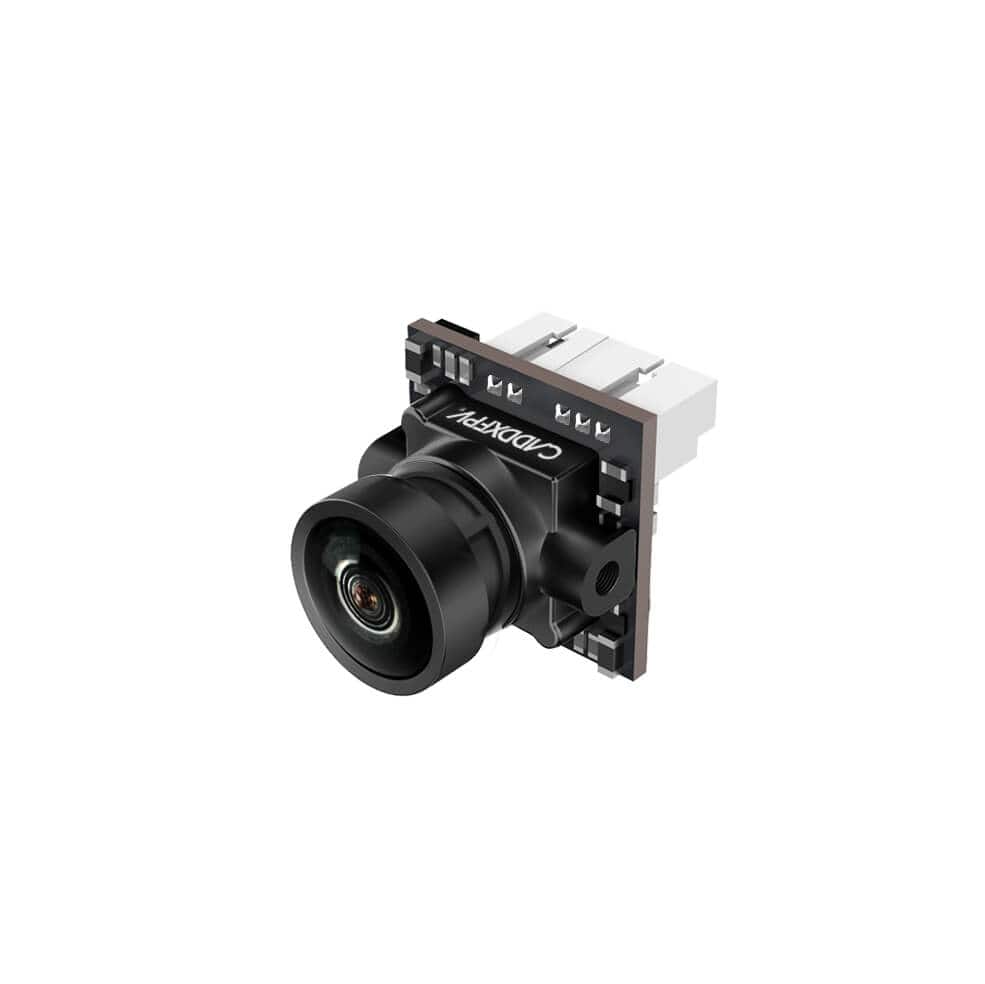

Introducing the CADDXFPV Ant Analog Camera – a new generation nano camera designed for FPV enthusiasts seeking compactness without compromising on features. With its lightweight design, advanced imaging capabilities, and user-friendly OSD menu, the Ant is set to redefine your FPV experience. Let's explore the key specifications and features that make the Ant an ideal choice for nano-sized setups.
Key Features:
- Ultra-Lightweight Design: Weighing a mere 2g, the Ant is one of the lightest nano cameras available, ensuring minimal impact on your drone's overall weight and aerodynamics.
- High Resolution: Boasting 1200TVL resolution, the Ant delivers clear and detailed images, providing a heightened level of visual clarity during your FPV flights.
- Wide Voltage Range: Compatible with a wide voltage input range of 5-25V, the Ant offers versatility and can be used with various power sources.
- Global WDR: Experience superior image quality across varying lighting conditions with Global Wide Dynamic Range (WDR) technology.
- OSD Menu: Easily navigate and customize camera settings using the on-screen display (OSD) menu, allowing you to fine-tune parameters to suit your preferences.
- Full-Featured Nano Camera: Despite its compact size, the Ant is a full-featured nano camera with normal and 3D DNR (Digital Noise Reduction) capabilities.
Technical Specifications:
- Model: CADDX Ant
- Image Sensor: 1/3" CMOS Sensor
- Resolution: 1200TVL
- Horizontal Resolution: 1200 TVL
- System: NTSC and PAL (Switchable)
- Menu: Support
- Image Format: 16:9 or 4:3 (Switchable)
- Synchronization: Internal
-
Electronic Shutter: PAL: 1/50
100,000; NTSC: 1/60100,000 - SIN Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux@F1.2
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14mm (Bracket 19mm x 19mm)
- Wide Input: DC 5-25V
- Working Temperature: -20°C to +60°C
- Working Humidity: 20%~80%
- Weight: 2g (Net Weight)
Package Contents:
- CADDX Ant Camera x1
- 19mm Case x1
- 3Pin Silicone Cable x1
- Warranty Card x1
- Screws
Compact yet powerful, the CADDXFPV Ant Analog Camera is engineered to provide exceptional performance in a nano-sized package. Whether you're a seasoned FPV pilot or a beginner looking for a lightweight solution, the Ant delivers outstanding image quality and flexibility to enhance your drone flying experience. Upgrade to the Ant and enjoy FPV like never before.
