CADDXFPV Ant Lite Analog Camera (FPV Cycle Edition)

CADDXFPV Ant Lite Analog Camera (FPV Cycle Edition)

Caddx

Regular price $25.00 USD
Regular price Sale price $25.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

180 orders in last 90 days

Aspect Ratio

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

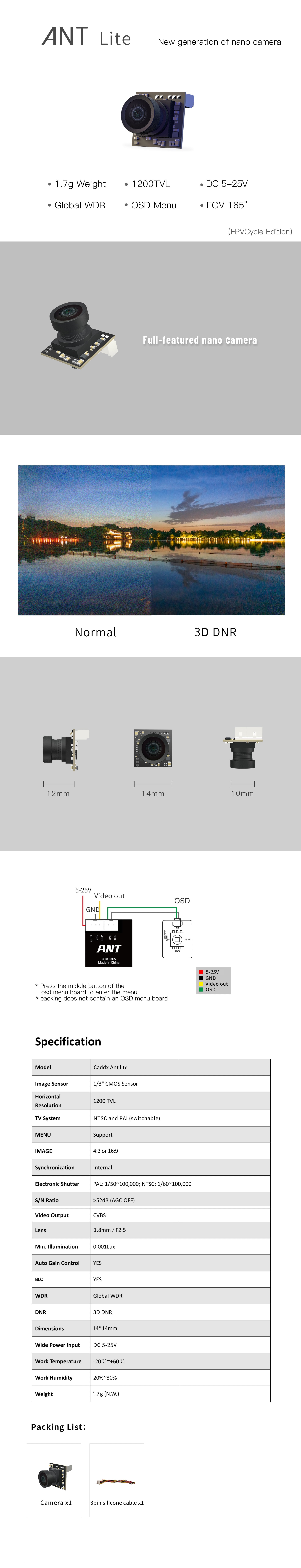

ANT Lite is a new generation of nano camera 1.7g Weight 2OOTV

Introducing the CADDXFPV Ant Lite Analog Camera, FPV Cycle Edition – the epitome of nano-sized excellence designed specifically for FPV Cycle enthusiasts. Weighing in at a mere 1.7g, this new generation camera offers a perfect balance of lightweight design and advanced features to enhance your FPV experience. Let's delve into the key specifications and features that make the Ant Lite a must-have for FPV Cycle setups.

Key Features:

  • Ultra-Lightweight Design (FPV Cycle Edition): With a weight of just 1.7g, the Ant Lite FPV Cycle Edition is optimized for minimal weight, ensuring maximum agility and maneuverability for your FPV Cycle.
  • High Resolution: Boasting a resolution of 1200TVL, the Ant Lite delivers clear and detailed images, providing a heightened level of visual clarity during your FPV flights.
  • Wide Voltage Range: Compatible with a wide voltage input range of 5-25V, the Ant Lite offers versatility and can be seamlessly integrated into various power setups.
  • Global WDR: Experience superior image quality across varying lighting conditions with Global Wide Dynamic Range (WDR) technology.
  • OSD Menu: Easily navigate and customize camera settings using the on-screen display (OSD) menu, allowing you to fine-tune parameters to suit your preferences.
  • Full-Featured Nano Camera: Despite its compact size, the Ant Lite is a full-featured nano camera with normal and 3D DNR (Digital Noise Reduction) capabilities.
  • FPV Cycle Edition: Tailored specifically for FPV Cycle setups, the Ant Lite FPV Cycle Edition features a FOV of 65°, optimizing the field of view for cycle-oriented flying.

Technical Specifications:

  • Model: CADDX Ant Lite (FPV Cycle Edition)
  • Image Sensor: 1/3" CMOS Sensor
  • Resolution: 1200TVL
  • Horizontal Resolution: 1200 TVL
  • System: NTSC and PAL (Switchable)
  • Menu: Support
  • Image Format: 4:3 or 16:9 (Switchable)
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50100,000; NTSC: 1/60100,000
  • S/N Ratio: >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 2mm, F2.5
  • Min. Illumination: 0.001Lux
  • Auto Gain Control: YES
  • WDR: Global WDR
  • DNR: 3D DNR
  • Dimensions: 14mm x 14mm
  • Wide Input: DC 5-25V
  • Working Temperature: -20°C to +60°C
  • Working Humidity: 20%~80%
  • Weight: 1.7g (Net Weight)

Package Contents:

  • CADDX Ant Lite Camera x1
  • 3Pin Silicone Cable x1

Compact, lightweight, and feature-rich, the CADDXFPV Ant Lite Analog Camera, FPV Cycle Edition, is engineered to deliver exceptional performance for FPV Cycle enthusiasts. Elevate your FPV Cycle experience with the Ant Lite – where minimal weight meets maximum performance.
