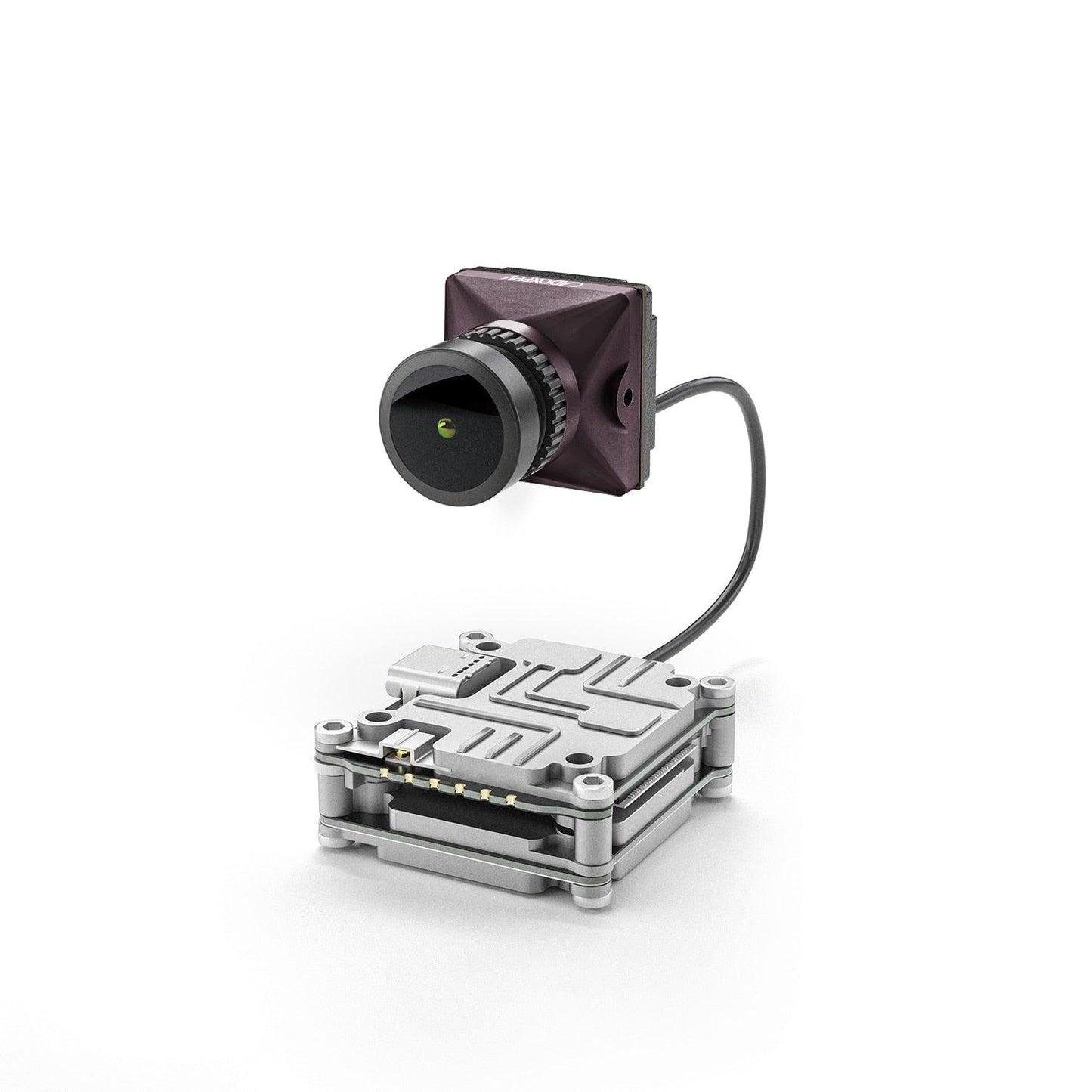

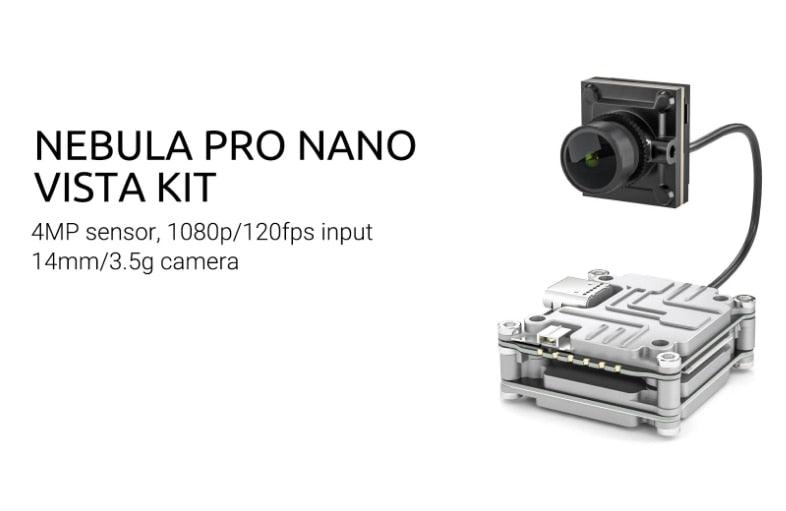

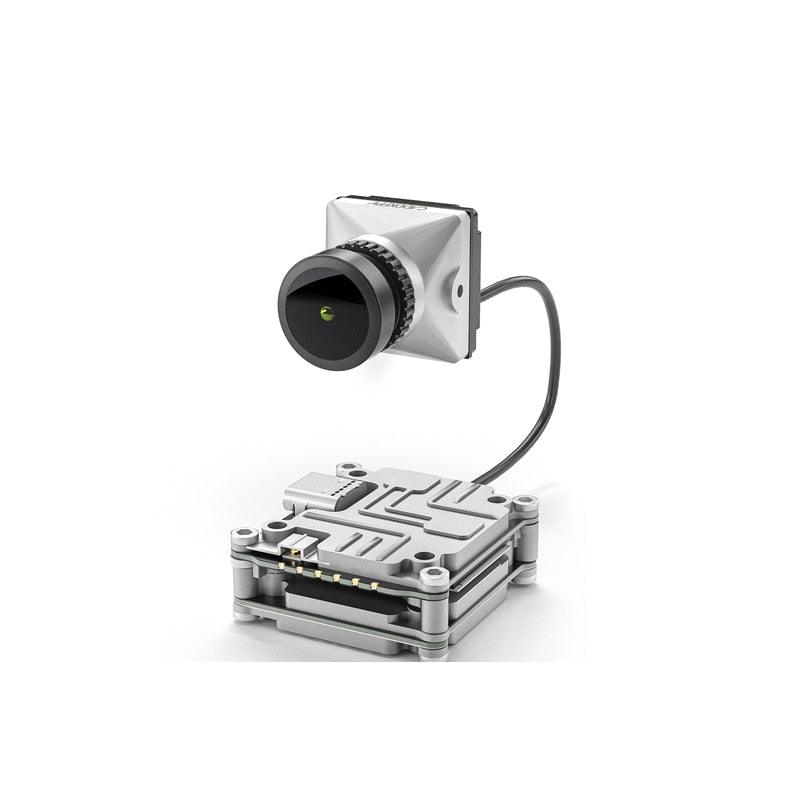

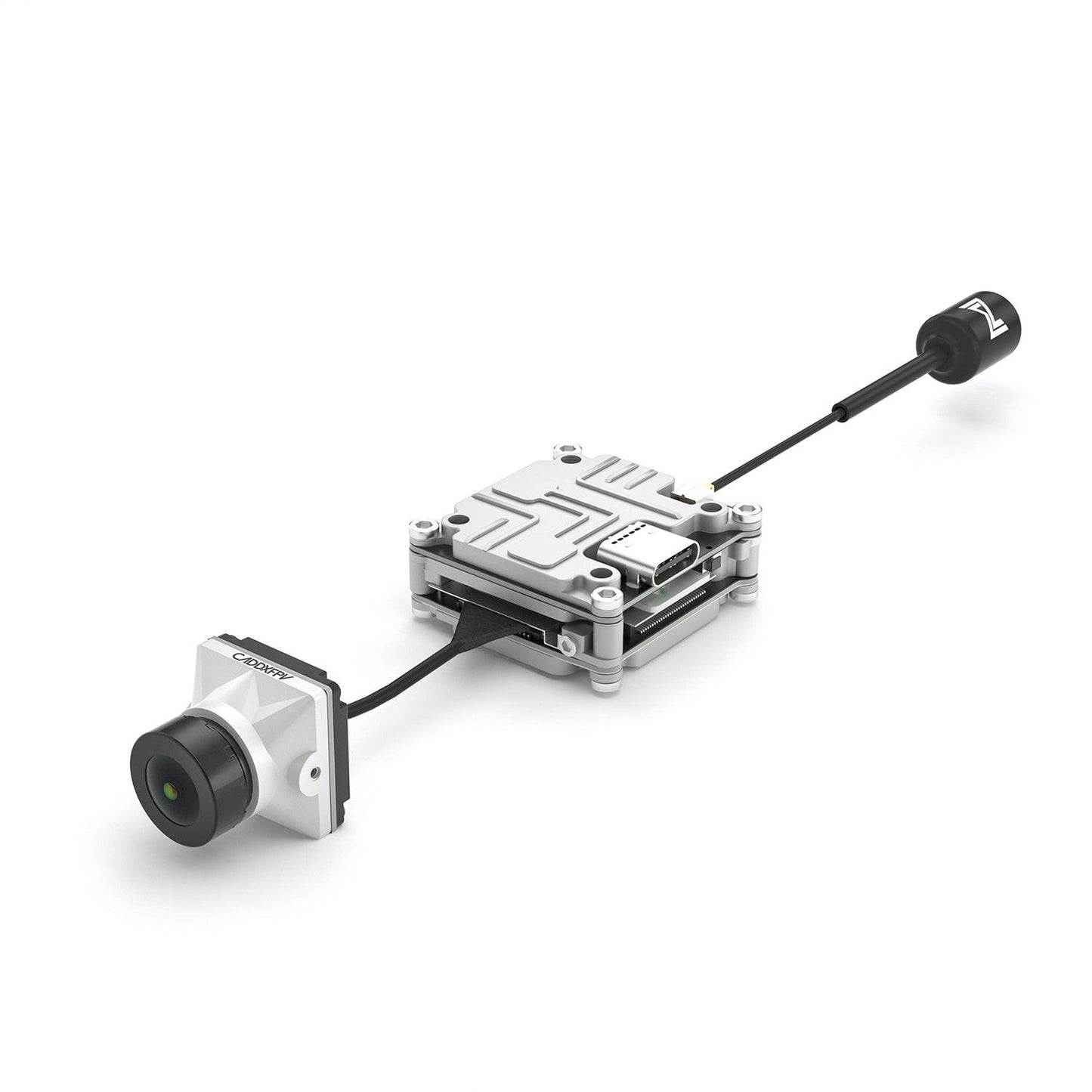

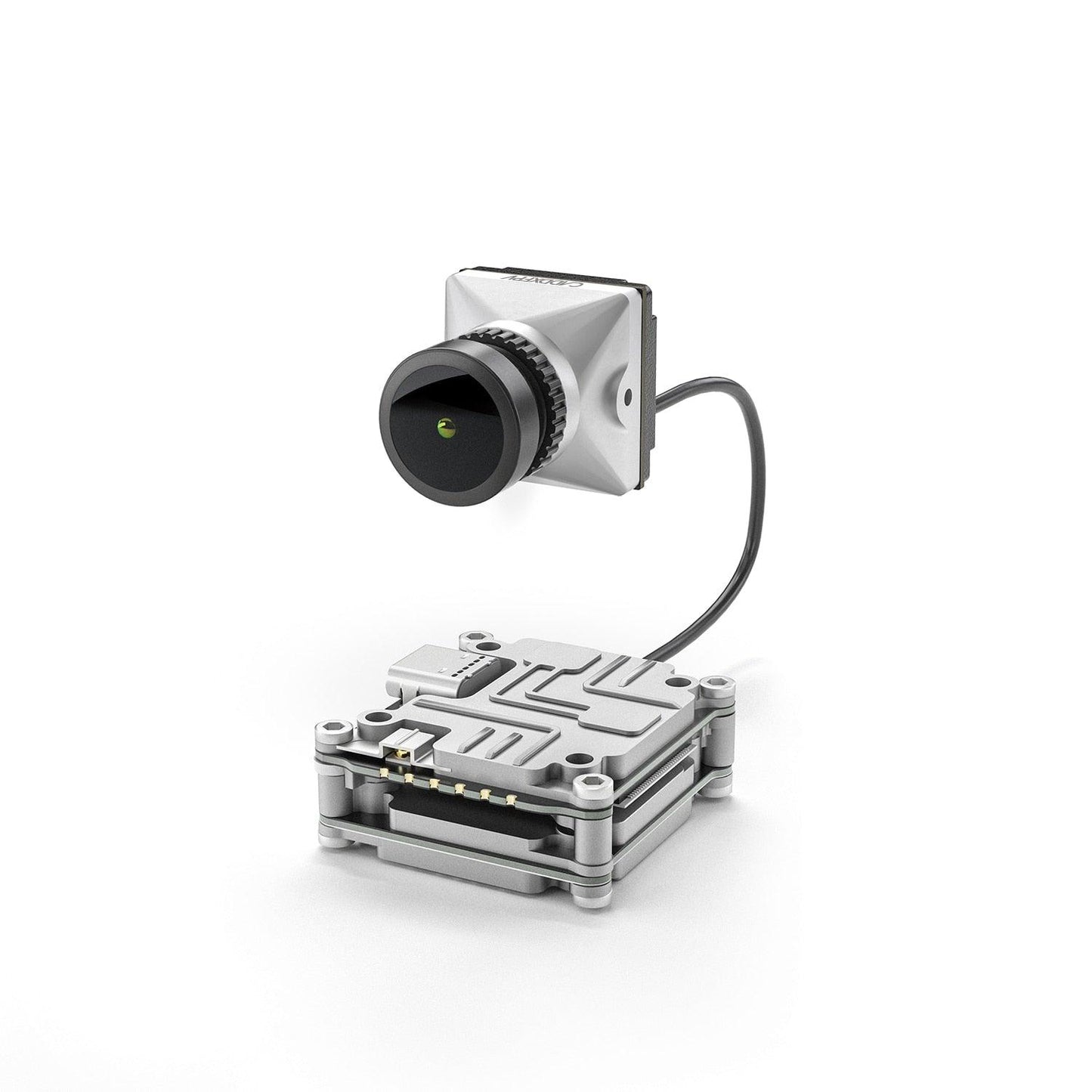

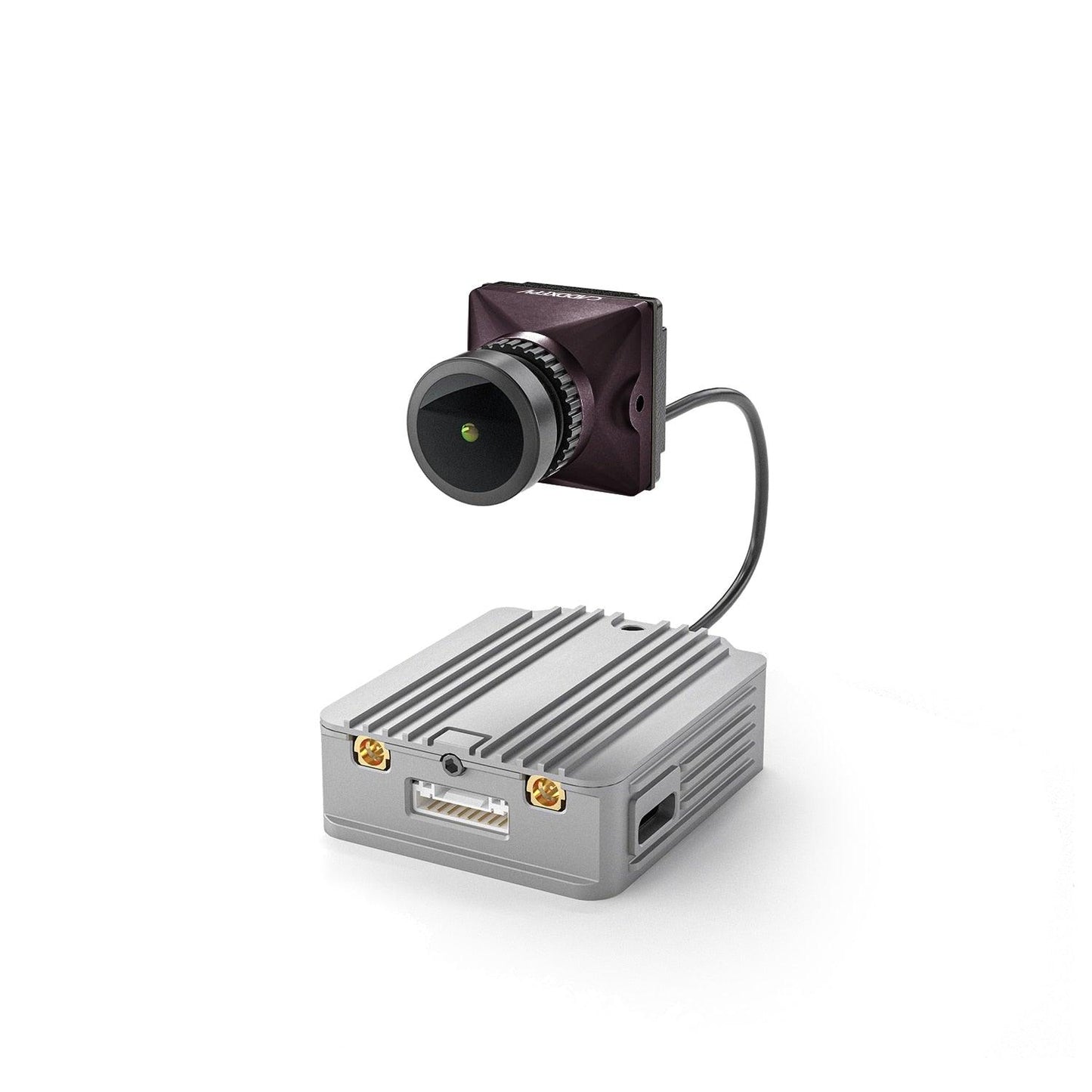

CADDXFPV Caddx Polar Vista Kit Air Unit DJI Camera Caddx Nebula Pro kits Polar Nano Vista kit for DJI FPV Goggles V2

CADDXFPV Caddx Polar Vista Kit Air Unit DJI Camera Caddx Nebula Pro kits Polar Nano Vista kit for DJI FPV Goggles V2

Caddx

Regular price $215.98 USD
Regular price $302.37 USD Sale price $215.98 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

31 orders in last 30 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Weight: 0

Size: 0

Package: Yes

Origin: Mainland China

Model Number: CADDX

Compatible Drone Model: CADDX

Compatible Drone Brand: CADDX

Brand Name: Jumpeak

CADDXFPV Caddx Polar Vista Kit Air Unit DJI Camera Caddx Nebula Pro kits Polar Nano Vista kit for DJI FPV Goggles V2


Feature:

Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!
Upgrade your Vista HD system with a smaller and lighter antenna!

-The Vista HD System is designed for small drones and whoop drones lt can work with DJI FPV System
Compatible with two sizes, 20*20 mm/25.5*25.5mm, Compatible with toothpick drones.
-Stable and Clear HD Video
User can choose 25mW/200mW/ 500mW /700mW from DJl goggles settings.

-Single-Antenna
The Vista Kit with only one antenna, max range is up to 4 kilometers.

-8 Channels, 8 Drones
The VISTA system allow up to eight drones to fly simultaneously.Each operator has an exclusive channel.
This helps to reduce cross-interference and provide an optimal racing experience.

-Embedded Remote Controller Receiver
Users can wirelessly connect their Vista Kit to the DJI FPV Remote Controller without having to purchase additional receivers.
This reduces flight preparation time significantly.


Specifications

Dimensions
Module: 30.45 x 29 x 13mm
Camera: 27.4 x 21.1 x 20.1mm
Weight: 29g (inc. camera); Module: 19g
Antenna Connector: u.FL
Operating Frequency: 5.725-5.85GHz
Transmitter Power (EIRP)
FCC/SRRC/MIC: <20dBm
CE: <14dBm
I/O Interface: USB-C, IPEX, 3-in-1 Port
Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
High-Quality Mode (720p 60fps): 30-40ms
Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
Input Power: 7.4-26.4v
DJI Camera

Sensor: 1/3.2" CMOS
Effective Pixel: 4M
Lens: 2.1mm f/2.1
Shutter: Rolling Shutter
ISO: 100-25600
FOV: 150(D);122(H);93(V)
