CCRC S2807 1300KV Brushless Motor 4–6S for 7 Inch 8 Inch Long Range FPV Freestyle Drones and Quadcopter DIY Builds
CCRC S2807 1300KV Brushless Motor 4–6S for 7 Inch 8 Inch Long Range FPV Freestyle Drones and Quadcopter DIY Builds
CCRC
Couldn't load pickup availability
The CCRC S2807 1300KV brushless motor is built for serious long-range FPV pilots who demand consistent performance, high thrust, and reliable cooling under high loads. Designed for 7–8 inch propeller setups on 4–6S LiPo batteries, this motor features a robust construction with high-temperature NMB bearings, a 5mm steel shaft, and a durable 12N14P stator layout. Ideal for freestyle and cruising, it pushes over 2kg of thrust with smooth and stable RPM delivery.
Key Features
-
High-efficiency 2807 stator optimized for 7–8 inch propellers
-
Powerful 1300KV rating for 4S to 6S LiPo setups
-
Kawasaki silicon steel core with precision NMB bearings
-
Hollow 5mm steel shaft for strength and weight balance
-
Fixed M3 mounting with Φ19mm spacing
-
Excellent thermal performance with max operating temps under 61°C
Specifications
| Parameter | Value |
|---|---|
| Motor KV | 1300KV |
| Stator Size | 33.6mm × 20mm |
| Weight (w/ wire) | 55.4g |
| Shaft Diameter | 5mm |
| Configuration | 12N14P |
| Internal Resistance | 69mΩ |
| Voltage Range | 4S – 6S |
| Lead Wire | 18AWG × 220mm |
| Idle Current (10V) | 1.2A |
| Max Current | 37.9A |
| Max Power | 907.6W |
| Max Thrust | 2036g |
| Mounting Holes | 19mm (M3) |
Performance (6S LiPo Thrust Test with GF7035×3 Props)
| Throttle | Thrust (g) | Power (W) | Efficiency (g/W) | RPM |
|---|---|---|---|---|
| 40% | 817 | 245.2 | 3.3 | 13409 |
| 60% | 1202 | 414.5 | 2.9 | 16149 |
| 80% | 1680 | 656.9 | 2.6 | 19053 |
| 100% | 2036 | 907.6 | 2.2 | 20874 |
Application
-
7–8 inch long-range quadcopters
-
Cinematic or LR builds for cruising and mountain diving
-
FPV freestyle drones requiring strong mid-range thrust
-
Compatible with GF7035, GF7042, and similar 3-blade props
Package Includes
-
1 × CCRC S2807 1300KV Brushless Motor
-
4 × M3×8 Mounting Screws
-
1 × M5 Lock Nut

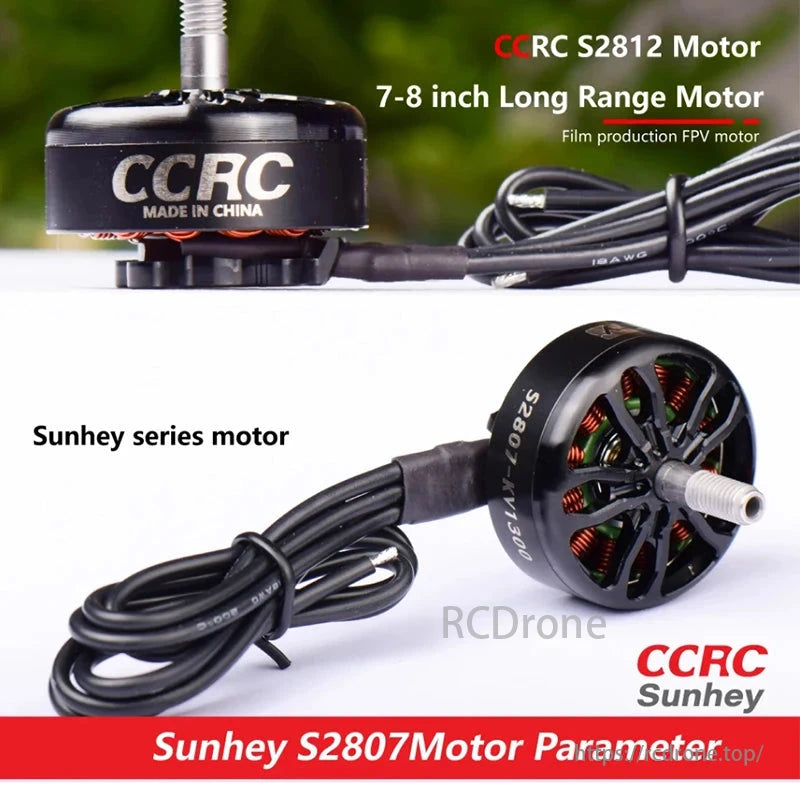

Sunhey S2807 1300KV brushless motor by MaoMing XinXi Technology Co., Ltd. New 7-8 inch FPV motor for film production with Sunhey series parameters.
CCRC S2807 1300KV motor: 55.4g, 33.6x20mm, 0.069Ω, 18AWG 220mm wire, 12N14P poles, 4-6s voltage, 1.2A no-load, 37.9A max current, 907.6W power, 5mm shaft, Φ19mm(M3) holes, 2036g tensile force. Reliable and safe design.

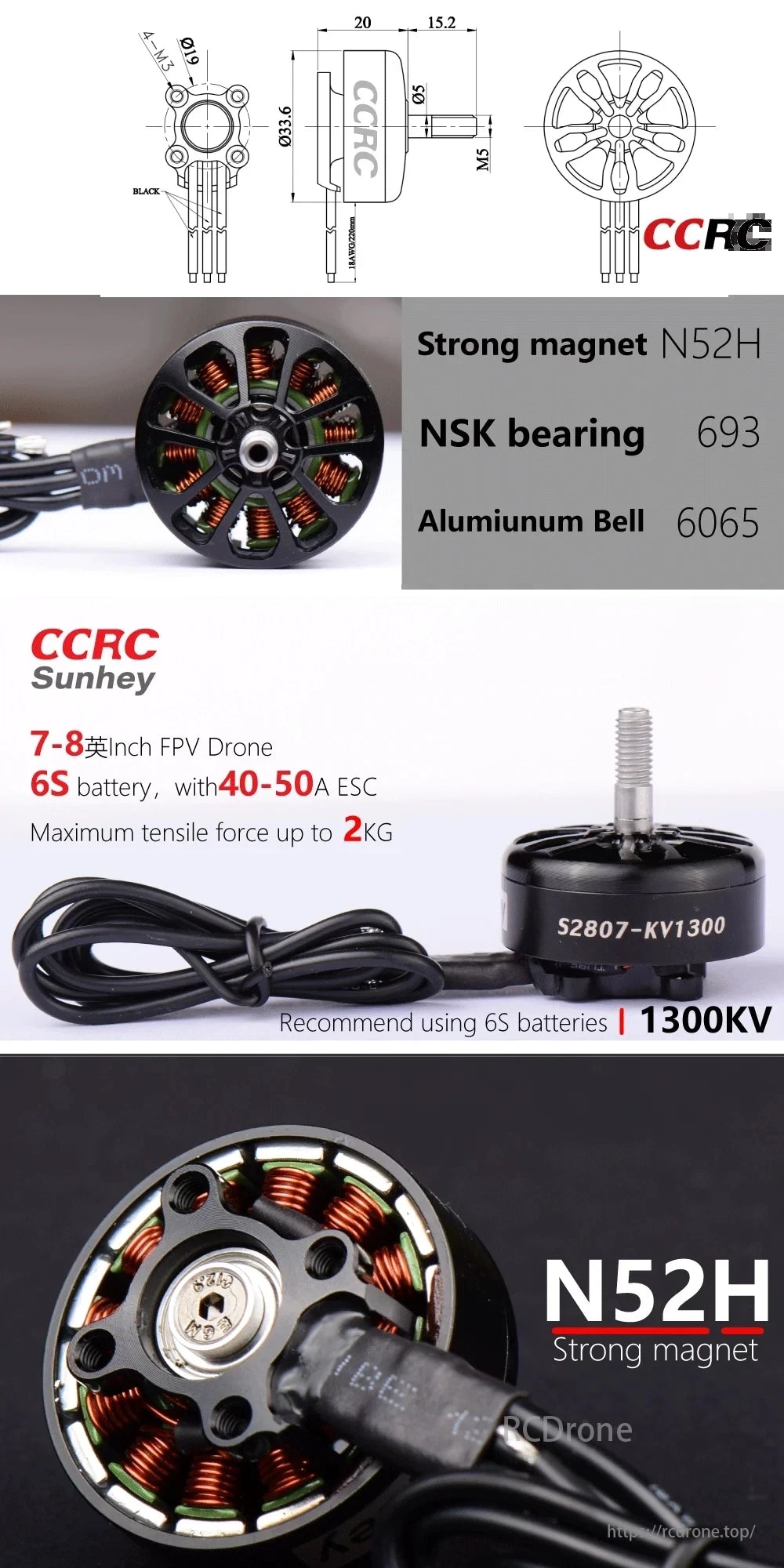

N52H strong magnet, NSK 693 bearing, and aluminum 6065 bell. Perfect for 7-8 inch FPV drones with 6S battery and 40-50A ESC. Achieves maximum tensile force up to 2KG. Excellent performance and durability.
CCRC S2807 1300KV Brushless Motor: Strong, efficient (907.6W, 2036g), high temperature resistance with copper wire, rapid heat dissipation, 6061-T6 aluminum for durability over HV90 hardness.

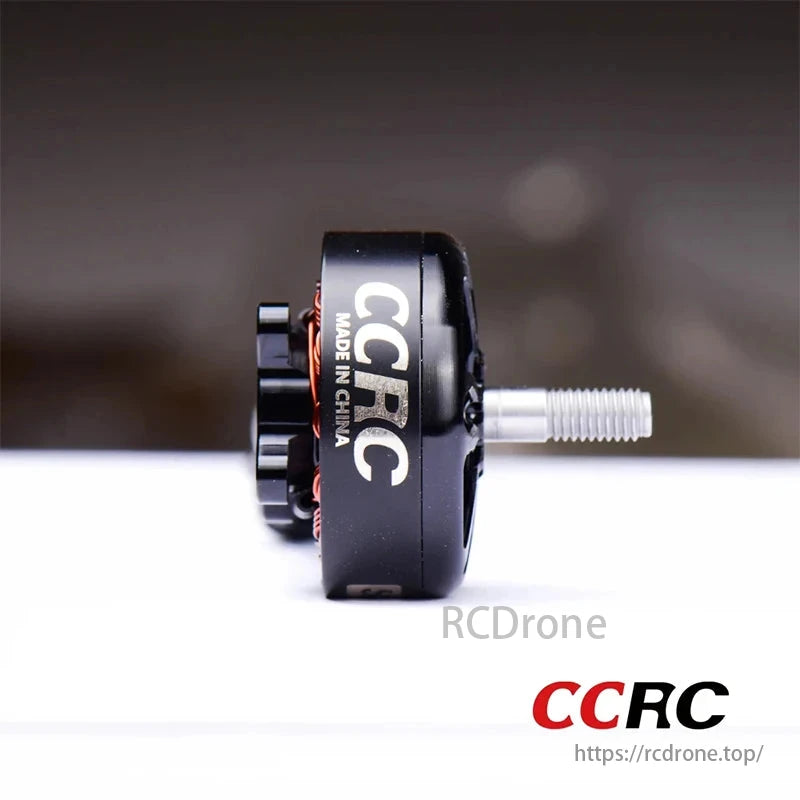

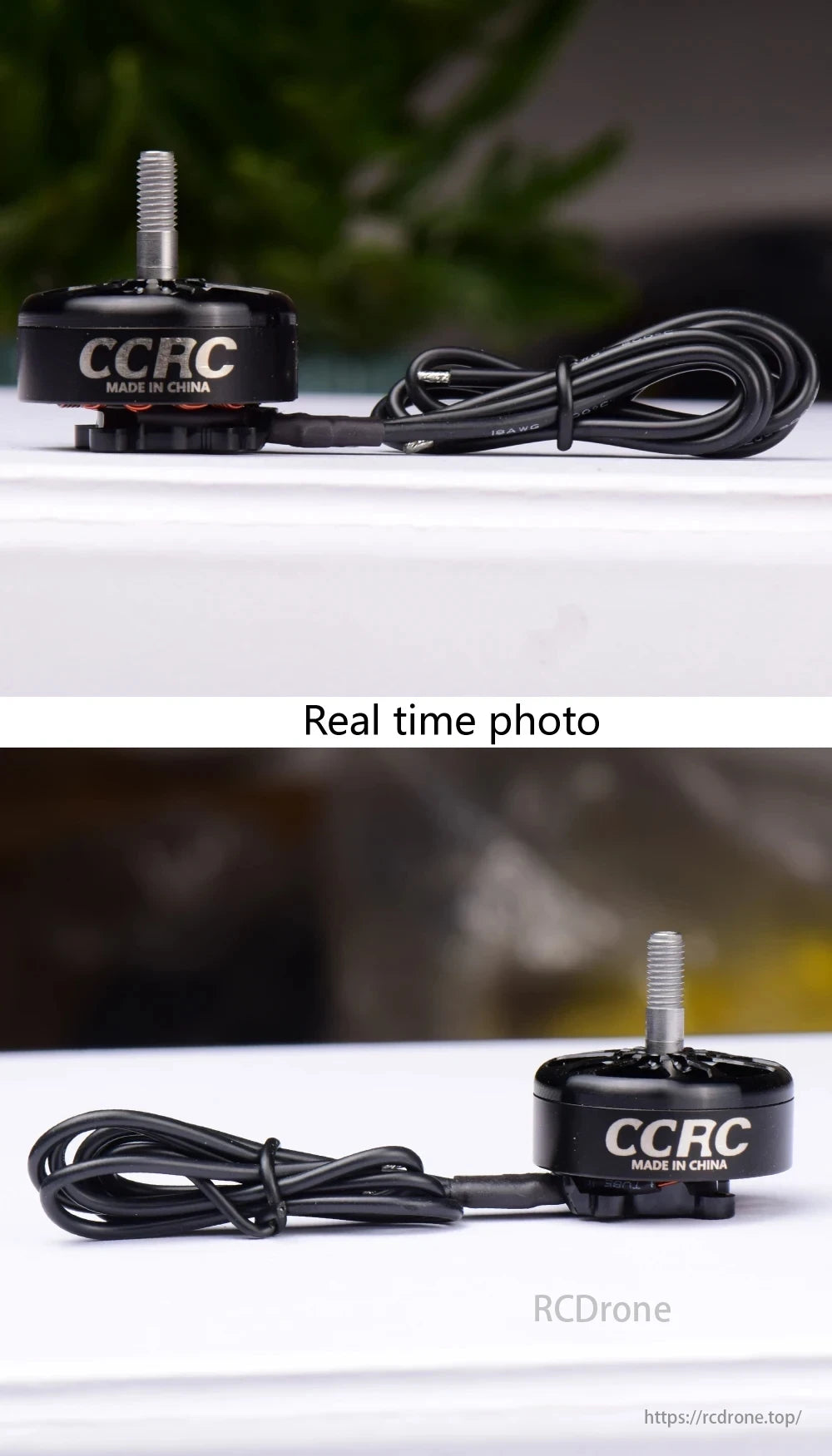

CCRC S2807 1300KV Brushless Motor, black with coiled wires, made in China. Real-time photo displayed.

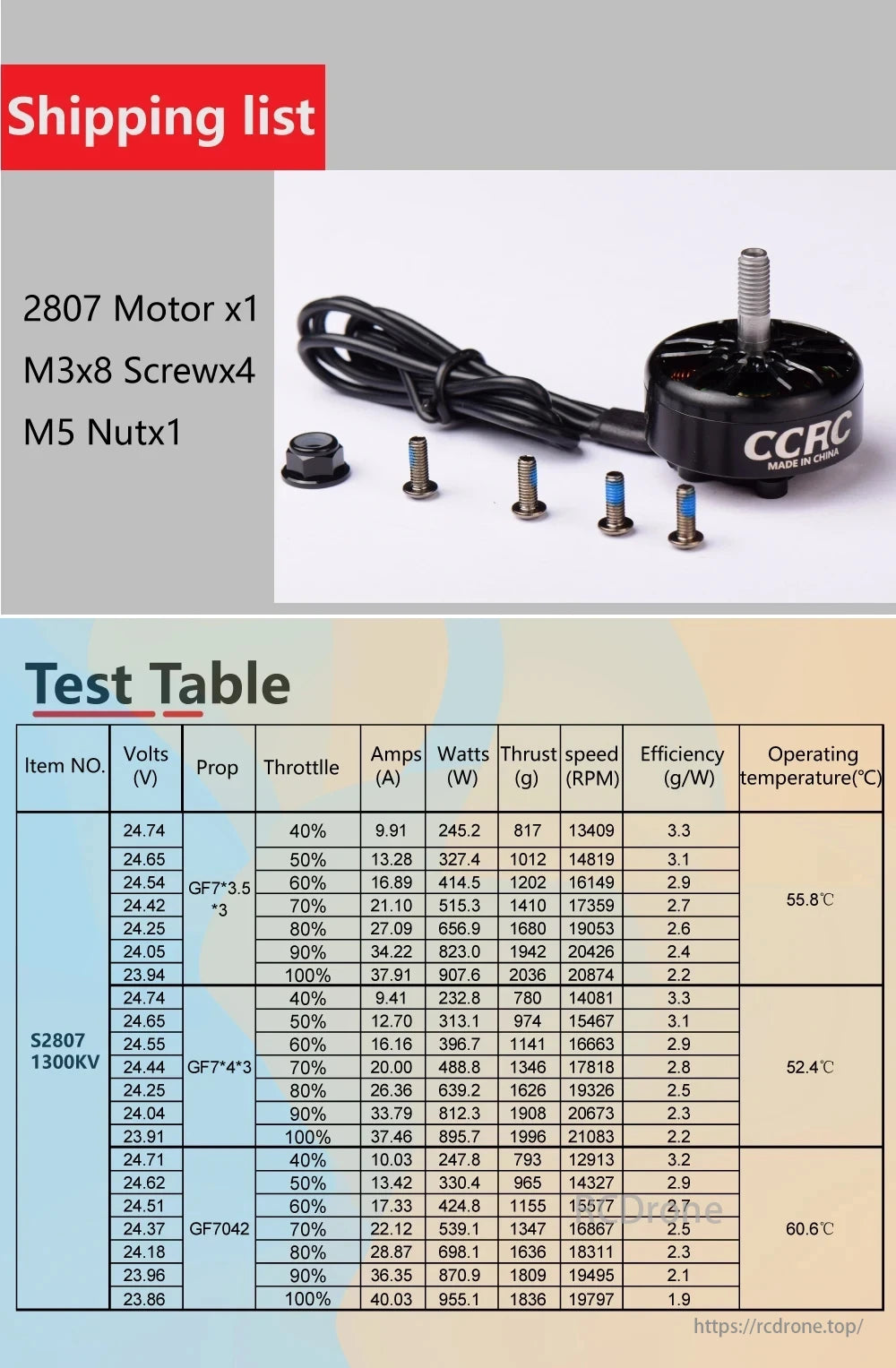

CCRC S2807 1300KV motor with M3x8 screws and M5 nut. Test data includes volts, throttle, amps, watts, thrust, speed, efficiency, and operating temperature for various propellers.
