CNHL 2S 3S 4S 7.4V 11.1V 14.8V Lipo Battery for FPV Drone - 5200mAh 5600mAh 6200mAh 6600mAh 7600mAh 8000mAh 100C 120C With T Deans For Car

CNHL RC Lipo Battery 2S 3S 4S 7.4V 11.1V 14.8V 4900mAh 5200mAh 5600mAh 6200mAh 6600mAh 7600mAh 8000mAh 100C 120C With T Deans For RC Car

Specification:

Brand：CNHL
Applicable Type：RC Car Truck Tank Vehicle Truggy Buggy Helicopter Airplane
Capacity：4900mAh/5200mAh/5600mAh/6200mAh/6600mAh/7600mAh/8000mAh
Voltage：7.4V / 2-Cell / 2S2P，11.1V / 3-Cell / 3S2P，14.8V / 4-Cell / 4S2P
Discharge Rate：100C/120C Continual， 200C/240C Burst
Charge Rate：5C Max
Features：HardCase
Output Connector：T/Deans
Balance Connector：JST / XH
Remarks：N/A

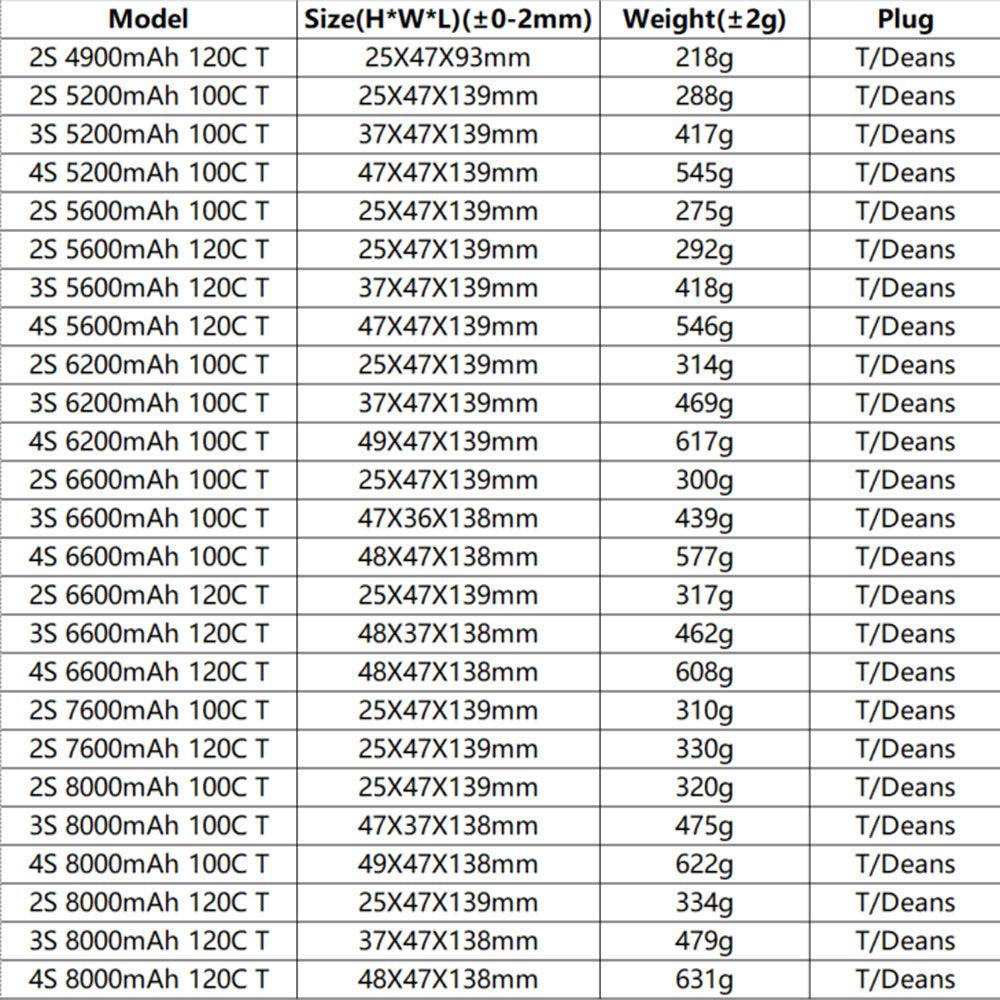

Model&Size(H*W*L)(±0-2mm)&Weight(±2g)&Plug

2S 4900mAh 120C T：25x47x93mm,218g,T/Deans
2S 5200mAh 100C T：25x47x139mm,288g,T/Deans
3S 5200mAh 100C T：37x47x139mm,417g,T/Deans
4S 5200mAh 100C T：47x47x139mm,545g,T/Deans

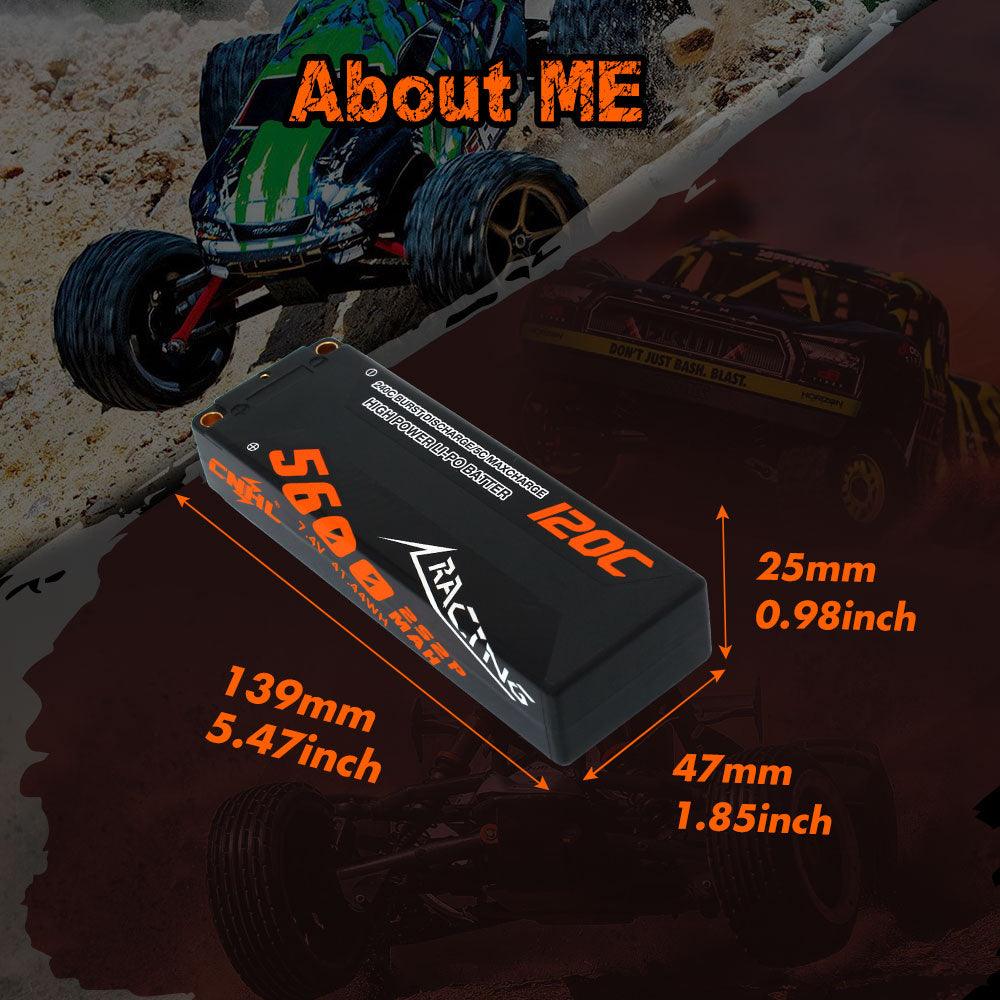

2S 5600mAh 100C T：25x47x139mm,275g,T/Deans
2S 5600mAh 120C T：25x47x139mm,292g,T/Deans
3S 5600mAh 120C T：37x47x139mm,418g,T/Deans

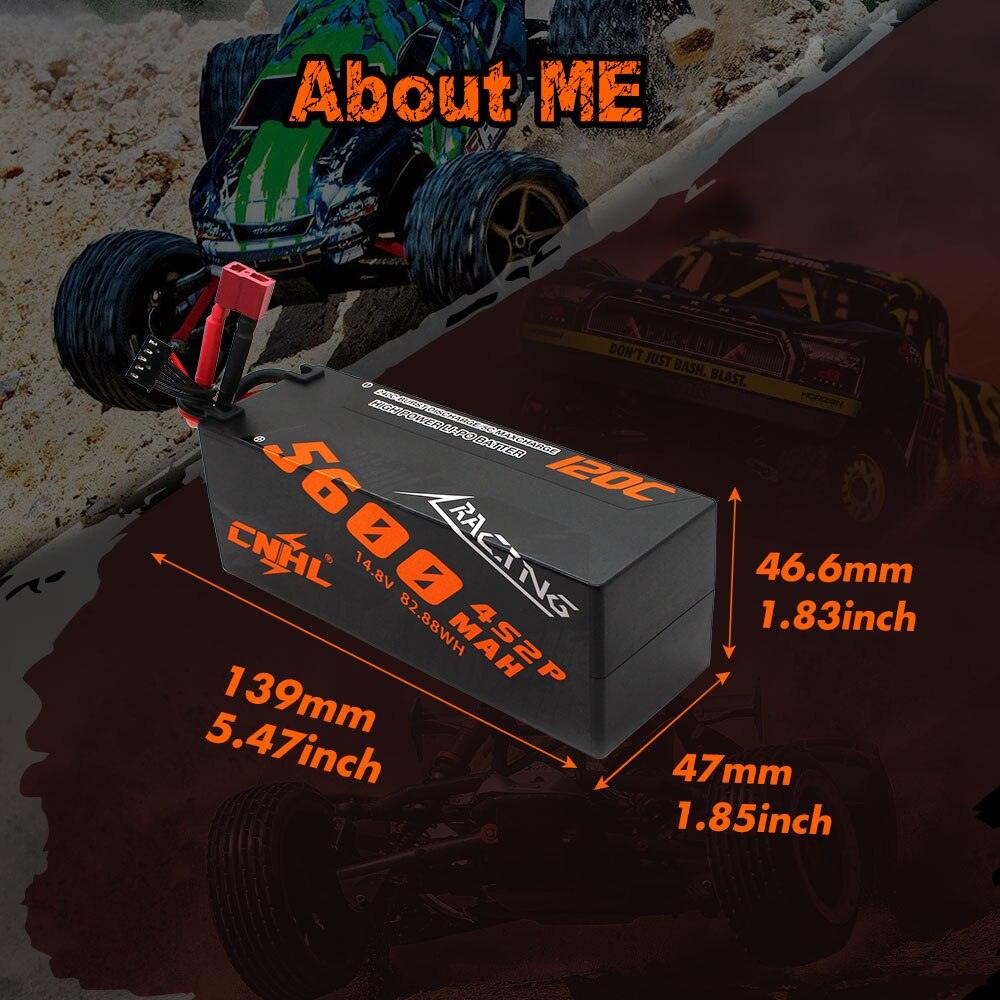

4S 5600mAh 120C T：47x47x139mm,546g,T/Deans
2S 6200mAh 100C T：25x47x139mm,314g,T/Deans
3S 6200mAh 100C T：37x47x139mm,469g,T/Deans
4S 6200mAh 100C T：49x47x139mm,617g,T/Deans
2S 6600mAh 100C T：25x47x139mm,300g,T/Deans
3S 6600mAh 100C T：47x36x138mm,439g,T/Deans
4S 6600mAh 100C T：48x47x138mm,577g,T/Deans
2S 6600mAh 120C T：25x47x139mm,317g,T/Deans
3S 6600mAh 120C T：48x37x138mm,462g,T/Deans
4S 6600mAh 120C T：48x47x138mm,608g,T/Deans
2S 7600mAh 100C T：25x47x139mm,310g,T/Deans
2S 7600mAh 120C T：25x47x139mm,330g,T/Deans
2S 8000mAh 100C T：25x47x139mm,320g,T/Deans
3S 8000mAh 100C T：47x37x138mm,475g,T/Deans
4S 8000mAh 100C T：49x47x138mm,622g,T/Deans
2S 8000mAh 120C T：25x47x139mm,334g,T/Deans
3S 8000mAh 120C T：37x47x138mm,479g,T/Deans
4S 8000mAh 120C T：48x47x138mm,631g,T/Deans

Note: due to the difference between the measurement, the battery dimension and weight may have little error.

Application Scenarios

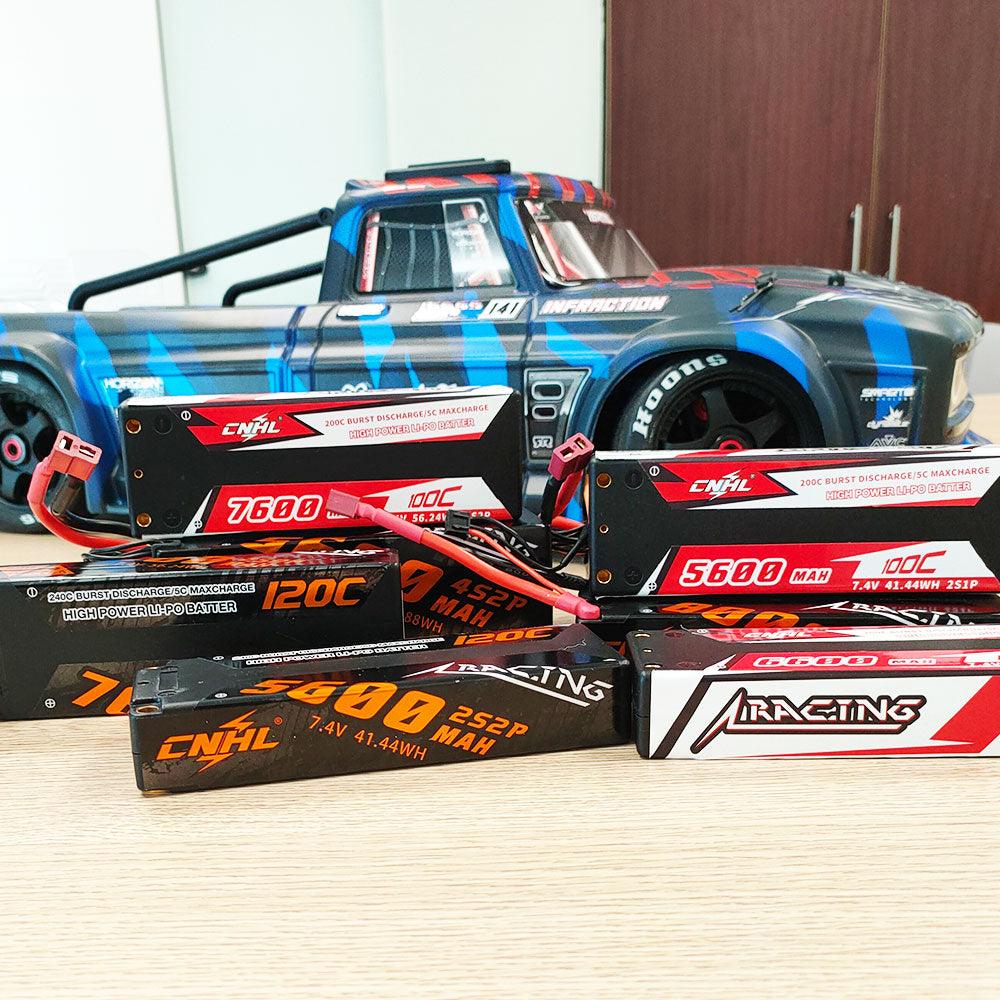

CNHL Hardcase Lipo Battery fit for professional 1/8 scale and 1/10 scale RC car hobby models such as: Traxxas Slash, Emaxx, Bandit, Rustler version, Losi, Team Associated, etc

Notice: For the RC battery, only if the voltage and the plug match, then it will fit.

Caution:

Don't over charge more than 4.2V and dont over discharge below 3.7V
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.

Never to let the voltage below 3.6V During use, or your battery will be destroyed.

HC5201002

Stock Number：HC5201002
Capacity：5200mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight：287.5g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC5601002

Stock Number：HC5601002
Capacity ：5600mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight ：275g (Including wire and connector)
Output Connector：Deans Plug T Plug
Balance Connector：N/A
Remarks：N/A

HC6201002

Stock Number：HC6201002
Capacity：6200mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight：314g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC6601002

Stock Number：HC6601002
Capacity ：6600mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight ：300g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC7601002

Stock Number：HC7601002
Capacity ：7600mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight ：310g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC8001002

Stock Number：HC8001002
Capacity ：8000mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：25X47X139mm
Weight ：320g (Including wire and connector)
Output Connector：Dean Plug
Balance Connector：N/A
Remarks：N/A

HC5201003

Stock Number：HC5201003
Capacity：5200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：36.5X47X139mm
Weight：417g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC5201004

Stock Number：HC5201004
Capacity：5200mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：47X47X139mm
Weight：545g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A

HC6201003

Stock Number：HC6201003
Capacity：6200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：36.5x47x139mm
Weight：468.5g (Including wire and connector)
Output Connector：Deans Plug
Balance Connector：N/A
Remarks：N/A
