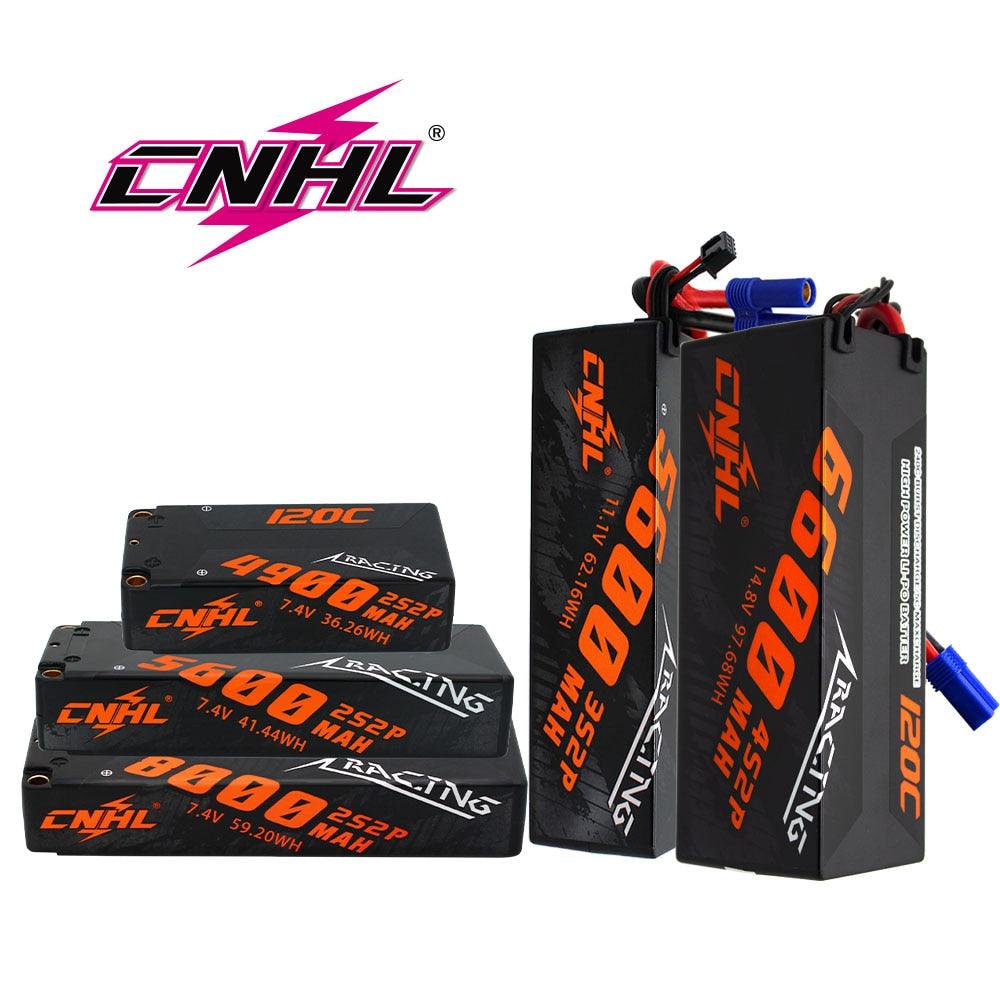

CNHL Lipo Battery For FPV Drone - 2S 3S 4S 7.4V 11.1V 14.8V 4900mAh 5600mAh 8000mAh 120C Hard Case With EC5 Plug For RC Car Airplane Truck Boat

CNHL Lipo Battery 2S 3S 4S 7.4V 11.1V 14.8V 4900mAh 5600mAh 8000mAh 120C Hard Case With EC5 Plug For RC Car Airplane Truck Boat

Specification:

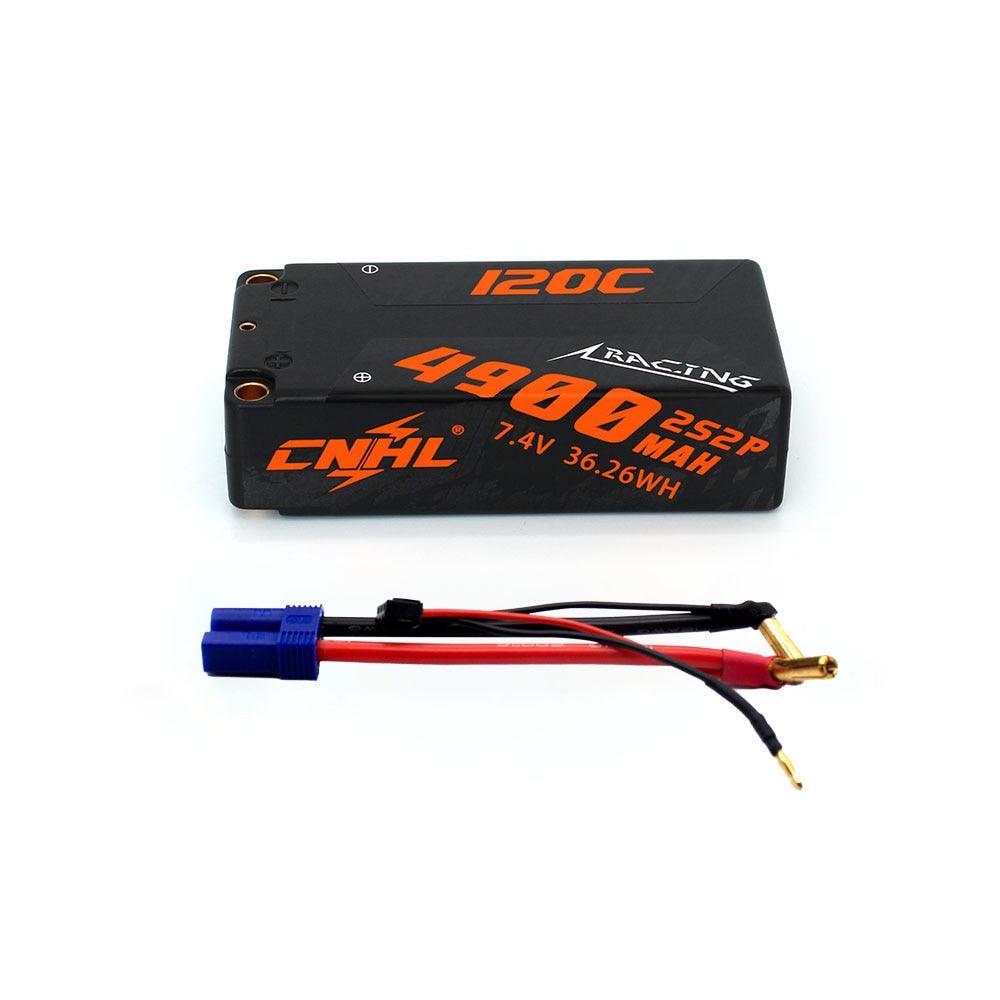

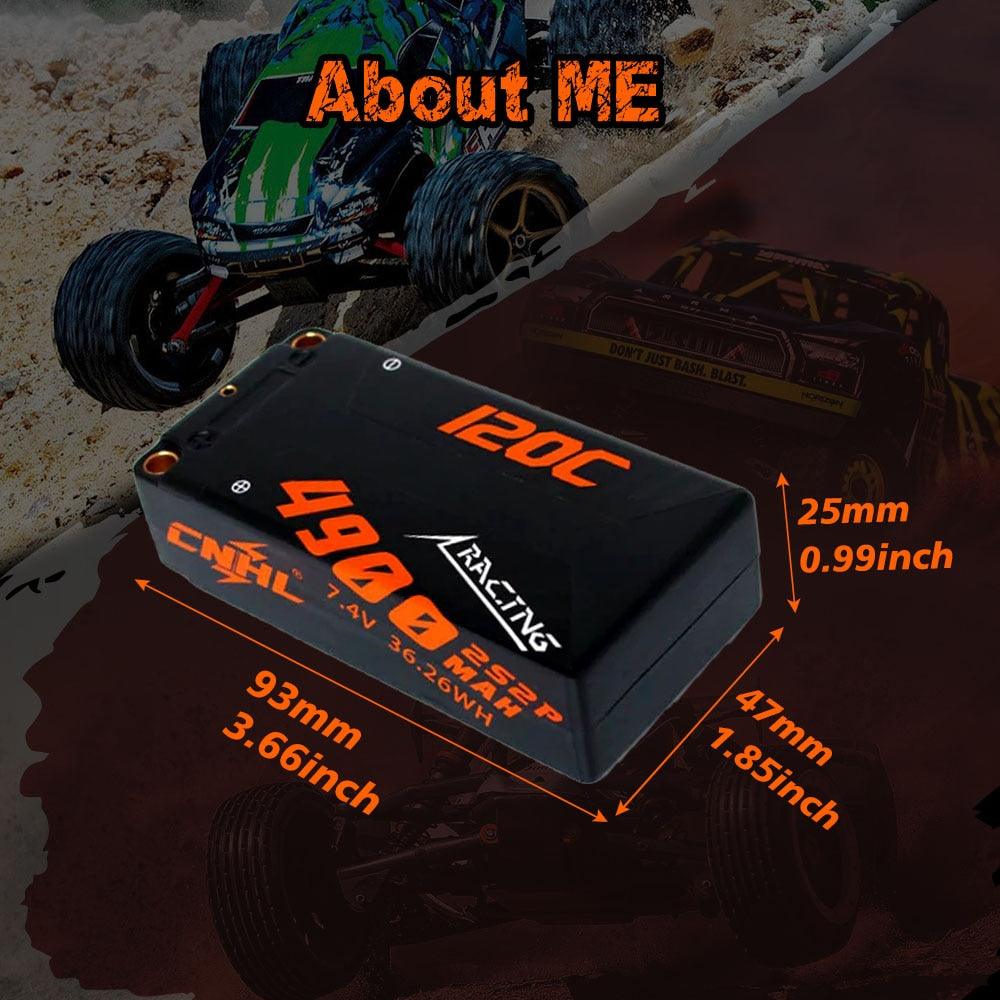

Model 1:
Stock Number：HC4901202XEC5
Capacity：4900mAh
Voltage：7.4V / 2-Cell / 2S2P
Discharge Rate：120C Continual / 240C Burst
Charge Rate：5C Max
Size：25X47X96mm
Weight：218g (not Including wire and connector)
Output Connector：EC5
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

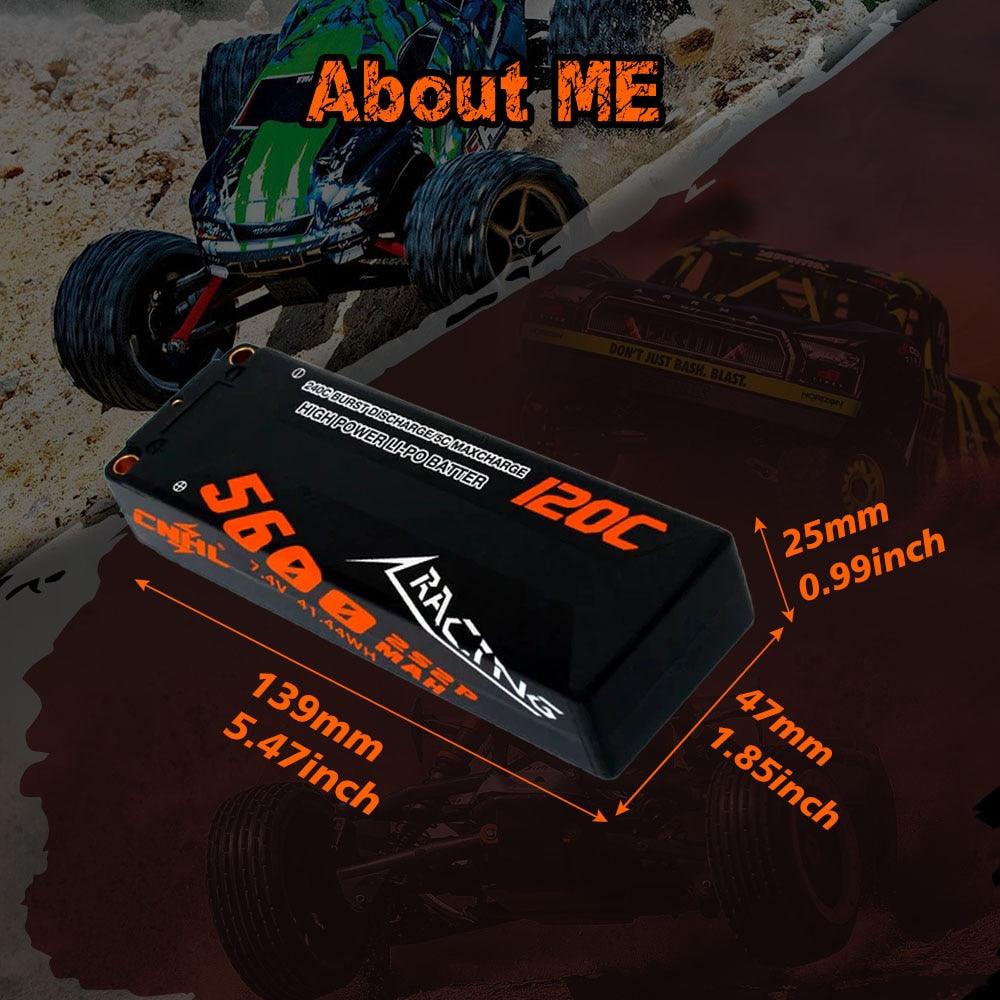

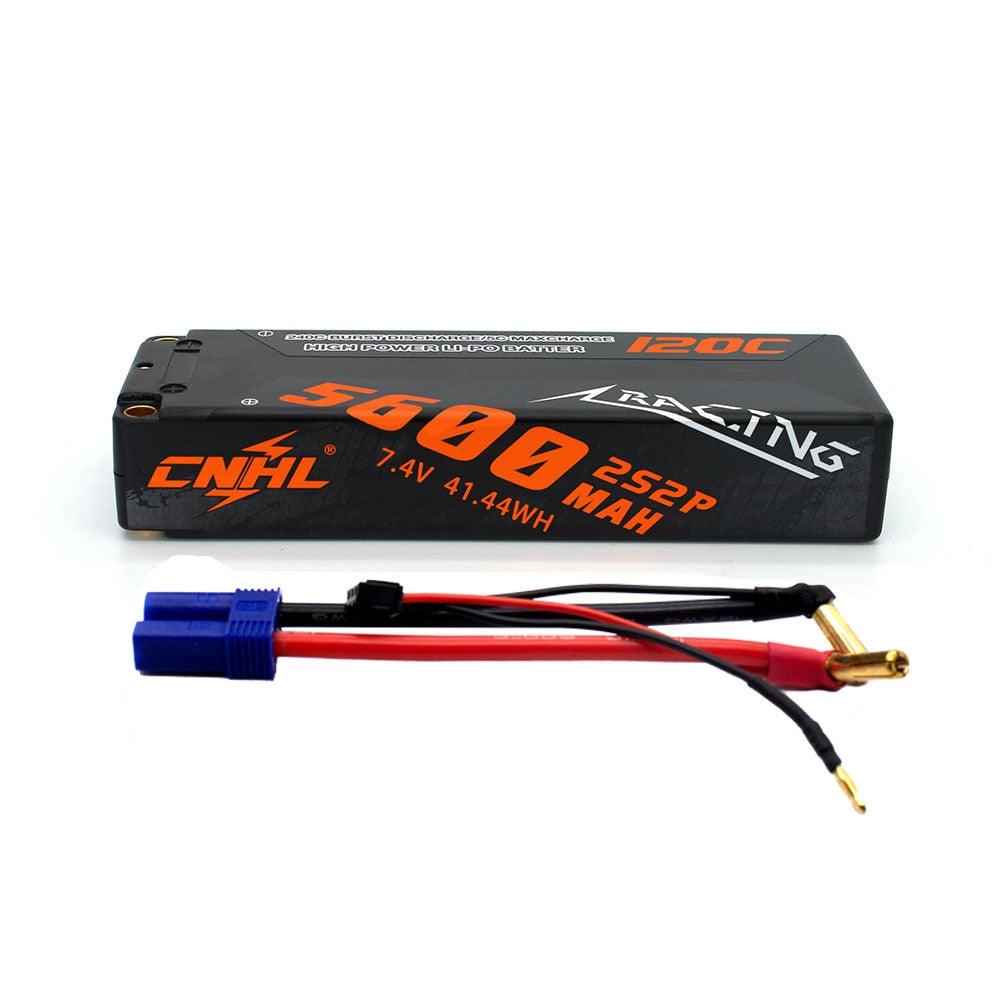

Model 2：
Stock Number：HC5601202XEC5
Capacity：5600mAh
Voltage：7.4V / 2-Cell /2S2P
Discharge Rate：120C Continual / 240C Burst
Charge Rate：5C Max
Size：26X47X139mm
Weight：275g (not Including wire and connector)
Output Connector：EC5
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

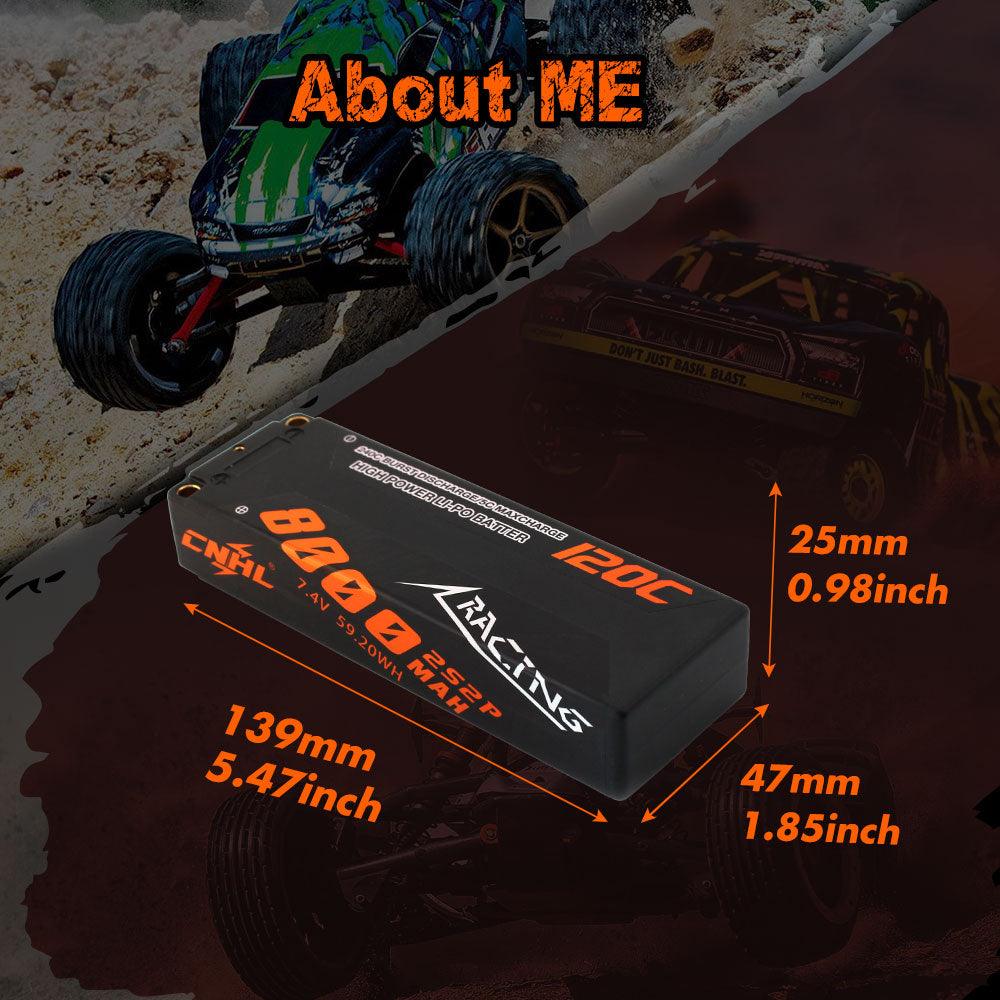

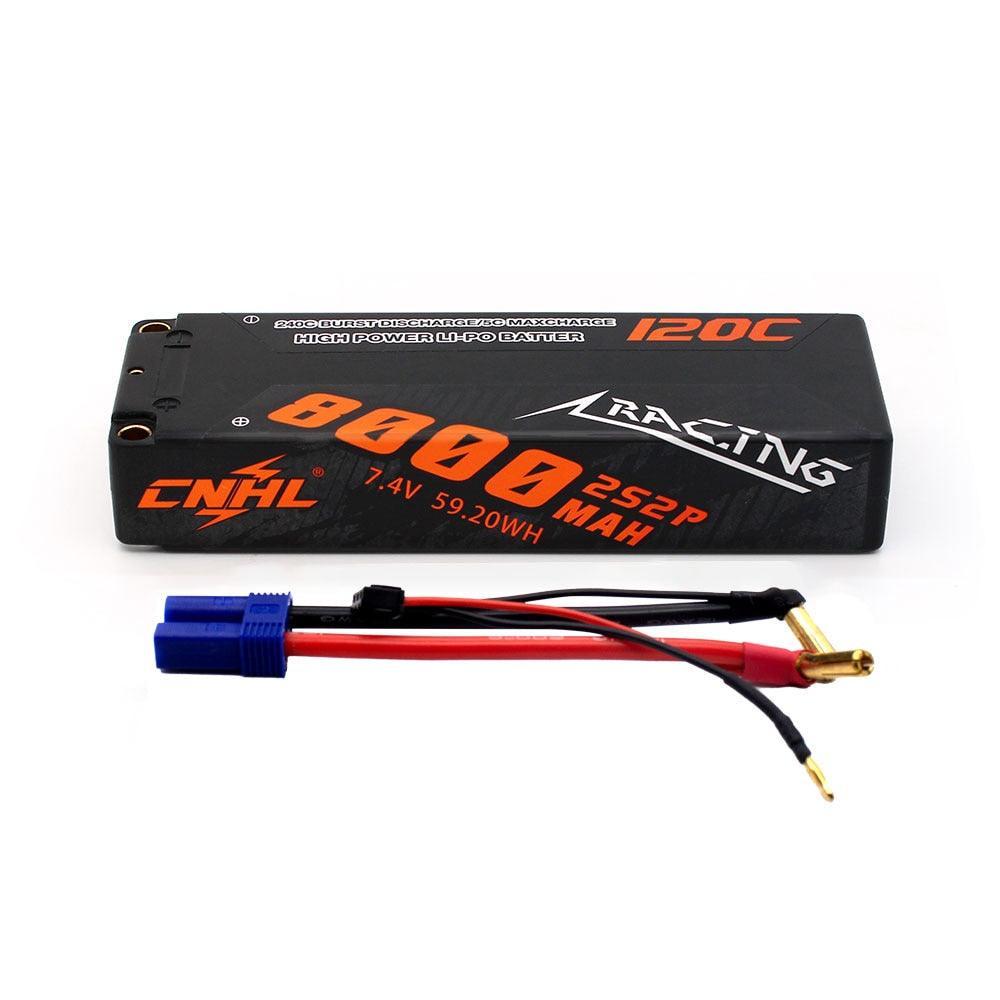

Model 3:
Stock Number：HC8001202XEC5
Capacity：8000mAh
Voltage：7.4V / 2-Cell / 2S2P
Discharge Rate：120C Continual / 240C Burst
Charge Rate：5C Max
Size：26X47X138mm
Weight：318g (not Including wire and connector)
Output Connector：EC5
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

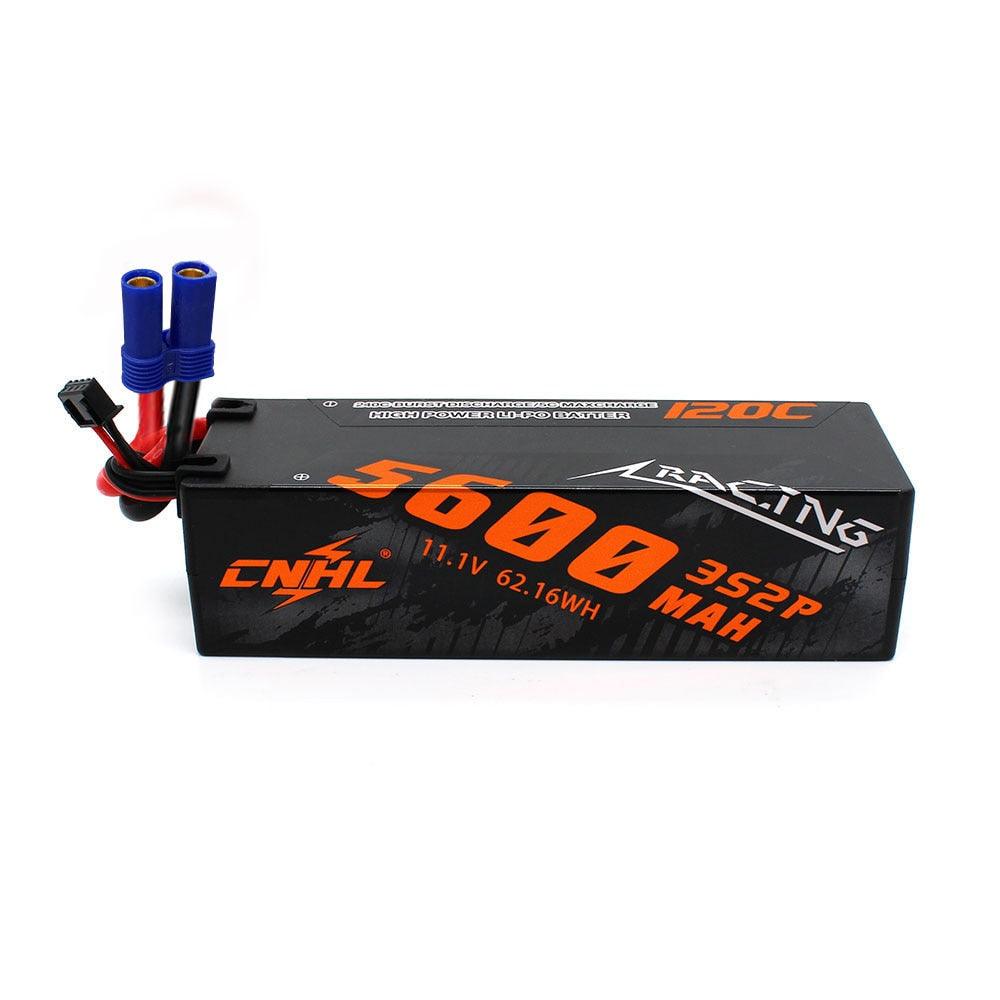

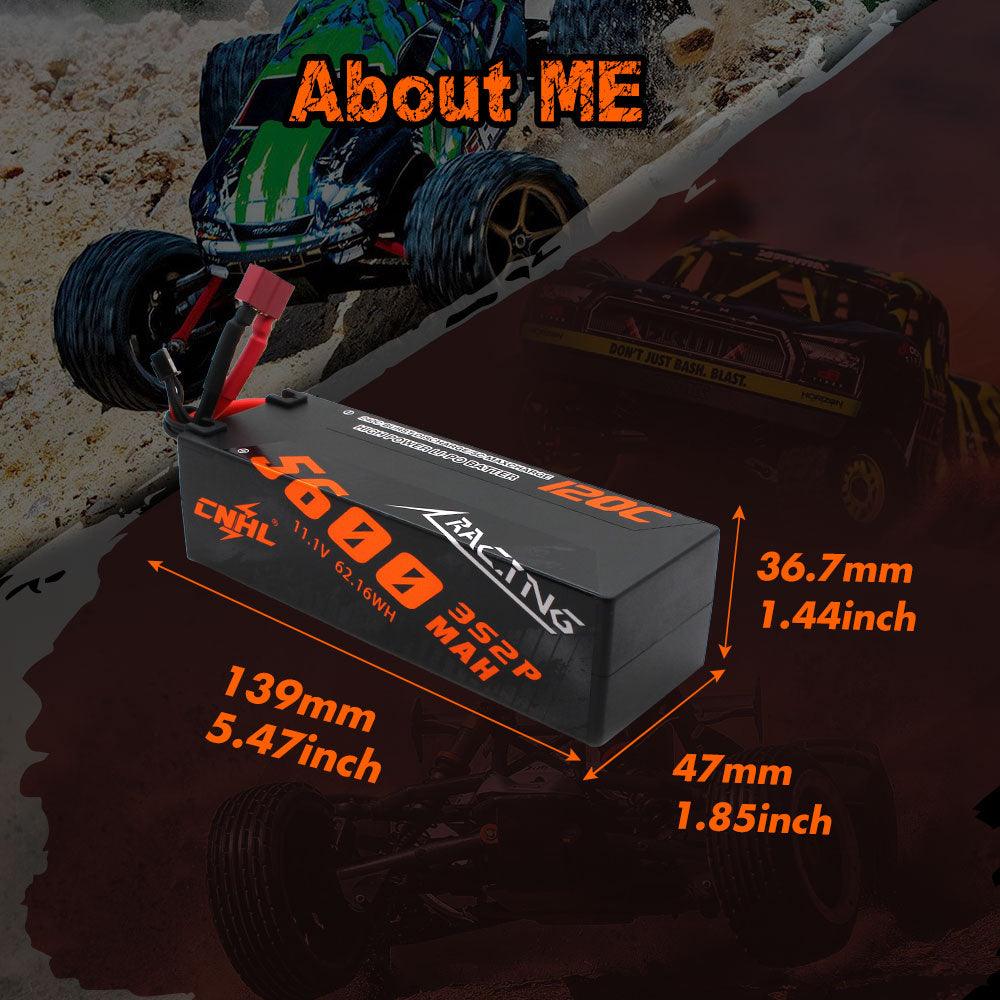

Model 4:
Stock Number：HC5601203XEC5
Capacity：5600mAh
Voltage：11.1V / 3-Cell / 3S2P
Discharge Rate：120C Continual / 240C Burst
Charge Rate：5C Max
Size：37X47X139mm
Weight：418g (not Including wire and connector)
Output Connector：EC5
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

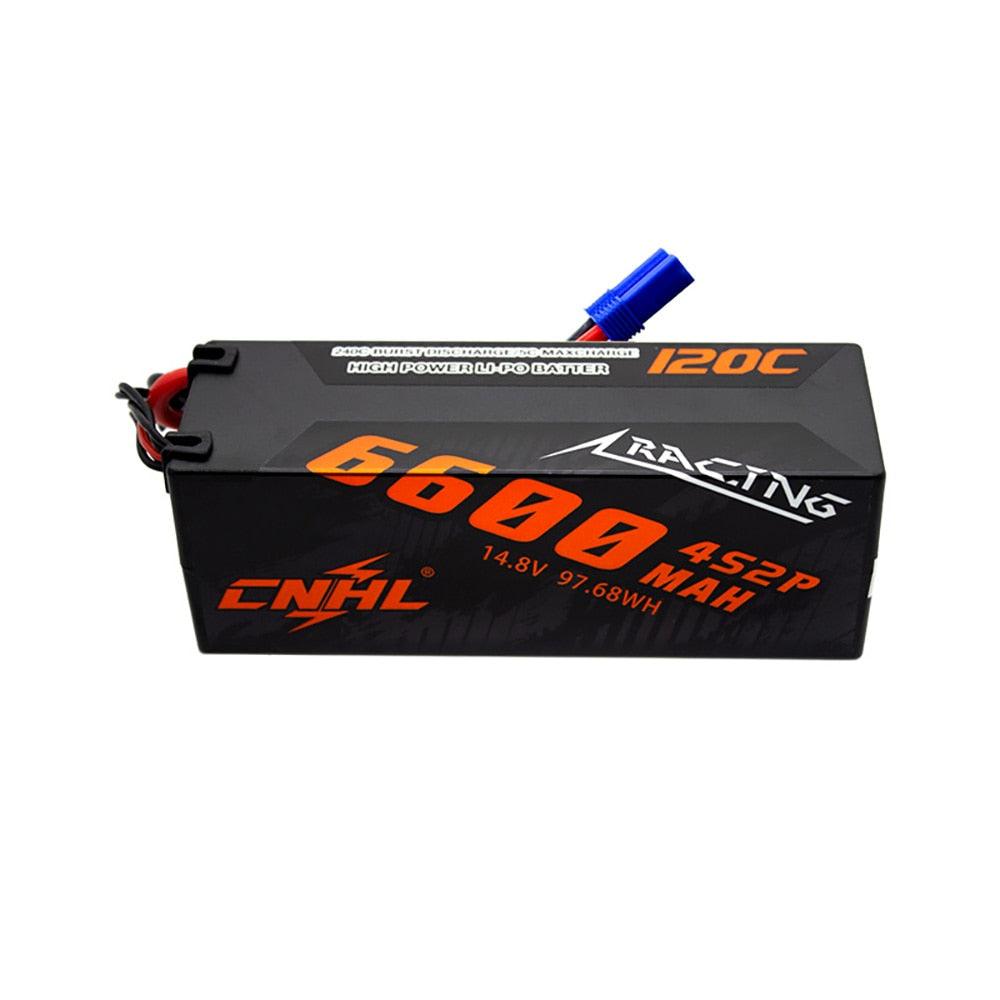

Model 5:
HC6601204XEC5
CNHL RacinStock Number：HC6601204XEC5
Capacity：6600mAh
Voltage：14.8V / 4-Cell / 4S2P
Discharge Rate：120C Continual / 240C Burst
Charge Rate：5C Max
Size：48X47X138mm
Weight：608g (not Including wire and connector)
Output Connector：EC5
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#g

Feature：

1.Elected premium-grade materials.
2.Low-resistance, high-reliability, good consistency，Automatic stacking technology, better performance.
3.Lightweight and small size, long battery life, high specific power.
4.Great value without the loss of performance.

Notice：

1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don't overcharge more than 4.2V and don't over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.

Abcut ME Jus; JV[ Eash J:st BOdDURSUDIScERGE QTpoCERLPOBAIUER IchaB 1 'Izoc 25mm Cural 0.99inch 1 Mz5" 139mm 47mm 5.47inch 1.85

Product dimensions: 25mm x 47mm x 139mm (1EAER) or 0.98 inch x 1.85 inches, with a diameter of 5.47 inches.

Dimensions: 138mm x 47mm x 139mm (5.43 inches x 1.85 inches), capacity: 6600mAh, manufacturer: CNHL.
