CUAV MS5525 SKYE Airspeed Sensor SPECIFICATIONS
temperature measure range: -15℃ to 150℃
processor: STM32F4
Wheelbase: Bottom Plate
Weight: 22g
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Hydraulic Transmission Box
Total Error band: ±2.5%FS
Tool Supplies: Cutting
Technical parameters: KV1100
Size: 82.5X30.4X28.2mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Protocal: droneCAN
Pitot tube heating power: 35W
Origin: Mainland China
Operating temperature: -20℃ to 80℃
Model Number: SKYE
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Airplanes
Certification: CE,FCC,RoHS
Brand Name: CUAV
Airspeed sensor: MS5525
Airspeed measurement range: 500Km/h
Airspeed accuracy: ±0.69Pa

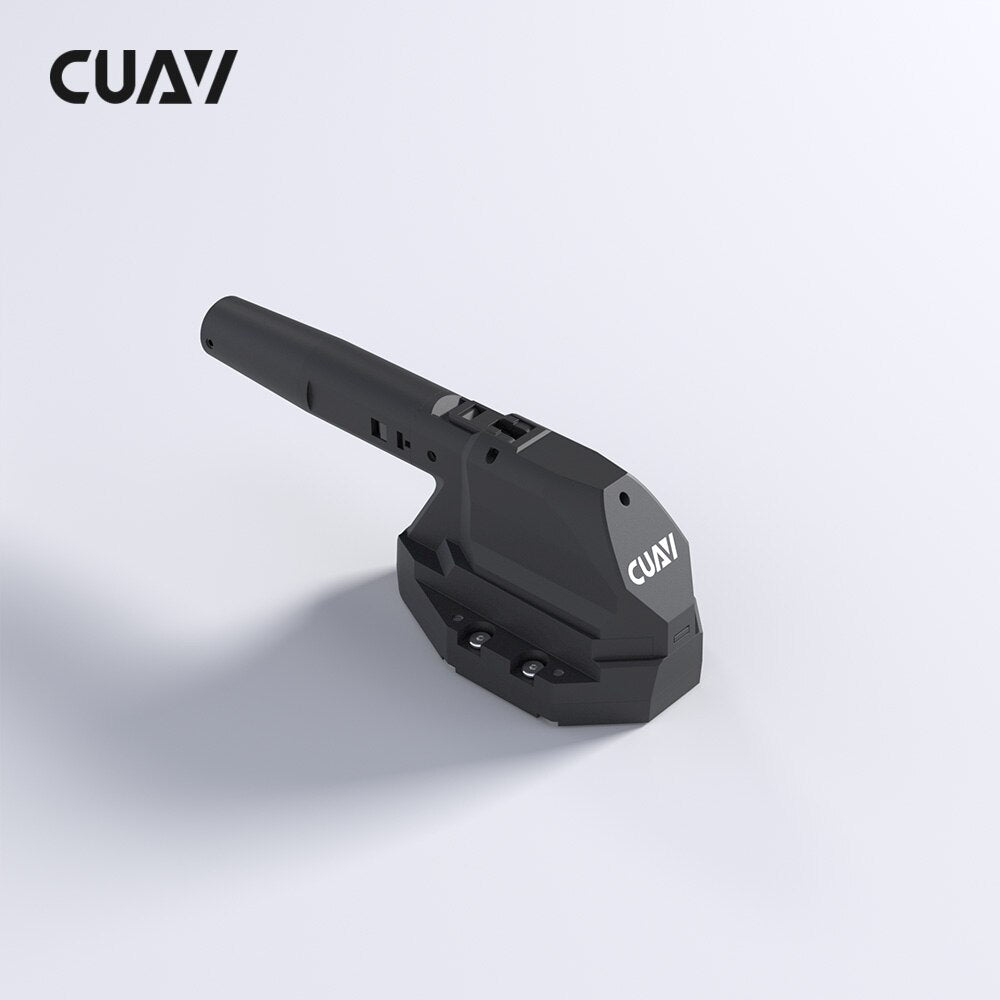

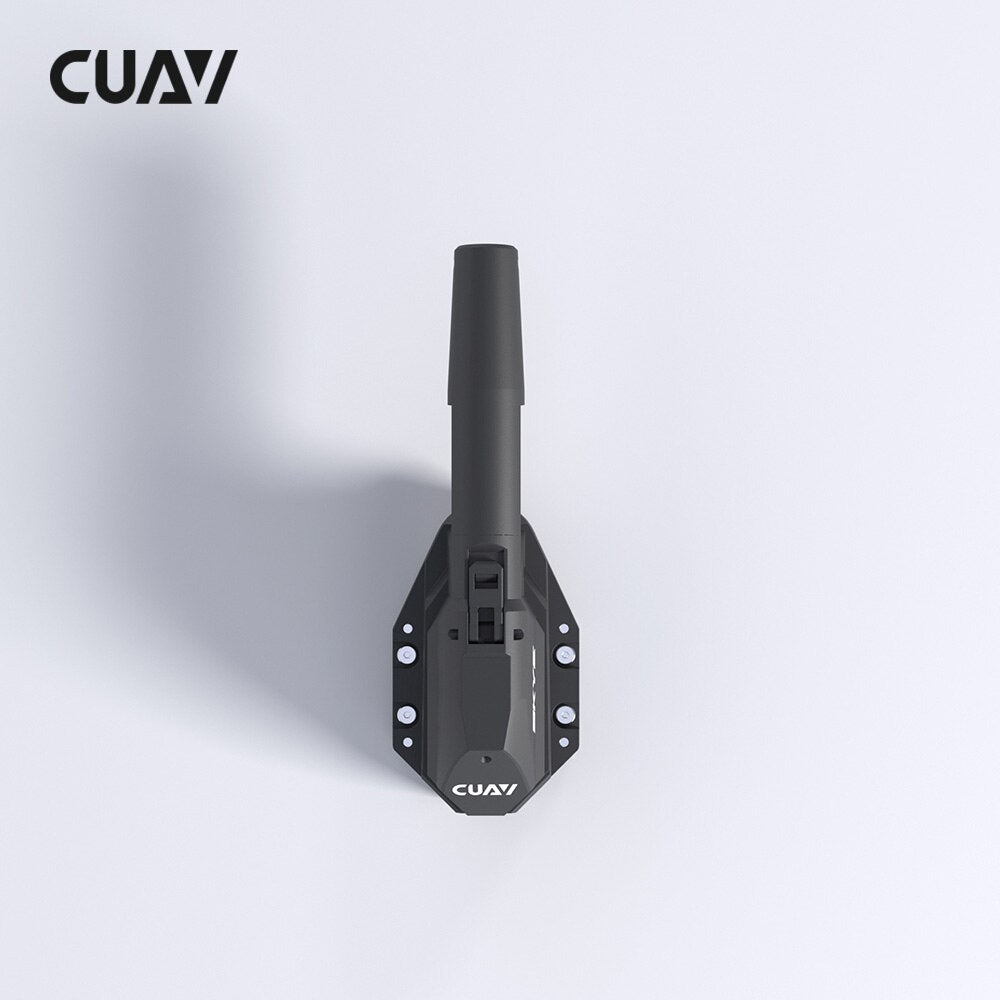

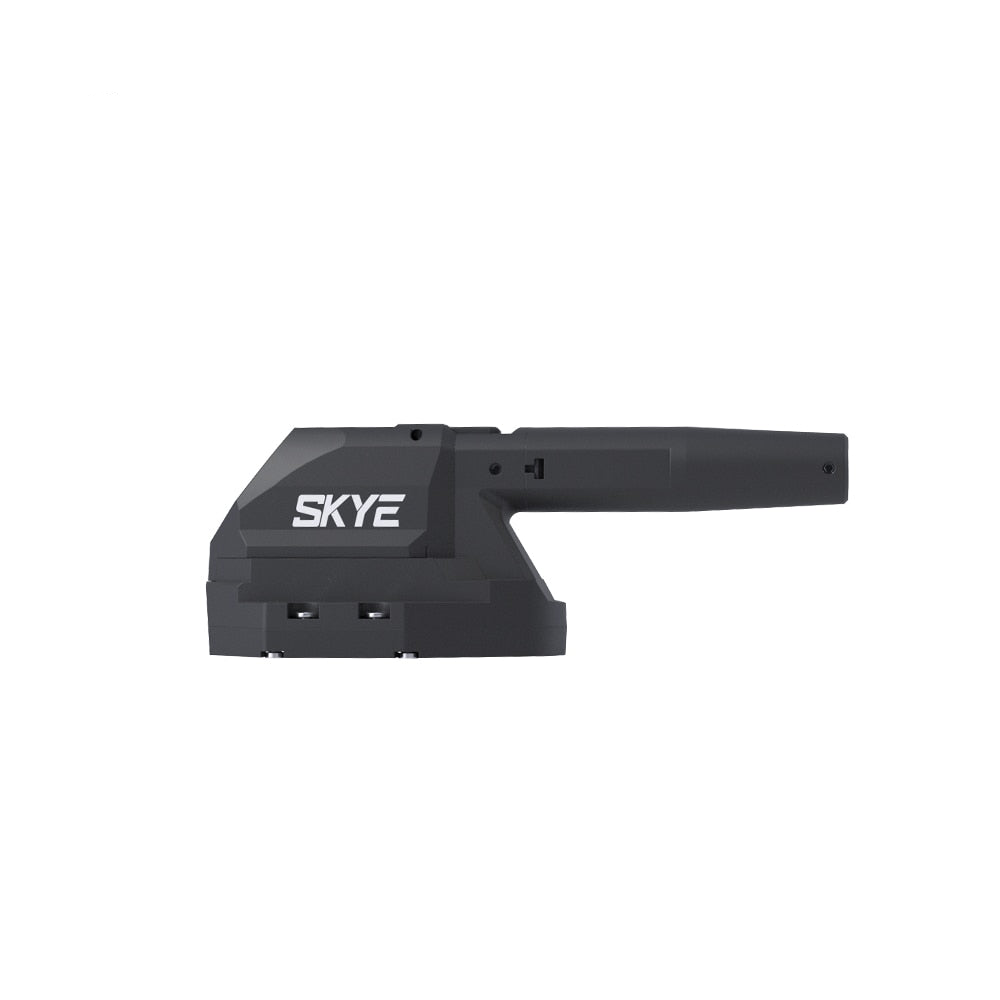

SKYE Airspeed sensor
CUAV New Rainproof Structure Drone SKYE Airspeed Sensor Meter CAN Protocol Intelligence Deicing And Dual Temperature Control System
SKYE Airspeed sensor introduction
SKYE Airspeed sensor highly integrated STM32F4 processor, MS5525 pressure sensor, temperature and humidity sensor, dual temperature compensation system as one, with IP44 protection performance, the new high-power heating system can automatically de-icing water, the manned aircraft airspeed tube heating function innovatively introduced into the field of unmanned aerial vehicles, effectively reduce the probability of data errors, greatly improve the safety of unmanned aerial vehicles.
SKYE Airspeed sensor Features:
1 --Built-in STM32F4 processor
2 --DroneCAN Protocol
3 --Dual temperature compensation system
4 --Intelligent de-icing
5 --IP44 protection class
6 --Automatic drainage design
This pioneering product integrates a pitot tube, airspeed sensor, temperature and humidity sensors, an ARM M4 processor, and a dual temperature control system within a single, rainproof structure.
The pitot tube is equipped with a high-power heating system (35W) that prevents freezing by automatically adjusting its output based on ambient temperature and humidity, thereby ensuring accurate data and significantly enhancing the reliability of drone operations.
The pitot tube features a high-power 35W heating system that adjusts its output in response to ambient temperature and humidity, significantly enhancing the reliability of UAV operations.
The pitot tube features a high-power 35W heating system that automatically adjusts its output based on ambient temperature and humidity. It also includes an STM32F4 microcontroller, ensuring reliable performance.
Operating temperature range: -20°C to 70°C; dimensions: 82.5 x 30.4 x 28.2 mm; weight: 22g; protection level: IP44 (installation on request).
The package includes: CAN data cable (35 cm), XT30 power cable (30 cm), airspeed sensor cable connecting the SKYE module to the airspeed HUB.
