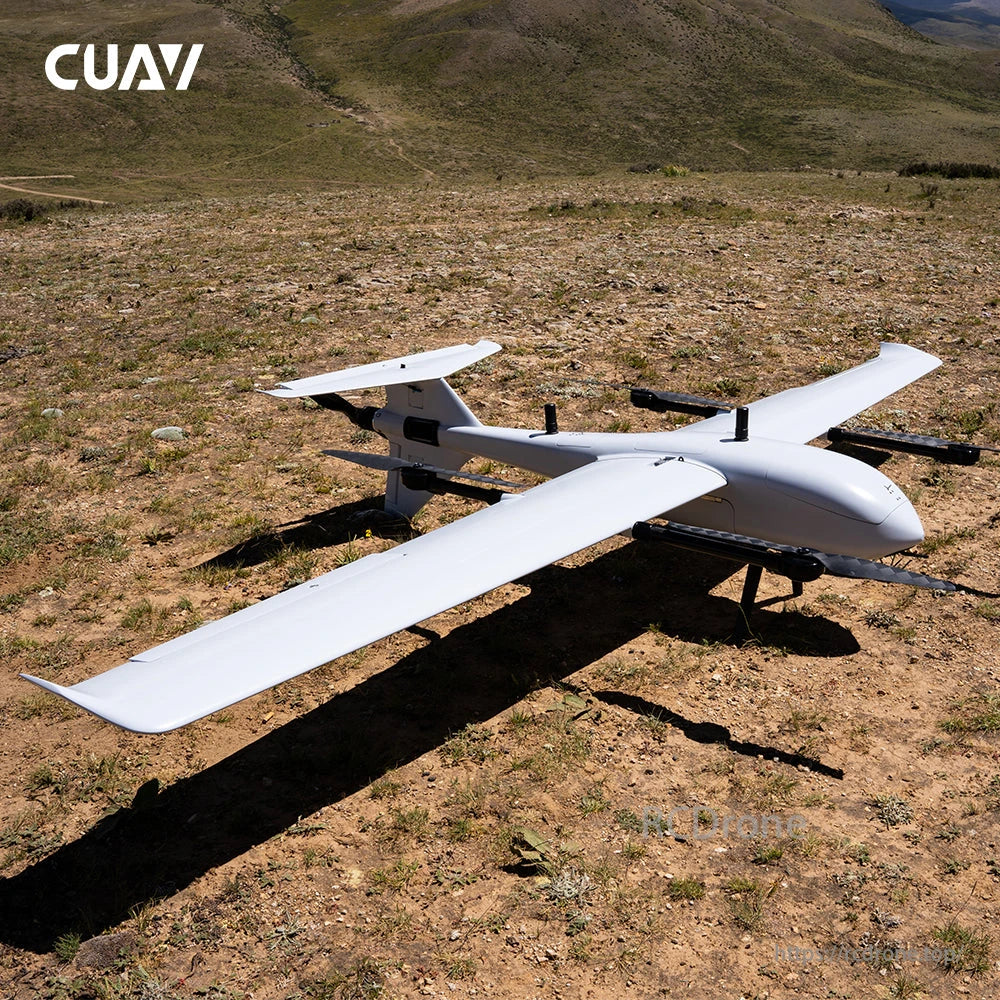

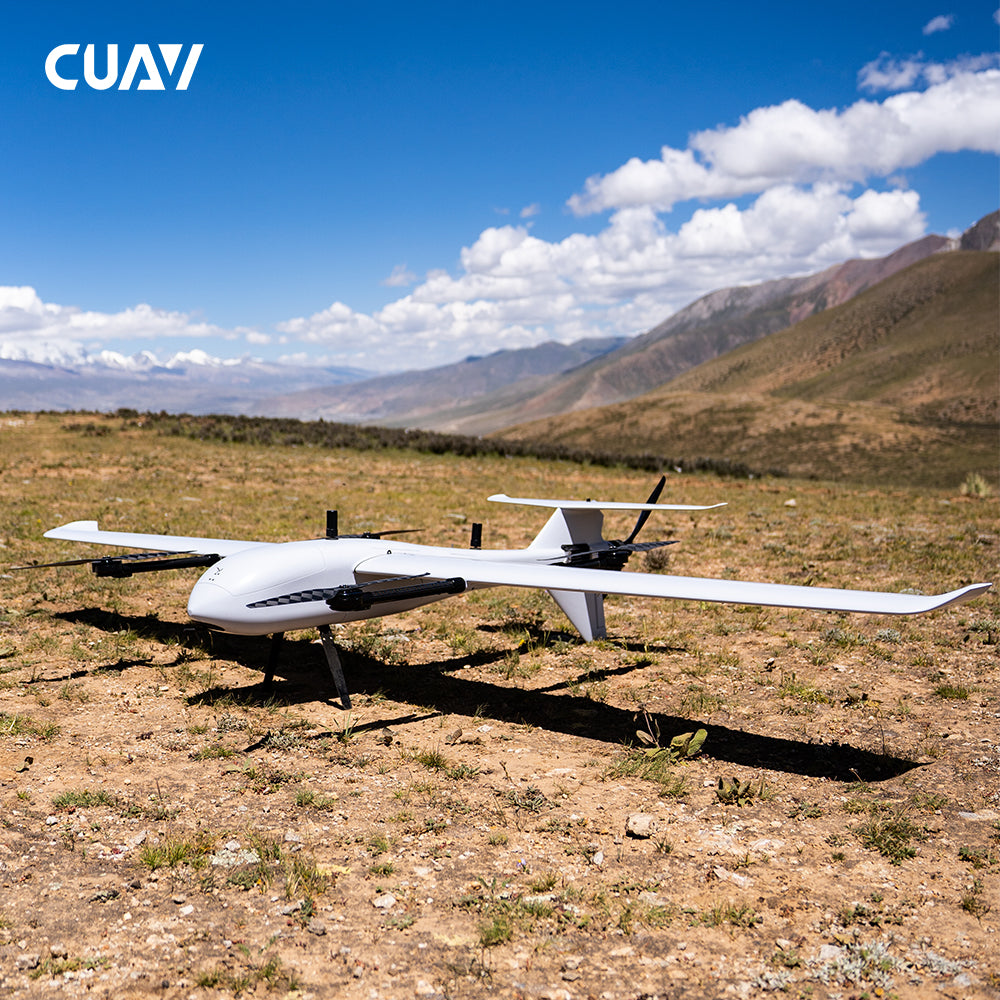

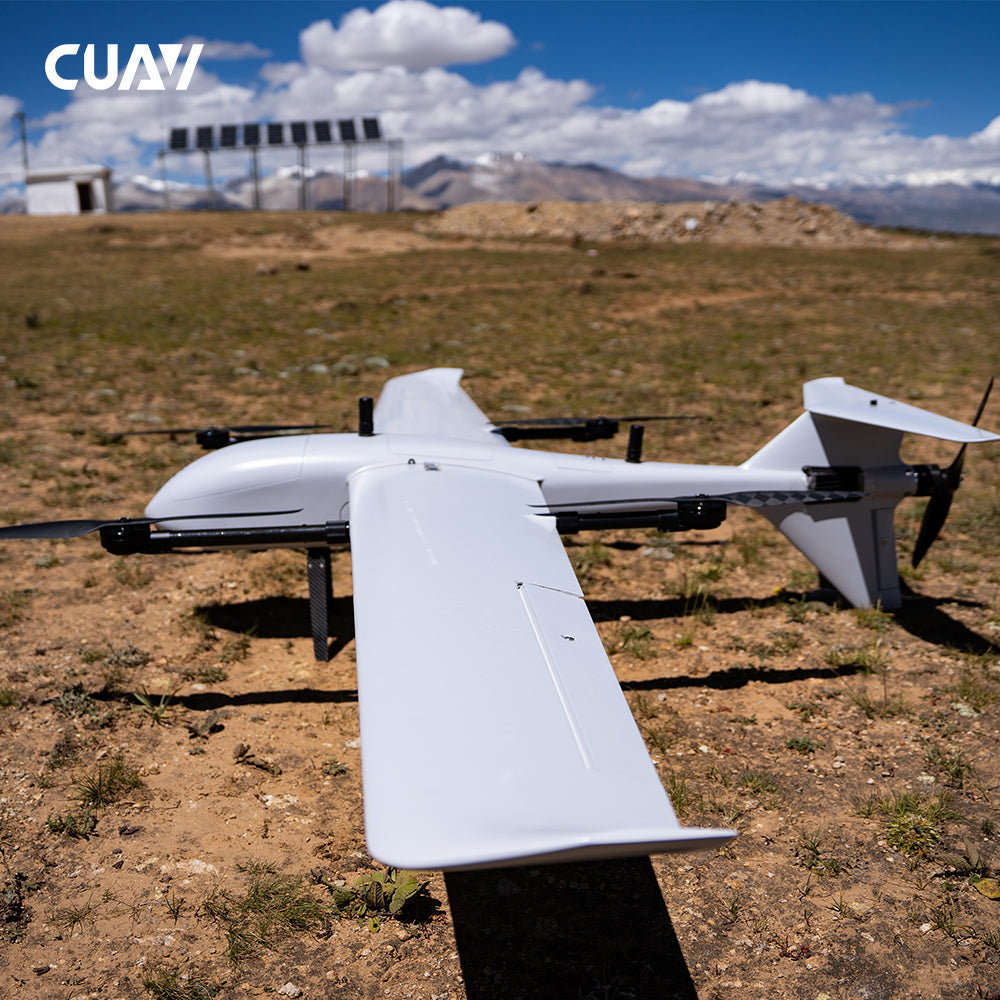

CUAV Raefly VT290 VTOL - 370KM Range 5KG Payload 2900mm Wingspan ArduPilot Carbon Fiber Kevlar Electric VTOL UAV Fixed Wing Airplane Drone for mapping surveying inspection

CUAV Raefly VT290 VTOL - 370KM Range 5KG Payload 2900mm Wingspan ArduPilot Carbon Fiber Kevlar Electric VTOL UAV Fixed Wing Airplane Drone for mapping surveying inspection

CUAV

Regular price $12,999.00 USD
Regular price Sale price $12,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

1 orders in last 90 days

Style

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details



CUAV Raefly VT290 VTOL Specifications

    Body material Carbon fiber+Kevlar composite material
    Wingspan 2900mm
    Maximum flight speed 35m/s
    Economic cruising speed 20m/s
    Stall speed 16m/s
    Endurance No load: 5h | 5kg load: 3h
    Maximum rang 370km
    Maximum payload 5kg
    Empty weight 13.5kg
    Maximum takeoff weight 19kg
    Wind resistance 6 级
    Takeoff and landing mode Vertical takeoff and landing
    Power energy Batter
    Flight controller Standard CUAV flight controller (optional)
    Positioning accuracy Single point positioning: 1.5m ;RTK: 1cm+1PPM
    Communication distance Based on link data
    DIY customization Flight controller, GNSS, remote controller, mission payload, body coating, waterproof design, remote ID, etc
    Ground station QGoundcontrol/Missionplanner/LGC
    Application Scenario Mapping, inspection, logistics, monitoring, public security, delivery, etc
    Wing installation angle
    Wing area 72dm²
    Wing load 264g/dm²@19kg



    Recommendation of VTOL Drone with higher cost performance

    The most popular VTOL brand, MakeflyEasy



    CUAV Raefly VT290  VTOL UAV

    Notes: Showing price is NOT including shipping fee. For more information please contact us . thanks so much.



    CUAV Raefly VT290 VTOL, Raefly VT290 Electric VTOL UAV Paylo4d Pine

    Raefly VT290 Electric VTOL UAV Paylo4d Pineer ( PushBack Design AutoCenter Motor Ultra-Long Quick-Release Endurance Fuselage Autopilot Skg Self-Developed Composite Fuselagen Payload Quick-release Autopilot Load Cabin 5

     CUAV Raefly VT290 VTOL, Raefly VT290 composite VTOL UAV with a fluid design,

    The Raefly VT290 composite VTOL UAV features a sleek design that reduces flight drag, allowing for improved maneuverability and efficiency. Its split design also enables tool-free quick disassembly, enhancing the overall user experience for aerial surveying and mapping applications.

    CUAV Raefly VT290 VTOL, the fuselage adopts split design; which can be quickly installed without screw- driver . CUAV Raefly VT290 VTOL, the connection of the wing is made of customized high-strength carbon pipes CUAV Raefly VT290 VTOL, autopilot supports inertial navigation, enabling intelligent navigation without GPS* Automatic ice melting CUAV Raefly VT290 VTOL, the Raefly VT290 is equipped with a dual antenna heading module . CUAV Raefly VT290 VTOL, Raefly VT290 Specification Body material Carbon fiber+Kevlar CUAV Raefly VT290 VTOL, Raefly VT290 wing span is 2900mm; fuselage is made CUAV Raefly VT290 VTOL, Raefly VT290 has a fluid design that incorporates aerodynamic design CUAV Raefly VT290 VTOL, low KV large pitch propellers for higher motor efficiency without blocking the camera view . CUAV Raefly VT290 VTOL, Raefly VT290 adopts quick disassembly payload cabin CUAV Raefly VT290 VTOL, the vertical tail of the Raefly VT290 is cleverly designed to prevent the

    Raefly VT290 Electric VTOL UAV: Unleashing Versatility with Cutting-Edge Features

    The Raefly VT290 Electric VTOL UAV is a pioneering aircraft designed for versatility and optimal performance in various applications. Boasting a revolutionary PushBack Design AutoCenter Motor and Ultra-Long Quick-Release Endurance Fuselage, this drone is at the forefront of technological innovation. Let's delve into the key features that make the Raefly VT290 stand out in the world of VTOL UAVs.

    Key Features:

    1. Composite Fuselage and Payload Prowess:

      • The Raefly VT290 incorporates a self-developed Composite Fuselage, ensuring a lightweight yet robust structure. With a remarkable Payload Quick-Release feature, this UAV can effortlessly handle up to 5kg of payload, making it ideal for a myriad of applications.
    2. Fluid Design for Enhanced Performance:

      • The new-generation Raefly VT290 boasts a fluid design that significantly reduces flight drag. The Split Design allows for tool-free quick disassembly, enhancing operational efficiency. Equipped with a passive cooling air channel, this UAV supports maximum payload and comes with a quick disassembly load tank for versatile task mounting.
    3. Application Versatility:

      • Tailored for diverse aerial surveying and mapping needs, wide-area inspections, and material deliveries, the Raefly VT290 ensures a comprehensive application experience. The quick and efficient customization service makes it highly adaptable to different tasks and requirements.
    4. Autopilot and Advanced Functions:

      • Integrating a powerful CUAV self-developed UAV solution, the Raefly VT290 supports off-site takeoff and landing, moving platform takeoff and landing, GPS rejection, and formation flight. The ArduPilot open-source system enables secondary development for enhanced functionalities.
    5. Quick Disassembly Design for Portability:

      • The Raefly VT290's split design allows quick installation without the need for a screwdriver. The aviation plug ensures secure fastening over extended periods without compromising its fastness. The upgraded folding and storage design further improves operational efficiency and portability.
    6. High Strength Carbon Pipes:

      • The connection of the wing features customized high-strength carbon pipes, maintaining wing stability even with a 5kg payload.
    7. Intelligent Flight Safety Components:

      • The Raefly VT290 employs high-quality intelligent components to ensure flight safety. The autopilot supports inertial navigation, enabling intelligent navigation even without GPS. It features automatic ice melting and drainage, SKYE intelligent airspeed meter, DronCAN ESC for real-time monitoring of electrical regulation temperature, and more.
    8. Dual Antenna for Magnetic Interference Resistance:

      • Fearless of strong magnetic environments, the Raefly VT290 is equipped with a dual antenna heading module instead of a magnetic compass. This innovative design eliminates magnetic field interference, avoiding the need for complex compass calibration procedures.

    Specifications:

    • Body Material: Carbon fiber + Kevlar composite material
    • Wingspan: 2900mm
    • Maximum Flight Speed: 35m/s
    • Economic Cruising Speed: 20m/s
    • Stall Speed: 16m/s
    • Maximum Range: 370km
    • Maximum Payload: 5kg
    • Wind Resistance: Level 6
    • Takeoff and Landing Mode: Vertical takeoff and landing
    • Power: Battery
    • Positioning Accuracy: Single point positioning - 1.5m; RTK - 1CM+IPPM
    • Flight Controller: Standard CUAV flight controller (optional)

    Application Scenarios:

    • Mapping
    • Inspection
    • Logistics
    • Monitoring
    • Public Security
    • Delivery
    • And more

    Lightweight Design with 5kg Payload Capacity:

    • With a wingspan of 2900mm and a carbon fiber composite fuselage, the Raefly VT290 achieves a remarkable balance of lightweight design and a 5kg payload capacity.

    Fluid Design for Efficiency and Endurance:

    • The Raefly VT290's fluid design, incorporating aerodynamic principles, minimizes flight resistance, resulting in an impressive endurance range of up to 370km.

    PushBack Motor Design for Enhanced Vision:

    • The PushBack motor design features low KV large pitch propellers, ensuring higher motor efficiency without obstructing the camera view during operation.

    Quick Release Payload System:

    • The Raefly VT290 introduces a quick disassembly payload cabin with a convenient quick-release button. This innovative feature allows for rapid replacement of loads, enabling the UAV to adapt seamlessly to different operation scenarios.

    Multifunctional Vertical Tail Design:

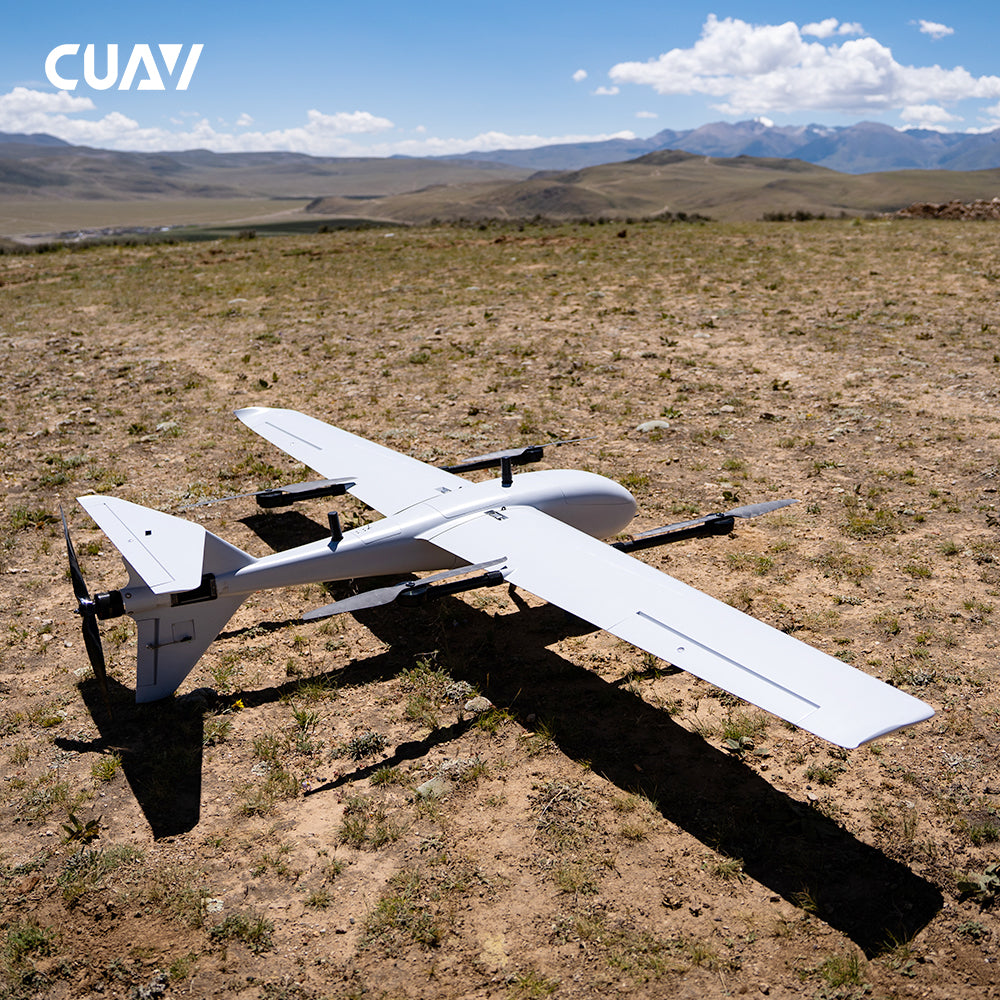

    • The cleverly designed vertical tail of the Raefly VT290 serves a dual purpose. It prevents the tail propeller from touching the ground and also functions as a tripod. The internal space is reserved for installing the link antenna, enhancing overall functionality.

    In summary, the Raefly VT290 Electric VTOL UAV combines advanced features, innovative design, and robust construction to offer unmatched versatility in aerial applications. Whether it's mapping, inspection, logistics, or public security, this UAV sets a new standard for efficiency and adaptability in the ever-evolving field of drone technology.
