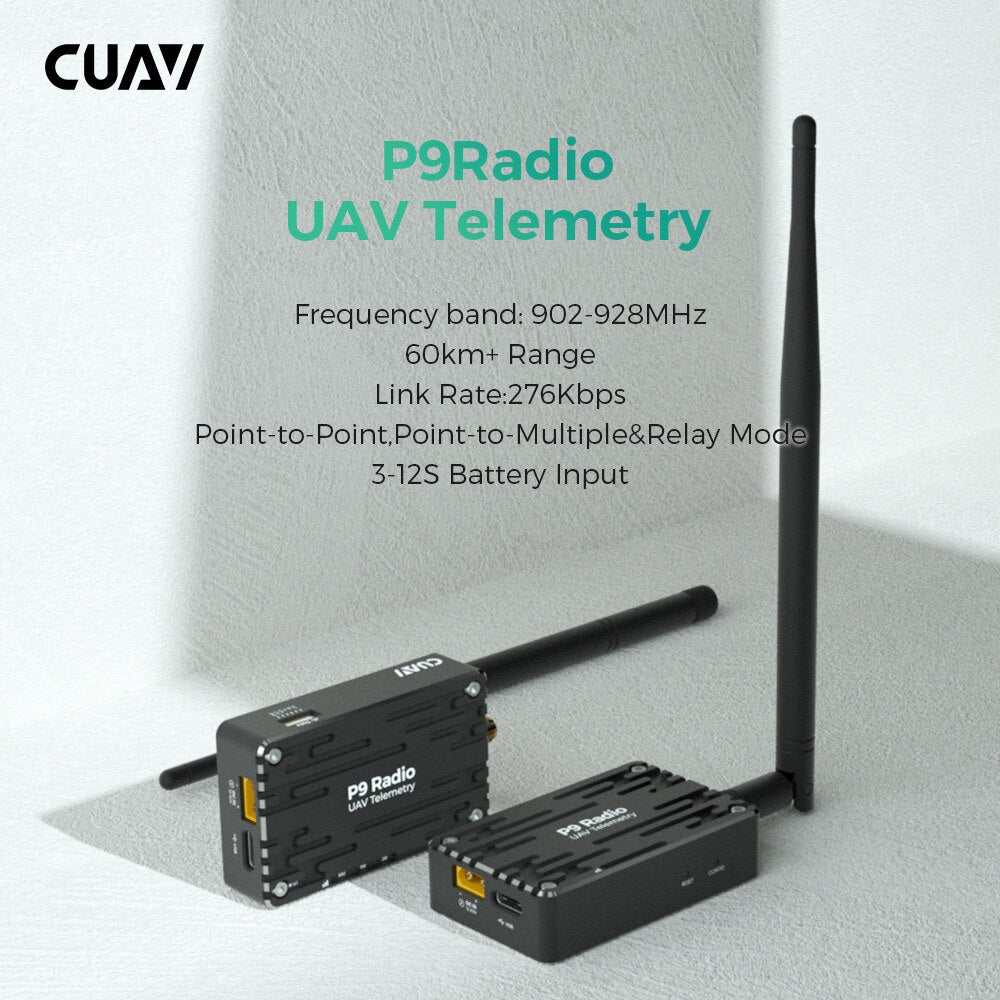

P9 Radio is an ultra-long data telemetry module of UAV . it has a transmission distance of 6Okm and a link rate of 276kbps .

Dual-end Switchover P9 has built-in TTL and USB ports, and the air terminal and ground terminal can be switched at will.

276kbps Link Rate GOkm Range Using Adaptive bandwidth, automatic interference-avoidance frequency hopping . the transmission distance reaches 6Okm and the link rate reaches 276Kbps .

the wide voltage input of the 3S-12S battery supported by p9 covers the working voltage of most of the current UAVs. No additional BEC is required for voltage conversion: 3-12S Lipo Input 12-60v.

Supports Multiple Network Topology Communications P9 Radio supports point-to-point and relay communication modes to meet various application scenarios and ultra-long distance communication requirements.

928MHz frequency Spreading Frequency Hopping Method Transport transparent transmission protocols Forward Error Hamming; BCH; Golay; Reed-Solomon; Viterbi Correction Encryption 32 bits of CRC ARQ Range Optional AES encryption (custom) 60km+ (high-gain fiberglass antenna unobstructed seaside)

P9 module; 55g antenna total Size 65mmxlOmmx16.Smm 65mm 4Omm P9 Radio UAV Telemetry 16.Smm CUN ueebb Cin Oed (Oz0 31g; 86g)

x2 VS/X7 series data cable x1 Cable Length: 25cm XT3O-XT6O Power Cable x 1 LengTH: 25 cm Type-C Cable X1 x3O x6O Type-A Cable 1 X2 X7-X7 X5 X3O Single-End Power x4 Cable Leength: 26cm Pixhack single-end power x5 x8 x9

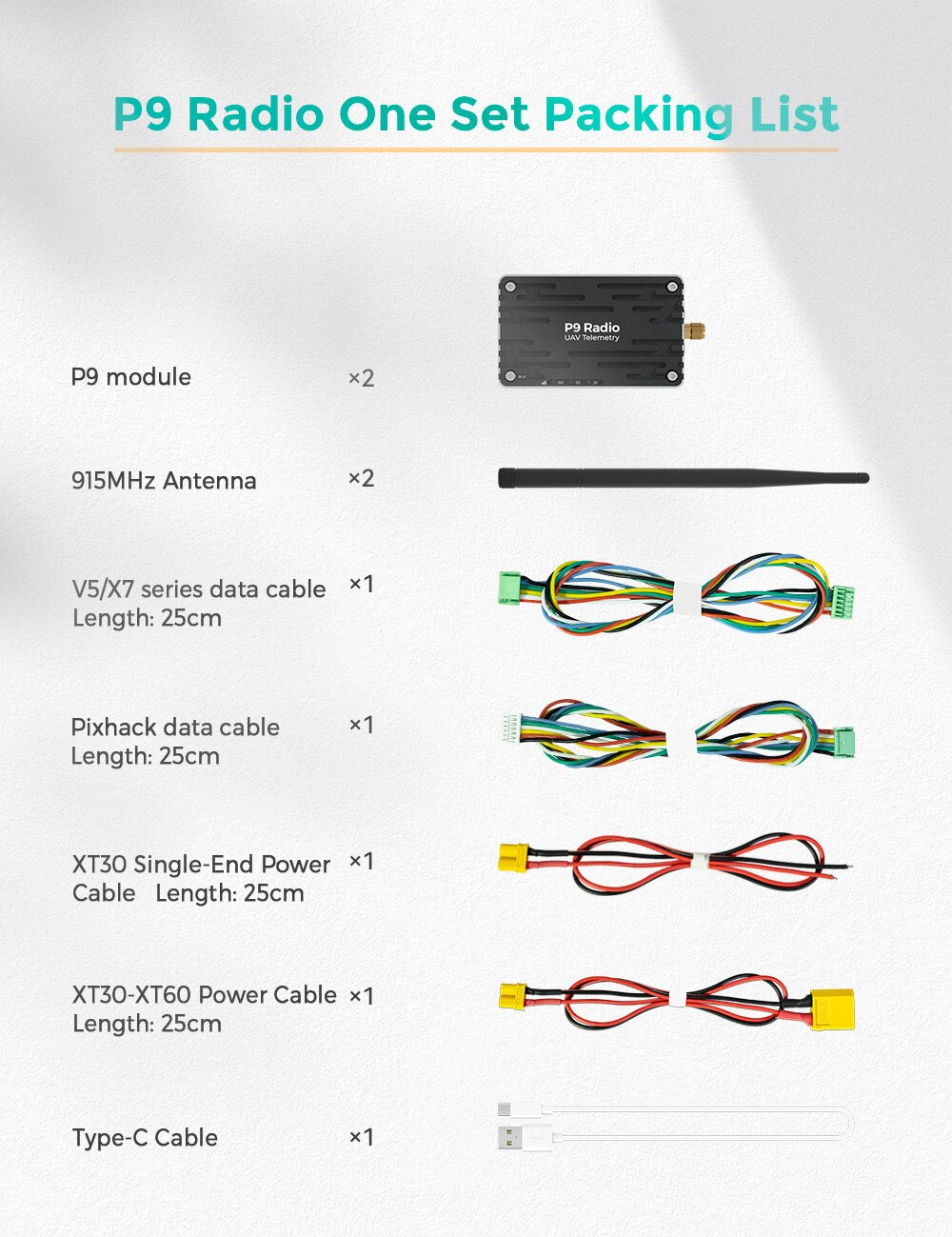

Sky Unit Packing List P9 Radio VAVucicmciny P9 module x1 915MHz Antenna x 1 Length: 25cm XTZO Single-End Power x1.

Ground Unit Packing List P9 Radio Wavicicmcan P9 module XI 915MHz Antenna x1 Length: 25cm Type-C Cable X1 XT3O-XT6O Power Cable x
