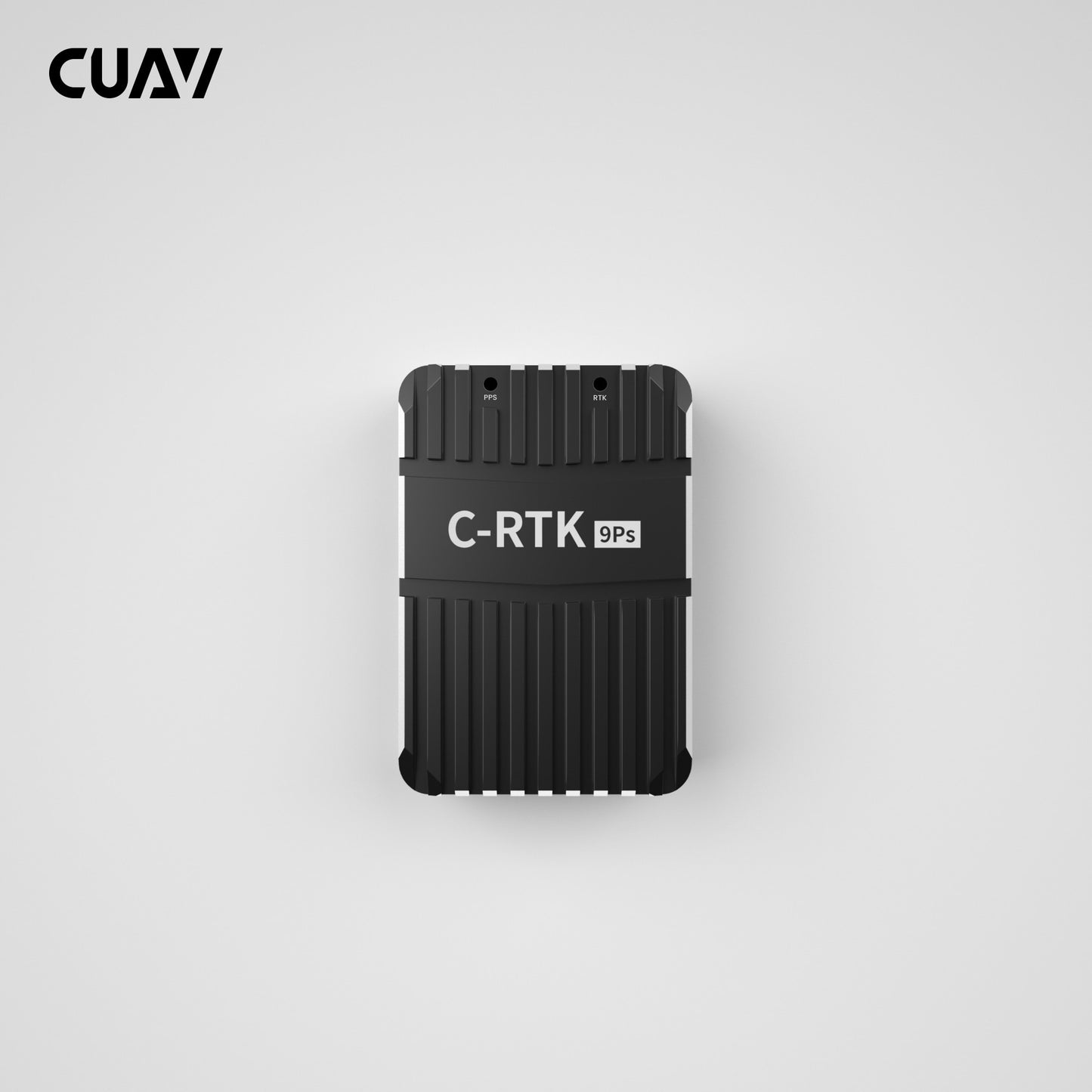

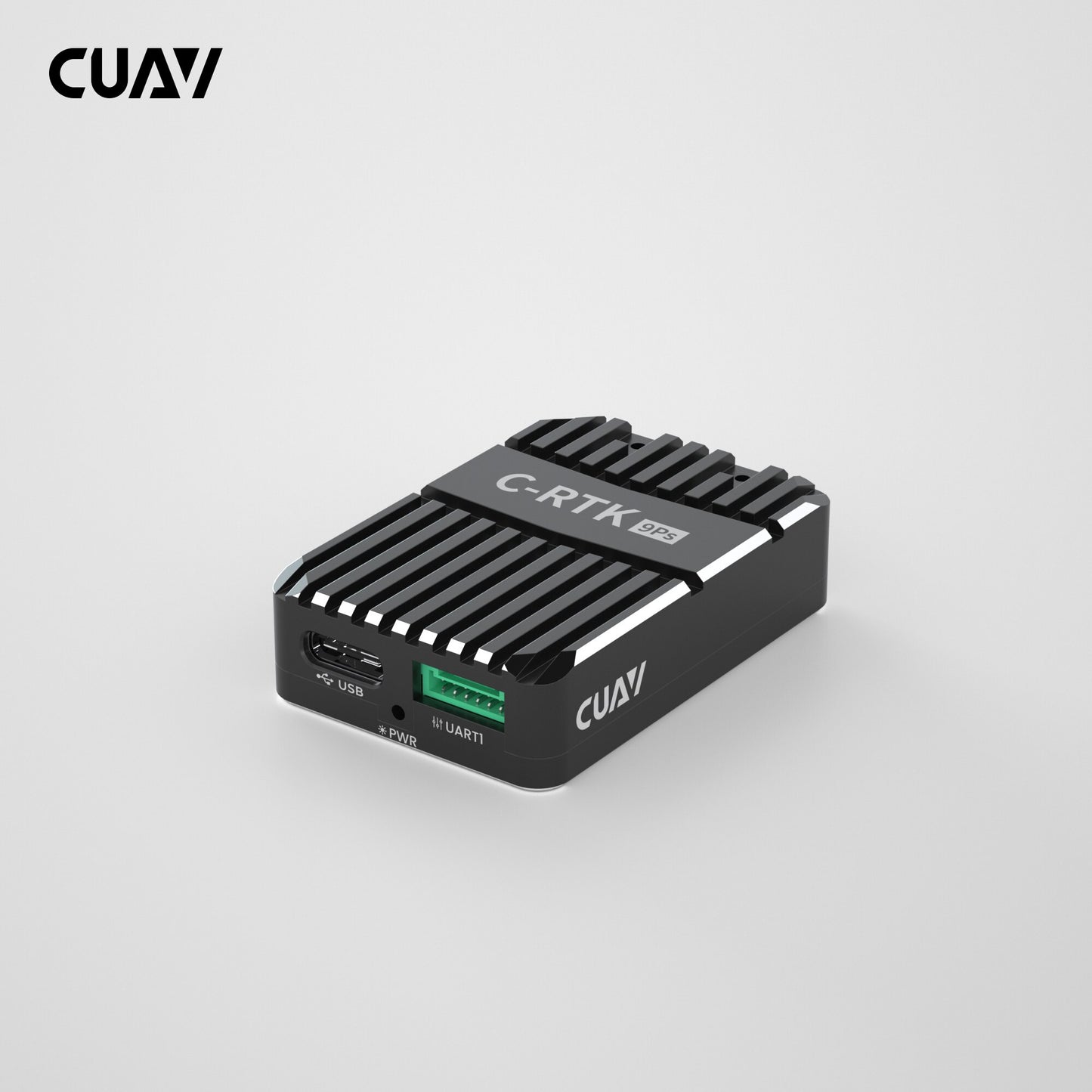

CUAV RTK 9Ps Centimeter-level High And Fast Percision Precise Positioning Multi-Star Multi-Frequency Antenna GNSS Module

CUAV RTK 9Ps Centimeter-level High And Fast Percision Precise Positioning Multi-Star Multi-Frequency Antenna GNSS Module

CUAV

Regular price $667.85 USD
Regular price $934.99 USD Sale price $667.85 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

12 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

CUAV RTK 9Ps GNSS Module SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: GPS

Tool Supplies: Assembly Category

Technical parameters: KV1100

Size: 32*48*12mm

Size: 47*32*12.2mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 14+y

Receiver type: 184 channel ZED-F9P(ublox)

RTK surveyin-time: RTK less than 60s

RC Parts & Accs: Radio Systems

Quantity: 2

Position accuracy: RTK:0.01m+1ppm CEP,GPS:1.5m CEP,SBAS: 1.0m CEP

Origin: Mainland China

Number of concurrent GNSS: 4

Model Number: C-RTK 9Ps

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Compass: IST8310

Certification: CE,FCC

Brand Name: CUAV

Antenna gain: Rover:2dBi Base: 5dBi



CUAV C-RTK 9Ps

CUAV RTK 9Ps Centimeter-level High And Fast Percision Precise Positioning GNSS Module

C-RTK 9Ps Introduction:

The C-RTK 9Ps is a four-star Real Time GNSS system, using two c-RTK 9Ps modules, one for aircraft and the other for base stations. It also supports the dual GPS for yaw, replacing the uav magnetic compass, so that the UAV can adapt to the complex magnetic field environment. Compared with C-RTK 9P, C-RTK 9Ps achieves similar performance at lower price; It is a very cost-effective centimeter-level positioning module.Compatible with PX4/ArduPilot open-source flight controller. It is an ideal choice for uav aerial performance, agricultural application, high-precision takeoff and landing, ship takeoff and landing and other applications requiring real-time high-precision navigation.

C-RTK 9Ps Features:

1 --Multi-star Multi-frequency Receiver
2 --Centimeter-Level Positioning
3 --Dual RTK For Yaw
4 --Dual-end Switchover design reduced costs

Small&Percision C-RTK 9Ps Centimetre-Level GNSSRTCM 3.X Interface UART USB Antenna Type MMCX Physical Para

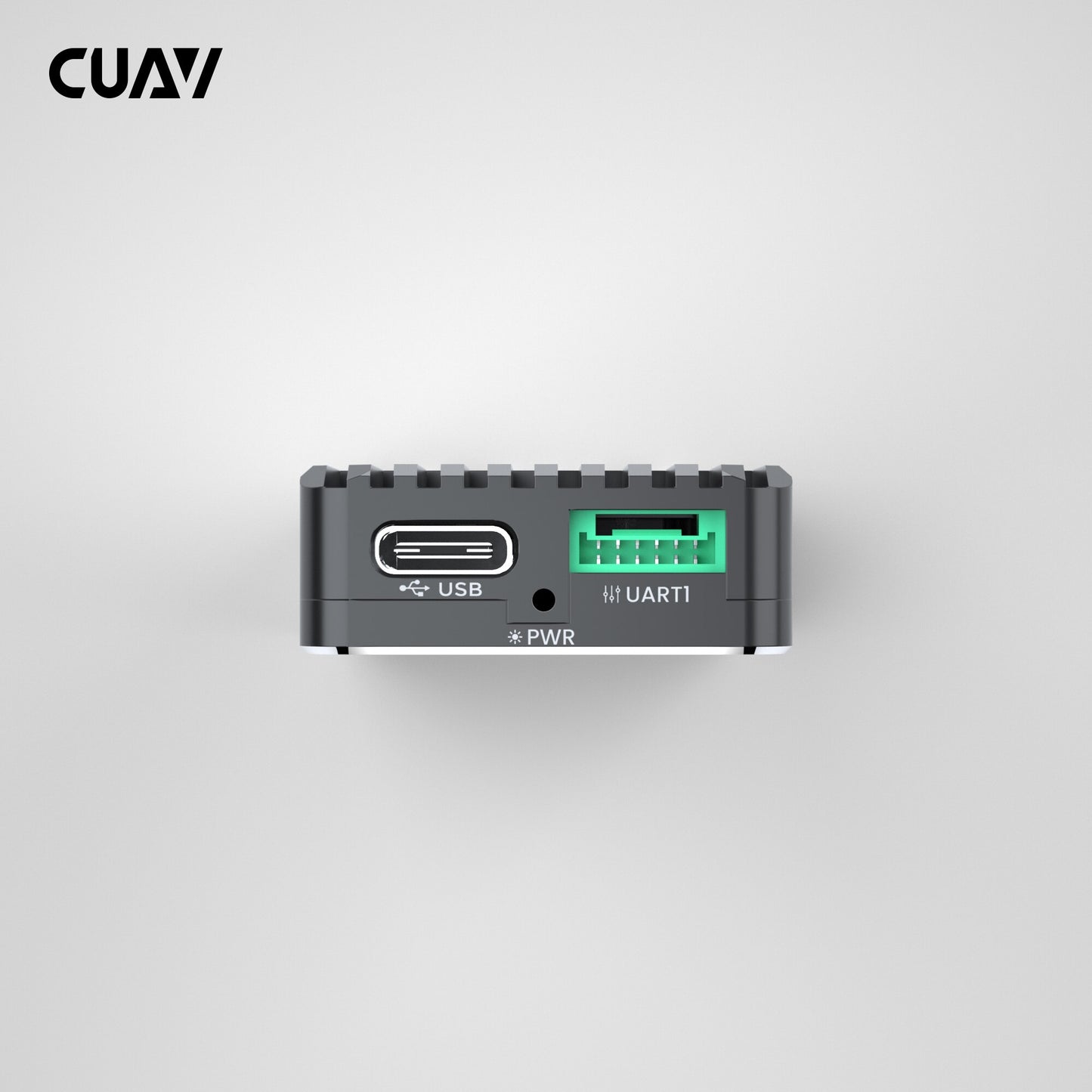

This GNSS module features an RTCM 3.X interface, available via UART and USB connectivity options. It supports MMCX antenna type and has the following physical parameters: operating voltage range of 4.5V to 6V, operating temperature range of -40°C to +85°C, and a compact size of 47mm x 32mm x 12.2mm with a weight of approximately 30g (module only).

CUAV RTK 9Ps Cent

The CUAV RTK 9Ps is a high-performance, centimeter-level real-time GNSS system that utilizes multiple-star and multi-frequency signals. This module can be used in conjunction with another identical unit to create a base station setup for aircraft applications. Notably, it offers comparable performance to other modules on the market while providing a more affordable option.

built-in u-blox FQP multi-star multi-frequency satellite receiver

This GNSS module features an integrated U-blox F9P multi-star, multi-frequency satellite receiver that supports multiple satellite systems, including GPS, Beidou, GLONASS, and Galileo. The module provides centimeter-level positioning accuracy with SRTK (Single Receiver Target Positioning) accuracy of 0.01 meters and IPPM (Instantaneous Precision and Perturbations) CEP (Circular Error Probability) performance.

the base station can complete convergence and send differential data to the rover unit in half minute

The base station can rapidly converge and transmit differential correction data to the rover unit within just 30 seconds. Additionally, the advanced RTK (Real-Time Kinematic) algorithm enables centimeter-level positioning accuracy to be achieved in mere minutes.

dual C-RTK 9Ps can estimate yaw in complex electromagnetic environment

This module's advanced capabilities enable it to accurately estimate yaw and adapt to complex electromagnetic environments. Moreover, the dual RTK 9Ps can replace traditional dual compass systems typically used in UAVs, allowing for more accurate navigation and positioning in challenging environments. Additionally, this module enables reliable electric power inspection operations to be performed in complex environments.

CUAV RTK 9Ps Cent

The CUAV RTK 9Ps features a unified design for both the sky unit and the rover unit, utilizing identical hardware configurations. Furthermore, this module shares a single firmware architecture for both units, allowing for seamless communication and data exchange between them. With only minor configuration parameter adjustments required, you can quickly switch between the two units, streamlining your operations.

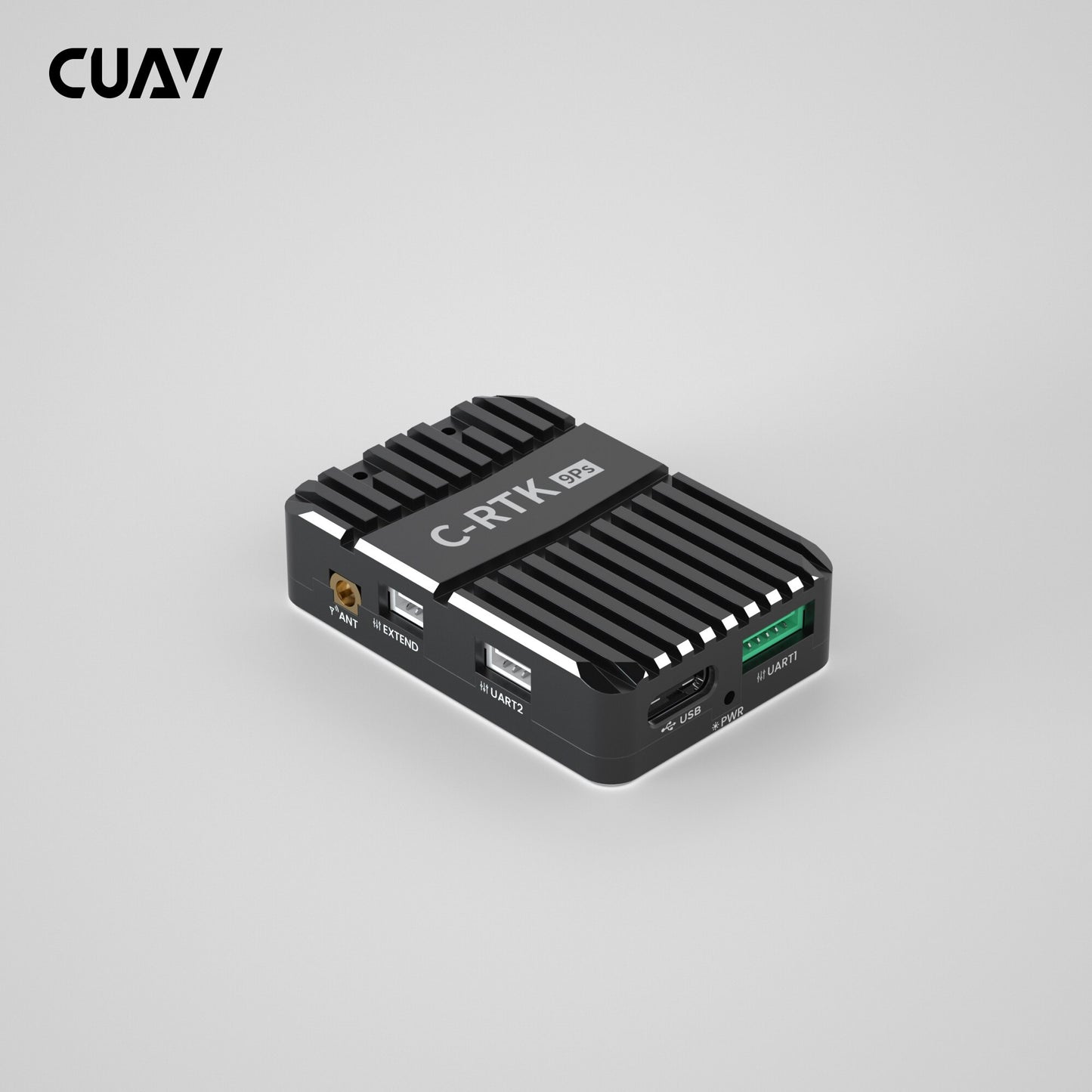

UARTI f UART2 EXTEND 682888 6828 12VS+/x7 Series (UARTI->GPS) cable (250mm

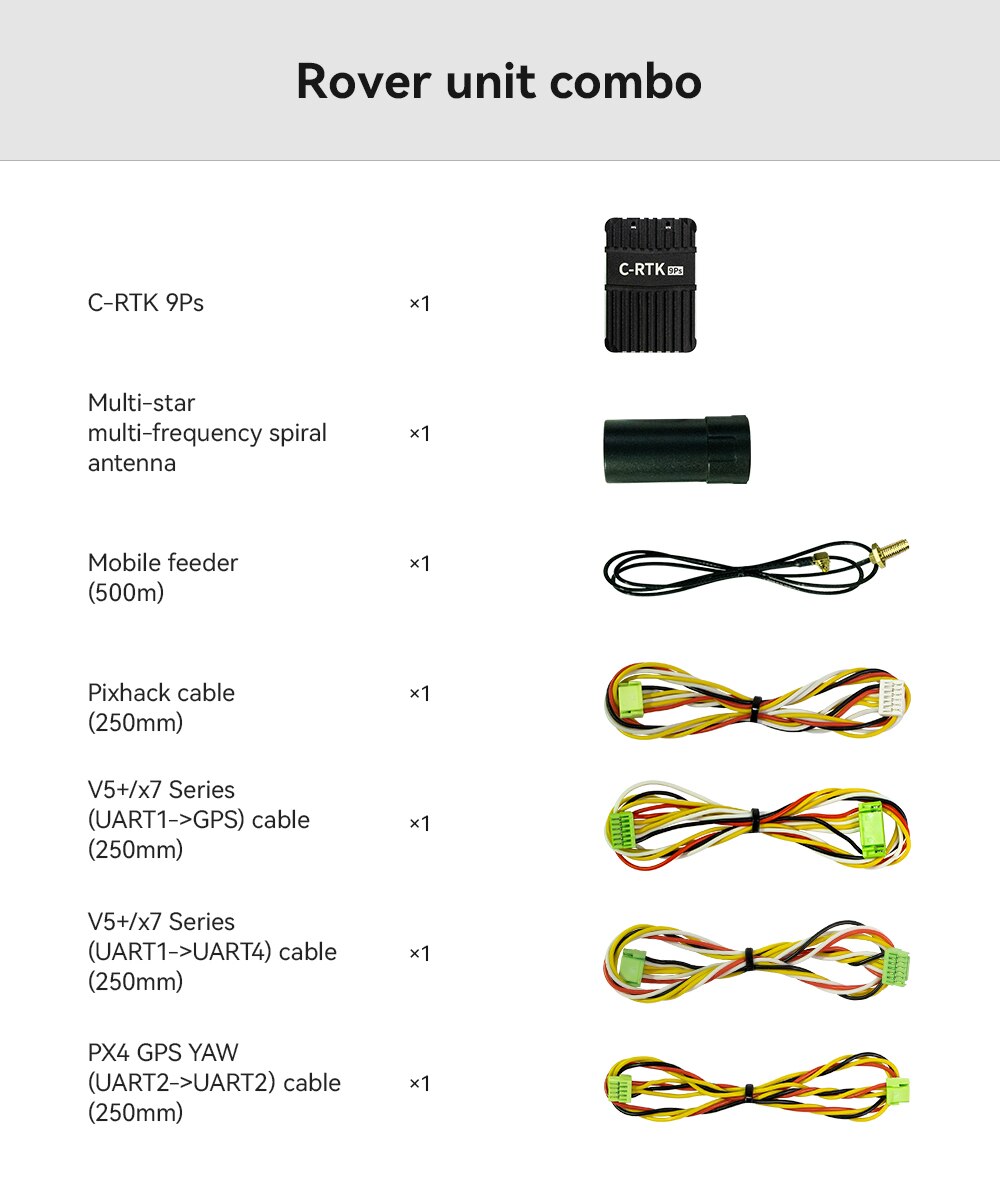

The CUAV RTK 9Ps module features a high-performance, multi-star, and multi-frequency spiral antenna design. It also includes a mobile feeder with a range of 500 meters, as well as a VS+/x7 Series cable (UART to GPS) with a length of 250mm.

VS+/x7 Series (UARTI->GPS) cable (250mm

The CUAV RTK 9Ps module features a multi-star, multi-frequency spiral antenna design. It also includes a VS+/x7 Series cable with a length of 250mm, which connects the UART to GPS ports.

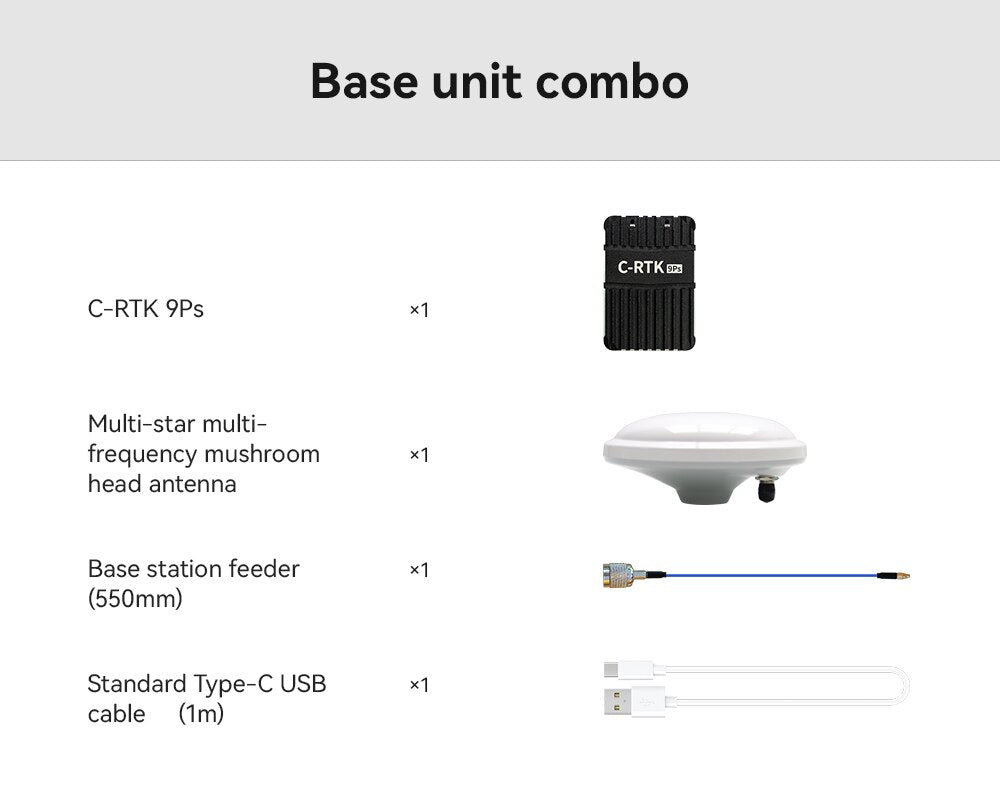

Type-C USB cable (Im) is included with the base unit combo .thanks very much usual good quality sturdy: 29 Jun 2021 05.19 Ses #
