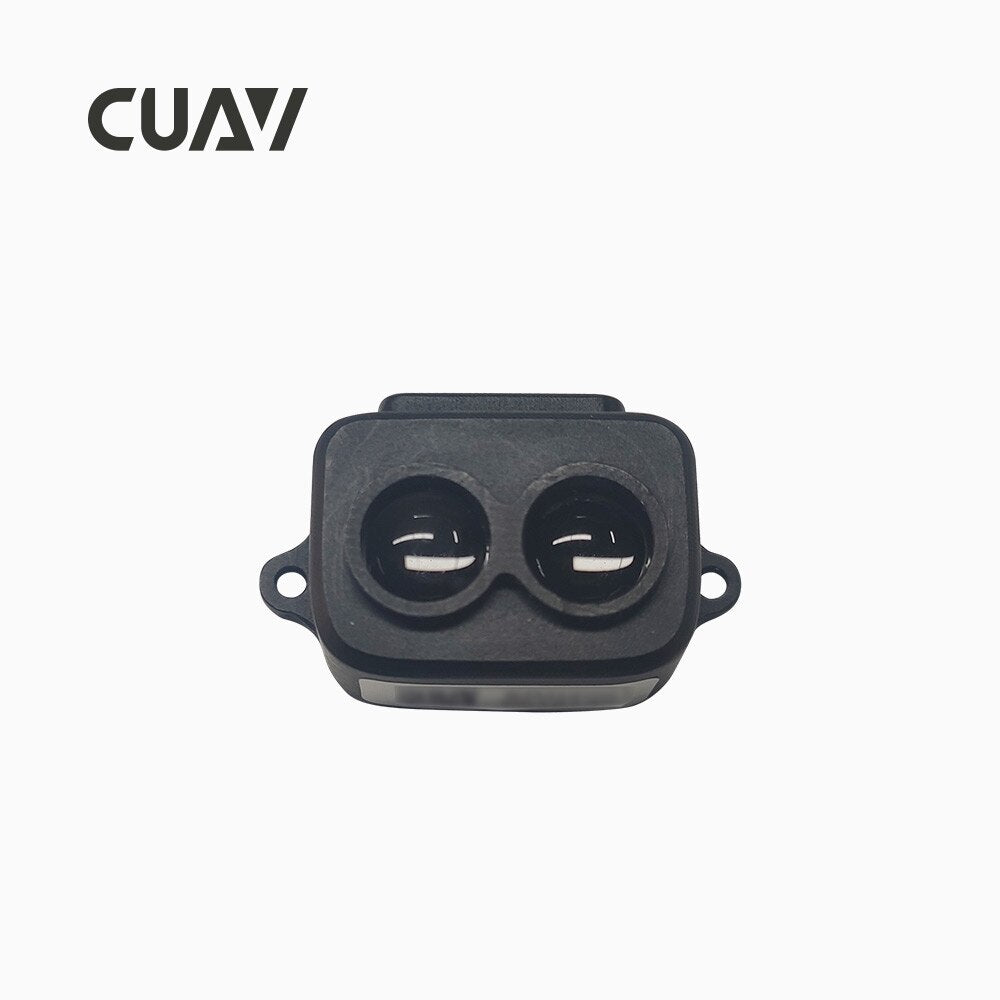

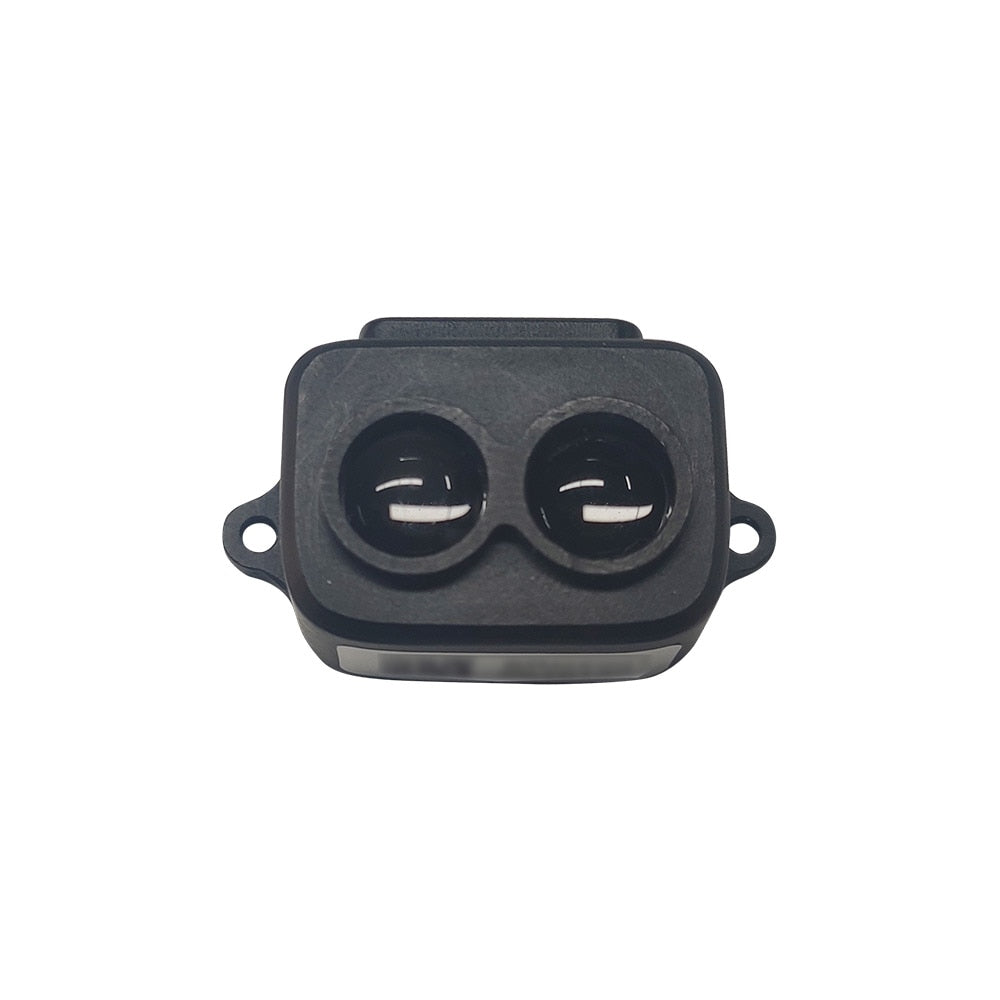

CUAV TF-Luna Lidar Sensor - Fly Drone Short-Range Sensor Measure Distance Operating Range 0.2M To 8M

CUAV TF-Luna Lidar Sensor - Fly Drone Short-Range Sensor Measure Distance Operating Range 0.2M To 8M

CUAV

$75.23 USD
$112.85 USD $75.23 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

105 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

CUAV TF-Luna Lidar Sensor SPECIFICATIONS

Product Parameters
Operating Range 0.2~8m (90% Reflectivity)
0.2~2.5m (10% Reflectivity)
Distance Resolution 1cm
frame rate 1-250Hz
Ambient Light Resistance 70Klux
Operation Temperature -10~60°C



Optical Parameters
Light Source VCSEL
Central wavelength 850nm
FOV 2°
Photobiological Safe Class 1 (IEC60825)



Electrical Parameters
Supply Voltage DC 3.7~5.2V
Average Current ≤70mA
Power Consumption ≤0.35W
Peak Current 150mA
Communication Level LVTTL (3.3v)

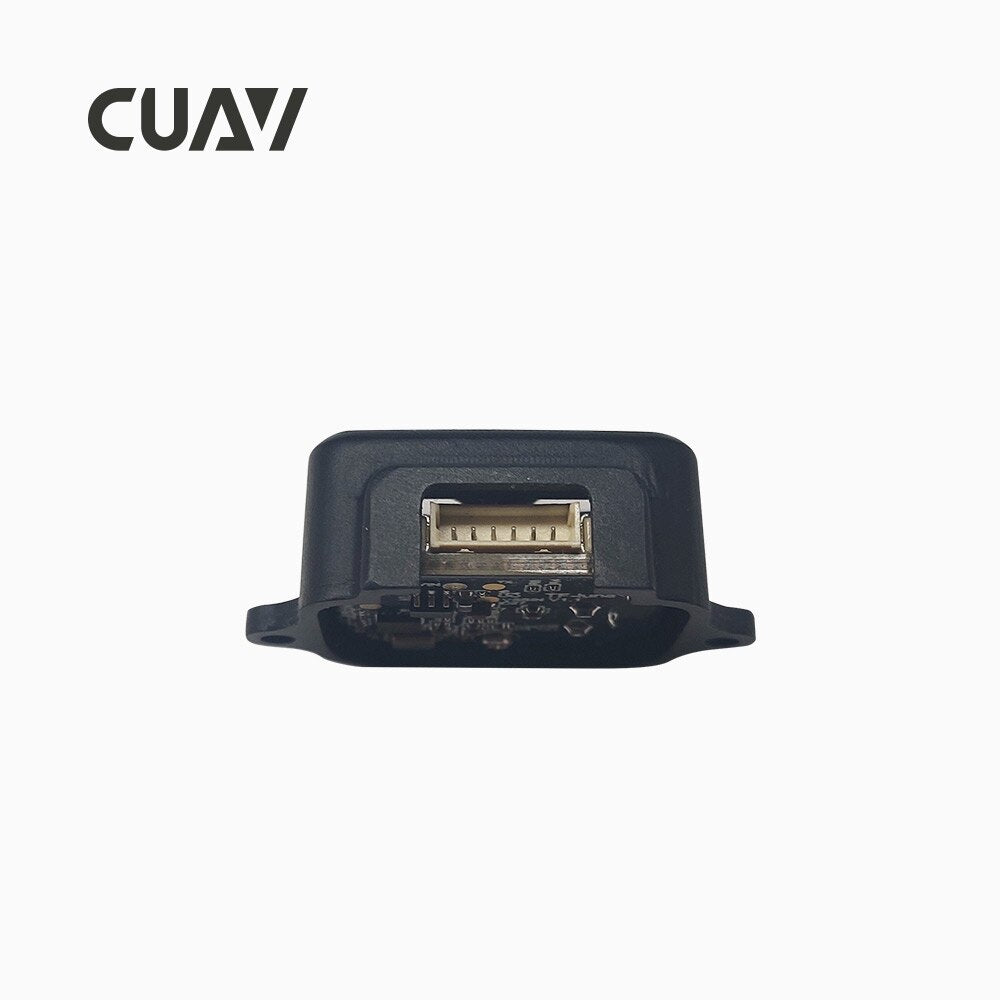

Communication Interface UART/I2C



Other Parameters
Dimensions 35×21.25×12.5mm (LxWxH)
Weight <5g
Enclosure Material PC/ABS
Storage Temperature -20~75°C



TF-Luna Lidar

CUAV TF-Luna LiDAR Module Fly Drone Short-Range Sensor Measure Distance oOperating Range 0.2M to 8M

TF-Luna Lidar Introduction：

TF-Luna is a ToF-based, single-point rangefinder
with an 850nm infrared light source and a unique
optical and electrical design for stable, accurate and highly sensitive distance measurements.

TF-Luna Lidar features：

1 --Light weight: ≤5g, suitable for strict situations such as weight-bearing requirements.
2 --Built-in a variety of adaptation algorithms, a variety of adjustable configurations and parameters, in complex environments with excellent ranging performance.
3 --Range 0.2m-8m close-range low-cost ranging module, the product has a high stability, high precision, high sensitivity distance detection.
4 --Small size, easy to install, easy to integrate.

Product Description

CUAV TF-Luna Lidar Module, Description Power supply voltage 3.7V-5.2V Average current sZOmA PeakCUAV TF-Luna Lidar Module, the product is built with algorithms adapted to various application environments . it adopts multiple adjustableCUAV TF-Luna Lidar Module, TF-Luna is using Time of Flight (ToF) principle to measure theCUAV TF-Luna Lidar Module, the working temperature of the product is from -10°C to 60°C . pleaseCUAV TF-Luna Lidar Module, CUNV TF-Luna LiDAR module (Short-range distanceCUAV TF-Luna Lidar Module, mainly used for stable, accuracy and high-frame rate detectionCUAV TF-Luna Lidar Module, the product is built with algorithms adapted to various application environments . it adopts multiple adjustableCUAV TF-Luna Lidar Module, TF-Luna is a single-point ranging LiDAR,CUAV TF-Luna Lidar Module, TF-Luna has highly stable. accurate. sensitive range detection, with 0.2CUAV TF-Luna Lidar Module, TF-Luna single-point ranging LiDAR, based on To

TF-Luna is a single-point ranging LiDAR, based on ToF principle. Mainly used for stable, accuracy and high-frame rate

range detection. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

TF-Luna is using Time of Flight (ToF) principle to measure the distance and it periodically emits

near infrared modulated waves. TF-Luna calculates the time by measuring the phase difference

between the original wave and the reflection wave and uses that time to get relative distance

About product

* The product can only be maintained and repaired by qualified professionals, and only original

spare parts are permitted to use for performance and safety reasons.

* This product DOES NOT have polarity and over-voltage protection at all. Please wire and

supply power according to the instructions.

* The working temperature of the product is from -10℃ to 60℃, please do not use it outside

this temperature range to avoid risk and damage.

* The storage temperature of the product is from -20℃ to 75℃, please do not store it outside

this temperature range to avoid risk and damage.

* For safety and performance, please DO NOT open the product casing or remove the IR-pass

filter

Packing & Delivery

CUAV TF-Luna Lidar Module, TF-Luna is a single-point ranging LiDAR,CUAV TF-Luna Lidar Module, * For safety and performance, please DO NOT open the product casing or remove the IRCUAV TF-Luna Lidar Module, thanks very much usual good quality sturdy: 29 Jun 2021 05.19 Ses #

Poly bag packing.
