CZI MP10E Drone Broadcast and Sound Pickup System for DJI Mavic 3 Enterprise
CZI MP10E Drone Broadcast and Sound Pickup System for DJI Mavic 3 Enterprise
CZI
Couldn't load pickup availability
Overview
The CZI MP10E Drone Broadcast and Sound Pickup System is a cutting-edge accessory designed for seamless integration with the DJI Mavic 3 Enterprise drone. Combining advanced sound pickup and broadcasting capabilities in a lightweight unit, this system delivers superior audio performance and long-distance communication. With features such as built-in red and blue warning lights, noise suppression technology, and an ergonomic color-screen handheld microphone, the MP10E ensures efficient and reliable operations for professional use cases.
Key Features
- Two-in-One Design: Combines sound pickup and broadcasting functionalities in a single unit weighing just 140g.
- Superior Noise Suppression: Advanced acoustic algorithms suppress paddle noise and enhance human voice clarity with an array microphone setup.
- High-Performance Loudspeaker: Midrange speaker paired with an additional horn delivers 107dB@1m sound pressure, covering a broadcast range of up to 150m.
- Integrated Warning Lights: Red and blue flashing lights with a wide 60° angle improve visibility for law enforcement or emergency applications.
- Color-Screen Handheld Microphone: Features a 1.8-inch display for live broadcasting, audio monitoring, and seamless control with Bluetooth connectivity.
- Long Battery Life: Handheld microphone with a 3.7V, 2600mAh battery supports extended usage, recharged via USB-C.
- CZI Sound App Support: Compatible with Android 7.0+ and iOS 13+, providing an enhanced user experience for live streaming and monitoring.
Specifications
Main Unit
| Parameter | Details |
|---|---|
| Model | MP10E |
| Dimensions (Host) | 90mm x 80mm x 82mm |
| Weight | ≤140g |
| Power Supply | PSDK_TypeC (12V–17.6V) |
| Power Consumption | ≤15W |
| Sound Pressure (Speaker) | 107dB@1m |
| Broadcast Distance | Up to 150m |
| Maximum Operating Range | 10m |
| Live Stream | 8Kbps/16Kbps |
| Signal-to-Noise Ratio | 67dB |
| Alarm Lamp | 3 red lights, 3 blue lights, 5W total power, 60° angle |
| Working Temperature | -10°C to 40°C |
| Storage Capacity | 16GB ROM |
Bluetooth and Handheld Microphone
| Parameter | Details |
|---|---|
| Dimensions | 190mm x 60mm x 30mm |
| Weight | ≤170g |
| Battery | 3.7V, 2600mAh |
| Charging | USB-C, 5V 1A |
| Display | Color screen, 1.8-inch |
| Bluetooth Version | Bluetooth 4.2 |
| Frequency Range | 2.400–2.4835GHz |
| Transmit Power (EIRP) | <10dBm |
Software Compatibility
| CZI Sound App System Support| Android 7.0 and above, iOS 13 and above |
Packages
- 1x CZI MP10E Broadcast and Sound Pickup Main Unit
- 1x Handheld Microphone with Color Screen
- 1x USB-C Charging Cable
- 1x User Manual
Applications
- Public Safety and Law Enforcement: Enhance communication and visibility with clear audio pickup and integrated warning lights.
- Emergency Response: Deliver real-time announcements and engage in two-way communication during rescue operations.
- Public Event Management: Broadcast live messages over a wide area, ensuring efficient crowd control and coordination.
- Industrial and Commercial Use: Ideal for operations requiring clear long-range communication in construction, inspections, or logistics.
- Live Streaming and Monitoring: Use the handheld microphone for seamless audio capture and broadcasting to major platforms via the CZI Sound App.
The CZI MP10E Drone Broadcast and Sound Pickup System is an essential tool for professionals seeking reliable and high-performance communication solutions with the DJI Mavic 3 Enterprise drone. Its lightweight design, advanced acoustic technology, and versatile applications make it the perfect choice for any demanding mission.

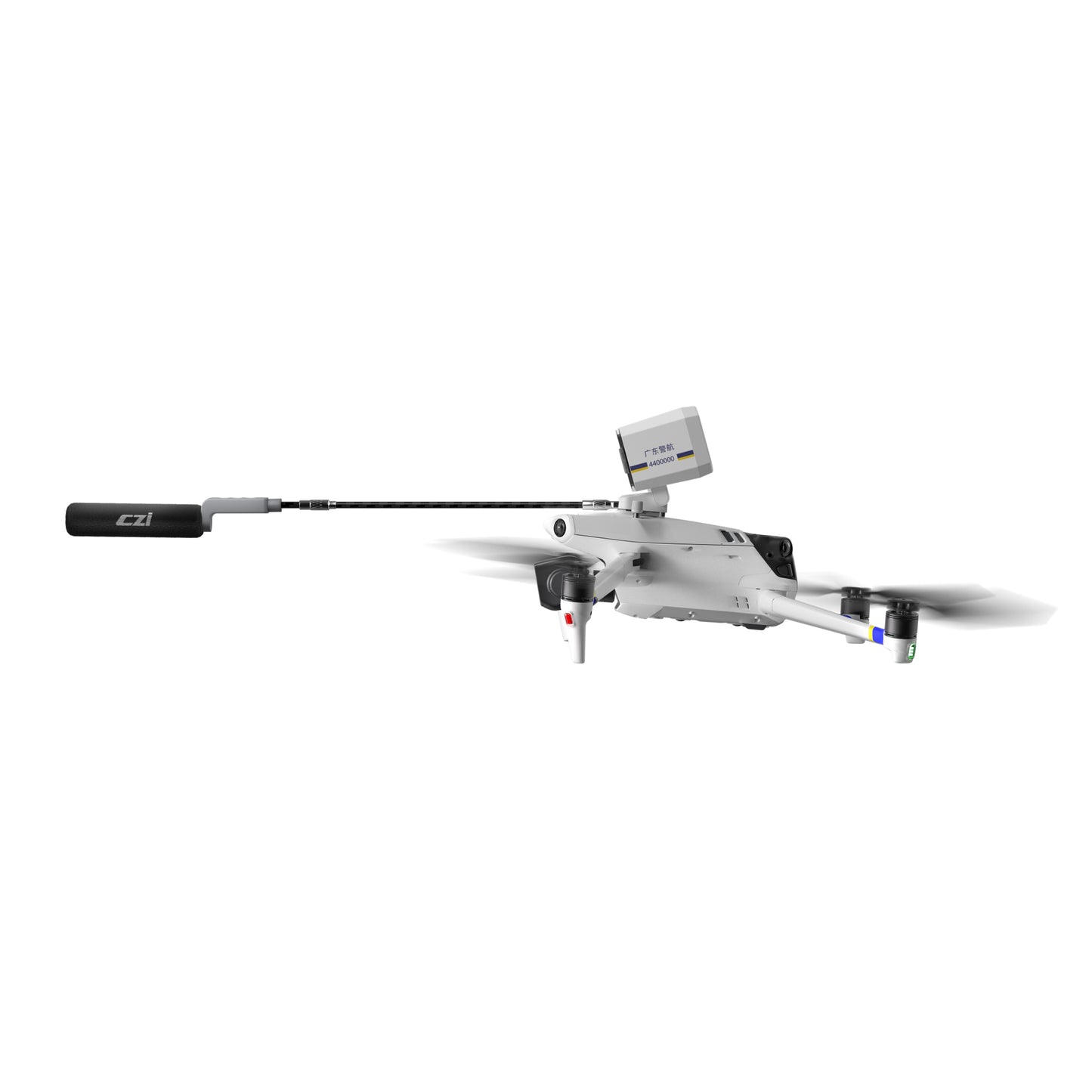

CZI MP10E Drone Broadcast and Sound Pickup System for DJI Mavic 3 Enterprise, capturing high-quality audio and video in real-time.
