DarwinFPV Betaflight F4 Flight Controller + 30A 2-6S BLHeli_32 4in1 ESC Stack, 20x20 M2

Overview

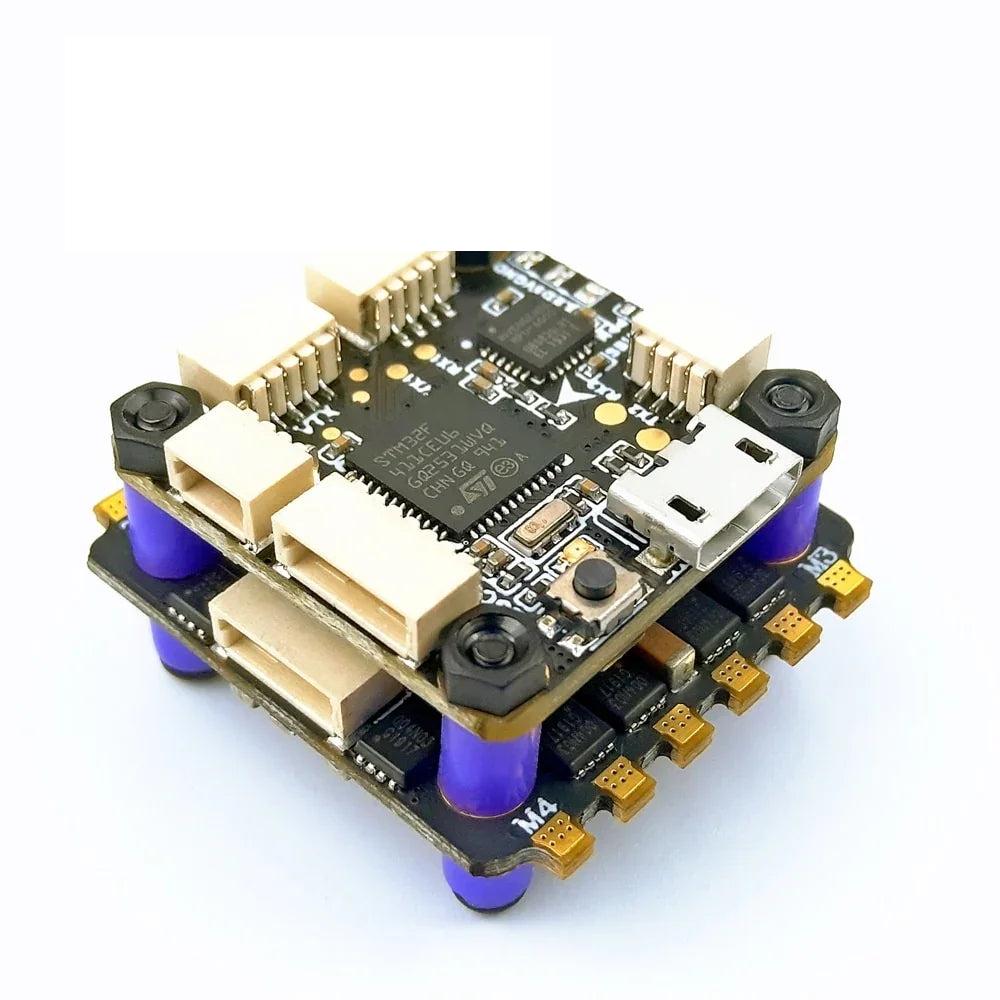

The DarwinFPV Betaflight F4 FC + 30A 2-6S BLHeli_32 4in1 ESC Stack combines an F4 flight controller and a 4-in-1 ESC for compact FPV multirotor builds using a 20 x 20 mm mounting pattern. The ESC is designed for straightforward soldering, and the flight controller provides multiple plug-in ports for simplified wiring.

Key Features

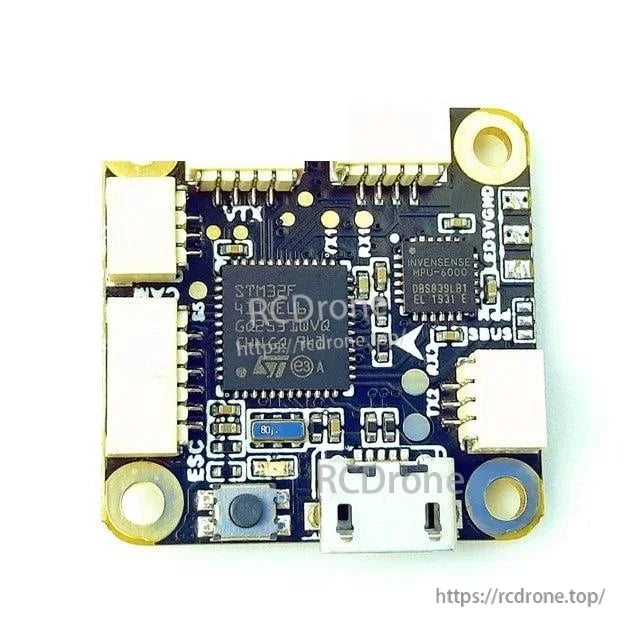

• F4 flight controller with STM32F411 MCU, MPU6000 gyro, and AT7456E OSD

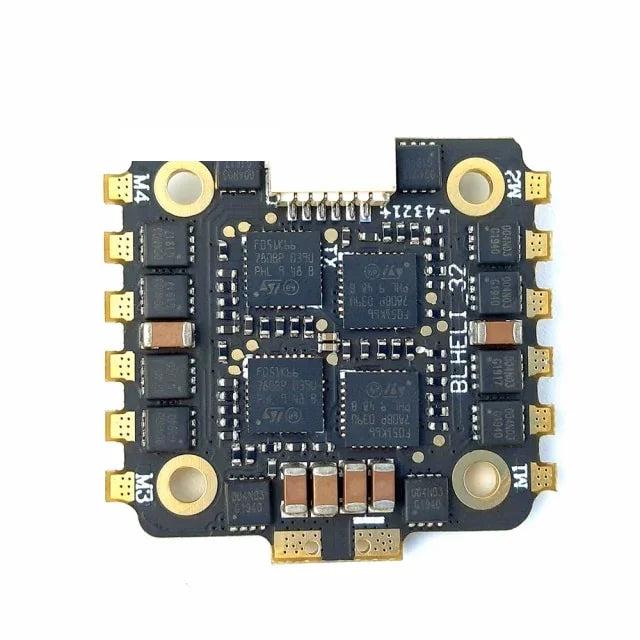

• 4in1 ESC rated at 30A continuous current
• 2-6S LiPo support (FC and ESC)
• ESC throttle signal support up to DSHOT1200
• 20.0 x 20.0 mm M2 mounting holes (FC and ESC)

Specifications

30A 4in1 ESC

F4 Flight Controller

For wiring or configuration help, contact support@rcdrone.top or visit https://rcdrone.top/.

Manuals

Manual for ESC flight controller Betaflight F4 FC 30A 2-6S BLHeli_32 4in1 Dshot1200
