DarwinFPV X9 9 inch FPV Analog Drone SPECIFICATIONS
Brand Name: DarwinFPV
Model Number: DarwinFPV X9
Is Electric: No battery
Origin: Mainland China
Material: Carbon Fiber
Recommend Age: 14+y
RC Parts & Accs: Antennas
Size: 9 inch
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Power Supplies: Battery
Quantity: 1 pcs
Technical parameters: Value 2
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate

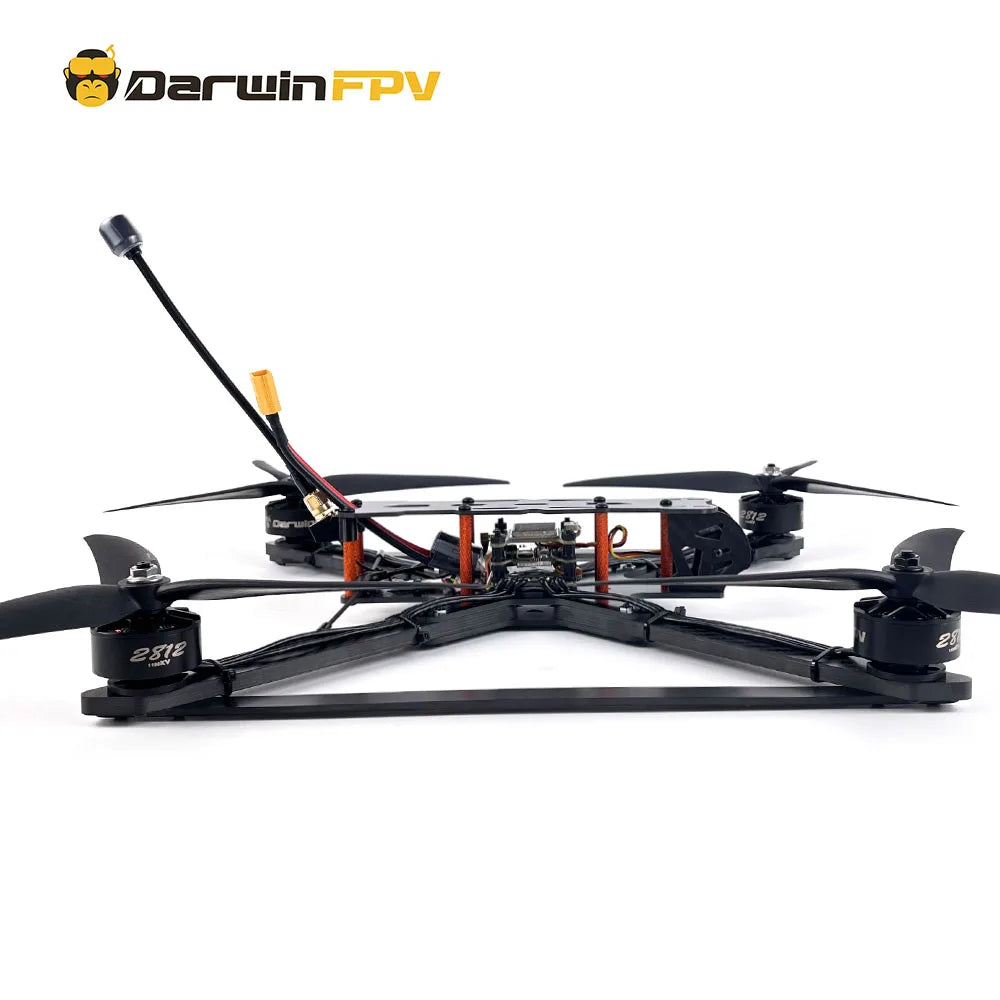

Darwin X9 is a 9-inch heavy load fpv drone. It is equipped with 2812 motors, 1000mW analog video transmission, F4 flight control and 100A ESC. It is a real monster in the sky and it can fly with you anytime, anywhere!
Features:

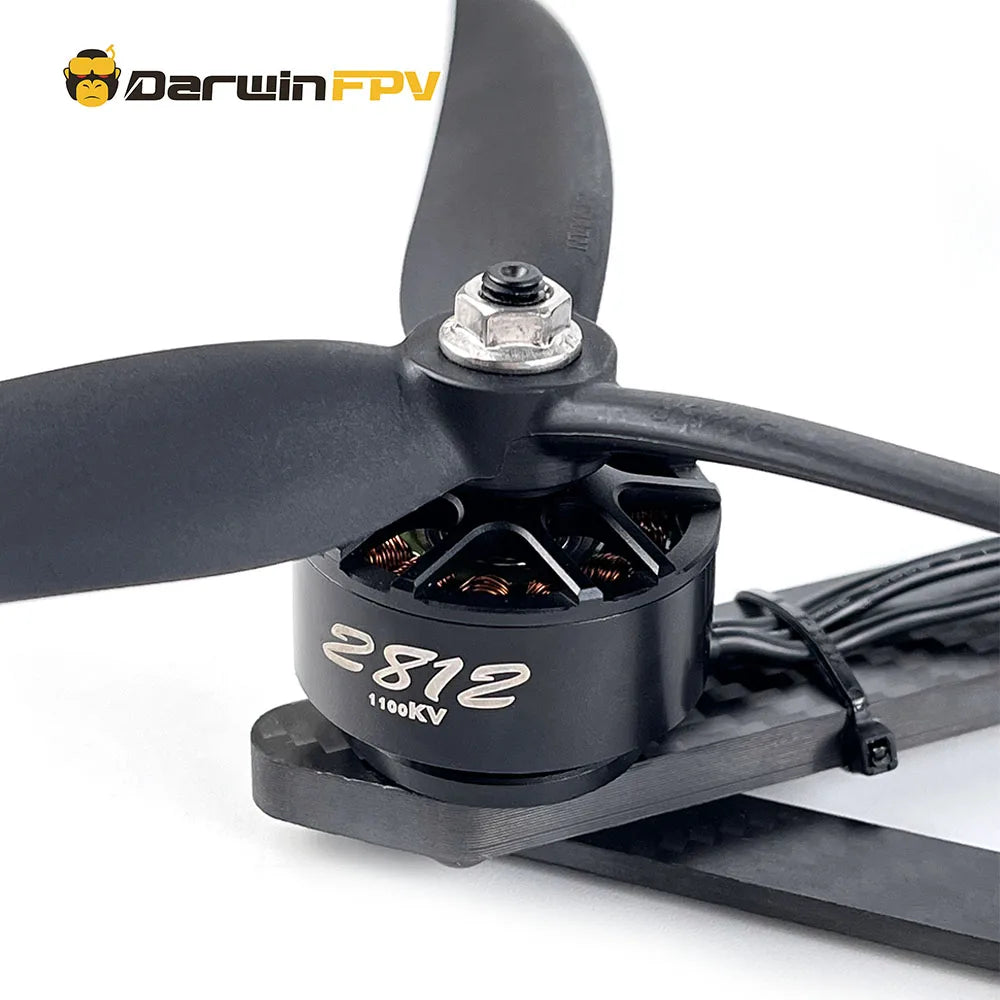

Large size 2812 motor, with very strong loading capacity and durable performance.
The new 1000mW analog VTX, with DarwinFPV dedicated receiving antenna, can provide a longer flight distance.
Specifications:
- Model : Darwin X9 Analog Version
- Video : Non(can be attached to the action camera)

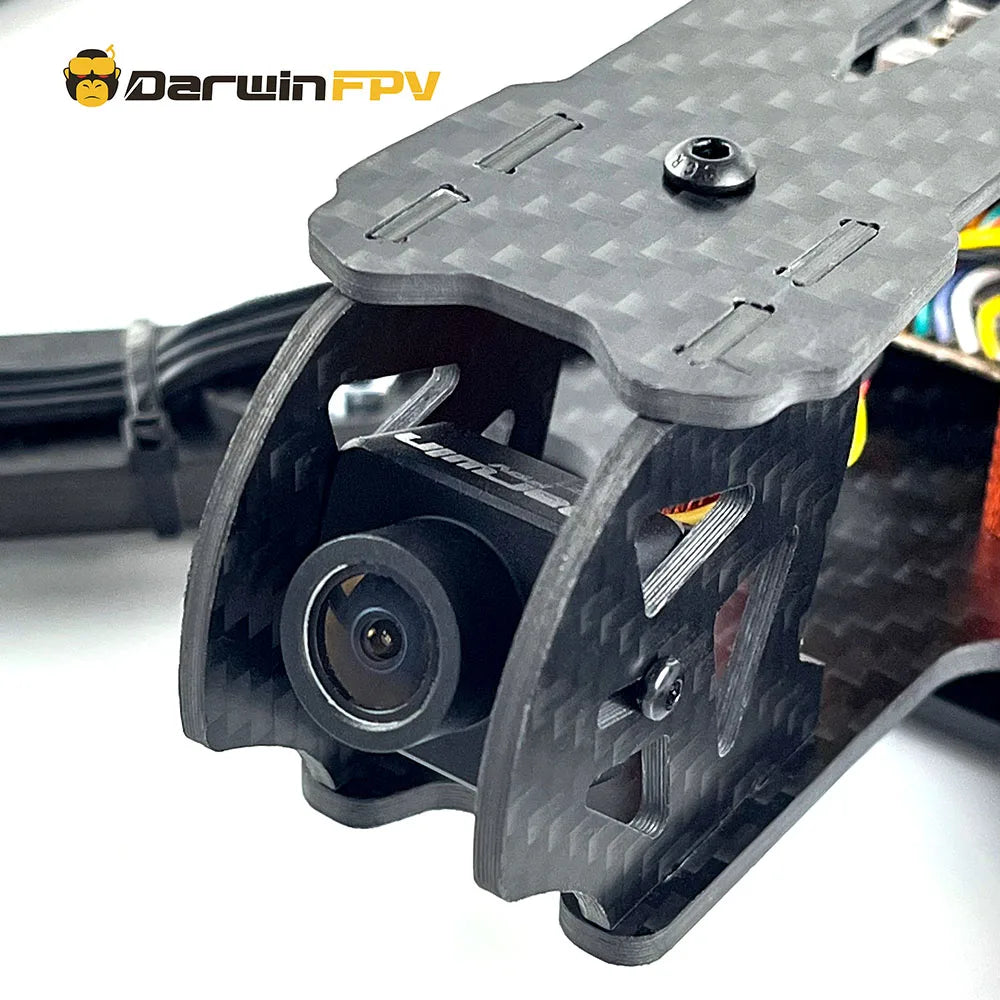

- Camera : Darwin "cement" waterproof camera
- VTX 5.8G 1000mW VTX

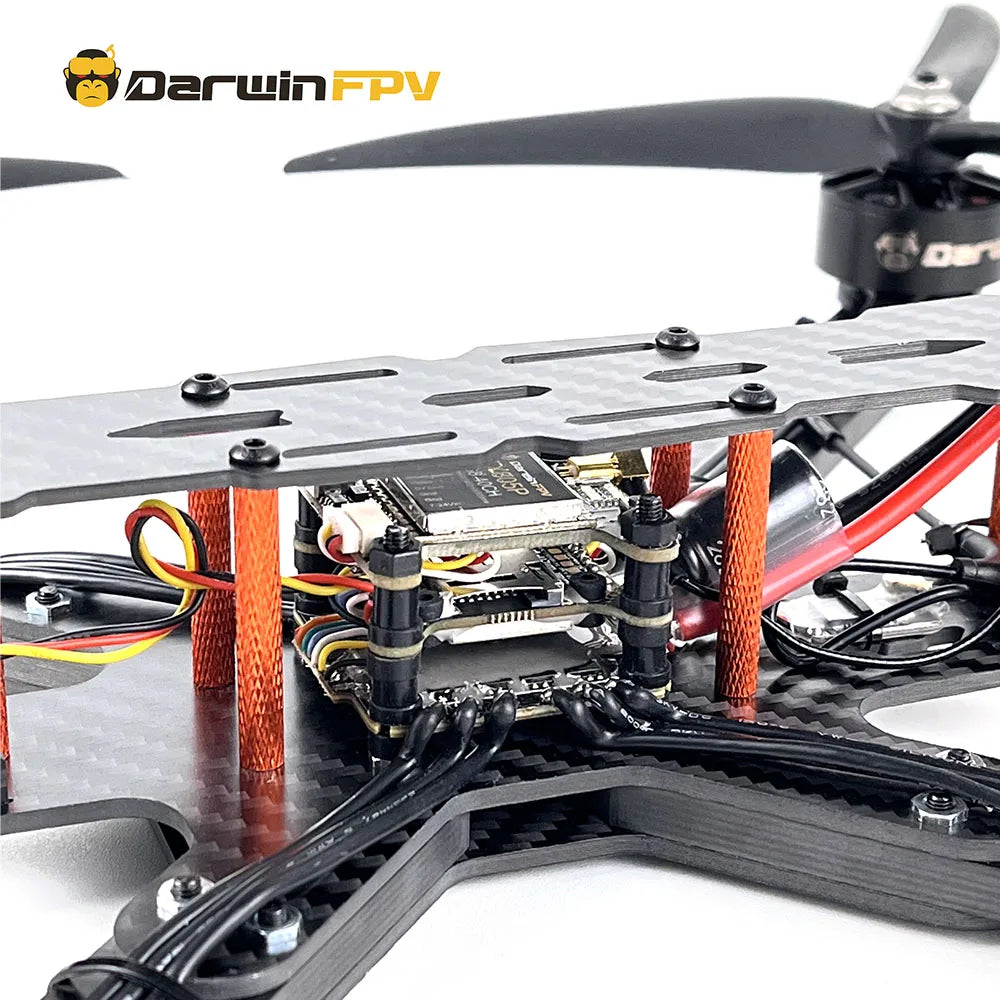

- FC : 3-6S F411 MPU6500
- ESC : "Cement" 100A 3-6S BLHeli_32 128kHz 4in1
- Receiver: TBS Nano/ELRS/PNP(Reserve 4Pin plug)
- GPS: Non

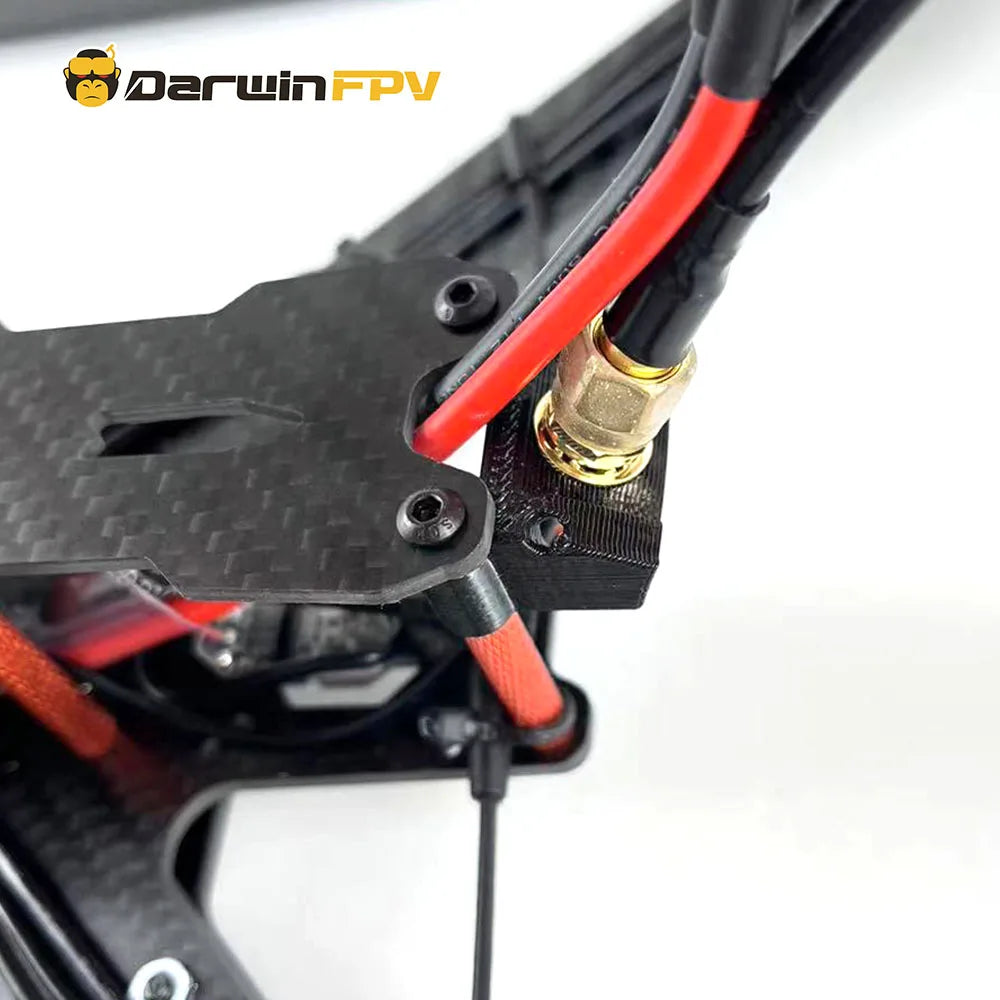

- VTX Antenna: 5.8G LHCP RP-SMA 150mm antenna
- Motor: 2812 - 1100KV
- Propeller : GEMFAN 9045-3 Black (2CW, 2CCW)
- Frame type : True-X
- Wheelbase: 363mm
- Arm thickness: 6mm
- payload capacity: 1.5kg-2.5kg
- Furthest flight distance: 3km
- Maximum horizontal speed: 170km/h
- Maximum take-off altitude: 6000m
- Maximum wind resistance level : Level 7
- Operating temperature range: : -10℃-40℃
- Battery life (using 6S 8200mAh 60C battery):
- parallel cruise no load 33 mins
- cruise and load 1.5kg 10 mins
- cruise and load 2 kg 7 mins
- cruise and load 3 kg 4 mins
The data is for reference only, and factors such as different environments, usage methods, and firmware versions may have an impact on the test data
Freestyle
Recommended battery: 6S 6500-8500mAh
Dimensions(without propeller) (L×W×H):280mmx295mmx50mm

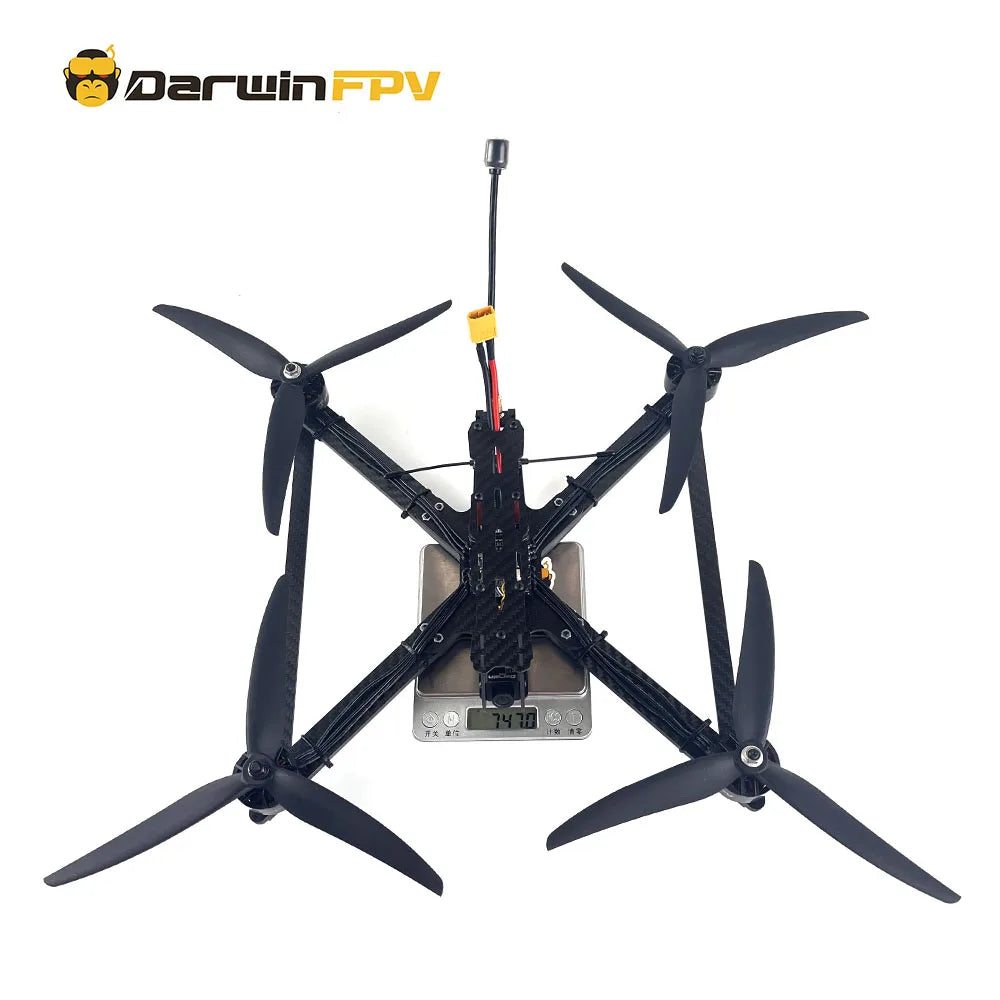

Weight(without package) : 747g±5g
Package Size : 314mmx326mmx74mm
Weight(with package) : 1100g±5g
Packing List:
-
Darwin X9 Long Range FPV Drone*1
-
GENFAM 9045-3 propeller*1
-
120mmx120mm sticker *1
-
20mmx260mm battery strip *1
-
M5 flange nut*4
DarwinFPV X9 9 inch FPV Drone Details
