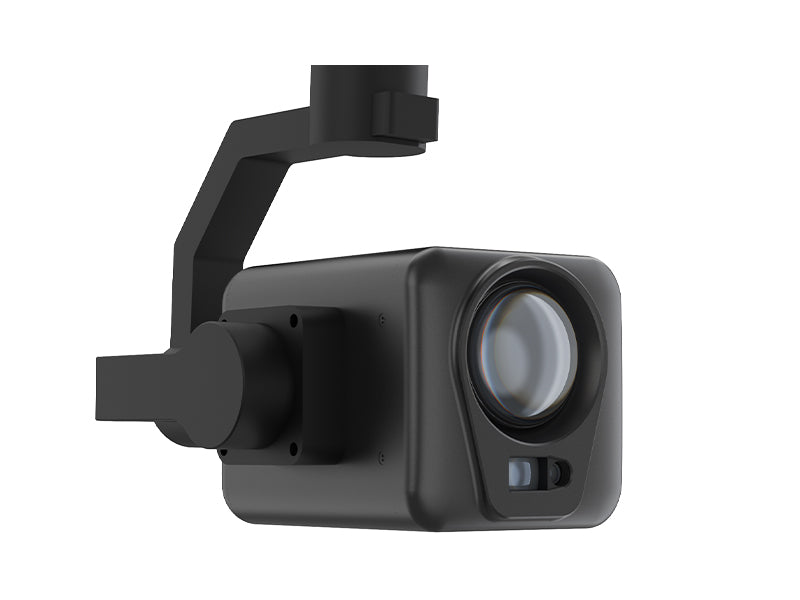

Deepthink S2 Pro Ai Night Vision Drone Camera for DJI M300/M350 RTK Drone

Overview

The Deepthink S2 Pro AI Night Vision Drone Camera is an advanced, hybrid payload designed for DJI M300/M350 RTK drones, delivering exceptional performance in ultra-low light conditions (as low as 0.0001 lux). Combining 30X optical zoom, 160X integrated zoom, 4MP resolution, and a laser rangefinder with a detection range of 5-1500 meters, this camera offers precise and versatile imaging capabilities. With an IP55 protection rating, a durable aluminum alloy shell, and a temperature operating range of -25°C to 60°C, the S2 Pro is built for resilience in harsh environments, making it ideal for law enforcement, firefighting, search and rescue, and oil and gas inspections.

---

Key Features

• AI-Powered Imaging: AI ISP algorithm enables full-color HD imaging in ultra-low light conditions (0.0001 lux).
• Zoom Capabilities: 30X optical zoom and 160X integrated zoom provide high-detail imaging even at long distances.
• Laser Rangefinder: Accurately measures distances between 5 to 1500 meters with ±1m precision.
• HDR and Defogging: Built-in HDR function with a dynamic range of 120dB and AI defogging ensures image clarity in challenging lighting or weather conditions.
• IP55 Rating: Withstands rain, snow, and dusty environments.
• Wide Operating Range: Functional in temperatures from -25°C to 60°C and humidity levels up to 95%.

---

Camera Specifications

Sensor and Imaging

Feature	Details
Sensor	1/1.8" Starlight CMOS
Minimum Illumination	Full color: 0.0001 lux
Resolution	4MP, 2688×1520P
Video Frame Rate	5fps~30fps
Dynamic Range (HDR)	120dB
Exposure Mode	Auto
Digital Noise Reduction	Supported

Lens and Zoom

Feature	Details
Focal Length	f=7.1~171mm, 30X optical zoom、160X max zoom Equivalent 34.8-820.8mm
Aperture	F1.6-F5.1
Optical Zoom	30X
Integrated Zoom	160X
Field of View (FOV)	Wide: 59.2°~34.6°, Tele: 2.5°~1.4°
Day-Night Mode	Electric IR-CUT

---

Laser Rangefinder

Feature	Details
Range	5-1500 meters
Wavelength	905nm
Accuracy	±1m

---

PTZ (Pan-Tilt-Zoom) System

Feature	Details
Angular Jitter	±0.008°
Control Rotation Range	Pan: -120°~+30°, Yaw: ±320°
Interface	DGC 2.0
Power Supply	13.6V/2A

---

General Specifications

Feature	Details
Ingress Protection	IP55
Operating Temperature	-25°C to 60°C (-13°F to 140°F)
Working Humidity	≤95% (Condensation-free)
Power Consumption	7W
Dimensions	L 179mm × W 126.5mm × H 158mm
Weight	About 885g ±5g

---

Applications

The Deepthink S2 Pro camera is purpose-built for a range of critical applications:

• Law Enforcement: Enhancing surveillance and tactical operations.
• Search and Rescue: Locating missing persons in low-visibility conditions.
• Firefighting: Monitoring and assessing fire dynamics in real time.
• Oil and Gas Inspections: Identifying potential hazards in industrial settings.

---

What's in the Box

• 1x Deepthink S2 Pro Camera
• 1x Storage Case
• 1x User Manual
• 1x Certificate
• 1x Lens Cleaning Cloth
• 1x MicroSD Card
• 2x Desiccant

---

Why Choose the Deepthink S2 Pro?

The Deepthink S2 Pro AI Night Vision Drone Camera offers unparalleled imaging and precision for professional UAV operations. Its advanced AI-powered features, robust build, and versatile applications make it the ideal tool for challenging environments. Whether you're conducting inspections, saving lives, or enhancing security, the S2 Pro ensures you capture every detail.

Born for the night, this camera adapts to DJI M300 and M350 RTK drones. Deepthink S2 Pro AI Night Vision Drone Camera offers exceptional low-light performance.

The Deepthink S2 Pro AI Night Vision Drone Camera was released in 2023. It compatible with DJI M300/M350 RTK drones. The camera features strong low-light performance, capable of producing full-color images in nearly total darkness. It a hybrid payload night vision camera paired with a laser range finder and zoom, offering high-quality imagery even at long distances. The camera also features a 30x optical zoom, 160x max zoom, and accurate coordinates detection using the laser rangefinder. S2 Pro has been used in various unmanned applications, including law enforcement, search and rescue, firefighting, and oil and gas surveys.

The Deepthink S2 Pro AI Night Vision Drone Camera features a low wind resistance design with a high-density aluminum alloy shell for effective heat dissipation, allowing it to operate in extreme environments. It comes equipped with a night vision zoom camera boasting 30X optical and 160X integrated zoom capabilities, along with a 4MP 1/1.8" Super Starlight CMOS sensor.

Richly defined color above 0.0001 lux, generating images based on AI-powered ISP algorithm, this new technology enables users to see crisp true-color images and take photos/videos in nearly complete darkness at 0.0001 lux. Meanwhile, S2 Pro has an excellent field of view and ultra-long night visibility distance.

Accurate Distance Measuring. This camera is equipped with a high-precision laser rangefinder, offering a detection distance of up to 1500 meters. It provides real-time positioning and learns the position information of targets within a range of 5-1500 meters.

Before HDR imaging, scenes with complex lighting, such as nighttime or city traffic, can be affected by light intensity, resulting in loss of detail. Our camera features a full-color zoom night vision camera with built-in HDR function that boosts dynamic range to 120dB, restoring true colors and ensuring image details are preserved.

Before lifting one head above the rain, fog, snow, and other environments, light is affected by the occurrence of different degrees of attenuation. This in turn leads to blurred imaging. De-fog kinetic energy automatically analyzes each pixel in the picture, calculates the degree of attenuation of light through obstacles, compensates for imaging through an algorithm, and ultimately realizes de-fogging, presenting high-definition imaging.

The Deepthink S2 Pro AI Night Vision Drone Camera for DJI M300/M350 RTK Drone features an IR-Cut function, which captures invisible light sources, prioritizing targets in extremely dark scenes. The camera ability to capture a wide range of wavelengths ensures that the final image is accurate and true to life, even in low-light conditions.

The Deepthink S2 Pro Ai Night Vision Drone Camera is designed for DJI M300/M350 RTK Drones, offering exceptional low-light performance with a sensitivity of 0.3 Lux.
