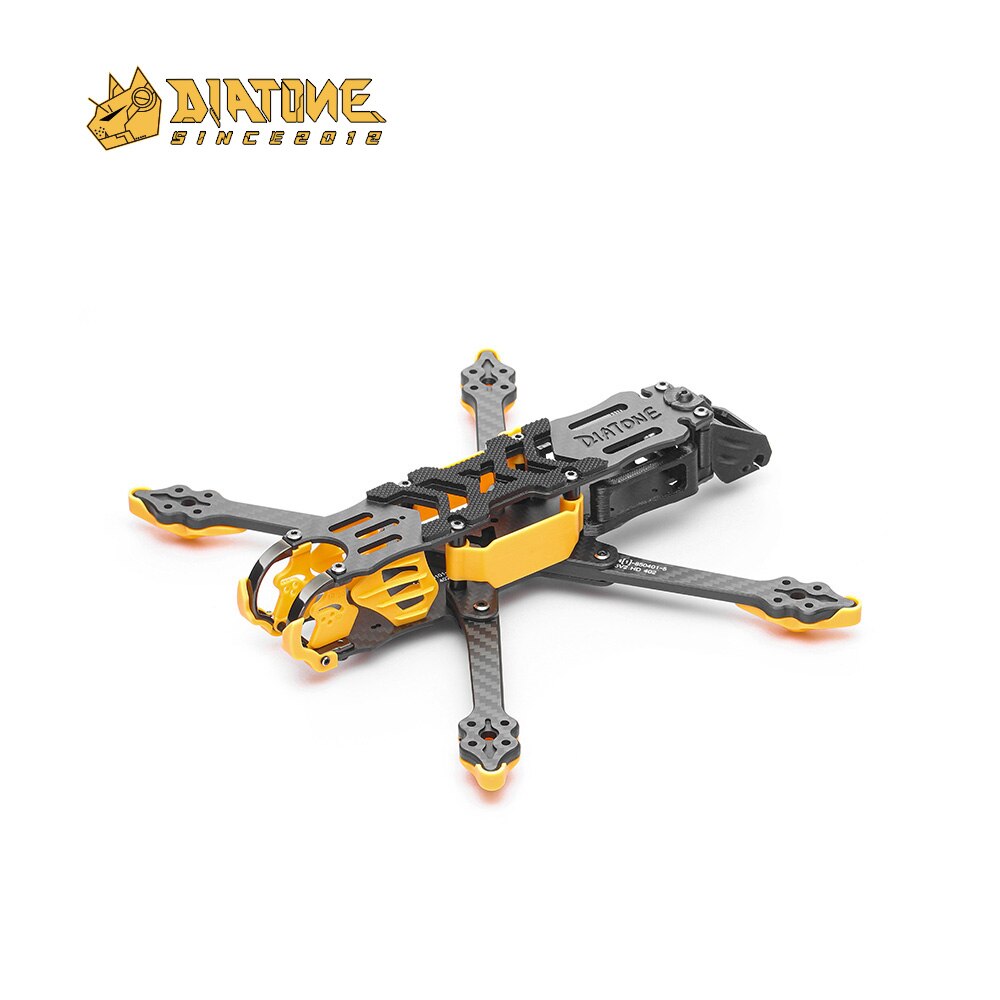

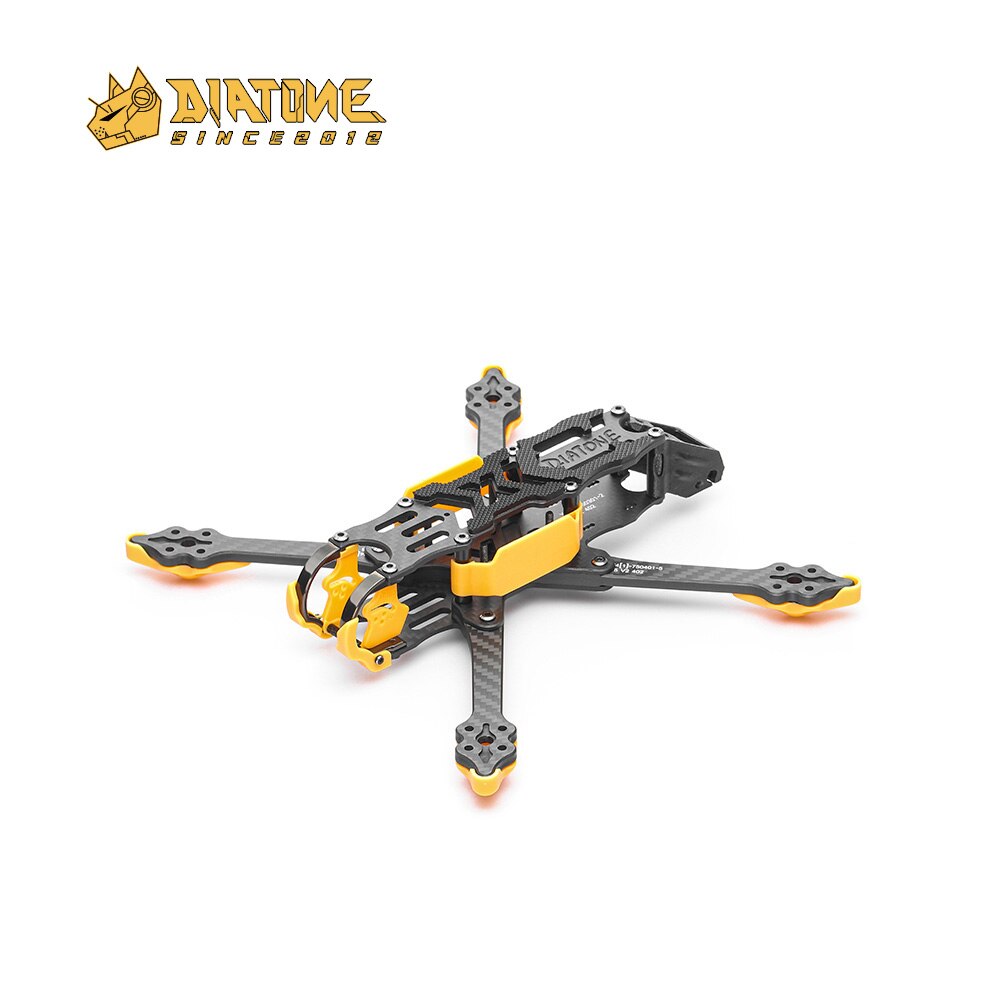

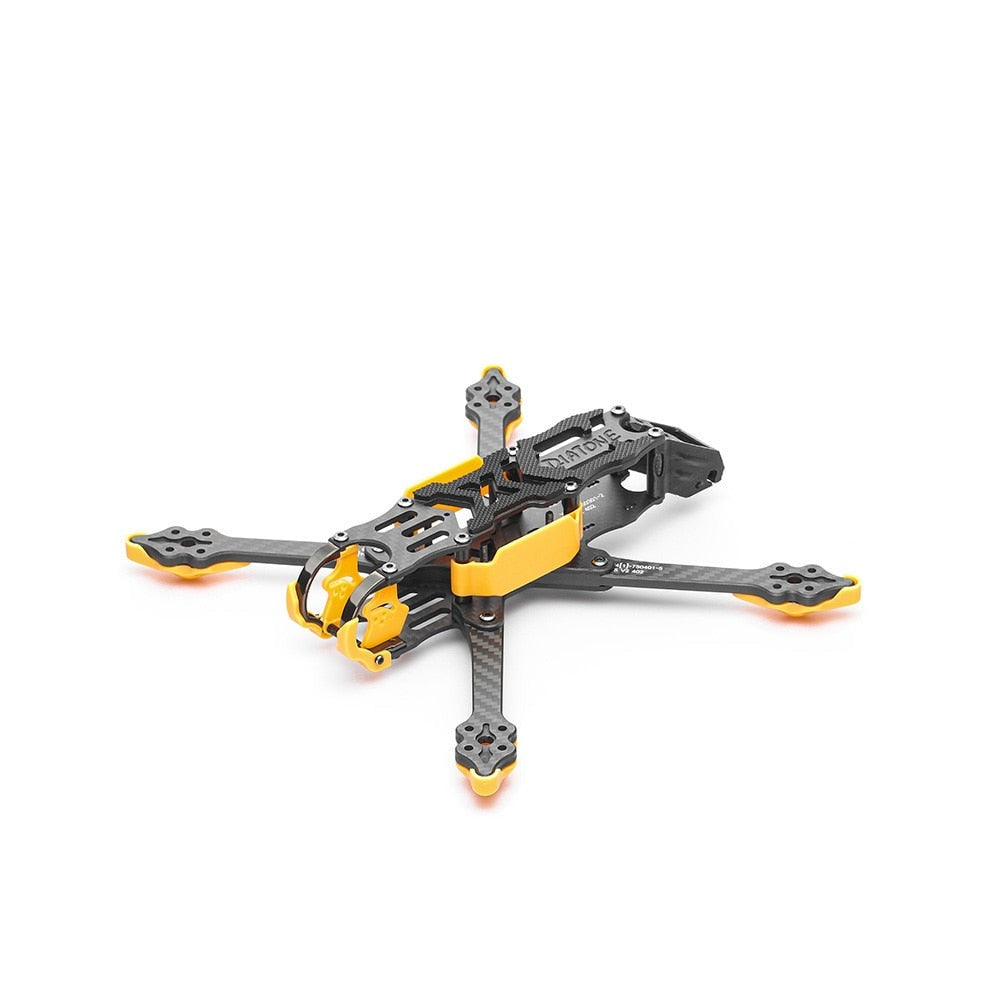

DIATONE Roma F5 V2 Frame kit SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Carbon Fiber

Brand Name: DIATONE

Specification:

Diatone has introduced a number of changes to the newly optimized Roma F5 V2,including the stiffness and strength of the frame arms. We've also strengthened the metal parts at the front of the frame and upgrade the alloy material from7075 to titanium steel. For that extra high-end, tactile quality, we've treated the surface of the metal parts as well and changed the screws fixing the metal parts fromM2 size to M3-sized specifications.

For our digital HD fans, we haven't forgotten you! This time, we've; added mounts for the twin DJI antennas.

Roma F5 V2's injection-molded protection parts not only add a dash of color with our new color options but also offer better protection for your gear. The GoPro mount angle can be adjusted for faster changes on the fly. For the best flying experience, the V2 comes in a slammed configuration for stability.

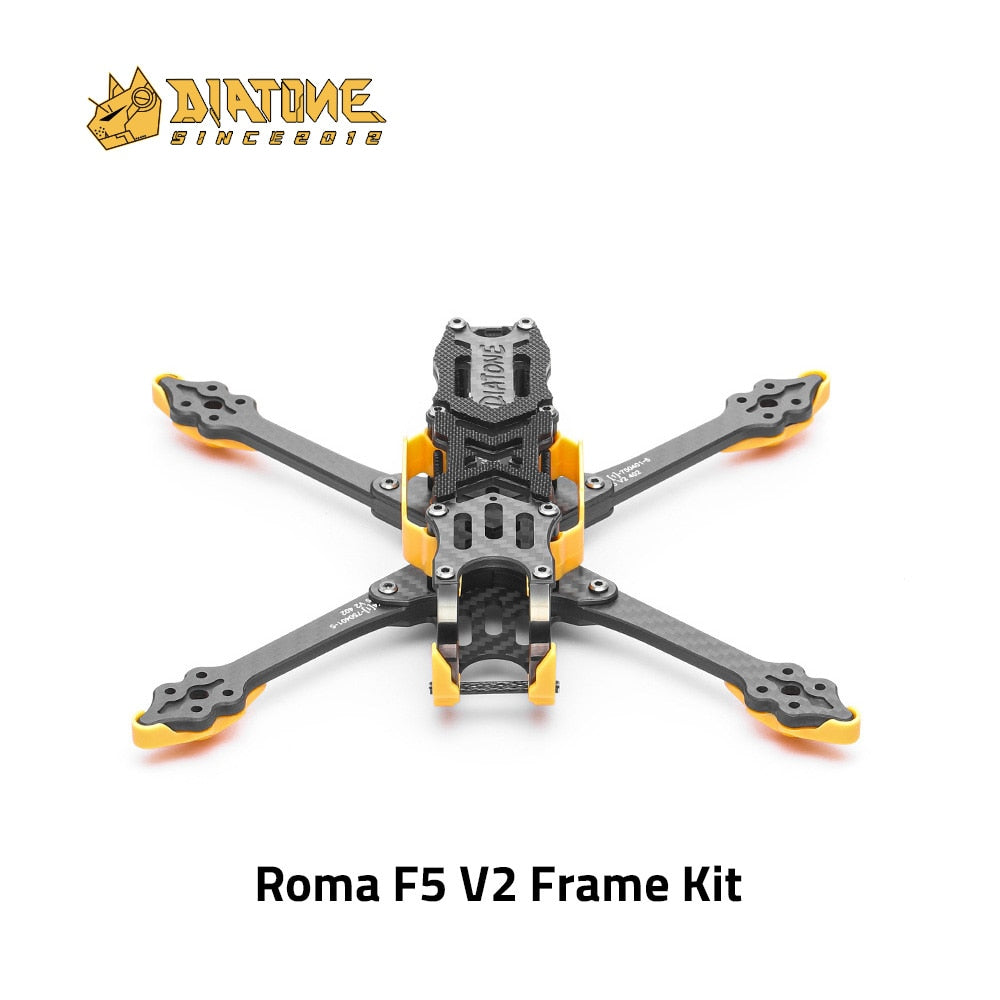

Roma F5 V2 Frame Kit

Wheelbase ：218mm

Prop Size ：5 inch
FC Mounting:30.5×30.5(M3)&20×20mm(M2)
Motor Mounting:16mm
Top Plate 2.5mm
Bottom Plate 2.5mm
Rated Volitage（Recommendation）：3-6S
Camera Cage ：titanium steel
carbon fiber: T300 3K
Injection Part：Camera Metal Mount Protector,Arm Protector, Univeral Adjustable Gopro Mount

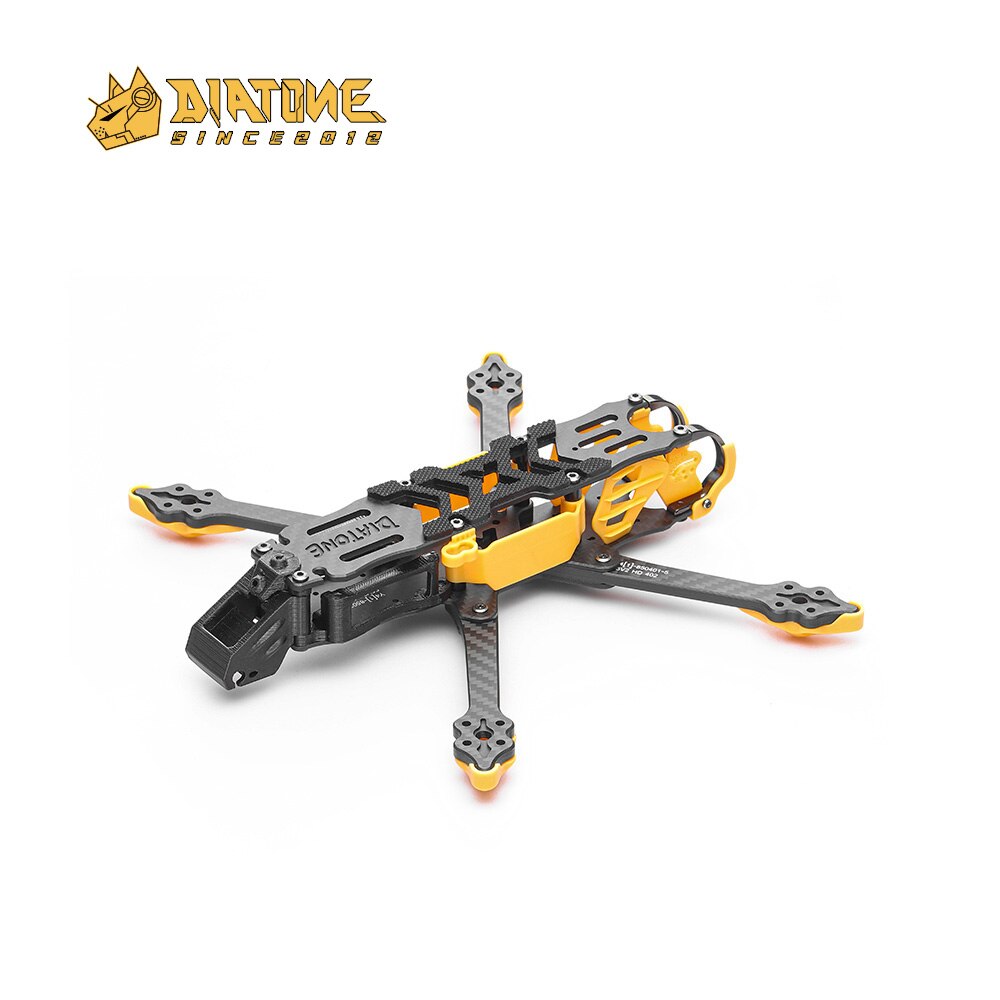

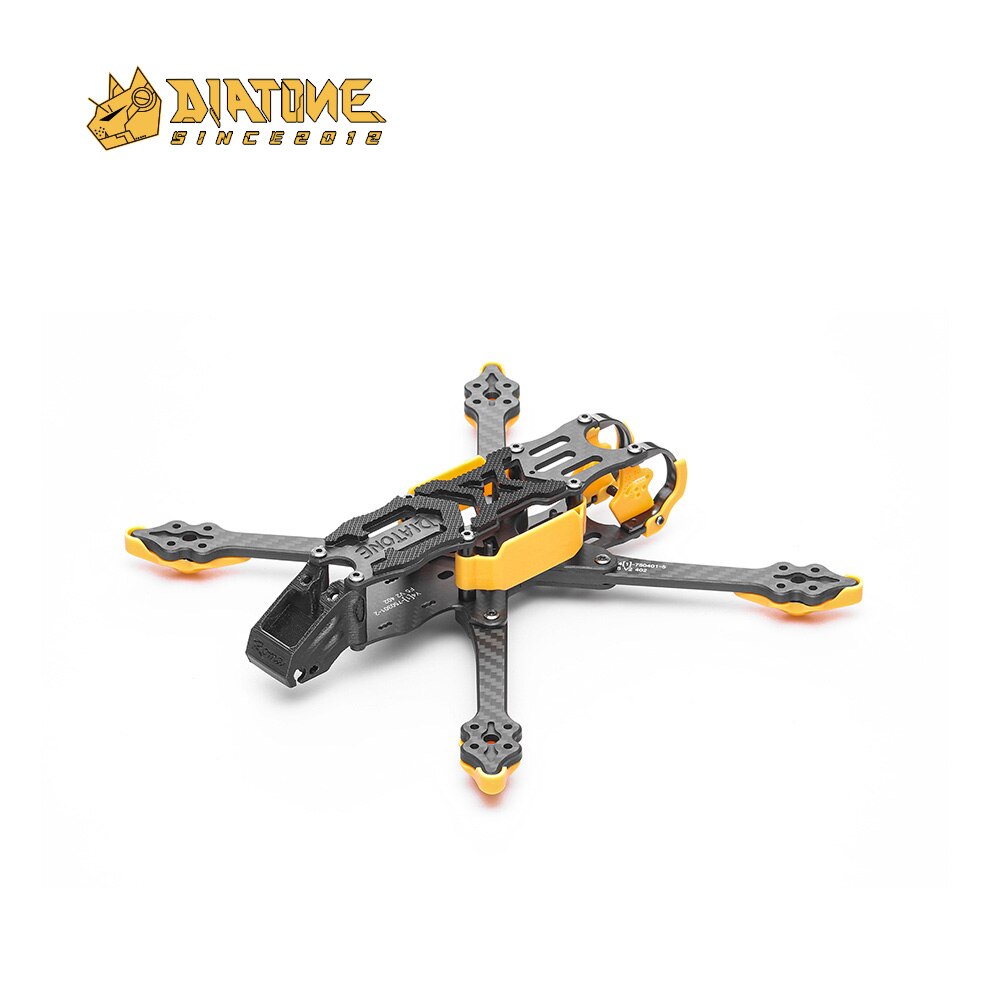

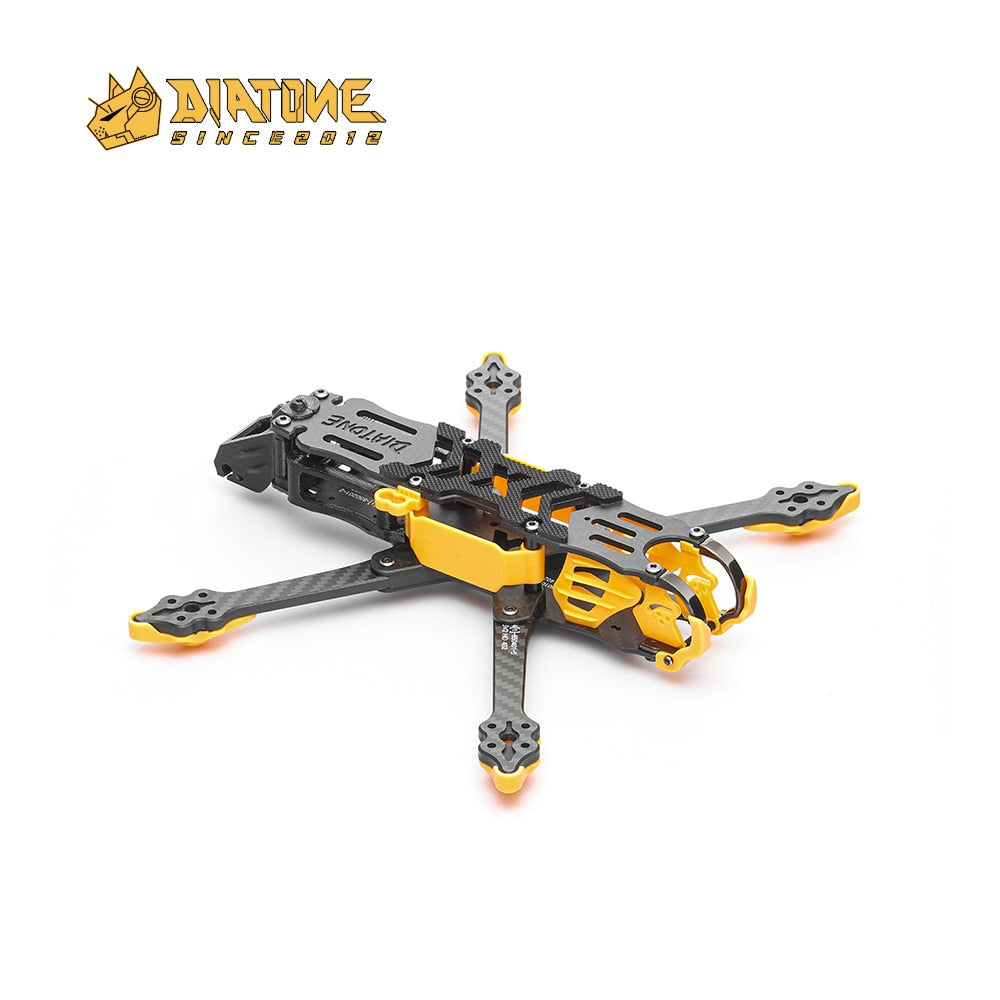

Roma F5 V2 DJI(HD) Frame Kit

Wheelbase ：226mm
Prop Size ：5 inch
FC Mounting:30.5×30.5(M3)&20×20mm(M2)
Motor Mounting:16mm
Top Plate 2.5mm
Bottom Plate 2.5mm
Rated Volitage（Recommendation）：3-6S
Camera Cage ：titanium steel
carbon fiber: T300 3K
Injection Part：Camera Metal Mount Protector,Arm Protector, Univeral Adjustable Gopro Mount

Analog Version:

HD Version:

'i'm a 'm' i' n ' '' . ', '" ' "''"'"""'''(""("( ""( '( "'(( "((" "(" ("((( ((()(( )(" )"" "'" """ . ""'( . ("" ( "'") "'.'"('(

According to the official Diatone website, they provide a detailed user manual (PDF) for the Roma F5 V2 Frame Kit, which can be downloaded from their website: www.diatone.com, File No. FE-8416.
