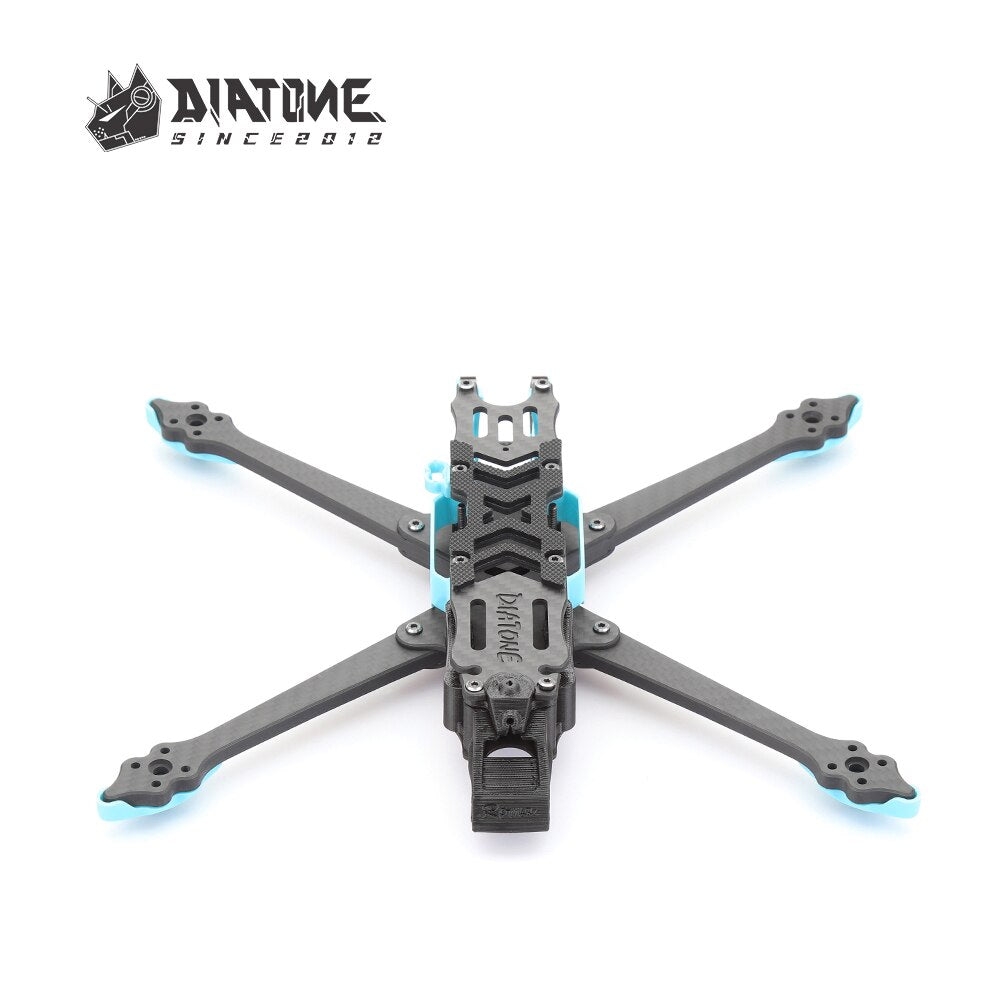

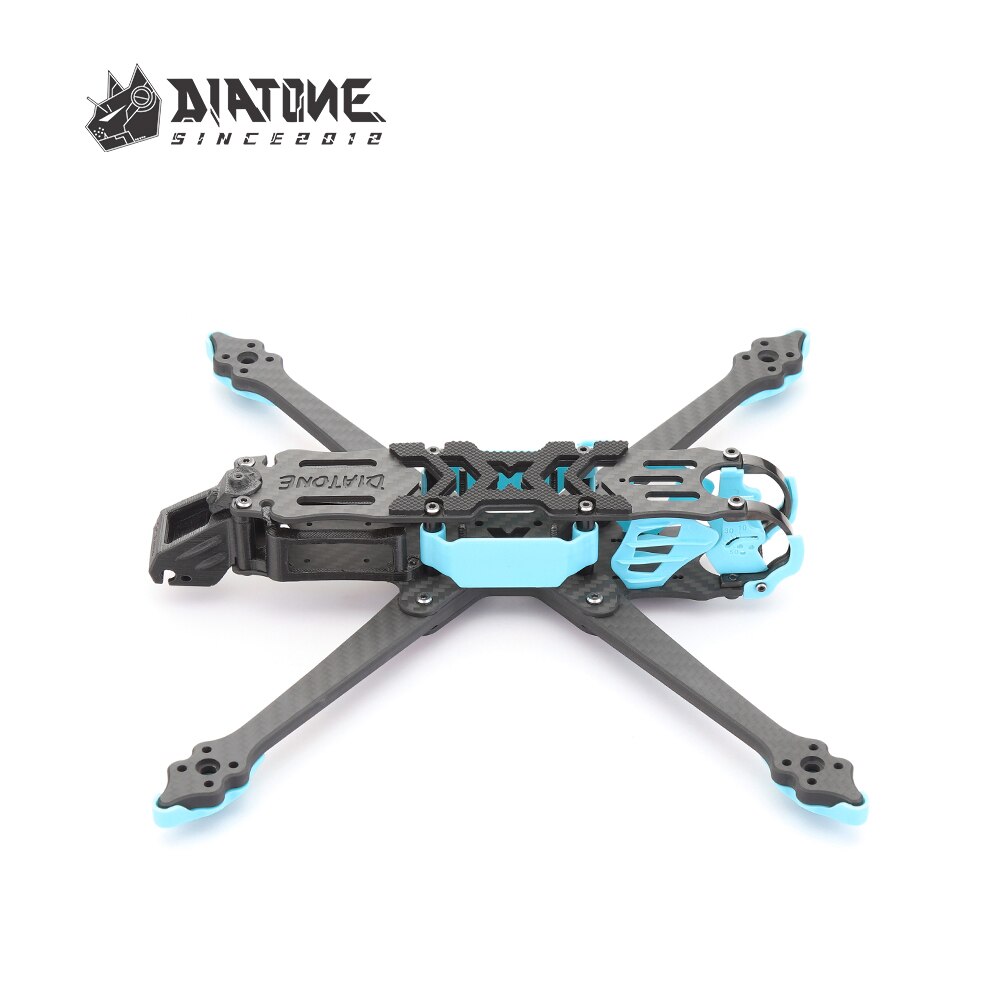

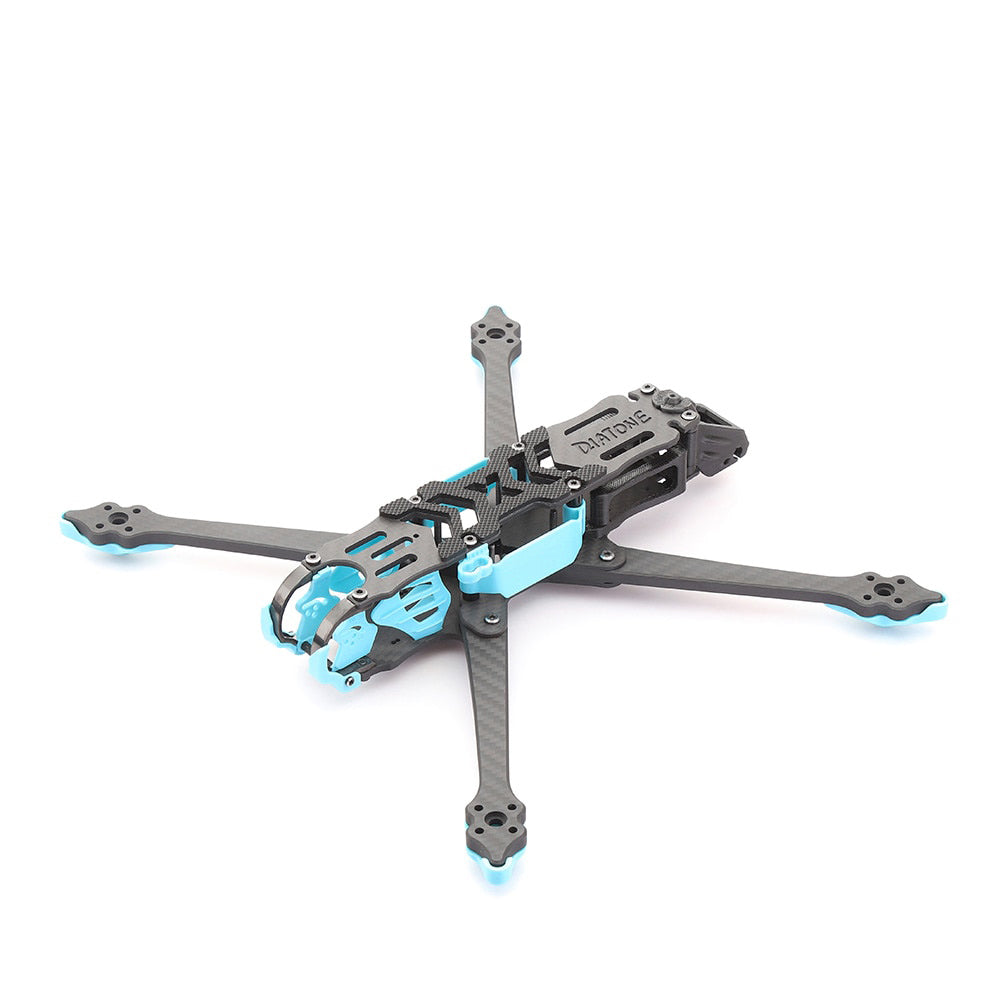

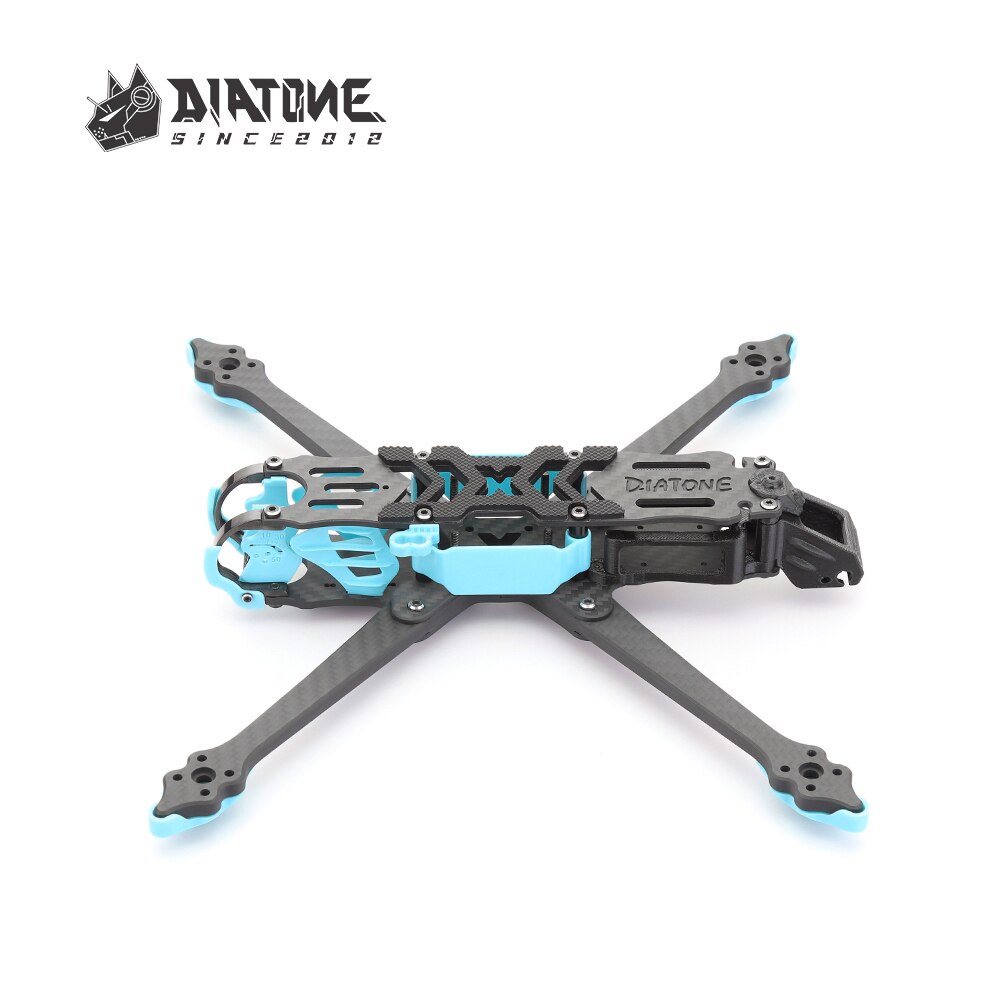

DIATONE Roma F7 FPV Frame Kit SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembled class

Recommend Age: 14+y

Origin: Mainland China

Model Number: Roma F7

Material: Carbon Fiber

For Vehicle Type: Airplanes

Brand Name: DIATONE

Specification:

Wheelbase: 290mm
Weight: 200g
Prop Siza : 7 inch
FC Mounting: 30.5×30.5(M3)&20×20mm（M2）
Motor Mounting: 16mm(M3)
Recommended Motor Size: 28 Series motor
Top Plate: 2.5mm
Medium Plate:2mm
Bottom Plate: 3.5mm
ARM Thickness: 6mm
Max Stack Height: 23mm
Rated Volitage（Recommendation）：4-6S

Recommend Lipo size:6s 1600-1800 mAh
Drone nose metal parts：SUS304
carbon fiber:T300 3K

Pcaking List:

1.The default lake blue injection molded parts include:

2.head aluminum protection,

3.camera mount,

4.arm protection,

5.general GOPRO fixed base,

6.the Stack side plate

Print Parts:
M8PLUS GPS/SMA analog antenna base*1
M22 GPS/DJI dual antenna mount*1
