Overview

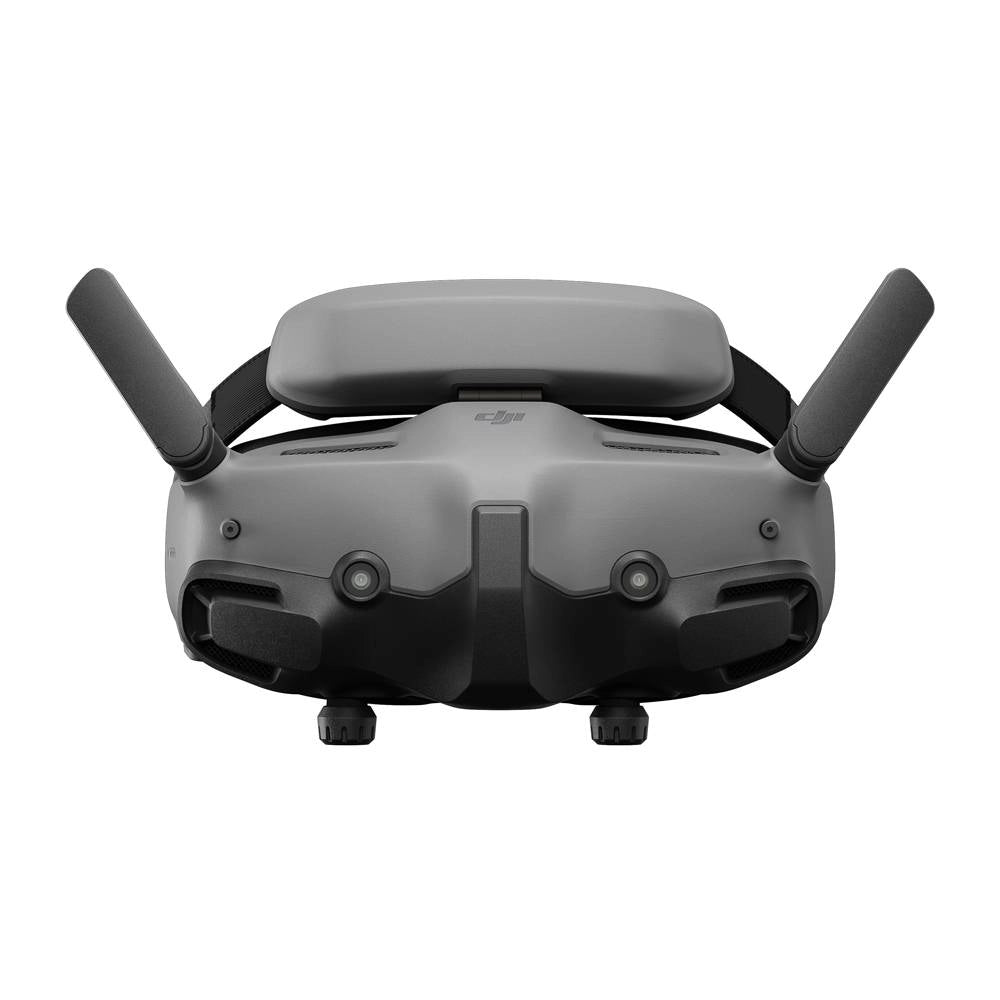

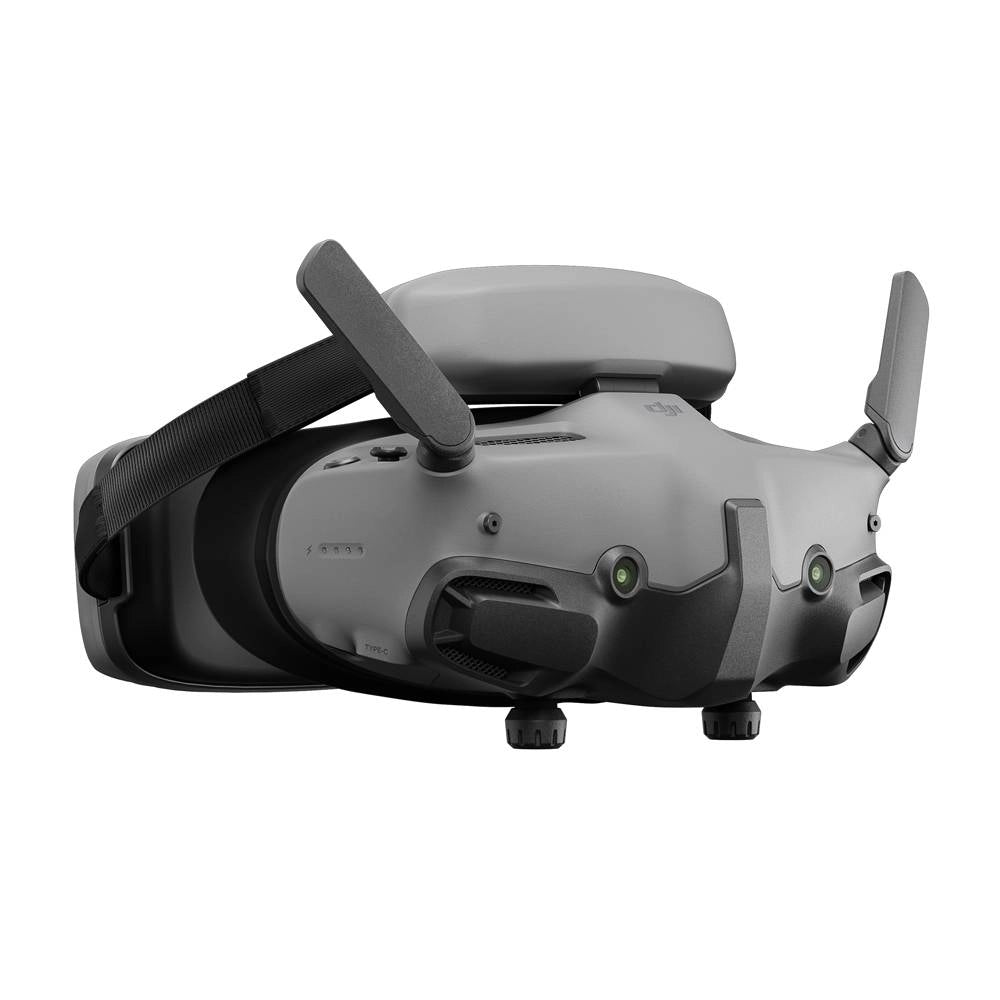

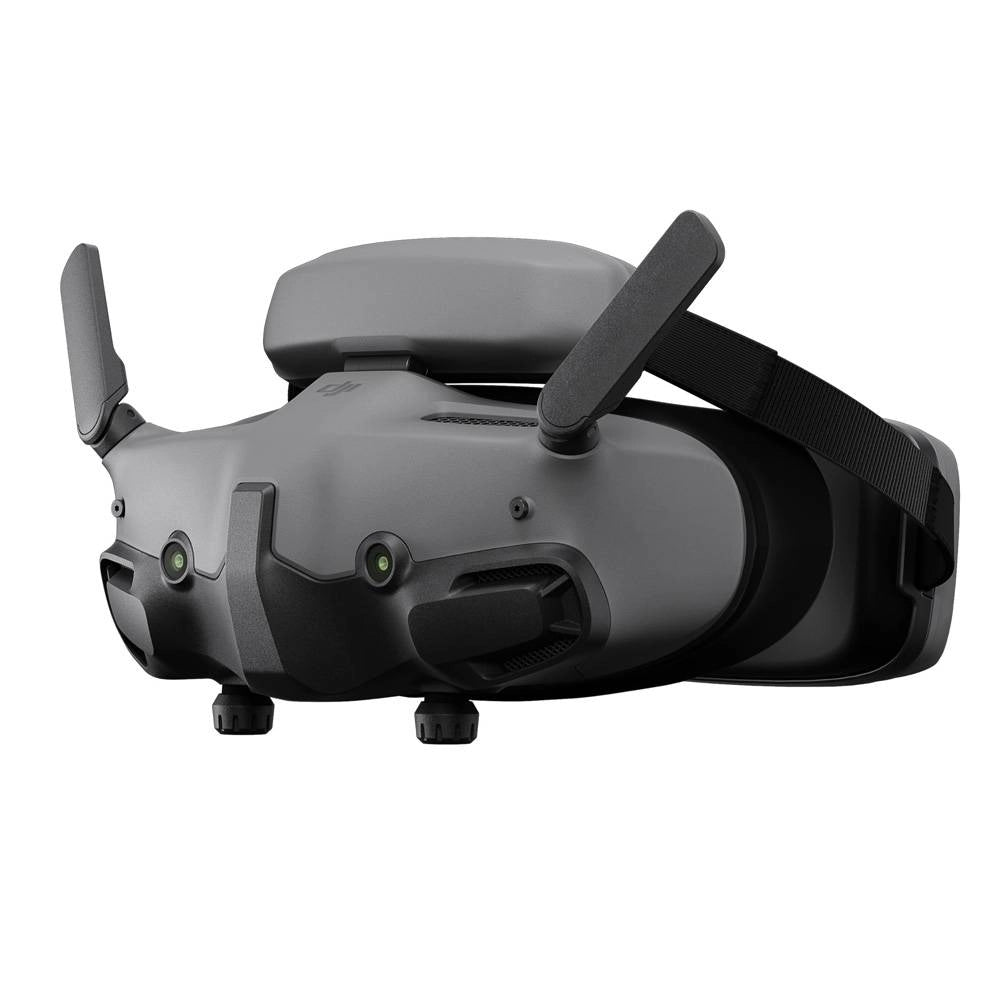

The DJI Goggles 3 offer an immersive and safe flying experience with Real View Picture-in-Picture (PiP) technology, allowing you to monitor your surroundings without removing the goggles. Featuring a 1080p micro-OLED display with a 100 Hz refresh rate, the Goggles 3 deliver stunning visuals with ultra-low latency (down to 24 ms). These goggles support DJI O4 video transmission, compatible with Avata 2, Air 3, and Mini 4 Pro, offering a transmission range of up to 13 km. With diopter adjustment (-6.0D to +2.0D) and a lightweight design, they provide comfort for extended use, supported by a 3-hour battery life.
Specifications
GOGGLES
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Supported SD Cards: microSD (up to 512 GB)
- Diopter Adjustment Range: -6.0 D to +2.0 D
- Weight: Approx. 470 g (battery included)
- Resolution (single screen): 1920×1080
- Screen Size (single screen): 0.49 inch
- Video Recording Format: MOV
- Power Input: Built-in battery
- Refresh Rate: Up to 100 Hz
- FOV (single screen): 44°
- Real View FOV: 44°
- Model: TKGS3
- Supported Video and Audio Playback Formats
- 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
- Panoramic Video: Spherical 2D panoramic videos
- Video coding formats: H.264, H.265
- Max Video Specification: 4K/60fps
- Audio formats: AAC, PCM
- Dimensions (L×W×H)
- With antennas folded: 170×109×112 mm (L×W×H)
- With antennas unfolded: 205×109×112 mm (L×W×H)
- Interpupillary Distance Range: 56-72 mm
VIDEO TRANSMISSION
- Max Transmisssion Distance:13 km (FCC); 10 km (CE/SRRC/MIC)
- Max Video Bitrate: 60 Mbps
- Latency with DJI Avata 2:
- 1080p/100fps video transmission quality: latency down to 24 ms
- 1080p/60fps video transmission quality: latency down to 40 ms
- Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (CE/SRRC/MIC)
- < 33 dBm (FCC)
- 5.1 GHz
- < 23 dBm (CE)
- 5.8 GHz
- < 30 dBm (SRRC)
- < 33 dBm (FCC)
- < 14 dBm (CE)
- Operating Frequency
- 2.4000-2.4835 GHz
- 5.150-5.250 GHz
- 5.725-5.850 GHz
BATTERY
- Max Charging Power: 20 W (charging when powered off)
- Charging Temperature: 0° C to 50° C (32° F to 122° F)
- Dimensions: 121×65×52.5 mm (L×W×H)
- Chemical System: LiNiMnCoO2
- Runtime: Approx. 3 hours
- Capacity: 3000 mAh
- Voltage: 5.6-8.4 V
- Energy: 21.6 Wh
- Category: Li-ion
WIFI
- Protocol: 802.11 a/b/g/n/ac
- Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (FCC/CE/SRRC/MIC)
- 5.1 GHz
- < 20 dBm (FCC/CE/MIC)
- 5.8 GHz
- < 20 dBm (FCC/SRRC)
- < 14 dBm (CE)
- Operating Frequency
- 2.4000-2.4835 GHz
- 5.170-5.250 GHz
- 5.725-5.850 GHz
BLUETOOTH
- Operating Frequency: 2.400-2.4835 GHz
- Transmitter Power (EIRP): < 10 dBm
- Protocol: Bluetooth 5.0
GFSK
- Operating Frequency: 2.4000-2.4835 GHz
- Transmitter Power (EIRP)
- < 20 dBm (CE/SRRC/MIC)
- < 26 dBm (FCC)
- Compatibility:
- DJI O4 Air Unit (If released - historically there's a new Air Unit for each DJI Goggle generation)
- DJI Avata 2

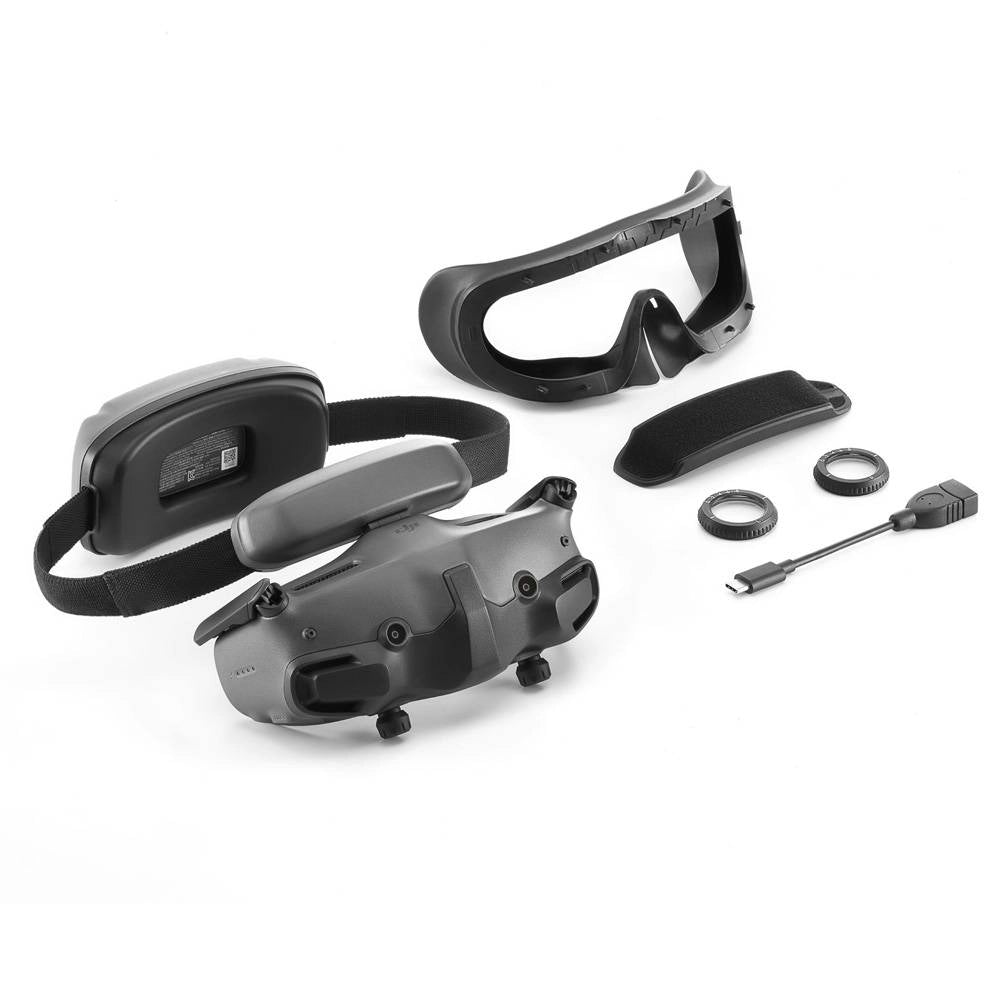

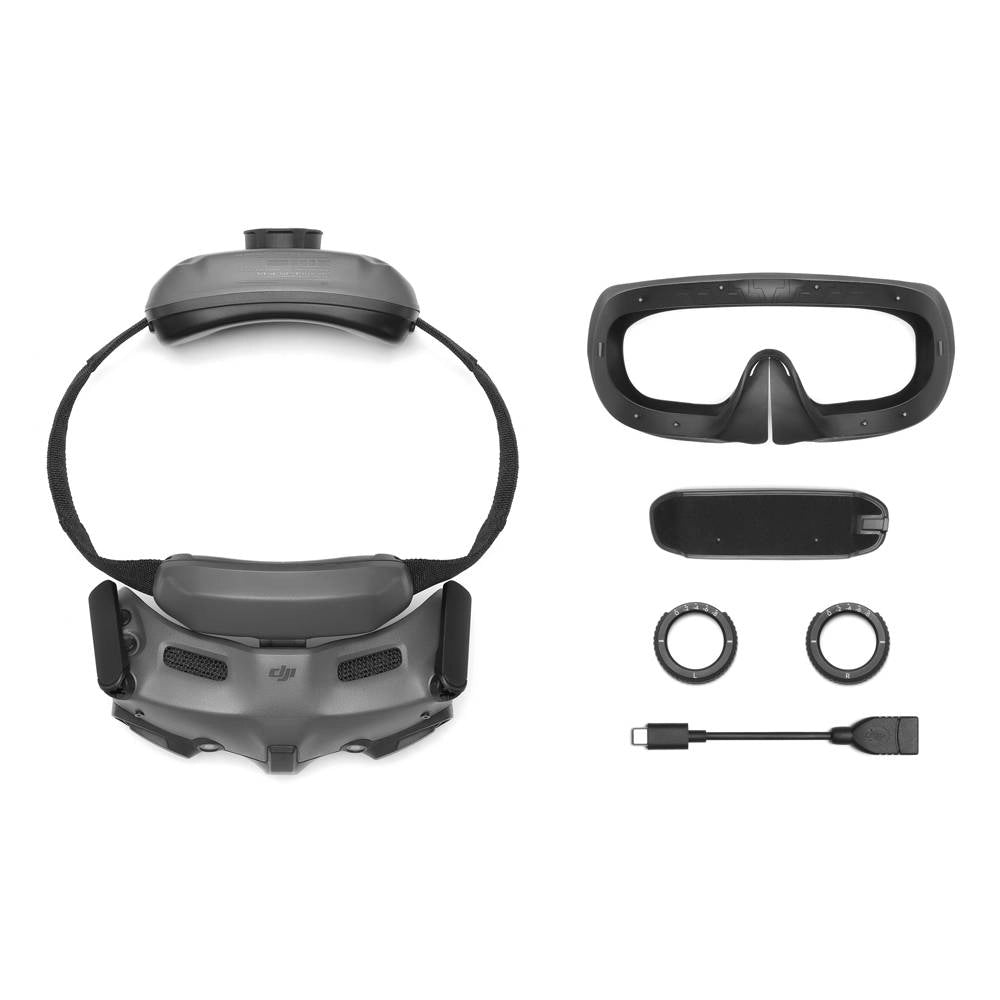

Includes
- 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
- 1x DJI Goggles 3 Additional Forehead Pad
- 1x DJI Goggles 3 Foam Padding
- 1x USB-C OTG Cable
- 1x DJI Goggles 3
Compatibility Chart
Note: Now with DJI Goggles 3 Firmware:v01.00.0300 update, the Goggles 3 are backward compatible with DJI O3 Air units! You must update the Goggles 3 and the O3 Air Unit to the latest firmware.
Notes
- Download DJI Assistant 2 (Consumer Drones Series)
- Restart the aircraft / O3 AIr Unit, remote control device, and goggles after the firmware updates are complete.
- Note that the firmware update may reset various flight parameters such as RTH Altitude and Maximum Flight Distance. Before updating, take note of your preferred settings and readjust them after the firmware update is complete.
- If the update fails, restart the aircraft, remote control device, goggles, and the DJI Fly app or DJI Assistant 2 (Consumer Drone Series), and try again.
VIDEO: How to Update DJI Goggles 3 to work with DJI O3 Air Unit and FPV Controller 3
Features
- DJI O4 compatible - DJI O3 Compatibility is now available via firmware update!
- Ultra-Low Latency Transmission
- Real-View Picture-In-Picture
- Micro-OLED HD Display
- DJI Goggles 3
O4 Video Transmission, Compatible with Air 3 and Mini 4 Pro
With Avata 2, O4 video transmission delivers ultra-low latency at 24 ms and a high bitrate of 60Mbps. Also compatible with Air 3 and Mini 4 Pro, the reliable O4 HD transmission offers crystal-clear and fluid first-person views.
Real View PiP, Safety in Sight
You can conveniently observe your surroundings without removing your goggles to get enhanced flight safety.
All-Around Comfort and Convenience
Dazzling Upgrades: Enjoy a 1080p micro-OLED screen with a refresh rate of up to 100 Hz*, alongside the TüV Rheinland Low Blue Light Certification. Accommodates diopter adjustments from -6.0 D to +2.0 D for nearsighted and farsighted users.
Battery and Headband Integration: The lightweight, comfortable design that integrates the headband liberates you from tangled cables and offers a lengthy 3-hour operating time.**
One-Tap Defogging: With defogging enabled, you get a convenient solution for sudden changes in temperature or high-humidity conditions.
More Fun with Wireless Streaming
Stream your flight in real-time on the DJI Fly app of your smartphone via Wi-Fi connection.***
You can also import panoramic and 3D videos onto an SD card and play them back using Goggles 3 for an immersive experience that seems almost within reach.
Featured Videos
DJI Avata 2 & Goggles 3 // NEXT GENERATION OF FPV IS HERE!
DJI Goggle 3 Details
Immersive Flight Experience with Real View and PiP. DJI Goggles 3 offer Video Transmission, Integrated Comfort Design, and AR Cursor. Features a maximum operating time of 3 hours.
Experience immersive flight with enhanced visuals and controls to broaden your horizons
Seeing is Believing. DJI Goggles 3 can be paired with DJI Avata 2 and DJI RC Motion 3 for intuitive body movement control. Simply tilt your head or wrist, and you'll be flying Avata 2, enjoying an immersive and visually thrilling experience through the sky. The Goggles 3 feature novel Real View PiP and come equipped with DJI O4 low-latency video transmission, offering reliable safety and stability for your flights.
Real View PiP: An Effortless Reality Check. A simple double-tap on the right side of the goggles toggles the display between the interactive interface and the live view of the real-world environment, while the real-time flight footage remains consistently displayed in the upper left corner of the screen. Without removing your goggles, you can now conveniently observe your surroundings to get enhanced flight safety.
Next-Gen 04 HD Video Transmission: DJI Goggles 3 features DJI latest 04 digital video transmission with a 2-transmitter, 4-receiver, and 6-antenna design, ensuring robust anti-interference capability. The system has a transmission latency as low as 24 ms, covering a range of up to 13 km. It automatically selects between the 2.4 GHz or 5.8 GHz bands depending on signal conditions to maintain stable, near-synchronous flight perceptions.
All-Around Comfort and Convenience [7] Low-Pressure Padding DJI Goggles 3 incorporates the forehead into the foam padding, reducing pressure and nose-light leakage. This results in a soft, comfortable fit.
One-Tap Defogging With defogging enabled, an internal fan rapidly accelerates to maximum speed, ensuring the lenses stay clear by swiftly circulating air - a convenient solution for sudden changes in temperature or high-humidity conditions.

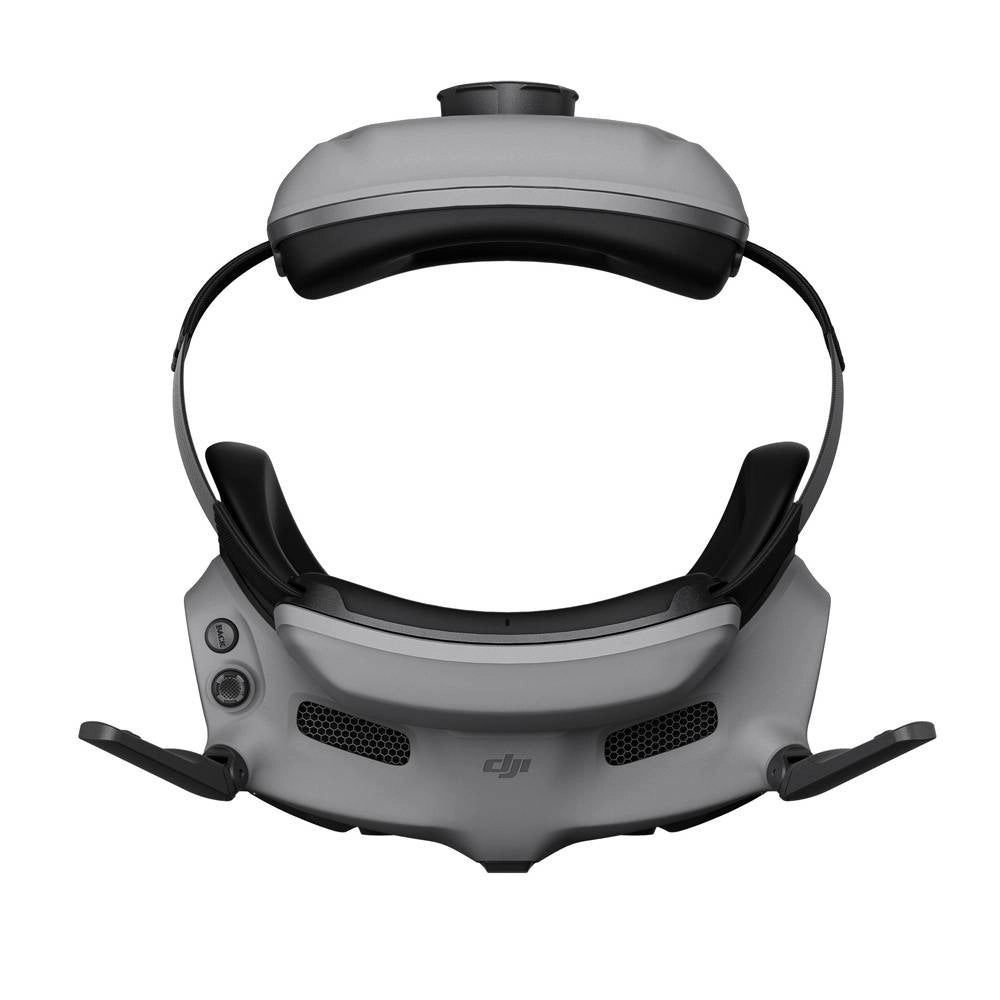

Introducing DJI Goggles 3, featuring seamless integration with the headband and battery. Weighing just 470g, this sleek design ensures even weight distribution, eliminating tangled cables. Quickly slip on and off without distractions. With a remarkable 3-hour operating time, you'll have plenty of power for extended flights.

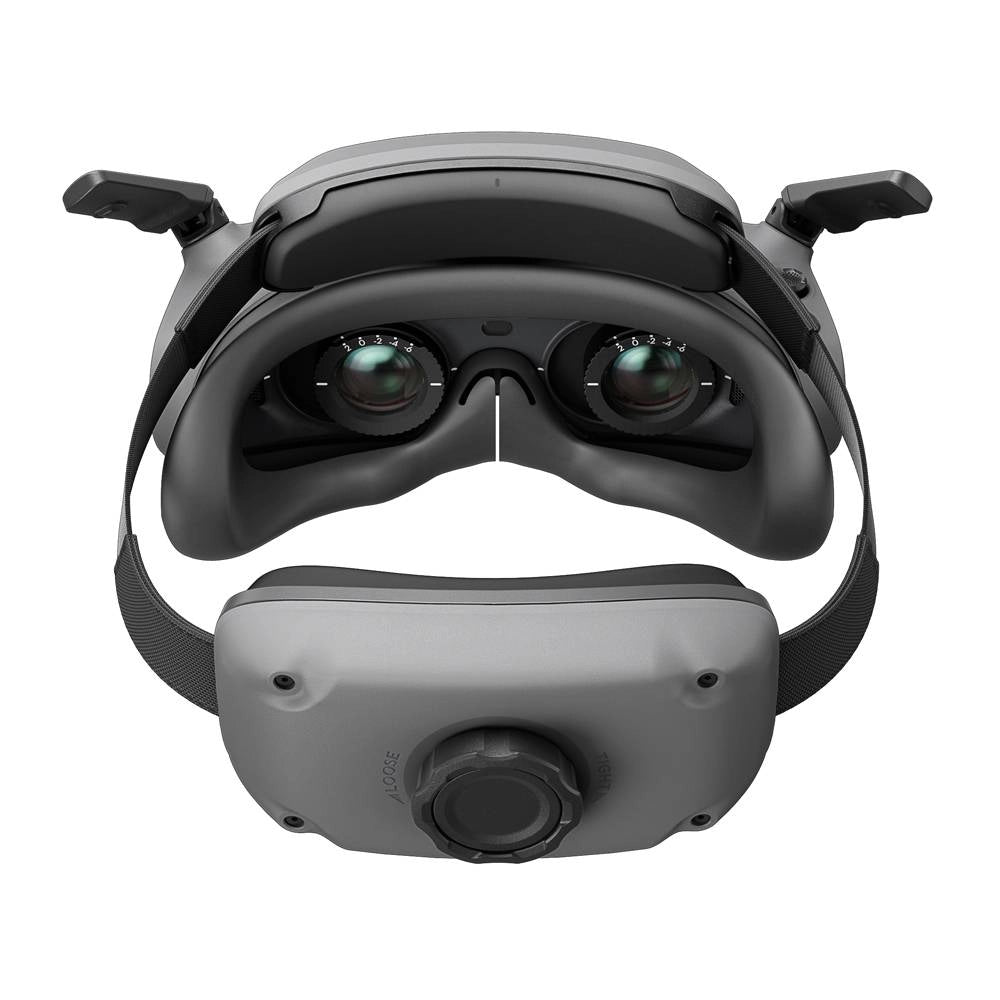

The Refraction Adjustment; Instant Clarity Supporting a diopter adjustment from -6.0 to +2.0, Goggles 3 enables real-time visibility directly on-screen, making adjustments simple and swift operations.
Refreshed Visual Performance: Dual Screens, 1920x1080 Resolution, Micro-OLED Material, 100 Hz Refresh Rate, Up to 700 nits Brightness, 5000:1 Dynamic Range, 5 Binocular Pairs
Simplifying Complex Interactions with Quick Control Using AR Cursor When used with DJI RC Motion 3, you can treat the Motion 3 as an AR cursor to navigate the menu on the goggles' screen. The AR cursor makes using Goggles 3 simple, enabling functions, adjusting camera settings, and modifying transmission specifications have never been more efficient.
More fun with wireless streaming! Avatar 2 video transmission is displayed on the DJI Fly app interface when Goggles 3 is Wi-Fi connected to a smart device. You can connect up to 5 meters away, making it easier than ever to share the excitement of FPV and learn how to fly. Additionally, you can import panoramic and 3D videos onto an SD card and play them back using the Goggles 3 for an immersive experience that seems almost within reach.
A new flight experience with camera drones. DJI Goggles 3 is compatible with DJI Air 3 and DJI Mini 4 Pro. You can control the drones using DJI RC Motion 3, DJI RC 2, or DJI RC-N2 remote controllers for a fresh, immersive flying experience.
