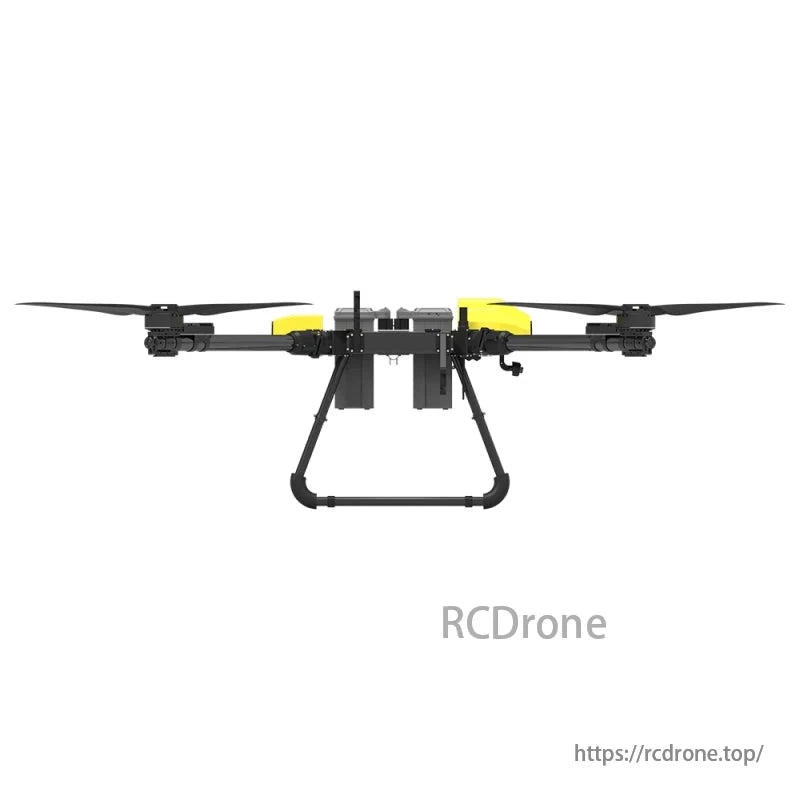

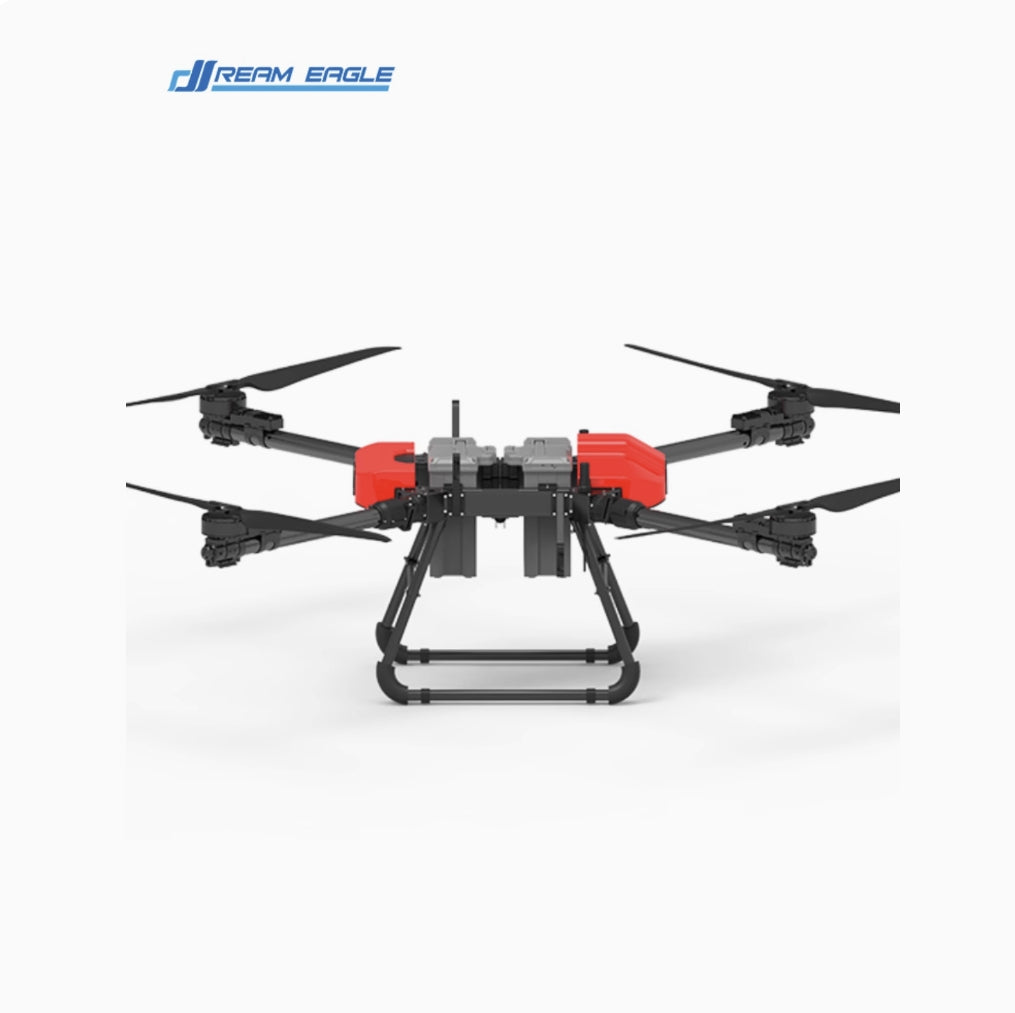

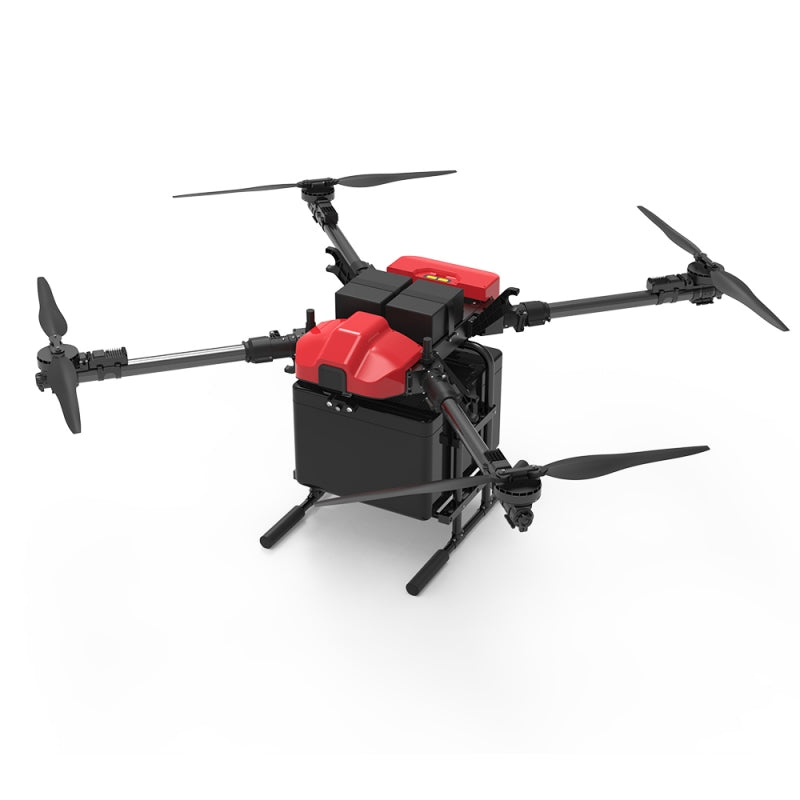

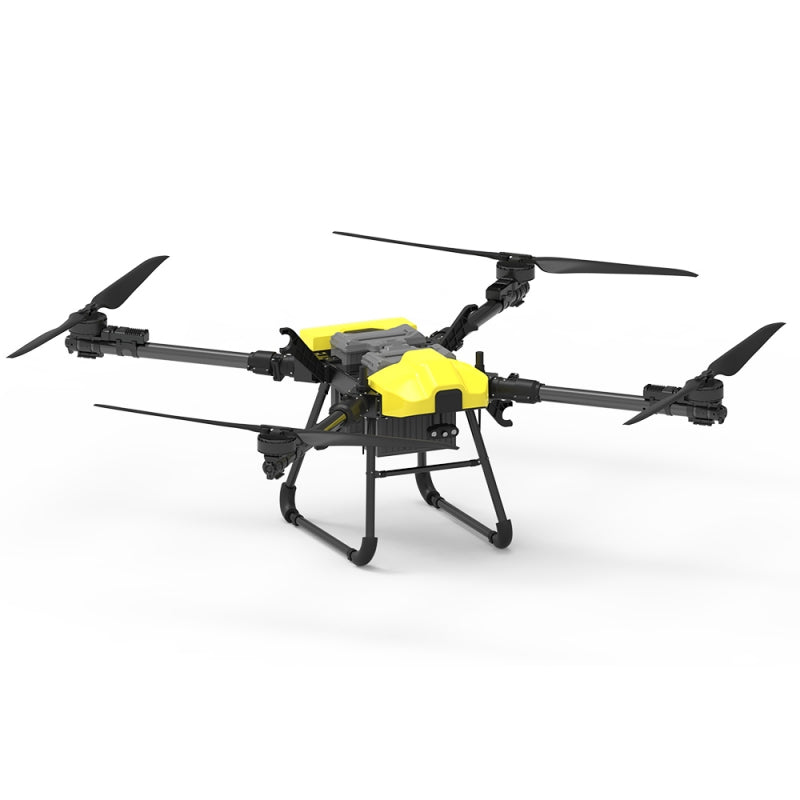

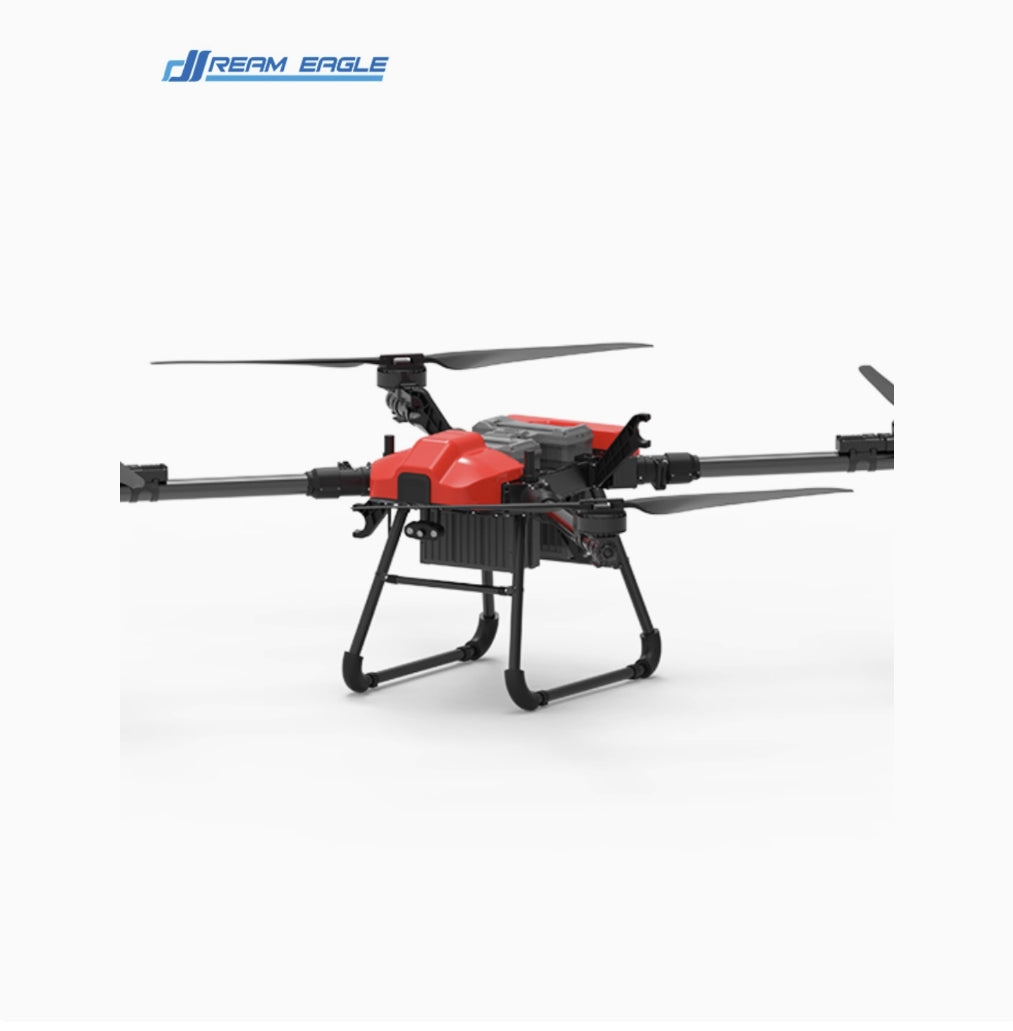

Dreameagle YS-40 Transport Drone - 40KG Payload 20 Minutes Heavy Load Delivery Industrial Drone

Dreameagle YS-40 Transport Drone Overview

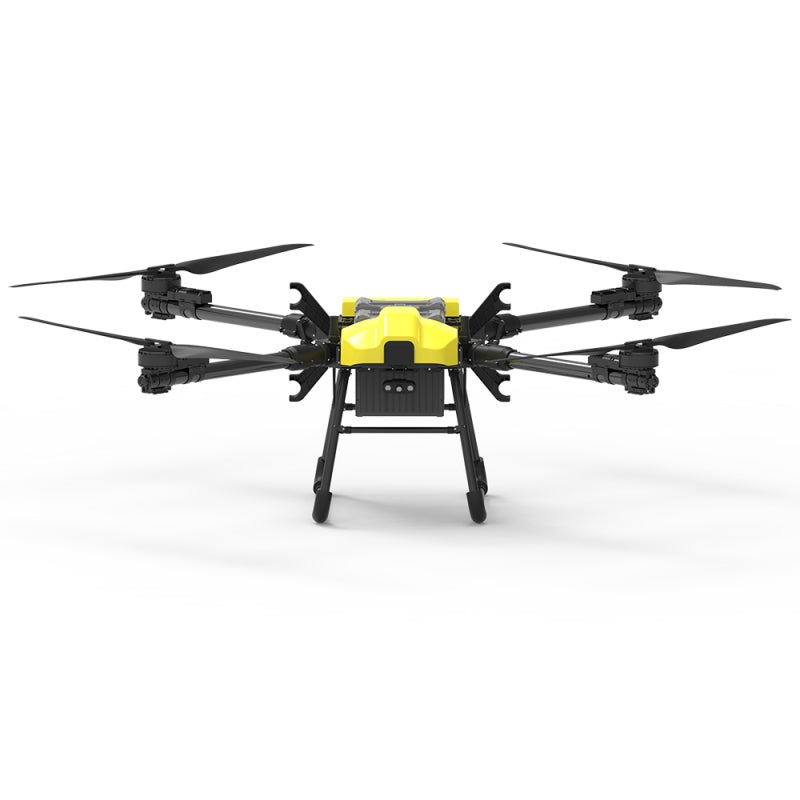

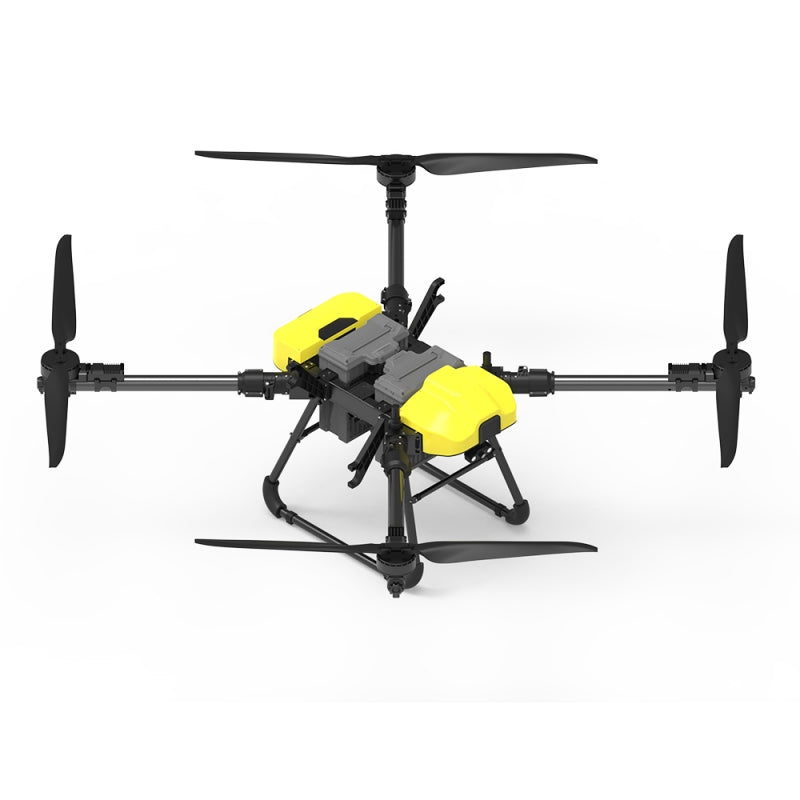

The Dreameagle YS-40 Transport Drone is a high-performance industrial-grade aerial platform specifically engineered for heavy-duty transportation tasks, boasting a robust 2050mm wheelbase and an impressive payload capacity of up to 40kg. This dual-battery version features a modular structure that allows for quick setup and easy transport, with an expanded size of 1570x1570x670mm and a folded size of 845x860x805mm. Weighing 24.5kg without batteries and up to 51.9kg with dual 18S 30000mAh batteries, the YS-40 is designed for maximum efficiency, offering a no-load flight time of 35 minutes and a full-load flight time of up to 25 minutes. Powered by the X11 Max motor system with 48-inch propellers and controlled via the KX flight control system, this drone is perfectly suited for demanding industrial applications where reliability and heavy-lift capabilities are essential.

Dreameagle YS-40 Transport Drone Key Features:

• Product Type: Dual Battery Version Industrial Transportation Platform
• Product Wheelbase: 2050mm
• Product Size: 1570x1570x670mm (expanded), 845x860x805mm (folded)
• Product Weight: 12kg (frame weight), 24.5kg (without battery), 51.9kg (with dual battery), 91.9kg (full load, take-off weight)
• Maximum Payload: 40kg
• Arm Size: 47x50mm carbon fiber tube
• Flight Control: KX
• Remote Control: H12/H16
• Power System: X11 Max Motor, 150A ESC, 48-inch propeller
• Battery: Dual 18S 30000mAh batteries
• Working Time: 35 minutes (no load, 51.9kg take-off weight), 15-25 minutes (full load, 20-40kg)

What's Included?

Frame:

• Drone Frame x 1

Frame+Power System:

• drone frame x 1
• Hobbywing X11MAX Power System x4

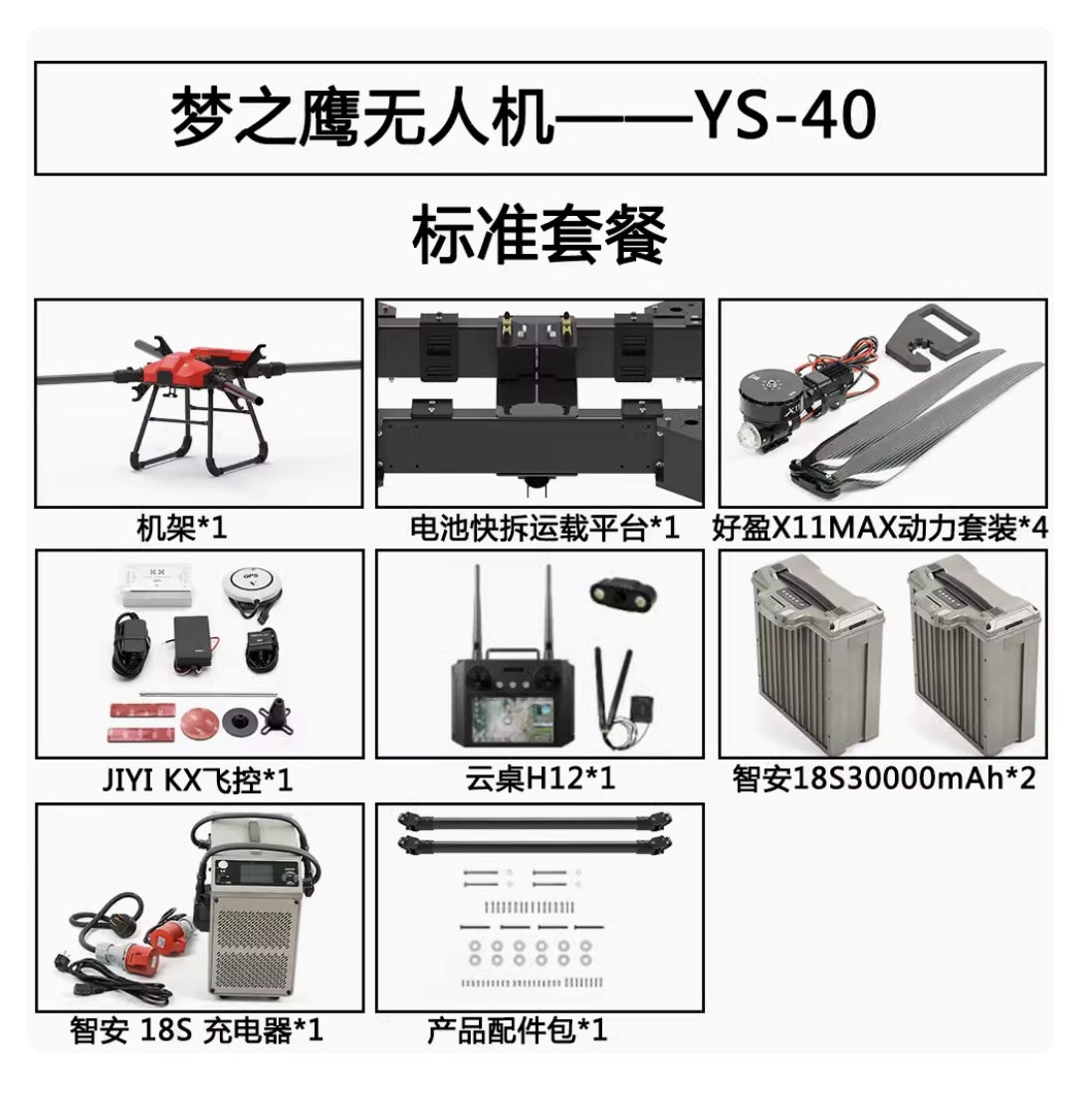

Full Standard Combo:

• Drone Frame x1
• Battery Quick Release Platform x1
• Hobbywing X11MAX Power System x4
• JIYI KX Flight Controller x1
• Yunzhen H12 Remote Controller x1
• 18S 30000mAh Battery x2
• Zhi'an 18S Charger x1
• Accessory Kit x1

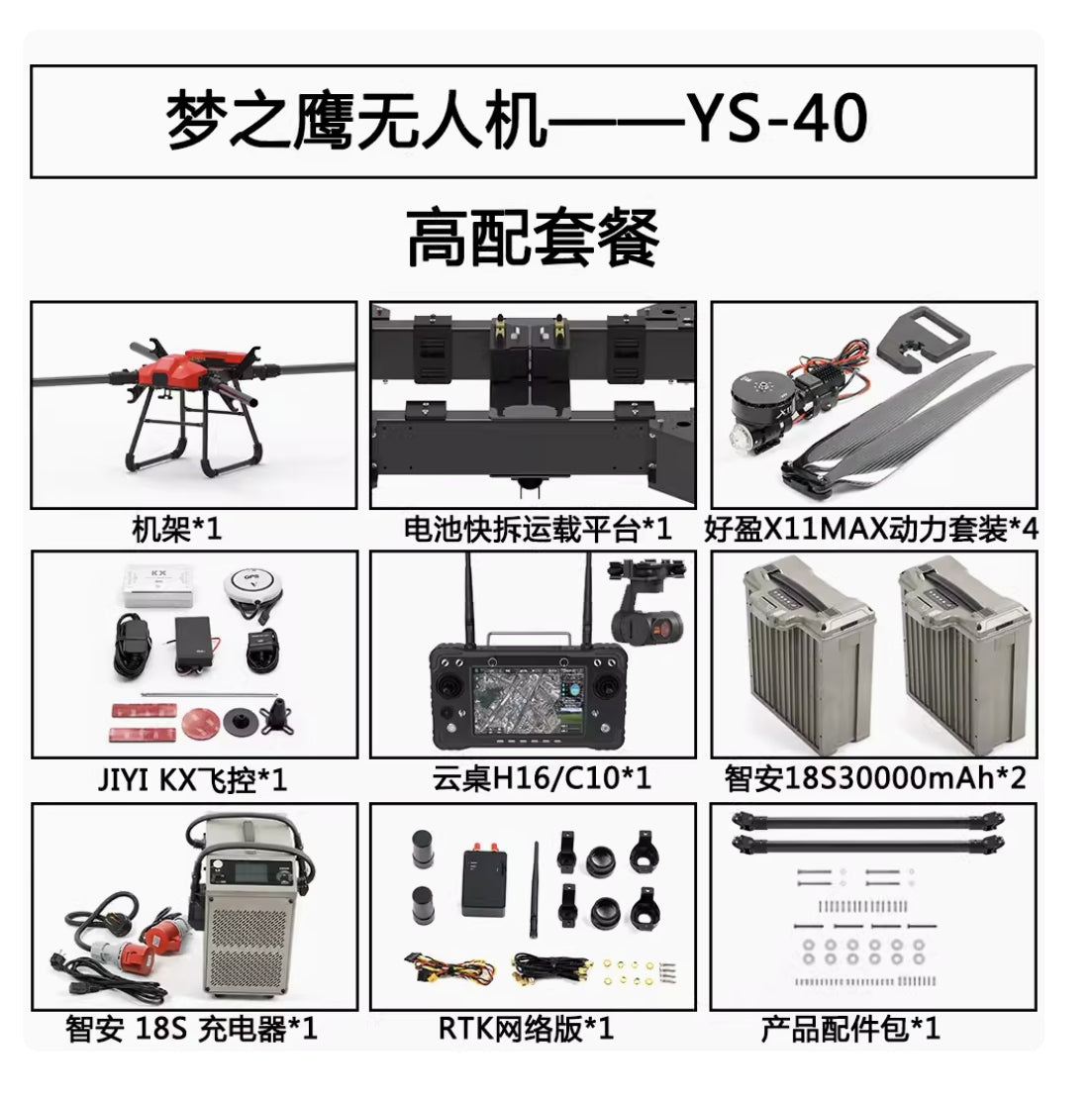

Full Pro Combo:

• Frame x1
• Battery Quick Release Platform x1
• Hobbywing X11MAX Power System x4
• JIYI KX Flight Controller x1
• Yunzhen H16/C10 Remote Controller x1
• 18S 30000mAh Battery x2
• Zhi'an 18S Charger x1
• RTK Network Version x1
• Accessory Kit x1

Description:

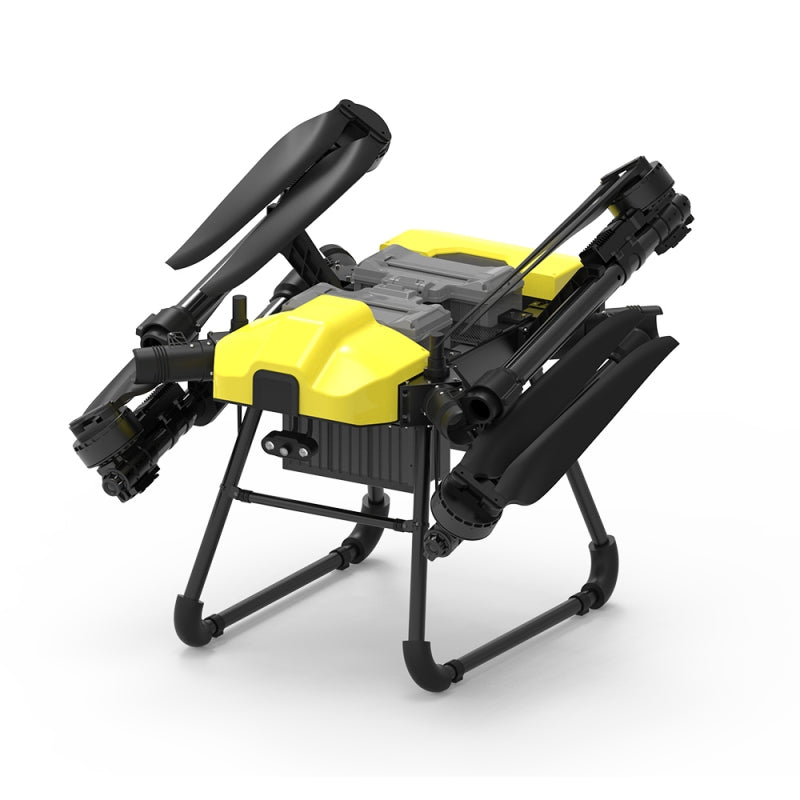

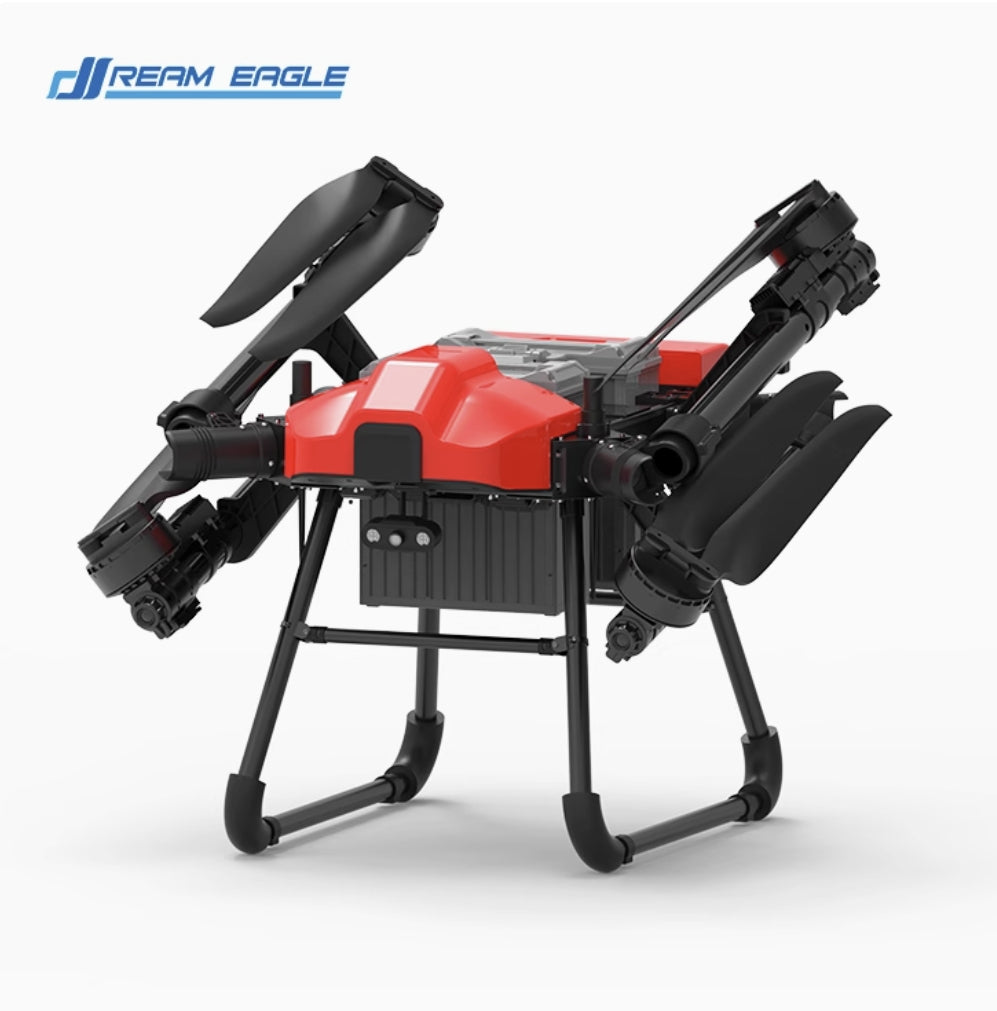

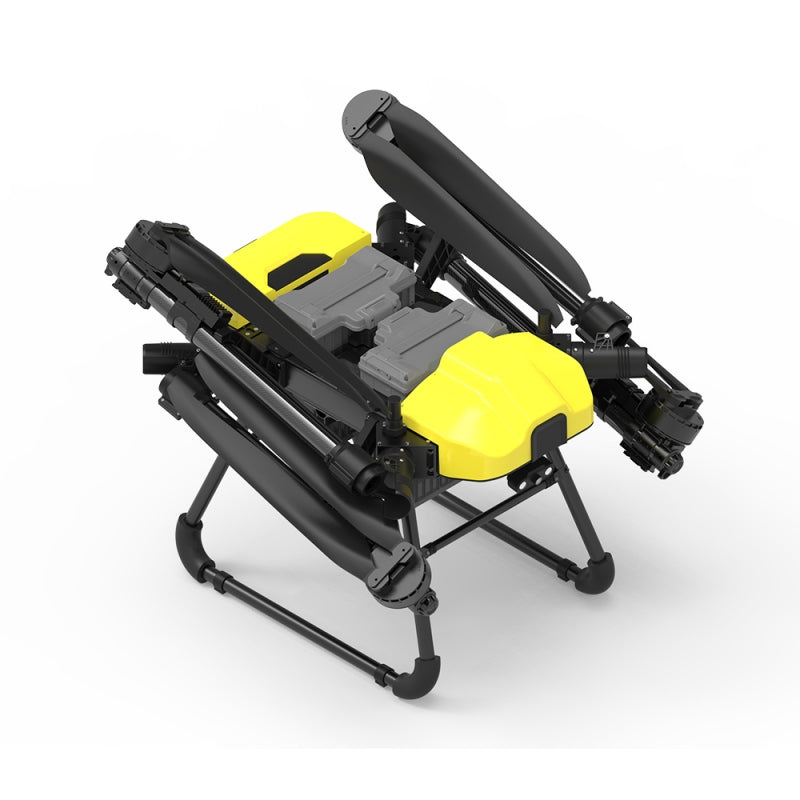

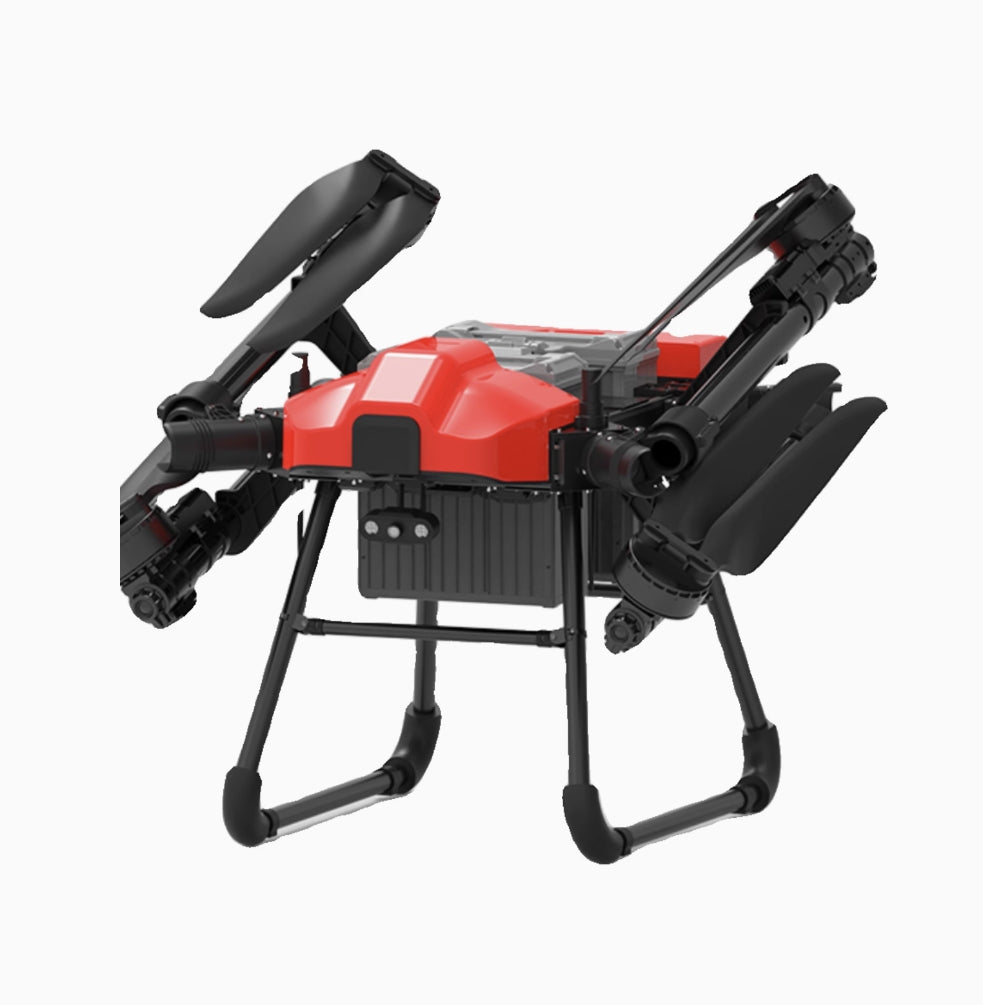

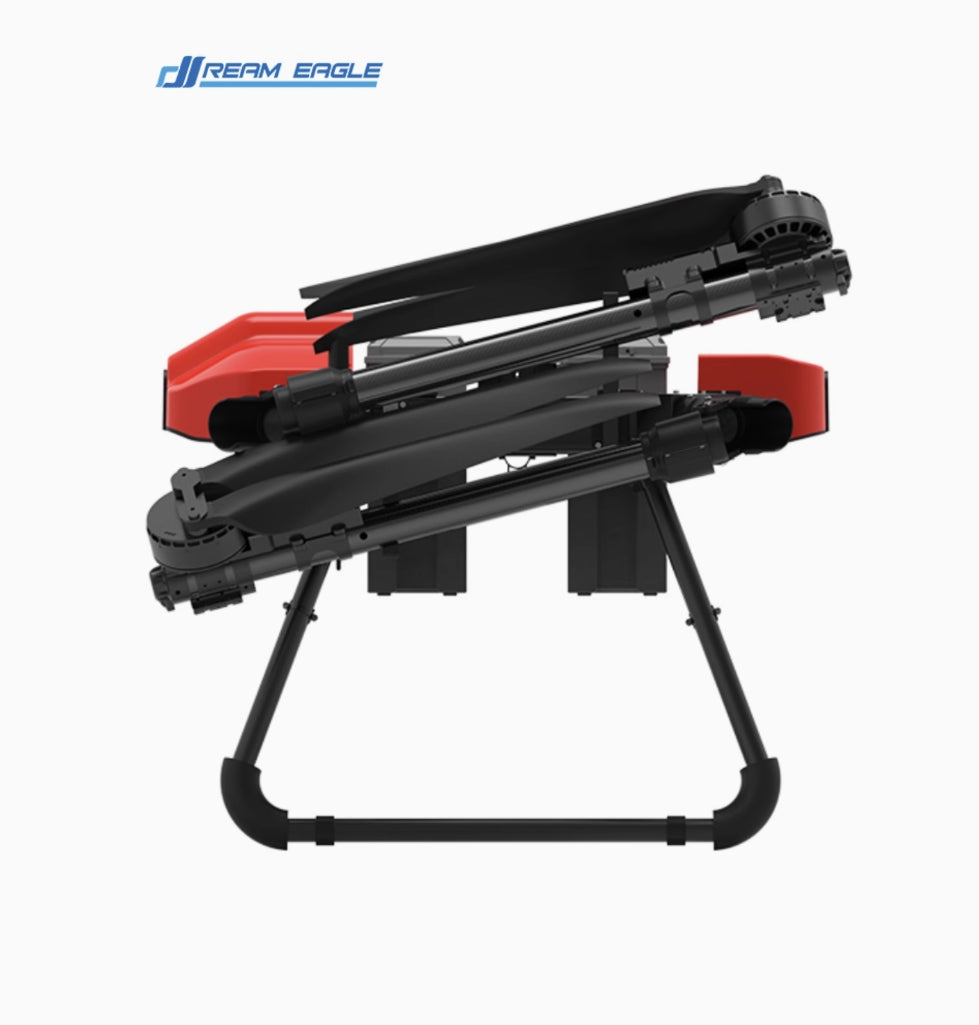

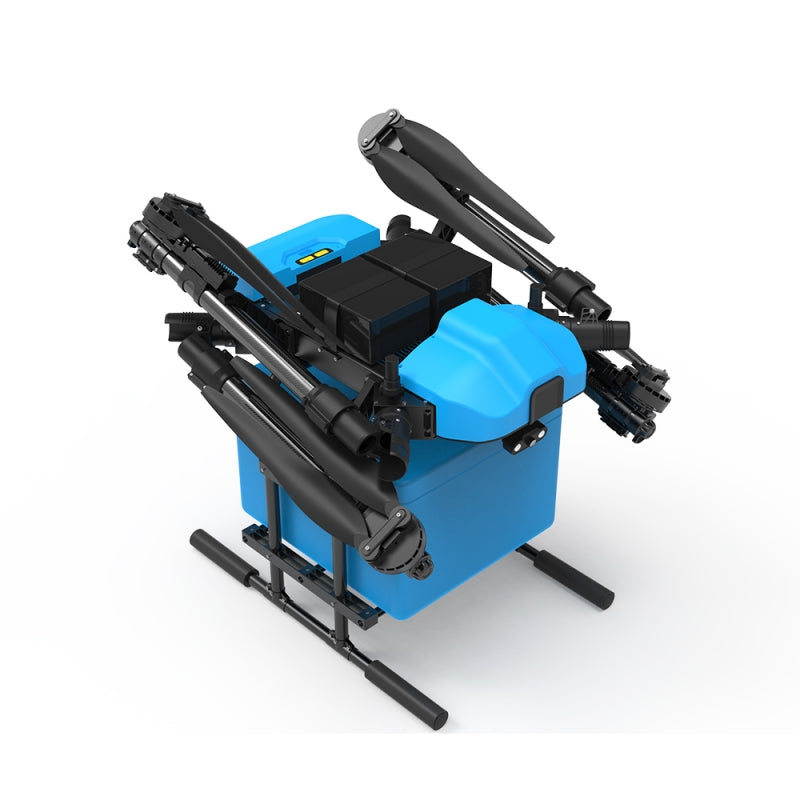

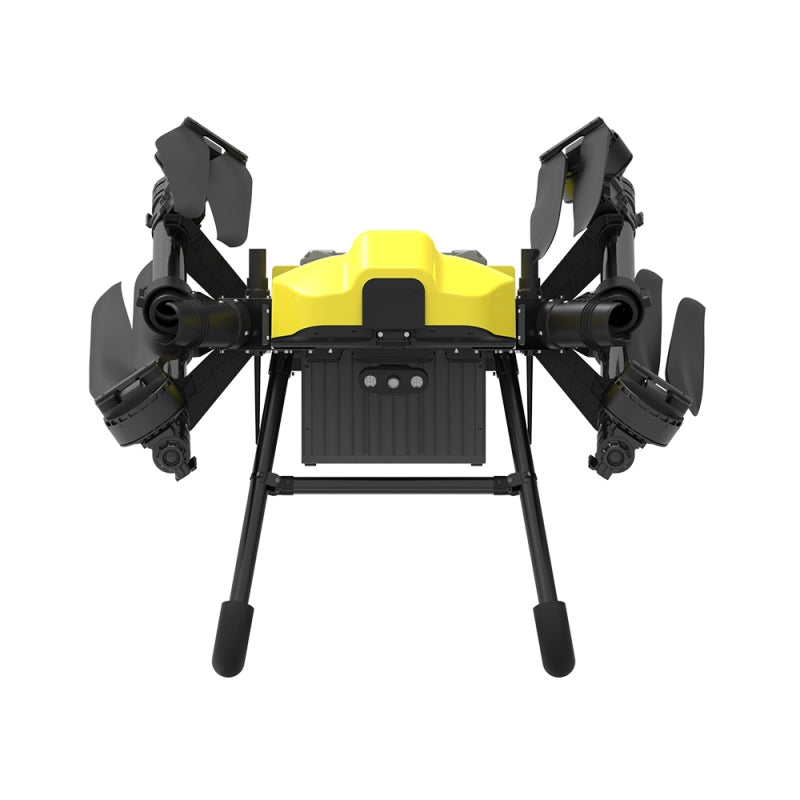

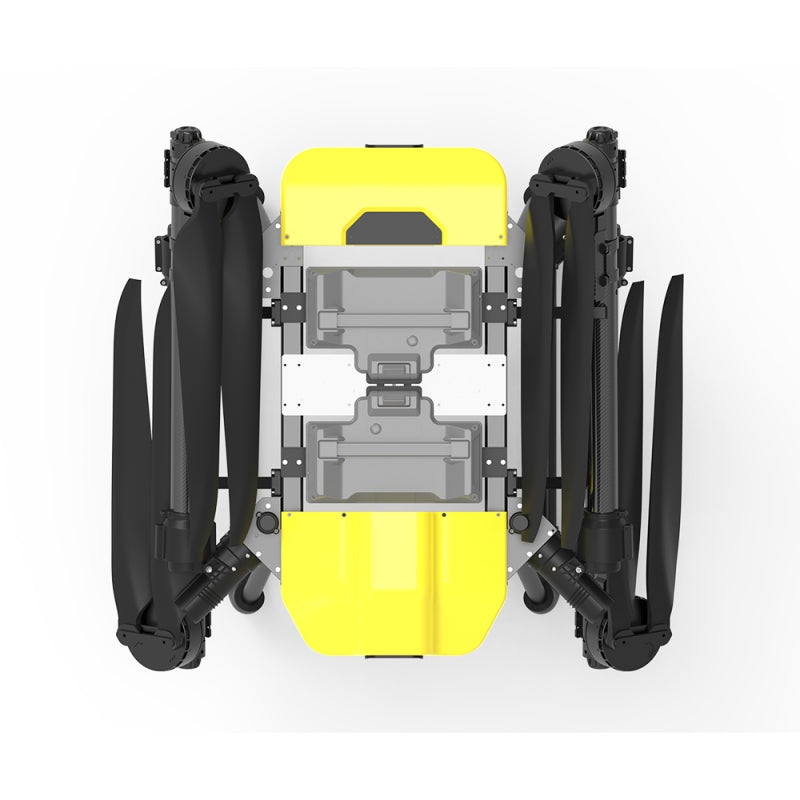

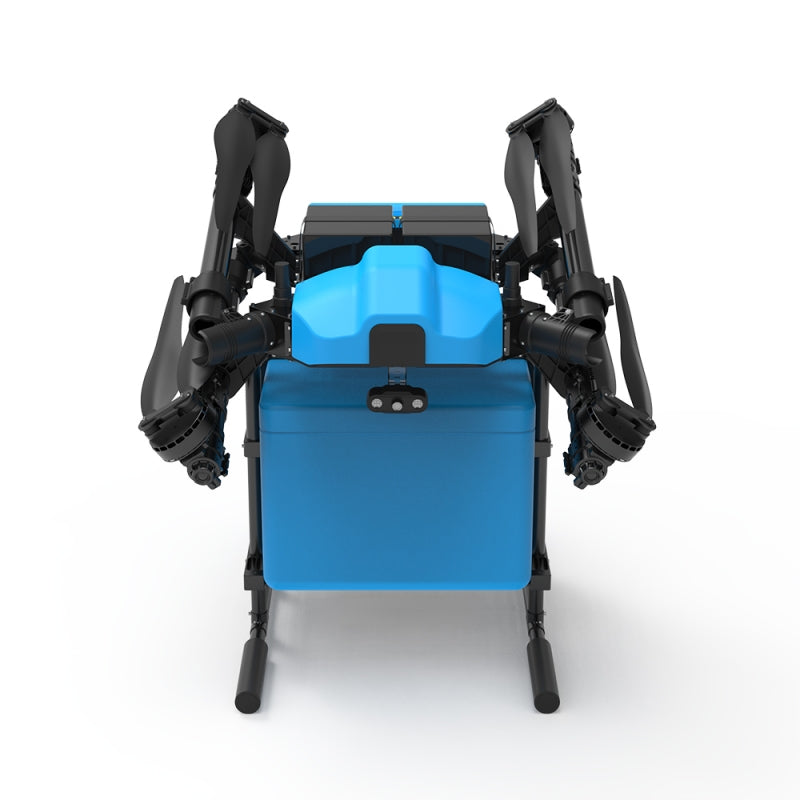

The YS-40 Transport Drone boasts a new modular structure, offering exceptional compatibility and versatility. Its robust design includes a quick-detachable dual-battery system, allowing for seamless battery swaps during extended operations. The drone's foldable quadrotor arms make it compact and easy to transport, while its lightweight yet durable frame supports a maximum payload of up to 40kg.

Equipped with advanced features such as obstacle avoidance radar, ground defense radar expansion, and front FPV (First-Person View) for clear image feedback, the YS-40 ensures safe and precise operations even in challenging environments. The powerful 48-inch propellers provide the necessary thrust to carry heavy loads with stability, making this drone an excellent choice for transporting materials, saplings, high-altitude equipment, and more.

Performance:

• Hover Time:
  • No Load: 35 minutes with dual 18S 30000mAh batteries
  • Full Load (20kg): 25 minutes with dual batteries
  • Full Load (40kg): 20 minutes with dual batteries
• Adaptability: Compatible with various flight control systems and power systems, making it versatile for different industrial applications.

Industrial Applications:

The YS-40 is designed for a wide range of industrial applications, including but not limited to:

• Heavy Load Transportation: Capable of carrying 20-40kg of materials, tools, or equipment.
• Aerial Delivery: Ideal for transporting supplies to remote or hard-to-reach locations.
• Agricultural Use: Transporting saplings, seeds, or other agricultural materials.
• Disaster Response: Deploying fire extinguishing equipment or other emergency tools.

With its powerful capabilities and versatile design, the Dreameagle YS-40 Transport Drone sets a new standard for industrial aerial transportation, providing unmatched efficiency and reliability in the most demanding scenarios.

Dreameagle YS-40 Transport Drone

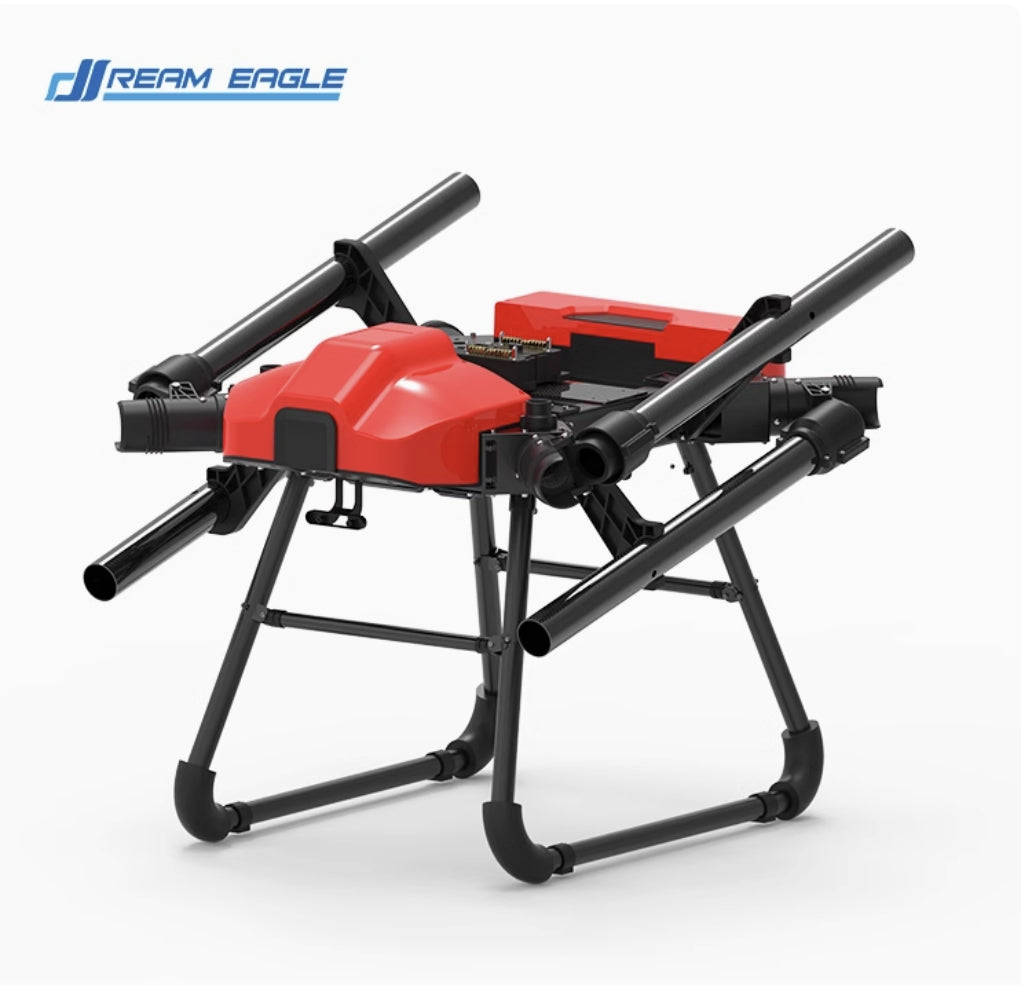

Dreameagle YS-40 Transport Drone: 40kg payload, 20-minute heavy load delivery, industrial drone featuring RTK dual-battery platform, weak current control system, waterproof module, tail power integrated module, X1 Powertrain head, FPV module, and a sturdy 50# carbon fiber arm with carrying platform, arm folding buckle, and material box integration module for transporting materials.

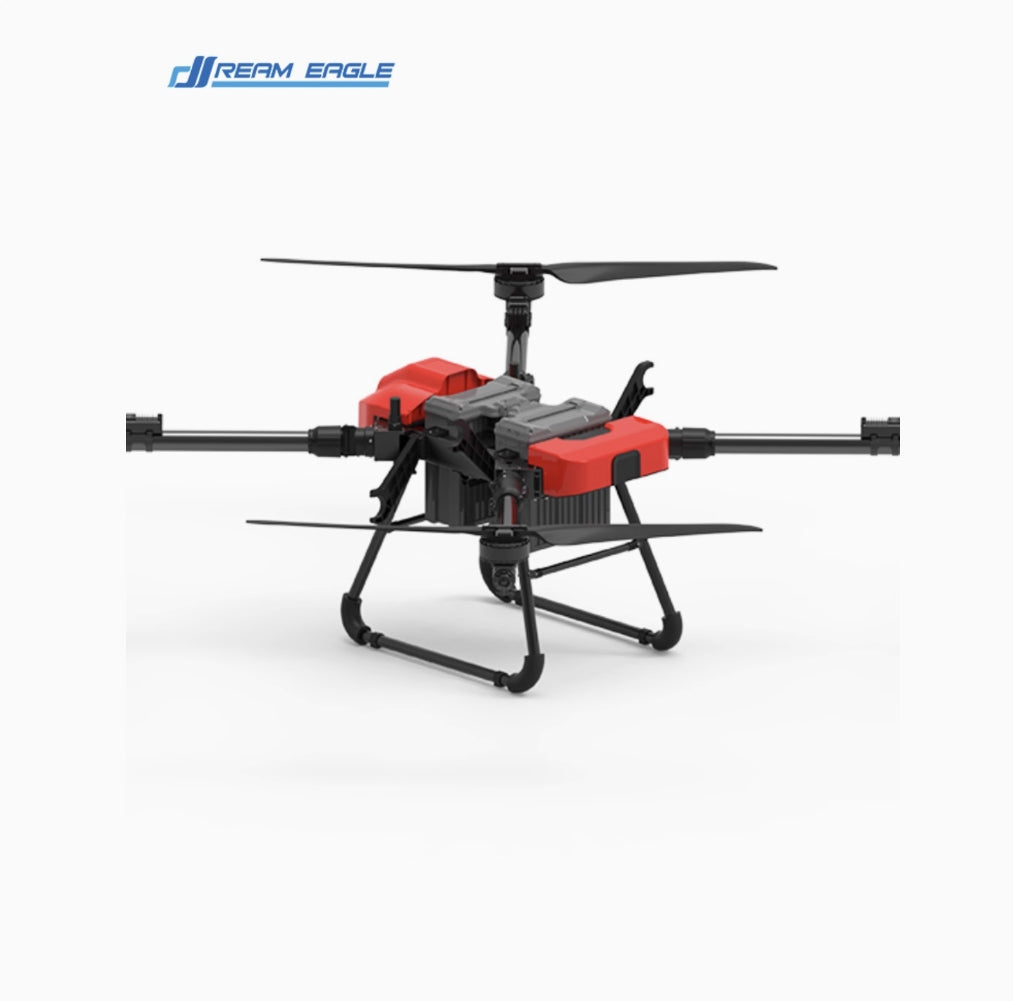

Dreameagle YS-40 Transport Drone features a modular design for easy installation and disassembly. The machine head integrates waterproof and strong current protection modules, as well as a quick-release socket and transport box for fast setup. The RTK remote control antenna and all arms can be quickly assembled or disassembled. The drone also includes hidden wiring, providing a systematic installation solution for industrial applications. The power supply platform features dual sockets with incoming line distribution and ESC signal plug. The machine head control system is installed on an area distribution board with a waterproof sealed compartment. A battery fixing strap buckle secures the battery in place.

The Dreameagle YS-40 transport drone features a 40kg payload capacity and 20-minute heavy load delivery. It an industrial-grade drone designed for efficient and reliable transportation.

The Dreameagle YS-40 Transport Drone features a 40kg payload capacity and 20-minute heavy load delivery capabilities. It has an industrial-grade design with IP67 protection, ensuring the entire machine is dust-proof and waterproof, allowing for direct washing.

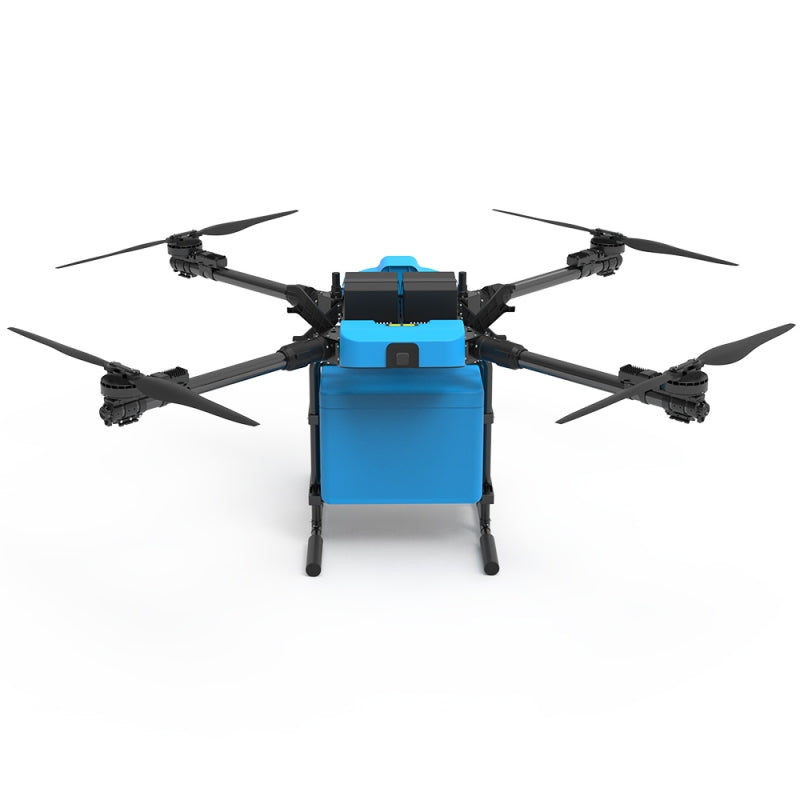

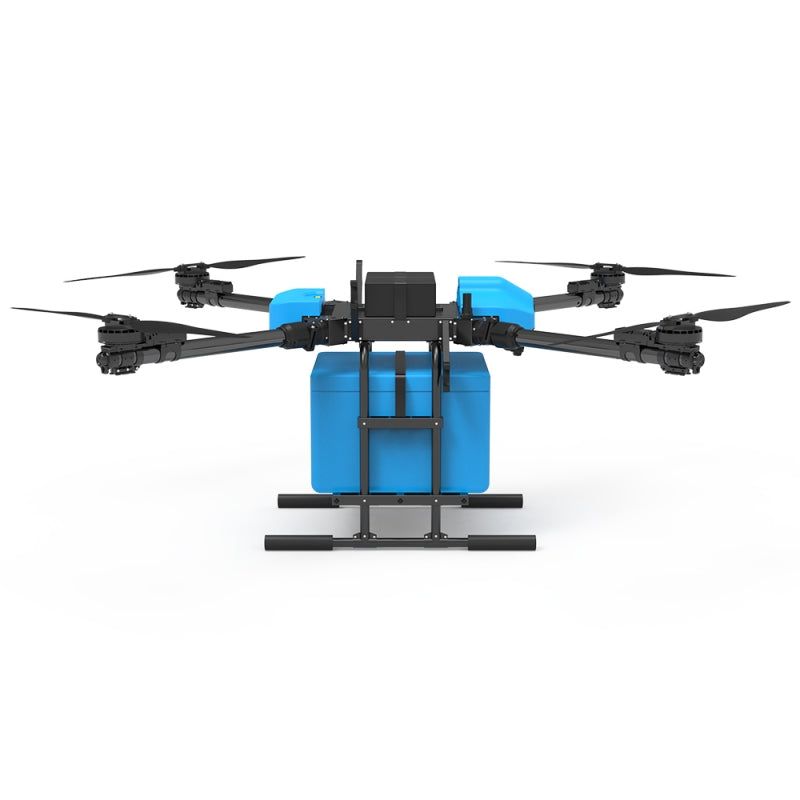

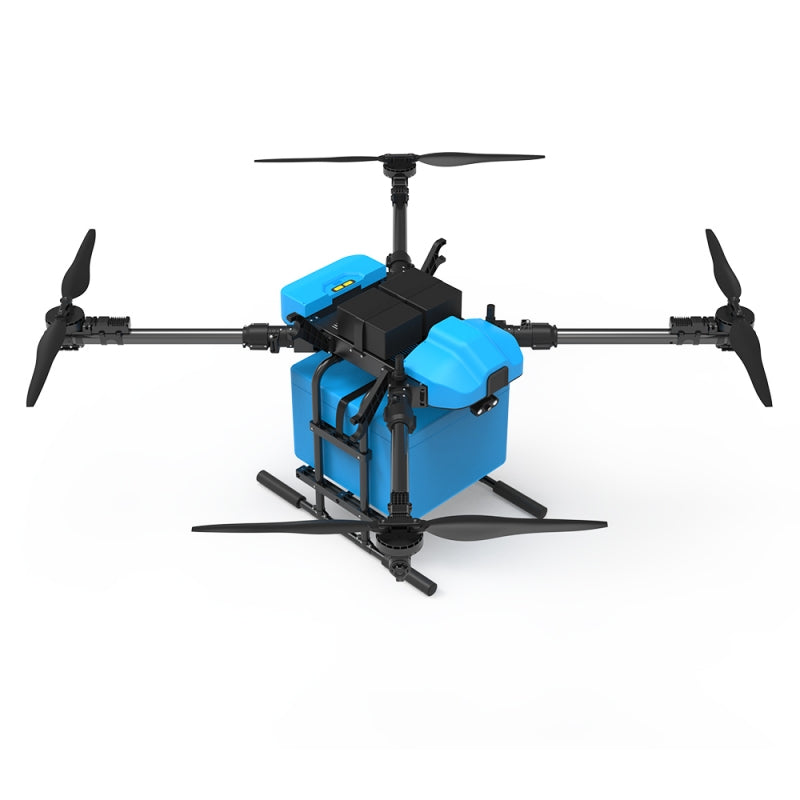

Multi-purpose transport platform carries 20-40kg materials/goods, quickly disassembles items, converts various loading platforms, customizable.

Dreameagle YS-40 Transport Drone features a 40kg payload capacity and 20-minute heavy load delivery capabilities. It offers a dual battery solution for users to choose from, with a single or two-battery configuration available for simultaneous flight.

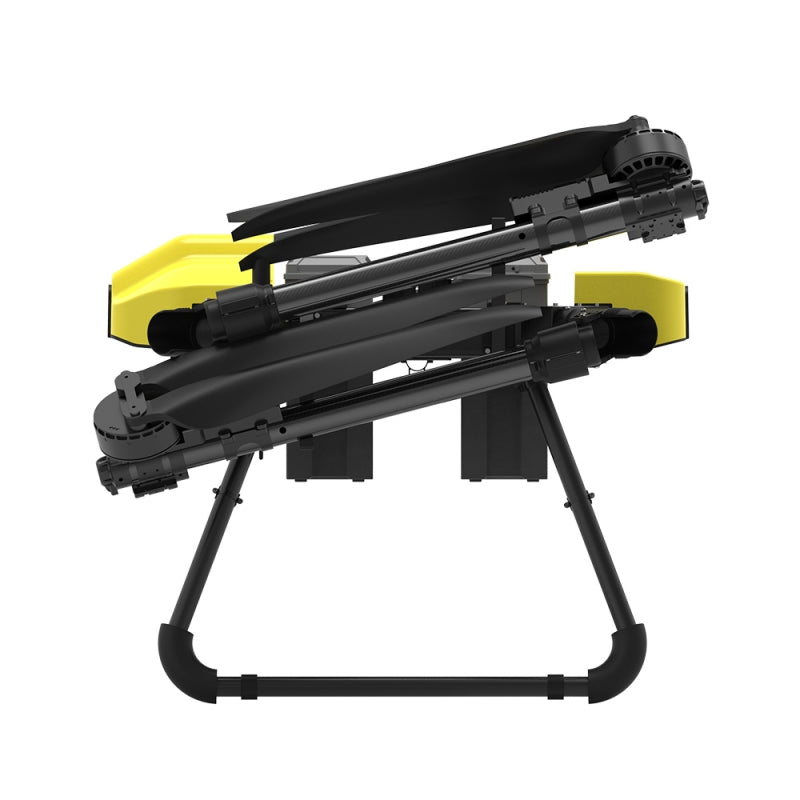

The Dreameagle YS-40 Transport Drone is an industrial-grade drone designed for heavy-load delivery. With a maximum payload capacity of 40kg, it can transport large and bulky items over short distances. The drone folded size measures 860x864x935mm, while its expanded size reaches 1570x1570x800mm. It has a weight range of 20-24kg, excluding batteries. With a hovering time of up to 20 minutes without load and 3 minutes with a full load, the YS-40 is ideal for industrial applications that require efficient and reliable transportation.
