SPECIFICATIONS
Brand Name: SKSKTU
Compatible Drone Brand: DJI
Origin: Mainland China
Compatible Drone Model: DJI phantom 4 / 4pro
Size: Airdrop
Weight: 220G
Model Number: SKTU-03-97-p4
Package: Yes
Choice: yes
semi_Choice: yes

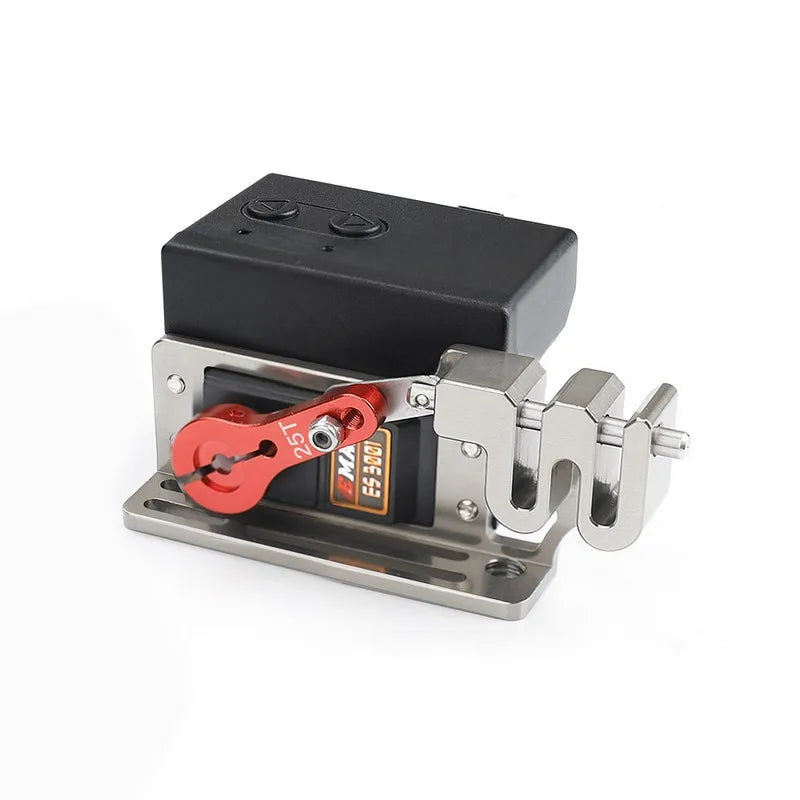

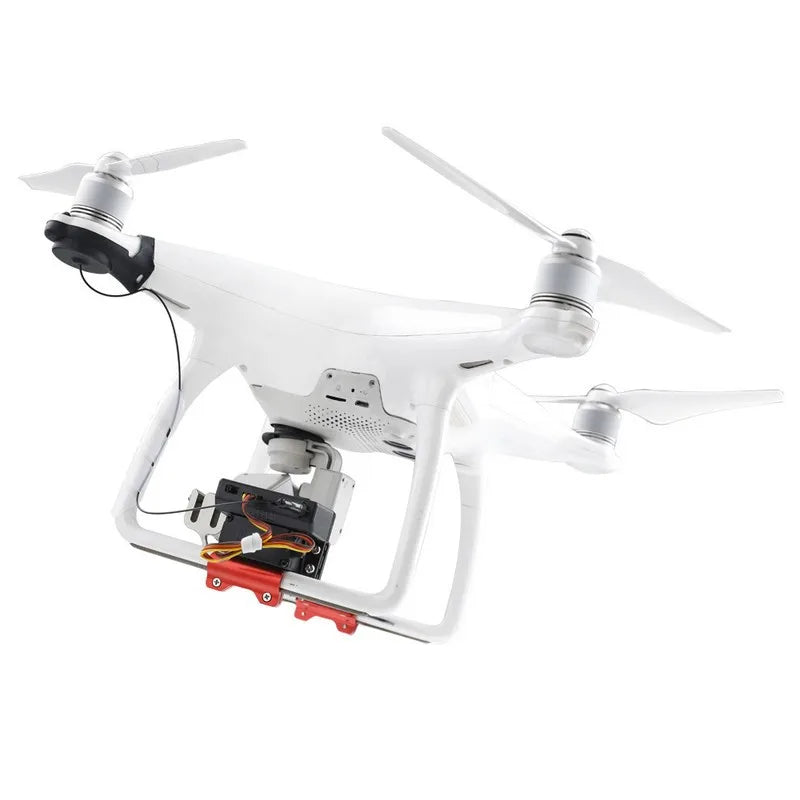

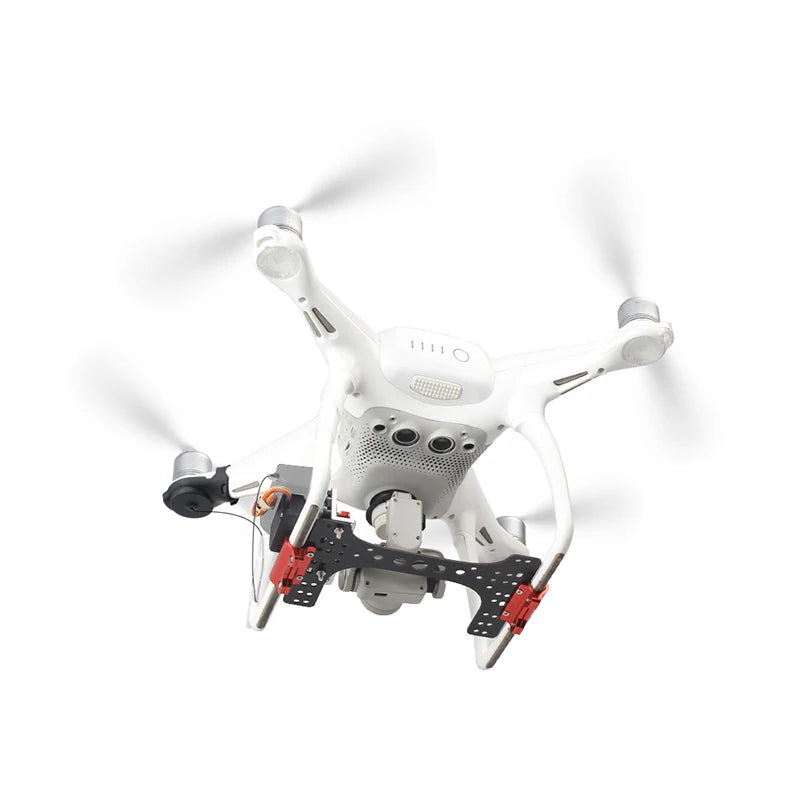

Drone Airdrop System flying Air Deliver Servo Switch device kit For DJI Remote control control For DJI phantom 4 / 4pro Advanced drone Accessories
description:
Colour: Black
Load: max 500g
Battery capacity: 400MAH
Charging time: 1 hour
Use time: Standby time is about two days. The time used is based on the actual number of launches.
How to Use:
1.power on.power on the airdrop kit and the LED indicator will light on.power off and the led indicator light will off.
2.set the dji Go APP. turn off the arm light (C1/C2) to chekt if the airdrop kit can work normally.
3.tie the stuffs which need to be parachuted on the drones and install the light sensor module,the servo gear will be locked automatically.if the lock are not in place ,please press the buttons on the airdrop kit to adjust the places.installation drone.
4. Do the parachute. Fly to the places you want to airdrop.turn on the arm light by the remote controller and the airdrop kti will open the lock , airdrop done.
Note:
1. the airdrop kit will ran out of battery soon if the led indicator flashed (4 times/second) the led indictor will turnded on during the charging and off when the charging done.(current:500mAh)
2.the light sensor modules will be will be in different shapes as the drones are different .
3. please checking to see if the cables blocked the props/sensors or DJI GO APP has unusual reminders after the installation.
4.please don't tie much stuffs on the drones as different drones can burden different weights.please test the weights gradually and keep the fly safe.
5. please follow the local laws during the flight.the operateor will have the full responsibility for the safety and accident cases.
6. data references (weights) for the airdrop kit of different drones:
phantom2/3 <500G
phantom4/4pro <500G
mavic pro <300G
Send list:
1 set * Airdrop
![Drone Airdrop, Verify air drop kit function by turning off arm light (C1/C2) before use.](https://rcdrone.top/cdn/shop/files/S21442266f1144cc0a799810cfd5bb53dr.webp?v=1717927049)
![Drone Airdrop, Aircraft lands at desired location; turns off lights via remote control; airdrop system opens lock.](https://rcdrone.top/cdn/shop/files/Saa0ed918f0f24a7baa44a64cd81db456w.webp?v=1717927060)
![Drone Airdrop, Actual launch count determines timeline](https://rcdrone.top/cdn/shop/files/Se5048e5ebef14657bf41e6a03e2d2904c.webp?v=1717927070)
![DJI Phantom 4 drone airdrop system with servo switch and remote control for aerial delivery.](https://rcdrone.top/cdn/shop/files/S20bed416028e4335a7571395d59ef7b6e.webp?v=1717927080)
![Drone Airdrop, Parachute-delivered components require locking servo gear; if not locked, adjust with airdrop kit buttons.](https://rcdrone.top/cdn/shop/files/S124b88db0c4b45d2aa8862f64b13a031k.webp?v=1717927090)
![Drone Airdrop, Please refer to the diagram for correct wire connections.](https://rcdrone.top/cdn/shop/files/S27348ca6df9b400a8f1c84120a4b8dc5i.webp?v=1717927101)

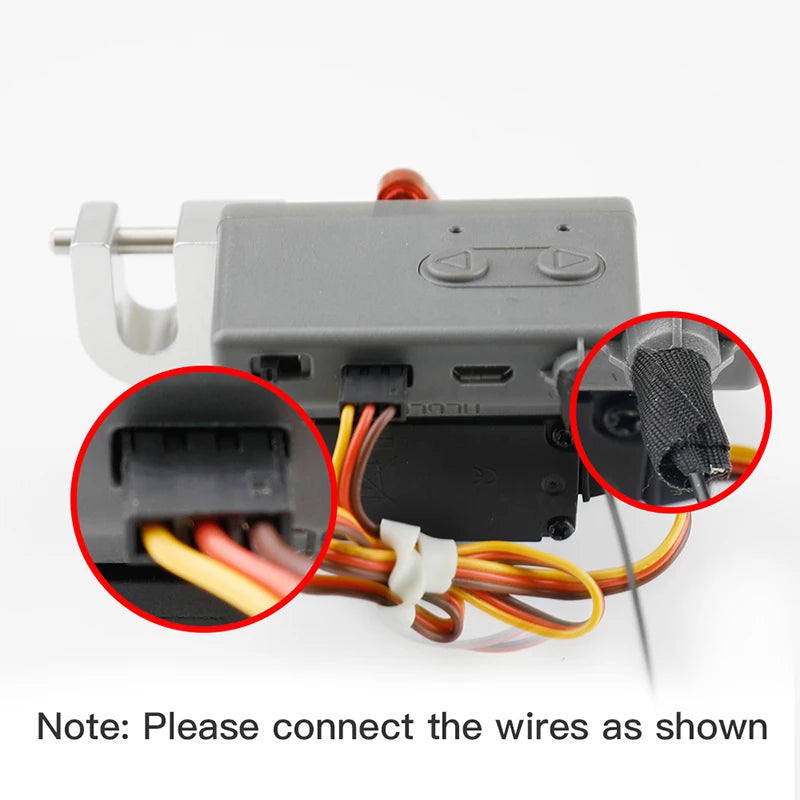

Please refer to the diagram for correct wire connections.
![Drone Airdrop, Set up 'Cl' button as drone arm light switch on Mavic 2 Remote Controller.](https://rcdrone.top/cdn/shop/files/S49d2ad71d07e4c49bc7e029b661c5d10I.webp?v=1717927120)
To set up the 'Cl' button as a drone arm light switch, follow these steps: Open the Mavic 2 Remote Controller and enter the Settings menu. Click the 'Remote Controller' button in the top-right corner and navigate to the 'Customize Set' option. In this section, you can assign the 'Cl' button to toggle the headlight on or off. This allows you to easily turn on or off your drone's arm lights using the 'Cl' button on your remote controller.
![Drone Airdrop, Airdrop system: Fly to destination, activate arm light via remote controller, and drop cargo.](https://rcdrone.top/cdn/shop/files/S84b82e800e794a34825b38f3774d1ec2i.webp?v=1717927131)
![Drone Airdrop, Packaging contents for a drone or camera equipment kit, including various parts and accessories.](https://rcdrone.top/cdn/shop/files/Sea831cffccd04ae6a61fe5126820d06dx.webp?v=1717927146)

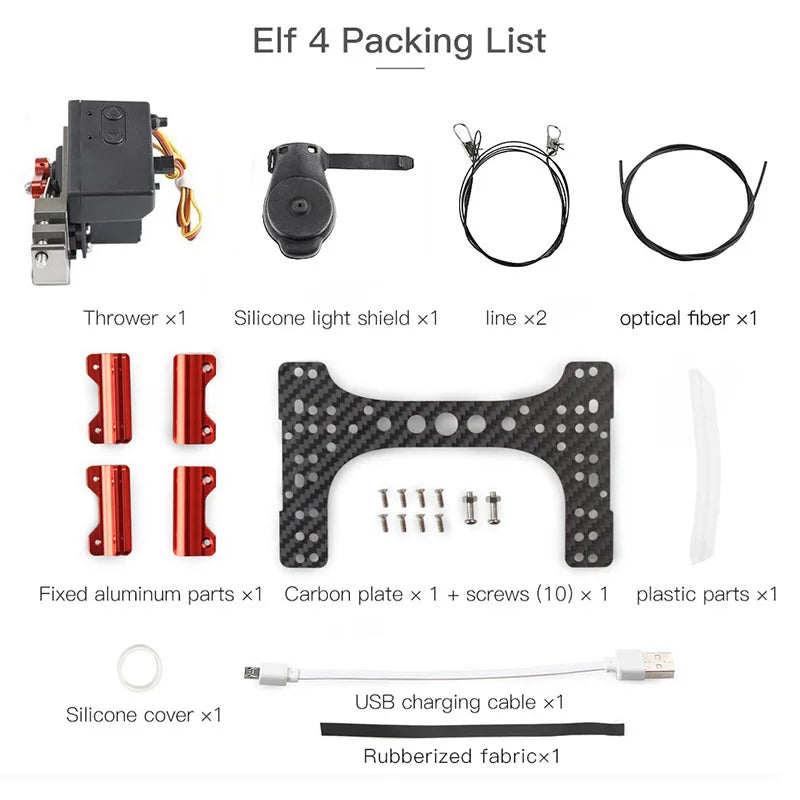

The contents of this packing list include: Elf 4 Thrower, silicone light shield, one optical fiber line, two fixed aluminum parts, carbon plate with screws (10), plastic components, USB charging cable, and additional accessories such as silicone cover, rubberized fabric.
![Drone Airdrop, Drone equipment kit with airdrop system, servos, shields, fibers, plates, screws, and cables for aerial photography.](http://rcdrone.top/cdn/shop/files/S8cab36c2bcef4d37a12fdaba6cd72cdcI.webp?v=1717925930&width=1445)
![Drone Airdrop System flying Air Deliver Servo Switch kit For DJI Remote control control For DJI phantom 4 / 4pro drone](http://rcdrone.top/cdn/shop/files/S974e33f4b9e84391a8814fe48ea481509.webp?v=1717925930&width=1445)
![Drone Airdrop System flying Air Deliver Servo Switch kit For DJI Remote control control For DJI phantom 4 / 4pro drone](http://rcdrone.top/cdn/shop/files/S2f6dd147c6074acca58fc3621de98776n.webp?v=1717925930&width=1445)
![Drone Airdrop System flying Air Deliver Servo Switch kit For DJI Remote control control For DJI phantom 4 / 4pro drone](http://rcdrone.top/cdn/shop/files/Sce87e05ea4bd4c729e49e883d16d8dc6I.webp?v=1717925930&width=1445)
![Drone Airdrop System flying Air Deliver Servo Switch kit For DJI Remote control control For DJI phantom 4 / 4pro drone](http://rcdrone.top/cdn/shop/files/S2090d47597d84007aaaca37f56617583d.webp?v=1717925930&width=1445)
![Drone Airdrop, Air delivery servo switch kit for DJI Phantom 4/Pro drones, with illustrated wiring instructions.](http://rcdrone.top/cdn/shop/files/Sd014e3392b2e4686802853b6d05fd371k.webp?v=1717925931&width=1445)
![Drone Airdrop, Kit contents: drone airdrop system, remote control servo switch, and various component parts for assembly.](http://rcdrone.top/cdn/shop/files/S428bbed174fa4afba460d1c01d7f5c73v.webp?v=1717925931&width=1445)
