SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China
Power: 4W

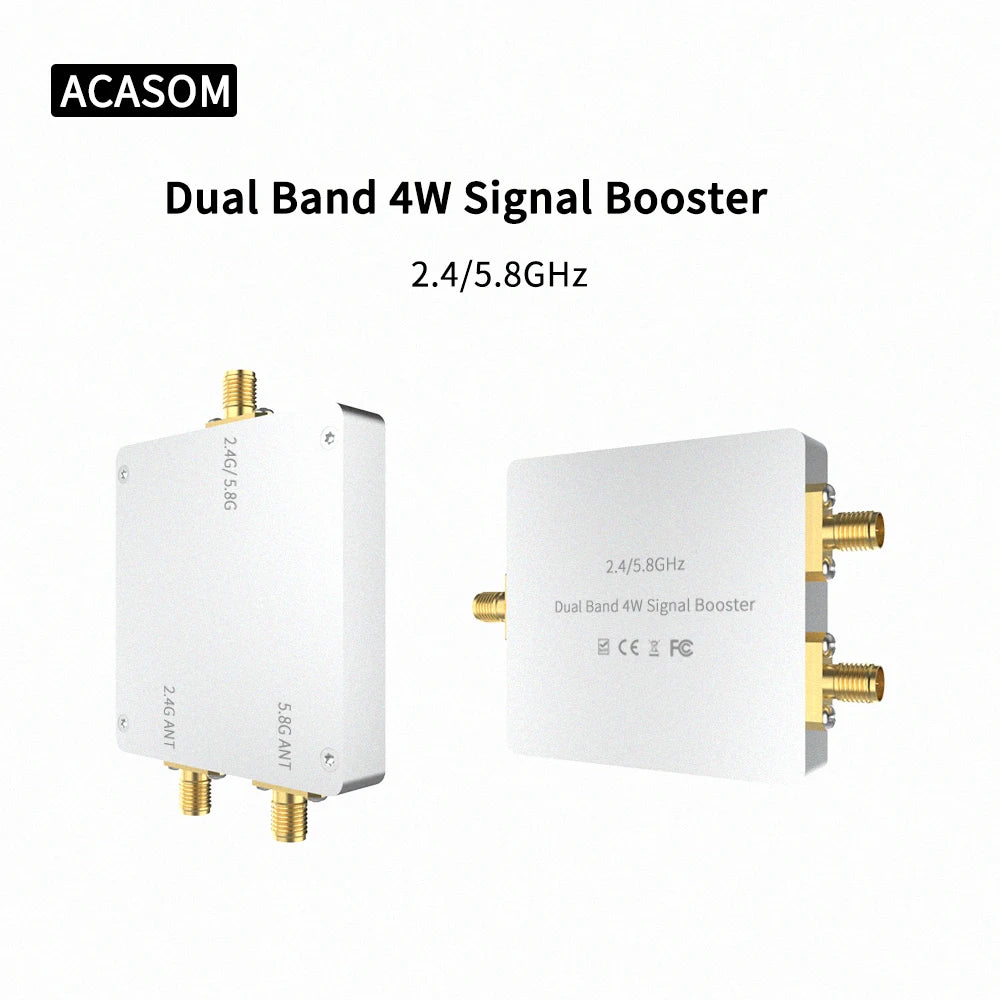

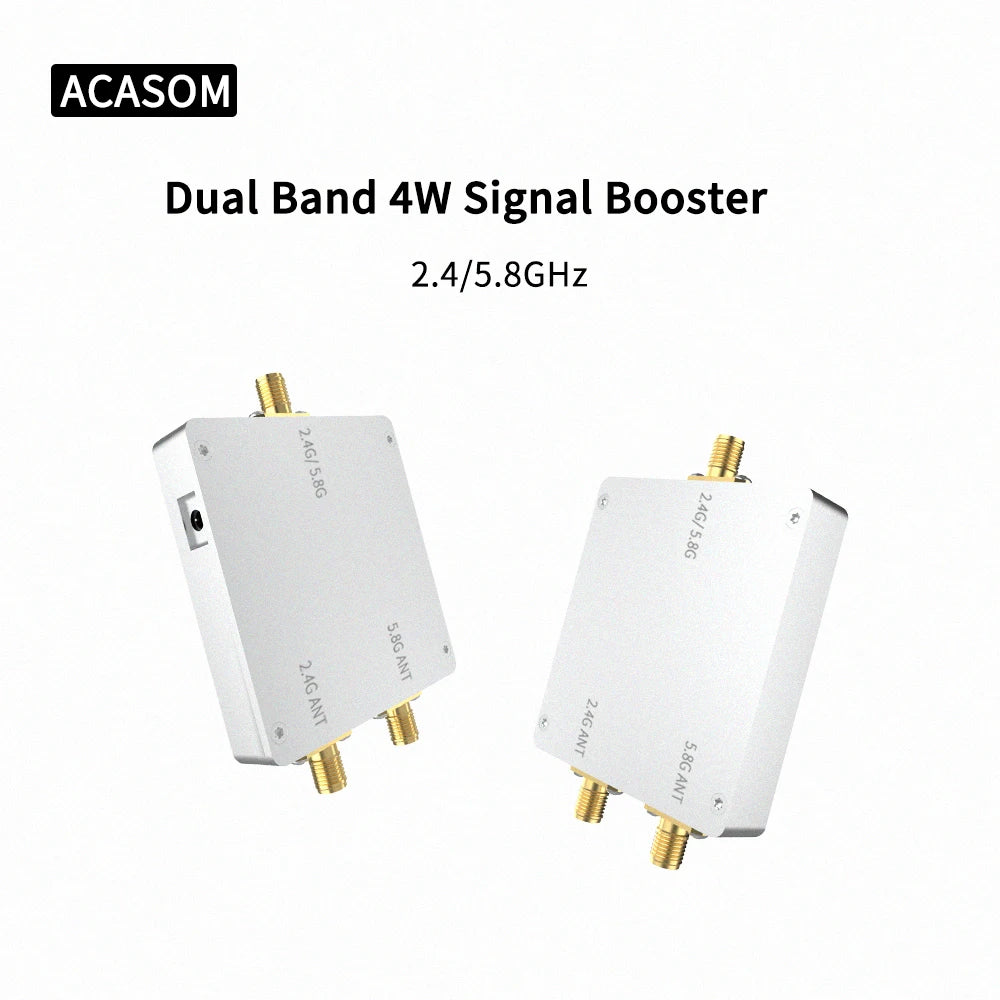

ACASOM 2.4GHz/5.8GHz DUAL CHANNEL 4W Signal Booster/Etender
Working Band TO 5.8G: 5.725-5.85GHz
Working Band TO 2.4G: 2.4-2.5GHz
Number |
Items |
Specifications |
1 |
Frequency Range |
5725-5850MHz |
2 |
Operating Voltage |
5-16V |
3 |
ReceivingGain |
16dB±1 |
4 |
Transmission Gain: |
18dB±1 |
5 |
Max Output Power(P1dB) |
36dBm(4W) |
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
7 |
EVM |
3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
8 |
Noise Figure |
<3.0dB |
9 |
Current Supply |
485mA@Pout 28dBm 12V |
10 |
TX/RX Switch Time Delay |
<1 us |
11 |
LED Indicator |
Transmitter: Green; Receiver: red |
12 |
RF Connector |
Input: SMA-K; Output: RP-SMA-K |
Number |
Items |
Specifications |
1 |
Frequency Range |
2400-2500MHz |
2 |
Operating Voltage |
5-16V |
3 |
ReceivingGain |
18dB±1 |
4 |
Transmission Gain: |
18dB±1 |
5 |
Max Output Power(P1dB) |
36dBm(4W) |
6 |
Input Trigger Power |
Min:3dBm Max:23dBm |
7 |
EVM |
3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
8 |
Noise Figure |
<2.5dB |
9 |
Current Supply |
580mA@Pout 28dBm 12V |
10 |
TX/RX Switch Time Delay |
<1 us |
11 |
LED Indicator |
Transmitter: Green; Receiver: red |
12 |
OperatingTemperature |
-30℃~+70℃ |
13 |
StorageTemperature |
-40℃~+150℃ |
14 |
Operating Humidity |
Up to 95% rel. humidity |
15 |
RF Connector |
Input: SMA-K; Output: RP-SMA-K |
16 |
Power Socket |
2.5*0.7mm DC |
17 |
Shell Size |
65*61*12(mm) |
18 |
Shell Material |
Aluminum |
19 |
Net Weight |
0.12Kg |

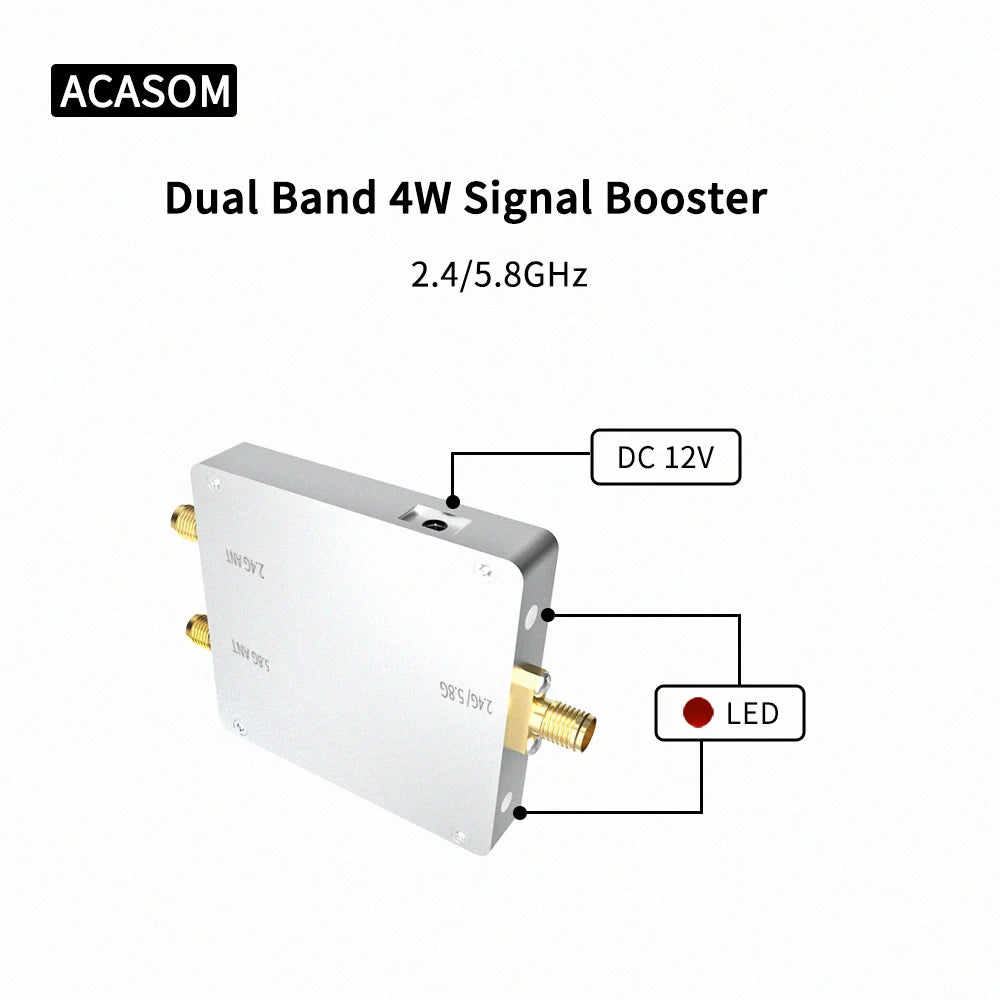

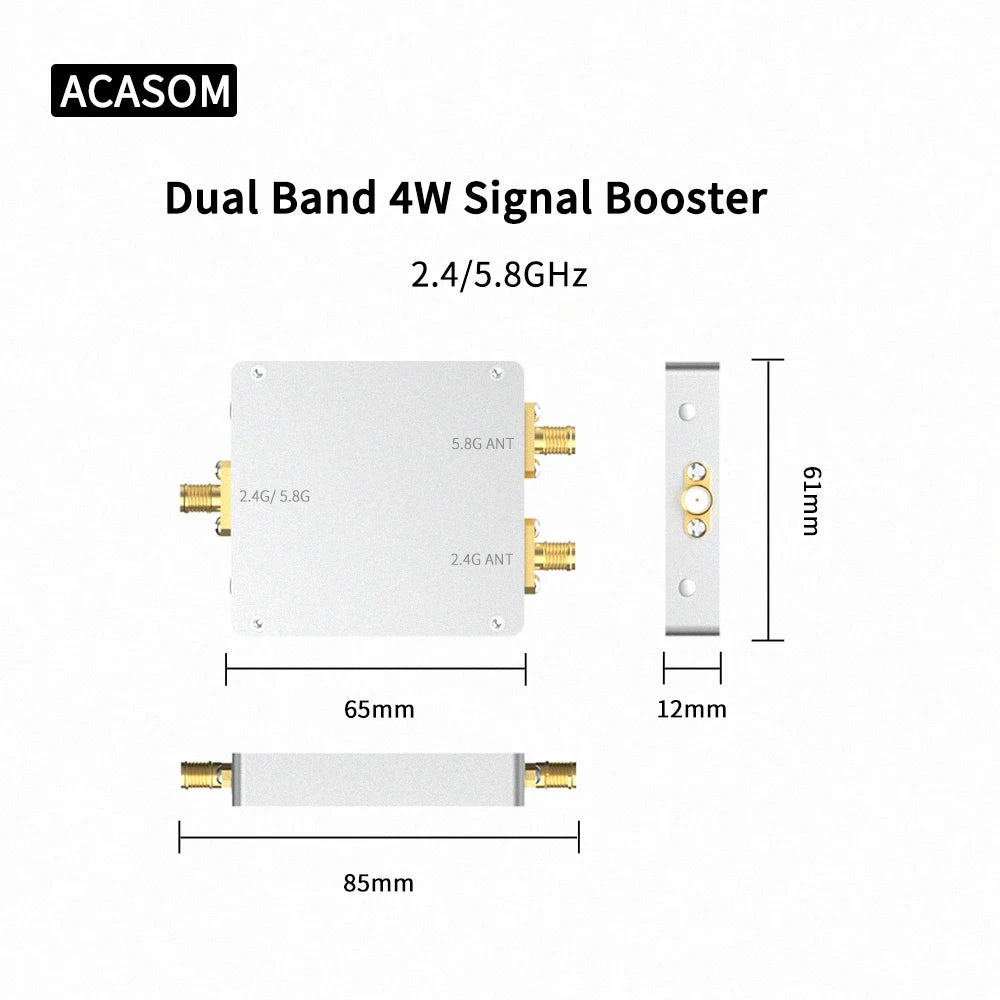

ACASOM Dual Band 4W Signal Booster 2.4/5.8GHz 5.8G ANT 2.46/ 5.86 1 2.46 ANT 65mm 12mm 85
Electric current: 12V/1A
Please connect the antenna first then supply power, finally connect the signal device.
1PCS* 2.4GHz/5.8GHz Dual Channel Signal Booster
2PCS*2.4GHz/5.8GH 5dBi Antenna
2PCS* RG316 Cable (IPEX TO SMA)
2PCS* RG402 Blue Cable (20CM)
3PCS* DC Power Adapter (about 20CM)
