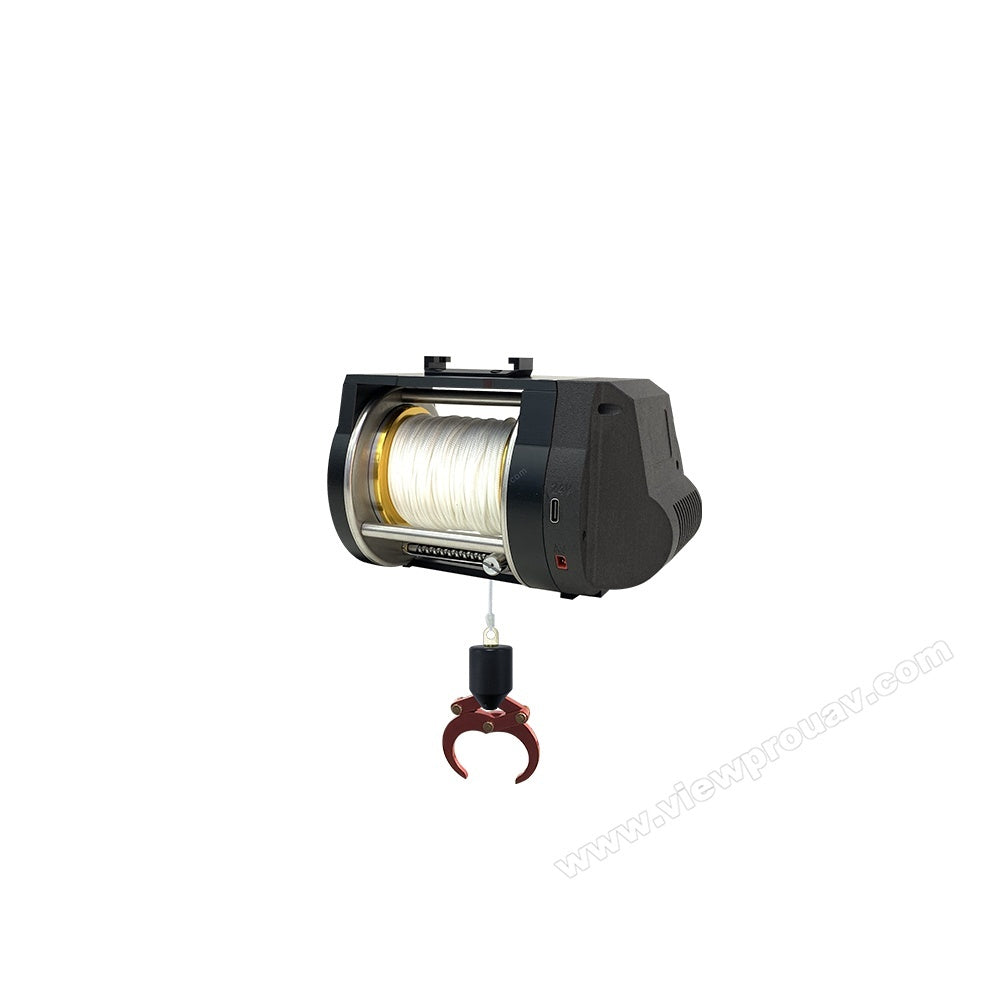

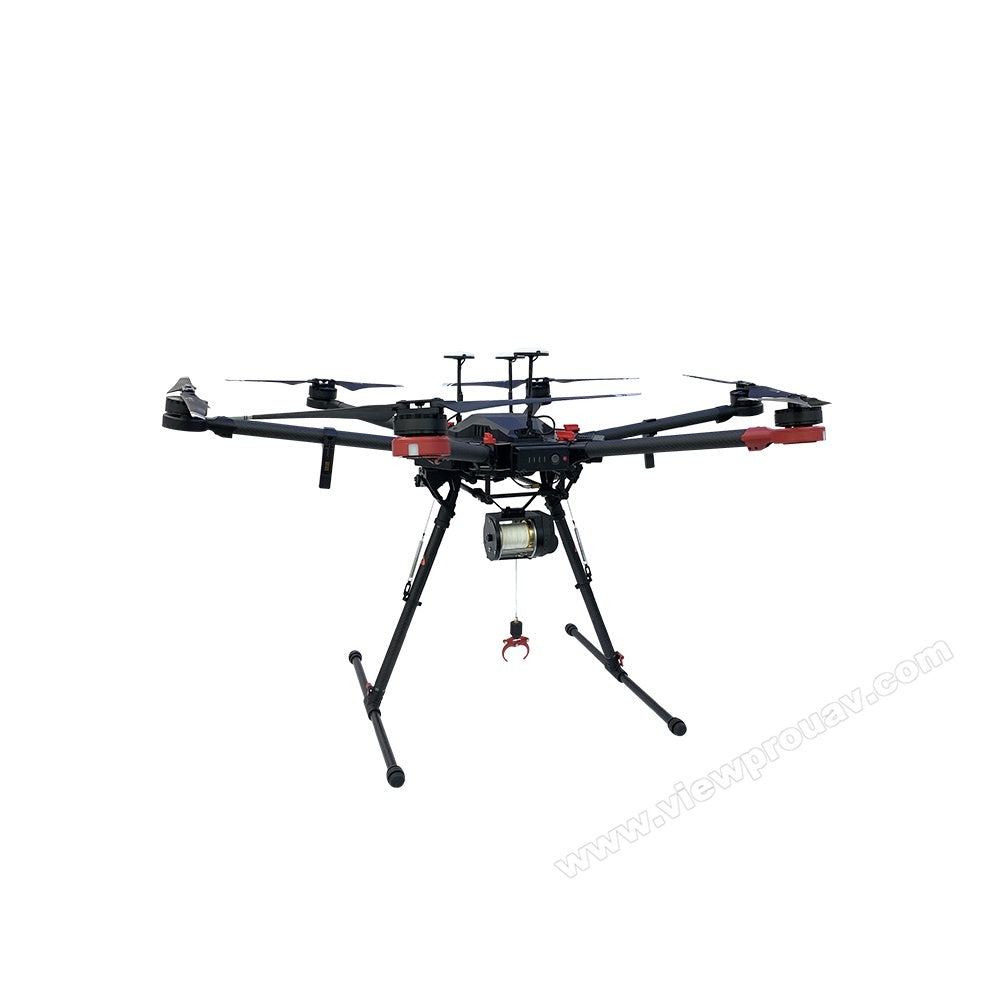

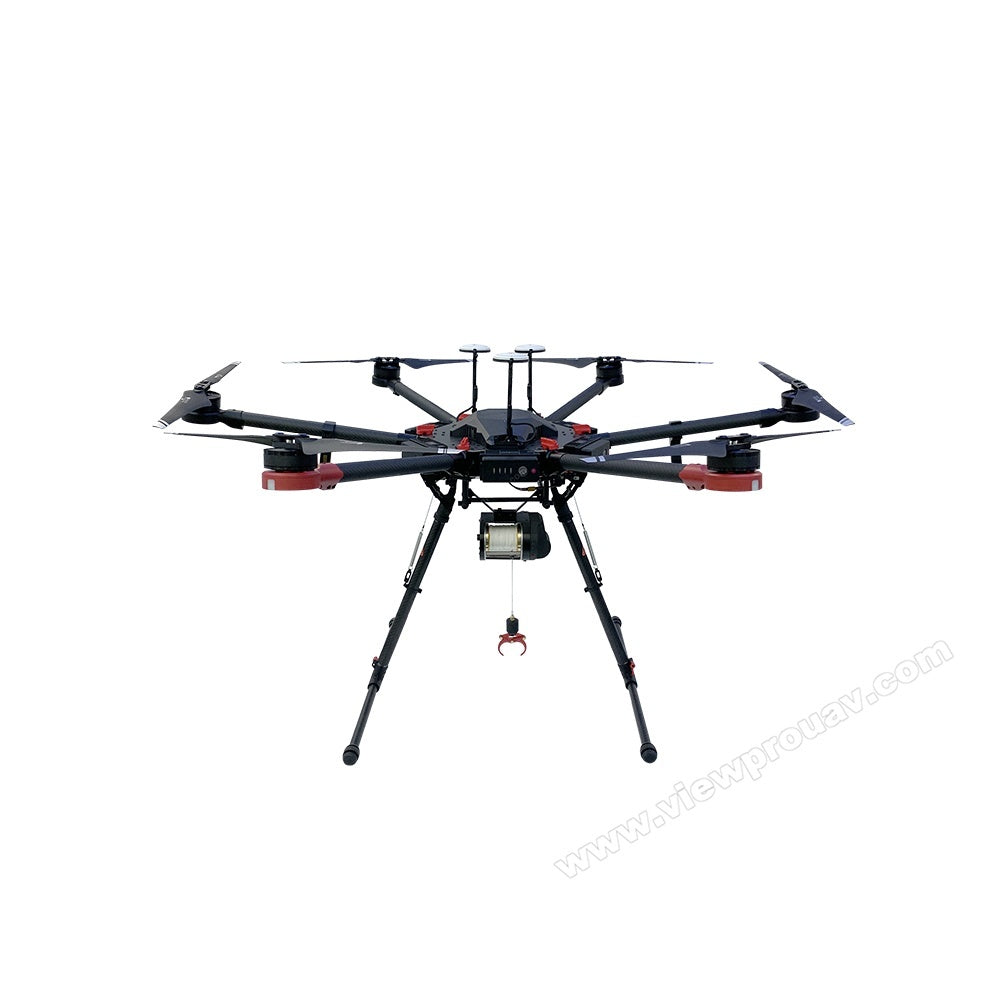

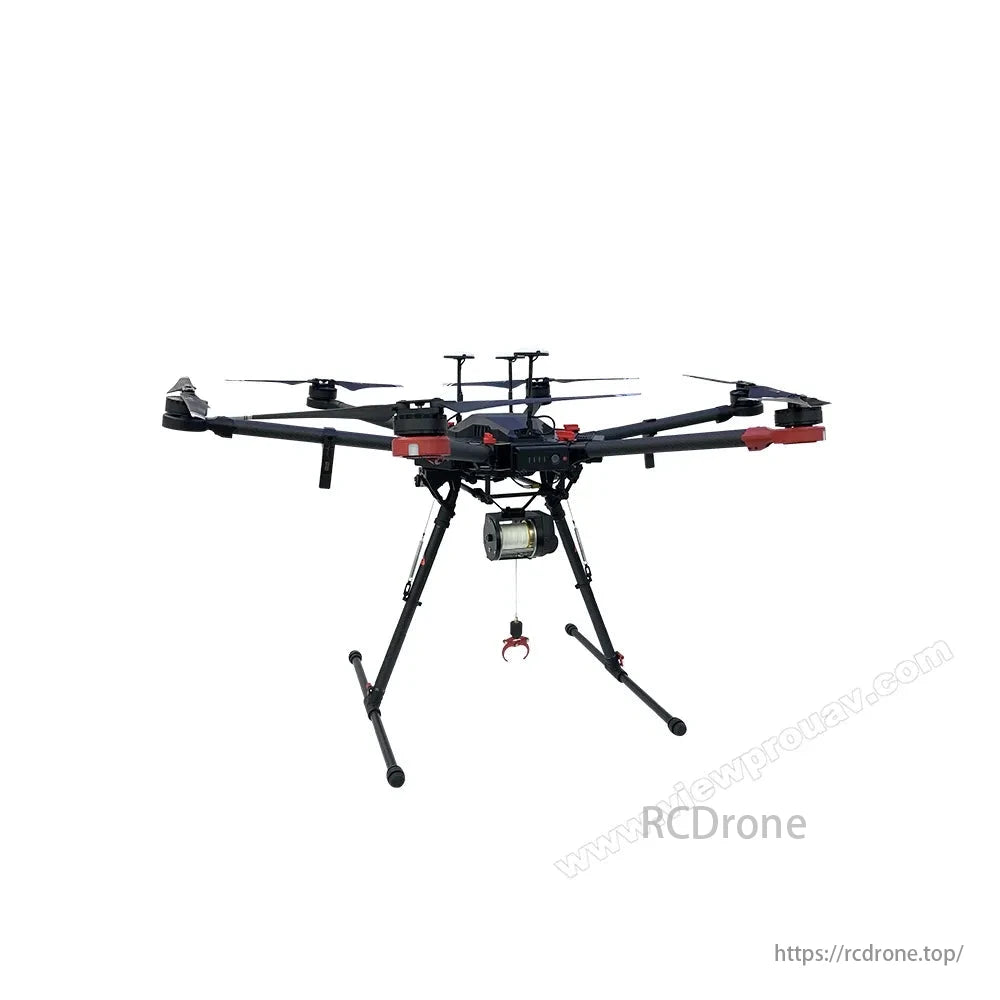

Drone Winch with 30m Rope and Hook for Delivery

Overview

The Drone Winch with 30m Rope and Hook is a high-performance module designed for efficient material transport and emergency applications. Its lightweight yet durable build features a brush DC motor and a 30-meter high-strength rope, capable of carrying up to 5kg of payload. Ideal for public security, firefighting, power inspections, and disaster relief, this versatile device ensures safe and reliable delivery in challenging environments.

Key Features:

1. Compact and Lightweight: The winch's net weight of 1.05kg and compact dimensions (200×105×145mm) make it easily portable and drone-compatible.
2. Efficient Motor System: Equipped with a 22W brush DC motor delivering 6000 rpm, it ensures smooth and fast rope operations with a reduction ratio of 1:50.
3. Precise Control: Independent remote control with a control range of 800 meters ensures accurate operations even in obstructed areas.
4. High-Strength Rope: The 30-meter rope ensures durability and flexibility, capable of handling payloads in extreme conditions.
5. Quick Installation: The quick disassembly design allows for hassle-free setup and removal.

Specifications:

Winch Module

• External Size: 200×105×145mm
• Package Size: 305×269×195mm
• Net Weight: 1.05kg
• Motor Power: 22W
• Rope Length: 30m
• Carrying Capacity: Up to 5kg
• Setting Out Speed: 10m/min
• Control Mode: Independent Remote Control

Remote Control

• Size: 180×82×161mm
• Weight: 392g
• Frequency Range: 2.4055-2.475GHz
• Control Distance: 800m
• Display: STN semi-transparent, 128×64 lattice

Applications:

• Public Security and Firefighting: Transport vital equipment to hard-to-reach locations.
• Disaster Relief: Deliver rescue supplies efficiently in isolated areas.
• Power Inspections: Aid in line repairs and inspections in extreme conditions.
• Material Transport: Transfer goods for industrial or emergency needs.

With a reliable PWM signal system and robust engineering, the Drone Winch stands as a practical solution for aerial logistics in any scenario. Note: Avoid entangling the rope during use to maintain system integrity.

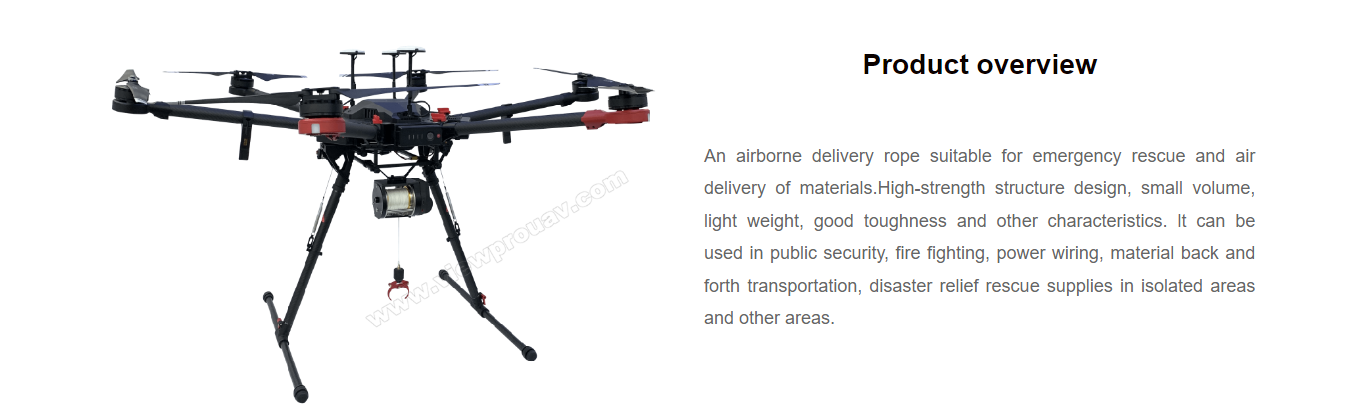

Drone Winch with 30m Rope and Hook for Delivery: A suitable aerial delivery rope for emergency rescue and air delivery of materials. Its high-strength structure design, small volume, and lightweight construction make it ideal for public security, firefighting, power wiring, material transportation, disaster relief, and rescue supplies in isolated areas.

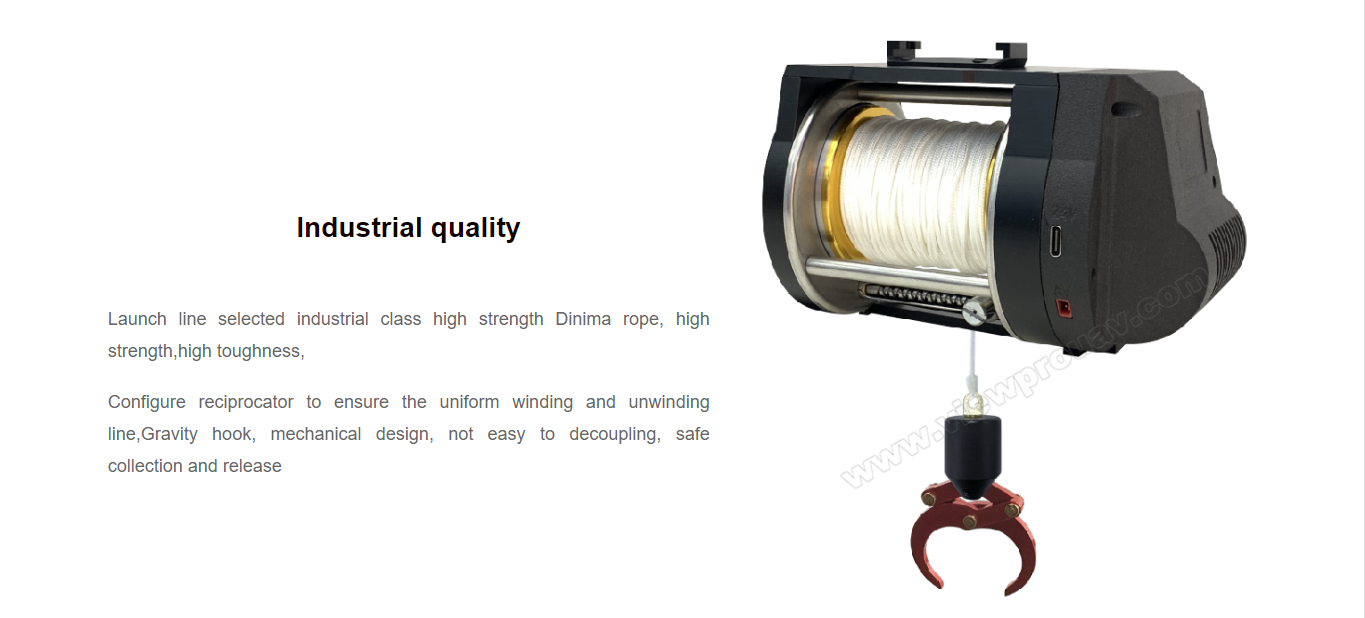

Industrial-quality launch line features a high-strength Dinima rope with excellent toughness. The reciprocator configuration ensures uniform winding and unwinding of the line, while the gravity hook has a mechanical design for easy coupling and decoupling, ensuring safe collection and release.

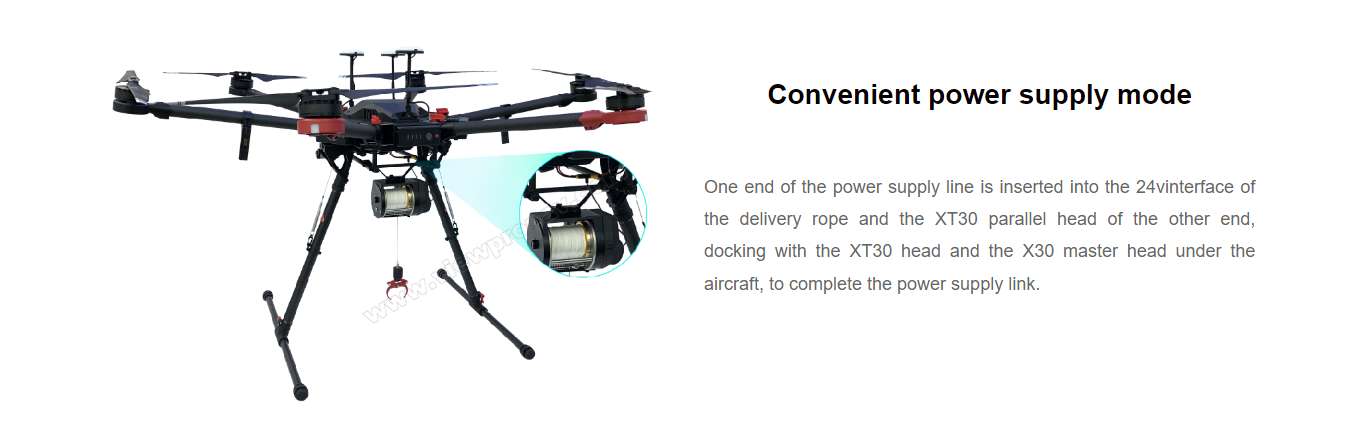

Convenient power supply mode: one end of the power supply line is inserted into the 24V interface of the delivery rope. The other end docks with the XT3O parallel head and X30 master head under the aircraft, establishing a power supply link.

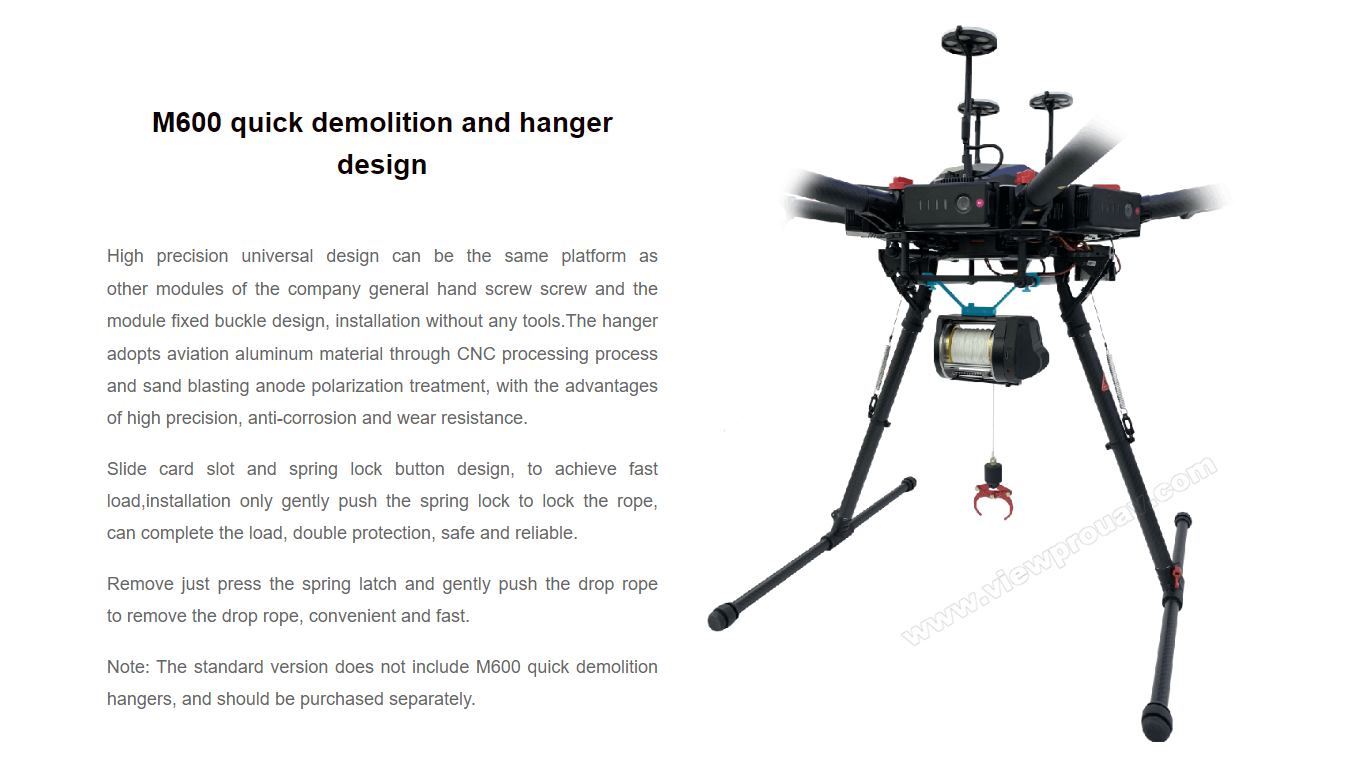

Introducing the Drone Winch with 30m Rope and Hook for Delivery. This innovative device features a high-precision universal design that can be used on the same platform as other company modules. The hanger is made of aviation aluminum material, processed through CNC machining and anodic oxidation treatment, offering high precision, corrosion resistance, and wear resistance. A slide card slot and spring lock button design enables fast loading and installation without tools. Simply push the spring latch to secure the rope, then release by pressing the latch and gently pulling the drop rope. This device is safe, reliable, and convenient to use. Note that the standard version does not include the M600 demolition hangers, which should be purchased separately.

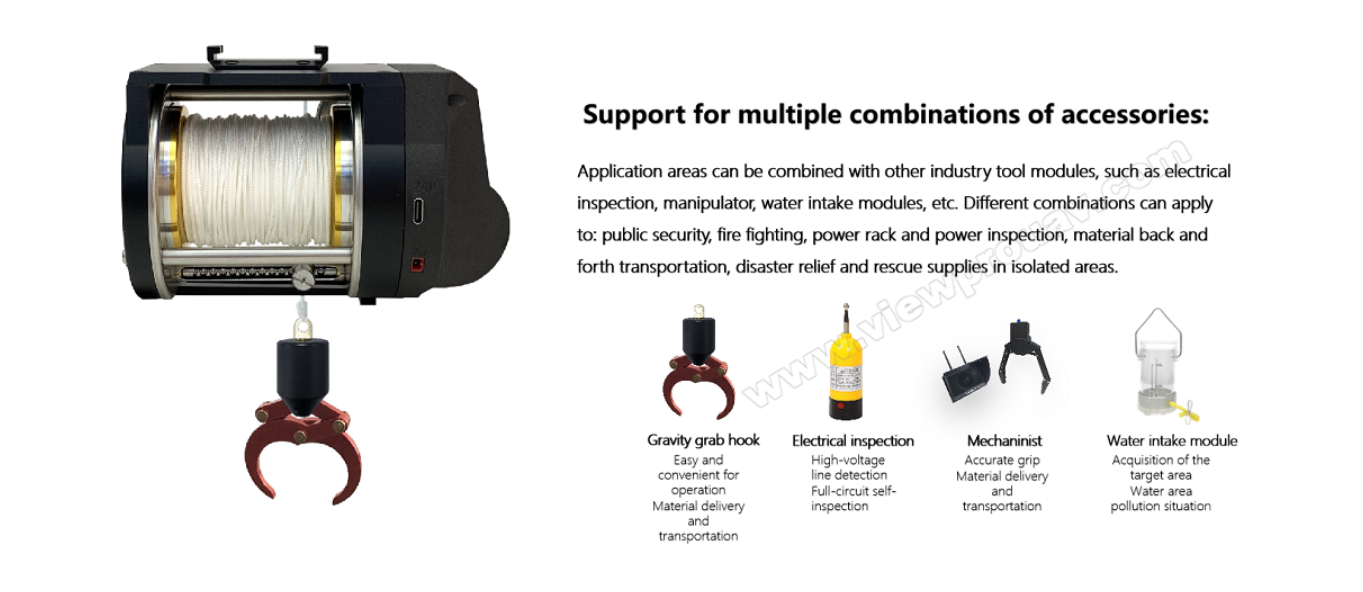

The Drone Winch with 30m Rope and Hook is designed for delivery purposes. It supports various combinations of accessories, which can be combined with other industry tool modules such as electrical inspection, manipulator, or water intake modules. This versatility makes it suitable for diverse applications including public security, firefighting, power line maintenance, material transportation, disaster relief, and rescue operations.

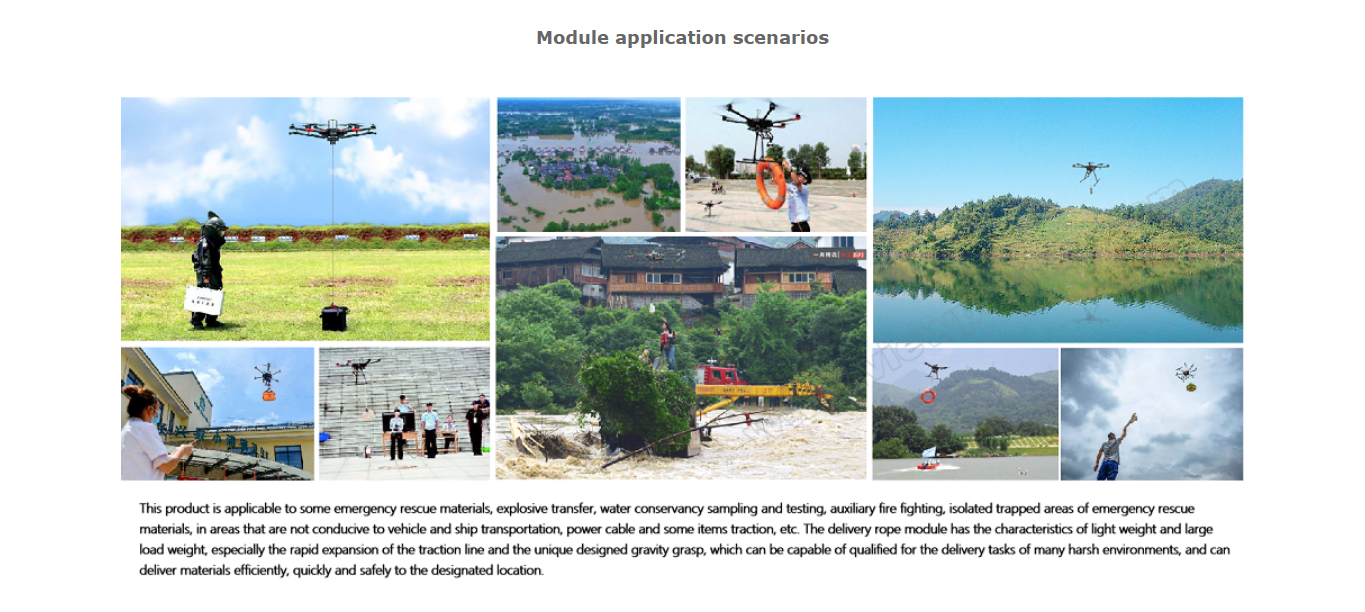

The Drone Winch with a 30m rope and hook is designed for various emergency scenarios. This product is suitable for transferring explosive materials, sampling and testing in water conservancy projects, auxiliary firefighting, rescuing people trapped in isolated areas, and transporting heavy items in areas inaccessible to vehicles or ships. The delivery rope module has the advantages of light weight, high strength, rapid deployment, and a unique gravity hook design. These features enable efficient, quick, and safe material delivery to designated locations in harsh environments.
