Dualsky XM2826EG 2826 2700KV/2130KV/1580KV Brushless Motor for F5K F5L P5B Glider & Folding Propeller FPV Planes

The Dualsky XM2826EG is a high-efficiency external rotor brushless motor engineered for lightweight gliders and electric sailplanes such as F5K, eRES (F5L), and ASFC P5B class aircraft. With a compact size, hollow 4mm shaft, and precise 12N14P configuration, it offers powerful performance for folding propeller setups and smooth throttle response for competition-grade remote-controlled gliders.

Available in three KV options, the motor supports a wide range of battery voltages (2S to 4S) and propeller combinations, optimized for thermal soaring, high-efficiency cruising, and FPV wing applications.

---

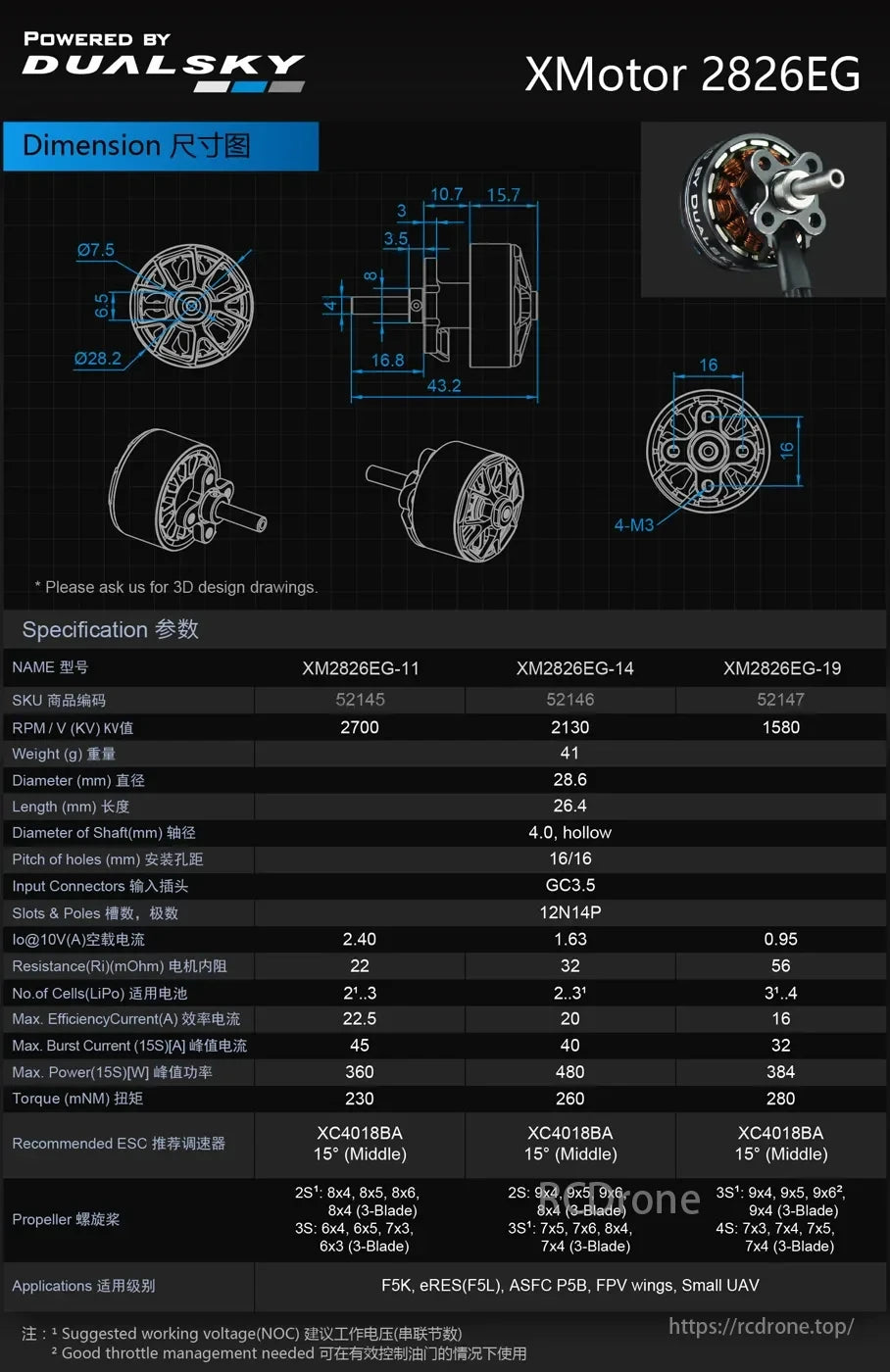

✅ Model Variants & Specifications:

---

✅ Shared Technical Details:

• Configuration: 12N14P

• Motor Dimensions: Φ28.6mm × 26.4mm

• Shaft Diameter: 4mm (hollow)

• Mounting Pitch: 16mm × 16mm (4 × M3)

• Input Connector: GC3.5

• Idle Current @10V: 2.4A (2700KV), 1.63A (2130KV), 0.95A (1580KV)

• Internal Resistance: 22 mΩ ~ 56 mΩ

---

✅ Recommended ESC:

Dualsky XC4018BA with 15° middle timing.

---

✅ Recommended Propellers (by KV):

• 2700KV (2S): 8x4 / 8x5 / 8x6, 8x4 (3-blade)

• 2130KV (2S-3S): 9x4 / 9x5 / 9x6, 7x5 / 8x4 (3-blade)

• 1580KV (3S-4S): 9x4 / 9x5 / 9x6, 7x4 (3-blade)

---

✅ Applications:

• F5K competition gliders

• eRES (F5L) electric sailplanes

• P5B precision glider class

• Lightweight FPV wings

• Small UAVs

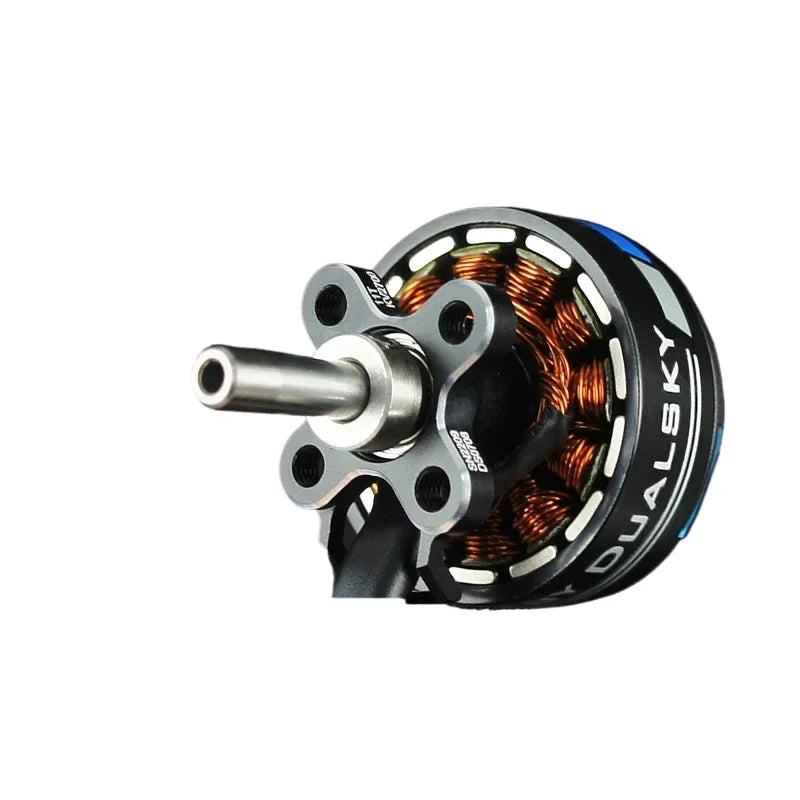

Dualsky XM28 Brushless Motor, 4mm hollow shaft, F5L, F5J, P5B.

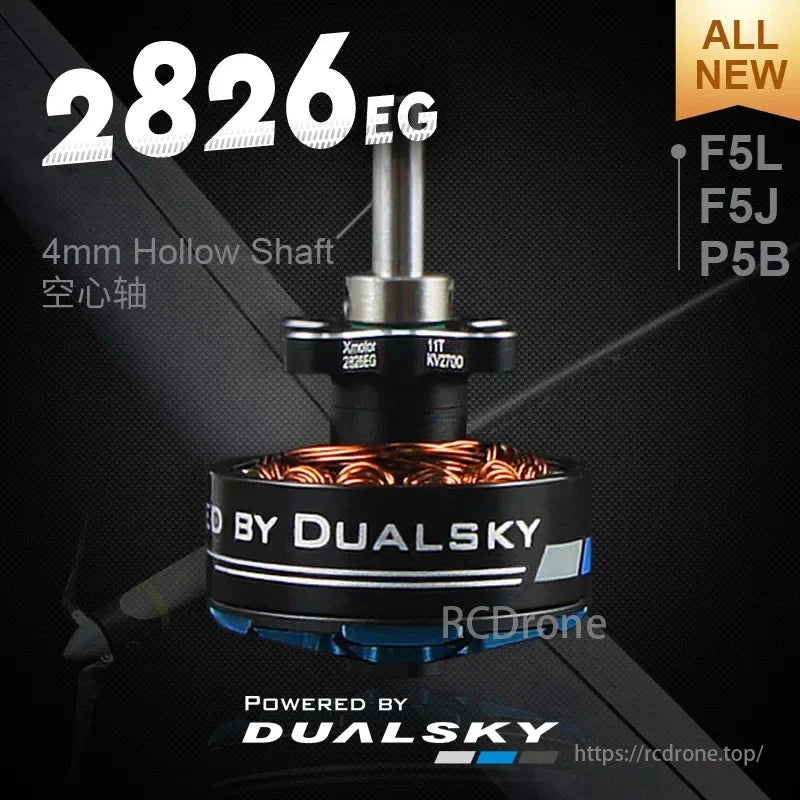

Dualsky XM2826EG brushless motor specs: 2700-1580 RPM/V, 41g weight, 28.6mm diameter, 26.4mm length. Features include GC3.5 connectors, 12N14P slots/poles, and recommended for F5K, FPV wings, small UAV applications.

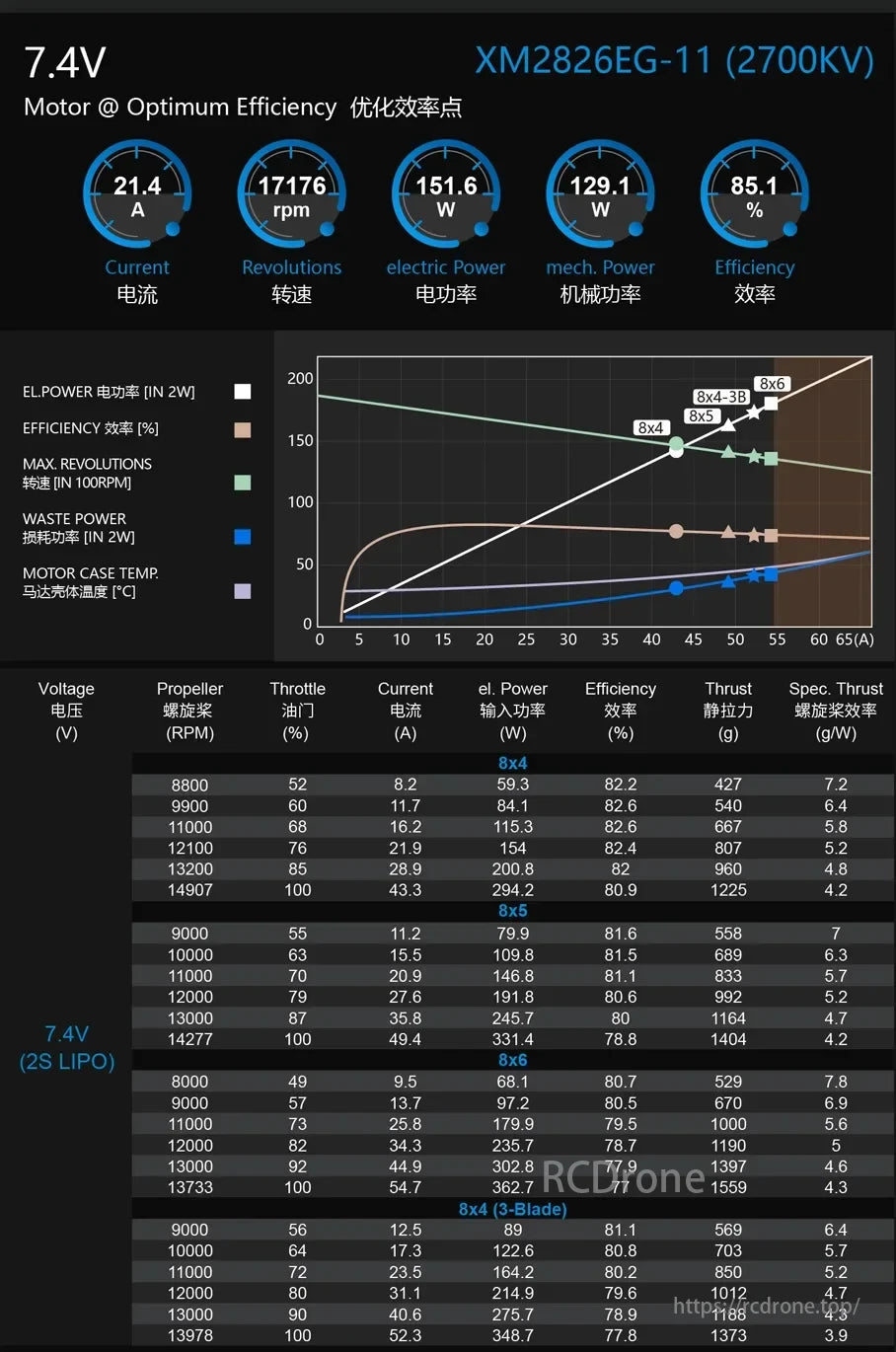

Dualsky XM28 Brushless Motor: 7.4V, 21.4A, 17176 RPM, 151.6W electric power, 129.1W mech. power, 85.1% efficiency. Specs cover voltage, current, RPM, power, efficiency, thrust, and specific thrust details.

Dualsky XM28 Brushless Motor: 11.1V, 31A, 25425 RPM, 325.2W electric power, 278.2W mechanical power, 85.5% efficiency. Specs cover voltage, propeller size, throttle, current, power, efficiency, thrust, and specific thrust details.

Dualsky XM28 Brushless Motor: 7.4V, 14.9A, 13719 RPM, 107.3W electric power, 91.4W mech. power, 85.1% efficiency. Specs cover voltage, current, power, thrust, and more.

Dualsky XM28 Brushless Motor specs: 11.1V, 2130KV. Optimum efficiency at 21.6A, 20413 RPM, 230.9W electric power, 197.7W mech. power, 85.6% efficiency. Data includes voltage, RPM, current, power, efficiency, thrust, and spec thrust for various props.

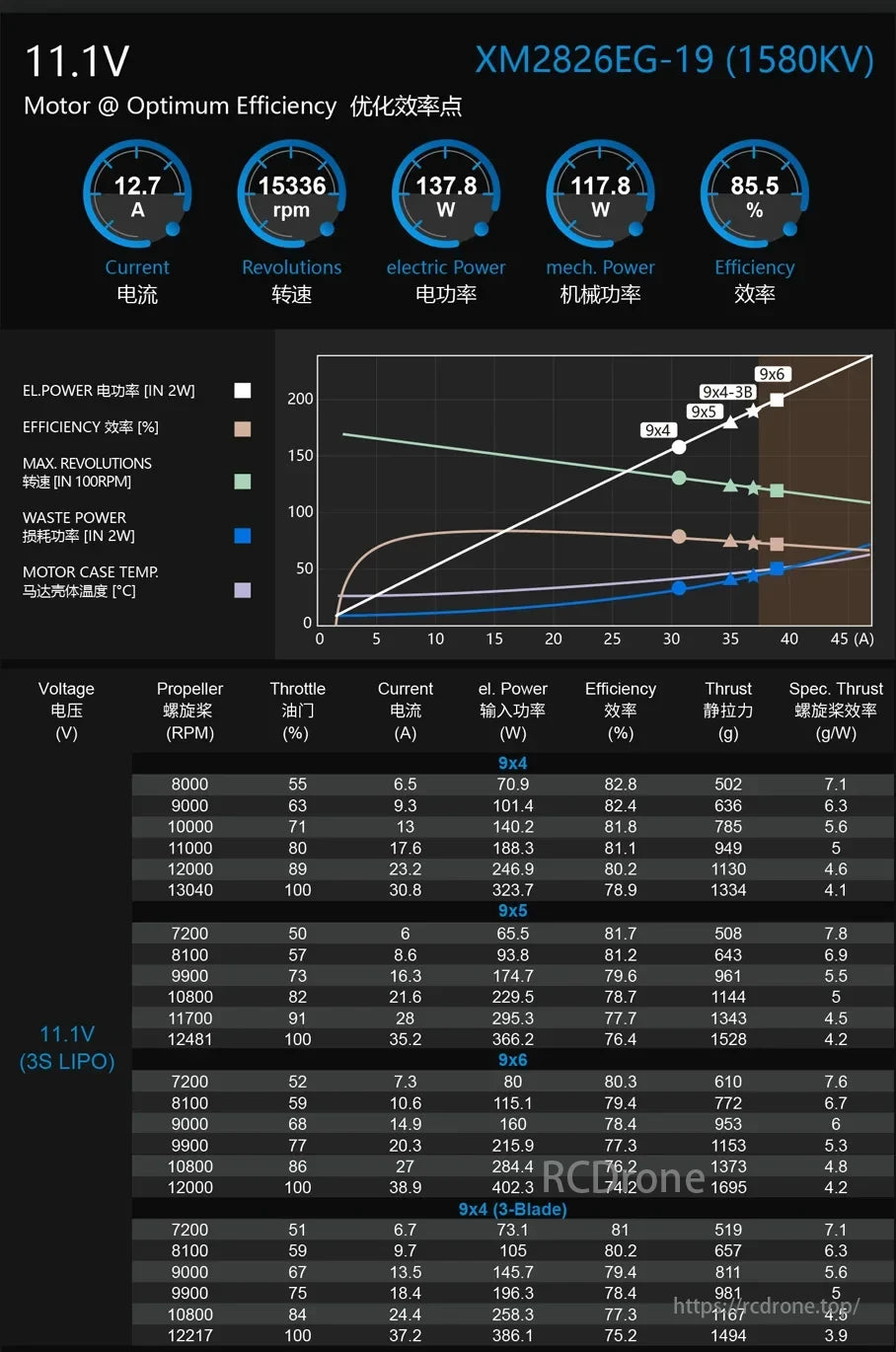

Dualsky XM28 Brushless Motor: 11.1V, 15336 RPM, 137.8W electric power, 117.8W mech. power, 85.5% efficiency. Specs cover voltage, RPM, throttle, current, power, efficiency, thrust, and specific thrust details.

Dualsky XM2826EG-19 (1580KV) motor data: 14.8V, 17.3A current, 20303 RPM, 249W electric power, 212W mech. power, 85.2% efficiency. Graphs display performance metrics like power, efficiency, and temperature across various conditions.



Dualsky XM28EG Series Brushless Outrunners for electric gliders and small fixed-wing models. Models: 2826EG & 2830EG, F5L, F5J, P5B.

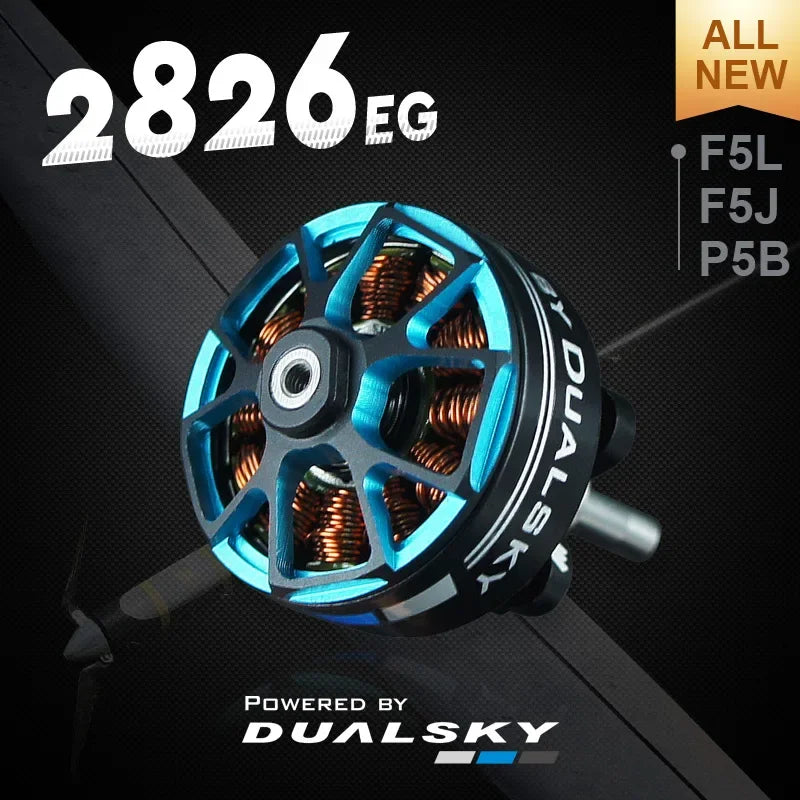

Dualsky XM28 Brushless Motor, designed for FAI F5K and F5L(eRES) models. Features high-speed rotor, 6 KV values, up to 648W power. Typhoon-based, long shaft layout, classic five-axis design with blue accents.

High-slot full-rate coils enhance power, with 5-star overload resistance. 4mm hollow shaft and large bearings ensure durability. Open front design for lightweight and cooling. Buffer ring and collapsible shaft guard improve crash survivability. Supports hard and soft prop protectors. CNC wire guide prevents friction. Recommended ESC settings: 15-degree phase, 8K-16KHz frequency.

Dualsky XM28 Brushless Motor. Premium quality, precision manufacturing. Fully inspected before delivery by Dualsky Shanghai.
