Specification:

Brand: Eachine

Item: E150

Product size (cm):

Main Rotor Diameter 350mm

Body Length 300mm

Body Height 98mm

Radio Frequency Band: 2.4GHz

Transmission Range (m): Approx. 120 meters

Helicopter weight (g): 145g

Battery: LI-POLY 11.1V(500MAH) 30C 3S 11.V 500mAh 30C Lipo Battery Charging Duration: Approx. 90 minutes

Sports flight time: Approx. 6-10 minutes

Aggressive 3D flight time:Approx. 3-4 minutes

Function Description:

1. Employs a flybarless stabilization system, powered by direct-drive brushless motor. It provides precise control, achieves stable flight, and has an optimized body structure that reduces damage sustained during crashes.

2. Rotor blades are aerodynamically designed, supports aggressive flight while maintaining stability. They are also highly efficient, allowing longer flight time. They are made of nylon and carbon fiber composite material, which give them strength, high durability, and resistant to deformation.

3. Fitted with 2507 brushless motor, which directly drives the main rotor blades to reduce vibrations while being highly energy efficient and operating at high torque. Made with special magnets that can withstand up to 150°C, which greatly lengthens the lifespan of the motor .

4. Fitted with a 1103 brushless tail motor, which can withstand high temperatures allowing it to be highly durable, while operating at high speeds, and delivering superior tail lock capability.

5.Fitted with large, durable 4.3gram metal digital servos, which have high torque, fast response (60°/0.05ms), high precision, especially accurate when returning to the neutral position. These high-performance servos give the helicopter the locked -in feel.

6.Uses 6-axis stabilization system, which is highly stable, precise in movements, especially suitable for beginners.

7.Built in 2.4GHz radio system, and supports external receivers via protocols such as , PPM or SBUS.

8.Rotor head, blade grip, swash plate, are high-precision CNC components, giving them strength and durability, while being light-weight and offering great performance.

9. Landing gear and main body frame are made of 3K carbon fiber composite material, giving the components strength yet reduces damage.

10. Modular design, allow replacing of damaged parts to be highly cost effective.

11.Standard 6-channel transmitter with LCD, supports configuration of helicopter parameters, simulator, and has optimized the gimbal sticks output to achieve precise control.

12. High performance 3S 11.1V 500mAh 30C lipo battery, supports high-current discharge while not compromising on durability. Allows 6-10 minutes of sports flight, and up to 500 charging cycles.

13.Special USB balance charger to perform balance charging of the 3S lipo battery.

14.Uses thicker than usual feathering shaft, giving it strength and durability.

Helicopter Munual: myosuploads3.banggood.com/products/20210929/202109292218431180-Rev1.0.docx

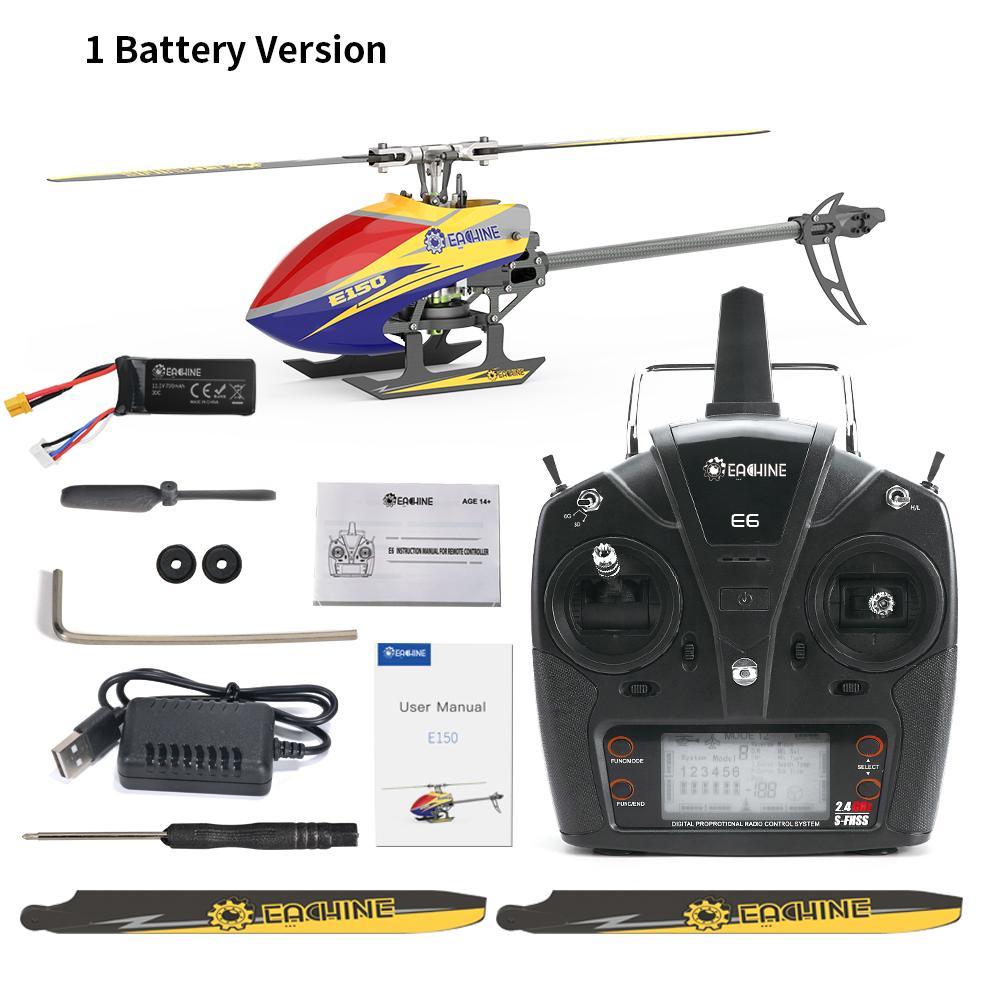

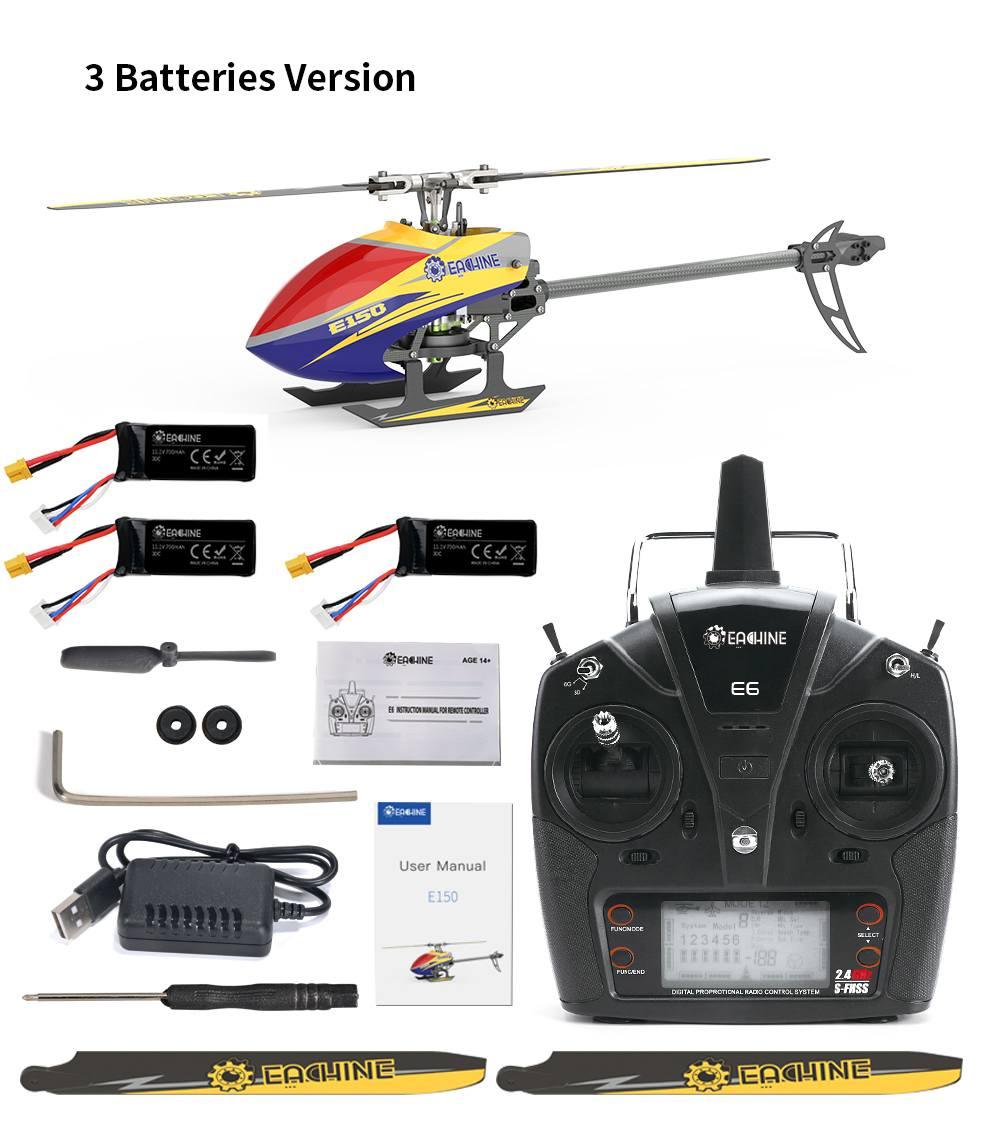

Package Included:

1 x Helicopter

1 x User Manual

1 x USB Charger

2 x Main Blades

1 x Tail Blade

1 x Remote Controler(Option)

1 or 3/4 x 3S Lipo Battery (Option)
