Overview

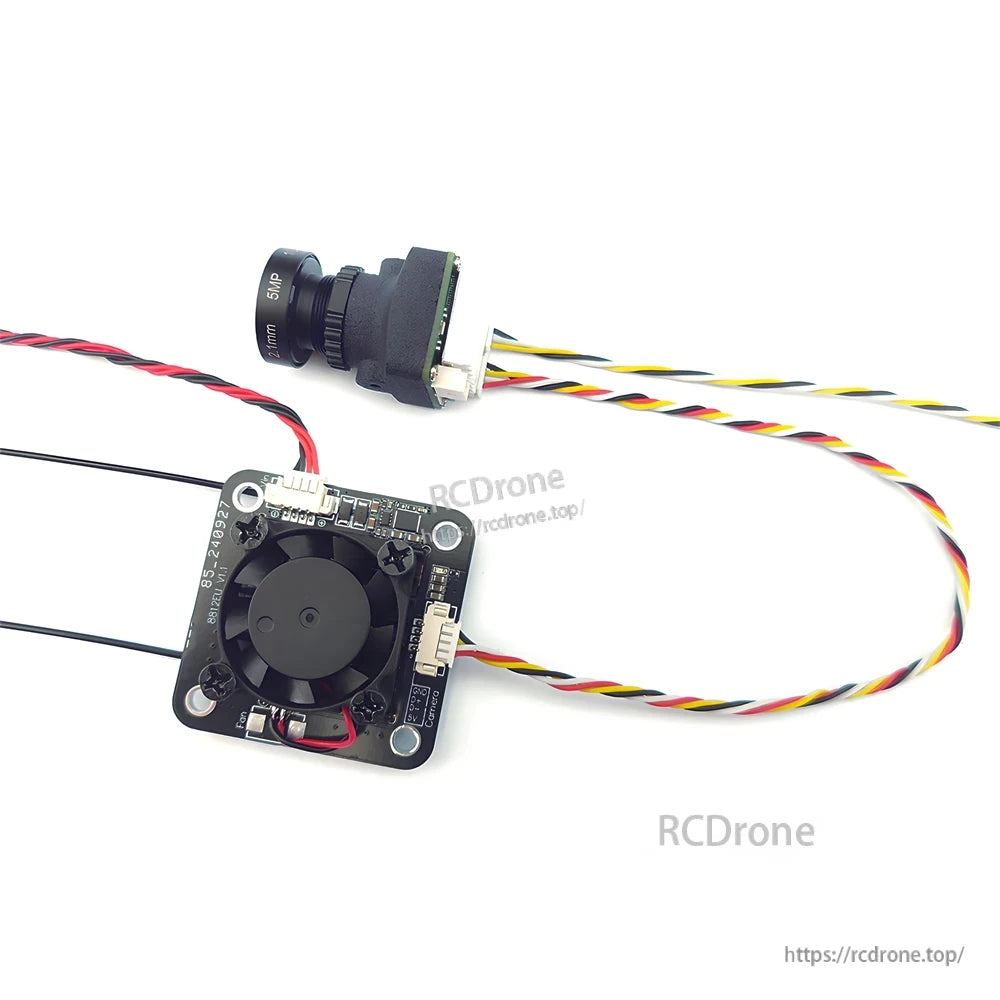

Eachine Sphere Link is an FPV Transmitter VTX with integrated IP camera designed for RC drones and airplanes. It operates on 5.8GHz WiFi digital HD, delivering up to 800mW transmission power with MAVLINK OSD protocol support. The system pairs SSC338Q + IMX415 or SSC30KQ + IMX335, and is compatible with OpenIPC and Rubyfpv.
Key Features
- 5.8GHz WiFi digital HD FPV transmitter (VTX) with 800mW power

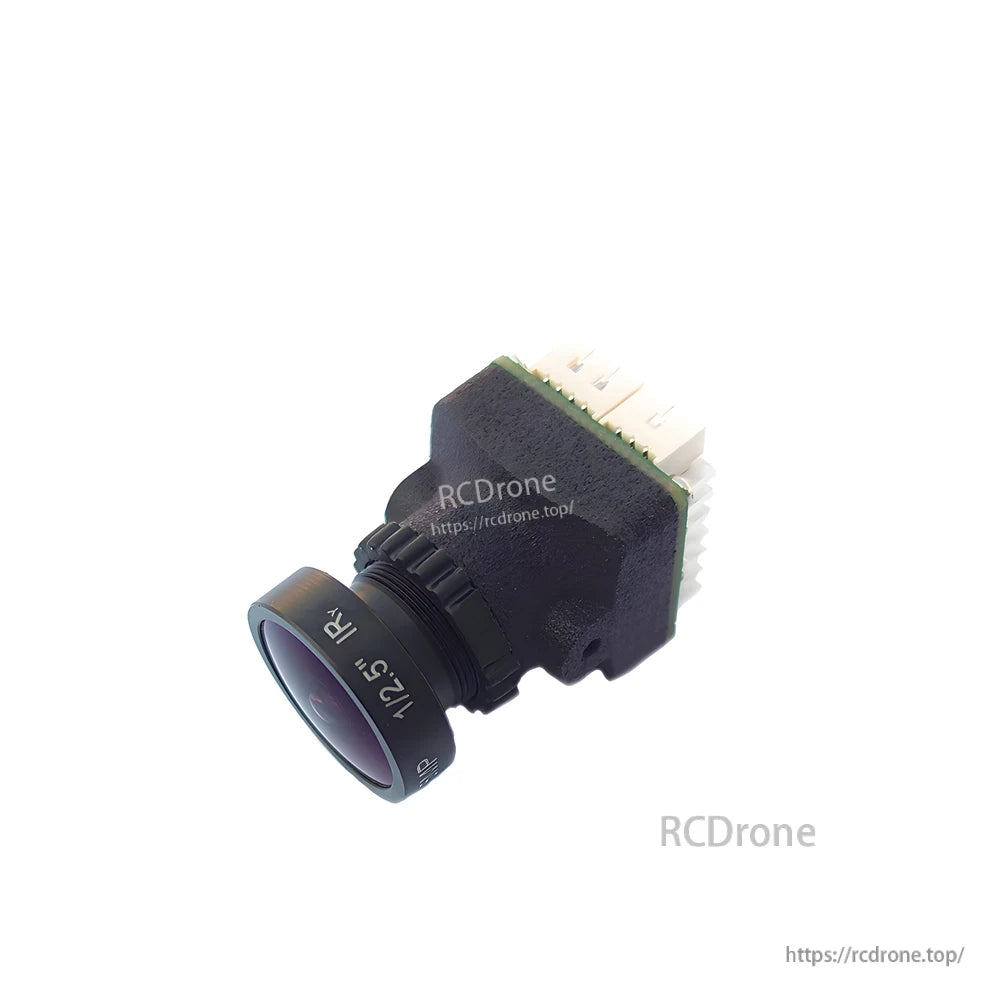

- IP camera options: IMX415 or IMX335; FOV: 140°
- Processors: SSC338Q (ARM A7 dual core) or SSC30KQ (ARM A7)
- Resolutions and frame rates: SSC338Q 1080P@90FPS / 800P@120FPS; SSC30KQ 1080P@60FPS / 720P@120FPS
- Low latency: 40–50 ms @ FPS120
- Input voltage: 7–26V (2S–6S), current: 3A Max.
- OSD Protocol: MAVLINK; compatible with OpenIPC and Rubyfpv
- Receive Adapter: RTL8812AU Adapter with Type C Connector

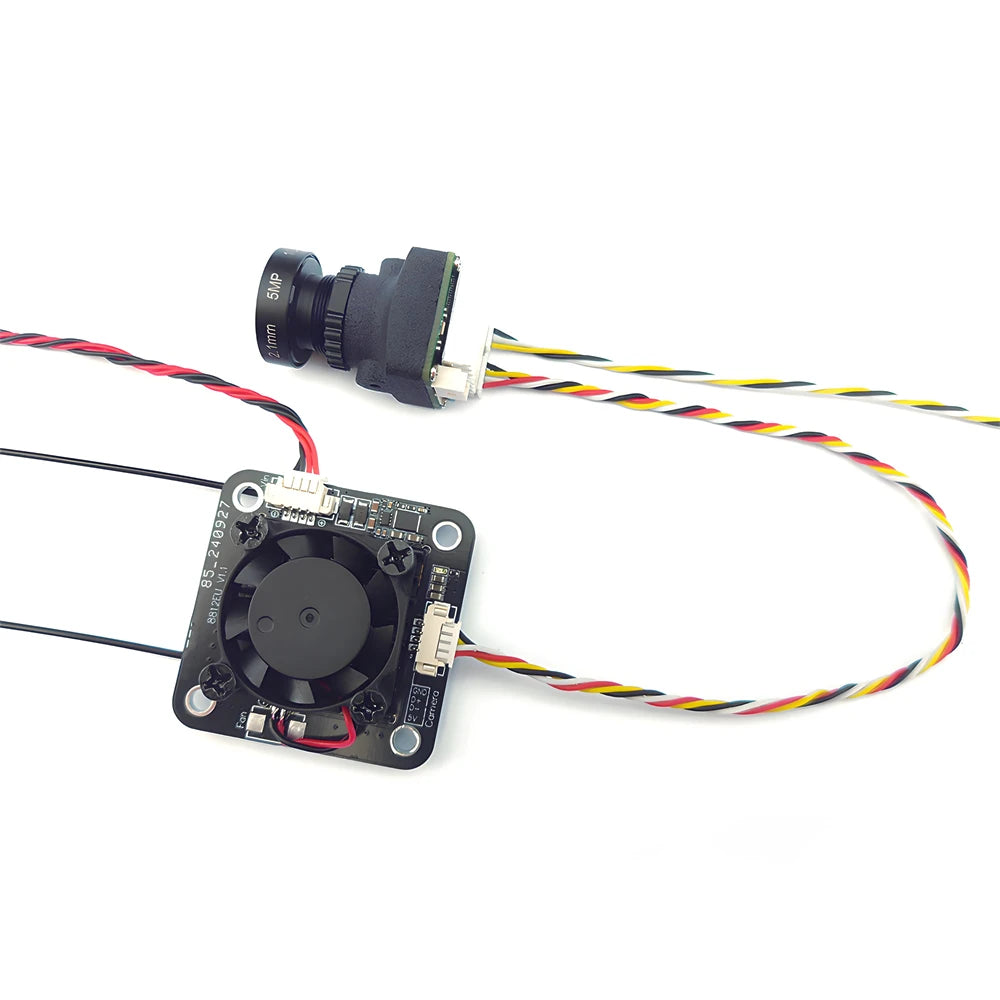

- TX board with optional cooling fan; 30.5×30.5MM mount hole pattern
Specifications
| Brand Name | EACHINE |
| Certification | CE |
| For Vehicle Type | Airplanes |
| RC Parts & Accs | Connectors/Wiring |
| Material | Plastic |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Size | as show |
| Technical parameters | KV1100 |
| Tool Supplies | Assembled class |
| Use | Vehicles & Remote Control Toys |
| Choice / semi_Choice | yes |
| High-concerned chemical | None |
| Is Batteries Included | No |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| System pairing | SSC338Q + IMX415 / SSC30KQ + IMX335 (IP Camera VTX) |
| Processor | SSC338Q (ARM A7 Dual core) / SSC30KQ (ARM A7) |
| Sensor | IMX415 or IMX335 |
| FOV | 140° |
| Resolution (SSC338Q) | 1080P@90FPS / 800P@120FPS |
| Resolution (SSC30KQ) | 1080P@60FPS / 720P@120FPS |
| Delay | 40 to 50 MS @ FPS120 |
| Input Voltage | 7–26V (2S–6S) |
| Current | 3A Max. |
| Power | 800mW |
| Weight | 33g (unit) |
| TX Board Size | 39*39*17MM (Fan include), 39*39*9 MM (Without Fan) |
| Mount Hole | 30.5*30.5MM |

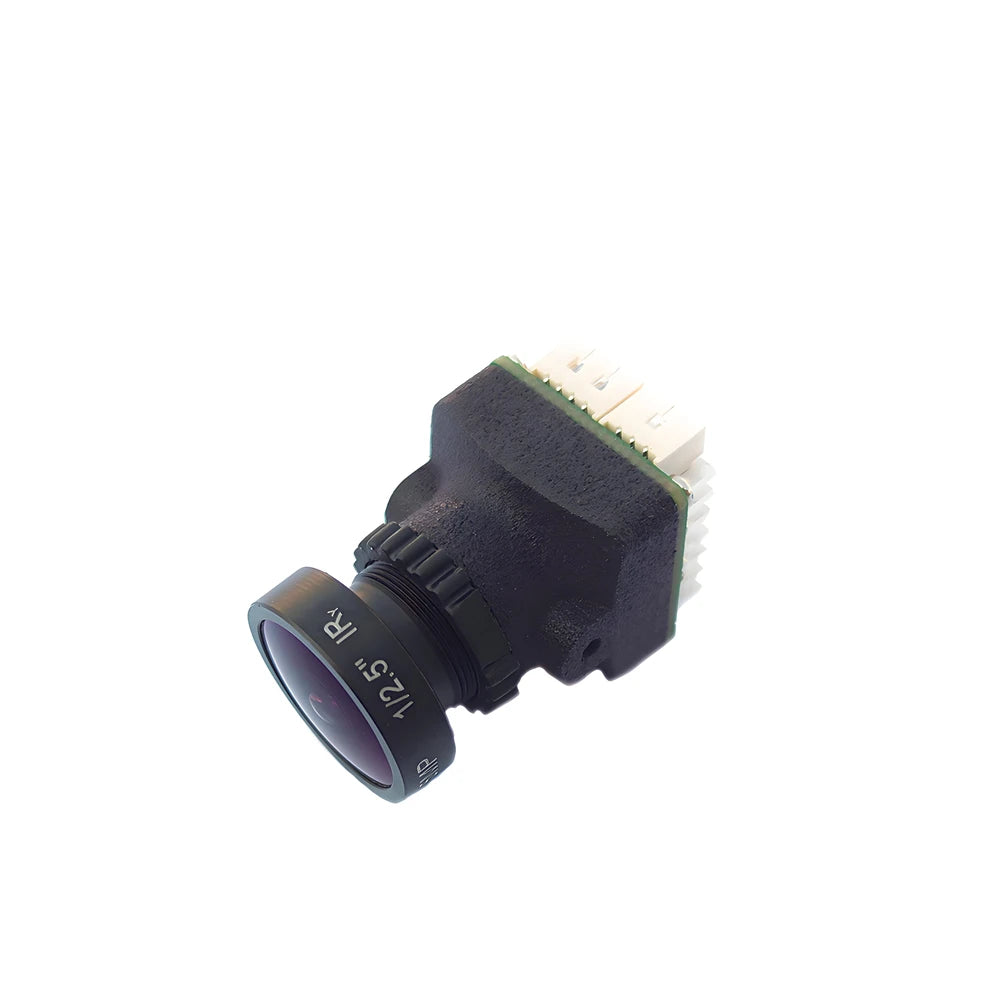

| Camera Size | 19*19*31 MM (Connecter included) / M twelve Lens Interface |
| OSD Protocol | MAVLINK |

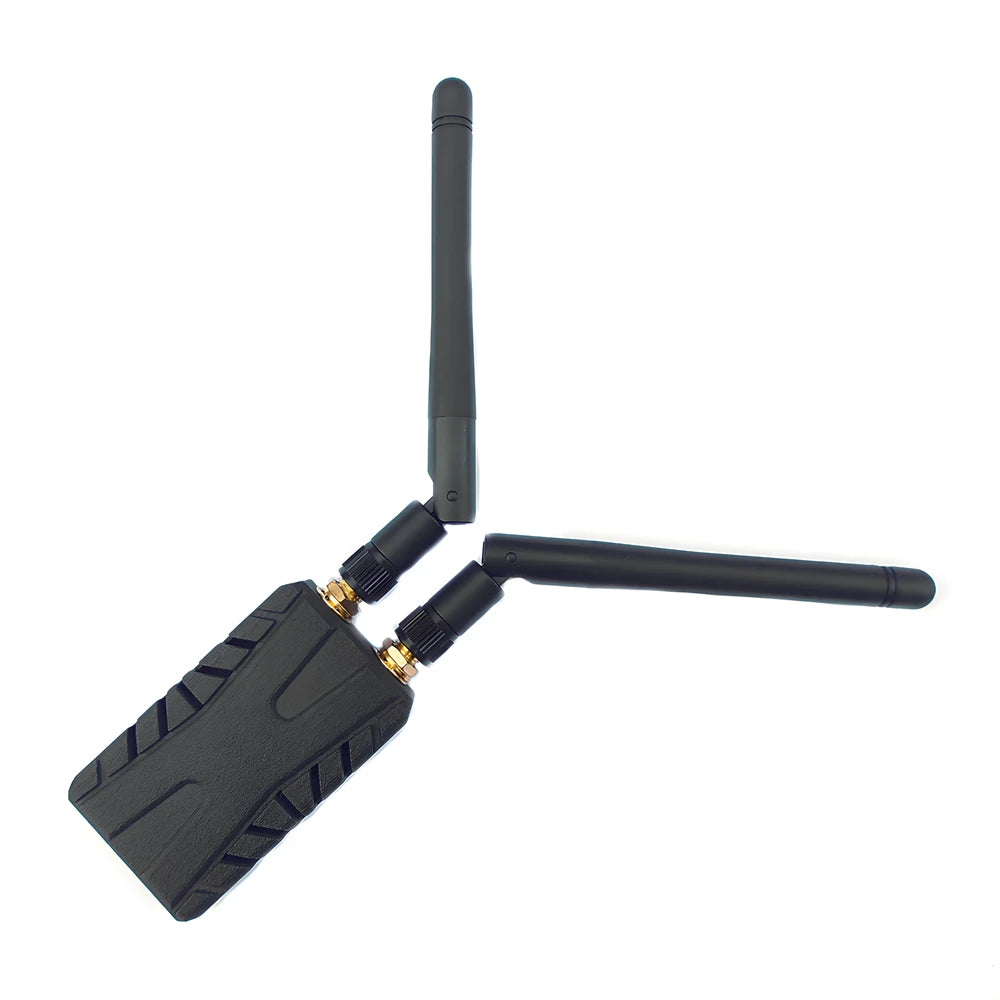

| Receive Adapter | RTL8812AU Adapter with Type C Connector |

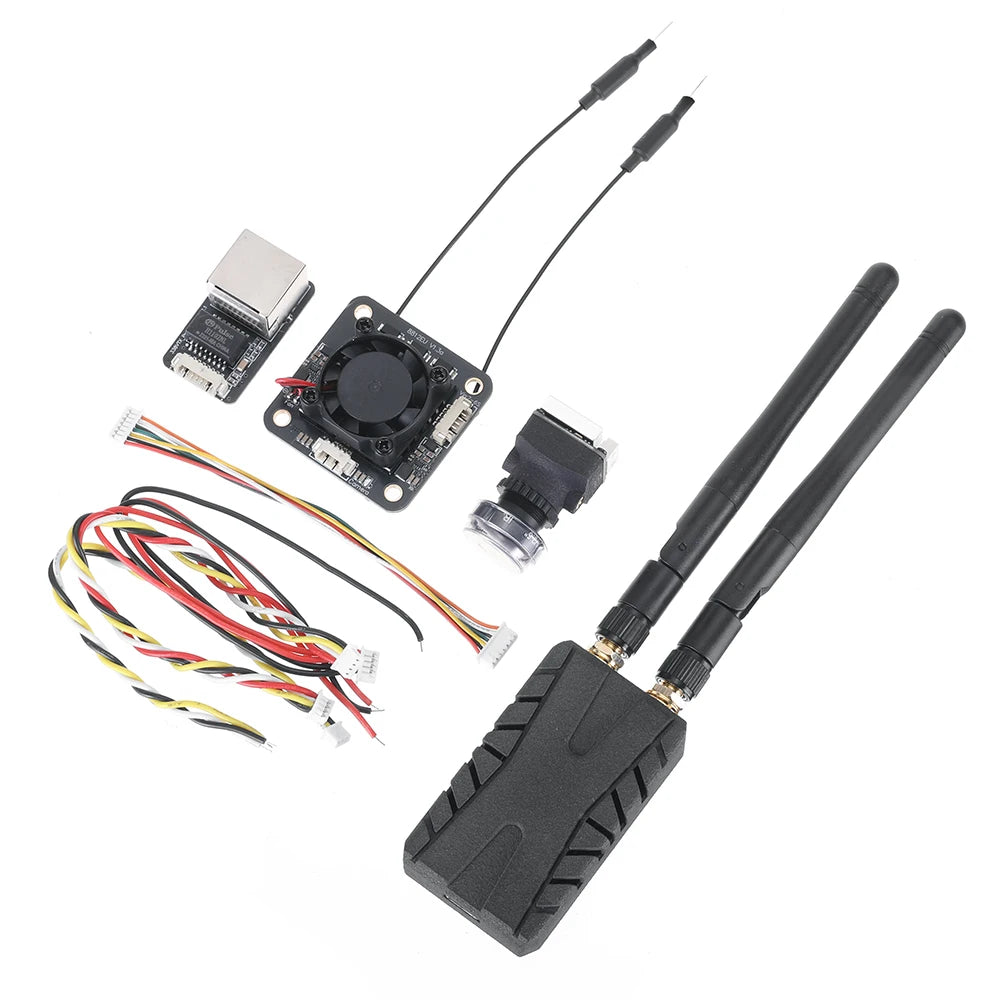

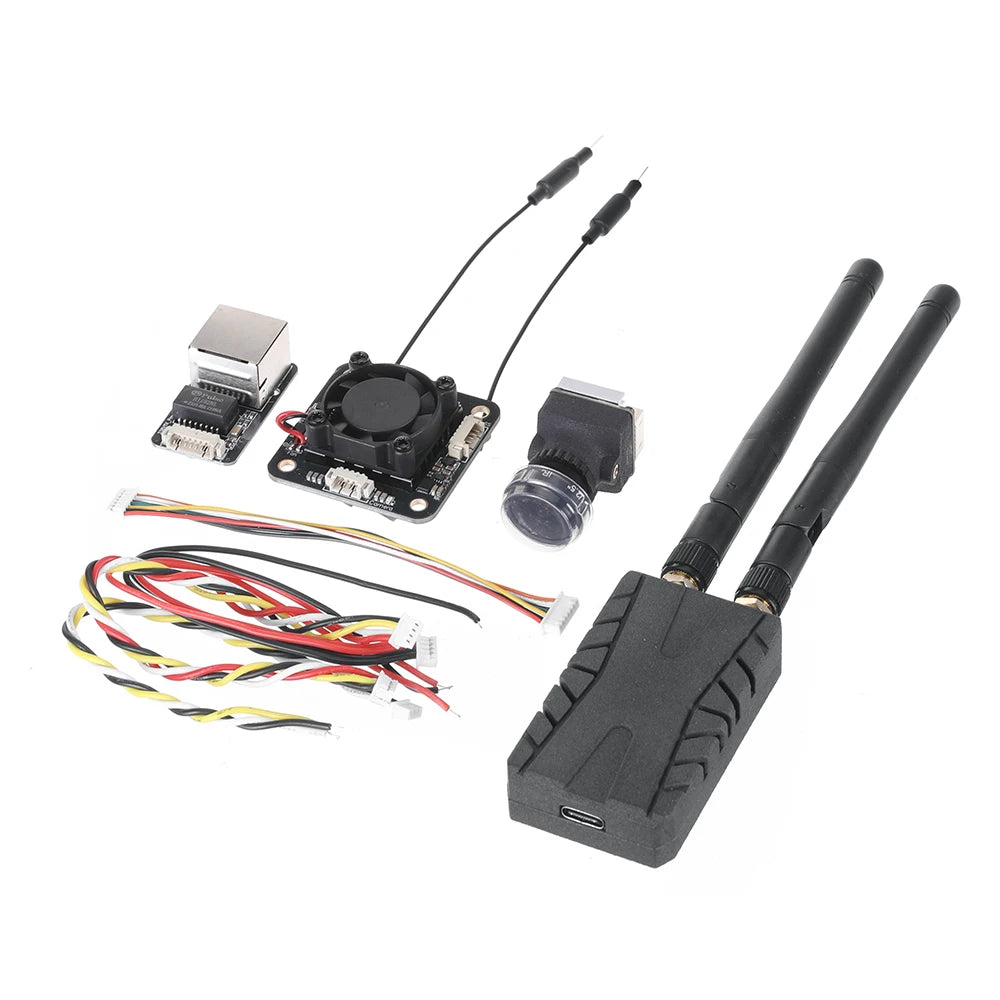

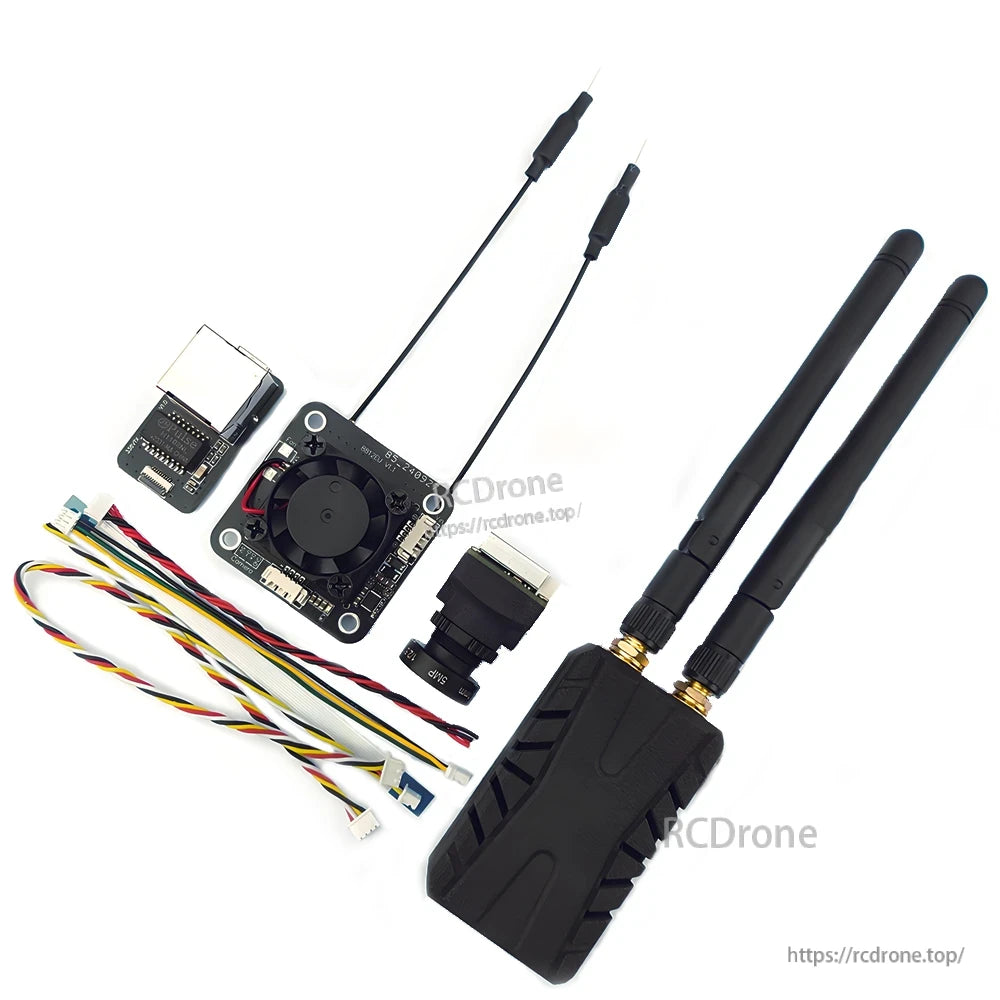

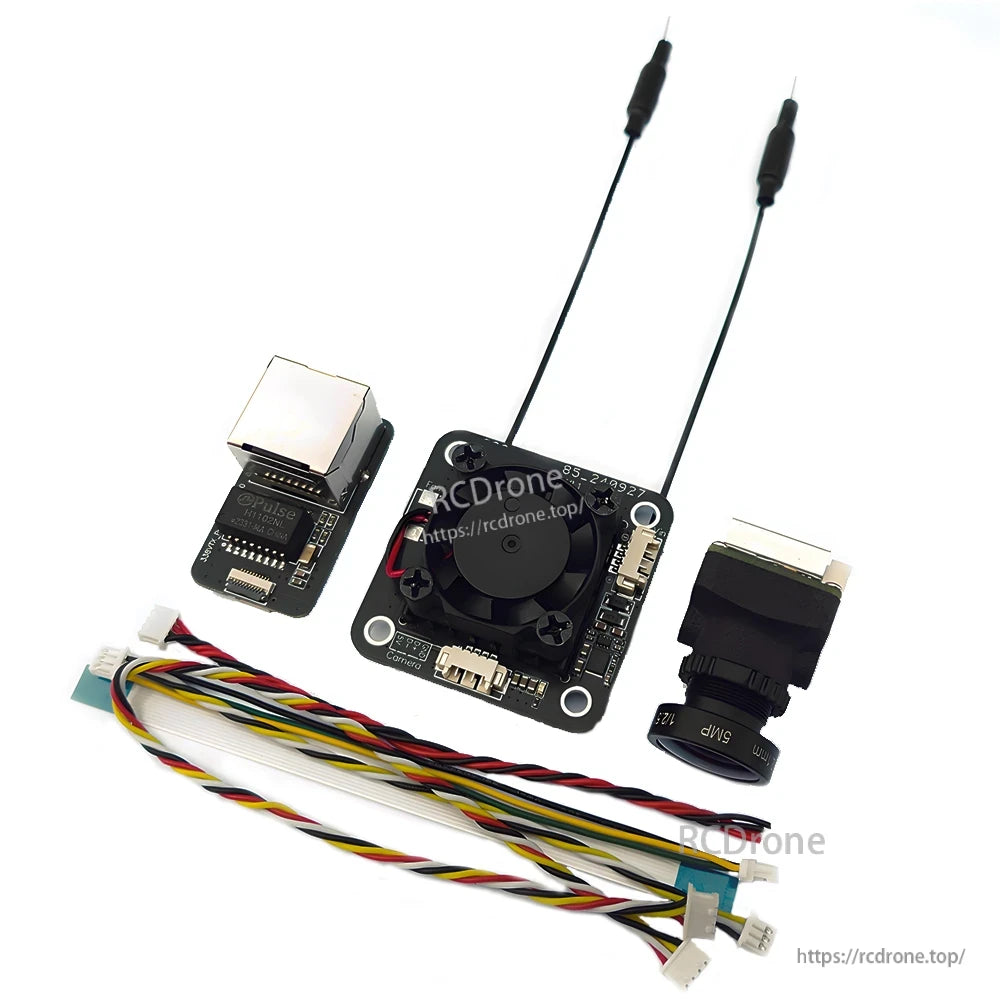

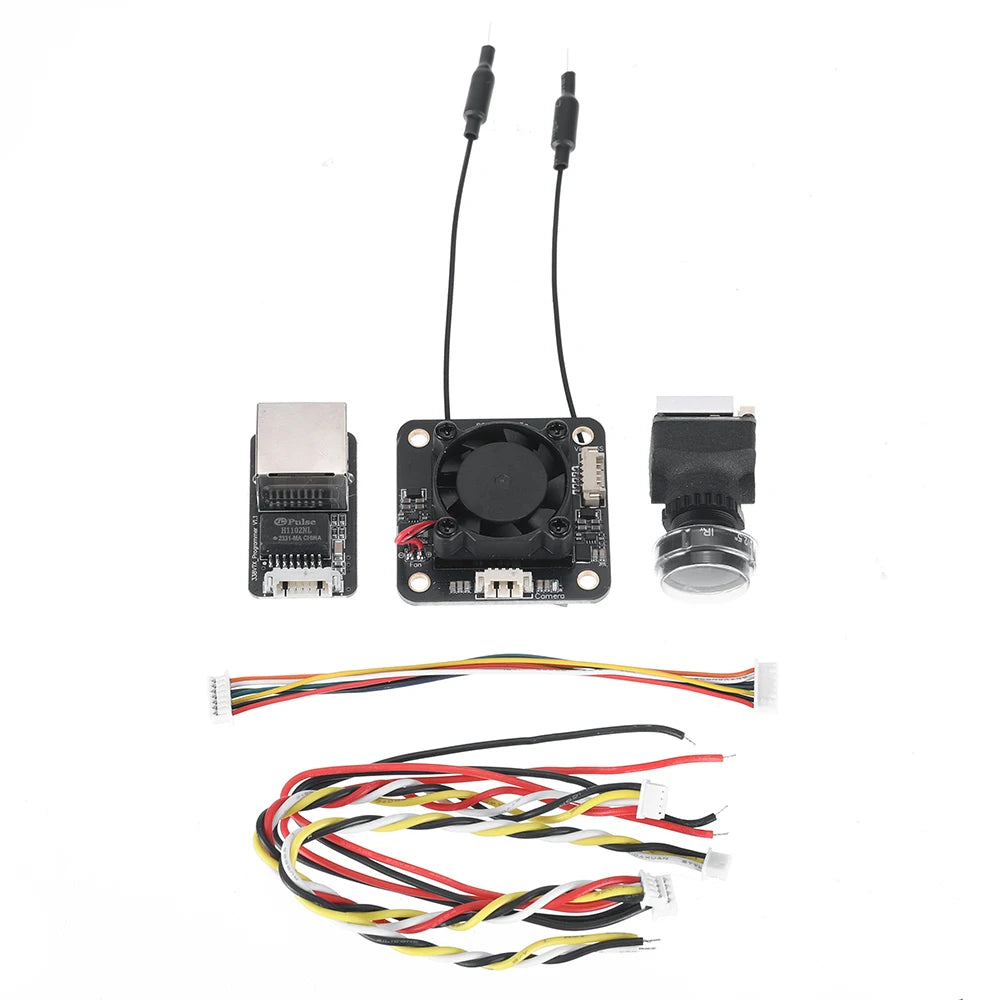

What’s Included
With Receiver Type

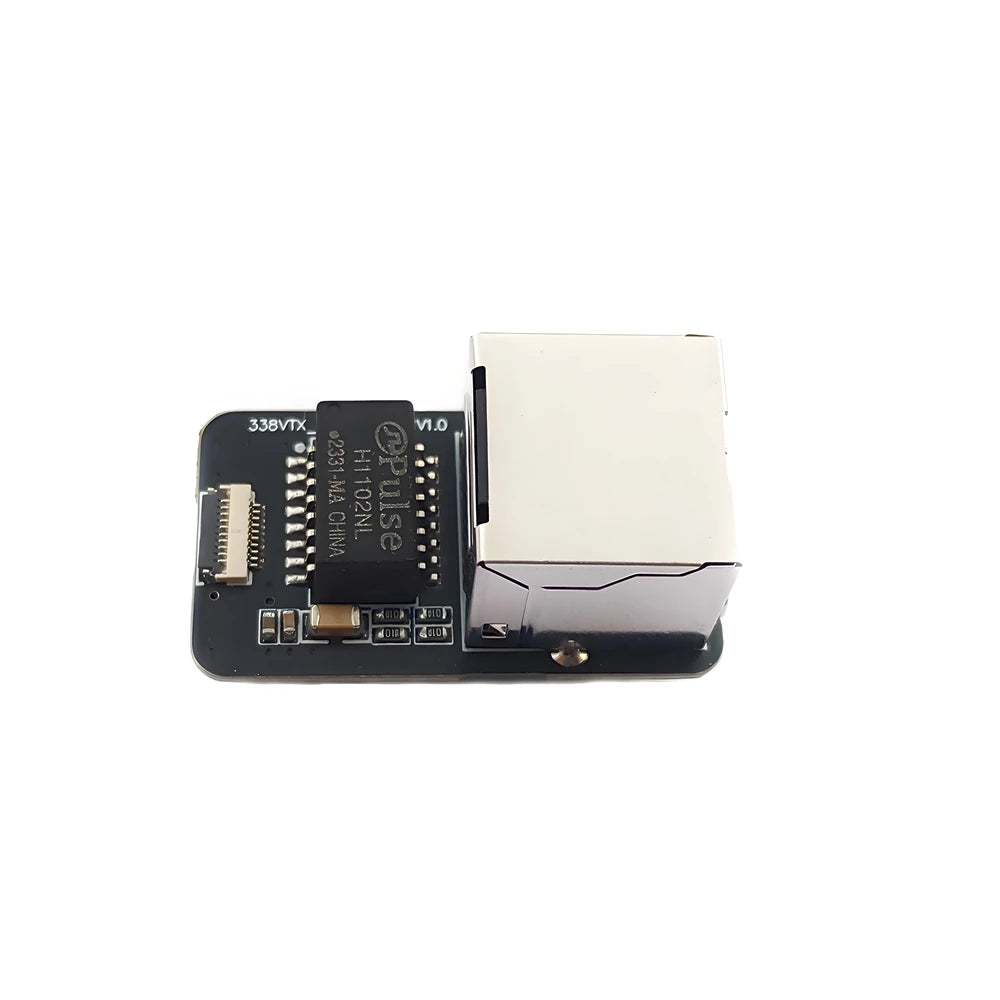

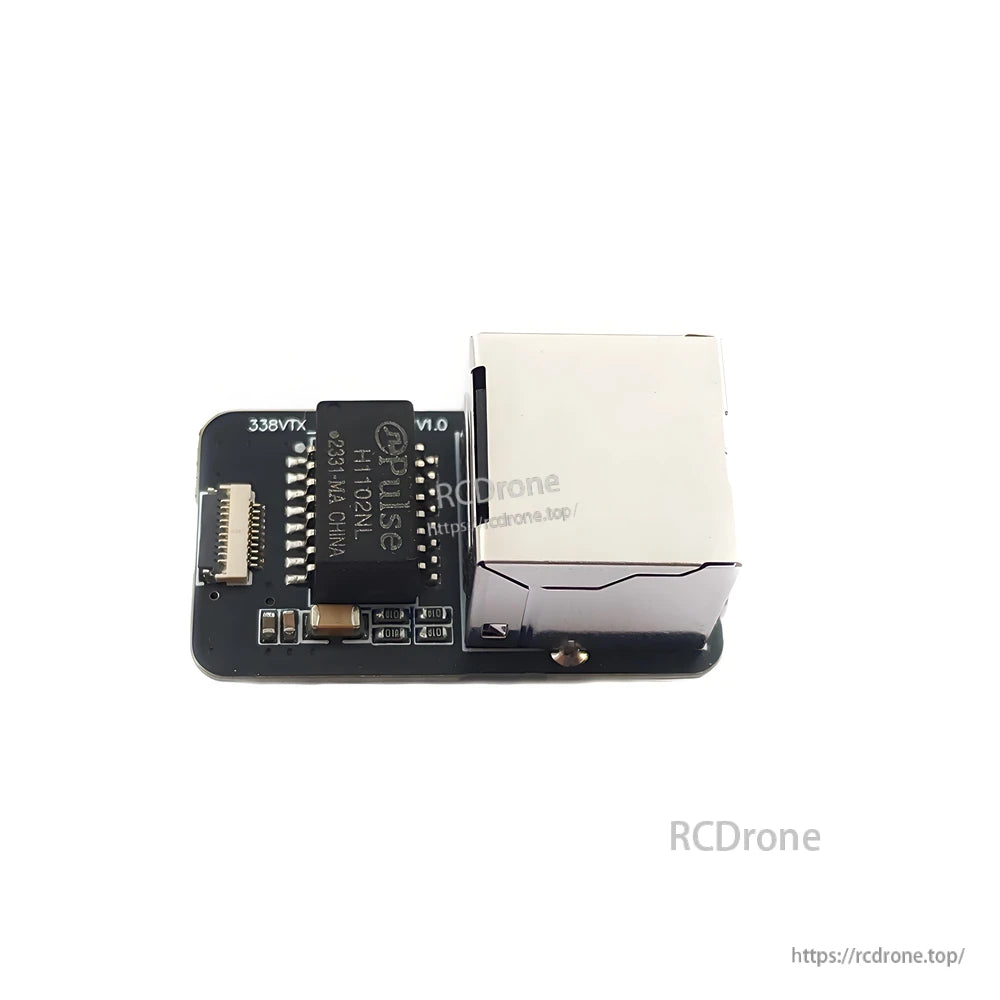

- 1x Debugger
- 1x Camera
- 1x Transmitter
- 1x Wiring Set
- 1x Receiver
Without Receiver Type
- 1x Debugger
- 1x Camera
- 1x Transmitter
- 1x Wiring Set
Applications
FPV for RC drones and airplanes requiring digital HD video transmission with MAVLINK OSD integration.

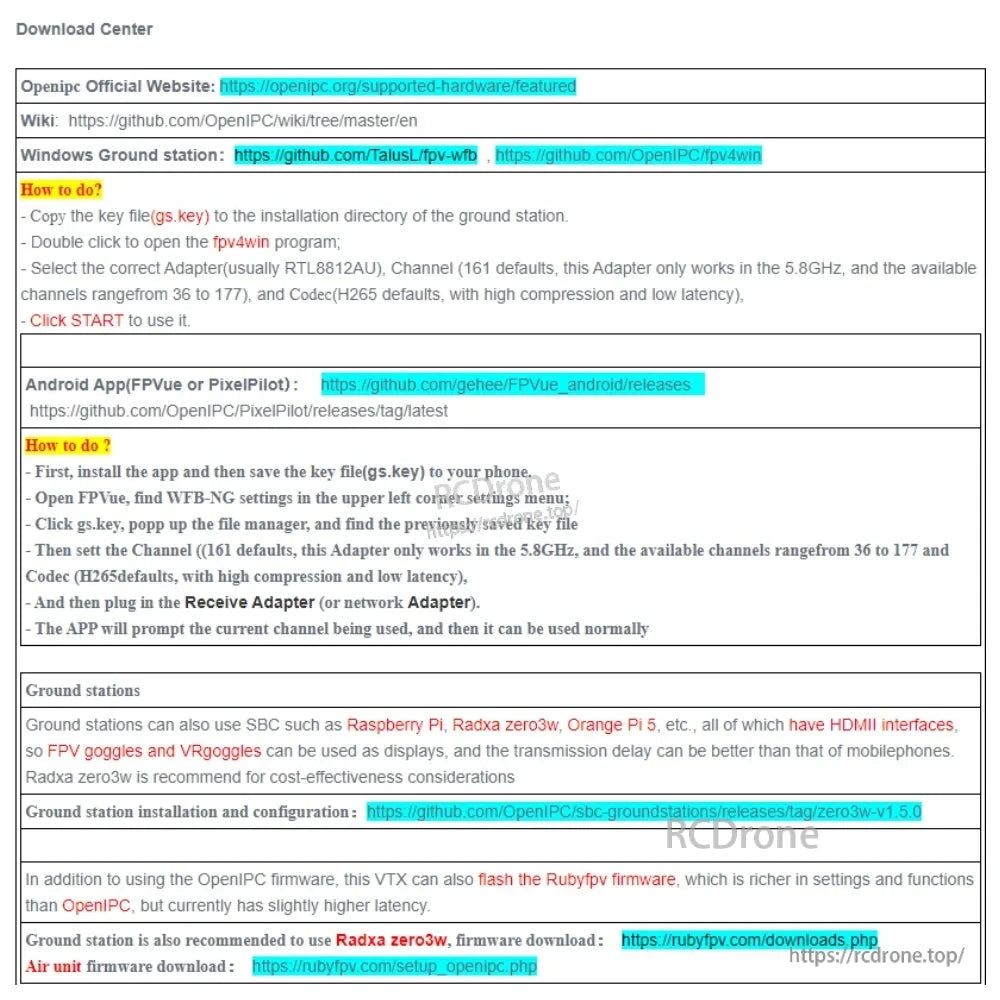

Manuals / Document Links
- OpenIPC Official Website: https://openipc.org/supported-hardware/featured
- Windows Ground station: https://github.com/TalusL/fpv-wfb , https://github.com/OpenIPC/fpv4win
- Android App (FPVue or PixelPilot): https://github.com/gehee/FPVue_android/releases , https://github.com/OpenIPC/PixelPilot/releases/tag/latest
- Ground station installation & configuration: https://github.com/OpenIPC/sbc-groundstations/releases/tag/zero3w-v1.5.0
- Rubyfpv firmware downloads: https://rubyfpv.com/downloads.php
- Air unit firmware: https://rubyfpv.com/setup_openipc.php
Details
Download Center for OpenIPC VTX, including official website, wiki, ground station links, and setup instructions for Windows and Android. Supports Raspberry Pi, Radxa zero3w, Orange Pi 5. Rubyfpv firmware option available.
