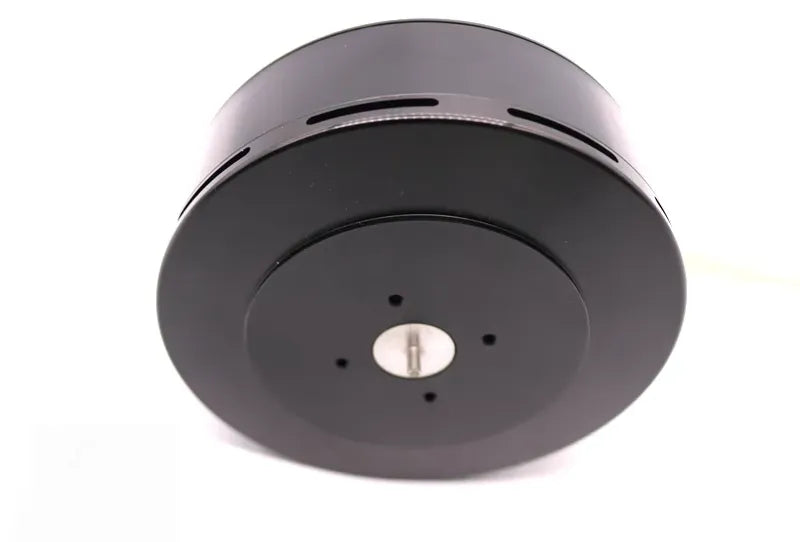

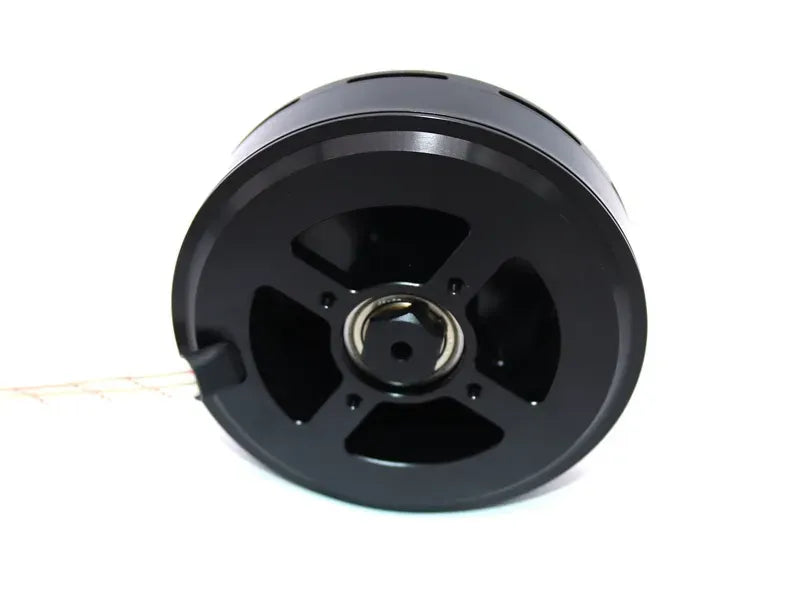

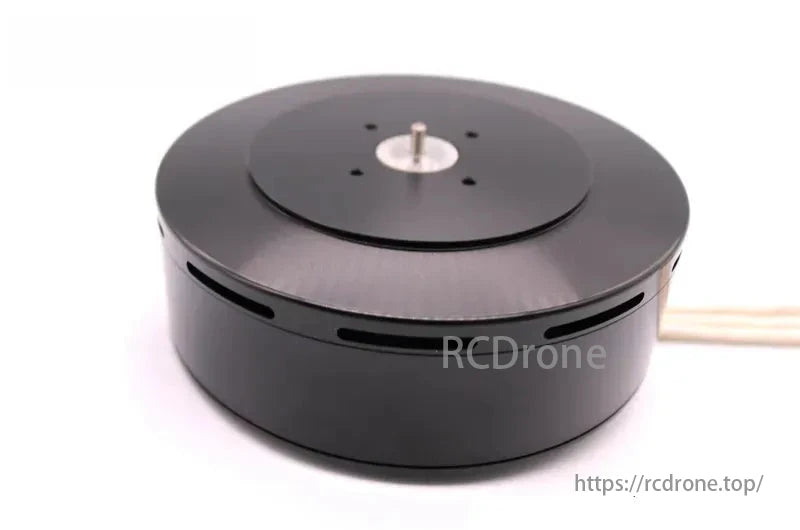

EaglePower X12 Brushless Motor - KV100 KV125 12S-14S 19KG Thrust Drone Motor for Agriculture Drone

Overview

The EaglePower X12 is a high-performance waterproof brushless drone motor designed for agricultural drones requiring heavy payload capacity and reliable endurance. With a maximum thrust of up to 18960g, it operates on 12S to 14S LiPo batteries, delivering exceptional efficiency and stability for crop spraying, mapping, and inspection missions.

Available in two KV options: KV100 and KV125, the motor supports 36N42P stator design, features a robust all-metal body, and weighs only 776g. It's compatible with multiple high-efficiency propellers like UP3390, UP36120, and UP34128, making it ideal for drone models requiring thrust in the 6.5kg to 8.5kg take-off range per motor.

---

Key Features

• High Thrust Output: Up to 18960g max thrust (KV125) and 18410g (KV100) with 12S LiPo.

• Efficient Power Consumption: Peak power reaches 3801W (KV125) with high efficiency.

• Dual Propeller Compatibility: Supports propellers like UP3390 / UP36120 / UP34128.

• Waterproof & Durable: Designed for outdoor agricultural environments.

• Stable Performance: Ideal torque and low internal resistance: 28.5mΩ (KV125), 33.2mΩ (KV100).

• Multi-purpose: Suitable for DJI M12 alternatives and heavy-lift drones.

---

Technical Specifications

---

Thrust Test Performance (12S Battery)

KV125 + UP3390 Propeller

• Max Thrust: 18960g @ 3950RPM, 78.5A

• Peak Power: 3801.82W

• Max Torque: 9.1917 N·m

• Efficiency peak: 18.2611 g/W @ 1100 RPM

KV100 + UP36120 Propeller

• Max Thrust: 18410g @ 3462RPM, 75.61A

• Peak Power: 3659.524W

• Max Torque: 10.0949 N·m

• Efficiency peak: 14.9260 g/W @ 1196 RPM

More test data available with UP34128 and UP3390 for both KV ratings for fine-tuned applications.

---

Mechanical Diagram

• Motor Diameter: Φ108mm

• Height: 40mm

• Stator Hole: 4 × M4 @ Φ40mm

• Rotor Hole: 4 × M3 @ Φ31mm

• Central Shaft: Φ15mm

---

Compatible Applications

Perfect for:

• Agricultural spraying drones (DJI T30/T40-class alternatives)

• Autonomous mapping drones

• Industrial monitoring UAVs

• Heavy-lift multi-rotors (payload 6.5–8.5kg per motor)

---

Included Options (As per Listing)

• X12 KV100 Brushless Motor

• X12 KV125 Brushless Motor

• Matching ESC: EP120A

• Compatible Propellers: UP34128 / UP36120 / UP3390

E-POWER X12 specifications include two models: KV125 and KV100. Both have a 36N42P configuration, 108*40 mm size, and weigh 776 g. They support 12S-14S batteries. KV125 has higher current, power, and thrust ratings compared to KV100, with differences in internal resistance and mounting hole sizes.

X12 KV125 test parameters include load tests with a 12S lithium battery and UP3390/UP34128 propellers. Data covers pulling force, current, RPM, power, efficiency, torque, and takeoff weight for various motor loads up to 18960g and 18500g respectively.

X12 KV100 test parameters include load tests with two propellers: UP34128 and UP36120. Data covers motor type, battery, pulling force, current, RPM, power, efficiency, torque, and takeoff weight for various loads up to 18410g. Results show performance metrics under different conditions.
